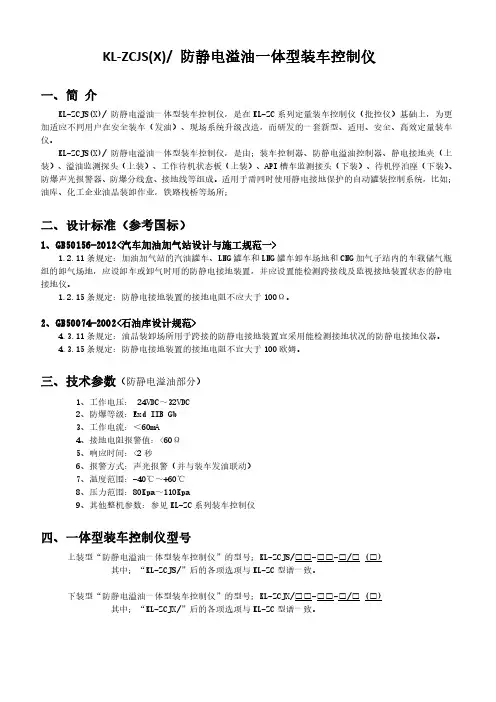

KL-ZCJS(X)/防静电溢油一体型装车控制仪一、简介KL-ZCJS(X)/防静电溢油一体型装车控制仪，是在KL-ZC系列定量装车控制仪（批控仪）基础上，为更加适应不同用户在安全装车（发油）、现场系统升级改造，而研发的一套新型、适用、安全、高效定量装车仪。

KL-ZCJS(X)/防静电溢油一体型装车控制仪，是由；装车控制器、防静电溢油控制器、静电接地夹（上装）、溢油监测探头（上装）、工作待机状态板（上装）、API槽车监测接头（下装）、待机停泊座（下装）、防爆声光报警器、防爆分线盒、接地线等组成。

适用于需同时使用静电接地保护的自动罐装控制系统，比如；油库、化工企业油品装卸作业，铁路栈桥等场所；二、设计标准（参考国标）1、GB50156-2012<汽车加油加气站设计与施工规范一>1.2.11条规定：加油加气站的汽油罐车、LNG罐车和LNG罐车卸车场地和CNG加气子站内的车载储气瓶组的卸气场地，应设卸车或卸气时用的防静电接地装置，并应设置能检测跨接线及监视接地装置状态的静电接地仪。

1.2.15条规定：防静电接地装置的接地电阻不应大于100Ω。

2、GB50074-2002<石油库设计规范>4.3.11条规定：油品装卸场所用于跨接的防静电接地装置宜采用能检测接地状况的防静电接地仪器。

4.3.15条规定：防静电接地装置的接地电阻不宜大于100欧姆。

三、技术参数（防静电溢油部分）1、工作电压：24VDC～32VDC2、防爆等级：Exd IIB Gb3、工作电流：＜60mA4、接地电阻报警值：<60Ω5、响应时间：<2秒6、报警方式：声光报警（并与装车发油联动）7、温度范围：-40℃～+60℃8、压力范围：80Kpa～110Kpa9、其他整机参数：参见KL-ZC系列装车控制仪四、一体型装车控制仪型号上装型“防静电溢油一体型装车控制仪”的型号；KL-ZCJS/□□-□□-□/□(□)其中；“KL-ZCJS/”后的各项选项与KL-ZC型谱一致。
