HP BladeSystem Matrix解决方案中国惠普有限公司2018年9月18日重要保密说明本建议书中所包含的内容是中国惠普有限公司及其合作伙伴应用相关产品和技术的专有信息。
这些信息不应该被扩散到客户以外，客户除了作为内部评估使用，同样也不应该复制、使用和扩散本建议书。
如果根据本方案书中的内容，中国惠普有限公司及其合作伙伴最终获得了双方签订的合作协议，客户将有权复制、使用和扩散双方签署的合作协议中所规定的内容和信息。
这种保密要求并不限制甲方使用从没有限制的其他途径中得到的本建议书中用到的信息。
Important confidentiality noticeThe information (data) contained on all sheets of this document/quotation constitutes confidential information of Hewlett-Packard Company (hereinafter “HP”) and is p rovided for evaluation purposes only. In consideration of receipt of this document, the recipient agrees to maintain such information in confidence and to not reproduce or otherwise disclose this information to any person outside the group directly responsible for evaluation of its contents, unless otherwise authorized by HP in writing. There is no obligation to maintain the confidentiality of any such information which was known to recipient without restriction prior to receipt of this document as evidenced by written business records; which becomes publicly known through no fault of recipient; or which is rightfully received by recipient from a third party without restriction.This document includes information about current HP products, sales, and service programs that may be enhanced or discontinued at HP's sole discretion. HP has endeavored to include in this document the materials that are believed to be reliable and relevant for the purpose of recipient's evaluation. Neither HP nor its representatives make any warranties as to the accuracy or completeness of the information. Accordingly, this document is provided for information purposes only in the hope that HP may be considered to receive your business. Neither HP nor its representatives shall have any liability to recipient or any of its representatives as a result of the use of the information provided. Only a mutually agreed-upon written definitive agreement, signed by the authorized representatives of the parties, shall be binding on HP or its affiliates.The term “solution” in the context of this proposal is defined as the products and services proposed herein. Since additional information may be required from Fairchild Semiconductor in order to develop the appropriate configuration for Fairchild Semiconductor’s project, the term “solution” does not imply that those products or services as proposed are guaranteed to, or will, meet Fairchild Semiconductor’s requirements.The use of the terms “partner” or “partnership” in this proposal does not imply a formal, legal, or contractual partnership, but rather a mutually beneficial relationship arising from the teamwork between the parties.Unless otherwise agreed in writing, pricing estimates are valid for 30 days from date of submission of this proposal.Hewlett-Packard's proposal is submitted via electronic format and hard copy for your convenience. If the content differs between the hard copy and soft copy, ONLY the content of the hard copy will be binding on Hewlett-Packard.HP may require that orders, invoices, and payments remain in the name of our local Compaq affiliate in countries where merger formalities are not yet complete.If there are any concerns, questions, or issues regarding this Confidentiality Notice, please contact your sales representative.目录重要保密说明 (i)1. HP BladeSystem Matrix概述 (1)2. HP BladeSystem Matrix的关键特性与优势 (3)2.1.快速有序地交付服务 (3)2.2.充分利用现有投资，降低未来成本 (3)2.3.部署一个一次连线、易于扩展的基础设施 (4)3. HP BladeSystem Matrix的功能 (5)3.1.即时调整适应动态业务需求 (5)3.2.改造数据中心的经济效率 (7)3.3.灵活的共享服务架构 (8)3.4.统一的控制 (10)4. HP BladeSystem Matrix销售套件 (11)4.1.起步套件-Starter Kit SKU (11)4.2.扩展套件-Expansion kit (14)5. HP BladeSystem Matrix 一体化实施服务 (15)6. HP BladeSystem Matrix理想的使用环境 (16)6.1.专注于优化、持续整合的数据中心 (16)6.2.实施内部云托管或共享服务模式的数据中心 (16)6.3.外包服务提供商 (16)1.HP BladeSystem Matrix概述HP BladeSystem Matrix是一款即插即用的适应性基础设施，可统一所有物理和虚拟工具、流程及架构，帮助您快速有序地交付服务，充分利用现有投资，并降低未来成本。

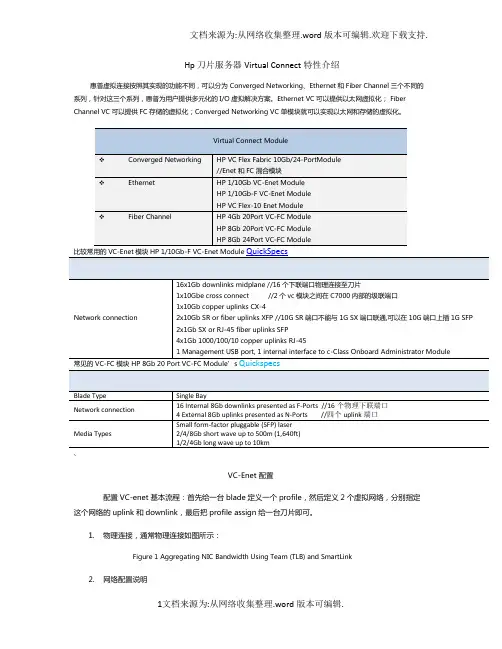

Hp 刀片服务器Virtual Connect特性介绍惠普虚拟连接按照其实现的功能不同，可以分为 Converged Networking、Ethernet和Fiber Channel三个不同的系列，针对这三个系列，惠普为用户提供多元化的I/O虚拟解决方案。
Ethernet VC可以提供以太网虚拟化； Fiber Channel VC可以提供FC存储的虚拟化；Converged Networking VC 单模块就可以实现以太网和存储的虚拟化。
VC-Enet 配置配置VC-enet基本流程：首先给一台blade定义一个profile，然后定义2个虚拟网络，分别指定这个网络的uplink 和downlink，最后把profile assign给一台刀片即可。
1.物理连接，通常物理连接如图所示：Figure 1 Aggregating NIC Bandwidth Using Team (TLB) and SmartLink2.网络配置说明a.Server NIC1 和NIC2之间做APA(Fail over), windows主机做Team 。
b.VC与客户交换机之间链路做trunk （cisco叫port channel）,VC-Enet模块无需配置LACP协议,VC模块自动提供LACP功能。
c.配置 net1,net2 为smart link(等同于上层端口检测)，如果uplink连接失效，vc会自动断开downlink连接，从而保证APA可以failover至另一网卡。
详细配置及fail over说明见58页VC-Enet_cook_book。
3.初始化VC配置过程a.初始化C7000，在液晶面板给C7000 OA一个配一个IP,然后通过网络管理OA,OA初始用户名密码在OA模块的标签上。
VC在安装到Bladesystem机箱中之后，需要给VC配置一个管理IP地址，才可以使用VCM 去管理VC-Ethernet和VC-FC模块。

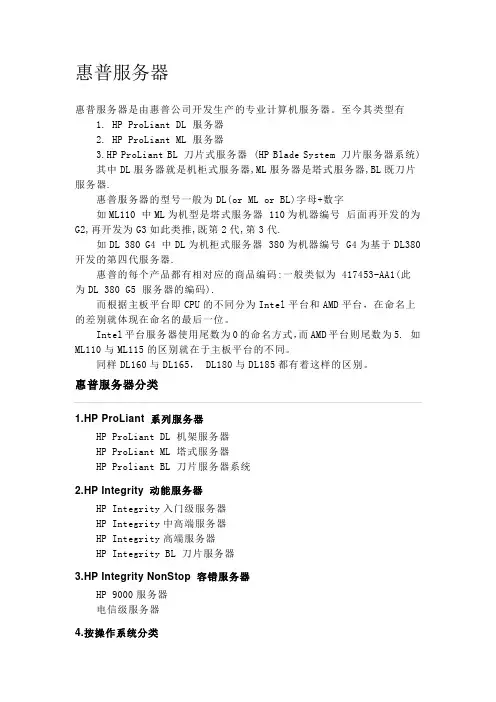

惠普服务器惠普服务器是由惠普公司开发生产的专业计算机服务器。
至今其类型有1. HP ProLiant DL 服务器2. HP ProLiant ML 服务器3.HP ProLiant BL 刀片式服务器 (HP Blade System 刀片服务器系统)其中DL服务器就是机柜式服务器,ML服务器是塔式服务器,BL既刀片服务器.惠普服务器的型号一般为DL(or ML or BL)字母+数字如ML110 中ML为机型是塔式服务器 110为机器编号后面再开发的为G2,再开发为G3如此类推,既第2代,第3代.如DL 380 G4 中DL为机柜式服务器 380为机器编号 G4为基于DL380开发的第四代服务器.惠普的每个产品都有相对应的商品编码:一般类似为 417453-AA1(此为DL 380 G5 服务器的编码).而根据主板平台即CPU的不同分为Intel平台和AMD平台，在命名上的差别就体现在命名的最后一位。
Intel平台服务器使用尾数为0的命名方式，而AMD平台则尾数为5. 如ML110与ML115的区别就在于主板平台的不同。
同样DL160与DL165， DL180与DL185都有着这样的区别。
惠普服务器分类1.HP ProLiant 系列服务器HP ProLiant DL 机架服务器HP ProLiant ML 塔式服务器HP Proliant BL 刀片服务器系统2.HP Integrity 动能服务器HP Integrity入门级服务器HP Integrity中高端服务器HP Integrity高端服务器HP Integrity BL 刀片服务器3.HP Integrity NonStop 容错服务器HP 9000服务器电信级服务器4.按操作系统分类HP-UX 11iWindows;LinuxOpenVMSNonStop OSTru64 UNIX5.按处理器类型分类x86Intel; Itanium; 2PA-RISCAlpha。
