MOS管参数详解及驱动电阻选择精编版MOS管是一种常用的功率开关器件，广泛应用于电子电路和电源系统中。
了解MOS管的参数以及正确选择驱动电阻对于设计可靠和高性能的电路至关重要。
1.MOS管的参数：(1) 阈值电压（Vth）：指的是MOS管开始导通的电压。
当输入信号大于或等于阈值电压时，MOS管开始导通，并且通常被认为是完全导通。
阈值电压的选择应该根据具体的应用需求来确定。
(2) 最大漏极电压（Vdsmax）：指的是MOS管能够承受的最大漏极电压。
超过这个电压，MOS管可能会被击穿并损坏。
(3) 最大漏极电流（Idmax）：指的是MOS管能够承受的最大漏极电流。
超过这个电流，MOS管可能会过热并损坏。
(4) 输入电容（Ciss）：指的是MOS管的输入电容，它决定了MOS管对输入信号的响应速度。
输入电容越大，响应速度越慢。
(5) 开关时间（ton和toff）：指的是MOS管从导通到关断和从关断到导通的时间。
开关时间越短，电路的开关频率越高。
(6) 导通电阻（Rdson）：指的是MOS管在导通状态下的电阻。
导通电阻越小，MOS管的功耗越低。
2.驱动电阻的选择：驱动电阻的选择对于提高MOS管的性能至关重要。
(1)驱动电阻的值应该足够小，以确保能够快速充放电驱动MOS管。
通常来说，驱动电阻的值应该远小于MOS管的输入电阻。
(2)驱动电阻的功率承受能力也是一个重要的考虑因素。
如果驱动电阻的功率承受能力太低，当MOS管快速开关时，驱动电阻可能会因为过热而损坏。
(3)驱动电阻的电压承受能力也是需要考虑的因素。
如果驱动电阻的电压承受能力低于MOS管的最大漏极电压，驱动电阻可能会被击穿从而无法正常工作。
(4)正确的驱动电阻选择可以提高MOS管的导通和关断速度，从而减小功耗和实现更高的开关频率。
综上所述，了解MOS管的参数以及正确选择驱动电阻对于设计高性能的电路至关重要。
在选择驱动电阻时，需要考虑电阻的值、功率承受能力和电压承受能力，以确保MOS管的正常工作和可靠性。
电调常见的烧毁问题，可通过更换烧坏的ＭＯＳ管来解决，如未买到相应电流的，可用更多大额定电流的代替。
注意，焊接ＭＯＳ管应防止静电。
TO-220TO-252TO-3附SO-8（贴片８脚）封装ＭＯＳ管 IRF7805Z的引脚图。
飞盈佳乐选用进口的MOS管，保证产品品质及性能。

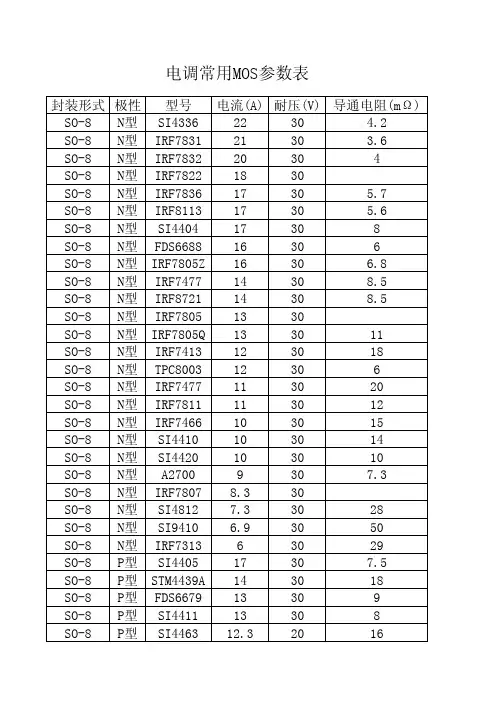

上图中有小圆点的为１脚封装形式极性型号电流(A)耐压(V)导通电阻(mΩ)直插N型IRF3703 210 30 2.3 直插N型IRL3803 140 30 6 直插N型IRF1405 131 55 5.3 直插N型IRF3205 110 55 8 贴片TO-252 N型FDD6688 84 30 5直插N型BUZ111S 80 55 8 直插N型5N05 75 50 9.5 直插N型IRF2804 75 40 2 直插N型60N06 60 60 14 铁壳非直插N型IRF150 40 100 55 直插N型50N03L 28 25 21 贴片N型SI4336 22 30 4.2 贴片N型IRF7831 21 30 3.6 贴片N型IRF7832 20 30 4 直插N型BTS120 19 100 100 贴片N型IRF7822 18 30贴片N型IRF7836 17 30 5.7 贴片N型IRF8113 17 30 5.6 贴片N型SI4404 17 30 8 贴片N型FDS6688 16 30 6 贴片N型IRF7805Z 16 30 6.8 贴片N型IRF7831 16 30 4 贴片N型IRF7477 14 30 8.5 贴片N型IRF8721 14 30 8.5 贴片N型IRF7805 13 30贴片N型IRF7805Q 13 30 11 贴片N型IRF7413 12 30 18 贴片N型TPC8003 12 30 6 贴片N型IRF7477 11 30 20 贴片N型IRF7811 11 30 12 直插N型BTS110 10 100 200 贴片N型IRF7466 10 30 15 贴片N型SI4410 10 30 14 贴片N型SI4420 10 30 10 贴片N型A2700 9 30 7.3 贴片N型IRF7807 8.3 30贴片N型SI4812 7.3 30 28 贴片N型SI9410 6.9 30 50 贴片N型IRF7313 6 30 29 直插N型6N60 5.5 600 750 贴片P型SI4405 17 30 7.5 贴片P型STM4439A 14 30 18 贴片P型FDS6679 13 30 9 贴片P型SI4411 13 30 8 贴片P型SI4463 12.3 20 16贴片P型SI4407 12 30贴片P型IRF7424 11 30 13.5 贴片P型IRF7416 10 30 20 贴片P型IRF7416Q 10 30 20 贴片P型SI4425 9 30 19 贴片P型IRF7424 8.8 30 22 贴片P型SI4435 8 30 20 贴片P型SI4435DY 8 30 20 贴片P型A2716 7 30 11.3 贴片P型IRF7406 5.8 30 45 贴片P型SI9435 5.3 30 50 贴片P型IRF7205 4.6 30 70 贴片N型TPC8003 30 12 6。
