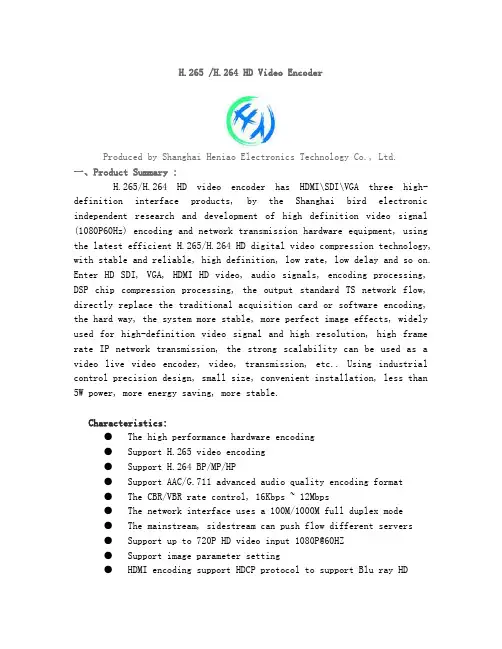

H.265 /H.264 HD Video EncoderProduced by Shanghai Heniao Electronics Technology Co., Ltd.一、Product Summary :H.265/H.264 HD video encoder has HDMI\SDI\VGA three high-definition interface products, by the Shanghai bird electronic independent research and development of high definition video signal (1080P60Hz) encoding and network transmission hardware equipment, using the latest efficient H.265/H.264 HD digital video compression technology, with stable and reliable, high definition, low rate, low delay and so on. Enter HD SDI, VGA, HDMI HD video, audio signals, encoding processing, DSP chip compression processing, the output standard TS network flow, directly replace the traditional acquisition card or software encoding, the hard way, the system more stable, more perfect image effects, widely used for high-definition video signal and high resolution, high frame rate IP network transmission, the strong scalability can be used as a video live video encoder, video, transmission, etc.. Using industrial control precision design, small size, convenient installation, less than 5W power, more energy saving, more stable.Characteristics:● The high performance hardware encoding● Support H.265 video encoding● Support H.264 BP/MP/HP● Support AAC/G.711 advanced audio quality encoding format● The CBR/VBR rate control, 16Kbps ~ 12Mbps● The network interface uses a 100M/1000M full duplex mode● The mainstream, sidestream can push flow different servers● Support up to 720P HD video input 1080P@60HZ● Support image parameter setting● HDMI encoding support HDCP protocol to support Blu ray HD● Support HTTP, UTP, RTSP, RTMP, ONVIF protocol● The mainstream and the secondary flow with different network transmissionprotocol● The WEB interface in English optional configuration interface● WEB interface management● Support remote management of wide area network (WEB)● Support custom flow resolution output settings● Support stream insert function word, font, background color● Support stream into the 3 picture transparent image watermark function, the XY● Support a key to restore the factory configuration二、Applications：1, 4G mobile HD front end collection2, HD video broadcast server3, Video conferencing system video server4, Digital signage HD streaming server5, The front end of the teaching live video recording system6, IPTV TV system front-end acquisition7, Micro channel front-end acquisition system8, Medical video and video system9, Can access NVR hard disk recorder三、Interface explanation:HDMI HD Encoder（H265、H264）SDI HD Encoder（H265、H264）VGA HD Encoder（H265、H264）HDMI HD Encoder（H264）SDI HD Encoder（H264）VGA HD Encoder（H264）3U HD EncoderInstructions：A. Mains input ----if it is 12 V/DC input interface, use 12V1A power supply; if it is 5V input, use 5V/2A power supply;B. Button of initialization ----- it is used to reset the equipment; after the equipment is started, press the button for 10 seconds, the equipment IP is restored to the factory IP, 192.168.0.31.C. Video input --- it is used to input high-definition HDMI, SDI, VGA and Audio signalsD. 100/1000 M network interface ---- 100/1000M Ethernet connection.E. Status Indication:1. When the reset button is pressed, the indicator flickers, and whenit stops flickering, the equipment is successfully reset andrestarted.2. The slow flickering indicates the normal working from video inputand image acquisition to the compression.3. If the indicator constantly glows, there is something wrong withthe image acquisition or the compression.4. If the indicator slowly flickers and the equipment fails to playthe stream, there is something wrong with the stream server.F. Power supply indicator – used to indicate whether the supply is normal or not.四、Technical parametersInputAudio:System:General Specification：五、 System Setting ：When setting the WEB operation interface, it is necessary to modify the computer configuration, IP 192.168.0. *. The factory default for the high-definition encoder is IP 192.168.0.31.Initialization of reset: there is a RST in the panel which is used to conduct initialization reset for the high-definition encoder. When the equipment is powered on, press the button and hold for a while, the status indicator will flickers quickly; when the indicator is extinguished, release the button, and all the parameters will be initialized. The initialized IP is 192.168.0.31.1. Computer IP Address SettingComputer IP can be set as 192.168.0.*. Note: anyone from 0－254, except for 312. Open IE ExplorerInput: 192.168.0.31 enter the WEB interface, user name: admin pin: admin3. Status Display3.1 Input status: when there is high-definition video input, it will display the size of resolution ratio of the input, and if there is no display, there is no input.3.2 Main stream mode: it displays the size of resolution ratio of output stream of main stream and the visit address.3.3 Side stream mode: it displays the size of resolution ratio of output stream of side stream and the visit address.3.4 Main stream real-time browsing: real-time browsing of the main stream video through the local computer, click: play, the installation of VLC software is necessary.3.5 Side stream real-time browsing: real-time browsing of the side stream video through the local computer, click: play, the installation of VLC software is necessary.3.6 CVBS real-time browsing: you can browse through the computer real-time CVBS video, point: play, need to install the 2.2.1 VLC version number.4. Network SettingInstructions: in terms of IP address of the equipment, the factory default is 192.168.0.31. If the customer forgets the IP address after modification, he can restart the equipment by pressing the rest button for 8 seconds when the equipment is powered on, and restore the factory default.4.1 WIFI network connection description:Connection is divided into three kinds:A, Wired: use only wired connections (default configuration)B, Wireless: only use wireless WIFI connection. (if you use the wireless mode, but lost the wrong SSID or password, will cause the system has been unable to connect WIFI, this page can not be opened, please use the key to restore the factory settings to solve the problem can not enter the systemC, Automatic: automatic detection, if there is cable access, the use of wire, there is no cable to use wireless.4.2 DHCP selection:When enabling the DHCP function to access also automatically assigned IP address of the switch, at this time, the encoder IP address is dynamically allocated by the switch, the need to view the switch from the switch IP. If you can not view, you can contact the manufacturer to provide IP query software. Or by the initialization button to restore the factory default IP.4.3 DNS1, DNS0 description:In the use of live streaming or wireless 4G push streaming, it is necessary to carry out the DNS equipment. We can use your computer network details to understand the DNS parameters of your network, as shown below:5. Main Stream Encoding Setting5.1 Encoding Setting of Main Stream5.1.1 Encoding scheme: H.265 / H.264 available5.1.2 Encoding algorithm: baseline profile / main profile / high profile5.1.3 Encoding frame rate: 5-60 frames（When 1080i50, 720i/50 input, should choose the encoding frame rate 25 frames)5.1.4 Code stream control: VBR and CBR5.1.5 Key inter-frame space: 305.1.6 Encoding size: output resolution is the same size. The optional resolution is lower than the resolution of the input.5.1.7 Video bit rate: 16-1200K network bandwidth setting5.1.8 Fluctuation range: the fluctuating value of network bandwidth. 10%, 20%, 30%, 40% and 50%Note: the above parameters do not need to restart the encoder1.1 Main Stream Protocal Setting5.2.1 HTTP protocals : /main activate /forbiden5.2.2 HTTP port：1-65535 available5.2.3 RTSP protocol: /main activate/forbidden5.2.4 RTSP port：1-65535 available5.2.5 Multicast IP：232.255.42.42 revisable activate/forbidden5.2.6 Multicast port：1-65535 available5.2.7 RTMP uploading server address: According to the streaming media server IP or domain name changes.5.2.8 RTMP uploading server port: 1-65535available5.2.9 RTMP uploading directory name: user-defined5.2.10 RTMPuploading node: user-defined5.2.11 ONVIF: activate/forbidden Communication protocols for security and protection monitoring1.2 OSD SettingNote: the mainstream can be inserted into the two groups at the same time, three pictures5.3.1 Text X coordinate: the left and right positions displayed by 0-1920 text.5.3.2 Text Y coordinate: the up and down positions displayed by 0-1080 text.5.3.3 Font: the size of 8-72 text display in the display screen.5.3.4 Transparency: the greater the number of 0-128 is, the display becomes more pbvious.5.3.5 Text : the content that you want to display.5.3.6 Image display: close/open, close: the image is hidden, open: the image is shown.5.3.7 Image X coordinate：4-1920 images shows the left and right positions5.3.8 Image Y coordinate: 4-1080 images shows the left and right positions5.3.9 Transparency: the greater the number of 0-128 is, the display becomes more pbvious.5.3.10 Image name: show the image name to be uploaded5.3.11 Upload the image: select the image to be uploaded, and the equipment just supports *.bmp images.When the selection is automatic, the input and Explain1, Can be inserted in the same settings of the three pictures2, When you need to display a transparent background image, the background color is: R177, G204, B2331.3 Image Quality Setting5.4.1 Luminance : 0-100 adjust the luminance of image5.4.2 Contrast ratio: 0-100 adjust the contrast ratio of image5.4.3 Tone : 0-100 adjust the tone of image5.4.4 Saturation : 0-100 adjust the saturation of image6. Side Stream Encoding SettingNote: the setting method is as same as that of main stream7. RTMP Protocol SettingNote: due to the support of H.264 FALSH encoding, the current can not play H.265 compressed stream. So before setting the RTMP push, please set the encoding method to: H.2647.1 RTMP protocol selection: activate7.2 Set RTMP uploading server address7.3 Set RTMP uploading server port7.4 Set RTMP uploading catalogue7.5 Set RTMP uploading nodeNote: in push flow testing, must be in the network configuration set the DNS value, different network operators, different DNS.7.6 Adobe Flash server test7.6.1 Installation software: Flash+Media+Server3.5, the input ofserial number is not required during the installation, and input both user’s name and pin: 17.6.2 Launch the background software7.6.3 Open ：VideoPlayer.html in the file of FlashPlayer7.6.4 Input :rtmp://ipaddress /rtmp/hdmi and select live, youcan see the image or input：rtmp://192.168.0.100:1935/live/hdmi select: LIVE click: Play stream8.Wireless WiFi settings8.1 Wireless WIFI connection schematic diagramConnection schematic diagram shown above, when you want to configure the HD encoder, the first computer to set to IP.8.2 Wireless router settingsSet up a wireless router user nameSet up a wireless router password, pay attention to the choice of the type of encryption: WPAPSK8.3 High definition encoder wireless WIFI settingsThrough the network cable connection HD encoder, enter the network settings interface. Set the contents as follows:Be careful:A, Select: wirelessB, Set up by the wireless login IP, default: 192.168.0.32, wireless connectivity, the background WEB is the use of this IP login.C, Wifi encryption type: WPA/WPA2 note: some of the wireless router encryption method is different, please add the router password to select the WPA/WPA2 Wifi,D, Password: enter the password of the wireless router.9. Audio Encoding Settings9.1 Audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K9.2 Audio encoding way: AAC9.3 Audio re sampling: 44.1K, 32K9.4 Audio digital gain: 2 times, 4 times, 8 times, used to adjust the flow volume9.5 Audio input mode: HDMI, SDI encoder H265 products can choose external audio input, when the use of external audio input, pleaseselect analog input.10. System Settings10.1 User name and password change10.2 Factory number of equipment and software version number10.3 Software upgrade10.4 System settings：Device reset and initialization settings11. Chinese and English Conversion。
