矿物铸造矿物铸造的产物是矿物铸件，是一种面向未来的环保材料，作为机器的结构件，以其价格和性能的优势在某些应用方面可以替代传统的铸铁。

矿物铸造（Mineral casting）人造花岗石以天然花岗石碎料、下脚料为主要原料，加入环氧树脂为辅料，经过混合搅拌、振动密实而制成的新型矿物铸造产品。

它是一种替代铸铁但优于铸铁的新型节能、环保结构材料——非金属合成材料。

主要特点：1、复杂外型的成型能力和整合性能力由于不同与传统铸铁的工艺流程和材料性能，采用常温铸造，可以用矿物铸件浇铸出各种传统铸铁无法浇铸的复杂外型，也可以用特殊的胶粘结矿物铸件的方式实现更复杂的外型，从而得到理想的外型。

矿物铸件具有极强的整合能力，可以把诸如传送切削液的管道、型体、导轨、线缆、油管、气管、联接件等浇铸入矿物铸件中，例如在制作机床机座的过程中，机床的导轨安装板可以直接与矿物铸件浇铸在一起，浇铸完成后可以对导轨安装板进行铣、钻等机加工，使安装面达到要求（甚至在某些高精的矿物铸造过程中，铸件的特定的表面可以直接作为导轨的安装面）。

矿物铸件具有和钢铁相似的热膨胀系数，可以和铸入矿物铸件中的材料很好地整合在一起。

矿物铸件的整合性能，使用户省去很多的装配和机加工时间，极大地提高了用户的生产效率、和经济效益。

2、高精度矿物铸件的热收缩性很小，而且不存在局部收缩，比传统的铸铁精度要高很多，很多场合矿物铸件是一次成型不需要机加工。

即使要实现更高的精度时，也可以很方便地进行铣、磨加工，就可以达到要求。

提高了被加工工件的精度。

3、吸震性矿物铸件的吸震性要比传统的铸铁强10倍，特别是对大幅度的震动，矿物铸件具有极强的吸震能力。

马达的震动以及在搬运途插车对矿物铸件的震动影响极小，可以很好地保证机器的精度。

使用矿物铸件做机座的机床，在使用过程中的震动对机座几乎不产生影响，从而保证了机床的精度。

提高的加工工件的精度。

4、热稳定性矿物铸件对温度的变化不敏感，导热性比金属要低很多，有效地把机床因受热引起的几何尺寸误差控制在最小，从而保证了机床的精度。

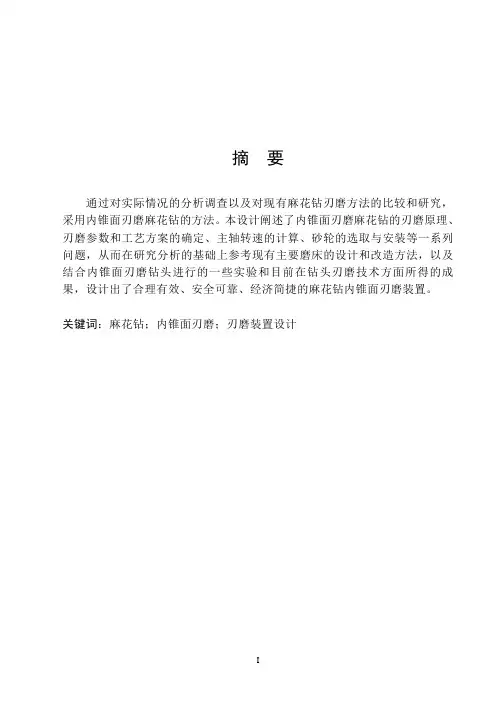

摘要通过对实际情况的分析调查以及对现有麻花钻刃磨方法的比较和研究，采用内锥面刃磨麻花钻的方法。

本设计阐述了内锥面刃磨麻花钻的刃磨原理、刃磨参数和工艺方案的确定、主轴转速的计算、砂轮的选取与安装等一系列问题，从而在研究分析的基础上参考现有主要磨床的设计和改造方法，以及结合内锥面刃磨钻头进行的一些实验和目前在钻头刃磨技术方面所得的成果，设计出了合理有效、安全可靠、经济简捷的麻花钻内锥面刃磨装置。

关键词：麻花钻；内锥面刃磨；刃磨装置设计AbstractAccording to the actual situation analysis investigation and existing twist drill grinding method of comparison and research, with the inner cone grinding of twist drill method. The elaborate design of the inner cone grinding of twist drill, the grinding principle of grinding parameters and the identification process, the calculation of grinding wheel spindle speed, the selection and installation and a series of problems, and on the basis of research and analysis with reference to the existing main grinder design and modification methods, and combining with the inner cone grinding drill some experiments and present in drill grinding technology results, and prove the feasibility of the design, design a reasonable and effective, safe and reliable, economic and simple inner cone grinding of twist drill device.Key words:twist drill; the inner cone grinding; grinding device design目录摘要 (I)Abstract (Ⅱ)第1章绪论 .................................................................................................................... - 1 -1.1 设计麻花钻刃磨装置的意义....................................................................... - 1 -1.2 麻花钻刃磨技术研究概述 ........................................................................... - 1 -1.2.1 麻花钻刃磨装置国内外发展状况与趋势 .................................... - 1 -1.2.2 存在的主要问题................................................................................. - 4 -1.3 麻花钻刃磨方法的比较................................................................................ - 5 - 第2章麻花钻内锥面刃磨的理论分析.................................................................... - 6 -2.1 麻花钻的几何特性......................................................................................... - 6 -2.1.1 麻花钻的结构 ..................................................................................... - 6 -2.1.2 麻花钻的几何参数 ............................................................................ - 7 -2.2 麻花钻的传统刃磨方法................................................................................ - 8 -2.3 麻花钻的内锥面刃磨方法 ........................................................................... - 9 -2.4 麻花钻的内锥面刃磨原理及..................................................................... - 10 -刃磨参数优化........................................................................................................... - 10 -2.4.1 钻头刃磨原理 ................................................................................... - 11 -2.4.2 刃磨参数的优化............................................................................... - 11 - 第3章麻花钻刃磨装置的机械系统设计 ............................................................. - 13 -3.1 刃磨装置的总体方案 .................................................................................. - 13 -3.2 丝杠螺母副的设计计算.............................................................................. - 14 -3.2.1 横纵向进给的设计计算 ................................................................. - 14 -3.2.2 垂直进给的设计计算...................................................................... - 19 -3.3 传动系统的锥齿轮设计计算..................................................................... - 23 -3.3.1 横向进给方向上锥齿轮的设计 .................................................... - 23 -3.3.2 垂直进给方向上锥齿轮的设计 .................................................... - 27 -3.4 导轨的设计计算........................................................................................... - 31 - 第4章麻花钻装夹及分度装置设计...................................................................... - 32 - 第5章电动机及砂轮的选择 ................................................................................... - 41 -5.1 电动机的选择 ............................................................................................... - 41 -5.2 砂轮的选择.................................................................................................... - 41 - 结论.................................................................................................................................. - 43 -致谢.................................................................................................................................. - 44 - 参考文献 ........................................................................................................................... - 45 -ContentsAbstract (I)Chapter1 introduction................................................................................................. - 1 -1.1 The research purpose and meaning of designing twist drill ..................... - 1 -1.2 research an overview of twist drill gringing technology........................... - 1 -1.2.1 Overview of twist drill sharpening device........................................ - 1 -1.2.2The main problems ............................................................................... - 4 -1.3 Compare of twist drill grinding method....................................................... - 5 - Chapter2 The theoretical analysis of twist the inner cone grinding............... - 6 -2.1 Geometric properties of the twist drill.......................................................... - 6 -2.1.1 Structure of the twist drill.................................................................... - 6 -2.1.2 Geometric parameters of the twist drill........................................... - 7 -2.1 The traditional grinding method of the twist drill ...................................... - 8 -2.3 The inner cone grinding method of the twist drill...................................... - 9 -2.4 The inner cone grinding theory of the twist drill and .............................. - 10 -optimizing of grinding parameters ...................................................................... - 10 -2.4.1 The inner cone grinding theory of the twist drill........................... - 11 -2.4.2 optimizing of grinding parameters................................................... - 11 - Chapter3 twist drill grinding equipment mechanical system design......... - 13 -3.1 Program of grinding device ........................................................................ - 13 -3.2 Design and calculation of screw –nut pairs ............................................... - 14 -3.2.1 Horizontal and vertical feed design calculation............................. - 14 -3.2.2 design and calculation of the vertical feed ..................................... - 19 -3.3 Bevel gear drive system design calculation............................................... - 23 -3.3.1 Cross feed direction bevel gear design............................................ - 23 -3.3.2 Perpendicular to the bevel gear design............................................ - 27 -3.4 Design and calculation of the guide .......................................................... - 31 - Chapter4 Twist drill clamping and dividing device .......................................... - 32 - Chapter5 Selection of the motor an wheel ........................................................... - 41 -5.1 Motor Selection .............................................................................................. - 41 -5.2 Wheel Selection.............................................................................................. - 41 - Conclusion........................................................................................................................ - 43 - Thanks............................................................................................................................... - 44 -References ........................................................................................................................ - 45 -第1章绪论1.1 设计麻花钻刃磨装置的意义麻花钻在金属切削加工中应用很广泛,用来加工各种孔，已经有一百多年的历史,现在全世界每年消耗的钻头数以亿计,在美国汽车制造行业中,机械加工中钻孔工序的比重约占50%,而飞机制造业中钻孔工序所占比例更高[1]。

直线滑轨目前市场上常见的品牌有:
日本地区：THK NSK IKO
台湾地区：AMT ABBA HIWIN CPC
瑞士地区：SCHNEEBERGER
韩国地区：SBC
大陆地区:南京工艺汉江丝杠凯特
THK直线导轨型号规格:HSR、SHS、RSR、HRW、SSR、SRS
NSK直线导轨型号规格：LH/LS/LA/LY/LW/LE/LU/LL
IKO直线导轨型号规格:LRX/LWE/LWH/LWL
AMT直线导轨型号规格：MSA—E/LE/S/LS、MSB—E/TE/S/TS
ABBA直线导轨型号规格：BRH—A/AL/B/BL、BRS—B/BS
HIWIN直线导轨型号规格：HGW-CA/HA、HGH-CA/HA、EGW-CA、EGH—CA
CPC直线导轨型号规格：MR—MN/ML、MR-WM/WL、AR—MS/MN/FS/FN、HR-MN/ML/FN/FL SCHNEEBERGER直线导轨型号规格：MRA/MRB/MRC/MRD/MRE、
BMA/BMB/BMC/BMD/BME
SBC直线导轨型号规格:SBG-FL/FLL/SL/SLL/FV/SV、SBS-SL/SLL/FV/SV
南京工艺直线导轨型号规格:GGB—AA/AAL/AB/ABLGGB—BA/BAL、GGC-BA/BAK
汉江直线导轨型号规格：DA—AA/AB/CA/CB/AAL/ABL/CAL/CBL
凯特直线导轨型号规格:LG-EA/FA、LG-AA/AN/HAA/HAN、LMW-AA、LGW—EA。

VT (μm/min)
The MWSS “wear” is the distance u in the cutting direction. The wear rate, or cutting speed, is hence & = du dt . The total volume of wear or removed u material is from geometry Vu = K ⋅ L ⋅ u (Fig. 3). The volume-wear rate, or Material Removal Rate (also noted & = dV dt = K ⋅ L ⋅ u &. MRR) is V u u
vT =
π D
2 K
bPvf
(4)
This MWSS wear law expresses the proportionality between the table speed vT and the product P.vf under permanent regime. Experimental verification of (4) is illustrated in Fig. 4. This result is perfectly in line with recent work on multi-wire sawing [6, 7].
批注本地保存成功开通会员云端永久保存去开通

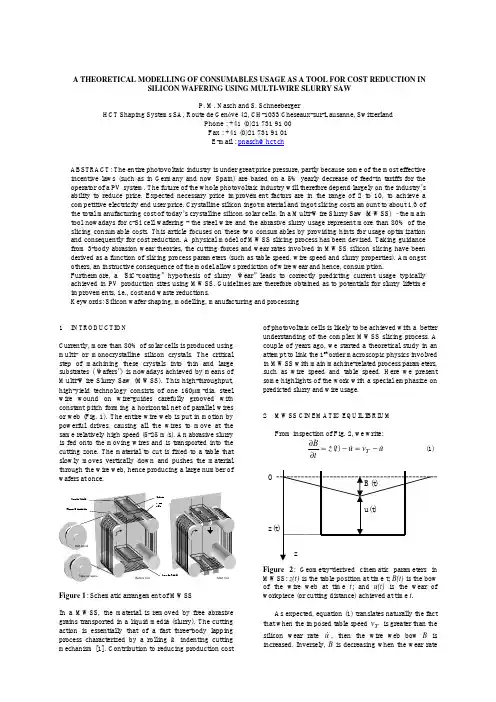

A THEORETICAL MODELLING OF CONSUMABLES USAGE AS A TOOL FOR COST REDUCTION IN SILICON WAFERING USING MULTI-WIRE SLURRY SAW P. M. Nasch and S. Schneeberger HCT Shaping Systems SA, Route de Genève 42, CH-1033 Cheseaux-sur-Lausanne, Switzerland Phone : +41 (0)21 731 91 00 Fax : +41 (0)21 731 91 01 E-mail : pnasch@hct.ch
