住宅楼给排水毕业设计

  • 格式：doc
  • 大小：938.00 KB
  • 文档页数：35

目录摘要..............................................................................................................- 1 -ABSTRACT ..................................................................................................- 1 -1 前言..........................................................................................................- 2 -1.1国内外高层建筑给水排水工程设计研究`的状况和主要内容.. (2)1.2国内外高层建筑给水排水工程设计研究的状况和主要内容 (3)1.2.1高层建筑给水排水工程设计方法············································································· - 3 -1.2.2高层建筑给水排水设计的主要内容········································································· - 4 -2 工程概况及设计任务 ................................................................................- 5 -2.1 工程概况.................................................................................................- 5 -2.2设计资料 (5)2.2.1 建筑设计资料············································································································ - 5 -2.2.2 城市给水排水设计资料···························································································· - 5 -2.3工程设计任务 (5)3 建筑给水系统............................................................................................- 5 -3.2给水系统方案的确定. (6)3.3给水管网水力计算 (7)3.3.1设计秒流量................................................................................................................. - 8 -3.3.2高区给水管网水力计算............................................................................................. - 9 -3.3.3低区给水管网水力计算........................................................................................... - 11 -3.3.4 水表水头损失计算.................................................................................................. - 13 -3.4设备的计算与选择 .. (14)3.5管材 (15)4 建筑消防水系统 ......................................................................................- 16 -4.1消防给水系统方案的确定 (16)I4.2室内消火栓给水系统 (16)4.2.1消火栓的布置........................................................................................................... - 16 -4.2.2消火栓口所需的水压............................................................................................... - 17 -4.2.3校核........................................................................................................................... - 18 -4.2.4水力计算................................................................................................................... - 19 -4.2.5其他设施的设计....................................................................................................... - 21 -4.3自动喷水灭火系统 .. (22)4.3.1自喷系统的布置....................................................................................................... - 22 -4.3.2自喷系统水力计算................................................................................................... - 22 -4.3.3消防水池容积的计算............................................................................................... - 25 -4.4室外消防给水系统 .. (26)4.4.1 室外消防给水管网·································································································· - 26 -4.4.2 室外消火栓·············································································································· - 26 -4.5管材 (26)5 建筑排水系统..........................................................................................- 27 -5.1排水方案 (27)5.2排水管道水力计算 (27)5.2.1 排水设计秒流量······································································································ - 27 -5.2.2 排水管网的水力计算······························································································ - 27 -5.3管材 (32)6 结论········································································································- 32 -谢辞············································································································- 33 -参考文献······································································································- 33 -II摘要在综合对比分析的基础上，设计了曲江国际2号住宅楼的建筑给水系统、建筑排水系统、建筑消防系统（消火栓给水系统及自动喷水灭火系统）。

合集下载

某住宅楼给排水造价设计毕业设计

某住宅楼给排水造价设计毕业设计

等材料
设备费：包括水 泵、水箱、过滤
器等设备
安装费：包括人 工费、机械费、
运输费等
设计费：包括设 计图纸、设计计
算等费用
管理费：包括项 目管理、质量控
制等费用
税金：包括增值 税、附加税等费
用
给排水系统造价的估算方法
确定设计标准和规范
计算工程量
确定材料和设备价格
计算安装费用
计算其他费用，如设计费、 监理费等
给排水系统的功能和作用
供水功能：为住 宅楼提供生活用 水和消防用水
排水功能：收集 和处理住宅楼的 生活污水和雨水
节能环保：减少 水资源浪费，降 低环境污染
保障安全：防止 水患，保障居民 生命财产安全
给排水系统的设计原则
安全性：确保水质安全，防止污染和泄漏 经济性：合理选择材料和设备，降低成本 实用性：满足居民生活需求，提高使用效率 环保性：减少废水排放，降低对环境的影响 可维护性：便于维修和更换，提高系统的稳定性和可靠性 美观性：与建筑风格相协调，提高居住环境的舒适度
住宅楼给排水系统概述
住宅楼给排水系统的组成
给水系统：包括水源、水泵、管道、 阀门等
排水系统：包括排水管、排水沟、 检查井等
热水系统：包括热水锅炉、热水管 道、热水循环泵等
消防系统：包括消防泵、消防管道、 消防栓等
雨水系统：包括雨水管、雨水斗、 雨水井等
污水系统：包括污水管、污水泵、 污水检查井等
优化设计：采用 先进的给排水系 统设计，降低施 工难度和成本
材料选择：选用 性价比高的材料， 降低材料成本
施工管理：加强 施工管理，提高 施工效率，降低 施工成本
维护保养：制定 合理的维护保养 计划，降低维护 成本
某住宅建筑给排水毕业设计

某住宅建筑给排水毕业设计

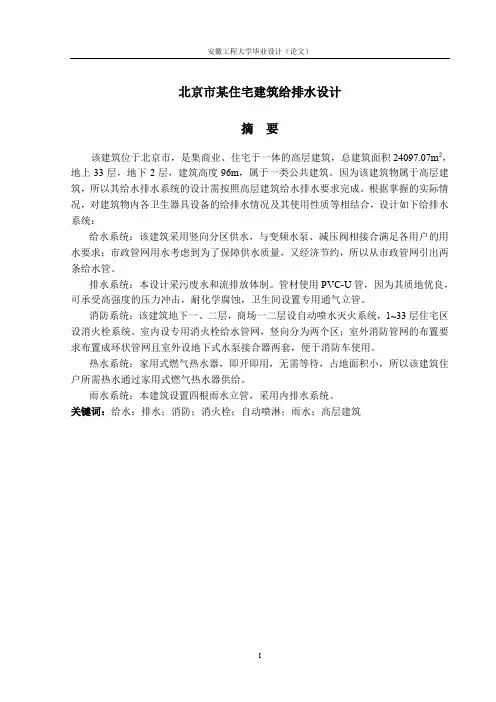

给水系统：该建筑采用竖向分区供水，与变频水泵、减压阀相接合满足各用户的用水要求；市政管网用水考虑到为了保障供水质量，又经济节约，所以从市政管网引出两条给水管。
排水系统：本设计采污废水和流排放体制。管材使用PVC-U管，因为其质地优良，可承受高强度的压力冲击，耐化学腐蚀，卫生间设置专用通气立管。
消防系统：该建筑地下一、二层，商场一二层设自动喷水灭火系统，1~33层住宅区设消火栓系统。室内设专用消火栓给水管网，竖向分为两个区；室外消防管网的布置要求布置成环状管网且室外设地下式水泵接合器两套，便于消防车使用。
表3-1本工程可供选择的排水系统方案- 34 -
表3-2卫生器具排水流量、当量和排水管的管径- 35 -
表3-3卫生间、厨房和阳台当量数- 35 -
表3-4排水立管最大设计排水能力- 36 -
表3-5排水立管设计流量- 36 -
表3-6排数管道的最大计算充满度- 36 -
表3-7排水水力计算表- 37 -
Abstract
The building is located in Beijing, it is a commercial and residential in one of the high-rise buildings, with a total construction area of 24097.07m2, 33 floors above ground and 2 underground floors, building heightis96m,whichbelongs to a class of public buildings. Becauseofthe building belongs to the high-rise buildings,the designofwater supply and drainage system must be completed in accordance with the requirements for high-rise building water supply and drainage.According tothe actual situation,it’suse for water supply and drainage and other properties of the combination of various sanitary ware equipment in the building, combining design of water supply and drainage system as follows:
给排水专业毕业设计(建筑给排水)

给排水专业毕业设计(建筑给排水)

摘要我的毕业设计是沈阳某宾馆的建筑给排水设计。

建筑高度62.1m，总占地面积3538m2。

此建筑地上17层，地下1层。

本次设计需要完成建筑给水系统、建筑排水系统、建筑消防系统（消火栓给水系统及自动喷水灭火系统）、建筑屋面雨水排水系统设计。

给水系统采用分区供水，低区一到四层，由市政管网直接供水；高区五到十七层，采用变频泵供水。

排水系统采用污、废水合流制，底层单独排放，设专用通气立管。

消防系统分消火栓给水系统和自动喷水灭火系统，其中消火栓系统采用水泵高位水箱联合供水。

屋面雨水排水系统采用内排水。

给水管采用PP-R管；排水管采用铸铁管；消防系统均采用钢管。

关键词：高层建筑；给水系统；排水系统；消防系统AbstractMy graduation design is a hotel in Shenyang, the building water supply and drainage design.Building height of 62.1 m, the total area of 3538 m2. The building 17 layers on the ground, underground layer 1.The design needs to be done building water supply system, building drainage system, building fire control system (fire hydrant water supply system and automatic sprinkler system), the roof rainwater drainage system design.Water supply system using zoning, low negative a layer to the four layer, by the municipal water supply pipe network directly;high five to eleven layer, adopt the frequency conversion water supply pump. Drainage system using sewage, waste water sewage system, the separate discharge, set specific vent stack. Fire protection system of fire hydrant system and automatic sprinkler system, fire hydrant system uses the pump head tank joint water supply. Roof rainwater drainage system with internal drainage.For the use of PP-R pipes; pipe using iron pipe; steel tubes are used for fire system.Key words:high-rise building; water supply system; drainage system; fire protection system目录第1章绪论 (1)1.1 概况 (1)1.2 设计任务和设计内容 (1)1.3 设计依据和原始资料 (2)第2章设计方案的拟定 (4)2.1 给水系统 (4)2.2 热水系统 (7)2.3 消防系统 (8)2.4 排水系统 (11)第3章管道布置及设备安装要求 (13)3.1 给水管道布置与设备安装要求 (13)3.2 排水管道布置及设备安装要求.......... 错误！未定义书签。

成都市某小区给排水设计建筑给排水毕业设计含计算书

成都市某小区给排水设计建筑给排水毕业设计含计算书

3.1排水系统的设计说明┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅43
3.2排水管道的布置与敷设┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅43
3.3排水系统的设计计算┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅44
3.4化粪池的设计计算┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅46
3.5排污泵及集水井的设计计算┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅48
在这次设计中参考了大量书目，其中主要参考书目附于其后。
由于高层建筑给水排水系统涉及内容和知识领域广泛，加之本人经验水平有限，在设计中难免出现一些不太合理之处，恳请各位老师批评指正。
赵玲
2007.Байду номын сангаас.1
Foreword
At now,the architecture industry development is rapid, thebuilding overall construction level unceasingly enhances.Its technical leveland directly affect the building the use function, liveswith the people, the health, the environment, the security is closelylinked, involves everyone, with society's environmental protection,water resources reasonable use, but the long-enduring developmentclose is connected.
1给水排水系统设计条件：
以距该楼西、北侧各50米的城市给水管网做为水源，常年可用水头40米，城市管网不允许直接抽水。由于成都市处于我国西南部，常年平均气温恒定，属于中温地带，不受冰冻线影响。
