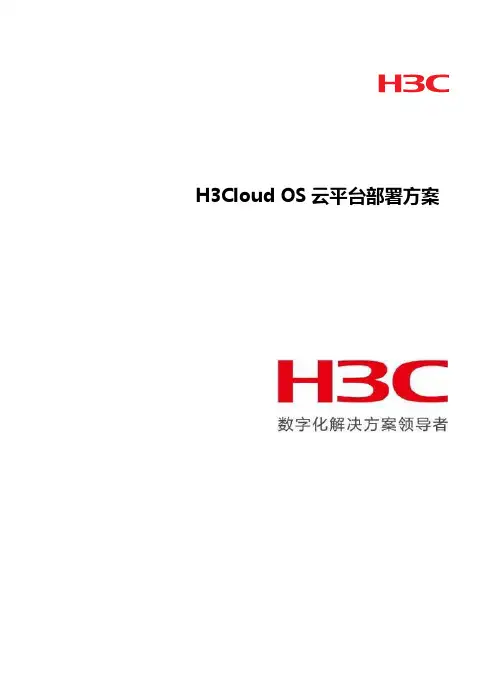

H3Cloud OS云平台部署方案目录1.1CloudOS部署规划 (4)1.1.1基础云平台拓扑图 (4)1.1.2系统网络架构 (4)1.1.3基础云硬件部署规划 (5)1.1.4基础云软件部署规划 (5)1.1.5租户组织架构设计 (6)1.1.6资源审批流程设计 (7)1.1.7命名规范 (8)1.2CloudOS部署 (8)1.2.1安装操作系统 (8)1.2.2部署H3Cloud OS组件 (15)1.2.3查看节点信息 (25)1.2.4登录H3Cloud云管理平台 (26)1.2.5管理服务列表 (1)1.2.6配置可用域 (3)1.2.7配置资源规格 (5)1.2.8配置计费策略 (6)1.2.9配置私有云 (8)1.2.10创建组织和用户 (11)1.2.11创建路由器和网络 (12)1.2.12新建主机 (13)1.2.13创建云硬盘 (17)1.3CloudOS镜像制作 (18)1.3.1创建VMware虚拟机 (18)1.3.2制作Windows镜像 (26)1.3.3制作Linux镜像 (28)1.3.4导出镜像 (32)1.3.5上传镜像 (34)1.4CloudOS纳管VMware虚拟机 (36)1.5CloudOS云数据库服务器池部署 (1)1.5.1物理服务器池组网 (1)1.5.2安装操作系统 (1)1.5.3配置物理服务器池 (14)1.5.4增加物理服务器池 (1)1.1 CloudOS部署规划1.1.1基础云平台拓扑图计算及存储资源分别部署在数据中心机房和油田公司大楼机房，有一套统一的基础云平台管理监控资源。

1.1.2系统网络架构华北油田云计算资源池-基础云平台系统的网络架构设计图如下所示：管理区包括了cloudos的控制和计算功能，同时包括设备监控的管理组件IMC。

计算资源区主要包括服务器虚拟化资源，由vmware软件实现服务器虚拟化。

存储区主要为存储系统，现包括华为和EMC存储。

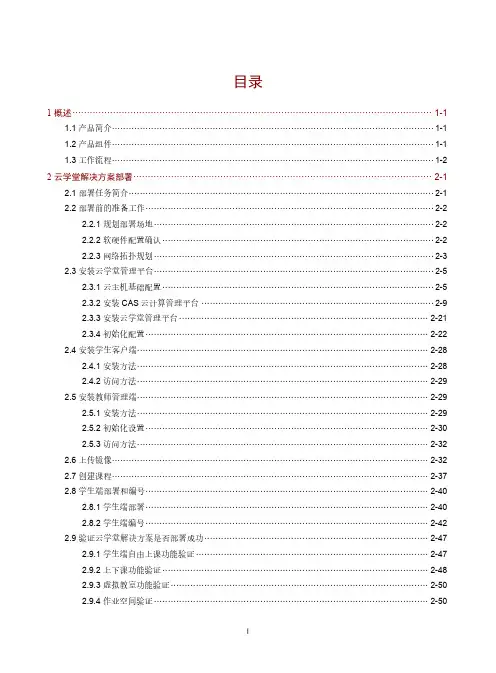

目录1概述···························································································································· 1-11.1 产品简介···················································································································1-11.2 产品组件···················································································································1-11.3 工作流程···················································································································1-2 2云学堂解决方案部署······································································································· 2-12.1 部署任务简介·············································································································2-12.2 部署前的准备工作·······································································································2-22.2.1 规划部署场地····································································································2-22.2.2 软硬件配置确认·································································································2-22.2.3 网络拓扑规划····································································································2-32.3 安装云学堂管理平台····································································································2-52.3.1 云主机基础配置·································································································2-52.3.2 安装CAS云计算管理平台 ···················································································2-92.3.3 安装云学堂管理平台························································································· 2-212.3.4 初始化配置····································································································· 2-222.4 安装学生客户端········································································································ 2-282.4.1 安装方法········································································································ 2-282.4.2 访问方法········································································································ 2-292.5 安装教师管理端········································································································ 2-292.5.1 安装方法········································································································ 2-292.5.2 初始化设置····································································································· 2-302.5.3 访问方法········································································································ 2-322.6 上传镜像················································································································· 2-322.7 创建课程················································································································· 2-372.8 学生端部署和编号····································································································· 2-402.8.1 学生端部署····································································································· 2-402.8.2 学生端编号····································································································· 2-422.9 验证云学堂解决方案是否部署成功················································································ 2-472.9.1 学生端自由上课功能验证··················································································· 2-472.9.2 上下课功能验证······························································································· 2-482.9.3 虚拟教室功能验证···························································································· 2-502.9.4 作业空间验证·································································································· 2-50i2.9.5 多媒体教学验证······························································································· 2-512.10 锁定学生机的键盘热键 ····························································································· 2-52 3软件注册······················································································································ 3-13.1 CAS的软件注册·········································································································3-13.2 云学堂管理平台的软件注册···························································································3-13.2.1 License简介·····································································································3-13.2.2 License注册过程·······························································································3-1 4软件卸载······················································································································ 4-14.1 卸载云学堂管理平台····································································································4-14.2 卸载教师管理端··········································································································4-14.3 卸载学生客户端··········································································································4-24.3.1 学生机还原为本地桌面························································································4-24.3.2 卸载学生端软件·································································································4-34.3.3 卸载教学管理软件学生端·····················································································4-3 5软件升级······················································································································ 5-15.1 升级云学堂管理平台····································································································5-15.2 升级教师管理端··········································································································5-15.3 升级学生客户端··········································································································5-1 6常见问题解答················································································································ 6-16.1 CAS安装时提示“No bootable devices detected.”，如何处理？···········································6-16.2 云主机重启后无法进入CAS，如何处理？········································································6-16.3 学生客户端软件安装失败，如何处理？············································································6-1ii。

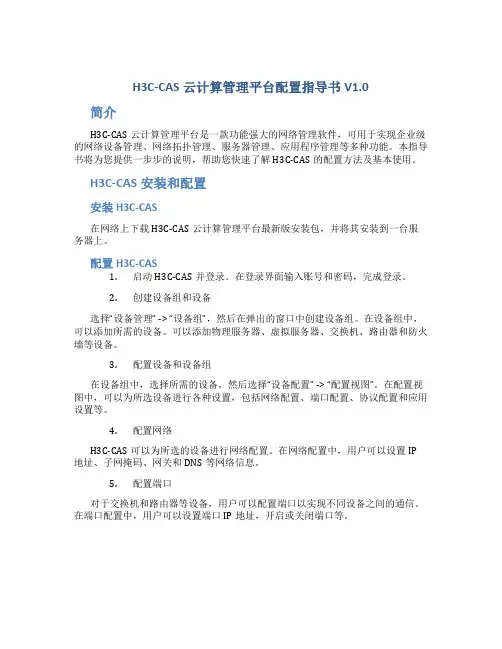

H3C-CAS云计算管理平台配置指导书V1.0简介H3C-CAS云计算管理平台是一款功能强大的网络管理软件，可用于实现企业级的网络设备管理、网络拓扑管理、服务器管理、应用程序管理等多种功能。

本指导书将为您提供一步步的说明，帮助您快速了解H3C-CAS的配置方法及基本使用。

H3C-CAS安装和配置安装H3C-CAS在网络上下载H3C-CAS云计算管理平台最新版安装包，并将其安装到一台服务器上。

配置H3C-CAS1.启动H3C-CAS并登录。

在登录界面输入账号和密码，完成登录。

2.创建设备组和设备选择“设备管理” -> “设备组”，然后在弹出的窗口中创建设备组。

在设备组中，可以添加所需的设备。

可以添加物理服务器、虚拟服务器、交换机、路由器和防火墙等设备。

3.配置设备和设备组在设备组中，选择所需的设备，然后选择“设备配置” -> “配置视图”。

在配置视图中，可以为所选设备进行各种设置，包括网络配置、端口配置、协议配置和应用设置等。

4.配置网络H3C-CAS可以为所选的设备进行网络配置。

在网络配置中，用户可以设置IP 地址、子网掩码、网关和DNS等网络信息。

5.配置端口对于交换机和路由器等设备，用户可以配置端口以实现不同设备之间的通信。

在端口配置中，用户可以设置端口IP地址，开启或关闭端口等。

H3C-CAS的基本使用设备监视在H3C-CAS中，通过“监视”功能可以查看已配置的设备的状态、性能等信息。

在“监视”界面，用户可以选择要监视的设备和监视类型。

用户还可以设置监视间隔和事件通知等选项。

基于角色的访问控制H3C-CAS支持基于角色的访问控制，可以将用户分配给不同的角色，并为每个角色分配相应的权限和访问控制。

用户可以在“系统管理” -> “角色管理”中管理角色和权限。

应用程序管理在H3C-CAS中，用户可以管理和监控运行在物理或虚拟服务器上的应用程序。

在“应用程序管理”中，用户可以选择要监控的应用程序和监控类型。

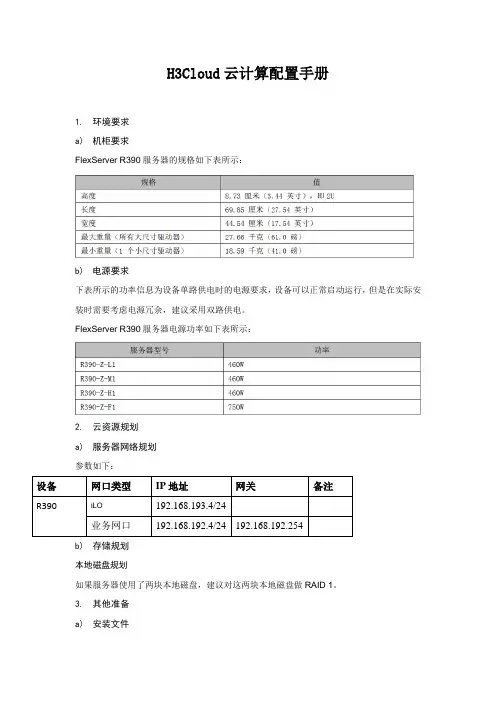

H3Cloud云计算配置手册1.环境要求a)机柜要求FlexServer R390服务器的规格如下表所示：b)电源要求下表所示的功率信息为设备单路供电时的电源要求，设备可以正常启动运行，但是在实际安装时需要考虑电源冗余，建议采用双路供电。

FlexServer R390服务器电源功率如下表所示：2.云资源规划a)服务器网络规划参数如下：b)存储规划本地磁盘规划如果服务器使用了两块本地磁盘，建议对这两块本地磁盘做RAID 1。

3.其他准备a)安装文件使用FlexServer R390服务器时，建议通过iLO的“Remote Console”功能来安装H3C CAS 系统软件，仅需准备H3C CAS系统的ISO文件。

b)LicenseH3C CAS系统的License在设备包装箱内。

4.设备安装工程实施时，首先需要进行设备安装工作。

主要包括设备上架、布线、标签制作以及设备上电等操作。

5.配置服务器5.1 静态配置iLO地址如果现场有显示器和键盘设备时，可以进入RBSU界面配置iLO地址。

FlexServer R390服务器加电后，当运行到如下截图所示的界面时，按F8键进入RBSU配置页面。

H3C FlexServer R390服务器默认开启DHCP功能，对iLO配置静态IP时需要先关闭DHCP 功能。

关闭方法是：进入RBSU配置界面后，选中“Network->DNS/DHCP”。

闭DHCP功能。

然后按F10键保存。

选中“Network->NIC and TCP/IP”。

IP Address”栏中输入地址信息。

然后按F10键保存。

选中“File->Exit”退出RBSU配置界面。

5.2 配置iLO用户在RBSU界面提供了iLO用户的配置功能，默认提供了用户“Administrator”，初始密码记录在服务器上方的标签纸上。

可以通过RBSU修改用户密码和新增用户。

在“Add User”对话框中输入用户名和密码，按F10键即可新建iLO用户。

目录第1章概述 (3)1.1H3Cloud云基础设施介绍 (3)1.2云平台服务器介绍 (4)第2章H3Cloud云管理平台部署任务简介 (5)第3章安装前的准备工作 (6)3.1服务器硬件配置 (6)3.2需要收集到的虚拟机控制器信息 (6)第4章部署云平台服务器 (7)4.1安装操作系统 (7)4.2部署云后端服务 (18)4.3部署iMC (22)4.4升级iMC (23)4.5部署云平台主程序 (27)4.6访问测试 (29)4.6.1访问管理端 (29)4.6.2访问门户端 (31)4.6.3访问服务运维管理控制台 (32)4.7云后端服务与CAS联调 (33)第5章配置系统参数 (34)5.1连接配置参数 (34)5.2基本特性参数 (34)5.3流程配置参数 (36)第6章定制SOM流程 (37)6.1流程模板文件介绍 (37)6.2上传流程模板 (38)6.3定制流程 (38)第7章开通云业务 (40)7.1云业务功能规划 (40)7.2配置云业务功能参数 (41)7.3管理可用域 (42)7.3.1查看当前可用域 (42)7.3.2增加可用域 (43)7.3.3删除可用域 (44)7.4调整资源规格 (44)7.4.1配置资源规格参数 (44)7.4.2配置资源规格 (45)7.5增加计费策略 (46)7.6新建私有云 (47)7.7配置组织及组织管理员 (49)7.7.1修改admin用户密码 (49)7.7.2增加组织 (49)7.7.3增加组织管理员 (50)第8章注册H3Cloud云管理平台 (52)8.1云平台License计算方法 (52)8.2云平台License注册方法 (52)H3C云管理平台部署第1章概述H3Cloud云管理平台（以下简称云平台）是H3C开发的一款高性能云计算管理平台软件，主要用于为企业、团体或组织提供IT资源按需交付能力，是H3Cloud云计算解决方案的重要组成部分。
