管座系列(支管台)

管道布置常用特殊管件1Half-coupling1)名称：单向管接头、半管接头、单承（螺）口管箍，也称加强管嘴；与coupling相对应。

2)标准：ASME B16.11（对应GB/T 14383-2008）3)结构：4)接口：与主管焊接，与支管连接：承插焊、内螺纹。

5)应用：主要用于小管径的支管连接上，作为排液或排气，仪表接口。

2Olet1)名称：支管台、支管座2)标准：MSS SP-973)结构：4)接口：与主管连接端是马鞍口，与支管连接有：承插焊（Sockolet）、内螺纹（Threadolet）、对接焊（Weldolet）。

5)应用：OLET主要用在要求较高的必须采用对焊连接的场合。

支管台一般用在2〞以上支管的情况，相当于是对主管进行整体补强。

代替传统使用的异径三通、补强板、加强管段等支管连接型式。

布置设计中应用较少，不过PDMS元件库中有OLET元件。

6)其他：同管径的支管台大概能买3个半管接头；由于与主管连接属于马鞍口，其工作量是普通焊口的3倍以上，不过增加了工程质量。

1)名称：接缘、管座2)标准：ASME B16.113)结构：4)接口：与主管连接端是焊接，与支管连接型式：承插焊、内螺纹。

5)其他：Boss应用情况与half-coupling类似，通过结构图可以看出，half-coupling开坡口后即为Boss；在管道布置中一般属于非标管件集。

4M.F. reducer1)名称：承插焊缩径接头2)标准：MSS SP-793)结构：4)接口：大头端与管道对接焊、小头端与管道承插焊，即一端与大管道对接焊，小管道插入另一端。

由于与大管对接焊一端与管道外径相同，将其直接插入承插焊阀门，省略了中间一段直管，导致M.F. reducer看起来是大头端插入，小头端被插入，所以被很多人误认为两端都是承插焊连接。

详见下图：1)名称：立布、短节2)标准：无相关标准3)结构：4)接口：所谓nipple是采用管道加工而成的短管，还可以对其末端加工螺纹。

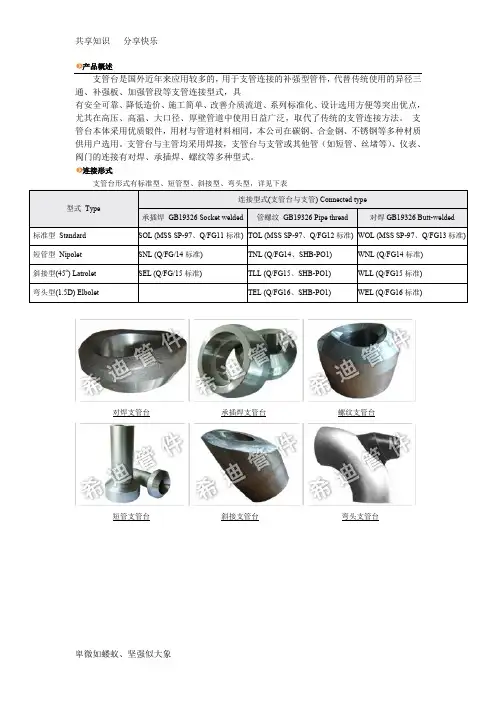

产品概述支管台是国外近年来应用较多的，用于支管连接的补强型管件，代替传统使用的异径三通、补强板、加强管段等支管连接型式，具有安全可靠、降低造价、施工简单、改善介质流道、系列标准化、设计选用方便等突出优点，尤其在高压、高温、大口径、厚壁管道中使用日益广泛，取代了传统的支管连接方法。

支管台本体采用优质锻件，用材与管道材料相同，本公司在碳钢、合金钢、不锈钢等多种材质供用户选用。

支管台与主管均采用焊接，支管台与支管或其他管（如短管、丝堵等）、仪表、阀门的连接有对焊、承插焊、螺纹等多种型式。

连接形式支管台形式有标准型、短管型、斜接型、弯头型，详见下表对焊支管台承插焊支管台螺纹支管台短管支管台斜接支管台弯头支管台说明：1、锥管螺纹可按ANSI B1.20.1 NPT 或ISO7/1Rp 或Rc 锥管螺纹，尺寸同支管公称通径(in)用户需注明锥管螺纹代号。

2、表列“适用主管公称直径”为一般用途，如需用于更小的主管尺寸应与制造厂协商。

4、螺纹支管台仅适用于国际通用系列的钢管（英制管）。

5、定货时必须注明主管及支管支管公称尺寸、压力等级、材料牌号、螺纹代号。

说明：1、表列“适用主管公称通径”为一般用途，如需用用于更小的主管尺寸，应与制造厂协商。

2、表列E值适用于国际通用系列的钢管尺寸（英制管），如需用于国内沿用系列钢管（公制管）E值将有所调整，但L值不变。

3、上表所列对焊支管台有STD、XS、XSS三种等级，选用较为复杂，为此，用户选用时，必须将主管及支管的公称通径及壁厚等级注明，本公司可根据上述参数确定符合用户需要的支管台等级及有关结构尺寸，如用于公制管，用户应注明主管及支管的外径和壁厚尺寸。

4、定货时必注明主管及支管尺寸、压力等级及材料编号。

如：WOL 14"×4" Sch40×STD 16Mn (用于英制管) 、WOL 377×108 12×8 16Mn (用于公制管)承插焊支管台参数表执行标准：MSS SP-97、GB19326、Q/FG11短管支管台（网上产品图片仅供参考，按实物为准）WNL （对焊） SNL （承插焊） TNL （锥管螺纹）短管支管台参数表 执行标准：MSS SP-97、GB19326、Q/FG141、 短管支管台长度L 应在订货时说明。

3 按中文分类排列汉语词英语词英语缩写3.1 阀门类3.1.1常用阀闸阀截止阀(球心阀)节流阀针型阀角阀(角式截止阀) Y型阀(Y型截止阀) 球阀三通球阀蝶阀柱塞阀旋塞阀三通旋塞阀四通旋塞阀旋塞隔膜阀夹紧式胶管阀止回阀Gate valveGlobe valveThrottle valveNeedle valveAngle valveY-valve(Y-boby globe valve)Ball valve3-Way ball valveButterfly valvePiston type valvePlug valve3-Way ball valve4-Way ball valveCockDiaphragm valvePinch valveCheck valveTRV3.1.2其它阀安全泄汽阀(安全阀) 安全泄液阀(卸荷阀) 安全泄压阀罐底排污阀波纹管密封阀电磁阀电动阀气动阀低温用阀蒸汽疏水阀呼吸阀减压阀控制阀调节阀3.1.3不表明结构的阀切断阀手动控制阀调节阀快开阀隔断阀三通阀夹套阀排污阀排液阀放空阀卸载阀排出阀吸入阀多路阀取样阀手动阀旁路阀冲洗阀根部阀底阀3.2 管子与连接3.2.1管子管子(标准规格)管子(非标规格)钢管铸铁管衬里管复合管(包复金属管) Safety valveRelief valveSafety relief valveFlush-bottom tank valveBellow sealed valveSolenoid valveElectrically operated valvePneumatic operated valveCryogenic service valveSteam trapBreather valveReducing valveControl valveBlock valve, Shut-off valve ,Stop valveHand control valveRegulating valveQuick opening valveIsolating valve3-Way valveJacketed valveBlow down valveDrain valveVent valveUnloading valveDischarge valveSuction valveMultiport valveSampling valveHand operated valve, Manually operated valveBy-pass valveFlush valveRoot valve, Primary valve, Header valveFoot valvePipeTubeSteel pipeCast iron pipeLined cining pipeClad pipeSVTRVHCVVTV汉语词英语词英语缩写碳钢管合金钢管不锈钢管奥氏体不锈钢管铁素体合金钢管]无缝钢管焊接钢管镀锌钢管水煤气钢管塑料管玻璃管橡胶管壁厚系列号(管子表号) 壁厚3.2.2管子零件弯头异径弯头长半径弯头短半径弯头180°弯头(回弯头) 三通(T型三通)异径三通等径三通45°三通正三通(Y型三通)四通(十字通)异径管(大小头)同心异径管偏心异径管支管连接支管台(凹台)活接头管接头(管箍)管帽短节(短管)管堵(丝堵)焊接管帽盲板,管道盲板8字盲板特殊管件3.2.3连接对焊的法兰的Carbon steel pipeAlloy steel pipeStainless steel valveAustenitic stainless steel pipeFerric alloy steel pipeSeamless steel pipeWelded steel pipeWater gas steel pipeGalvanized steel pipePlastic pipeGlass tubeRubber tubeSchedule numberWall thicknessElbowReducing elbowLong radius elbowShort radius elbowReturn elbowTeeReducing teeStraight tee45°LateralTrue “Y”CrossReducerConcentric reducerEccentric reducerBranch connectionBossUnionCouling, Full couplingCapNipplePlugWelded capBlank, Blind, Line blankSpectacle blankSpecial pipe fittingsButt weldedFlangedSch.NoW.TLRESREREDCONECCCNIPPLGWCL.BS.PBWFLGD汉语词英语词英语缩写螺纹的承插焊的承插的对焊连接法兰连接螺纹连接管螺纹连接承插焊连接承插连接,套筒连接整体法兰螺纹法兰承插焊法兰松套法兰对焊法兰平焊法兰板式平焊法兰松套板式法兰滑套法兰(平焊法兰)法兰盖孔板法兰异径法兰螺栓圆直径法兰面光面,光滑面突面凹凸面凸面凹面榫槽面榫面槽面环连接面,梯型槽密封面全平面,满平面光滑突面螺栓热紧螺栓冷紧螺纹管帽螺纹焊管座承插焊管帽承插焊管座垫片非金属包覆垫片ThreadedSocket weldedBelledButt welded jointFlanged jointThreaded jointPipe threaded jointSocket welding flangeBell and spigot jointIntegral pipe flangeThreaded flangeSocket welding flangeLap joint flangeWeld neck flangeSlip on flange, Slip on weld flangeWelding plate flangeLoose plate flangeSlip-on-welding flangeBlind flange, BlindOrifice flangeReducing flangeBolt circle diameterFlange facing, facing of flangePlain faceRaised faceMale-female(Seal contact)faceMale faceFemale faceTongue groove faceTongue faceGroove faceRing joint faceFlat face, Full faceSmooth raised faceBolt hot tighteningBolt cold tighteningThread capThread letSocket welded capSocket welded letGasketNon-metallic jacked gasketTHDSWBWTSWTHDFLJFWNFBCDFOFPFRFMFMMFFMFTGFTFGFRJFFFSRFTHDCTHLETSWCSWLET汉语词英语词英语缩写金属包覆垫片缠绕式垫片内环外环金属垫片3.3 管道附件3.3.1组件气液分离器阻火器临时粗滤器永久粗滤器(固定粗滤器) Y型粗滤器T型粗滤器网状粗滤器粗滤器过滤器永久过滤器消音器(消声器)视镜浮球式视镜全视镜取样冷却器喷嘴,喷头喷射器洗眼器膨胀器(伸缩接头)波纹膨胀节球型补偿器填函式补偿器安全淋浴器3.3.2元件排液漏斗漏斗爆破板限流孔板混合孔板软管接头金属软管橡胶管挠性管(柔性管)快速接头旋转接头Metallic jacket gasketSpiral wound gasketInner ringOuter ringMetallic gasketGas-liquid separationFlame arrested(Flame trap)Temporary strainetPermanent strainetY-type strainerT-type strainerGauge strainerStrainerFilterPermanent filterSilencerSight glass(Sight flow glass)Floating ball sight flow indicatorFull view sigh flow indicatorSample coolerSpray nozzleEjectorEye washerExpansion jointBellow expansion jointBall type expansion jointSlip type(packed type)expansion jointSafety showerDrain funnelFunnelRupture diskRestriction orificeMixing orificeHose connectionMetal hoseRubber hoseFlexible hoseQuick couplingSwivel jointE.WS.SRPROHC汉语词英语词英语缩写减压器3.4材料3.4.1 金属材料碳钢合金钢合金结构钢工具钢不锈钢奥氏体不锈钢马氏体不锈钢锻钢铸钢铸铁灰铸铁可锻铸铁球墨铸铁高硅铸铁铝铜黄铜铝镁合金蒙乃尔合金(镍铜合金)钛铅型钢角钢槽钢工字钢(工字梁)宽翼线工字钢(H钢)T字钢方钢扁钢园钢钢带钢板网纹钢板3.4.2非金属材料塑料丙烯晴、丁二烯、苯乙烯橡胶聚乙烯聚氯乙烯ReducerCarbon steelAlloy steelStructural alloy steelTool steelStainless steelAustenitic stainless steelMartensitic stainless steelForged steelCast steelCast ironGrey cast ironMalleable ironNodular cast iron, Nodular cast graphite ironHigh silicon cast ironAluminumCopperBrassAluminum magnesiumMonelTitaniumLeadShaped steelAngle steelChannelI—BeamWide flanged beamT—BarSquare BarFlat BarRound steel, rodStrap steelPlateCheckered platePlasticAcrylonitrile-butadiene-styrene rubberPolyethylenePloy vinyl chlorideREDC.SS.SC.IM.IABSPEPVC汉语词英语词英语缩写氯化聚氯乙烯聚丙烯聚苯乙烯氯化聚醚聚碳酸酯有机玻璃聚四氟乙烯碳纤维聚三氟氯乙烯氯化聚乙烯氯磺化聚乙烯环氧树脂泡沫聚苯乙烯玻璃纤维增强聚酯丁腈橡胶氯丁橡胶天然橡胶丁基橡胶丁苯橡胶顺丁橡胶不饱和聚酯聚氨酯耐火砖陶瓷搪瓷石棉3.5 设备安装3.5.1布置装置边界边界内边界外中心线接续线设备布置标高,高程,立面图绝对标高坐标坐标原点装置北真实北方位危险区Chlorinated ploy vinyl chloridePoly propylenePolystyreneChlorinated polyetherPolycarbonatePoly methyl methacrylatePolytetrafluoroethleneCarbon fiberPoly chlorotrifluoroethyleneChlorinated poly ethyleneChlorosulfonated polyethyleneEpoxy resinExpanded poly styreneGlass fiber reinforced polyesterNitride butadiene rubberNeoprene rubberNatural rubberButyl rubberStyrene-Butadiene rubberCis-polybutadiene rubberUnsaturated polyesterPolyurethaneFire brickCeramicPorcelain enamelAsbestBattery limitInside battery limitOutside battery limitCenter lineMatch lineEquipment arrangement; Equipment layout; Plot PlanElevationAbsolute elevationCoordinateOrigin of coordinatePlant northtrue northOrientationHazardous areaCPVCPPPSCPEPCPMMAPTFECARPCTFECPE;CMCSM;CSPREPEPSFRPNBRNRPIBISBRCBRUPPUB.LL.S.B.LO.S.B.LM.LELTN汉语词英语词英语缩写铺砌区非铺砌区楼面地面标高平台场地管廊电缆槽(架) 建筑物钢结构基础柱梁桁架墙篦子板吊装孔吊梁架顶面钢结构顶面混凝土顶面梁顶面板表面吊勾顶面,上面底面,底下支撑点固定点建筑北设计北电缆沟管沟明沟明火地点散发火花地点防火间距支架间距地面坡度吊装孔道路地面内径外径汉语词Paving areaUnpaving areaFloorGround levelPlatformYardPipe rackCable tray(channel)BuildingSteel structureFoundationColun ; Post; StanchionBeamGirderWallGrate; GratingErection openingHoisting beamTop of supportTop of steelTop of concreteTop of BeamPlat faceHookTopBottomPoint of supportFixed pointConstruction northDesign northElectric cable duct; Electrical trenchPipe trenchOpen trenchOpen fire placeSend-out spark placeFire protection spacingSupport spacingGround gradeErection openingRoadGround; Ground levelInside DiameterOutside Diameter英语词GLPFHBTOSTOSTOCTOBPLATFTOPBOTPOSFPDNGRDIDOD英语缩写公称直径公称压力切线中心线门窗地下底板底面控置室分析室配电室变压器室通风室更衣室贮藏室维修室盥洗室,厕所办工室门卫室,传达室接待室,会客室地秤室泵房压缩机室电池室消防栓电气盘仪表盘就地盘3.5.2设备塔洗涤塔吸收塔冷却塔精馏塔换热器空冷器水冷却器冷却器螺旋板换热器套管换热器石墨换热器板片换热器汉语词Nominal diameter; Nominal(pipe)sizeNominal pressureTangent lineCenter lineGateWindowUnder groundBottom of base plateControl roomAnalyzerSubstationTransformer roomVentilation roomLocker roomStorage roomMaintenance roomCloste ; Toilet; WashroomOfficeEntrance guard room; Janito r′s roomReception roomWeigh-bridge roomPump house; Pump roomCompressor house(room)Battery roomFire plugElectrical panelInstrument panelLocal panelTower; ColumnScrubberAbsorberCooling towerFractionating towerHeat exchangerAir coolerWater coolerCondenserSpiral plate exchangerDouble pipe heat exchangerGraphite heat exchangerPlate type heat exchanger英语词DNPNTLUGBBPW.CFPL英语缩写板翅式换热器板式塔填料塔浮阀塔反应器贮罐缓冲器混合罐浮顶罐内浮顶罐固定顶罐卧式储罐球罐罐,鼓,筒,桶气柜螺旋式气柜湿式气柜干式气柜离心泵涡轮泵旋涡泵转子泵齿轮泵内啮合齿轮泵螺杆泵柱塞泵双作用往复泵计量泵,定量泵泥浆泵管道泵手摇泵深井泵输送泵屏蔽泵液下泵潜水泵多级泵立式泵磁力泵气动泵轴流泵混流泵Plate-fin heat exchangerPlate towerFloating distillation towerValve towerReactorTankKnock-out drumMixing tank(drum)Floating roof tank; Pontoon roof tankFloating internal roof tankStationary roof tankHorizontal tankSpheroid; Spherical tankDrumGas holderHelical gas-holderWet gas holderDry gas-holderCentrifugal pumpTurbine pumpV ortex pumpRotary pumpGear pumpInternal gear rotary pump; Crescen gear pump Screw pumpPlunger pumpDouble action reciprocating pumpMetering pumpSlurry pump; Sludge pump; Mud pumpInline pumpHand pump; Wobble pumpDeep well pumpTransfer pump; Delivery pumpShielding can-type pump; Canned pump Submerged pump; Submersible pumpSubmerged pump; Immersible pumpStage pump;, Multistage pumpVertical pump;Magnetic transmission pump; Magnetic coupled pump Pneumatic pumpAxial flow pumpMixed flow pump汉语词英语词英语缩写陶瓷泵陶制泵自吸泵消防泵真空泵叶片式真空泵水环式真空泵(压缩机) 液环泵(压缩机)活塞式压缩机螺杆压缩机离心压缩机多级压缩机往复式压缩机风机,风扇鼓风机离心机离心分离机离心过滤机压滤机板框式压滤机厢式压滤机带式过滤机转鼓式过滤机盘式过滤机板式塔填料塔浮阀塔带式(皮带)运输机螺旋输送机加热器搅拌器炉子烟囱火炬锅炉发电机汽轮机电动机起重机,吊车板式起重机Ceramic pumpStoneware pumpSelf suction pump; self priming pumpFire pumpVacuum pumpVane vacuum pumpWater ring vacuum pump(compressor)Liquid ring pump(compressor)Piston compressorHelical screw compressorCentrifugal compressorMultiple stages compressorReciprocating compressorFan; VanBlowerCentrifugerCentrifugal separatorCentrifugal filterPressure filterPlate and frame filter pressBox type filer pressBelt filterRotating drum type filterTray filterPlate towerPack tower; Packed columnValve tower; Floating distillation towerRibbon conveyer; Belt conveyerScrew convery ; Spirla conveyer; Worm conveyerHeaterAgitatorFurnaceStackFlareBoilerGeneratorSteam turbineMotorGraneBridge crane汉语词英语词英语缩写吊车梁电动葫芦成套设备附属设备,附件干燥器混合器蒸发器萃取器结晶器澄清器喷射器喷头分离器旋风分离器,旋风除尘器布袋收尘器电除尘器除尘器,吸尘器振动筛破碎机颚式破碎机粉碎机,磨碎机提升机,卷扬机斗式提升机电梯泡沫站软管站3.6 管道布置3.6.1设计文件管道布置管道布置平面管道研究“X”视图“A-A”视图详图轴测图,空视图索引图接续图管道及仪表流程图工艺控制图工艺流程图汉语词Crane beam; Hoist beamMotor hoist; Electric hoist; Electric blockPackage unitAttachment equipmentDryerMixerEvaporatorExtractorCrystalligerGravity settlerEjectorSprayerSeparatorCyclone; Cyclone separator deviceCloth envelop collectionElectrostatic precipitator; Electridust precipitatorDuster; Dust arresterVibrating screen; Riddler; Oscillating sieveBreaker; Cracker mill; Crusher; Crushing millJaw breaker ;Jaw crusher; AlligatorGrinder; Pulverizer; Disintegrator; AtomizerHoister; Lifter; Gig; ElevatorBucket elevatorElectrical lift; ElevatorFoam stationHose stationDesign documentPiping assembly; Piping layoutPiping arrangement planPiping studyView“x”Section“A-A”Detail drawingIsometric drawingKey planContinue on drawingPiping and Instrument diagramProcess control diagramProcess flow diagram英语词H.SPAPCODP&ID英语缩写公用工程流程图总图总平面布置图放大图节点地上地下地面附图草图图例符号比例蒸汽伴管热水伴管电伴热夹套管高压中压低压大气，大气压工作压力，操作压力设计压力工作温度，操作温度设计温度管口取样接口清除口，清洗口排出口出口入口连接，接头管口方位排液放空污水坑，污水池地坑，井地漏下水管人孔手孔关闭后加铅封（封关）开启后加铅封（封开）汉语词Utility flow diagramGenera planGeneral arrangement planEnlarged viewNodeAbove groundUnder groundGroundFigueSketchLegendSymbolScaleSteam tracingHot—water tracingElectrical tracingJacketed tracingHigh pressureMedium pressureLow pressureAtmosphereOperating pressure; Working pressureDesign pressureOperating temperatureDesign temperatureNozzleSampling connectionClean outExhaustOutlet; DischargeInlet; suctionConnectionNozzle orientationDrainVentSump pitPitFloor drainSewerManholeHandholeCar seal closeCar seal open英语词UFDAGUGGRDH.P.M.P.L.P.ATMS.CC.ODISCHINLETVENTF.DM.HH.HC.S.CC.S.O英语缩写关闭后加锁（锁关）开启后加锁（锁开）正常时关闭正常时开启故障时关闭故障时开启垂直，正交平行管顶管底管内底底平顶平水平的，卧式的立式的，垂直的水平安装垂直安装管件直连管间距管道跨距管道等级管道材料规定等级分界隔热分界管道附件管道元件面至面中心至面中心至中心中心至端面坡度公称直径公称压力外径内径螺栓圆直径软管接头管段，短管可拆短管直管弯管管内底标高汉语词Locked closedLocked openNormally closedNormally openValve closes on failure of actuating energyValve opens on failure of actuating energyPerpendicularParallelTop of pipeBottom of pipeInvert, Inside bottom of pipeFlat on bottomFlat on topHorizontalVerticalHorizontal installationVertical installationFitting to fittingLine spacingLine spanPiping classPiping material specificationMaterial Specification breakInsulation breakPiping attachmentPiping elementFace to FaceCenter to FaceCenter to CenterCenter to EndSlope; GradeNominal DiameterNominal pressureOutside DiameterInside DiameterBolt circleHose connectionSpool piece; SpoolRemovable joint spoolRun pipe; Straight pipeBendInvert elevation英语词L.CL.ON.CN.OFCFOTOPBOPINVFOBFOTHORVERTFTFF-FC-FC-CC-EDNPNODIDB.CHCRSPIE英语缩写不许出现袋形孔板孔，洞开孔低点标高低点高点平台袋形管外壳3.6.2 管道安装管托管卡管架支耳U型卡带状卡托座吊耳导向板,夹板底板顶板予埋件支承环加强板垫片(垫平用)锚固件预焊件(设备上) 聚四氟乙烯滑动板连接板连接杆限制杆鞍座裙座支承架滑动架固定架导向架吊架弹簧架弹簧托汉语词Not allow pocketOrifice plateHoleCaving holeLow point elevationLow pointHigh pointPlatform; Flat; Floor; Surface plateBag-Shape pipe(outside)Shell; Case(shell);Casing; CoverShoeClampPiping supportLugCleviceStrap clampStoolEarCleatBase plateTop plateEmbedded part; Inserted plateRingStiffenerShimClipClip(on equipment)PTFE sliding plateTie plateTie rodLimit rodSaddleSkirtResting supportSliding supportAnchorGuideHangerSpring supportResting type spring support英语词NO.PC.HLP.LELPHPPF英语缩写弹簧吊架恒力吊架滚动支架减振器悬臂架三角架支腿N型管架L型管架柱式管架墙架管墩,低管架特殊管架(予埋螺栓)伸出长度对中心,找正跨度力矩弯矩扭矩荷载反力位移角位移冷紧,冷位约束固定点应力惯性矩断面系数安全系数3.6.3 焊接与热处理电弧焊电熔焊气熔焊电阻焊气焊等离子焊电渣焊焊条焊丝平焊角焊间断焊汉语词Spring hangerConstant hangerRolling hangerSnubberCantilever supportTriangular supportLegn-type supportL-type supportPole type supportSupport on wallSleeperSpecial supportExtrusionAlignmentSpanMomentBending momentTorqueLoadReactionDisplacementAngular rotationCold springRestraintFix point; Anchor pointStressMoment of inertiaSection modulesSafety factorArc weldingElectric fusion weldingFusion gas weldingElectric resistance weldingGas welding; flame weldingPlasma weldingElectroslag weldingWelding electrode(rod)Welding wireFlat weldingFillet weldingIntermittent welding英语词EFWFGWERW英语缩写点焊对焊搭焊现场焊工厂(车间)焊接坡口无损检验肉眼检验,外观检验超声波控伤磁粉探伤荧光渗透试验水压试验气压试验退火回火正火淬火调质高频淬火渗氮渗碳3.6.4 隔热及涂漆玻璃棉岩棉泡沫玻璃硅酸钙硅酸铝纤维珍珠岩泡沫混凝土蛭石矿渣棉硅藻土石棉板石棉布聚氨酯泡沫聚苯乙烯玻璃布沥青油毡镀锌铁丝镀锌铁丝网管壳毡(被)汉语词Spot weldingButt weldingLap weldingField weldShop weldGrooveNon-Destruction testingVisual testingUltrasonic testMagnetic particle testFluorescent penetrate inspectionHydraulic testingPneumatic testingAnnealingTemperingNormalizingQuenchingQuenching and temperingInduction hardeningNitrogen case-hardeningCarbonizationGlass woolRock woolFoam glass; Cellular glassCalcium silicateAluminosilicace fiberPerliteFoamed concrete; Cellular concreteVermiculiteMineral woolKieselguhr; DiatomiteAsbestos boardAsbestos clothPolyurethaneCellular polystyreneGlass(fiber)clothAsphaltAsphalt feltGalvanized wireGalvanized wire meshShellBlanket英语词F.W英语缩写镀锌铁皮铝板隔热,隔离,绝缘保温保冷人身保护隔音吸声导热系数支承环分贝涂漆底漆面漆防锈漆醇酸瓷漆酚醛漆沥青漆聚氨酯漆有机硅漆环氧树脂漆过氯乙烯漆无机富锌漆3.6.5 紧固件螺栓六角头螺栓方头螺栓双头螺栓环头螺栓沉头螺栓地脚螺栓松紧节,花兰螺栓U型螺栓T型螺栓自攻螺钉膨胀螺栓六角螺母方螺母蝶形螺母锁紧螺母垫圈方垫圈斜垫圈汉语词Galvanized(sheet)ironAluminum sheetInsulationHot instructionCold instructionPersonal protectionSound insulationSound-absorbingThermal conductivity factorSupport ringDecibelPaintingPrimary coat; Bottom coatFinishing coatAntirust paintAlkyd enamelPhenolic paintBituminous paintPolyurethane paintOrganic silicon paintEpoxy resin paintEthylene perchloride paintInorganic zinc-rich paintBoltHexagonal head boltSquare head boltStud boltEye boltCountersunk(head)screwAnchor bolt; Foundation boltTurnbuckleU-boltT-boltSelf tapping screwExpansion boltHexagonal nutSquare washerWing nutLock nutWasherSquare WasherSlant Washer英语词INS英语缩写弹簧垫圈开口销定位销铆钉右螺纹管螺纹锥管螺纹直管螺纹美国标准直管螺纹管子内螺纹梯形螺纹公制螺纹粗牙螺纹通长螺纹,全螺纹粗制的精制的3.7 相关词语基础设计详细设计规划布置阶段初步阶段分析设计阶段成品设计阶段先期确认图纸资料最终确认图纸资料数据表设计文件设计注释设计规定设计规定汇总表详细设计版用户变更通知命名表,管道表规划研究版设计布置图概略版设备布置图投标版设备布置图合同版设备布置图送审版设备布置图成品版设备布置图施工版设备布置图工作程序界区条件标准汉语词Spring washerCotter pinDowel pinRivetRight hand threadPipe threadTaper pipe threadStraight pipe threadAmerican standard taper pipe threadInternal pipe threadTrapezoid threadMetric threadCoarse threadFull threadCoarseFinished; FineBasic designDetail designPlanning stagePreliminary stageAnalytical Engineering phaseProduction design phaseAdvanced certified finalCertified finalData sheetDesign documentDesign noteDesign specificationDesign specification summary sheetDetail design issueClient change noticeNomenclaturePlanning plot planConceptual plot planProposal plot planAward plot planApproval plot planProduction plot planConstruction plot planWorking procedureBattery limit conditionStandard英语词NPTIPTACFCFSPECDSSSDDICCNSTD;STAND英语缩写参考,基准开工会议项目审核会厂商协调会项目进展情况报告顾客承包安装建设试车说明待定版次修改,修订审核提纲审定校核制图部门部,科,室专业图号项目项目号工厂,装置买方(供货)卖方(供货)制造厂(供货)由仪表(专业负责) 铭牌询价净正吸入压头静电接池分散控制系统附件合同号外汇备忘录公章索赔交货付款摄氏汉语词ReferenceKick-off meetingProject review meetingVender co-ordinative meetingProject status reportClient; CustomerContractorErectionConstructionCommissioningDescriptionHoldIssueRevision; ModifyCheck listApprovedCheckedByDepartmentDivisionDisciplineDrawing numberProjectJob No.PlantBy buyerBy sellerBy venderBy instrumentName plateInquireNet positive suction headStatic groundingDistributed Control SystemsAttachmentContract numberForeign exchangeMemorandumOfficial sealClaim indemnityCash on deliveryCentigrade英语词K.O,MVCMPSRREVAPVDCHKDBYDWG. No.Job. No.B.BB.SB.VB.INSTDCSCont No.C.O.DC英语缩写华氏国际单位制美国材料试验协会阀门及配件制造工业标准化协会(美) 全国消防协会(美)石油管线协会(美)美国国家标准协会(美)美国机械工程师学会国际标准化组织国际电工技术委员会美国石油学会美国自来水厂协会美国仪表学会全国电气制造商协会(美) 日本工业标准加拿大标准协会英国标准德国工业标准FahrenheitSystem InternationalAmerican Society for Testing and MaterialsManufacturer s′Standardization Society of ValvAnd Fittings Industry National Fire Protection AssociationAssociation of Oil Pipe LinesAmerican National Standard InstituteAmerican Society of Mechanical Engineers InternationalOrganization for Standardization International Electrotechnical CommissionAmerican Petroleum InstituteAmerican Water Works AssociationInstrument Society of AmericanNational Electrical Manufactures Association Japanese Industrial StandardCanadian Standard AssociationBritish StandardDeutsche Industrie NormFSIASTMMSSNFPAAOPLANSIASMEISOIECAPIAWW AISANEMAJISCASBSDIN4 按英文字母排列英语词英语缩写汉语词3-Way ball valve3-Way ball valve3-Way valve4-Way ball valve45°LateralAAbove groundAbsolute elevationAbsorberAcrylonitrile-butadiene-styrene rubber Advanced certified finalAgitatorAir coolerAlignmentAlkyd enamelAlligatorAlloy steelAlloy steel pipeAluminosilicace fiberAluminum英语词AGABSACF英语缩写三通球阀三通旋塞阀三通阀四通旋塞阀45°三通地上绝对标高吸收塔丙烯睛·丁二烯:苯乙烯橡胶先期确认图纸资料搅拌器空冷器对中心，找正醇酸瓷漆颚式破碎机合金钢合金钢管硅酸铝纤维铝汉语词Aluminum magnesium Aluminum sheetAmerican National Standard Institute American Petroleum InstituteAmerican Society for Testing and Materials American Society of Mechanical Engijeers American standard taper pipe thread American Water Works Association Analytical Engineering phaseAnalyzerAnchorAnchor boitAnch pointAngle steelAngle valveAngular rotationAnnealingAntirust paintApproval plot planApprovedArc weldingAsbestAsbestos boardAsbestos clothAsphaltAsphalt feltAssociation of Oil Pipe Lines AtmosphereAtomizerAttachmentAttachment equipmentAustenitic stainless steelAustenitic stainless steel pipeAward plot planAxial flow pumpBBag-Shape pipeBall type expansion jointBall valveBase plateBasic designBattery limit英语词ANSIAPIASTMASMENPTAWW AAPVDAOPLATMB.L英语缩写铝镁合金铝板美国国家标准协会（美）美国石油学会美国材料试验协会美国机械工程师学会美国标准直管螺纹美国自来水厂协会分析设计阶段分析室固定架地脚螺栓固定点角钢角阀(角式截止阀)角位移退火防锈漆送审版设备布置图审定电弧焊石棉石棉板石棉布沥青油毡石油管线协会(美)大气,大气压粉碎机,磨碎机附件附属设备,附件奥氏体不锈钢奥氏体不锈钢管合同版设备布置图轴流泵袋形管球型补偿器球阀底板基础设计装置边界汉语词Battery limit condition Battery roomBeamBell and spigot joint BelledBellow expansion joint Bellow swaled valve Belt filterBendBending moment Bituminous paintBlankBlanketBlindBlindBlind flangeBlock valveBlow down valve BlowerBoilerBoltBolt circleBolt cold diameter Bolt cold tightening Bolt hot tightening BossBottomBottom coat Bottom of base plate Bottom of pipeBox type filer press Branch connection BrassBreakerBreather valve Bridge crane British Standard Bucket elevator BuildingButt weldedButt welded joint Butt welding Butterfly valve英语词L.BL.BB.CBOTBBPBOPBSBWBW英语缩写界区条件电池室梁承插连接,套筒连接承插的波纹膨胀节波纹管密封阀带式过滤机弯管弯矩沥青漆盲板,管道盲板毡(被)盲板,管道盲板法兰盖法兰盖切断阀排污阀鼓风机锅炉螺栓螺栓圆直径螺栓圆直径螺栓冷紧螺栓热紧支管台(凹台)底面,底下底漆底板底面管底厢式压滤机支管连接黄铜破碎机呼吸阀板式起重机英国标准斗式提升机建筑物对焊的对焊连接对焊蝶阀汉语词Butyl rubberByBy buyerBy instrumentBy sellerBy venderBy-pass valveCCable tray(channel)Calcium silicateCanadian Standard Association Canned pumpCantilever supportCapCar seal closeCar seal openCarbon fiberCarbon pipeCarbon steel CarbonizationCase(shell)Cash on deliveryCasingCast ironCast iron pipeCast steelCaving holeCellular concreteCellular glassCellular polystyreneCenter lineCenter to CenterCenter to EndCenter fo FaceCentigradeCentrifugal compressor Centrifugal filter Centrifugal pump Centrifugal separator CentrifugerCeramic英语词PIBIBYB.BB.INSTB.SB.VCASCC.S.CC.S.OCARC.SC.O.DC.IC.HC-CC-EC-FC英语缩写丁基橡胶制图买方(供货)由仪表(专业负责)卖方(供货)制造厂(供货)旁路阀电缆槽(架)硅酸钙加拿大标准协会屏蔽泵悬臂架管帽关闭后加铅封(封关)开启后加铅封(封开)碳纤维碳钢管碳钢渗碳外壳交货付款外壳铸铁铸铁管铸钢开孔泡沫混凝土泡沫玻璃泡沫聚苯烯中心线中心至中心中心至端面中心至面摄氏离心压缩机离心过滤机离心泵离心分离机离心机陶瓷汉语词。

弯头支管台Elbolet MSS SP97弯头支管台弯头支管台支管公称通径（Outlet Size)适用主管公称通径(Run Size)不小于≥L Dmm in mm in3000Lb151/23211/44536 203/44011/25040 2515226055 3211/46521/26866 4011/28037574 50210049090Nipolet MSS SP97短管支管台斜接支管台支管公称通径（Outlet Size)适用主管公称通径(Run Size)不小于≥E Lmm in mm in3000Lb6000Lb 151/21511/423.814.3203/42511/230.219.1 25125236.525.4 3211/43221/244.533.3 4011/24021/250.838.1 50250365.142.9100 150压力等级适用支管壁厚等级3000Lb Sch40、 Sch80、STD、XS6000Lb Sch160 XXS说明：1、短管支管台长度L应在订货时说明。

2、短管支管台上端的型式有：平端用于承插焊坡口端正用于对焊锥管螺纹（外）NPT或R（订货时应予说明）3、按下表选用支管台的压力等级（用于英制管）：4、表列E值适用于国际通用系列的钢管尺寸（英制管），如需用于国内沿用系列钢管（公制管）E值将有所调整。

5、定货时必须注明主管及支管公称尺寸、压力等级、长度级材料牌号，如用于公制管，应注明主管及支管外径和壁厚尺寸。

Threado Let MSS SP97螺纹管座Threaded Outlet支管公称通径（Outlet Size)适用主管公称通径(Run Size)不小于≥A Emm in mm in3000Lb6000Lb3000Lb6000Lb 61/8203/419.1-15.9-81/4203/419.1-15.9-103/825120.6-19.1-151/23211/425.431.823.819.1 203/44011/227.036.530.225.4 25150233.339.736.533.3 3211/46521/233.341.344.538.1 4011/26521/234.942.950.849.2 50280338.152.465.169.9 6021/2100446.0-76.2-803125550.8-93.7-1004150657.2-120.7-压力等级适用支管壁厚等级3000Lb Sch40、 Sch80、STD、XS6000Lb Sch160 XXS说明：1、锥管螺纹可按ANSI B1.20.1 NPT呀ISO7/1 Rc锥管螺纹尺寸同支管公称通径(in) 用户需注明锥管螺纹代号。
