MBR20200CTP中文资料

  • 格式：pdf
  • 大小：41.79 KB
  • 文档页数：4

MBR20200CTP SWITCHMODE™ Power
Dual Schottky Rectifier
ing Schottky Barrier technology with a platinum barrier metal. This state–of–the–art device is designed for use in high frequency switching power supplies and converters with up to 48 volt outputs.
They block up to 200 volts and offer improved Schottky performance at frequencies from 250 kHz to 5.0 MHz.
•200 Volt Blocking Voltage
•Low Forward V oltage Drop
•Guardring for Stress Protection and High dv/dt Capability (10,000 V/µs)
•Dual Diode Construction — Terminals 1 and 3 Must be Connected for Parallel Operation at Full Rating
Mechanical Characteristics
•Case: Epoxy, Molded
•Weight: 1.9 grams (approximately)
•Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
•Lead Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
•Shipped 50 units per plastic tube
•Marking: B20200P
MAXIMUM RATINGS (Per Leg)
Device Package Shipping ORDERING INFORMATION
MBR20200CTP TO–220
50 Units/Rail
THERMAL CHARACTERISTICS (Per Leg)
ELECTRICAL CHARACTERISTICS (Per Leg)
DYNAMIC CHARACTERISTICS (Per Leg)
100
10
1
0.1
i F , I N S T A N T A N E O U S F O R W A R D C U R R E N T (A )
Figure 3. Typical Reverse Current V R , REVERSE VOLTAGE (VOLTS)
Figure 4. Typical Capacitance
V R , REVERSE VOLTAGE (VOLTS)
I R , R E V E R S E C U R R E N T (A )
Figure 5. Current Derating, Case, Per Diode T C , CASE TEMPERATURE (°C)
Figure 6. Forward Power Dissipation, Per Diode
I F(AV), AVERAGE FORWARD CURRENT (AMPS)I F (A V ), A V E R A G E F O R W A R D C U R R E N T (A )
PACKAGE DIMENSIONS
TO–220THREE–LEAD
TO–220AB
CASE 221A–09
ISSUE AA
SWITCHMODE is a trademark of Semiconductor Components Industries, LLC.
ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others.
SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. PUBLICATION ORDERING INFORMATION
CENTRAL/SOUTH AMERICA:
Spanish Phone:303–308–7143 (Mon–Fri 8:00am to 5:00pm MST)
Email:ONlit–spanish@
Toll–Free from Mexico: Dial 01–800–288–2872 for Access –
then Dial 866–297–9322
ASIA/PACIFIC: LDC for ON Semiconductor – Asia Support
Phone:303–675–2121 (Tue–Fri 9:00am to 1:00pm, Hong Kong Time)
Toll Free from Hong Kong & Singapore:
001–800–4422–3781
Email: ONlit–asia@
JAPAN: ON Semiconductor, Japan Customer Focus Center
4–32–1 Nishi–Gotanda, Shinagawa–ku, Tokyo, Japan 141–0031
Phone: 81–3–5740–2700。

合集下载

ASEMI肖特基二极管MBR20200FCT参数详解

ASEMI肖特基二极管MBR20200FCT参数详解

ASEMI肖特基二极管MBR20200FCT参数详解ASEMI肖特基二极管MBR20200FCT参数详解
编辑-Z
MBR20200FCT参数描述
特性：低功耗、大电流和超高速
电性参数：20A200V
芯片材质：si
正向电流(Io)：20A
芯片个数：2
正向电压(VF)：0.9V
芯片尺寸：102mil
浪涌电流Ifsm：200A
漏电流(Ir)：20mA
工作温度：-65~+175℃
恢复时间(Trr)：5ns
引线数量：3
MBR20200FCT的电性参数：正向平均电流20A；反向峰值电压200V
MBR20200FCT的包装方式：5000pcs/箱
MBR20200FCT的特征：
1、可燃性分类94V-O、阻燃环氧模塑料
2、金属硅结，多数载流子传导
3、低功耗、高效率
4、高电流能力
5、用于过压保护的保护环
MBR20200FCT的机械数据：
1、外壳：ITO-220AB模压塑料
2、端子：镀锡，可焊接，符合MIL-STD-750
3、极性：已标记
4、安装位置：任意
5、重量：0.055盎司，1.5615克
以上就是ASEMI肖特基二极管MBR20200FCT参数详解的详细参数和特征ASEMI产品广泛应用于：开关电源、LED照明、集成电路、移动通讯、计算机、工业自动化控制设备、汽车电子以及液晶电视、IoT、智能家居、医疗仪器、电磁炉等大小家电。

MBR10200CT-MBR20100CT ASEMI高压肖特基二极管规格

MBR10200CT-MBR20100CT ASEMI高压肖特基二极管规格

MBR10200CT ASEMI高压肖特基二极管
肖特基二极管MBR10200CT参数规格：
肖特基二极管MBR10200CT电流：10A；
肖特基二极管MBR10200CT电压：200V；
肖特基二极管MBR10200CT管装：50/管；盒装：1000PCS/盒。

肖特基二极管广泛应用于开关电源、变频器、驱动器等电路，作高频、低压、大电流整流二极管、续流二极管、保护二极管使用，或在微波通信等电路中作整流二极管、小信号检波二极管使用。

MBR10200CT ITO-220AB肖特基二极管PDF资料
MBR10200CT肖特基类型：高结温芯片，品牌：ASEMI，
应用市场：电源，小家电，LED电源，各式充电器，开关电源，LED显示屏等。

MBR10200CT肖特基相关参数如下：
MBR10200CT电压Vrrm:200V
MBR10200CT电流If平均：10A
MBR10200CT正向电压Vf最大：0.87V
MBR10200CT电流，Ifs最大：150A
MBR10200CT工作温度范围：-40°C to+150°C
MBR10200CT封装形式：TO-220/TO-220F/ITO-220
MBR10200CT反向恢复电流，Irrm:10UA
肖特基系列型号：
MBR1040CT,MBR1045CT,MBR1060CT,MBR1060FCT, MBR10100CT,MBR10100FCT,MBR10150FCT,MBR10150CT, MBR10200FCT,MBR10200CT
肖特基二极管封装：TO-251,TO-252,TO-263,
TO-220,TO-247,TO-3P。

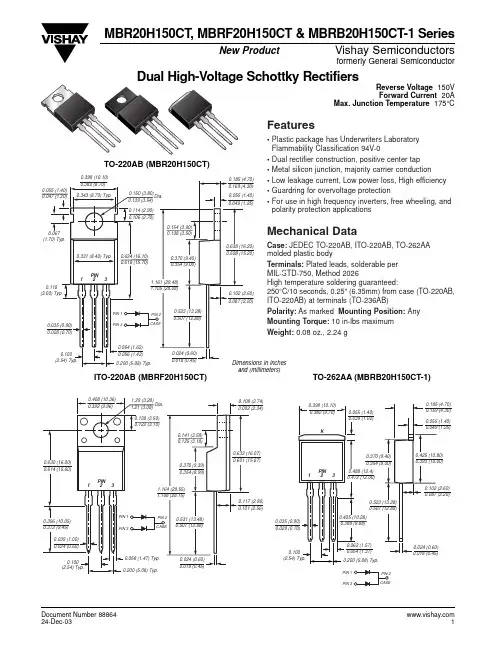

MBRF20H150CT中文资料
