RealtekUSB3.0HUB主控⽅案RTS5411-GR对⽐创唯GL3520威盛VL812早在2011年,Realtek(瑞昱)开发出了业界公认的低功耗,⾼性能的USB3.0 Hub主控⽅案RTS5401-GR。
它超⼩的体积(QFN76)和规范化的设计(USB IF认证，BC1.2和⽀持苹果设备快充)，赢得了⾏内⼀致认可。
经过⼏年来来的打磨再打磨,瑞昱在原有的优势基础上,⼜新推⼀款更具性价⽐的USB3.0 Hub主控⽅案RTS5411-GR。
此款IC的推出⽬的就是优化功耗，提⾼性能，降低客户Bom成本。
应⽤时此款主控到底有何改善和更新呢？后续会给出RTS5411-GR和RTS5401-GR对⽐，在Layout中需要注意的事项。
RTS5411-GR有以下两⼤特性值得关注：1. 强⼤的免外挂SPI Flash,DC/DC设计。
众所周知，⽬前世⾯上的Hub 主控，诸如创唯(GL3520)、威盛(VL812) 等等，都需要外挂⼀颗Flash，把配置⽂件(Bin⽂件)烧录其中，才能控制各个下⾏端⼝的设置。
⽽且，还需要⼀颗降压IC(5.5～3V to 1.2V)。
如此才能使整块板⼦正常⼯作，满⾜设计要求。
⽽现在的RTS5411-GR内置Efuse功能，可把Bin程序烧录到IC内部，这样就省去外挂SPI FLASH，使客户再次Cost Down;另外，该IC已内置降压IC(5.5～3V to 1.2V) 因此，在整个Bom设计中，⽆需再加⼀颗降压IC。
从上述SPI Flash和DC/DC两点来看，可以让整个Bom节省成本，这使得客户的Hub产品更具价格优势！2. 低于同类主控IC的功耗设计。

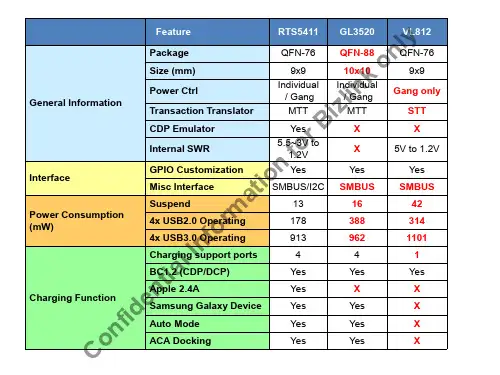

针对⾏业的主要⼏款USB3.0 Hub IC,我们进⾏了如下测试，在第三⾏可以看出(橙⾊)，RTS5411-GR 在功耗⽅⾯的优势很明显，⽽且在第四⾏(绿⾊)可以看到,RTS5411还⽀持苹果2.4A快充(ipad产品)。
