1/26 XC6101_07_XC6111_17 ETR0207_009 Preliminary

◆CMOS Voltage Detector

◆Manual Reset Input

◆Watchdog Functions

◆Built-in Delay Circuit

◆Detect Voltage Range: 1.6~5.0V, ± 2%

◆Reset Function is Selectable

VDFL (Low When Detected)

VDFH (High When Detected)

■GENERAL DESCRIPTION

The XC6101~XC6107, XC6111~XC6117 series aregroups of high-precision, low current consumption voltage detectors with manual reset input function and watchdog functions incorporating CMOS process technology. The series consist of a reference voltage source, delay circuit, comparator, and output driver. With the built-in delay circuit, the XC6101 ~ XC6107, XC6111 ~ XC6117 series’ ICs do not require any external components to output signals with release delay time. Moreover, with the manual reset function, reset can be asserted at any time. The ICs produce two types of output; VDFL (low when detected) and VDFH (high when detected). With the XC6101 ~ XC6105, XC6111 ~ XC6115 series’ ICs, the WD pin can be left open if the watchdog function is not used. Whenever the watchdog pin is opened, the internal counter clears before the watchdog timeout occurs. Since the manual reset pin is internally pulled up to the VINpin voltage level, the ICs can be used with the manual reset pin left unconnected if the pin is unused. The detect voltages are internally fixed 1.6V ~ 5.0V in increments of 100mV, using laser trimming technology. Six watchdog timeout period settings are available in a range from 6.25msec to 1.6sec. Seven release delay time 1 are available in a range from 3.13msec to 1.6sec. ■APPLICATIONS

●Microprocessor reset circuits

●Memory battery backup circuits

●System power-on reset circuits

●Power failure detection

■TYPICAL APPLICATION CIRCUIT

* Not necessary with CMOS output products. ■FEATURES

Detect Voltage Range : 1.6V ~ 5.0V, +2% (100mV increments) Hysteresis Range : VDF x 5%, TYP. (XC6101~XC6107) VDF x 0.1%, TYP. (XC6111~XC6117) Operating Voltage Range : 1.0V ~ 6.0V Detect Voltage Temperature Characteristics : +100ppm/OC (TYP.) Output Configuration : N-channel open drain, CMOS Watchdog Pin : Watchdog input If watchdog input maintains ‘H’ or ‘L’ within the watchdog timeout period, a reset signal is output to the RESET output pin Manual Reset Pin : When driven ‘H’ to ‘L’level signal, the MRB pin voltage asserts forced reset on theoutput pin. Release Delay Time : 1.6sec, 400msec, 200msec,100msec, 50msec, 25msec, 3.13msec (TYP.) can be selectable. Watchdog Timeout Period : 1.6sec, 400msec, 200msec,100msec, 50msec, 6.25msec (TYP.) can be selectable.

■TYPICAL PERFORMANCE

CHARACTERISTICS

●Supply Current vs. Input Voltage

* ‘x’ represents both ‘0’ and ‘1’. (ex. XC61x1⇒XC6101 and XC6111)051015202530

0123456Input Voltage:　VIN (V)Supply Current:　ISS (µA)XC61X1~XC61X5 (2.7V)

Ta=85℃

Ta=-40℃Ta=25℃元器件交易网www.cecb2b.com

2/26 XC6101~XC6107, XC6111~XC6117 Series

PIN NUMBER

XC6101, XC6102 XC6103 XC6104, XC6105XC6106, XC6107

XC6111, XC6112 XC6113 XC6114, XC6115XC6116, XC6117

SOT-25 USP-6C SOT-25 USP-6C SOT-25 USP-6CSOT-25USP-6CPIN NAME

FUNCTION

1 4 - - 1 4 1 4 RESETB Reset Output

(VDFL: Low Level When Detected)

2 5 2 5 2 5 2 5 VSS

Ground

3 2 3 2 - - 4 1 MRB Manual

Reset

4 1 4 1 4 1 - - WD Watchdog

5 6 5 6 5 6 5 6 VIN Power Input

- - 1 4 3 2 3 2 RESET Reset Output

(VDFH: High Level When Detected)

■PIN CONFIGURATION

SOT-25 (TOP VIEW) MRBVINWD

5

RESETBVSS4

123MRBWD

5

RESETVSS4

123VIN

RESETWD

5

RESETBVSS4

123VIN

SOT-25 (TOP VIEW) RESETMRB

5

RESETBVSS4

123VIN

SOT-25 (TOP VIEW)

■PIN ASSIGNMENT ●SOT-25

XC6101, XC6102 Series XC6111, XC6112 Series

SOT-25 (TOP VIEW) XC6103 & XC6113 SeriesXC6104, XC6105 Series XC6114, XC6115 SeriesXC6106, XC6107 SeriesXC6116, XC6117 Series

●USP-6C

XC6101, XC6102 Series XC6111, XC6112 Series XC6103 & XC6113 SeriesXC6104, XC6105 Series XC6114, XC6115 Series XC6106, XC6107 SeriesXC6116, XC6117 Series

USP-6C (BOTTOM VIEW) USP-6C (BOTTOM VIEW)USP-6C (BOTTOM VIEW) USP-6C (BOTTOM VIEW)

* The dissipation pad for the USP-6C package should be solder-plated in recommended mount pattern and metal masking so as to enhance mounting strength and heat release. If the pad needs to be connected to other pins, it should be connected to the VSS pin. 元器件交易网www.cecb2b.com

合集下载

B6充电器中文详细说明书

B6充电器中文详细说明书

1 / 15下载文档可编辑 B6充电器说明书

充电器参数：

—电压值：DC11.0-18.0V AC100-240, -50/60HZ

—最大充电功率50W

—最大放电功率5W

—充电电流值：0.1-5.0A

—放电电流值：0.1-1.0A

—单个电池的电流：300mah/cell

—镍氢/镍镉电池个数：1-15cell

—锂离子/聚合物级数：1-6节（注：支持Li-Fe电池，即A123）

—PB电池电压：2-20V

—重量：580g

—尺寸：133*87*33mm

B6如何外接电源？

就将跟充电器的的夹子夹到大功率的稳压电源或者开关电源上面，红色为正极，黑色为负极，电压允许范围：11～18v，电流要求5A以上，官方要求最低12v5a

***不要问12v10a会不会烧坏充电器，答案是肯定不会的，就像你200W的主机用500W的电源不会因为电源功率大而烧掉一样道理

2 / 15下载文档可编辑 B6原配一堆充电线材，充电前，先将长的那根蕉插（公）以及T插（公）线接到充电器右侧的母蕉插里面（红正黑负），然后根据自己要冲的电池类型选择合适的适配线，再将适配线的T插（母）插到刚才那根长线的T插（母）上，最好接上要充的电池上面就可以了。举例图：冲接受电：

B6的使用方法

按键功能

Batt. Type

Stop 按钮：电池种类以及停止按钮，接电后即可使用该按钮在主菜单中进行切换，充电时可随时按此键停止；

Dec. / Inc.

< Status > 按钮：减小以及增加按钮，设置各种数值时Dec.是减小，Inc.是增加，充电时按这两个按钮以浏览电池不同信息；

Start

Enter 按钮：开始以及确定按钮。

接通电源，即显示主菜单

此时可以按Batt. Type / Stop 按钮，在主要的几个菜单中进行切换，它们是： 3 / 15下载文档可编辑

Program Select

LiPo BATT

C1206C27415RAC资料

C1206C27415RAC资料

Surface Mount Ceramic Chip CapacitorsExtended Values 1206, X7R Dielectric, 25, 50, 100, 200 Volts25 Volts – 1.2µF - 1.5 µF50 Volts – 0.27µF - 0.68µF100 Volts – 0.27µF - 0.39µF200 Volts – 27,000pF - 150,000pF

Table 1 - Dimensions - MillimetersNew Product Release

Outline Drawings

F3274A 04/05EIA Size CodeMetric SizeCode (Ref)L#LengthW#WidthThicknessBBandwidthSMin. SeparationMountingTechnique1206*32163.2 (.126) ± 0.2 (.008)1.6 (.063) ± 0.2 (.008)See Table 20.5 (.02) ± .25 (.010)N/ASolder Wave orSolder ReflowCap ValuesKEMET Part NumberCapacitance ToleranceThickness - mmQty 7” ReelQty 13” Reel1.2µFC1206C125(1)3RACJ,K,M1.60 ± 0.152,0008,0001.5µFC1206C155(1)3RACJ,K,M1.60 ± 0.152,0008,0000.27µFC1206C274(1)5RAC*J,K,M.90 ± .104,00010,0000.33µFC1206C334(1)5RAC*J,K,M.90 ± .104,00010,0000.39µFC1206C394(1)5RAC*J,K,M.90 ± .104,00010,0000.47µFC1206C474(1)5RAC*J,K,M.90 ± .104,00010,0000.56µFC1206C564(1)5RAC*J,K,M.90 ± .104,00010,0000.68µFC1206C684(1)5RAC*J,K,M1.00 ± 0.102,50010,0000.27µFC1206C274(1)1RACJ,K,M1.25 ± 0.152,50010,0000.33µFC1206C334(1)1RACJ,K,M1.60 ± 0.152,0008,0000.39µFC1206C394(1)1RACJ,K,M1.60 ± 0.152,0008,00027,000pFC1206C273(1)2RACJ,K,M.78 ± .102,50010,00033,000pFC1206C333(1)2RACJ,K,M.78 ± .102,50010,00039,000pFC1206C393(1)2RACJ,K,M.78 ± .102,50010,00047,000pFC1206C473(1)2RACJ,K,M1.00 ± 0.102,50010,00056,000pFC1206C563(1)2RACJ,K,M1.00 ± 0.102,50010,00068,000pFC1206C683(1)2RACJ,K,M1.00 ± 0.102,50010,00082,000pFC1206C823(1)2RACJ,K,M1.00 ± 0.102,50010,000100,000pFC1206C104(1)2RACJ,K,M1.25 ± 0.152,50010,000120,000pFC1206C124(1)2RACJ,K,M1.25 ± 0.152,50010,000150,000pFC1206C154(1)2RACJ,K,M1.60 ± 0.152,0008,000Table 2 - Ratings & Part Number Listing

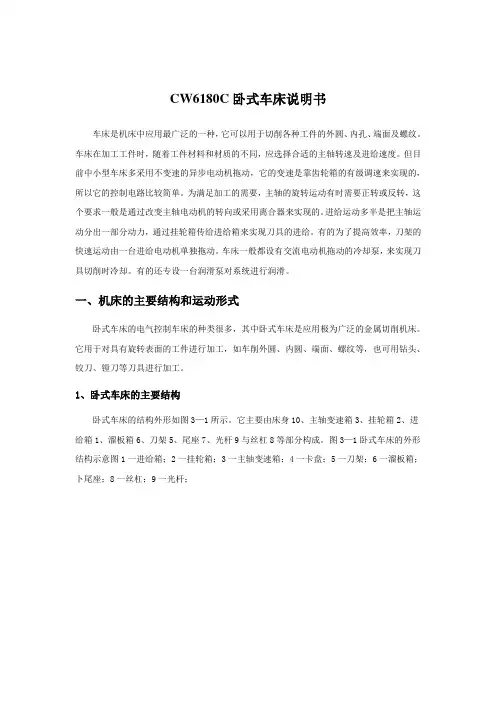

CW6180C卧式车床说明书

CW6180C卧式车床说明书

CW6180C卧式车床说明书

车床是机床中应用最广泛的一种，它可以用于切削各种工件的外圆、内孔、端面及螺纹。车床在加工工件时，随着工件材料和材质的不同，应选择合适的主轴转速及进给速度。但目前中小型车床多采用不变速的异步电动机拖动，它的变速是靠齿轮箱的有级调速来实现的，所以它的控制电路比较简单。为满足加工的需要，主轴的旋转运动有时需要正转或反转，这个要求一般是通过改变主轴电动机的转向或采用离合器来实现的。进给运动多半是把主轴运动分出一部分动力，通过挂轮箱传给进给箱来实现刀具的进给。有的为了提高效率，刀架的快速运动由一台进给电动机单独拖动。车床一般都设有交流电动机拖动的冷却泵，来实现刀具切削时冷却。有的还专设一台润滑泵对系统进行润滑。

一、机床的主要结构和运动形式

卧式车床的电气控制车床的种类很多，其中卧式车床是应用极为广泛的金属切削机床。它用于对具有旋转表面的工件进行加工，如车削外圆、内圆、端面、螺纹等，也可用钻头、铰刀、镗刀等刀具进行加工。

1、卧式车床的主要结构

卧式车床的结构外形如图3—1所示。它主要由床身10、主轴变速箱3、挂轮箱2、进给箱1、溜板箱6、刀架5、尾座7、光杆9与丝杠8等部分构成。图3—1卧式车床的外形结构示意图1一进给箱；2一挂轮箱；3一主轴变速箱；4一卡盘；5一刀架；6一溜板箱；卜尾座；8一丝杠；9一光杆；

2、卧式车床的主要运动

车床的切削加工包括主运动、进给运动和辅助运动。主运动为工件的旋转运动，由主轴通过卡盘或顶尖带动工件旋转。进给运动为刀具的直线运动，由进给箱调节加工时的纵向或横向进给量。辅助运动为刀架的快速移动及工件的夹紧、放松等。

二、车床对电气控制的要求

主要控制电器为三台电机：主电动机、冷却泵电机、快速移动电机。三台电机都要有短路保护措施。信号说明如表1所示。主电动机和冷却泵电机采用热继电器进行过载保护；主电动机要采用降压起动方式起动；主电动机要求能够正反转控制，并且有点动调整控制和长动控制，采用反接制动；主回路负载的电流大小能够监控，但要防止启动电流对电流表产生冲击；机床要有照明设施。

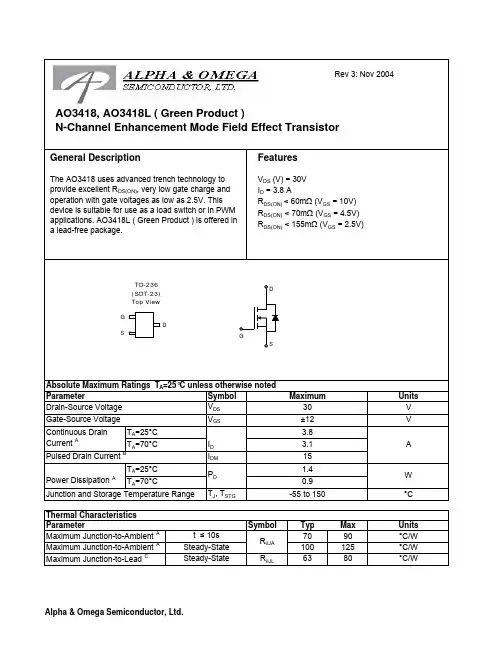

AO3418中文资料
