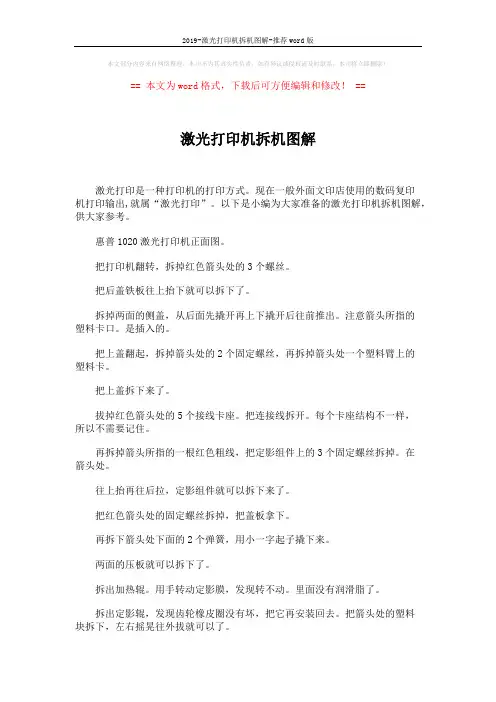

激光打印机拆机图解
激光打印是一种打印机的打印方式。

现在一般外面文印店使用的数码复印
机打印输出,就属“激光打印”。

以下是小编为大家准备的激光打印机拆机图解，供大家参考。

惠普1020激光打印机正面图。

把打印机翻转，拆掉红色箭头处的3个螺丝。

把后盖铁板往上抬下就可以拆下了。

拆掉两面的侧盖，从后面先撬开再上下撬开后往前推出。

注意箭头所指的
塑料卡口。

是插入的。

把上盖翻起，拆掉箭头处的2个固定螺丝，再拆掉箭头处一个塑料臂上的
塑料卡。

把上盖拆下来了。

拔掉红色箭头处的5个接线卡座。

把连接线拆开。

每个卡座结构不一样，
所以不需要记住。

再拆掉箭头所指的一根红色粗线，把定影组件上的3个固定螺丝拆掉。

在
箭头处。

往上抬再往后拉，定影组件就可以拆下来了。

把红色箭头处的固定螺丝拆掉，把盖板拿下。

再拆下箭头处下面的2个弹簧，用小一字起子撬下来。

两面的压板就可以拆下了。

拆出加热辊。

用手转动定影膜，发现转不动。

里面没有润滑脂了。

拆出定影辊，发现齿轮橡皮圈没有坏，把它再安装回去。

把箭头处的塑料
块拆下，左右摇晃往外拔就可以了。

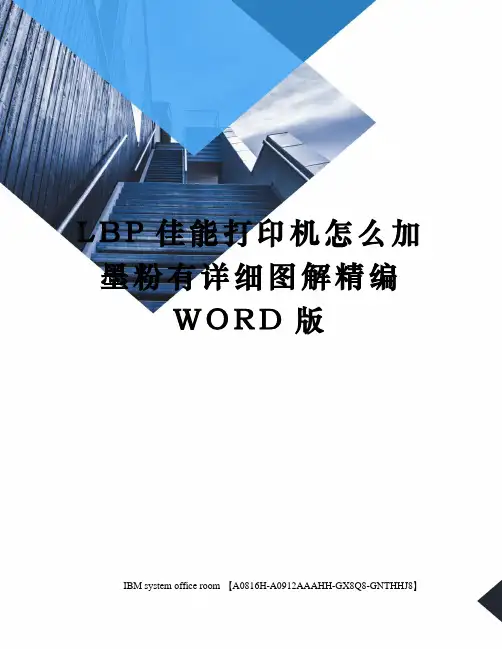

L B P佳能打印机怎么加墨粉有详细图解精编W O R D版IBM system office room 【A0816H-A0912AAAHH-GX8Q8-GNTHHJ8】1.这款打印是是硒鼓和墨一体的，我们先把硒鼓拿出来。

左边有个小芯片，这个换完粉后记得换新的。

2.2侧面有两个螺丝拧下来。

3.另一个侧面也有两个螺丝，也拧下来4.然后硒鼓就卸成两半了。

呵呵5.拿着上一步图片里的左半部分硒鼓，在侧面有一个螺丝，也卸掉。

6.然后把白色的那个东西卸下来，就成了下图这个样子。

7.小心把这个小棒棒抽出来，注意，这个小棒两头各有一个小垫片，别弄丢了8.抽出小棒棒后我们看到一个刀片，两面有螺丝。

卸掉！9.卸完后门户大开了，往里面加粉吧。

10.我买的是这个牌子的粉，天地良心我可不是给厂家作广告。

厂家一分钱好处都没给我。

11.买粉的时候送了一个这种小头，用这个加粉很方便，呵呵。

12.加完粉了，大功告成，在按原步骤装回去。

我就不照了。

装完粉后记得要换硒鼓外面的芯片，买粉的时候一定要一起买一套，不换芯片的话打印机还是显示没墨。

END注意事项加粉的时候下面多垫点旧报纸之类的，我没有垫结果弄的哪都是，特别不好擦。

加完粉记得要换芯片，芯片网上也有卖的，一套四个，也是分颜色的。

1、佳能2900打印机加粉图解如下，可能部分细节的图片不是很全面，不过重点部分已经说明，请在操作的过程中做好记录就没有问题了。

2、如下图，用螺丝刀拆下硒鼓右侧的两个螺丝，如图5拆下此端的固定盖子，然后如图6用镊子取下左侧的拉力弹簧，就可以将硒鼓的鼓心取下了3、此时可以看到如下图的样子了，用平口螺丝刀轻轻的翘下清洁辊，就如下图这样，可以看到刮板和两侧的两个固定铁销子（如下图中红圈标注的部分），就是这两个铁销将套鼓的鼓体部分与粉盒部分固定在一起，只要用尖钉或者其他尖锐的器具将两个铁销从内侧顶出就可以把这硒鼓与粉盒两部分分离了。

4、下图就是硒鼓部分了，铁盖板下面就是废粉仓，最好可以在每次加粉的时候清洁废粉仓，这样就可以保证打印质量不会因为废粉溢出而受到影响。

爱普生打印机拆机教程爱普生打印机是一款常见的打印机品牌，具有高品质和可靠性。

虽然有些问题可以通过简单的维护来解决，但有时我们可能需要进行更复杂的操作，例如拆卸打印机。

下面是一个爱普生打印机的拆机教程，希望对您有所帮助。

首先，让我们准备好必要的工具。

您需要一个螺丝刀套装、一个塑料开胶工具以及一块软布。

确保工具的选择正确，以免损坏打印机。

步骤一：准备工作在开始拆机前，务必将打印机与电源断开。

这是为了避免任何意外情况的发生，确保自己的安全。

步骤二：拆卸外壳爱普生打印机的外壳通常由一些螺丝和卡扣固定在一起。

首先，使用螺丝刀拧下螺丝。

然后，使用塑料开胶工具小心地分离外壳。

请确保使用力度适中，以免损坏打印机。

步骤三：拆卸打印头打印头是打印机最关键的部分，也是最易受损的部分之一。

使用螺丝刀拧下固定打印头的螺丝。

然后，小心地将打印头从其插座上取下。

请注意，打印头表面非常脆弱，应放置在安全的位置，以免损坏。

步骤四：拆卸纸盘某些爱普生打印机具有可拆卸的纸盘，方便更换打印纸。

先检查纸盘附近是否有螺丝，如果有，请用螺丝刀拧下螺丝。

然后小心地将纸盘从打印机上取下。

步骤五：清洁内部部件拆卸打印机外壳后，内部部件将暴露在外。

使用软布轻轻擦拭打印机内部的灰尘和污垢。

请注意，不要使用尖锐的物体擦拭，以免刮伤部件。

步骤六：重新装配打印机在清洗完内部部件后，现在是时候重新组装打印机了。

按相反的顺序重新安装拆下的部件。

确保所有螺丝都已紧固，外壳和纸盘都正确放置在位。

此外，确保打印头插座与打印头牢固连接。

步骤七：测试打印机重新装配完成后，将打印机连接到电源，并测试其功能。

打印一个测试页面来确保所有部件都正确安装，并没有损坏。

拆卸打印机是一项需要谨慎处理的任务，尽管本教程提供了一些指导，但您仍然需要谨慎操作，以免造成不可逆的损坏。

如果您对拆卸打印机没有自信，建议您寻求专业技术人员的帮助。

总结起来，拆卸爱普生打印机需要准备好合适的工具，小心操作，避免损坏打印机。

PARTS CATALOGLBP3000/3000B/2900/2900i/ 2900B/2900+Aug 25 2011PREFACEThis Parts Catalog contains listings of parts usedDiagrams are provided with the listings to aid the service technician in identifying clearly, the item to be orderd.Whenever ordering parts, consult this Parts Catalog for all of the information pertaining to each item. Be sure to include, in the Parts Request, the full item description, the item part number, and the quantity.COPYRIGHT (C) 1999 CANON INC.Use of this manual should bestrictly supervised to avoiddisclosure of confidentialinformation.ContentsNUMERICAL INDEXLBP3000/3000B/2900/2900i/2900B/2900+(Numerical Index)........... 1-1 LBP3000/3000B/2900/2900i/2900B/2900+(Parts Catalog)A ASSEMBLY LOCATION DIAGRAM ......................................2-1001ACCESSORIES .....................................................................2-2100EXTERNAL COVERS ............................................................2-4101INTERNAL COMPONENTS 1 ...............................................2-6102INTERNAL COMPONENTS 2 ...............................................2-8103INTERNAL COMPONENTS 3 .............................................2-10104BASE PLATE ASS'Y ............................................................2-12310PAPER PICK-UP ASS'Y ......................................................2-14810FIXING ASS'Y ......................................................................2-16PARTS NUMBER FIGURE&KEY NO.PARTS NUMBERFIGURE&KEY NO.PARTS NUMBERFIGURE&KEY NOFC5-4820-000100-6 FC7-3621-000103-6 FK2-9583-000001-5 FM0-1766-000100-3 NPN001-NPN100-NPN101-NPN102-NPN103-NPN104-RA0-1019-000103-1 RA0-1060-000101-9 RC1-1953-000103-2 RC1-1954-000103-3 RC1-1955-000103-4 RC1-1956-000103-5 RC1-1959-000103-7 RC1-1960-000310-1 RC1-1964-000103-8 RC1-1987-000104-1 RC1-1989-000310-2 RC1-1990-000310-3 RC1-1993-000310-4 RC1-1994-000310-5 RC1-1996-000310-6 RC1-1999-000102-1 RC1-2005-000101-2 RC1-2007-000102-2 RC1-2012-000310-7 RC1-2029-000310-19 RC1-2039-000310-8 RC1-2040-000310-9 RC1-2041-000310-10 RC1-2042-000310-11 RC1-2043-000310-12 RC1-2044-000310-13 RC1-2049-000310-14 RC1-2061-000310-15 RC1-2066-000810-1 RC1-2067-000810-2 RC1-2069-000810-3 RC1-2070-000810-4 RC1-2079-000810-5 RC1-2097-000810-7 RC1-2098-000810-8 RC1-2098-000810-8 RC1-2101-000810-9 RC1-2102-000810-10 RC1-2103-000810-11 RC1-2106-020101-3 RC1-2108-000810-6 RC1-2116-020102-3RC1-2117-000103-9RC1-2120-000102-4RC1-2121-020102-5RC1-2135-000810-12RC1-2139-000810-13RC1-5521-000101-2RC1-5570-000810-21RC1-5571-000810-6RC1-5875-000100-8RC1-6194-000100-1RC1-6199-000100-9RC1-6214-000100-12RC1-6215-000100-7RC1-6217-000100-6RC1-6218-000100-1RC1-6221-000100-8RC1-6223-000103-24RC1-6979-000101-12RC1-6980-000101-13RC2-3004-000100-6RH9-1162-000001-4RH9-1164-000001-5RH9-1166-000001-6RH9-1168-000001-7RH9-1169-000001-8RH9-1170-000001-9RH9-1171-000001-2RK2-0107-000101-4RK2-0108-000310-16RK2-0778-000310-16RK2-0799-000101-4RK2-1025-000001-1RK2-1026-000001-1RK2-1027-000001-1RK2-1136-000001-1RK2-1137-000001-1RK2-1259-000001-1RK2-1260-000001-1RK2-1261-000001-1RK2-1262-000001-1RK2-1302-000001-3RK2-1633-000001-1RK2-1848-000001-1RK2-1863-000001-1RK2-1896-000001-1RK2-2209-000001-1RK2-2210-000001-1RK2-2213-000001-1RK2-2377-000001-1RK2-2830-000001-1RK2-2857-000001-1RL1-0266-000310-17RL1-0268-000310-18RL1-0269-000101-1RL1-0270-000810-14RL1-0274-000103-11RL1-0275-000104-2RL1-0905-000100-2RL1-0908-000100-5RL1-0909-000100-5RM1-0171-000102-6RM1-0634-000103-12RM1-0640-000104-5RM1-0641-000310-RM1-0642-000310-20RM1-0644-000310-21RM1-0645-000310-22RM1-0647-020101-5RM1-0648-000101-6RM1-0650-040810-15RM1-0651-020810-16RM1-0656-040810-15RM1-0658-000101-7RM1-0660-000810-RM1-0661-000810-RM1-0806-050102-7RM1-0807-040101-8RM1-0808-040101-8RM1-0809-000101-10RM1-0810-000101-11RM1-2051-000810-15RM1-2052-020810-15RM1-2086-000810-RM1-2087-010810-RM1-2091-020310-RM1-2092-000810-16RM1-2093-000101-7RM1-2312-000101-10RM1-2313-000101-11RM1-2314-000102-7RM1-2315-000101-8RM1-2316-000101-8RM1-2317-000810-22RM1-2391-000100-4RM1-2393-000100-3RM1-2395-000104-3RM1-2397-000104-4RM1-2399-000100-3RM1-2401-000100-3RM1-3125-000103-25RM1-3126-000103-25RM1-3956-000102-6RM1-4087-000103-25RM1-4088-000103-251-1PARTS NUMBER FIGURE&KEY NO.PARTS NUMBERFIGURE&KEY NO.PARTS NUMBERFIGURE&KEY NORM1-4737-000100-3 RM1-4738-000100-3 RM1-4739-000100-3 RU5-0173-000103-13 RU5-0174-000103-14 RU5-0175-000103-15 RU5-0176-000103-16 RU5-0177-000103-17 RU5-0178-000103-18 RU5-0179-000103-19 RU5-0180-000310-23 RU5-0185-000810-18 RU5-0186-000810-19 RU5-2173-000103-20 RU5-2174-000103-21 RU5-2174-000310-24 RU5-2177-000102-8 RU5-2178-000810-20 VD7-1791-002101-18 VD7-3111-002101-18 XA9-1420-000101-14 XA9-1420-000102-9 XA9-1469-000100-10 XA9-1469-000103-10 XA9-1469-000103-22 XA9-1495-000101-15 XA9-1495-000102-10 XA9-1495-000103-23 XA9-1495-000104-6 XA9-1500-010100-11 XA9-1500-010102-11 XA9-1503-000310-25 XB2-6400-607101-17 XB2-8300-609810-17 XB4-5401-009101-16 XB4-5401-009310-261-2LBP3000/3000B/2900/2900i/2900B/2900+(Parts Catalog)SATERA LBP3000SATERA LBP3000BLASER SHOT LBP3000100V R72-8544-000LLJA OLD TYPE 120V R72-8554-000JLHA OLD TYPE 100V R72-8624-000LPCA NEW TYPE 120V R72-8634-000LPDA NEW TYPE 100V R72-9384-000MABA NEW TYPE 230V EUR R72-8558-000KMXA OLD TYPE 230V ASIA R72-8558-000LMCA OLD TYPE 230V GB R72-8558-000LMDA OLD TYPE 230V AU R72-8558-000LMEA OLD TYPE 230V CN R72-8568-000KMYA OLD TYPE 230V EUR R72-8638-000LPEA NEW TYPE 230V ASIA R72-8638-000LPGA NEW TYPE 230V GB R72-8638-000LPHA NEW TYPELASER SHOT LBP2900LASER SHOT LBP2900i LASER SHOT LBP2900B 230V AU R72-8638-000LPJA NEW TYPE 230V CN R72-8648-000LPFA NEW TYPE 230V EUR R72-8658-000KMKA OLD TYPE 230V GB R72-8658-000LMLA OLD TYPE 230V ASIA R72-8658-000LMMA OLD TYPE 230V AU R72-8658-000LMNA OLD TYPE 230V CN R72-8668-000LMPA OLD TYPE 230V EUR R72-8678-000LPKA NEW TYPE 230V GB R72-8678-000LPLA NEW TYPE 230V ASIA R72-8678-000LPMA NEW TYPE 230V AU R72-8678-000LPNA NEW TYPE 230V CN R72-8688-000LPPA NEW TYPE 230V EUR R72-9048-000LSFA NEW TYPE 230V EUR R72-9388-000LXLA NEW TYPE 230V ASIA R72-9568-000MBGA NEW TYPELASER SHOT LBP2900+MLTA NEW TYPE 230V CN R72-1178-000ContentsA ASSEMBLY LOCATION DIAGRAM...................................................................2-1 001ACCESSORIES..................................................................................................2-2 100EXTERNAL COVERS.........................................................................................2-4 101INTERNAL COMPONENTS 1............................................................................2-6 102INTERNAL COMPONENTS 2............................................................................2-8 103INTERNAL COMPONENTS 3..........................................................................2-10 104BASE PLATE ASS'Y.........................................................................................2-12 310PAPER PICK-UP ASS'Y...................................................................................2-14 810FIXING ASS'Y...................................................................................................2-16FIGURE A2-1FIGURE 0012-2FIGURE & KEY NO.PARTSNUMBERRANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.001NPN RF ACCESSORIES1RK2-1026-0001CD-ROM, USER SOFTWARE JLHA,KMXA,LMCA,LMDA ,LMEA1RK2-1137-0001CD-ROM, USER SOFTWARE KMKA,LMLA,LMMA,LMN A1RK2-1027-0001CD-ROM, USER SOFTWARE KMYA,LMCA,JLHA1RK2-1025-0001CD-ROM, USER SOFTWARE LLJA1RK2-1136-0001CD-ROM, USER SOFTWARE LMMA,LMPA1RK2-1896-0001CD-ROM, USER SOFTWARE LPCA1RK2-2830-0001CD-ROM, USER SOFTWARE LPCA,MABA1RK2-1262-0001CD-ROM, USER SOFTWARE LPDA1RK2-1633-0001CD-ROM, USER SOFTWARE LPEA,LPHA1RK2-1863-0001CD-ROM, USER SOFTWARE LPGA,LPFA1RK2-2213-0001CD-ROM, USER SOFTWARE LPGA,LPJA,LPFA,LPDA1RK2-1261-0001CD-ROM, USER SOFTWARE LPJA1RK2-1260-0001CD-ROM, USER SOFTWARE LPMA,LPPA1RK2-2210-0001CD-ROM, USER SOFTWARE LPMA,LPPA1RK2-1259-0001CD-ROM, USER SOFTWARE LPNA1RK2-2209-0001CD-ROM, USER SOFTWARE LSFA1RK2-1848-0001CD-ROM, USER SOFTWARE LSFA,LPKA,LPLA1RK2-2377-0001CD-ROM, USER SOFTWARE LXLA1RK2-2857-0001CD-ROM, USER SOFTWARE MBGA2RH9-1171-0001WIRE, GROUNDING100V3RK2-1302-0001CABLE, USB NEW TYPE ASIA,CN4RH9-1162-0001POWER CORD, 100V100V5RH9-1164-0001POWER CORD120V JLHA5FK2-9583-0001CORD, POWER120V LPDA6RH9-1166-0001POWER CORD230V CN7RH9-1168-0001POWER CORD230V GB8RH9-1169-0001POWER CORD230V AU9RH9-1170-0001POWER CORD230V ASIA,EUR2-3FIGURE 1002-4FIGURE & KEY NO.PARTSNUMBERRANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.100NPN RF EXTERNAL COVERS1RC1-6194-0001COVER, LEFT EXCEPTLBP3000B,2900B1RC1-6218-0001COVER, LEFT LBP3000B,2900B 2RL1-0905-0001COVER, FRONT3RM1-2399-0001PAPER PICK-UP TRAY ASS'Y LBP29003RM1-4737-0001PAPER PICK-UP TRAY ASS'Y LBP2900B EUR 3RM1-2401-0001PAPER PICK-UP TRAY ASS'Y LBP2900i3RM1-2393-0001PAPER PICK-UP TRAY ASS'Y LBP30003RM1-4738-0001PAPER PICK-UP TRAY ASS'Y LBP3000B3RM1-4739-0001PAPER PICK-UP TRAY ASS'Y LBP2900B ASIA 3FM0-1766-0001PAPER PICK-UP TRAY ASS'Y LBP2900+4RM1-2391-0001FACE-DOWN COVER ASS'Y5RL1-0908-0001RIGHT COVER ASS'Y EXCEPTLBP3000B,2900B5RL1-0909-0001RIGHT COVER ASS'Y LBP3000B,2900B6RC1-6217-0001EMBLEM, LASER SHOT LASER SHOTEXCEPT LBP2900B6RC2-3004-0001EMBLEM, LASER SHOT LASER SHOTLBP2900B 6FC5-4820-0001EMBLEM, SATERA SATERA7RC1-6215-0001COVER, MULTI-PURPOSE, TRAY LBP3000,3000B, LBP2900+8RC1-6221-0001EMBLEM EXCEPTLBP3000B,2900B, LBP2900+8RC1-5875-0001EMBLEM LBP3000,3000B, LBP2900+9RC1-6199-0001PANEL, REAR10XA9-1469-0002SCREW, TP,M3X611XA9-1500-0102SCREW, S, M3X812RC1-6214-0001TRAY, PAPER DELIVERY2-5FIGURE 1012-6FIGURE & KEY NO.PARTSNUMBERANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.101NPN RF INTERNAL COMPONENTS 11RL1-0269-0001PAD, SEPARATION2RC1-2005-0001SHEET, INSULATING OLD TYPE2RC1-5521-0001SHEET, INSULATING NEW TYPE3RC1-2106-0201GUIDE, AC CABLE4RK2-0107-0001MOTOR, STEPPING, DC OLD TYPE4RK2-0799-0001MOTOR, STEPPING, DC NEW TYPE5RM1-0647-0201TRANSFER GUIDE ASS'Y6RM1-0648-0001SEPARATION PAD ASS'Y7RM1-0658-0001TRANSFER ROLLER ASS'Y OLD TYPE7RM1-2093-0001TRANSFER ROLLER ASS'Y NEW TYPE8RM1-0807-0401POWER SUPPLY ASS'Y OLD TYPE 100V,120V 8RM1-2315-0001POWER SUPPLY ASS'Y NEW TYPE 100V,120V 8RM1-0808-0401POWER SUPPLY ASS'Y OLD TYPE 230V 8RM1-2316-0001POWER SUPPLY ASS'Y NEW TYPE 230V 9RA0-1060-0001SPRING, COMPRESSION10RM1-0809-0001PAPER SENSOR PCB ASS'Y OLD TYPE10RM1-2312-0001PAPER SENSOR PCB ASS'Y NEW TYPE11RM1-0810-0001DELIVERY SENSOR PCB ASS'Y OLD TYPE11RM1-2313-0001DELIVERY SENSOR PCB ASS'Y NEW TYPE12RC1-6979-0001SHEET, BLANKING, L13RC1-6980-0001SHEET, BLANKING, R14XA9-1420-0004SCREW, W/WASHER, M3X815XA9-1495-00012SCREW, RS, M3X616XB4-5401-0092SCREW, TAP, M4X1017XB2-6400-6071SCREW, W/WASHER, M4X6 (S)100V18VD7-1791-002N1FUSE, 125V, 10A OLD TYPE 100V,120V 18VD7-3111-0021FUSE, 125V, 10A NEW TYPE 100V,120VFIGURE & KEY NO.PARTSNUMBERANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.102NPN RF INTERNAL COMPONENTS 21RC1-1999-000N1CROSSMEMBER, ENGINE CONTROLLER2RC1-2007-0001GUIDE, FLEXIBLE FLAT CABLE3RC1-2116-0201COVER, SCANNER4RC1-2120-0001ARM, SHUTTER5RC1-2121-0201HOLDER, ARM6RM1-0171-0001LASER SCANNER ASS'Y OLD TYPE 6RM1-3956-0001LASER SCANNER ASS'Y NEW TYPE 7RM1-0806-0501ENGINE CONTROL PCB ASS'Y OLD TYPE 7RM1-2314-0001ENGINE CONTROL PCB ASS'Y NEW TYPE 8RU5-2177-0002SPRING, COMPRESSION9XA9-1420-0003SCREW, W/WASHER, M3X810XA9-1495-0008SCREW, RS, M3X611XA9-1500-0104SCREW, S, M3X8FIGURE & KEY NO.PARTSNUMBERANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.103NPN RF INTERNAL COMPONENTS 3 1RA0-1019-0002BUSHING2RC1-1953-0001BUSHING3RC1-1954-0001BUSHING4RC1-1955-0001CAM, COUPLING5RC1-1956-0001LINK, DOOR6FC7-3621-0001STOPPER7RC1-1959-0001BUSHING8RC1-1964-0001GUIDE, CARTRIDGE, RIGHT 9RC1-2117-0001COVER, SWITCH10XA9-1469-0003SCREW, TP,M3X611RL1-0274-0001HOLDER, DIODE12RM1-0634-0001CARTRIDGE GUIDE LEFT ASS'Y 13RU5-0173-0001GEAR, 159T/90T14RU5-0174-0001GEAR, 117T15RU5-0175-0001GEAR, 108T16RU5-0176-0001GEAR, 129T17RU5-0177-0001GEAR, 27T/18T18RU5-0178-0001GEAR, 73T19RU5-0179-0001GEAR, 66T/25T20RU5-2173-0001SPRING, COMPRESSION21RU5-2174-0001SPRING, COMPRESSION22XA9-1469-0001SCREW, TP,M3X623XA9-1495-0006SCREW, RS, M3X624RC1-6223-0001SHEET, INSULATING25RM1-4087-0001VIDEO CONTROLLER PCB ASS'Y LBP3000 EXPECT CN,LBP3000B25RM1-4088-0001VIDEO CONTROLLER PCB ASS'Y LBP3000 CN LBP2900+25RM1-3125-0001VIDEO CONTROLLER PCB ASS'Y LBP2900 EXCEPT CN,LBP2900i,2900B25RM1-3126-0001VIDEO CONTROLLER PCB ASS'Y LBP2900 CNFIGURE & KEY NO.PARTSNUMBERANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.104NPN RF BASE PLATE ASS'Y 1RC1-1987-0001BASE PLATE2RL1-0275-0001PLATE, FEED GUIDE3RM1-2395-0001CENTERPLATE GUIDE RAIL ASS'Y 4RM1-2397-0001FEED GUIDE RAIL ASS'Y5RM1-0640-0001LIFTING PLATE ASS'Y6XA9-1495-0002SCREW, RS, M3X6FIGURE & KEY NO.PARTSNUMBERANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.310RM1-0641-0001PAPER PICK-UP ASS'Y OLD TYPE Fig.310RM1-2091-0201PAPER PICK-UP ASS'Y NEW TYPE 1RC1-1960-0001RATCHET2RC1-1989-0001PLATE,TRANSFER GROUNDING,FRONT3RC1-1990-0001BUSHING4RC1-1993-0001SPRING, TORSION5RC1-1994-0001SPRING, TORSION6RC1-1996-0002COVER, PICK-UP CAM OLD TYPE 7RC1-2012-0001SPRING, LEAF8RC1-2039-0002PAD, SUB9RC1-2040-0001FLAG, REGIST. SENSOR10RC1-2041-0001SPRING, TORSION11RC1-2042-0001FLAG, PAPER WIDTH SENSOR12RC1-2043-0001SPRING, TORSION13RC1-2044-0002BUSHING14RC1-2049-0001LEVER, CARTRIDGE DETECT15RC1-2061-0002SPRING, TORSION16RK2-0108-0001SOLENOID OLD TYPE 16RK2-0778-0001SOLENOID NEW TYPE 17RL1-0266-0001ROLLER, PICK-UP18RL1-0268-0001ROLLER, FEED19RC1-2029-0001BASE, PICK-UP ROLLER20RM1-0642-0001FEED CROSSMEMBER ASS'Y21RM1-0644-0001PAPER PICK-UP SHAFT ASS'Y22RM1-0645-0001PAPER PICK-UP GEAR ASS'Y23RU5-0180-0001GEAR, 21T/29T24RU5-2174-0001SPRING, COMPRESSION25XA9-1503-0002SCREW, TAP, M3X626XB4-5401-0091SCREW, TAP, M4X10FIGURE & KEY NO.PARTSNUMBERRANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.810RM1-0661-0001FIXING ASS'Y OLD TYPE 230VFig.810RM1-0660-0001FIXING ASS'Y OLD TYPE 100V,120V Fig.810RM1-2086-0001FIXING ASS'Y NEW TYPE 100V,120V Fig.810RM1-2087-0101FIXING ASS'Y NEW TYPE 230V 1RC1-2066-0001PLATE, PRESSURE, LEFT2RC1-2067-0001PLATE, PRESSURE, RIGHT3RC1-2069-0001LEVER, PRESSURE RELEASE, LEFT4RC1-2070-0001LEVER, PRESSURE RELEASE, RIGHT5RC1-2079-0002BUSHING6RC1-2108-0001GUIDE, SEPARATION OLD TYPE6RC1-5571-0001GUIDE, SEPARATION NEW TYPE7RC1-2097-0001GUIDE, ENTRANCE8RC1-2098-0001SPRING, TORSION OLD TYPE8RC1-2098-0002SPRING, TORSION NEW TYPE9RC1-2101-0001LEVER, DELIVERY SENSOR10RC1-2102-0001BUSHING11RC1-2103-0001BUSHING12RC1-2135-0001ROLLER, PRESSURE13RC1-2139-0001BUSHING14RL1-0270-0001ROLLER, FACE-DOWN15RM1-0650-0401FIXING FILM ASS'Y OLD TYPE 100V,120V 15RM1-0656-0401FIXING FILM ASS'Y OLD TYPE 230V15RM1-2051-0001FIXING FILM ASS'Y NEW TYPE 100V,120V 15RM1-2052-0201FIXING FILM ASS'Y NEW TYPE 230V16RM1-0651-0201FIXING COVER ASS'Y OLD TYPE16RM1-2092-0001FIXING COVER ASS'Y NEW TYPE17XB2-8300-6093SCREW, RS, M3X618RU5-0185-0001GEAR, 29T19RU5-0186-0001GEAR, 14T20RU5-2178-0002SPRING, TENSION21RC1-5570-0001FLAG, PAPER WIDTH SENSOR NEW TYPE22RM1-2317-0001SENSOR PCB ASS'Y NEW TYPE2-17Prepared byOIP Service Management CenterCANON INC.。
