VCC = 3.6V TO 24V VCC
LOAD
MAX4070
GSEL OUT TO ADC
SHDN GND
REFOUT
2.5V
Pin Configurations appear at end of data sheet. ________________________________________________________________ Maxim Integrated Products 1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at .
元器件交易网
Bidirectional, High-Side, Current-Sense Amplifiers with Reference MAX4069–MAX4072
ABSOLUTE MAXIMUM RATINGS
VCC, RS+, RS- to GND ...........................................-0.3V to +26V OUT to GND ....................-0.3V to Lesser of (VCC + 0.3V) or 15V Differential Input Voltage (VRS+ - VRS-) ..............................±0.3V GSEL, SHDN, REFOUT, REFIN and ADJ to GND.....................................-0.3V to (VCC + 0.3V) OUT Short-Circuit Duration to GND or to Lesser of (VCC or 15V) ...................................Continuous REFOUT Short Circuit to VCC or GND........................Continuous Current into Any Pin ..........................................................±20mA Continuous Power Dissipation (TA = +70°C) 8-Pin µMAX (derate 4.5 mW/°C above +70°C) ............362mW 8-Pin Thin QFN (derate 24.4mW/°C above +70°C) ...1951mW 10-Pin µMAX (derate 5.6 mW/°C above +70°C) .......444.4mW Operating Temperature Range .........................-40°C to +125°C Junction Temperature ......................................................+150°C Storage Temperature Range .............................-65°C to +150°C Lead Temperature (soldering, 10s) .................................+300°C
Typical Operating Circuit
FROM BATTERY CHARGER RSENSE VBATT = 1.35V TO 24V RSRS+
Selector Guide
PART MAX4069 MAX4070 MAX4071 MAX4072 REFERENCE ADJUSTABLE 2.5V 1.5V EXTERNAL SUPPLY VOLTAGE RANGE (V) 2.7 to 24 3.6 to 24 2.7 to 24 2.7 to 24 COMMONMODE RANGE (V) 1.35 to 24 1.35 to 24 1.35 to 24 1.35 to 24
-40°C to +125°C 10 µMAX -40°C to +125°C 8 µMAX -40°C to +125°C 8 Thin QFN-EP* -40°C to +125°C 8 µMAX -40°C to +125°C 8 Thin QFN-EP* -40°C to +125°C 8 µMAX -40°C to +125°C 8 Thin QFN-EP*
ELECTRICAL CHARACTERISTICS
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
元器件交易网
19-2423; Rev 2; 1/03
Bidirectional, High-Side, Current-Sense Amplifiers with Reference
General Description
The MAX4069–MAX4072 low-cost, bidirectional, highside, current-sense amplifiers are ideal for monitoring battery charge and discharge currents in notebooks, cell phones, and other portable equipment. They feature up to 24V input common-mode voltage range, low 100µA supply current (which drops to only 10µA in shutdown), and a total output error of less than 1.5%. The wide 1.35V to 24V input common-mode range is independent of the supply voltage, ensuring that the current-sense feedback remains accurate even when connected to a battery pack in deep discharge. To achieve maximum flexibility, an external current-sense resistor is used along with a Gain Select pin to choose either 50V/V or 100V/V. A single output pin continuously monitors the transition from charge to discharge and avoids the need for a separate polarity output. The MAX4070 contains an internal 2.5V reference. The charging current is represented by an output voltage from 2.5V to VCC, while discharge current is given from 2.5V to GND. The MAX4071 is similar, but with a reference voltage of 1.5V. The MAX4069 has an adjustable reference voltage, set by two external resistors. The MAX4072 has an input for an external reference. The MAX4069/MAX4071/MAX4072 operate from a 2.7V to 24V single supply. The MAX4070 operates from a 3.6V to 24V single supply. All devices are specified over the automotive operating temperature range, -40 ° C to +125°C. The MAX4070/MAX4071/MAX4072 are available in 8-pin µMAX and 8-pin thin QFN packages. The MAX4069 is available in a 10-pin µMAX package. o Total Output Error Less than 1.5% o Selectable Gain of 50V/V or 100V/V o Wide 1.35V to 24V Common-Mode Range Independent of Supply Voltage o 2.7V to 24V Single-Supply Operation o Internal Precision Reference Adjustable (MAX4069) 2.50V (MAX4070) 1.50V (MAX4071) o Low 100µA Supply Current o 10µA Supply Current in Shutdown o Available in Space-Saving Packages 8-Pin Thin QFN (MAX4070/MAX4071/MAX4072) 8-Pin µMAX (MAX4070/MAX4071MAX4072) 10-Pin µMAXBidirectional, Compact, Current-Sense Solution

合集下载

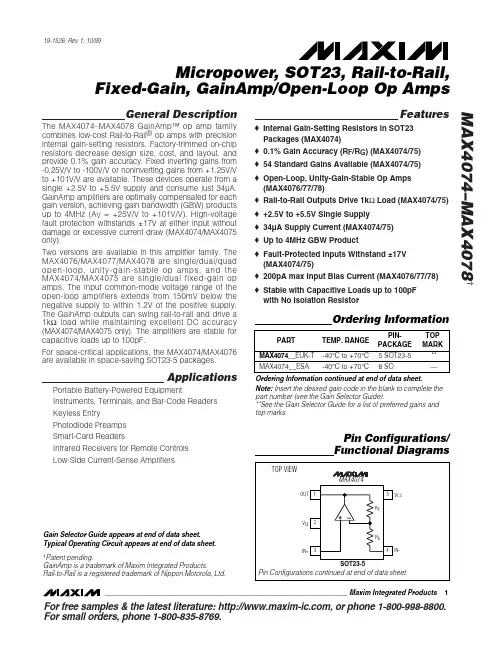

MAX4074AKESA中文资料

MAX4074AKESA中文资料


TEMP. RANGE
PINPACKAGE
TOP MARK
MAX4074__EUK-T -40°C to +70°C 5 SOT23-5
**
MAX4074__ESA -40°C to +70°C 8 SO
—
Ordering Information continued at end of data sheet.
For free samples & the latest literature: , or phone 1-800-998-8800. For small orders, phone 1-800-835-8769.
元器件交易网
MAX4076/MAX4077/MAX4078 .....(VCC + 0.3V) to (VEE - 0.3V) MAX4074/MAX4075 ..........................................................±17V Output Short-Circuit Duration to Either Supply (OUT_)....Continuous Continuous Power Dissipation (TA = +70°C) 5-Pin SOT23 (derate 7.1mW/°C above +70°C) ............571mW 14-Pin TSSOP (derate 6.3mW/°C above +70°C) ..........500mW
are at VCC = +5V and TA = +25°C.) (Note 1)
PARAMETER Supply Voltage Range
MAX3280EAUK+T中文资料

MAX3280EAUK+T中文资料


Features
o ESD Protection: ±15kV–Human Body Model ±6kV–IEC 1000-4-2, Contact Discharge ±12kV–IEC 1000-4-2, Air-Gap Discharge
o Guaranteed 52Mbps Data Rate o Guaranteed 15ns Receiver Propagation Delay o Guaranteed 2ns Receiver Skew o Guaranteed 8ns Package-to-Package Skew Time o VL Pin for Connection to FPGAs/ASICs o Allow Up to 128 Transceivers on the Bus
Receiver Output Voltage (RO)....................-0.3V to (VCC + 0.3V) Receiver Output Voltage
(RO) (MAX3284E) .....................................-0.3V to (VL + 0.3V) Receiver Output Short-Circuit Current .......................Continuous
ENABLE —
Active High Active Low
—
DATA RATE 52Mbps 52Mbps 52Mbps
52Mbps (Note 1)
PACKAGE 5-Pin SOT23 6-Pin SOT23 6-Pin SOT23 6-Pin SOT23
________________________________________________________________ Maxim Integrated Products 1

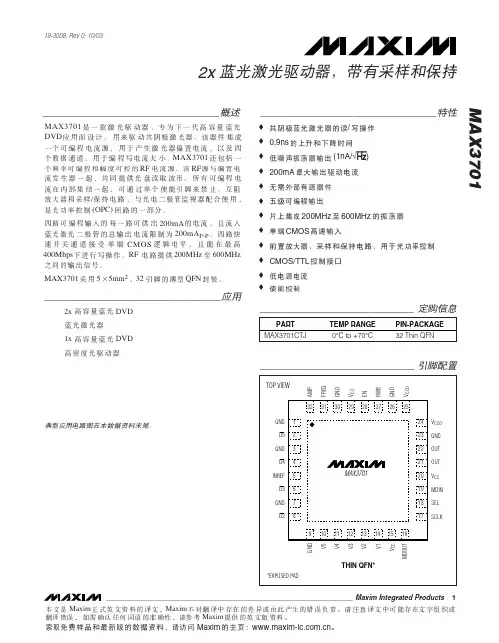

max3701中文资料

max3701中文资料

PARAMETER Oscillator Frequency Set Accuracy Oscillator Temperature Coefficient Output Off-Current OUTPUT AND GENERAL SPECIFICATIONS Maximum Output Set Current Minimum Output Set Current Output Off-Current Write Rise-Time Write Fall-Time Output Overshoot Output-Current Noise Input Propagation Delay Enable Propagation Delay Disable Propagation Delay MDIN Current Range MDIN Voltage MDIN Capacitance Equivalent MDIN Bandwidth Equivalent Transimpedance Acquisition Rate MDOUT Stability MDOUT Droop Rate MDOUT DC Offset MDOUT Voltage MDOUT Voltage Resolution MDOUT Resistance IMDIN to VMDOUT Accuracy SCLK to MDOUT Delay CONTROL SIGNAL (EN, RWB, SEL, SCLK) TTL Input High Voltage TTL Input Low Voltage CMOS Input High Voltage Applies to SEL and SCLK Applies to SEL and SCLK Applies to EN and RWB VINREF x 0.8 +2.0 +0.8 V V V (Note 5) VMDOUT CMDIN BWMDIN ZF SCLK (Note 11) SEL = low SEL = high Triggered on rising edge Relative to IMDIN (Note 12) Discrete time sample and hold Zero level IMDIN = 600µA, SEL = low (including DC offset) 0.26 0 0.30 1.3 ±3.9 3 ±5 100 0.34 1.5 250 tPROP tON tOFF IMDIN IMDIN = 600µA tr tf δ IOUT IOUT EN = Low Measured from 10% to 90% (Notes 5, 7) Measured from 10% to 90% (Notes 5, 7) (Notes 7, 8) (Notes 5, 9, condition i.) (Notes 5, 9, condition ii.) At D2, D3, D4, D5. (Notes 5, 10) At EN, RWB (Notes 5, 7, 9, 10) At EN, RWB (Notes 5, 7, 9, 10) 10 1.6 0.5 500 1.667 10.0 1 5 0.85 0.95 8 1.0 1.5 2.0 2.0 3.0 4.0 150 150 600 2.0 200 15 1 0.9 1.0 mA mA mA ns ns % nA/√Hz ns ns ns µA V pF kHz kΩ MHz % V/s V V mVpk kΩ % ns RWB = low (Note 5) SYMBOL CONDITIONS Measured at +25°C -150 0.1 MIN TYP MAX ±10 UNITS % ppm/°C mAP-P
max3485中文资料

max3485中文资料

max3485中文资料max3485eesa + T概述Max3485eesa + T是3.3V电源±15kV ESD保护，真正的RS485 / RS422收发器，采用8引脚nsoic封装。

该低功耗收发器包含一个驱动器和一个接收器。

max3485e传输速率高达15Mbps。

它具有增强的静电保护。

所有发送器输出和接收器输入均具有±15kV保护，并通过IEC 1000-4-2气隙放电；±8Kv保护是通过IEC 1000-4-2接触放电，±15kV保护是通过人体模型。

驱动器受到短路电流的限制，并通过将驱动器输出置于高阻抗状态的热关断电路来防止过多的功耗。

接收器输入具有故障安全功能，如果两个输入均打开，则提供逻辑高电平输出。

Max3485e适用于EMI敏感应用，集成服务，数字网络和数据包交换电源电压范围：3V至3.6V工作温度范围-40°C至85°C半双工通讯该操作由单个+ 3.3V电源供电，无电荷泵兼容+ 5V逻辑2Na小电流关闭模式共模输入电压范围：-7V至+ 12V工业标准75176引脚输出驱动器/接收器启用功能工业控制LAN，ISDN，低功耗RS-485 / RS-422收发器;分组交换;电信;用于EMI敏感应用的收发器Max3483，max3485，max3486，max3488，max3490和max3491是用于RS-485和RS-422通信的3.3V低功耗收发器，每个收发器都有一个驱动器和一个接收器。

Max3483和max3488具有有限速率驱动器，可以降低EMI并减少由于端子匹配电缆不合适而引起的反射，从而实现高达250kbps的无错误数据传输。

由于其有限的摆幅速率，Max3486可以实现最大2.5mbps 的传输速率。

Max3485，max3490和max3491可以实现高达10Mbps的传输速率。

驱动器具有短路电流限制，并且可以通过热关断电路将驱动器的输出设置为高阻状态，以防止过多的功率损耗。
