中英对照电气专业英语词汇A安培ampere安培表，电流表amperemeter安装mounted安装方式mounting type按钮push-button暗装flush mountedB拔号dial白炽灯incandescent lamp半导体继电保护SIC protection relay 伴热电缆heat tracing cable包装说明packing instruction饱和saturation饱和饱和铁芯saturated core饱和点saturation point饱和电抗saturated reactance饱和电抗器saturated reactor饱和电压saturation voltage饱和特性saturation characteristics 饱和系数saturation factor保持retain保持电路retaining circuit保持线圈holding coil保护protection保护电位protective potential保护范围protective zone保护间隙protective gap保护用互感器protecting transformer 保证guarantee报警窗口alarming window报警器annunciator备品备件spare parts备用电源stand by power备用回路spare circuit(feeder)备用励磁机standby exciter备用容量spare capacity背景亮度background luminance比重计gravity meter闭合closing 闭锁二极管blocking diode闭锁继电器blocking relay避雷器lightning arrester避雷器surge arrester避雷线lightning wire避雷针lightning rod边屏side panel变电站substation变流器current converter变频器frequency converter变频站frequency converter station变送器transducer变形deformation变压器transformer变压器额定变比transformer rated ratio变压器冷却系统transformer cooling system 变压器联接组别transformer angular displacement变压器绕组transformer winding变压器油箱transformer tank变阻器rheostat变阻器rheostat标称放电电流nominal discharge current标识条marking strip标幺值P.U. value=per unit value标准测试模式standard test mode标准电阻standard resistor标准型式试验standard type test表计meter并联parallel并联电抗器shunt reactor并联电容器shunt capacitor并联电容器shunt capacitor并联开断试验parallel breaking test并联支路parallel branch波纹系数ripple contain factor波纤带glass cloth tape波形wave form不带电设备de-energized equipment不对称电抗asymmetrical impedance不对称过负荷unsymmetrical overload不接地un- grounded不平衡电压unbalance voltage不停电电源UPS =uninterrupted powersupplyC采样频率sampling frequency参数parameter操作冲击耐受电压switching impulse withstand voltage操作冲击水平SIL=switching impulse level操作机构operating mechanism操作顺序operating duty cycle测量仪表instrumentation测量用互感器measuring transformer层间layer-to-layer层间绝缘layer insulation插件plug-in unit插入式熔断器plug-in type fuse插头receptacle plug插座receptacle (socket)差动保护differential protection铲型接线片spade lug长延时long time delay常闭接点normally closed contact常规试验routine test常开接点normally opened contact厂内通信系统intro-plant communication system厂用变压器UAT=unit auxiliary transformer 厂用电率auxiliary power ratio厂用电系统auxiliary power system超前相leading phase城市电网urban distribution network充电charge充电器charger充气隔室gas filled compartment充油套管oil filled bushing冲击耐受电压impulse withstand voltage抽出式小车draw-out carriage抽头tap lead出口继电器lockout relay出线outgoing feeder出线电压等级outgoing voltage grade出线方向direction of outgoing line出线回路数circuit number of outgoing line 出线门型架构outgoing feeder gantry structure出线箱lead box触发器igniter穿墙套管wall bushing穿墙套管wall- through bushing传递电位transferred potential串联series串联电路series circuit串联电容补偿装置serial capacitor compensation device瓷质绝缘子Porcelain insulator瓷质绝缘子porcelain insulator磁场电流field current磁场电压field voltage磁场开关field circuit breaker磁吹避雷器magnetic blow surge arrestor磁极对数number of pole pairs磁力起动器'magnetic starter次暂态电抗subtransient reactance粗调rough adjustmentD打开断路器open the breaker大充电压boost charging voltage大面积发光天棚louver all ceiling带电拆线live line disconnection带电接线live line connection带电距离clearance单极开关single pole switch单接地刀single earthing switch单面出口标志灯single face exit sign fixture 单面出口标志灯left（right）arrow lamp单线图one-line diagram单相single-phase单相变压器single-phase transformer单相电能表single-phase kilowatt-hour meter单相接地single-phase grounding单相同期控制single phase synchro-control 单芯电缆single-core cable弹簧贮能操作机构spring stored-energy operating mechanism刀开关knife switch导前时间time lead导全截面conductor cross-section导体conductor导线匝带wire tie倒母线changeover busbars灯lamp灯具lighting fixture灯座lamp socket等效常数equivalent constant等效的，相当的equivalent等效电抗equivalent reactance等效电流equivalent current等效电路equivalent circuit低电压保护under voltage protection低光强航空障碍灯low intensity AOL低励磁low excitation低频保护low frequency protection低频共振sub-synchronous resonance低压low voltage低压厂用变压器low voltage auxiliary transformer低压公用变压器low voltage common transformer低阻low resistance地震seismic碘钨灯tungsten halogen lamp电厂power plant电池架battery rack电磁感应electromagnetic induction电磁接触器electromagnetic contactor电磁气动接触器electromagnetic pneumatic contactor电磁锁magnetic lock电磁铁electromagnet电动机motor电动机最大转矩motor maximum torque电动势electromotance电度表watthour meter电感电流inductive current电功率electric power电焊机electric welding machine电话，电话机telephone电话电缆telephone cable 电话分机extension telephone电话机telephone set电话听筒telephone handset电话亭telephone booth电极electrode pole电解液electrolyte电抗reactance电抗器reactor电缆cable电缆标牌tag of cable电缆吊架cable suspender电缆敷设cable laying电缆敷设及清册cable laying & list电缆敷设及清册cable laying and list电缆沟cable trench电缆管cable conduit电缆夹cable clip电缆夹层cable mezzanine电缆夹层cable vault电缆桥架cable tray电缆软管flexible cable conduit电缆竖井cable shaft电缆隧道cable tunnel电缆通道系统cable raceway system电缆头cable head电缆支架cable rack电缆支架cable support电缆终端头cable terminal电力系统power system电流current电流放大current amplification电流互感器current transformer电流互感器current transformer电流互感器校验装置current transformer calibrating device电流继电器current relay电流强度current intensity电路circuit电瓶cell jar电气electricity电气的electric,(electrical)电气辅助控制屏electrical auxiliary control panel电气工程electricity engineering电气寿命electrical life电气制动electric braking电容capacitance电容电流capacitive current电容分压器capacitor divider电容器capacitor电枢armature电枢绕组armature coil电网power grid电网改造distribution network enhancement 电位，电势potential电位计potential meter电位梯度gradient of potential电线钢管wire pipe电压voltage电压表voltage meter电压表切换开关voltmeter change-over switch电压调节误差voltage regulation error电压调整率voltage regulation电压互感器PT =potential transformer电压继电器voltage relay电压降voltage drop电压控制过电流继电器voltage-controlled overcurrent relay电源接头power connector电晕corona电子开关electronic switch电子元件electronic element电阻resistance电阻器resistor调度电话机dispatching telephone调度通信系统dispatching communication system调度员dispatcher调光开关dimmer switch调试commission调速电动机adjustable speed motor调速电动机governor motor调相器synchronous condenser调压器voltage regulator顶值电压ceiling voltage定期运行periodic duty service定时限definite time lag 定子stator定子端盖stator end cover定子铁芯stator core定子外壳stator housing定子线圈stator winding动触头moving contact动触头moving contacts动负荷dynamic load动力，功率power动力电缆power cable动力箱power supply box动态常数dynamic constant动态的dynamic动态模拟dynamic analogue动态曲线dynamic curve动稳定电流dynamic stable current陡波冲击保护水平protection level at steep current镀锡tin galvanized镀锌钢galvanized steel镀银silver plated端电池end battery端子螺钉terminal screw端子排terminal block端子箱terminal box短路short circuit短路板short circuit plate短路比short circuit ratio短路电流short circuit current短路关合和开断性能试验short circuit making and breaking test短路试验short circuit test短路特牲曲线short circuit characteristic curve短期并列short time parallel短延时short time delay段间绝缘section insulation断开switch off断开位置disconnected position断口间between open contacts断路器breaker断路器circuit breaker断路器非全相跳闸open phase tripping of breaker断路器失灵circuit breaker failure断路小室breaker compartment对称的symmetricalE额定持续电流rated continuous current额定充气压力rated filling pressure额定的rated额定电压rated voltage额定短时耐受电流rated short time current额定关合能力rated closing capability额定开断电流rated breaking current额定容量rated capacity额定输出rated output额定输入rated input额定值rated value二次表计secondary meter二次电压secondary voltage二次线圈secondary windingF发-变组generator-transformer unit发变组扩大单元generator-transformer extension unit发电机generator发电机出线小室generator termination room 发电机定子generator stator发电机端子generator terminal发电机负荷曲线generator load curve发电机基座generator pedestal发电机密封油系统generator sealing oil system发电机氢冷却系统generator hydrogen cooling system发电机水冷却系统generator water cooling system发电机引出线generator terminal lead发电机主保护generator main protection发电机转子generator rotor发射机transmitter阀型避雷器valve type lightning arrester反射系数reflectance factor 反时限inverse time lag泛光照明flood lighting方向继电器directional relay防爆耐火荧光灯flameproof fluorescent lighting fixture防爆型explosion-proof type防尘型dust proof type防滴型DP= drip-proof防冻freeze protection防腐蚀anti-corrosion防护等级degree of protection防火堵料fire proof blockage防雷lightning protection防逆转继电器plugging relay防水荧光灯waterproof fluorescent lighting fixture防跳装置anti-pumping device防雨试验rain proof test防晕罩corona-proof cover放大器amplifier放电discharge放电电压flash-over voltage放电计数器discharge counter放电计数器discharge counter放电间隙discharge gap放电曲线discharge curve放电容量discharge capacity放电特性discharge characteristic放电未期电压discharge final voltage非铠装电缆unarmoured cable非全相合闸open phase closing of breaker非全相运行open phase operation非同期asynchronous非同期能力non- asynchronous capability非线性电阻non-linear resistor非线性电阻non-liner resistor分辨率resolution分辨率resolution分段断路器sectionalized circuit breaker分合并联电抗器试验switching shunt reactor test分合长空载线路能力capability of switching long no-load line分合空载变压器能力capability of switchingno-load transformer分合空载变压器试验switching no-load transformer test分合空载长线试验switching no-load long line test分接tapping分接范围tapping range分接级tapping step分接头位置指示器tap position indicator分励线圈shunt excitation coil分量component分裂变压器split winding type transformer分裂电抗器disruptive reactor分流器current shunt分散系数diversity factor分散型接地床distributed-type groundbed分相操作operated in single phase分闸时间breaking time分支过流保护branch overcurrent protection 分支母线branch bus峰，峰值crest峰值电压crest voltage峰值耐受电流peak withstand current蜂鸣器buzzer伏安表voltammeter伏特volt扶手安装handrail mounted服务级别service level浮充电float charge符合conform to辅助（中间）继电器auxiliary relay辅助厂房变压器auxiliary building transformer辅助触头auxiliary contact辅助回路auxiliary circuit辅助继电器pilot relay负荷load负荷开关switch-fuse负极negative pole负序电流negative sequence current负序电流保护negative-sequency current protection负序阻抗negative-sequence impedance负载损耗load loss 负载特性曲线load characteristic curve附加损耗supplementary load loss复归线圈reset coil副励磁机pilot exciterG干触点dry contact干式变压器dry type transformer杆塔pole and tower感抗inductance reactance感性电流reactive current感应调压器induction voltage regulator钢芯钻铰线ACSR =aluminum conductor steel reinfoced高导电率high conductivity高分辨率high resolution高光强航空障碍灯high intensity AOL (aircraft obstruction lamp)高频保护high-frequency protection高频放大high-frequency amplification高频滤波器high-frequency filter高强气体放电灯high intensity discharge lamp高压high voltage高压充油电缆high voltage oil-filled cable高压钠灯high pressure sodium ( HPS )高压线路high voltage transmission line高压限流熔断器及真空接触器F-C (high-voltage current limiting fuse and vacuum contactor)高压直流输电HVDC=high-voltage direct-current transmission高阻high resistance格栅louver隔板partition隔离变压器isolated transformer隔离开关disconnecting switch隔离开关disconnecting switch隔室compartment镉-镍蓄电池Cd-Ni battery跟踪回路follow-up circuit工厂接头factory splice工频恢复电压power frequency recoveryvoltage工频耐受电压power frequency withstand voltage工作范围scope of work工作位置service position工作误差operating error工作照明箱normal lighting box公用报警接点common alarm contact功率因数power factor功率因数表power factor meter供货范围scope of supply共箱母线NPB =nonsegregated phase bus duct固态整流器solid state rectifier固有分闸时间inherent opening time固有合闸时间inherent closing time故障记录fault recorder故障探测器fault detector挂环chain link关合电流making current管形避雷器tube type lightning arrester管型母线tubular busbar光，灯light光电控制器photoelectric control光通量衰减系数LLD=lamp lumen depreciation光纤电缆fibre-optical cable光源light source (illuminant)光源光色light-source colour硅钢片silicon-steel sheet硅整流元件thyristor element柜底进线enter the cubicle from the bottom 柜顶进线enter the cubic from the top过电压倍数overvoltage times过电压吸收装置surge absorber过放电deep discharge过激磁overflux过励磁over excitation过励磁保护over excitation protection过流保护over current protectionH焊接welding 航空障碍灯aircraft obstruction lamp毫安表milliammeter毫伏表millivoltmeter合断路器close the breaker合上switch on合闸继电器closing relay合闸脉冲closing pulse合闸相位closing phase angle核对相序check phase order赫兹hertz (Hz)横差保护transverse differential protection 后备保护back-up protection呼叫详细记录detail calling record呼叫信号call signal弧触头arcing contact户内配电装置in-door type switchgear户内式indoor type户外配电装置out-door type switchgear户外式outdoor type护环retaining ring护套sheath滑差运行pole slip operation滑线式变阻器slider-type rheostat环link环型接线片ring lug环氧树脂绝缘epoxy resin insulated恢复电压recovery voltage回叫call back惠斯登电桥wheatstone bridge击穿电压discharge voltage机构操作式开关MOC =mechanism operated cell switch机械寿命mechanical life机械性能试验mechanical performance test 基波分量fundamental component畸变系数distortion factor极，杆pole极板pole plate极间电压interpolar voltage极近开关puoximity switch集电器current collector集合式并联电容器collective shunt capacitor 集中控制centralized control记录时间recording duration记录仪表recording instrument继电保护relay protection继电保护屏protection relay panel继电器relay加热电缆heating cable加热元件heating element夹具fixture架空电缆overhead cable架空线overhead line间隔棒spacer减励磁reducing excitation检修变压器maintenance transformer检修箱maintenance box简式荧光灯tube fluorescent lighting fixture 降负荷output reduction降容系数derating factor降压变压器step-down transformer降压启动器reduced-voltage starter交联聚乙烯XLPE=cross linked polyethylene 交联聚乙烯绝缘电缆XLPE insulated cable交联聚乙烯绝缘钢带铠装聚氯乙烯护套电力电缆XLPE insulated, steel tape armored and PVC sheathed power cable交联聚乙烯绝缘聚氯乙烯护套电力电缆XLPE insulated and PVCsheathed power cable交流电源AC(Alternating Current) power source交流耐压试验AC withstand voltage test接触电压touch potential接触器contactor接地earthing接地ground接地保护grounding protection接地导体grounding conductor接地电抗器grounding reactor接地电阻测试仪grounding megger接地端子earthing terminal接地端子ground pad接地端子grounding terminal接地故障grounding fault接地极earthing rod 接地开关grounding (earthing) switch接地位置earthing position接地系统grounding system接地线grounding wire接地线埋深depth of embedded grounding wire接收机receiver接头splice接线wiring接线端子terminal lug接线盒junction box接线片lug截取雷电流intercept lightning discharge解环looping-off解列disconnection解列灭磁system disconnection and field extinction介质损耗系数coefficient of dielectrical loss 金属铠装metal clad金属卤化物灯metal halide lamp金属氧化物避雷器MOA=metal oxide arrester 近区故障开断能力short-line fault breaking capability近区故障试验short-line fault test进线incoming feeder精度accuracy警铃alarm bell径向通风radial ventilation静触头stationary contact静触头stationary contacts静态励磁系统static excitation system静态试验static test静态无功补偿装置SVC= static VAR compensator静态转换开关static transfer switch就地控制local control局步照明local lighting局部放电Partial discharge局部放电partial discharge局部放电试验partial discharge test距地面安装高度MHF=mounting height above the floor距高比S/MH=spacing-to-mounting height ratio距工作面安装高度MHWP=mounting height above the work-place距离保护distance protection距离继电器distance relay聚氯乙烯绝缘电缆PVC(polyvinyl chloride) insulated cable绝缘insulation绝缘等级insulation class绝缘基本冲击耐压水平BIL =basic insulation level绝缘监察表insulation supervision meter绝缘耐受试验insulation withstanding test绝缘强度insulating strength绝缘水平insulating level绝缘水平insulation level绝缘子insulator均衡冲电equalizing charge均压电容器voltage sharing capacitor均压环、屏蔽环grading ring均匀度uniformity ratioK开断电流interrupting current开断发展性故障试验evolving fault breaking test开关switch开关switch开关站switchyard开口三角形连接open-delta connection开路电压open circuit voltage开路特牲曲线open circuit characteristic curve铠装电缆armoured cable抗噪音电话机noise-reducing telephone抗震试验seismic test壳式变压器shell type transformer可变电容器adjustable capacitor可变速电动机variable speed motor可拆接头removable connector可调范围adjustable range可视电话video telephone空气断路器air circuit breaker空载电流no-load current 空载电压no-load voltage空载损耗no-load loss控制control控制电缆control cable控制柜control cabinet控制回路control circuit控制继电器control relay控制接线图CWD =control wiring diagram控制开关CS =control switch控制盘control panel跨步电压step potential快速熔断器fast acting fuse快速线夹quick clip框架式断路器frame-type circuit breaker馈线fault馈线间隔feeder bay扩音调度机paging dispatching unitL拉线开关pull switch勒克司LX=lux雷，闪电lightning雷电波头形状lightning wave front shape雷电冲击耐受电压lightning impulse withstand voltage雷电记录器lightning recorder雷电流lightning current雷击lightning strike离相封闭母线IPB =isolated phase bus duct 立杆安装standing pole mounted立式电动机vertical type motor利用系数CU=coefficient of utilization励磁excitation励磁变压器excitation transformer励磁电流excitation current励磁电压excitation voltage励磁柜excitation cubicle励磁机exciter励磁系统响应比excitation system response ratio例行试验routine test连接端子connection pin连接箱junction box连续额定值continuous rating连续开断能力试验continuous breaking capability test连续运行continuous duty (service)联接片connection plate联络变压器tie transformer联锁interlock联跳shunt tripping两段距离继电器two zone distance relay两相短路two-phase short circuit两芯电缆twin-core cable灵敏度sensitivity零电位zero potential零起升压raising voltage from zero零序CT zero sequence CT零序电流zero sequence current零序电流保护zero-sequence current protection零序阻抗zero sequence impedance流明lumen六氟化硫断路器SF6 gas insulated circuit breakerSF6气体回收设备SF6 gas reclaiming equipmentSF6气体湿度分析仪SF6 gas moisture analyzerSF6气体泄漏检测器SF6 gas leakage detector漏磁密leakage-flux density漏磁通leakage-flux漏磁系数leakage coefficient漏电开关earth leakage circuit breaker漏电开关residual current circuit breaker路灯road lighting fixture螺旋式熔断器screw-type fuseM马赛克控制屏mosaic surface control panel 密封试验sealing test密封套管seal-off bushing免维护蓄电池maintenance free battery灭磁field extinction灭弧触头arcing-extinguishing contact 灭弧触头arc-suppression contacts灭弧电阻arc suppression resistor灭弧室arcing chamber明装open mounted铭牌nameplate模拟母线mimic bus模拟图mimic diagram母联bus tie母联断路器bus tie circuit breaker母线bus母线，汇流排busbar母线保护busbar protection母线解列busbar disconnection母线式电流互感器busbar straight-through current transformer目标负荷target loadN内部故障internal fault内部呼叫internal calling内护套inner sheath耐火电缆fire resistant cable耐火隔板fire proof partition耐火极限fire proof limit耐受电压withstand voltage耐张绝缘子tension insulator耐张线夹strain clamp挠性接头flexible joint能力capability逆变器inverter逆功率保护reverse power protection扭应力torsional stressO欧姆ohm欧姆表OHM=ohm meter偶次谐波even harmonic耦合电容式电压互感器coupling-capacitor voltage transformer耦合系数coefficient of couplingP爬距creepage distance旁路断路器by-pass bus circuit breaker旁母by-pass bus配电distribution配电室distribution board room配电装置switchgear配光曲线candle power distribution curve配线箱marshalling boxPT断线保护PT balance protectionPT回路断线PT circuit broken频差frequency deviation频宽frequency bandwidth频率frequency频率调制frequency modulation频率分配frequency allocation频率分析仪frequency analyzer频率相位特性frequency-phase characteristic 屏蔽shield破坏转矩breakdown torqueQ期望寿命expected life奇次谐波odd harmonic起动/备用变压器start-up/stand by transformer起动保护start-up protection起动变阻器start rheostats起动电流starting current起动电阻starting resistor起动器starter起动转矩starting torque起励设备excitation initiating equipment起励设备field flashing equipment起始充电电压initial charging voltage气动操作机构pneumatic operating mechanism气体密封gas tightness气隙air gap千乏kilovar (kVAR)千伏kilovolt千伏安kilovolt ampere千瓦kilowatt (kW) 千瓦时kilowatt-hour铅皮电缆lead covered cable铅-酸蓄电池lead-acid battery钳型表plier-type current meter嵌入顶棚ceiling mounted嵌入式荧光灯flush mounted fluorescent lighting fixture强励force excitation强励系数force excitation factor强迫风冷系统forced air cooling system强迫停机forced outage强油风冷FOA =forced oil air cooled强制通风forced ventilation切换change-over切换开关COS =change-over switch氢内冷hydrogen inner cooled球头挂环ball eyes曲折形连接zigzag connection全充fully charged全电压启动器full-voltage starter全封闭风冷型TEFC= totally enclosed with fan cooler全封闭水空冷型TEWAC=totally enclosed with water cooled air cooler全封闭组合电器GIS=gas insulated switchgear全密封荧光灯wrap-around fluorescent lighting fixtureR燃煤电厂coal-fired power plant绕线式转子wound type rotor绕组coil热磁保护thermo-magnetic protection热电偶thermo-couple热镀锌hot-dipped galvanized热继电器thermal relay热敏电缆heating sensitive cable人孔manhole容抗capacitive reactance容量capacity熔断器fuse熔断器熔断fuse blow熔断器式开关fuse- switch软导线flexible conductor软母线flexible busbarS三防灯具anticorrosive, dust-proof and water-resistant lighting fixture三角形连接delta connection三相three-phase三相变压器three-phase transformer三相操作operated in three phase三相电能表three-phase kilowatt-hour meter 三相短路three-phase short circuit三芯电缆3 cores cable三芯电缆triple-core cable扫描器scannerCT的二次电流secondary current of CTCT的二次容量burden of CT闪光继电器flicker relay闪光信号flash signal舌簧继电器reed relay伸缩expansion伸缩节flexible conductor伸缩节expansion join升压变压器step-up transformer升压站step-up switchyard失步保护out-of step protection失步开断能力out-of-phase breaking capability失步开断试验out-of-phase breaking test失磁保护loss-of field protection失电loss of power失灵，事故failure石墨碳刷graphite brush时间time时间继电器time relay识别identification示波器oscilloscope事故报警信号failure alarming signal事故铃emergency bell事故照明箱emergency lighting box事故追忆记录装置fault recollecting and recording device 视载功率apparent power试电笔pen tester试验test试验报告test report试验电压test voltage试验端子testing jack试验盒test box试验位置test position试运行trial operation室腔比cavity ratio手动准同期manual quasi-synchronization首次并网initial synchronization首次送电initial power transmission输出output输电线路transmission line输电线路放电等级transmission line discharge class输入input鼠笼型转子squirrel-cage type rotor数字电压表digital voltmeter数字式继电保护digital type protection relay 刷架brush supporter刷握brush holder刷子brush衰减系数coefficient of attenuation甩负荷load rejection双Y连接double Y connection双接地刀double earthing switch双块板灯double-faced plate lighting fixture 双母线带旁路接线double bus connection with bypass双母线接线double bus connection双水内冷发电机dual inner water cooled generator双速电动机double-speed motor双跳闸线圈redundant trip coil双轴double shaft双柱double column水冷却water cooled水平伸缩horizontal expansion水-氢-氢冷发电机water-hydrogen-hydrogen cooling generator水银灯mercury lamp顺序跳闸sequence tripping瞬时电流momentary current瞬态恢复电压transient recovery voltage瞬态响应transient respone速断保护instantaneous overcurrent protection塑壳式断路器MCCB=moulded case circuit breaker塑料绝缘plastic insulation损耗loss损耗比loss-ratio套管bushing套管端子bushing lead terminal套管式电流互感器bushing current transformer跳闸trip跳闸继电器tripping relay跳闸脉冲tripping pulse跳闸线圈trip coil铁轭yoke铁壳开关iron clad switch铁损iron loss铁芯柱core limb庭院灯garden lighting fixture通风ventilation通过电阻接地grounded through resistor通话talking on the telephone通信communication通信监听communication monitoring通信楼communication building通信线communication line通讯电缆communication cable同步电动机synchronous motor同步电抗synchronous reactance同期表synchroscope同期鉴定synchronization checking同期装置synchronizing device同相in- phase同轴电缆coaxial cable铜编织线屏蔽电缆copper wire braid shield cable铜带屏蔽的控制电缆control cable with copper tape shield铜铰线电缆stranded copper cable铜母线copper bus-bar铜损copper loss筒灯down- light投光灯projection lamp图diagram土壤电阻率soil resistivity脱扣器tripperW瓦斯/压力断电器buchholtz relay瓦特watt (W)外部呼叫external calling外护套outer sheath外加电流impressed current外加电流阴极保护impressed current cathodic protection外壳enclosure万能电桥universal bridge网控室network control room微机继电保护micro-processor based protective relay微型断路器MCB =miniature circuit breaker 微正压装置slight pressure device维护maintenance维护系数MF=maintenance factor位置position位置继电器position relay温度计thermometer温升试验temperature rise test温升试验temperature-rise test文件document稳压电源装置stabilized power supply device 卧式电动机horizontal type motor屋内配电装置indoor switchgear无功补偿装置reactive power compensation device无功电度表kVAR-hour meter无功功率reactive power无机绝缘电缆mineral insulated cable无间隙金属氧化型gapless metaloxide type无刷励磁系统brushless excitation system无填料封闭管式熔断器no powder-filled cartridge fuse无线电radio无线电干扰电压radio interference voltage无源接点electrical independent contact误操作mis-operation误差error误差极限limits of error误动作malfunctionX吸壁wall mounted吸持电流retaining current吸持线圈retaining coil吸顶安装surface mounted吸湿器dehydrating breather牺牲阳极保护系统galvanic protection system 熄弧电压discharge extinction voltage系数coefficient系统system系统短路容量system short circuit capacity 系统解列system disconnection系统振荡system power swing系统振荡system oscillation细调fine adjustment现场接头field splice现场试验site test线line线电压line voltage线夹clamp线路潮流line power flow线路充电电流line-charging current线路强送电forced line energization线路强送电成功successful forced line energization线路试送电trial line energization线圈winding限负荷运行load limit operation限流电抗器current-limiting reactor限流断路器current-limiting circuit breaker 限流继电器current-limiting relay相phase相电流phase current 相电压phase voltage相对地phase to ground相关的relevant相间绝缘insulation between phase相角phase angle相角差phase-angle difference相位表phase meter相位超前角leading phase angle相位指示器phase indicator相序phase sequence箱子box橡皮绝缘垫rubber cushion消弧线圈arc suppression coil消弧线圈arc-suppression coil小车操作式开关TOC =truck operated cell switch小母线miniature busbar效率efficiency校正correction校正电路correcting circuit校正电路correction circuit校正脉冲correction pulse校正曲线correction curve校正系数correction factor校正系数correction factor谐波harmonics谐波分量harmonic component谐波含量harmonic content谐波含有率HR=harmonic ratio谐振，共振resonance谐振电路resonance circuit谐振过电压resonance over-voltage谐振频率resonance frequency谐振曲线resonance curve泄漏leakage泄漏电流leakage current泄漏电流stray current泄漏电流接地床impressed current groundbed泄漏间隙leakage clearance泄漏距离leakage distance泄漏阻抗leakage impedance芯式变压器core type transformer芯线component wire信号电缆signal cable信号发生器signal generator信号指示器signal indicator星角切换装置star-delta changing device星-三角起动器star-delta starter星形连接star connection行灯portable lamp性能试验performance test修正系数coefficient of correction蓄电池battery蓄电池storage battery蓄电池容量battery capacity蓄电池室battery room悬垂线夹suspension clamp悬挂pendant mounted悬挂式绝缘子suspending insulator旋钮turn button选择开关SS =select switch眩光glareY压接型端子compression type terminal压力释放pressure relief压力释放能力pressure relief capability压缩端子compression terminal延时delay延时带电time delay energizing延时继电器delayed relay延时释放time delay de-engergizing阳极anode阳极接地床anode groundbed氧化锌避雷器zinc- oxide surge arrester氧指数oxygen index遥测telemetering遥调teleregulation遥控telecontrol遥信telesignalisation1个半断路器接线1 and 1/2 circuit breaker connection液压操作机构hydraulic operating mechanism一次电压primary voltage一对一控制one-to-one control移动式movable type 移开位置removed position移相器phase shifter异常abnormal阴极保护cathodic protection印刷电路板printed wiring board应急灯emergency lighting英尺-烛光footcandle ( F.C )荧光灯fluorescent lamp硬母线hard busbar油断路器oil circuit breaker油浸变压器oil-immersed type transformer 油浸纸绝缘电缆impregnated paper insulated cable油位指示器oil level indicator油枕oil conservator有功电度表kW-hour meter有功功率active power有关的relative有填料封闭管式熔断器powder-filled cartridge fuse有线通信系统wireline communication system有效光强effective luminous intensity有效值RMS=root-mean-square有载调压变压器transformer fitted with O.L.T.C (on-load tap-changer)有载分接开关OLTC =on-load tap-changer诱导电动机induction motor原理接线图EWD =elementary wiring diagram远方控制remote control云母绝缘mica insulation运行operation运行方式operation modeZ匝间turn-to-turn匝绝缘turn insulation载波wave carrier载波通信wave carrier communication载流量ampacity载流能力current carrying capacity暂态电抗'transient reactance。

一．电气名词Electric items二．线路（母线、回路）Lines (Bus , circuits)三．设备Equipments四．保护、继电器Protection , relays五．电气仪表Electric instruments六．防雷Lightning protection七．接地Grounding , earthing八．室、所Room , Substation九．电修车间设备Equipments of electric repair十．材料Material十一．图名Drawings , diagrams十二．表头Tables十三．标准图词汇Terms from standard DWG一．电气名词Electric items交（直）流Alternating (direct) current短路电流Short-circuit current起始次暂态短路电流Initial subtransient short-circuit current冲击电流Impulse current稳态短路电流Steady state short-circuit current临界电流Critical current切断电流Rupturing current熔断电流Blow-out current故障电流Fault current计算电流Calculating current极限有限电流Limit effective current过电流Over current逆电流Inverse current整定电流Setting current额定电流Rated current电流密度Current density短路电流最大有效值Maximum effective value of short-circuit current 高压High-voltage , High-tension低压Low-voltage , Low-tension计算电压Calculating voltage激磁电压Exciting voltage冲击电压Impulse voltage临界电压Critical voltage残留电压Residual voltage击穿电压Puncture voltage脉动电压Pulsating voltage供电电压Supply voltage电力电压Power voltage照明电压Lighting voltage灯丝电压Filament voltage额定电压Rated voltage电压损失Voltage loss过(欠)电压Over (under) voltage线路电压Line voltage电压降Voltage drop工作电压Working voltage一次电压Primary voltage二次电压Secondary voltage电源Electric source (power supply)自控电压Power supply for process control6kV控制闪光电源Flashing supply for 6kV control工作电源Working power supply (electric source)保安电源Emergency power supply (electric source) 直流稳压电源Stabilized D.C. source控制电源Control supply直流电源D.C. source交流电源A.C. source负荷计算Load calculation设备容量Installed capacity需要容量Electric demand功率因数Power factor安装高度Mounting height耐电压Breakdown voltage工频耐压High-voltage test with working frequency 表面闪络Surface flash-over直流泄漏D.C. leakage体电阻率Volume resistivity介质损失角Dielectric loss angle击穿强度Puncture intensity电压等级Voltage grade比重Specific gravity性能Feature相序Phase sequence瞬时Instantaneous倾角Angle of inclination跨度Span正极Positive pole负极Negative pole截面(积) Cross section area辅助电源Auxiliary source遮断容量Interrupting capacity载流量Current-carrying capacity校正系数Correction factor连续负荷Continuous load长期载流量Continuous capacity长时间额定值Longtime rating电动机堵转电流Locked-rotor motor current限定负荷Limited load电感负荷Inductive load感应电流Induced current二．线路（母线、回路）Lines (Bus , circuits)母线Bus-bar合闸电源母线Closing power source bus闪光母线Flashing-bus备用母线Spare bus装在支柱上的插接式母线Post-supported plug-in bus way装在吊钩上的插接式母线Hook-supported plug-in bus way装在支架上的插接式母线Bracket-supported plug-in bus way 小母线Miniature bus电源小母线Power supply miniature bus操作小母线Operating miniature bus事故信号小母线Miniature bus for fault signal闪光小母线Flashing miniature bus主母线Main bus直流主母线D.C. main bus预告母线Prewarning bus干线Main line照明干线Lighting main line接地干线Grounding main line插座干线Receptacle main line电压干线Voltage main line端子出线Terminal outgoing中性线Neutral支线Branch-line引入线Lead-in电气线路Electric circuit交流配电线路A.C. distribution circuit直流配电线路D.C. distribution circuit事故照明线路Emergency lighting circuit控制线路Control circuit接地或接零线路Grounding or neutralizing circuit信号线路Signal circuit有接地极的接地线路网Grounding with grounding electrodes定子绕组测温回路Temperature measuring circuit for stator winding 接地信号回路Grounding signal circuit闪光信号回路Flashing-signal circuit开阀回路Circuit for opening valve关（闭）阀回路Circuit for closing valve开度计回路Circuit for opening meter电流测量回路Current-measuring circuit差动保护回路Differental protective circuit过流保护回路Over-current protective circuit合闸回路Closing circuit停车延时回路Delayed shutdown circuit掉闸回路Trip circuit激磁回路Exciting circuit备用回路Spare circuit主回路Main circuit馈路Feeder circuit现有回路Existing circuit单线回路Single-wire circuit接地回路Earthed circuit有电压的电路Live circuit三．设备Equipments高压开关柜H.V. switchgear动力配电箱Power distribution cabinet电源配电箱Source distribution cabinet直流配电屏D.C. switchboard (distribution panel)交流低压配电屏A.C.L.V. switchboard (distribution panel)静电电容器柜Static capacitor cabinet多种电源插销箱Receptacle box for miscellaneous power supplies控制箱Control cabinet照明配电箱Lighting (distribution panel)连接箱Junction box出线盒Outlet box开关箱Switch box控制台Console分段屏Sectionalizing panel进线屏Incoming line panel电控箱Electric control panel边屏Side board端子箱Terminal box供电盘Power supply box瓶车箱Synchronizing cabinet感应调压器专用变压器高压柜Special transformer H.V. cabinet for induction voltage regulator电压互感器柜Potential transformer cabinet信号屏Signal panel浮充屏Floating panel蓄电池屏Battery panel充电屏Charging panel母线联络柜Bus tie cabinet转换开关Transfer switch电压表转换开关Voltmeter change-over switch铁壳开关Metal-clad switch (Iron-clad switch)管式熔断器Cartridge fuse真空断路器Vacuum circuit breaker (V.C.B.)自动开关Automatic switch高压负荷开关H.V. load break switch三极高压断路器3-pole HV circuit-breaker刀开关Knife switch转换开关Transfer switch双极铁壳开关2-pole iron-clad switch风扇变速开关Fan speed regulator switch密闭照明灯开关Hermetic lighting switch防爆照明灯开关Explosion-proof lighting switch行程开关Limit switch高压隔离开关H.V. disconnecting switch明装单极板钮开关Surface-mounted single-pole toggle switch暗装单极板钮开关Flush-mounted single-pole toggle switch三路开关Three-way switch气密式组合开关Hermetic packet type switch防护式开关Guard type switch联锁开关Interlock switch操作方式选择开关Selecting switch for types of operation控制电源开关Switch for control supply主令开关Master switch (controller)多切点切换开关Multi-point change-over switch按钮Push-button控制按钮Control push-button防爆控制按钮Explosion-proof control push-button事故紧急按钮Emergency stopping push-button起动按钮Starting push-button停止按钮Stopping push-button现场按钮Push-button in field挡板damper音响解除按钮Push-button for sound release起动器Starter磁力起动器Magnetic starter综合起动器Combination starter (Magnetic starter combination)电力变压器Power transformer调压变压器Voltage regulating transformer电压互感器Potential transformer电流互感器Current transformer照明变压器Lighting transformer三相三绕组变压器3-phase tertiary winding transformer高压试验变压器H.V. testing transformer局部照明变压器Local lighting transformer多量程仪用电流互感器Multi-range current transformer for measurement降压变压器Step-down transformer伺服电动机Servo-motor双电压电动机Dual-voltage motor感应电动机Induction motor交流异步电动机A.C. asynchronous motor同步电动机synchronous motor三相滑环感应电动机3-phase slip-ring induction motor三相鼠笼感应电动机3-phase squirrel-cage induction motor绕线式电动机Wound-rotor induction motor反应式电动机Reaction motor柴油发电机Diesel generator励磁发电机Excitation generator明装双极插座Surface-mounted 2-pole receptacle暗装双极插座Flush-mounted 2-pole receptacle双极带接地插座2-pole receptacle with grounding contact单相三孔明插座Surface-mounted single phase 3-pole receptacle防护式明装三相四孔插座Guard type surface-mounted 3-phase 4-pole receptacle 配照型灯Standard dome lighting fitting搪瓷深照型灯Enameled high bay lighting fitting防水防尘灯Water and dust proof lighting fitting安全灯Safety lighting fitting隔爆灯Explosion-proof lighting fitting弯灯Goose-neck light壁灯Wall light高压水银灯High pressure mercury vapor lighting fitting投光灯Flood-light (projection light)信号灯Signal lamp天棚灯Ceiling-mounted lighting fitting局部照明灯Local lighting fitting灯座Lamp holder事故照明灯Emergency lighting fitting高压水银荧光灯H.P. mercury fluorescent lighting fitting广照型工厂灯Wide lit type industrial fitting深照型灯具High bay lighting fitting白炽灯具Incandescent lamp (bulb)圆球型灯Globe lamp嵌入式荧光灯flush type fluorescent lighting fitting红色障碍灯Red obstruction lamp for aviation厂区道路照明灯Street lighting in plant area路灯Street lamp视孔灯Inspection hole lamp立杆弯灯goose-neck post lamp , pole lamp模拟报警信号Semigraph and alarm signal自整角机Selsyn励磁机Exciter显示器Display电位器Potentiometer内电阻Internal resistance固定电阻（器）Fixed resistance脱扣Release , trip分励Shunt trip特殊失压脱扣器Special no-voltage release“或”开关放大器“Or” switch amplifier制动器Brake电容Capacitor整流器Rectifier镇流器Chock分流器Shunt油变阻器Oil immersed rheostat频敏电阻器Frequency sensitive rheostat滑线变阻器Sliding rheostat蜂鸣器Buzzer电机加热器Space heater (for motor)空气断路器电机操作机构Motor operating mechanism for air circuit-breaker 可控硅励磁装置Silicon controlled rectifier excitation device保护装置Protective device (element)闪光装置Flashing device接闪装置（避雷器）Lightning arrester断相保护Phase failure protection四．保护、继电器Protection , relays信号继电器Signal relay过电流继电器Over-current relay电压继电器Voltage relay时间继电器Time relay中间继电器Auxiliary relay热继电器Thermal relay温度继电器Temperature relay瓦斯继电器Gas relay控制电源中间继电器Auxiliary relay for control supply自动操作继电器Relay for auto-operation低电压继电器Under-voltage relay过电压继电器Over-voltage relay联锁继电器Interlock relay冲击继电器Impact relay合闸位置继电器Close position relay逆流继电器Reverse-current relay差流继电器Differential current relay差动继电器Differential relay电流继电器Current relay功率继电器Power relay接地继电器Earthing relay重合闸继电器Reclosing relay同步继电器Synchronous relay速动继电器Quick acting relay定时限继电器Definite time relay光电继电器Photoelectric relay电子继电器Electronic relay电磁式继电器Electromagnetic relay电动式继电器Electrodynamic relay气压继电器Gas-pressure relay继电器常开触点Relay N.O. contact继电器常闭触点Relay N.C. contact继电器保护触点（常开）Relay holding contact (N.O.)能自动返回的常闭按钮触点Self-return button with N.C. contact 模拟信号触点Contact for semigraph signal强励磁接点Shock excitation contact电感线圈Induction coil电流线圈Current coil脱扣线圈Trip coil合闸线圈Close coil释放线圈Releasing coil掉闸线圈Tripping coil予告信号Prewarning signal掉闸回路断线信号Breakage signal of trip circuit断路器事故掉闸信号Fault trip signal of breaker掉闸音响信号Tripping audible signal重瓦斯预告信号Heavy gas prewarning signal温度预告信号Temperature prewarning signal手动、自动操作时事故信号Fault signal in manual/automatic operation保护掉闸Protective trip控制掉闸Control trip手动跳闸Manual trip变电所紧急停车Emergency shutdown at substation工艺故障Fault in process励磁故障Fault in excitation工作电源失电报警No-voltage alarm of working electric source工作电源分合闸On and off of working electric source工作电源投入Throw-in of working electric source保安电源送电supply of emergency electric source运转指示Indicating of operation投入指示Indicating of throw-in同步指示Indicating of synchronism延时停车Delayed shutdown电源切除Switch off the power supply速断及过流断通Instantaneous trip and over-current off/on自保持Self-holding自锁Self-lock联锁Interlocking绝缘监视Insulation supervision电压监视Voltage supervision联锁解除Release of interlock工作、保安电源切换Transfer of working and emergency power supply发电机与工作母线并车Synchronization of generator to working bus重瓦斯保护Heavy gas protection开或闭超扭矩保护Over-torque protection during opening and closing valve电机起动顺序Sequence of motor starting铭牌框注字Name plate denotation (inscription)五．电气仪表Electric instruments电流表Ammeter电压表Voltmeter三相三线有功电度表Three-phase three-wire kilowatt-hour meter , kWh meter 单相电度表Single-phase kilowatt-hour meter三相无功电度表Three-phase kilovar-hour meter有功功率表Active power meter , kilowatt meter无功功率表Reactive power meter , kilovar meter三相瓦特表(功率表) Three-phase watt meter功率因数表Power factor meter频率表Frequency meter验电流器Galvanoscope欧姆表Ohmmeter相位表Phase meter转速表Tachometer波长表Wave-length meter三相四线制标准电度表3-phase 4-wire standard watthour-meter 过载电流表Overload ammeter低功率因数瓦特表Low power-factor wattmeter交直流两用钳型电流表 A.C./D.C. multi-purpose tongtester兆欧表Megger , Megohmmeter万用表Avometer微安表Microammeter毫安表Milliammeter各种测量仪表Various kind of measuring instruments接地电阻测量仪Earthing resistance tester真空管电压表Vacuum tube voltmeter电动秒表Electric second-meter六．防雷Lightning protection避雷装置Lightning protector避雷针Lightning rod避雷带Strap type lightning protector避雷网Network of lightning protector避雷针支架Lightning rod support避雷针尖Tip of lightning rod避雷针拉铁Brace for lightning rod避雷器Lightning arrester , surge discharger球型避雷器Spherical arrester管形避雷器Tubular arrester阀形避雷器Auto-valve arrester低压避雷器Low voltage arrester角形避雷器Horn arrester多隙避雷器Multigap arrester铝避雷器Aluminum cell arrester氧化膜避雷器Oxide film arrester击穿保险器Puncture lightning arrester雷击Lightning stroke直接雷击Direct lightning stroke感应雷击Induction lightning stroke雷电日Thunderbolt days雷电或然率Lightning and thunder probability触电Electric shock静电感应Electrostatic induction七．接地Grounding , earthing接地保护Ground protection , earth protection 防雷接地Grounding for lightning保护接地Protective earthing人工接地Artificial grounding工作接地Working grounding , working earthing 重复接地Multiple earthing屏蔽接地Screen earthing , shielding ground中性点接地Neutral point grounded接地系统Grounding system , earthing system 接地故障Ground fault , earth fault单相接地Single phase earthing母线接地Bus ground接地装置Grounding device , earthing device引下线Down-lead , down conductor引下线固定Clamping plate of support for fixing 支架夹板Down lead引下线固定支脚Support for fixing down lead接地线Ground connector接地干线Ground(ing) main , (bus)接地网Grounding network , earthing network 接地极Earth electrode (pole)接地电阻Earth resistance接地电路Earth (ground) circuit连接条Connecting strip断接卡Connecting clamp八．室、所Room , Substation贮藏室Storage套间Compartment蓄电池室Battery room控制室Control room配电室Distribution room维修间Repair room变电所Substation高压配电室H.V. distribution room休息室Rest room九．电修车间设备Equipments of electric repair砂轮机Emery wheel grinder台钻Bench drilling machine交流电焊机A.C. welding machine移动式空气压缩机Portable air compressor手电钻Electric hand drill单速手摇绕线机Single speed hand winding machine导线钳压器Wire jointing press-clamp油压千斤顶Hydraulic jack电吹尘器Electric dust cleaner存放柜Store chest高压试验变压器H.V. testing transformer泄漏试验变压器Leakage testing set大电流发生器Strong current generator油浸自冷感应调压器Oil-immersed self-cooled induction voltage regulator 多量程仪用电流互感器Multi-range current transformer for measurement 仪用电感互感器Instrumental voltage transformer单相自耦变压器Single-phase auto-transformer三相自耦变压器3-phase auto-transformer硅整流器Silicon rectifier仪表试验台Testing stand for instrument接触器，继电器试验台Relay and contactor testing stand慢扫描示波器Slow scanning oscillograph交流电子稳压器A.C. electronic voltage stabilizer携带式交流电桥Portable A.C. electric bridge接地电阻测量仪Earthing resistance tester电缆故障探伤仪Cable fault detector直流单臂电桥D.C. single-arm electric bridge , Wheatstone bridge十．材料Material绝缘包布Insulating tape填料Filler , packing绝缘膏Insulating compound电缆膏Cable compound防腐油Anti-corrosive oil沥青漆Bituminous varnish绝缘漆Insulating varnish瓷漆Enamel varnish有色金属Non-ferrous metal黑色金属ferrous metal白金属White metal云母Mica环氧树脂Epoxy resin聚氯乙烯Polyvinyl chloride , PVC 蜡Wax滑石粉Talc powder电胶木Bakelite聚丙烯外壳Polyacrylic cover耐油橡胶管Oil-proof rubber tubes 接地铜线Grounding copper wire 垫圈Pad塑料绝缘线Plastics insulated wire 橡套电缆Rubber sheathed cable 中间接头Splice填充剂Filling agent绝缘电线Insulated wire移动软电缆Movable flexible cable 补偿导线Extension wire套管Bushing母线槽Busway悬索Cable suspension滑触线Trolley conductor镀锌煤气管Galvanized gas pipe镀锌角钢Galvanized steel angle 镀锌扁钢Galvanized steel strap 钢丝绳Steel wire rope电笛Siren电磁阀Electromagnetic valve连接片Connecting link切换片Transfering link端子排Terminal board半导体二极管Semiconductor diode开度计Opening meter逻辑元件Logical element接线盒Junction box仪表槽板Instrument trunking电缆吊架Cable hanger出线套Outgoing line sleeve十一．图名Drawings , diagrams电气图纸目录Contents of electric drawings电力系统图Electric power system diagram照明系统图Lighting system diagram电力平面布置图Electric power layout plan照明平面布置图Lighting layout plan单线图One line diagram控制箱面部布置图Surface arrangement of control box背部接线图Back wiring (diagram)外部接线图External (outside) wiring diagram内部接线图Internal (inside) wiring diagram控制原理图Principle control diagram原理图Schematic diagram展开图Developed diagram电气标准图Electric standard drawing电气施工图Electric working drawing复用图Reproducibles (drawing)电缆联系图Cable hook-up diagram转换开关接点图Contact diagram of transfer switch箱侧视图Side view of box正视图Front view , facade背视图Back view剖面图Section参考图Reference drawing电缆敷设图Cable laying diagram箱内框架布置图Arrangement of frames inside the cabinet控制箱台面展开图Surface developed diagram of console出线端子示意图Schematic diagram of terminal outgoing lines 端子接线图Diagram of terminal connections电气管线表List of wire , cable and conduits设备材料表List of equipment and materials十二．表头Tables电力系统图Power system diagram引入线Lead in保护设备Protective device型号Type额定值Rating整定值Setting主启动设备回路Circuit to starting device导线型号、芯数、截面及管径Conductor type , cores , section & diameter of conduit 线长Wire length管长Conduit length启动设备Starting device型号规格Type , specification保护元件Protective element计量装置Calculating device用电设备主回路Main circuit of electric equipment控制回路Control circuit控制装置Control device用电设备Electric equipment设备容量Consumer capacity生产设备Production equipment位号No. of location名称Name备注Remarks引入线Feed in配电箱Distribution cabinet型号及编号Type and No.开关型号Switch type保护装置Protective device回路编号Circuit No.相别Phase灯数Number of lamps插座数Number of receptacles电缆编号No. of line起点Starting终点Ending母线截面Section of bus零母线Neutral bus屏编号Panel No.型号及方案号Type and variant No.控制原理图号Principle control diagram工艺位号Process item No.十三．标准图词汇Terms from standard DWG电工系统图图形符号Graphic symbols for electric system交流电的相别A.C. phase sequence直流电的正负极D.C. positive and negative poles有中性点引出线的星形连接的三相绕组Star-connected three phase windings with neutral outlet开口三角形连接的三相绕组3-phase winding with open delta connection互相连接的导线Cross connection of wires不连接的跨越导线Crossing wires not in contact with each other可拆卸的电气连接Removable connection电缆终端头Pothead of cable or cable end自耦变压器Auto-transformer感应调压器Induction voltage regulator凸极同步电动机Salient pole synchronous motor带接换装置的蓄电池组Accumulator battery with tap-changers空气断路器Air circuit-breaker保持触点Holding contact热元件Thermal element自动复位的操作开关Spring-return operating switch插接器Plug-in connector电喇叭Horn电炉Electric furnace分流器Shunt可控硅整流箱屏Silicon controlled rectifier box panel直流配电屏D.C. distributing panel磁力起动器组Magnetic starter group自动开关箱Automatic switch box行程开关Limit switch局部灯Local lighting fitting荧光灯列Series fluorescent lighting fitting防护式灯开关Protective switch导线引上Conductors turning up导线引下Conductors turning down导线由上引来Conductors turning from above导线由下引来Conductors turning from below电缆沟Cable trench调压器Voltage regulator隔离变压器Isolating transformer击穿保护器Puncturing safety device晶体管Transisorized diode地坪Grade level电缆与水管平行Cable running parallel to a water supply pipe 电缆与热力管道交叉敷设Cable running across heat pipeline车道Drive way电缆穿管与管道交叉Cable protective pipe across a pipeline双(单)侧支架电缆沟Trench with rack on both sides (one side) 室外地坪Outdoor grade跨接线Jumper金属软管Flexible metal tube过渡接头Adapter电气工程及其自动化专业术语翻译transistor 晶体管audion 三极管capacitance 电容Diesel 柴油机AC- motors 交流电机transistorcoupling 联结耦合current carrying capacity 载流能力（最大允许电流）conductivity 传导性in isolation 绝缘lead 导线leakage current 泄漏电流inductance 感应系数loops 线圈macroprocessor 微处理器multimedia show 多媒体展示medium-power distribution 中压配电motor and soft starters 电机及软起动器numerical controls 数控系统optimal 最佳的，最理想的overload relays 过载继电器overshoot 过冲peak current 峰值电流power dissipation 电力分散process automation 过程自动化process instrumentation and analytics 过程仪表及分析仪器punch 穿孔，冲压reactance 电抗recharge 再充regulated power supply 稳压电源resistance 阻抗resistor 电阻器resonate 共振self-inductance 自感应series inductance 串联感应simulation 模拟switching 配电；交流thermal cycle 热循环thickness 厚度voltage regulator 调压器warping 扭曲，变形wiring layout 线路配置图AC-drives 交流变频器asymmetrical 非对称的attenuation 衰减bridged impedance 桥接阻抗cable bridge 电缆桥架charge 电荷circuit schematic diagram 电路原理图解coefficient 系数configuration 构造constant 常量copper sheet 铜片damping 阻尼decomposition 分解decouple 分离delay circuit 延迟电路dielectric sheets 介电原片diode clamping钳位edge connector 边缘连接器electrical infrastructure 电气基础设施electrical installation 电气安装技术equations set 方程组four-layer 四层hookup 接线图human machine interface 人机界面impedance 阻抗incidence 入射incident wave 入射波incorporated 合成一体的instantaneous 瞬间的interleaved 交叉load admittance 负载导纳lumped 集中的modal 模式的modeling 建模motor management systems 电机管理系统mounting pads 安装垫片noise margins 噪音安全系数proximity effect 邻近效应radian 弧度resistive 有抵抗力的schematic 示意图services & industry solutions 服务和工业解决方案terminator 终结器undershoot 负脉冲信号；下冲。

电路图符号中英文对照表：AAT 电源自动投入装置AC 交流电DC 直流电FU 熔断器G 发电机M 电动机HG 绿灯HR 红灯HW 白灯HP 光字牌K 继电器KA(NZ) 电流继电器(负序零序)KD 差动继电器KF 闪光继电器KH 热继电器KM 中间继电器KOF 出口中间继电器KS 信号继电器KT 时间继电器KV(NZ) 电压继电器(负序零序)KP 极化继电器KR 干簧继电器KI 阻抗继电器KW(NZ) 功率方向继电器(负序零序)KM 接触器KA 瞬时继电器；瞬时有或无继电器；交流继电器KV电压继电器L 线路QF 断路器QS 隔离开关T 变压器TA 电流互感器TV 电压互感器W 直流母线YC 合闸线圈YT 跳闸线圈PQS 有功无功视在功率EUI 电动势电压电流SE 实验按钮SR 复归按钮f 频率Q——电路的开关器件FU——熔断器FR——热继电器KM——接触器KA——1、瞬时接触继电器 2、瞬时有或无继电器 3、交流继电器KT——延时有或无继电器SB——按钮开关 Q——电路的开关器件FU——熔断器KM——接触器KA——1、瞬时接触继电器 2、瞬时有或无继电器 3、交流继电器KT——延时有或无继电器SB——按钮开关SA 转换开关电流表 PA电压表 PV有功电度表 PJ无功电度表 PJR频率表 PF相位表 PPA最大需量表(负荷监控仪) PM 功率因数表 PPF有功功率表 PW无功功率表 PR无功电流表 PAR声信号 HA光信号 HS指示灯 HL红色灯 HR绿色灯 HG黄色灯 HY蓝色灯 HB白色灯 HW连接片 XB插头 XP插座 XS端子板 XT电线电缆母线 W直流母线 WB插接式(馈电)母线 WIB电力分支线 WP照明分支线 WL应急照明分支线 WE电力干线 WPM照明干线 WLM应急照明干线 WEM滑触线 WT合闸小母线 WCL控制小母线 WC信号小母线 WS闪光小母线 WF事故音响小母线 WFS 预报音响小母线 WPS 电压小母线 WV事故照明小母线 WELM 避雷器 F金属氧化物避雷器 MOA 熔断器 FU快速熔断器 FTF跌落式熔断器 FF限压保护器件 FV电容器 C电力电容器 CE正转按钮 SBF反转按钮 SBR停止按钮 SBS紧急按钮 SBE试验按钮 SBT复位按钮 SR限位开关 SQ接近开关 SQP手动控制开关 SH时间控制开关 SK液位控制开关 SL湿度控制开关 SM压力控制开关 SP速度控制开关 SS温度控制开关辅助开关 ST 电压表切换开关 SV电流表切换开关 SA整流器 U可控硅整流器 UR控制电路有电源的整流器 VC 变频器 UF变流器 UC逆变器 UI电动机 M异步电动机 MA同步电动机 MS直流电动机 MD绕线转子感应电动机 MW鼠笼型电动机 MC电动阀 YM电磁阀 YV防火阀 YF排烟阀 YS电磁锁 YL跳闸线圈 YT合闸线圈 YC气动执行器 YPAYA电动执行器 YE发热器件(电加热) FH照明灯(发光器件) EL空气调节器 EV电加热器加热元件 EE 感应线圈电抗器 L励磁线圈 LF消弧线圈 LA滤波电容器 LL电阻器变阻器 R电位器 RP热敏电阻 RT光敏电阻 RL压敏电阻 RPS接地电阻 RG放电电阻 RD启动变阻器 RS频敏变阻器 RF限流电阻器 RC光电池热电传感器 B 压力变换器 BP温度变换器 BT速度变换器 BV时间测量传感器 BT1BK 液位测量传感器 BL温度测量传感器 BHBM。

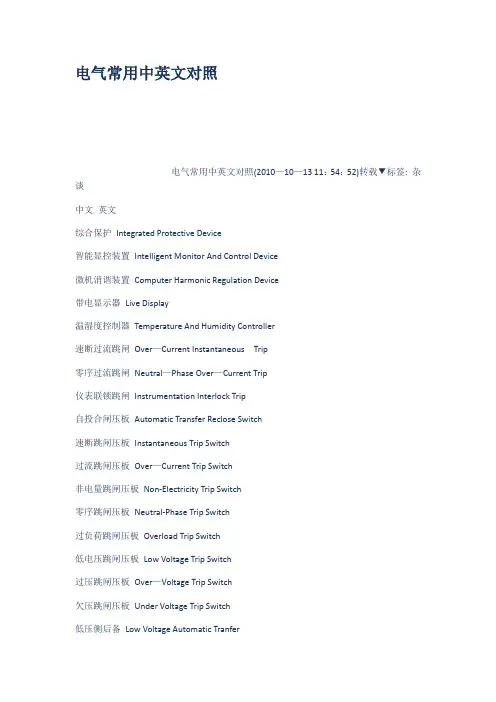

电气常用中英文对照电气常用中英文对照(2010—10—13 11：54：52)转载▼标签: 杂谈中文英文综合保护Integrated Protective Device智能显控装置Intelligent Monitor And Control Device微机消谐装置Computer Harmonic Regulation Device带电显示器Live Display温湿度控制器Temperature And Humidity Controller速断过流跳闸Over—Current Instantaneous Trip零序过流跳闸Neutral—Phase Over—Current Trip仪表联锁跳闸Instrumentation Interlock Trip自投合闸压板Automatic Transfer Reclose Switch速断跳闸压板Instantaneous Trip Switch过流跳闸压板Over—Current Trip Switch非电量跳闸压板Non-Electricity Trip Switch零序跳闸压板Neutral-Phase Trip Switch过负荷跳闸压板Overload Trip Switch低电压跳闸压板Low Voltage Trip Switch过压跳闸压板Over—Voltage Trip Switch欠压跳闸压板Under Voltage Trip Switch低压侧后备Low Voltage Automatic Tranfer高压侧后备High—Voltage Automatic Tranfer母联备投跳闸Bus Coupler Automatic Transfer Trip差动保护跳闸Differential Protection Trip电流表Ampere Meter非电量保护压板Non-Electricity Protective Switch电力英语1）元件设备三绕组变压器：three—column transformer ThrClnTrans 双绕组变压器:double-column transformer DblClmnTrans 电容器:Capacitor并联电容器：shunt capacitor电抗器：Reactor母线:Busbar输电线:TransmissionLine发电厂：power plant断路器：Breaker刀闸（隔离开关）：Isolator分接头：tap电动机：motor(2）状态参数有功：active power无功：reactive power电流:current容量：capacity电压：voltage档位：tap position有功损耗：reactive loss无功损耗：active loss功率因数：power-factor功率：power功角：power—angle电压等级:voltage grade空载损耗：no—load loss铁损：iron loss铜损：copper loss空载电流：no-load current阻抗:impedance正序阻抗:positive sequence impedance 负序阻抗：negative sequence impedance 零序阻抗：zero sequence impedance电阻:resistor电抗：reactance电导:conductance电纳：susceptance无功负载：reactive load 或者QLoad有功负载：active load PLoad遥测:YC(telemetering)遥信:YX励磁电流（转子电流):magnetizing current定子：stator功角：power—angle上限：upper limit下限：lower limit并列的:apposable高压：high voltage低压：low voltage中压：middle voltage电力系统power system发电机generator励磁excitation励磁器excitor电压voltage电流current母线bus变压器transformer升压变压器step—up transformer高压侧high side输电系统power transmission system输电线transmission line固定串联电容补偿fixed series capacitor compensation 稳定stability电压稳定voltage stability功角稳定angle stability暂态稳定transient stability电厂power plant能量输送power transfer交流AC装机容量installed capacity电网power system落点drop point开关站switch station双回同杆并架double—circuit lines on the same tower 变电站transformer substation补偿度degree of compensation高抗high voltage shunt reactor无功补偿reactive power compensation故障fault调节regulation裕度magin三相故障three phase fault故障切除时间fault clearing time极限切除时间critical clearing time切机generator triping高顶值high limited value强行励磁reinforced excitation线路补偿器LDC（line drop compensation）机端generator terminal静态static （state)动态dynamic (state)单机无穷大系统one machine —infinity bus system 机端电压控制AVR电抗reactance电阻resistance功角power angle有功(功率）active power无功（功率）reactive power功率因数power factor无功电流reactive current下降特性droop characteristics斜率slope额定rating变比ratio参考值reference value电压互感器PT分接头tap下降率droop rate仿真分析simulation analysis传递函数transfer function框图block diagram受端receive—side裕度margin同步synchronization失去同步loss of synchronization 阻尼damping摇摆swing保护断路器circuit breaker电阻：resistance电抗：reactance阻抗：impedance电导：conductance电纳:susceptance导纳:admittance电感：inductance电容：capacitance。
