电气专业术语中英对照

一．电气名词 Electric items二．二．线路（母线、回路）Lines (Bus, circuits) 三．三．设备 Equipment四．四．保护、继电器 Protection, relays五．五．电气仪表 Electric instruments六．六．防雷 Lightning protection七．七．接地 Grounding, earthing八．八．室、所 Room, Substation九．九．电修车间设备 Equipment of electric repair room 十．十．材料 Material十一．十一．图名 Drawings, diagrams十二．十二．表头 Tables十三．十三．标准图词汇 Terms from standard DWG一．电气名词 Electric items交（直）流 Alternating (direct) current短路电流 Short-circuit current起始次暂态短路电流 Initial subtransient short-circuit current冲击/脉冲电流 Impulse current稳态短路电流 Steady state short-circuit current临界电流 Critical current切断电流 Rupturing current熔断电流 Blow-out current故障电流 Fault current计算电流 Calculating current极限有限电流 Limit effective current过电流 Over current逆电流 Inverse current整定电流 Setting current额定电流 Rated current电流密度 Current density短路电流最大有效值 Maximum effective value of short-circuit current高压 High-voltage , High-tension低压 Low-voltage , Low-tension计算电压 Calculating voltage激磁电压 Exciting voltage冲击电压 Impulse voltage临界电压 Critical voltage残留电压 Residual voltage击穿电压 Puncture voltage脉动电压 Pulsating voltage供电电压 Supply voltage电力电压 Power voltage照明电压 Lighting voltage灯丝电压 Filament voltage额定电压 Rated voltage电压损失 Voltage loss过(欠)电压 Over (under) voltage 线路电压 Line voltage电压降 Voltage drop工作电压 Working voltage一次电压 Primary voltage二次电压 Secondary voltage电源 Electric source (power supply)自控电压 Power supply for process control6kV控制闪光电源 Flashing supply for 6kV control工作电源 Working power supply (electric source)保安电源 Emergency power supply (electric source)直流稳压电源 Stabilized D.C. source控制电源 Control supply直流电源 D.C. source交流电源 A.C. source负荷计算 Load calculation设备容量 Installed capacity需要容量 Electric demand功率因数 Power factor安装高度 Mounting height耐电压 Withstand voltage击穿电压Breakdown voltage工频耐压 Working frequency withstand voltage 表面闪络 Surface flash-over直流泄漏 D.C. leakage体电阻率 Volume resistivity介质损失角 Dielectric loss angle击穿强度 Breakdown/Puncture intensity电压等级 Voltage grade比重 Specific gravity性能 Feature相序 Phase sequence瞬时 Instantaneous倾角 Angle of inclination跨度 Span正极 Positive pole负极 Negative pole截面(积) Cross section area辅助电源 Auxiliary source遮断容量 Interrupting capacity载流量 Current-carrying capacity校正系数 Correction factor连续负荷 Continuous load长期载流量 Continuous capacity长时间额定值 Longtime rating电动机堵转电流 Locked-rotor motor current限定负荷 Limited load电感负荷 Inductive load感应电流 Induced current二．线路（母线、回路）Lines (Bus , circuits) 母线 Bus-bar合闸电源母线 Closing power source bus闪光母线 Flashing-bus备用母线 Spare bus装在支柱上的插接式母线 Post-supportedplug-in bus way装在吊钩上的插接式母线 Hook-supportedplug-in bus way装在支架上的插接式母线 Bracket-supported plug-in bus way小母线 Miniature bus电源小母线 Power supply miniature bus操作小母线 Operating miniature bus事故信号小母线 Miniature bus for fault signal 闪光小母线 Flashing miniature bus主母线 Main bus直流主母线 D.C. main bus预告母线 Prewarning bus干线 Main line照明干线 Lighting main line接地干线 Grounding main line插座干线 Receptacle main line 电压干线 Voltage main line端子出线 Terminal outgoing中性线 Neutral支线 Branch-line引入线 Lead-in电气线路 Electric circuit交流配电线路 A.C. distribution circuit直流配电线路 D.C. distribution circuit事故照明线路 Emergency lighting circuit控制线路 Control circuit接地或接零线路 Grounding or neutralizing circuit信号线路 Signal circuit有接地极的接地线路网 Grounding with grounding electrodes定子绕组测温回路 Temperature measuring circuit for stator winding接地信号回路 Grounding signal circuit闪光信号回路 Flashing-signal circuit开阀回路 Circuit for opening valve关（闭）阀回路 Circuit for closing valve开度计回路 Circuit for opening meter电流测量回路 Current-measuring circuit差动保护回路 Differental protective circuit 过流保护回路 Over-current protective circuit合闸回路 Closing circuit停车延时回路 Delayed shutdown circuit掉闸回路 Trip circuit激磁回路 Exciting circuit备用回路 Spare circuit主回路 Main circuit馈路 Feeder circuit现有回路 Existing circuit单线回路 Single-wire circuit接地回路 Earthed circuit有电压的电路 Live circuit三．设备 Equipments高压开关柜 H.V. switchgear动力配电箱 Power distribution cabinet电源配电箱 Source distribution cabinet直流配电屏 D.C. switchboard (distribution panel)交流低压配电屏 A.C.L.V. switchboard (distribution panel)静电电容器柜 Static capacitor cabinet多种电源插销箱 Receptacle box for miscellaneous power supplies控制箱 Control cabinet照明配电箱 Lighting (distribution panel)连接箱 Junction box出线盒 Outlet box开关箱 Switch box控制台 Console分段屏 Sectionalizing panel进线屏 Incoming line panel电控箱 Electric control panel边屏 Side board端子箱 Terminal box供电盘 Power supply box瓶车箱 Synchronizing cabinet感应调压器专用变压器高压柜 Special transformer H.V. cabinet for induction voltage regulator电压互感器柜 Potential transformer cabinet 信号屏 Signal panel浮充屏 Floating panel蓄电池屏 Battery panel充电屏 Charging panel母线联络柜 Bus tie cabinet转换开关 Transfer switch电压表转换开关 Voltmeter change-over switch 铁壳开关 Metal-clad switch (Iron-clad switch) 管式熔断器 Cartridge fuse真空断路器 Vacuum circuit breaker (V.C.B.) 自动开关 Automatic switch 高压负荷开关 H.V. load break switch三极高压断路器 3-pole HV circuit-breaker刀开关 Knife switch转换开关 Transfer switch双极铁壳开关 2-pole iron-clad switch风扇变速开关 Fan speed regulator switch密闭照明灯开关 Hermetic lighting switch防爆照明灯开关 Explosion-proof lighting switch行程开关 Limit switch高压隔离开关 H.V. disconnecting switch明装单极板钮开关 Surface-mounted single-pole toggle switch暗装单极板钮开关 Flush-mounted single-pole toggle switch三路开关 Three-way switch气密式组合开关 Hermetic packet type switch 防护式开关 Guard type switch联锁开关 Interlock switch操作方式选择开关 Selecting switch for types of operation控制电源开关 Switch for control supply主令开关 Master switch (controller)多切点切换开关 Multi-point change-over switch按钮 Push-button控制按钮 Control push-button防爆控制按钮 Explosion-proof controlpush-button事故紧急按钮 Emergency stopping push-button 起动按钮 Starting push-button停止按钮 Stopping push-button现场按钮 Push-button in field挡板 damper音响解除按钮 Push-button for sound release 起动器 Starter磁力起动器 Magnetic starter综合起动器 Combination starter (Magnetic starter combination)电力变压器 Power transformer调压变压器 Voltage regulating transformer电压互感器 Potential transformer电流互感器 Current transformer照明变压器 Lighting transformer三相三绕组变压器 3-phase tertiary winding transformer高压试验变压器 H.V. testing transformer局部照明变压器 Local lighting transformer多量程仪用电流互感器 Multi-range current transformer for measurement降压变压器 Step-down transformer伺服电动机 Servo-motor双电压电动机 Dual-voltage motor感应电动机 Induction motor交流异步电动机 A.C. asynchronous motor同步电动机 synchronous motor三相滑环感应电动机 3-phase slip-ring induction motor三相鼠笼感应电动机 3-phase squirrel-cage induction motor绕线式电动机 Wound-rotor induction motor反应式电动机 Reaction motor柴油发电机 Diesel generator励磁发电机 Excitation generator明装双极插座 Surface-mounted 2-pole receptacle暗装双极插座 Flush-mounted 2-pole receptacle 双极带接地插座 2-pole receptacle with grounding contact单相三孔明插座 Surface-mounted single phase 3-pole receptacle防护式明装三相四孔插座 Guard typesurface-mounted 3-phase 4-pole receptacle配照型灯 Standard dome lighting fitting 搪瓷深照型灯 Enameled high bay lightingfitting防水防尘灯 Water and dust proof lighting fitting安全灯 Safety lighting fitting隔爆灯 Explosion-proof lighting fitting弯灯 Goose-neck light壁灯 Wall light高压水银灯 High pressure mercury vapor lighting fitting投光灯 Flood-light (projection light)信号灯 Signal lamp天棚灯 Ceiling-mounted lighting fitting局部照明灯 Local lighting fitting灯座 Lamp holder事故照明灯 Emergency lighting fitting高压水银荧光灯 H.P. mercury fluorescent lighting fitting广照型工厂灯 Wide lit type industrial fitting 深照型灯具 High bay lighting fitting白炽灯具 Incandescent lamp (bulb)圆球型灯 Globe lamp嵌入式荧光灯 flush type fluorescent lightingfitting红色障碍灯 Red obstruction lamp for aviation 厂区道路照明灯 Street lighting in plant area 路灯 Street lamp视孔灯 Inspection hole lamp立杆弯灯 goose-neck post lamp , pole lamp模拟报警信号 Semigraph and alarm signal自整角机 Selsyn励磁机 Exciter显示器 Display电位器 Potentiometer内电阻 Internal resistance固定电阻（器） Fixed resistance脱扣 Release , trip分励 Shunt trip特殊失压脱扣器 Special no-voltage release “或”开关放大器“Or” switch amplifier制动器 Brake电容 Capacitor整流器 Rectifier镇流器 Chock分流器 Shunt油变阻器 Oil immersed rheostat频敏电阻器 Frequency sensitive rheostat滑线变阻器 Sliding rheostat蜂鸣器 Buzzer电机加热器 Space heater (for motor)空气断路器电机操作机构 Motor operating mechanism for air circuit-breaker可控硅励磁装置 Silicon controlled rectifier excitation device保护装置 Protective device (element)闪光装置 Flashing device接闪装置（避雷器） Lightning arrester断相保护 Phase failure protection四．保护、继电器 Protection , relays信号继电器 Signal relay过电流继电器 Over-current relay电压继电器 Voltage relay时间继电器 Time relay中间继电器 Auxiliary relay热继电器 Thermal relay温度继电器 Temperature relay瓦斯继电器 Gas relay控制电源中间继电器 Auxiliary relay for control supply自动操作继电器 Relay for auto-operation低电压继电器 Under-voltage relay过电压继电器 Over-voltage relay联锁继电器 Interlock relay冲击继电器 Impact relay合闸位置继电器 Close position relay逆流继电器 Reverse-current relay差流继电器 Differential current relay差动继电器 Differential relay电流继电器 Current relay功率继电器 Power relay 接地继电器 Earthing relay重合闸继电器 Reclosing relay同步继电器 Synchronous relay速动继电器 Quick acting relay定时限继电器 Definite time relay光电继电器 Photoelectric relay电子继电器 Electronic relay电磁式继电器 Electromagnetic relay电动式继电器 Electrodynamic relay气压继电器 Gas-pressure relay继电器常开触点 Relay N.O. contact继电器常闭触点 Relay N.C. contact继电器保护触点（常开） Relay holding contact (N.O.)能自动返回的常闭按钮触点 Self-return button with N.C. contact模拟信号触点 Contact for semigraph signal强励磁接点 Shock excitation contact电感线圈 Induction coil电流线圈 Current coil脱扣线圈 Trip coil合闸线圈 Close coil释放线圈 Releasing coil掉闸线圈 Tripping coil予告信号 Prewarning signal掉闸回路断线信号 Breakage signal of trip circuit断路器事故掉闸信号 Fault trip signal of breaker掉闸音响信号 Tripping audible signal重瓦斯预告信号 Heavy gas prewarning signal 温度预告信号 Temperature prewarning signal 手动、自动操作时事故信号 Fault signal in manual/automatic operation保护掉闸 Protective trip控制掉闸 Control trip手动跳闸 Manual trip变电所紧急停车 Emergency shutdown at substation工艺故障 Fault in process励磁故障 Fault in excitation工作电源失电报警 No-voltage alarm of working electric source工作电源分合闸 On and off of working electric source工作电源投入 Throw-in of working electric source保安电源送电 supply of emergency electric source运转指示 Indicating of operation投入指示 Indicating of throw-in同步指示 Indicating of synchronism延时停车 Delayed shutdown电源切除 Switch off the power supply速断及过流断通 Instantaneous trip andover-current off/on自保持 Self-holding自锁 Self-lock联锁 Interlocking绝缘监视 Insulation supervision电压监视 Voltage supervision联锁解除 Release of interlock工作、保安电源切换 Transfer of working and emergency power supply发电机与工作母线并车 Synchronization of generator to working bus重瓦斯保护 Heavy gas protection开或闭超扭矩保护 Over-torque protection during opening and closing valve电机起动顺序 Sequence of motor starting铭牌框注字 Name plate denotation (inscription)五．电气仪表 Electric instruments电流表 Ammeter 电压表 Voltmeter三相三线有功电度表 Three-phase three-wire kilowatt-hour meter , kWh meter单相电度表 Single-phase kilowatt-hour meter 三相无功电度表 Three-phase kilovar-hour meter有功功率表 Active power meter , kilowatt meter 无功功率表 Reactive power meter , kilovar meter三相瓦特表(功率表) Three-phase watt meter功率因数表 Power factor meter频率表 Frequency meter验电流器 Galvanoscope欧姆表 Ohmmeter相位表 Phase meter转速表 Tachometer波长表 Wave-length meter三相四线制标准电度表 3-phase 4-wire standardwatthour-meter过载电流表 Overload ammeter低功率因数瓦特表 Low power-factor wattmeter 交直流两用钳型电流表 A.C./D.C. multi-purpose tongtester兆欧表 Megger , Megohmmeter万用表 Avometer微安表 Microammeter毫安表 Milliammeter各种测量仪表 Various kind of measuring instruments接地电阻测量仪 Earthing resistance tester真空管电压表 Vacuum tube voltmeter电动秒表 Electric second-meter六．防雷 Lightning protection避雷装置 Lightning protector避雷针 Lightning rod避雷带 Strap type lightning protector避雷网 Network of lightning protector避雷针支架 Lightning rod support避雷针尖 Tip of lightning rod避雷针拉铁 Brace for lightning rod避雷器 Lightning arrester , surge discharger 球型避雷器 Spherical arrester管形避雷器 Tubular arrester阀形避雷器 Auto-valve arrester低压避雷器 Low voltage arrester角形避雷器 Horn arrester多隙避雷器 Multigap arrester铝避雷器 Aluminum cell arrester氧化膜避雷器 Oxide film arrester击穿保险器 Puncture lightning arrester雷击 Lightning stroke直接雷击 Direct lightning stroke感应雷击 Induction lightning stroke雷电日 Thunderbolt days雷电或然率 Lightning and thunder probability 触电 Electric shock静电感应 Electrostatic induction七．接地 Grounding, earthing接地保护 Ground protection , earth protection 防雷接地 Grounding for lightning保护接地 Protective earthing人工接地 Artificial grounding工作接地 Working grounding , working earthing 重复接地 Multiple earthing屏蔽接地 Screen earthing , shielding ground 中性点接地 Neutral point grounded接地系统 Grounding system , earthing system 接地故障 Ground fault , earth fault单相接地 Single phase earthing母线接地 Bus ground接地装置 Grounding device , earthing device 引下线 Down-lead , down conductor引下线固定 Clamping plate of support for fixing支架夹板 Down lead引下线固定支脚 Support for fixing down lead 接地线 Ground connector接地干线 Ground(ing) main , (bus)接地网 Grounding network , earthing network 接地极 Earth electrode (pole)接地电阻 Earth resistance接地电路 Earth (ground) circuit连接条 Connecting strip断接卡 Connecting clamp八．室、所 Room , Substation贮藏室 Storage套间 Compartment蓄电池室 Battery room控制室 Control room配电室 Distribution room维修间 Repair room变电所 Substation高压配电室 H.V. distribution room休息室 Rest room九．电修车间设备 Equipments of electric repair 砂轮机 Emery wheel grinder台钻 Bench drilling machine交流电焊机 A.C. welding machine移动式空气压缩机 Portable air compressor手电钻 Electric hand drill单速手摇绕线机 Single speed hand winding machine导线钳压器 Wire jointing press-clamp油压千斤顶 Hydraulic jack电吹尘器 Electric dust cleaner存放柜 Store chest高压试验变压器 H.V. testing transformer泄漏试验变压器 Leakage testing set大电流发生器 Strong current generator油浸自冷感应调压器 Oil-immersed self-cooled induction voltage regulator多量程仪用电流互感器 Multi-range current transformer for measurement仪用电感互感器 Instrumental voltage transformer单相自耦变压器 Single-phase auto-transformer 三相自耦变压器 3-phase auto-transformer硅整流器 Silicon rectifier仪表试验台 Testing stand for instrument接触器，继电器试验台 Relay and contactor testing stand慢扫描示波器 Slow scanning oscillograph交流电子稳压器 A.C. electronic voltage stabilizer携带式交流电桥 Portable A.C. electric bridge 接地电阻测量仪 Earthing resistance tester电缆故障探伤仪 Cable fault detector直流单臂电桥 D.C. single-arm electric bridge , Wheatstone bridge十．材料 Material绝缘包布 Insulating tape填料 Filler , packing绝缘膏 Insulating compound电缆膏 Cable compound防腐油 Anti-corrosive oil沥青漆 Bituminous varnish绝缘漆 Insulating varnish瓷漆 Enamel varnish有色金属 Non-ferrous metal黑色金属 ferrous metal白金属 White metal云母 Mica环氧树脂 Epoxy resin聚氯乙烯 Polyvinyl chloride , PVC蜡 Wax滑石粉 Talc powder电胶木 Bakelite聚丙烯外壳 Polyacrylic cover耐油橡胶管 Oil-proof rubber tubes接地铜线 Grounding copper wire 垫圈 Pad塑料绝缘线 Plastics insulated wire橡套电缆 Rubber sheathed cable中间接头 Splice填充剂 Filling agent绝缘电线 Insulated wire移动软电缆 Movable flexible cable补偿导线 Extension wire套管 Bushing母线槽 Busway悬索 Cable suspension滑触线 Trolley conductor镀锌煤气管 Galvanized gas pipe镀锌角钢 Galvanized steel angle镀锌扁钢 Galvanized steel strap钢丝绳 Steel wire rope电笛 Siren电磁阀 Electromagnetic valve连接片 Connecting link切换片 Transfering link端子排 Terminal board半导体二极管 Semiconductor diode开度计 Opening meter逻辑元件 Logical element接线盒 Junction box仪表槽板 Instrument trunking电缆吊架 Cable hanger出线套 Outgoing line sleeve十一．图名 Drawings , diagrams电气图纸目录 Contents of electric drawings 电力系统图 Electric power system diagram照明系统图 Lighting system diagram电力平面布置图 Electric power layout plan照明平面布置图 Lighting layout plan单线图 One line diagram控制箱面部布置图 Surface arrangement of control box背部接线图 Back wiring (diagram)外部接线图 External (outside) wiring diagram内部接线图 Internal (inside) wiring diagram 控制原理图 Principle control diagram原理图 Schematic diagram展开图 Developed diagram电气标准图 Electric standard drawing电气施工图 Electric working drawing复用图 Reproducibles (drawing)电缆联系图 Cable hook-up diagram转换开关接点图 Contact diagram of transfer switch箱侧视图 Side view of box正视图 Front view , facade背视图 Back view剖面图 Section参考图 Reference drawing电缆敷设图 Cable laying diagram箱内框架布置图 Arrangement of frames inside the cabinet控制箱台面展开图 Surface developed diagram of console出线端子示意图 Schematic diagram of terminal outgoing lines端子接线图 Diagram of terminal connections 电气管线表 List of wire , cable and conduits 设备材料表 List of equipment and materials 十二．表头 Tables电力系统图 Power system diagram引入线 Lead in保护设备 Protective device型号 Type额定值 Rating整定值 Setting主启动设备回路 Circuit to starting device导线型号、芯数、截面及管径 Conductor type , cores , section & diameter of conduit线长 Wire length管长 Conduit length 启动设备 Starting device型号规格 Type , specification保护元件 Protective element计量装置 Calculating device用电设备主回路 Main circuit of electric equipment控制回路 Control circuit控制装置 Control device用电设备 Electric equipment设备容量 Consumer capacity生产设备 Production equipment位号 No. of location名称 Name备注 Remarks引入线 Feed in配电箱 Distribution cabinet型号及编号 Type and No.开关型号 Switch type保护装置 Protective device回路编号 Circuit No.相别 Phase灯数 Number of lamps插座数 Number of receptacles电缆编号 No. of line起点 Starting终点 Ending母线截面 Section of bus零母线 Neutral bus屏编号 Panel No.型号及方案号 Type and variant No.控制原理图号 Principle control diagram 工艺位号 Process item No.十三．标准图词汇 Terms from standard DWG 电工系统图图形符号 Graphic symbols for electric system交流电的相别 A.C. phase sequence直流电的正负极 D.C. positive and negative poles有中性点引出线的星形连接的三相绕组Star-connected three phase windings with neutral outlet开口三角形连接的三相绕组 3-phase winding with open delta connection互相连接的导线 Cross connection of wires不连接的跨越导线 Crossing wires not in contact with each other可拆卸的电气连接 Removable connection电缆终端头 Pothead of cable or cable end自耦变压器 Auto-transformer感应调压器 Induction voltage regulator凸极同步电动机 Salient pole synchronous motor 带接换装置的蓄电池组 Accumulator battery with tap-changers空气断路器 Air circuit-breaker保持触点 Holding contact热元件 Thermal element自动复位的操作开关 Spring-return operating switch插接器 Plug-in connector电喇叭 Horn电炉 Electric furnace分流器 Shunt可控硅整流箱屏 Silicon controlled rectifier box panel直流配电屏 D.C. distributing panel磁力起动器组 Magnetic starter group自动开关箱 Automatic switch box行程开关 Limit switch局部灯 Local lighting fitting荧光灯列 Series fluorescent lighting fitting 防护式灯开关 Protective switch导线引上 Conductors turning up导线引下 Conductors turning down 导线由上引来 Conductors turning from above 导线由下引来 Conductors turning from below 电缆沟 Cable trench调压器 Voltage regulator隔离变压器 Isolating transformer击穿保护器 Puncturing safety device晶体管 Transisorized diode地坪 Grade level电缆与水管平行 Cable running parallel to a water supply pipe电缆与热力管道交叉敷设 Cable running across heat pipeline车道 Drive way电缆穿管与管道交叉 Cable protective pipe across a pipeline双(单)侧支架电缆沟 Trench with rack on both sides (one side)室外地坪 Outdoor grade跨接线 Jumper金属软管 Flexible metal tube过渡接头 Adapter电气工程及其自动化专业术语翻译transistor 晶体管audion 三极管capacitance 电容Diesel 柴油机AC- motors 交流电机transistorcoupling 联结耦合current carrying capacity 载流能力（最大允许电流）conductivity 传导性in isolation 绝缘lead 导线leakage current 泄漏电流inductance 感应系数loops 线圈macroprocessor 微处理器multimedia show 多媒体展示medium-power distribution 中压配电motor and soft starters 电机及软起动器numerical controls 数控系统optimal 最佳的，最理想的overload relays 过载继电器overshoot 过冲peak current 峰值电流power dissipation 电力分散process automation 过程自动化process instrumentation and analytics 过程仪表及分析仪器punch 穿孔，冲压reactance 电抗recharge 再充regulated power supply 稳压电源resistance 阻抗resistor 电阻器resonate 共振self-inductance 自感应series inductance 串联感应simulation 模拟switching 配电；交流thermal cycle 热循环thickness 厚度voltage regulator 调压器warping 扭曲，变形wiring layout 线路配置图AC-drives 交流变频器asymmetrical 非对称的attenuation 衰减bridged impedance 桥接阻抗cable bridge 电缆桥架charge 电荷circuit schematic diagram 电路原理图解coefficient 系数configuration 构造constant 常量copper sheet 铜片damping 阻尼decomposition 分解decouple 分离delay circuit 延迟电路dielectric sheets 介电原片diode clamping钳位edge connector 边缘连接器electrical infrastructure 电气基础设施electrical installation 电气安装技术equations set 方程组four-layer 四层hookup 接线图human machine interface 人机界面impedance 阻抗incidence 入射incident wave 入射波incorporated 合成一体的instantaneous 瞬间的interleaved 交叉load admittance 负载导纳lumped 集中的modal 模式的modeling 建模motor management systems 电机管理系统mounting pads 安装垫片noise margins 噪音安全系数proximity effect 邻近效应radian 弧度resistive 有抵抗力的schematic 示意图services & industry solutions 服务和工业解决方案terminator 终结器undershoot 负脉冲信号；下冲。

一．电气名词Electric items二．线路（母线、回路）Lines (Bus , circuits)三．设备Equipments四．保护、继电器Protection , relays五．电气仪表Electric instruments六．防雷Lightning protection七．接地Grounding , earthing八．室、所Room , Substation九．电修车间设备Equipments of electric repair十．材料Material十一．图名Drawings , diagrams十二．表头Tables十三．标准图词汇Terms from standard DWG一．电气名词Electric items交（直）流Alternating (direct) current短路电流Short-circuit current起始次暂态短路电流Initial subtransient short-circuit current冲击电流Impulse current稳态短路电流Steady state short-circuit current临界电流Critical current切断电流Rupturing current熔断电流Blow-out current故障电流Fault current计算电流Calculating current极限有限电流Limit effective current过电流Over current逆电流Inverse current整定电流Setting current额定电流Rated current电流密度Current density短路电流最大有效值Maximum effective value of short-circuit current 高压High-voltage , High-tension低压Low-voltage , Low-tension计算电压Calculating voltage激磁电压Exciting voltage冲击电压Impulse voltage临界电压Critical voltage残留电压Residual voltage击穿电压Puncture voltage脉动电压Pulsating voltage供电电压Supply voltage电力电压Power voltage照明电压Lighting voltage灯丝电压Filament voltage额定电压Rated voltage电压损失Voltage loss过(欠)电压Over (under) voltage线路电压Line voltage电压降Voltage drop工作电压Working voltage一次电压Primary voltage二次电压Secondary voltage电源Electric source (power supply)自控电压Power supply for process control6kV控制闪光电源Flashing supply for 6kV control工作电源Working power supply (electric source)保安电源Emergency power supply (electric source) 直流稳压电源Stabilized D.C. source控制电源Control supply直流电源D.C. source交流电源A.C. source负荷计算Load calculation设备容量Installed capacity需要容量Electric demand功率因数Power factor安装高度Mounting height耐电压Breakdown voltage工频耐压High-voltage test with working frequency 表面闪络Surface flash-over直流泄漏D.C. leakage体电阻率Volume resistivity介质损失角Dielectric loss angle击穿强度Puncture intensity电压等级Voltage grade比重Specific gravity性能Feature相序Phase sequence瞬时Instantaneous倾角Angle of inclination跨度Span正极Positive pole负极Negative pole截面(积) Cross section area辅助电源Auxiliary source遮断容量Interrupting capacity载流量Current-carrying capacity校正系数Correction factor连续负荷Continuous load长期载流量Continuous capacity长时间额定值Longtime rating电动机堵转电流Locked-rotor motor current限定负荷Limited load电感负荷Inductive load感应电流Induced current二．线路（母线、回路）Lines (Bus , circuits)母线Bus-bar合闸电源母线Closing power source bus闪光母线Flashing-bus备用母线Spare bus装在支柱上的插接式母线Post-supported plug-in bus way装在吊钩上的插接式母线Hook-supported plug-in bus way装在支架上的插接式母线Bracket-supported plug-in bus way 小母线Miniature bus电源小母线Power supply miniature bus操作小母线Operating miniature bus事故信号小母线Miniature bus for fault signal闪光小母线Flashing miniature bus主母线Main bus直流主母线D.C. main bus预告母线Prewarning bus干线Main line照明干线Lighting main line接地干线Grounding main line插座干线Receptacle main line电压干线Voltage main line端子出线Terminal outgoing中性线Neutral支线Branch-line引入线Lead-in电气线路Electric circuit交流配电线路A.C. distribution circuit直流配电线路D.C. distribution circuit事故照明线路Emergency lighting circuit控制线路Control circuit接地或接零线路Grounding or neutralizing circuit信号线路Signal circuit有接地极的接地线路网Grounding with grounding electrodes定子绕组测温回路Temperature measuring circuit for stator winding 接地信号回路Grounding signal circuit闪光信号回路Flashing-signal circuit开阀回路Circuit for opening valve关（闭）阀回路Circuit for closing valve开度计回路Circuit for opening meter电流测量回路Current-measuring circuit差动保护回路Differental protective circuit过流保护回路Over-current protective circuit合闸回路Closing circuit停车延时回路Delayed shutdown circuit掉闸回路Trip circuit激磁回路Exciting circuit备用回路Spare circuit主回路Main circuit馈路Feeder circuit现有回路Existing circuit单线回路Single-wire circuit接地回路Earthed circuit有电压的电路Live circuit三．设备Equipments高压开关柜H.V. switchgear动力配电箱Power distribution cabinet电源配电箱Source distribution cabinet直流配电屏D.C. switchboard (distribution panel)交流低压配电屏A.C.L.V. switchboard (distribution panel)静电电容器柜Static capacitor cabinet多种电源插销箱Receptacle box for miscellaneous power supplies控制箱Control cabinet照明配电箱Lighting (distribution panel)连接箱Junction box出线盒Outlet box开关箱Switch box控制台Console分段屏Sectionalizing panel进线屏Incoming line panel电控箱Electric control panel边屏Side board端子箱Terminal box供电盘Power supply box瓶车箱Synchronizing cabinet感应调压器专用变压器高压柜Special transformer H.V. cabinet for induction voltage regulator电压互感器柜Potential transformer cabinet信号屏Signal panel浮充屏Floating panel蓄电池屏Battery panel充电屏Charging panel母线联络柜Bus tie cabinet转换开关Transfer switch电压表转换开关Voltmeter change-over switch铁壳开关Metal-clad switch (Iron-clad switch)管式熔断器Cartridge fuse真空断路器Vacuum circuit breaker (V.C.B.)自动开关Automatic switch高压负荷开关H.V. load break switch三极高压断路器3-pole HV circuit-breaker刀开关Knife switch转换开关Transfer switch双极铁壳开关2-pole iron-clad switch风扇变速开关Fan speed regulator switch密闭照明灯开关Hermetic lighting switch防爆照明灯开关Explosion-proof lighting switch行程开关Limit switch高压隔离开关H.V. disconnecting switch明装单极板钮开关Surface-mounted single-pole toggle switch暗装单极板钮开关Flush-mounted single-pole toggle switch三路开关Three-way switch气密式组合开关Hermetic packet type switch防护式开关Guard type switch联锁开关Interlock switch操作方式选择开关Selecting switch for types of operation控制电源开关Switch for control supply主令开关Master switch (controller)多切点切换开关Multi-point change-over switch按钮Push-button控制按钮Control push-button防爆控制按钮Explosion-proof control push-button事故紧急按钮Emergency stopping push-button起动按钮Starting push-button停止按钮Stopping push-button现场按钮Push-button in field挡板damper音响解除按钮Push-button for sound release起动器Starter磁力起动器Magnetic starter综合起动器Combination starter (Magnetic starter combination)电力变压器Power transformer调压变压器Voltage regulating transformer电压互感器Potential transformer电流互感器Current transformer照明变压器Lighting transformer三相三绕组变压器3-phase tertiary winding transformer高压试验变压器H.V. testing transformer局部照明变压器Local lighting transformer多量程仪用电流互感器Multi-range current transformer for measurement降压变压器Step-down transformer伺服电动机Servo-motor双电压电动机Dual-voltage motor感应电动机Induction motor交流异步电动机A.C. asynchronous motor同步电动机synchronous motor三相滑环感应电动机3-phase slip-ring induction motor三相鼠笼感应电动机3-phase squirrel-cage induction motor绕线式电动机Wound-rotor induction motor反应式电动机Reaction motor柴油发电机Diesel generator励磁发电机Excitation generator明装双极插座Surface-mounted 2-pole receptacle暗装双极插座Flush-mounted 2-pole receptacle双极带接地插座2-pole receptacle with grounding contact单相三孔明插座Surface-mounted single phase 3-pole receptacle防护式明装三相四孔插座Guard type surface-mounted 3-phase 4-pole receptacle 配照型灯Standard dome lighting fitting搪瓷深照型灯Enameled high bay lighting fitting防水防尘灯Water and dust proof lighting fitting安全灯Safety lighting fitting隔爆灯Explosion-proof lighting fitting弯灯Goose-neck light壁灯Wall light高压水银灯High pressure mercury vapor lighting fitting投光灯Flood-light (projection light)信号灯Signal lamp天棚灯Ceiling-mounted lighting fitting局部照明灯Local lighting fitting灯座Lamp holder事故照明灯Emergency lighting fitting高压水银荧光灯H.P. mercury fluorescent lighting fitting广照型工厂灯Wide lit type industrial fitting深照型灯具High bay lighting fitting白炽灯具Incandescent lamp (bulb)圆球型灯Globe lamp嵌入式荧光灯flush type fluorescent lighting fitting红色障碍灯Red obstruction lamp for aviation厂区道路照明灯Street lighting in plant area路灯Street lamp视孔灯Inspection hole lamp立杆弯灯goose-neck post lamp , pole lamp模拟报警信号Semigraph and alarm signal自整角机Selsyn励磁机Exciter显示器Display电位器Potentiometer内电阻Internal resistance固定电阻（器）Fixed resistance脱扣Release , trip分励Shunt trip特殊失压脱扣器Special no-voltage release“或”开关放大器“Or” switch amplifier制动器Brake电容Capacitor整流器Rectifier镇流器Chock分流器Shunt油变阻器Oil immersed rheostat频敏电阻器Frequency sensitive rheostat滑线变阻器Sliding rheostat蜂鸣器Buzzer电机加热器Space heater (for motor)空气断路器电机操作机构Motor operating mechanism for air circuit-breaker 可控硅励磁装置Silicon controlled rectifier excitation device保护装置Protective device (element)闪光装置Flashing device接闪装置（避雷器）Lightning arrester断相保护Phase failure protection四．保护、继电器Protection , relays信号继电器Signal relay过电流继电器Over-current relay电压继电器Voltage relay时间继电器Time relay中间继电器Auxiliary relay热继电器Thermal relay温度继电器Temperature relay瓦斯继电器Gas relay控制电源中间继电器Auxiliary relay for control supply自动操作继电器Relay for auto-operation低电压继电器Under-voltage relay过电压继电器Over-voltage relay联锁继电器Interlock relay冲击继电器Impact relay合闸位置继电器Close position relay逆流继电器Reverse-current relay差流继电器Differential current relay差动继电器Differential relay电流继电器Current relay功率继电器Power relay接地继电器Earthing relay重合闸继电器Reclosing relay同步继电器Synchronous relay速动继电器Quick acting relay定时限继电器Definite time relay光电继电器Photoelectric relay电子继电器Electronic relay电磁式继电器Electromagnetic relay电动式继电器Electrodynamic relay气压继电器Gas-pressure relay继电器常开触点Relay N.O. contact继电器常闭触点Relay N.C. contact继电器保护触点（常开）Relay holding contact (N.O.)能自动返回的常闭按钮触点Self-return button with N.C. contact 模拟信号触点Contact for semigraph signal强励磁接点Shock excitation contact电感线圈Induction coil电流线圈Current coil脱扣线圈Trip coil合闸线圈Close coil释放线圈Releasing coil掉闸线圈Tripping coil予告信号Prewarning signal掉闸回路断线信号Breakage signal of trip circuit断路器事故掉闸信号Fault trip signal of breaker掉闸音响信号Tripping audible signal重瓦斯预告信号Heavy gas prewarning signal温度预告信号Temperature prewarning signal手动、自动操作时事故信号Fault signal in manual/automatic operation保护掉闸Protective trip控制掉闸Control trip手动跳闸Manual trip变电所紧急停车Emergency shutdown at substation工艺故障Fault in process励磁故障Fault in excitation工作电源失电报警No-voltage alarm of working electric source工作电源分合闸On and off of working electric source工作电源投入Throw-in of working electric source保安电源送电supply of emergency electric source运转指示Indicating of operation投入指示Indicating of throw-in同步指示Indicating of synchronism延时停车Delayed shutdown电源切除Switch off the power supply速断及过流断通Instantaneous trip and over-current off/on自保持Self-holding自锁Self-lock联锁Interlocking绝缘监视Insulation supervision电压监视Voltage supervision联锁解除Release of interlock工作、保安电源切换Transfer of working and emergency power supply发电机与工作母线并车Synchronization of generator to working bus重瓦斯保护Heavy gas protection开或闭超扭矩保护Over-torque protection during opening and closing valve电机起动顺序Sequence of motor starting铭牌框注字Name plate denotation (inscription)五．电气仪表Electric instruments电流表Ammeter电压表Voltmeter三相三线有功电度表Three-phase three-wire kilowatt-hour meter , kWh meter 单相电度表Single-phase kilowatt-hour meter三相无功电度表Three-phase kilovar-hour meter有功功率表Active power meter , kilowatt meter无功功率表Reactive power meter , kilovar meter三相瓦特表(功率表) Three-phase watt meter功率因数表Power factor meter频率表Frequency meter验电流器Galvanoscope欧姆表Ohmmeter相位表Phase meter转速表Tachometer波长表Wave-length meter三相四线制标准电度表3-phase 4-wire standard watthour-meter 过载电流表Overload ammeter低功率因数瓦特表Low power-factor wattmeter交直流两用钳型电流表 A.C./D.C. multi-purpose tongtester兆欧表Megger , Megohmmeter万用表Avometer微安表Microammeter毫安表Milliammeter各种测量仪表Various kind of measuring instruments接地电阻测量仪Earthing resistance tester真空管电压表Vacuum tube voltmeter电动秒表Electric second-meter六．防雷Lightning protection避雷装置Lightning protector避雷针Lightning rod避雷带Strap type lightning protector避雷网Network of lightning protector避雷针支架Lightning rod support避雷针尖Tip of lightning rod避雷针拉铁Brace for lightning rod避雷器Lightning arrester , surge discharger球型避雷器Spherical arrester管形避雷器Tubular arrester阀形避雷器Auto-valve arrester低压避雷器Low voltage arrester角形避雷器Horn arrester多隙避雷器Multigap arrester铝避雷器Aluminum cell arrester氧化膜避雷器Oxide film arrester击穿保险器Puncture lightning arrester雷击Lightning stroke直接雷击Direct lightning stroke感应雷击Induction lightning stroke雷电日Thunderbolt days雷电或然率Lightning and thunder probability触电Electric shock静电感应Electrostatic induction七．接地Grounding , earthing接地保护Ground protection , earth protection 防雷接地Grounding for lightning保护接地Protective earthing人工接地Artificial grounding工作接地Working grounding , working earthing 重复接地Multiple earthing屏蔽接地Screen earthing , shielding ground中性点接地Neutral point grounded接地系统Grounding system , earthing system 接地故障Ground fault , earth fault单相接地Single phase earthing母线接地Bus ground接地装置Grounding device , earthing device引下线Down-lead , down conductor引下线固定Clamping plate of support for fixing 支架夹板Down lead引下线固定支脚Support for fixing down lead接地线Ground connector接地干线Ground(ing) main , (bus)接地网Grounding network , earthing network 接地极Earth electrode (pole)接地电阻Earth resistance接地电路Earth (ground) circuit连接条Connecting strip断接卡Connecting clamp八．室、所Room , Substation贮藏室Storage套间Compartment蓄电池室Battery room控制室Control room配电室Distribution room维修间Repair room变电所Substation高压配电室H.V. distribution room休息室Rest room九．电修车间设备Equipments of electric repair砂轮机Emery wheel grinder台钻Bench drilling machine交流电焊机A.C. welding machine移动式空气压缩机Portable air compressor手电钻Electric hand drill单速手摇绕线机Single speed hand winding machine导线钳压器Wire jointing press-clamp油压千斤顶Hydraulic jack电吹尘器Electric dust cleaner存放柜Store chest高压试验变压器H.V. testing transformer泄漏试验变压器Leakage testing set大电流发生器Strong current generator油浸自冷感应调压器Oil-immersed self-cooled induction voltage regulator 多量程仪用电流互感器Multi-range current transformer for measurement 仪用电感互感器Instrumental voltage transformer单相自耦变压器Single-phase auto-transformer三相自耦变压器3-phase auto-transformer硅整流器Silicon rectifier仪表试验台Testing stand for instrument接触器，继电器试验台Relay and contactor testing stand慢扫描示波器Slow scanning oscillograph交流电子稳压器A.C. electronic voltage stabilizer携带式交流电桥Portable A.C. electric bridge接地电阻测量仪Earthing resistance tester电缆故障探伤仪Cable fault detector直流单臂电桥D.C. single-arm electric bridge , Wheatstone bridge十．材料Material绝缘包布Insulating tape填料Filler , packing绝缘膏Insulating compound电缆膏Cable compound防腐油Anti-corrosive oil沥青漆Bituminous varnish绝缘漆Insulating varnish瓷漆Enamel varnish有色金属Non-ferrous metal黑色金属ferrous metal白金属White metal云母Mica环氧树脂Epoxy resin聚氯乙烯Polyvinyl chloride , PVC 蜡Wax滑石粉Talc powder电胶木Bakelite聚丙烯外壳Polyacrylic cover耐油橡胶管Oil-proof rubber tubes 接地铜线Grounding copper wire 垫圈Pad塑料绝缘线Plastics insulated wire 橡套电缆Rubber sheathed cable 中间接头Splice填充剂Filling agent绝缘电线Insulated wire移动软电缆Movable flexible cable 补偿导线Extension wire套管Bushing母线槽Busway悬索Cable suspension滑触线Trolley conductor镀锌煤气管Galvanized gas pipe镀锌角钢Galvanized steel angle 镀锌扁钢Galvanized steel strap 钢丝绳Steel wire rope电笛Siren电磁阀Electromagnetic valve连接片Connecting link切换片Transfering link端子排Terminal board半导体二极管Semiconductor diode开度计Opening meter逻辑元件Logical element接线盒Junction box仪表槽板Instrument trunking电缆吊架Cable hanger出线套Outgoing line sleeve十一．图名Drawings , diagrams电气图纸目录Contents of electric drawings电力系统图Electric power system diagram照明系统图Lighting system diagram电力平面布置图Electric power layout plan照明平面布置图Lighting layout plan单线图One line diagram控制箱面部布置图Surface arrangement of control box背部接线图Back wiring (diagram)外部接线图External (outside) wiring diagram内部接线图Internal (inside) wiring diagram控制原理图Principle control diagram原理图Schematic diagram展开图Developed diagram电气标准图Electric standard drawing电气施工图Electric working drawing复用图Reproducibles (drawing)电缆联系图Cable hook-up diagram转换开关接点图Contact diagram of transfer switch箱侧视图Side view of box正视图Front view , facade背视图Back view剖面图Section参考图Reference drawing电缆敷设图Cable laying diagram箱内框架布置图Arrangement of frames inside the cabinet控制箱台面展开图Surface developed diagram of console出线端子示意图Schematic diagram of terminal outgoing lines 端子接线图Diagram of terminal connections电气管线表List of wire , cable and conduits设备材料表List of equipment and materials十二．表头Tables电力系统图Power system diagram引入线Lead in保护设备Protective device型号Type额定值Rating整定值Setting主启动设备回路Circuit to starting device导线型号、芯数、截面及管径Conductor type , cores , section & diameter of conduit 线长Wire length管长Conduit length启动设备Starting device型号规格Type , specification保护元件Protective element计量装置Calculating device用电设备主回路Main circuit of electric equipment控制回路Control circuit控制装置Control device用电设备Electric equipment设备容量Consumer capacity生产设备Production equipment位号No. of location名称Name备注Remarks引入线Feed in配电箱Distribution cabinet型号及编号Type and No.开关型号Switch type保护装置Protective device回路编号Circuit No.相别Phase灯数Number of lamps插座数Number of receptacles电缆编号No. of line起点Starting终点Ending母线截面Section of bus零母线Neutral bus屏编号Panel No.型号及方案号Type and variant No.控制原理图号Principle control diagram工艺位号Process item No.十三．标准图词汇Terms from standard DWG电工系统图图形符号Graphic symbols for electric system交流电的相别A.C. phase sequence直流电的正负极D.C. positive and negative poles有中性点引出线的星形连接的三相绕组Star-connected three phase windings with neutral outlet开口三角形连接的三相绕组3-phase winding with open delta connection互相连接的导线Cross connection of wires不连接的跨越导线Crossing wires not in contact with each other可拆卸的电气连接Removable connection电缆终端头Pothead of cable or cable end自耦变压器Auto-transformer感应调压器Induction voltage regulator凸极同步电动机Salient pole synchronous motor带接换装置的蓄电池组Accumulator battery with tap-changers空气断路器Air circuit-breaker保持触点Holding contact热元件Thermal element自动复位的操作开关Spring-return operating switch插接器Plug-in connector电喇叭Horn电炉Electric furnace分流器Shunt可控硅整流箱屏Silicon controlled rectifier box panel直流配电屏D.C. distributing panel磁力起动器组Magnetic starter group自动开关箱Automatic switch box行程开关Limit switch局部灯Local lighting fitting荧光灯列Series fluorescent lighting fitting防护式灯开关Protective switch导线引上Conductors turning up导线引下Conductors turning down导线由上引来Conductors turning from above导线由下引来Conductors turning from below电缆沟Cable trench调压器Voltage regulator隔离变压器Isolating transformer击穿保护器Puncturing safety device晶体管Transisorized diode地坪Grade level电缆与水管平行Cable running parallel to a water supply pipe 电缆与热力管道交叉敷设Cable running across heat pipeline车道Drive way电缆穿管与管道交叉Cable protective pipe across a pipeline双(单)侧支架电缆沟Trench with rack on both sides (one side) 室外地坪Outdoor grade跨接线Jumper金属软管Flexible metal tube过渡接头Adapter电气工程及其自动化专业术语翻译transistor 晶体管audion 三极管capacitance 电容Diesel 柴油机AC- motors 交流电机transistorcoupling 联结耦合current carrying capacity 载流能力（最大允许电流）conductivity 传导性in isolation 绝缘lead 导线leakage current 泄漏电流inductance 感应系数loops 线圈macroprocessor 微处理器multimedia show 多媒体展示medium-power distribution 中压配电motor and soft starters 电机及软起动器numerical controls 数控系统optimal 最佳的，最理想的overload relays 过载继电器overshoot 过冲peak current 峰值电流power dissipation 电力分散process automation 过程自动化process instrumentation and analytics 过程仪表及分析仪器punch 穿孔，冲压reactance 电抗recharge 再充regulated power supply 稳压电源resistance 阻抗resistor 电阻器resonate 共振self-inductance 自感应series inductance 串联感应simulation 模拟switching 配电；交流thermal cycle 热循环thickness 厚度voltage regulator 调压器warping 扭曲，变形wiring layout 线路配置图AC-drives 交流变频器asymmetrical 非对称的attenuation 衰减bridged impedance 桥接阻抗cable bridge 电缆桥架charge 电荷circuit schematic diagram 电路原理图解coefficient 系数configuration 构造constant 常量copper sheet 铜片damping 阻尼decomposition 分解decouple 分离delay circuit 延迟电路dielectric sheets 介电原片diode clamping钳位edge connector 边缘连接器electrical infrastructure 电气基础设施electrical installation 电气安装技术equations set 方程组four-layer 四层hookup 接线图human machine interface 人机界面impedance 阻抗incidence 入射incident wave 入射波incorporated 合成一体的instantaneous 瞬间的interleaved 交叉load admittance 负载导纳lumped 集中的modal 模式的modeling 建模motor management systems 电机管理系统mounting pads 安装垫片noise margins 噪音安全系数proximity effect 邻近效应radian 弧度resistive 有抵抗力的schematic 示意图services & industry solutions 服务和工业解决方案terminator 终结器undershoot 负脉冲信号；下冲。

high-voltage switching device 高压开关high-voltage switchingear 高压开关设备电气名词Electric items线路（母线、回路）Lines (Bus , circuits)设备Equipments保护、继电器Protection , relays电气仪表Electric instruments防雷Lightning protectionAssembly n. 装配、组装assemble vt.集合、装配assembly number 组装号、安装号anchor n. 堵头assembly print 装配图纸attach vt. 系上、贴上align vt. 对准angle n.角air pressure sensor transducer 空气压力传感器aluminum n.铝available adj. 可用到的、有用的、avoid n.避免adjust n.调整、调解alternating current 交流电auxiliary adj.辅助的auxiliary cooling fan 辅助冷却风机analog n.模拟adj 模拟的analog input 模拟量输出alarm n.闹钟、警报vt.报警bus 公共汽车、铜排bar n.条、棒bus bar 汇流排bill of material (BOM)bolt n. 螺栓button n.按钮vt.扣紧braided adj.辫状的bracket n. 支架barrier 挡板bottom n.底部、尽头、末端adj. 底部的both prep.两者都barrier n.障碍物、屏障、栅栏between prep.在…..之间Bullet n.子弹bundle n. 捆、束、包v. 捆扎back-plate 后挡板blue n.蓝色adj.蓝色的black n.黑色adj.黑色的brown n.棕色、褐色adj.棕色的，褐色的complete vt. 完成、使完善adj. 全部的、完全的connect v.连接clamp n. 夹子customer n. 消费者、客户common adj. 公用的、共用的、普通的consistent with 与…..一致carriage bolt n.锥形螺母capacitor n.电容copper n.铜、警察converter n.逆变cable n.电缆线cable clamp n. 电缆线夹connector n.连接器cage nut n.卡式螺母center n. 中心、中央adj. 中央的component n. 成分、零件checklist n.检查表conical nut 锥形螺母caution n. 小心、警告、谨慎common mode choke (CMC) n. 平波共模电抗器contractor n. 接触器converter cabinet 逆变柜current transformer n.电流互感器circuit breaker 断路器control vt.控制control cabinet 控制柜cut vt. 切割confirm vt.确认cover plate 盖板current n. 电流control signal 控制信息clear adj.清楚的，透明的commissioning 调试、试车current output 电流输出control relay 控制继电器cancel vt.取消、删除divider n. 分隔物duct n.管、线槽diameter n. 直径door n. 门different adj. 不同的difference n. 差异、差别DC Link 直流电抗器damage n. 损害、伤害v.受到损害din rail n. 滑道direct current (DC) n. 直流电disconnect switch (DS) n.隔离开关drawing n.图画vt.绘图dimension drawing (DD) n.结构图纸detection n. 探测、发现delete vt 删除detail vt.详述n.细节electrical adj.电的、有关电的electrical clearance 电气间隙electrical drawing (ED) 电气图electrical connection电气连接点ensure v. 确保、保证excess adj. 过度的、额外的n. 过度、剩余enclosure n. 围栏、围住entry direction n.出线方向有、excess adj.过度的、额外的exit direction n.进线方向example n.例子、榜样emergency n.紧急情况、非常时刻adj.紧急的emergency stop 紧急停车开关Ffasten vt.牢固、紧固fan n. 风扇、风机floor n.地板、地面floor plate 底板flange n. 边front n. 前面、前部、前面flat washer n. 平垫fuse n. 保险丝friction n.摩擦fiber optic 光纤fix vt.安装、固定fault n.故障fault relay 故障继电器GGround n.地面、接地vt.接地ground bus 接地铜ground wire 接地线ground lug 接地线鼻子ground network 接地网络gusset n. 角撑架grommet n.grease n. 油脂ground fault current transformer 零序电流互感器ground cable n.接地电缆线glastic n.玻璃纤维green n.绿色adj.绿色的Hhorizontal adj.地平线的、水平的hardware n. 五金器件、紧固件hole n.孔hinge n. 铰链、枢纽harness n.线束heat-sink n. 散热片Hall effect current transformer (HECS) n. 霍尔heater strip n.加热器high voltage 高压IInstruction n. 用法、指导说明（书）identify vt. 识别、签别、v. 确定Install vt. 安装installation n. 安装inside prep.在….之内insulator n. 绝缘体、绝热器inverter n. 逆变interfere with 妨碍、干涉impedance n. 阻抗induce n. 感应injury n.伤害、损害isolation transformer n. 隔离变压器input vt.输入input section 进线部分interlock n.互锁Jjumper n. 短接线，跳线KKit n. 成套工具, 用具包, 工具箱, 成套用具kirk key n.机械互锁LLug n.线鼻子lock washer 弹垫load n. 负载vt.装载line n. 线、线路loose off 松开line reactor 进线电抗器left adj.左边的left hand 左侧left hand side sheet 左侧板low adj. 低的、消沉的low voltage 低压locknut 自锁螺母loose adj.松的、不牢固的vt.释放label n. 标签vt. 贴标签于length n.长度low voltage panel 低压面板low voltage wire duct 低压线槽line filter capacitor n. 进线侧电容latch n. 锁louver n. 百叶窗，通风网line cable 进线侧电缆线load cable 出线侧电缆线low voltage control 低压控制local adj.当地的、本地的local control relay 本地控制继电器Mmake sure 确信、确实middle n. 中间、当中adj.中间的、中部的machine n.机械、机器match vt. 相匹、相配n. 火柴、比赛mount vt.安装mounting tray 安装托盘middle back plate 中间后盖板medium voltage 中压main cooling fan 主冷风机minimum adj. 最小的、最低的maximum adj.最大极限的、最多的motor n.电机、发动机motor rotation direction 电机转动方向main control unit 控制箱NNylon n.尼龙nut n. 螺母Neutral n. 中立的adj. 中立的、中性的neutral wire 中性线neutral resistor 中性电阻note n.注释、笔记vt.注意、记录OOrganize vt.组织Organization n. 组织orientation n. 方向、方位outside adj.外面的、adv. 在外面orange n.桔子，橙色adj.橙色的output vt.输出option n.选项、选择权over-temperature 过温Pprint n. 印刷物、图纸vt.出版print off 复印prior to 在……之前plate n. 盘子、金属板vt.镀、电镀pan head screw 平头螺丝plug n. 插销、塞、插座position n.位置、职位pair n. 一对，一双power supply 供电电源power cage 功率单元paint n. 油漆、涂料n. 油漆part n. 零件、部件paperwork 工作文件Panduit n. 线槽子prevent …..from 阻止、防碍pinch n. 捏vt. 掐、夹panel n.面板protect ground 保护接地part number 零件号power cell 功率模块power cell cabinet 功率柜primary adj.初级的、基本的project n.项目、工程、计划QQuality n. 质量、品质、特性Rrefer to 参考reference print 参考图纸right adj.右边的，右的right hand side sheetrear adj. 后面的、后部的red n.红色adj.红色的route n.路线、路程rectifier n.整流radius n. 半径、范围require vt. 需要、要求resistor n.电阻run vt. 运行、跑relay n.继电器receptacle n插座remote adj.偏远的、偏僻的n.远程remote control relay 远程控制继电器frequency output 频率输出ready n.预备好的状态adj.准备好、现成的reset n.重新设定vt.重置Ssheet metal 钣金件stud n. 栽钉same adj.相同的adv.同样地stand n. 立场vt.站立screw n. 螺丝钉、螺旋、螺孔vt.调节、转动snap bushing 绝缘套管square n.正方形、广场adj.正方形的signal ground n. 信号接地section n.部分、断片slide n. 幻灯片vt 使滑行separate…… from 分开、分离support vt.支持、支撑n.支柱strip vt. 剥、剥去n. 条、带surface n.表面、外表adj.表面的shock n. 电击、雷击side sheet n.侧板serial number 系列号snubber resistor n.缓冲电阻snubber capacitor n. 缓冲电容surge arrestor (SA) n.避雷器，浪涌吸收器sill channel n. 大底spiral wrap n.绕线管snap bushing n.塑料圈silicon controlled rectifier (SCR) n.可控硅整流器safety ground n. 安全接地seal n.密封vt.密封silicone------n. 硅substitute------n. 代用品、替代品v.代替、替换secure------adj. 安全的、可靠的v.保护shaft n.轴strap------n. 带vt.用带缚住sample n.样品、例子vt.取样secondary adj.次级的、第二的speed n.速度、速率vt.加速spare adj.多余的n.备用spare part 备件stop n.停止、逗留vt.停止、中止shielded adj.屏蔽了的、防护的start n.开始、起点vt.开始、起动TTaptite n. 自攻钉tray n. 盘子、碟trough n. 槽、水槽top adj. 最高的、顶部的n.顶部、顶端torque n.力矩torque seal 扭矩胶take care 小心、当心twist n. 扭曲、盘旋vt.绞vi.缠绕terminal block 接线端子thread n. 线、细线、螺纹、线索temperature feed back board 温度反馈板thermostat n. 自动调温开关transformer n. 变压器transformer cabinet 变压器柜top plate 顶盖板top back plate 顶部后盖板UUpper adj. 上面的、上部的VVertical adj. 垂直的、直立的n.垂直线、垂直面voltage n. 电压、伏特数voltage sensing board------电压采样板vacuum n.真空、空间、真空吸尘器voltage sensing wire n. 电压采样线Wwasher n.垫片、洗衣机wire------n. 金属丝、电线vt.用金属丝卷起wire tie 扎带wire clamp n. 线夹wiring------n. 配线wrist n.手腕wrist strap------防静电护腕wheel------n. 轮子、轮、车轮warn------vt.警告、注意vi.发出警告wrench n.扳手white n.白色adj.白色的warning relay 报警继电器Yyellow n.黄色adj.黄色的Zzero n.零safety n.安全important adj.重要的电流current电压voltage母线bus电力系统power system绝缘insulation发电机generator变压器transformer过电流overcurrent短路电流short-circuit current电流零点current zero电流截断（截流）current chopping畸变电流distortion current弧后电流post-arc current电弧电压arc voltage电弧长度arc length电气名词Electric items线路（母线、回路）Lines (Bus , circuits)设备Equipments保护、继电器Protection , relays电气仪表Electric instruments防雷Lightning protection接地Grounding , earthing室、所Room , Substation电修车间设备Equipments of electric repair材料Material图名Drawings , diagrams表头Tables标准图词汇Terms from standard DWG电气名词Electric items交（直）流Alternating (direct) current短路电流Short-circuit current起始次暂态短路电流Initial subtransient short-circuit current 冲击电流Impulse current稳态短路电流Steady state short-circuit current临界电流Critical current切断电流Rupturing current熔断电流Blow-out current故障电流Fault current计算电流Calculating current极限有限电流Limit effective current过电流Over current逆电流Inverse current整定电流Setting current额定电流Rated current电流密度Current density短路电流最大有效值Maximum effective value of short-circuit current 高压High-voltage , High-tension低压Low-voltage , Low-tension计算电压Calculating voltage激磁电压Exciting voltage冲击电压Impulse voltage临界电压Critical voltage残留电压Residual voltage击穿电压Puncture voltage脉动电压Pulsating voltage供电电压Supply voltage电力电压Power voltage照明电压Lighting voltage灯丝电压Filament voltage额定电压Rated voltage电压损失Voltage loss过(欠)电压Over (under) voltage线路电压Line voltage电压降Voltage drop工作电压Working voltage一次电压Primary voltage二次电压Secondary voltage电源Electric source (power supply)自控电压Power supply for process control6kV控制闪光电源Flashing supply for 6kV control工作电源Working power supply (electric source)保安电源Emergency power supply (electric source)直流稳压电源Stabilized D.C. source控制电源Control supply直流电源D.C. source交流电源A.C. source负荷计算Load calculation设备容量Installed capacity需要容量Electric demand功率因数Power factor安装高度Mounting height耐电压Breakdown voltage工频耐压High-voltage test with working frequency表面闪络Surface flash-over直流泄漏D.C. leakage体电阻率Volume resistivity介质损失角Dielectric loss angle击穿强度Puncture intensity电压等级Voltage grade比重Specific gravity性能Feature相序Phase sequence瞬时Instantaneous倾角Angle of inclination跨度Span正极Positive pole负极Negative pole截面(积) Cross section area辅助电源Auxiliary source遮断容量Interrupting capacity载流量Current-carrying capacity校正系数Correction factor连续负荷Continuous load长期载流量Continuous capacity长时间额定值Longtime rating电动机堵转电流Locked-rotor motor current限定负荷Limited load电感负荷Inductive load感应电流Induced current二．线路（母线、回路）Lines (Bus , circuits)母线Bus-bar合闸电源母线Closing power source bus闪光母线Flashing-bus备用母线Spare bus装在支柱上的插接式母线Post-supported plug-in bus way 装在吊钩上的插接式母线Hook-supported plug-in bus way装在支架上的插接式母线Bracket-supported plug-in bus way小母线Miniature bus电源小母线Power supply miniature bus操作小母线Operating miniature bus事故信号小母线Miniature bus for fault signal闪光小母线Flashing miniature bus主母线Main bus直流主母线D.C. main bus预告母线Prewarning bus干线Main line照明干线Lighting main line接地干线Grounding main line插座干线Receptacle main line电压干线Voltage main line端子出线Terminal outgoing中性线Neutral支线Branch-line引入线Lead-in电气线路Electric circuit交流配电线路A.C. distribution circuit直流配电线路D.C. distribution circuit事故照明线路Emergency lighting circuit控制线路Control circuit接地或接零线路Grounding or neutralizing circuit信号线路Signal circuit有接地极的接地线路网Grounding with grounding electrodes定子绕组测温回路Temperature measuring circuit for stator winding 接地信号回路Grounding signal circuit闪光信号回路Flashing-signal circuit开阀回路Circuit for opening valve关（闭）阀回路Circuit for closing valve开度计回路Circuit for opening meter电流测量回路Current-measuring circuit差动保护回路Differental protective circuit过流保护回路Over-current protective circuit合闸回路Closing circuit停车延时回路Delayed shutdown circuit掉闸回路Trip circuit激磁回路Exciting circuit备用回路Spare circuit主回路Main circuit馈路Feeder circuit现有回路Existing circuit单线回路Single-wire circuit接地回路Earthed circuit有电压的电路Live circuit设备Equipments高压开关柜H.V. switchgear动力配电箱Power distribution cabinet电源配电箱Source distribution cabinet直流配电屏D.C. switchboard (distribution panel)交流低压配电屏A.C.L.V. switchboard (distribution panel)静电电容器柜Static capacitor cabinet多种电源插销箱Receptacle box for miscellaneous power supplies控制箱Control cabinet照明配电箱Lighting (distribution panel)连接箱Junction box出线盒Outlet box开关箱Switch box控制台Console分段屏Sectionalizing panel进线屏Incoming line panel电控箱Electric control panel边屏Side board端子箱Terminal box供电盘Power supply box瓶车箱Synchronizing cabinet感应调压器专用变压器高压柜Special transformer H.V. cabinet for induction voltage regulator 电压互感器柜Potential transformer cabinet信号屏Signal panel浮充屏Floating panel蓄电池屏Battery panel充电屏Charging panel母线联络柜Bus tie cabinet转换开关Transfer switch电压表转换开关Voltmeter change-over switch铁壳开关Metal-clad switch (Iron-clad switch)管式熔断器Cartridge fuse真空断路器Vacuum circuit breaker (V.C.B.)自动开关Automatic switch高压负荷开关H.V. load break switch三极高压断路器3-pole HV circuit-breaker刀开关Knife switch转换开关Transfer switch双极铁壳开关2-pole iron-clad switch风扇变速开关Fan speed regulator switch密闭照明灯开关Hermetic lighting switch防爆照明灯开关Explosion-proof lighting switch行程开关Limit switch高压隔离开关H.V. disconnecting switch明装单极板钮开关Surface-mounted single-pole toggle switch 暗装单极板钮开关Flush-mounted single-pole toggle switch 三路开关Three-way switch气密式组合开关Hermetic packet type switch防护式开关Guard type switch联锁开关Interlock switch操作方式选择开关Selecting switch for types of operation控制电源开关Switch for control supply主令开关Master switch (controller)多切点切换开关Multi-point change-over switch按钮Push-button控制按钮Control push-button防爆控制按钮Explosion-proof control push-button事故紧急按钮Emergency stopping push-button起动按钮Starting push-button停止按钮Stopping push-button现场按钮Push-button in field挡板damper音响解除按钮Push-button for sound release起动器Starter磁力起动器Magnetic starter综合起动器Combination starter (Magnetic starter combination)电力变压器Power transformer调压变压器Voltage regulating transformer电压互感器Potential transformer电流互感器Current transformer照明变压器Lighting transformer三相三绕组变压器3-phase tertiary winding transformer高压试验变压器H.V. testing transformer局部照明变压器Local lighting transformer多量程仪用电流互感器Multi-range current transformer for measurement降压变压器Step-down transformer伺服电动机Servo-motor双电压电动机Dual-voltage motor感应电动机Induction motor交流异步电动机A.C. asynchronous motor同步电动机synchronous motor三相滑环感应电动机3-phase slip-ring induction motor三相鼠笼感应电动机3-phase squirrel-cage induction motor绕线式电动机Wound-rotor induction motor反应式电动机Reaction motor柴油发电机Diesel generator励磁发电机Excitation generator明装双极插座Surface-mounted 2-pole receptacle暗装双极插座Flush-mounted 2-pole receptacle双极带接地插座2-pole receptacle with grounding contact单相三孔明插座Surface-mounted single phase 3-pole receptacle防护式明装三相四孔插座Guard type surface-mounted 3-phase 4-pole receptacle 配照型灯Standard dome lighting fitting搪瓷深照型灯Enameled high bay lighting fitting防水防尘灯Water and dust proof lighting fitting安全灯Safety lighting fitting隔爆灯Explosion-proof lighting fitting弯灯Goose-neck light壁灯Wall light高压水银灯High pressure mercury vapor lighting fitting 投光灯Flood-light (projection light)信号灯Signal lamp天棚灯Ceiling-mounted lighting fitting局部照明灯Local lighting fitting灯座Lamp holder事故照明灯Emergency lighting fitting高压水银荧光灯H.P. mercury fluorescent lighting fitting 广照型工厂灯Wide lit type industrial fitting深照型灯具High bay lighting fitting白炽灯具Incandescent lamp (bulb)圆球型灯Globe lamp嵌入式荧光灯flush type fluorescent lighting fitting红色障碍灯Red obstruction lamp for aviation厂区道路照明灯Street lighting in plant area路灯Street lamp视孔灯Inspection hole lamp立杆弯灯goose-neck post lamp , pole lamp模拟报警信号Semigraph and alarm signal自整角机Selsyn励磁机Exciter显示器Display电位器Potentiometer内电阻Internal resistance固定电阻（器）Fixed resistance脱扣Release , trip分励Shunt trip特殊失压脱扣器Special no-voltage release“或”开关放大器“Or” switch amplifier制动器Brake电容Capacitor整流器Rectifier镇流器Chock分流器Shunt油变阻器Oil immersed rheostat频敏电阻器Frequency sensitive rheostat滑线变阻器Sliding rheostat蜂鸣器Buzzer电机加热器Space heater (for motor)空气断路器电机操作机构Motor operating mechanism for air circuit-breaker 可控硅励磁装置Silicon controlled rectifier excitation device保护装置Protective device (element)闪光装置Flashing device接闪装置（避雷器）Lightning arrester断相保护Phase failure protection保护、继电器Protection , relays信号继电器Signal relay过电流继电器Over-current relay电压继电器Voltage relay时间继电器Time relay中间继电器Auxiliary relay热继电器Thermal relay温度继电器Temperature relay瓦斯继电器Gas relay控制电源中间继电器Auxiliary relay for control supply自动操作继电器Relay for auto-operation低电压继电器Under-voltage relay过电压继电器Over-voltage relay联锁继电器Interlock relay冲击继电器Impact relay合闸位置继电器Close position relay逆流继电器Reverse-current relay差流继电器Differential current relay差动继电器Differential relay电流继电器Current relay功率继电器Power relay接地继电器Earthing relay重合闸继电器Reclosing relay同步继电器Synchronous relay速动继电器Quick acting relay定时限继电器Definite time relay光电继电器Photoelectric relay电子继电器Electronic relay电磁式继电器Electromagnetic relay电动式继电器Electrodynamic relay气压继电器Gas-pressure relay继电器常开触点Relay N.O. contact继电器常闭触点Relay N.C. contact继电器保护触点（常开）Relay holding contact (N.O.)能自动返回的常闭按钮触点Self-return button with N.C. contact模拟信号触点Contact for semigraph signal强励磁接点Shock excitation contact电感线圈Induction coil电流线圈Current coil脱扣线圈Trip coil合闸线圈Close coil释放线圈Releasing coil掉闸线圈Tripping coil予告信号Prewarning signal掉闸回路断线信号Breakage signal of trip circuit断路器事故掉闸信号Fault trip signal of breaker掉闸音响信号Tripping audible signal重瓦斯预告信号Heavy gas prewarning signal温度预告信号Temperature prewarning signal手动、自动操作时事故信号Fault signal in manual/automatic operation 保护掉闸Protective trip控制掉闸Control trip手动跳闸Manual trip变电所紧急停车Emergency shutdown at substation工艺故障Fault in process励磁故障Fault in excitation工作电源失电报警No-voltage alarm of working electric source工作电源分合闸On and off of working electric source工作电源投入Throw-in of working electric source保安电源送电supply of emergency electric source运转指示Indicating of operation投入指示Indicating of throw-in同步指示Indicating of synchronism延时停车Delayed shutdown电源切除Switch off the power supply速断及过流断通Instantaneous trip and over-current off/on自保持Self-holding自锁Self-lock联锁Interlocking绝缘监视Insulation supervision电压监视Voltage supervision联锁解除Release of interlock工作、保安电源切换Transfer of working and emergency power supply发电机与工作母线并车Synchronization of generator to working bus重瓦斯保护Heavy gas protection开或闭超扭矩保护Over-torque protection during opening and closing valve 电机起动顺序Sequence of motor starting铭牌框注字Name plate denotation (inscription)电气仪表Electric instruments电流表Ammeter电压表Voltmeter三相三线有功电度表Three-phase three-wire kilowatt-hour meter , kWh meter 单相电度表Single-phase kilowatt-hour meter三相无功电度表Three-phase kilovar-hour meter有功功率表Active power meter , kilowatt meter无功功率表Reactive power meter , kilovar meter三相瓦特表(功率表) Three-phase watt meter功率因数表Power factor meter频率表Frequency meter验电流器Galvanoscope欧姆表Ohmmeter相位表Phase meter转速表Tachometer波长表Wave-length meter三相四线制标准电度表3-phase 4-wire standard watthour-meter过载电流表Overload ammeter低功率因数瓦特表Low power-factor wattmeter交直流两用钳型电流表A.C./D.C. multi-purpose tongtester兆欧表Megger , Megohmmeter万用表Avometer微安表Microammeter毫安表Milliammeter各种测量仪表Various kind of measuring instruments 接地电阻测量仪Earthing resistance tester真空管电压表Vacuum tube voltmeter电动秒表Electric second-meter防雷Lightning protection避雷装置Lightning protector避雷针Lightning rod避雷带Strap type lightning protector避雷网Network of lightning protector避雷针支架Lightning rod support避雷针尖Tip of lightning rod避雷针拉铁Brace for lightning rod避雷器Lightning arrester , surge discharger球型避雷器Spherical arrester管形避雷器Tubular arrester阀形避雷器Auto-valve arrester低压避雷器Low voltage arrester角形避雷器Horn arrester多隙避雷器Multigap arrester铝避雷器Aluminum cell arrester氧化膜避雷器Oxide film arrester击穿保险器Puncture lightning arrester雷击Lightning stroke直接雷击Direct lightning stroke感应雷击Induction lightning stroke雷电日Thunderbolt days雷电或然率Lightning and thunder probability触电Electric shock静电感应Electrostatic induction接地Grounding , earthing接地保护Ground protection , earth protection防雷接地Grounding for lightning保护接地Protective earthing人工接地Artificial grounding工作接地Working grounding , working earthing 重复接地Multiple earthing屏蔽接地Screen earthing , shielding ground中性点接地Neutral point grounded接地系统Grounding system , earthing system 接地故障Ground fault , earth fault单相接地Single phase earthing母线接地Bus ground接地装置Grounding device , earthing device 引下线Down-lead , down conductor引下线固定Clamping plate of support for fixing 支架夹板Down lead引下线固定支脚Support for fixing down lead接地线Ground connector接地干线Ground(ing) main , (bus)接地网Grounding network , earthing network 接地极Earth electrode (pole)接地电阻Earth resistance接地电路Earth (ground) circuit连接条Connecting strip断接卡Connecting clamp室、所Room , Substation贮藏室Storage套间Compartment蓄电池室Battery room控制室Control room配电室Distribution room维修间Repair room变电所Substation高压配电室H.V. distribution room休息室Rest room电修车间设备Equipments of electric repair砂轮机Emery wheel grinder台钻Bench drilling machine交流电焊机A.C. welding machine移动式空气压缩机Portable air compressor手电钻Electric hand drill单速手摇绕线机Single speed hand winding machine导线钳压器Wire jointing press-clamp油压千斤顶Hydraulic jack电吹尘器Electric dust cleaner存放柜Store chest高压试验变压器H.V. testing transformer泄漏试验变压器Leakage testing set大电流发生器Strong current generator油浸自冷感应调压器Oil-immersed self-cooled induction voltage regulator 多量程仪用电流互感器Multi-range current transformer for measurement 仪用电感互感器Instrumental voltage transformer单相自耦变压器Single-phase auto-transformer三相自耦变压器3-phase auto-transformer硅整流器Silicon rectifier仪表试验台Testing stand for instrument接触器，继电器试验台Relay and contactor testing stand慢扫描示波器Slow scanning oscillograph交流电子稳压器A.C. electronic voltage stabilizer携带式交流电桥Portable A.C. electric bridge接地电阻测量仪Earthing resistance tester电缆故障探伤仪Cable fault detector直流单臂电桥D.C. single-arm electric bridge , Wheatstone bridge材料Material绝缘包布Insulating tape填料Filler , packing绝缘膏Insulating compound电缆膏Cable compound防腐油Anti-corrosive oil沥青漆Bituminous varnish绝缘漆Insulating varnish瓷漆Enamel varnish有色金属Non-ferrous metal黑色金属ferrous metal白金属White metal云母Mica环氧树脂Epoxy resin聚氯乙烯Polyvinyl chloride , PVC 蜡Wax滑石粉Talc powder电胶木Bakelite聚丙烯外壳Polyacrylic cover耐油橡胶管Oil-proof rubber tubes 接地铜线Grounding copper wire垫圈Pad塑料绝缘线Plastics insulated wire 橡套电缆Rubber sheathed cable 中间接头Splice填充剂Filling agent绝缘电线Insulated wire移动软电缆Movable flexible cable 补偿导线Extension wire套管Bushing母线槽Busway悬索Cable suspension滑触线Trolley conductor镀锌煤气管Galvanized gas pipe镀锌角钢Galvanized steel angle镀锌扁钢Galvanized steel strap钢丝绳Steel wire rope电笛Siren电磁阀Electromagnetic valve连接片Connecting link切换片Transfering link端子排Terminal board半导体二极管Semiconductor diode 开度计Opening meter逻辑元件Logical element接线盒Junction box仪表槽板Instrument trunking电缆吊架Cable hanger出线套Outgoing line sleeve图名Drawings , diagrams电气图纸目录Contents of electric drawings电力系统图Electric power system diagram照明系统图Lighting system diagram电力平面布置图Electric power layout plan照明平面布置图Lighting layout plan单线图One line diagram控制箱面部布置图Surface arrangement of control box背部接线图Back wiring (diagram)外部接线图External (outside) wiring diagram内部接线图Internal (inside) wiring diagram控制原理图Principle control diagram原理图Schematic diagram展开图Developed diagram电气标准图Electric standard drawing电气施工图Electric working drawing复用图Reproducibles (drawing)电缆联系图Cable hook-up diagram转换开关接点图Contact diagram of transfer switch箱侧视图Side view of box正视图Front view , facade背视图Back view剖面图Section参考图Reference drawing电缆敷设图Cable laying diagram箱内框架布置图Arrangement of frames inside the cabinet控制箱台面展开图Surface developed diagram of console出线端子示意图Schematic diagram of terminal outgoing lines 端子接线图Diagram of terminal connections电气管线表List of wire , cable and conduits设备材料表List of equipment and materials表头Tables电力系统图Power system diagram引入线Lead in保护设备Protective device型号Type额定值Rating整定值Setting主启动设备回路Circuit to starting device导线型号、芯数、截面及管径Conductor type , cores , section & diameter of conduit 线长Wire length管长Conduit length启动设备Starting device型号规格Type , specification保护元件Protective element计量装置Calculating device用电设备主回路Main circuit of electric equipment控制回路Control circuit控制装置Control device用电设备Electric equipment设备容量Consumer capacity生产设备Production equipment位号No. of location名称Name备注Remarks引入线Feed in配电箱Distribution cabinet型号及编号Type and No.开关型号Switch type保护装置Protective device回路编号Circuit No.相别Phase灯数Number of lamps插座数Number of receptacles电缆编号No. of line起点Starting终点Ending母线截面Section of bus零母线Neutral bus屏编号Panel No.型号及方案号Type and variant No.控制原理图号Principle control diagram工艺位号Process item No.标准图词汇Terms from standard DWG电工系统图图形符号Graphic symbols for electric system交流电的相别A.C. phase sequence直流电的正负极D.C. positive and negative poles有中性点引出线的星形连接的三相绕组Star-connected three phase windings with neutral outlet 开口三角形连接的三相绕组3-phase winding with open delta connection互相连接的导线Cross connection of wires不连接的跨越导线Crossing wires not in contact with each other可拆卸的电气连接Removable connection电缆终端头Pothead of cable or cable end自耦变压器Auto-transformer感应调压器Induction voltage regulator凸极同步电动机Salient pole synchronous motor带接换装置的蓄电池组Accumulator battery with tap-changers空气断路器Air circuit-breaker保持触点Holding contact热元件Thermal element自动复位的操作开关Spring-return operating switch插接器Plug-in connector电喇叭Horn电炉Electric furnace分流器Shunt可控硅整流箱屏Silicon controlled rectifier box panel直流配电屏D.C. distributing panel磁力起动器组Magnetic starter group自动开关箱Automatic switch box行程开关Limit switch局部灯Local lighting fitting荧光灯列Series fluorescent lighting fitting防护式灯开关Protective switch导线引上Conductors turning up导线引下Conductors turning down导线由上引来Conductors turning from above导线由下引来Conductors turning from below电缆沟Cable trench调压器Voltage regulator隔离变压器Isolating transformer击穿保护器Puncturing safety device晶体管Transisorized diode地坪Grade level电缆与水管平行Cable running parallel to a water supply pipe 电缆与热力管道交叉敷设Cable running across heat pipeline 车道Drive way电缆穿管与管道交叉Cable protective pipe across a pipeline 双(单)侧支架电缆沟Trench with rack on both sides (one side) 室外地坪Outdoor grade跨接线Jumper金属软管Flexible metal tube过渡接头Adapter功角power angle有功（功率）active power无功（功率）reactive power功率因数power factor无功电流reactive current下降特性droop characteristics斜率slope额定rating变比ratio参考值reference value电压互感器PT分接头tap下降率droop rate仿真分析simulation analysis传递函数transfer function框图block diagram受端receive-side裕度margin同步synchronization失去同步loss of synchronization阻尼damping摇摆swing保护断路器circuit breaker电阻：resistance电抗：reactance阻抗：impedance电导：conductance电纳：susceptance导纳：admittance电感：inductance电容: capacitanceAbsorber Circuit 吸收电路AC/AC Frequency Converter 交交变频电路AC power control交流电力控制AC Power Controller交流调功电路AC Power Electronic Switch交流电力电子开关Ac Voltage Controller交流调压电路Asynchronous Modulation 异步调制Baker Clamping Circuit贝克箝位电路Bi-directional Triode Thyristor双向晶闸管Bipolar Junction Transistor-- BJT双极结型晶体管Boost-Buck Chopper升降压斩波电路Boost Chopper升压斩波电路Boost Converter升压变换器Bridge Reversible Chopper桥式可逆斩波电路Buck Chopper 降压斩波电路Buck Converter降压变换器Commutation 换流Conduction Angle 导通角Constant Voltage Constant Frequency --CVCF 恒压恒频Continuous Conduction--CCM （电流）连续模式Control Circuit 控制电路Cuk Circuit CUK 斩波电路Current Reversible Chopper 电流可逆斩波电路Current Source Type Inverter--CSTI 电流（源）型逆变电路Cycloconvertor 周波变流器。

一．电气名词 Electric items二．线路（母线、回路）Lines (Bus , circuits)三．设备 Equipments四．保护、继电器 Protection , relays五．电气仪表 Electric instruments六．防雷 Lightning protection七．接地 Grounding , earthing八．室、所 Room , Substation九．电修车间设备 Equipments of electric repair十．材料 Material十一．图名 Drawings , diagrams十二．表头 Tables十三．标准图词汇 Terms from standard DWG一．电气名词 Electric items交（直）流 Alternating (direct) current短路电流 Short-circuit current起始次暂态短路电流 Initial subtransient short-circuit current冲击电流 Impulse current稳态短路电流 Steady state short-circuit current临界电流 Critical current切断电流 Rupturing current熔断电流 Blow-out current故障电流 Fault current计算电流 Calculating current极限有限电流 Limit effective current过电流 Over current逆电流 Inverse current整定电流 Setting current额定电流 Rated current电流密度 Current density短路电流最大有效值 Maximum effective value of short-circuit current 高压 High-voltage , High-tension低压 Low-voltage , Low-tension计算电压 Calculating voltage激磁电压 Exciting voltage冲击电压 Impulse voltage临界电压 Critical voltage残留电压 Residual voltage击穿电压 Puncture voltage脉动电压 Pulsating voltage供电电压 Supply voltage电力电压 Power voltage照明电压 Lighting voltage灯丝电压 Filament voltage额定电压 Rated voltage电压损失 Voltage loss过(欠)电压 Over (under) voltage线路电压 Line voltage电压降 Voltage drop工作电压 Working voltage一次电压 Primary voltage二次电压 Secondary voltage电源 Electric source (power supply)自控电压 Power supply for process control6kV控制闪光电源 Flashing supply for 6kV control 工作电源 Working power supply (electric source) 保安电源 Emergency power supply (electric source) 直流稳压电源 Stabilized D.C. source控制电源 Control supply直流电源 D.C. source交流电源 A.C. source负荷计算 Load calculation设备容量 Installed capacity需要容量 Electric demand功率因数 Power factor安装高度 Mounting height耐电压 Breakdown voltage工频耐压 High-voltage test with working frequency 表面闪络 Surface flash-over直流泄漏 D.C. leakage体电阻率 Volume resistivity介质损失角 Dielectric loss angle击穿强度 Puncture intensity电压等级 Voltage grade比重 Specific gravity性能 Feature相序 Phase sequence瞬时 Instantaneous倾角 Angle of inclination跨度 Span正极 Positive pole负极 Negative pole截面(积) Cross section area辅助电源 Auxiliary source遮断容量 Interrupting capacity载流量 Current-carrying capacity校正系数 Correction factor连续负荷 Continuous load长期载流量 Continuous capacity长时间额定值 Longtime rating电动机堵转电流 Locked-rotor motor current限定负荷 Limited load电感负荷 Inductive load感应电流 Induced current二．线路（母线、回路）Lines (Bus , circuits)母线 Bus-bar合闸电源母线 Closing power source bus闪光母线 Flashing-bus备用母线 Spare bus装在支柱上的插接式母线 Post-supported plug-in bus way装在吊钩上的插接式母线 Hook-supported plug-in bus way装在支架上的插接式母线 Bracket-supported plug-in bus way小母线 Miniature bus电源小母线 Power supply miniature bus操作小母线 Operating miniature bus事故信号小母线 Miniature bus for fault signal闪光小母线 Flashing miniature bus主母线 Main bus直流主母线 D.C. main bus预告母线 Prewarning bus干线 Main line照明干线 Lighting main line接地干线 Grounding main line插座干线 Receptacle main line电压干线 Voltage main line端子出线 Terminal outgoing中性线 Neutral支线 Branch-line引入线 Lead-in电气线路 Electric circuit交流配电线路 A.C. distribution circuit直流配电线路 D.C. distribution circuit事故照明线路 Emergency lighting circuit控制线路 Control circuit接地或接零线路 Grounding or neutralizing circuit信号线路 Signal circuit有接地极的接地线路网 Grounding with grounding electrodes定子绕组测温回路 Temperature measuring circuit for stator winding 接地信号回路 Grounding signal circuit闪光信号回路 Flashing-signal circuit开阀回路 Circuit for opening valve关（闭）阀回路 Circuit for closing valve开度计回路 Circuit for opening meter电流测量回路 Current-measuring circuit差动保护回路 Differental protective circuit 过流保护回路 Over-current protective circuit 合闸回路 Closing circuit。

电气行业英文中文术语对照induction machine 感应式电机horseshoe magnet 马蹄形磁铁magnetic field 磁场eddy current 涡流right-hand rule 右手定则left-hand rule 左手定则slip 转差率induction motor 感应电动机rotating magnetic field 旋转磁场winding 绕组stator 定子rotor 转子induced current 感生电流time-phase 时间相位exciting voltage 励磁电压solt 槽lamination 叠片laminated core 叠片铁芯short-circuiting ring 短路环squirrel cage 鼠笼rotor core 转子铁芯cast-aluminum rotor 铸铝转子bronze 青铜horsepower 马力random-wound 散绕insulation 绝缘ac motor 交流环电动机end ring 端环alloy 合金coil winding 线圈绕组form-wound 模绕performance characteristic 工作特性frequency 频率revolutions per minute 转/分motoring 电动机驱动generating 发电per-unit value 标么值breakdown torque 极限转矩breakaway force 起步阻力overhauling 检修wind-driven generator 风动发电机revolutions per second 转/秒number of poles 极数speed-torque curve 转速力矩特性曲线plugging 反向制动synchronous speed 同步转速percentage 百分数locked-rotor torque 锁定转子转矩full-load torque 满载转矩prime mover 原动机inrush current 涌流magnetizing reacance 磁化电抗line-to-neutral 线与中性点间的staor winding 定子绕组leakage reactance 漏磁电抗no-load 空载full load 满载Polyphase 多相(的) iron-loss 铁损complex impedance 复数阻抗rotor resistance 转子电阻leakage flux 漏磁通locked-rotor 锁定转子chopper circuit 斩波电路separately excited 他励的compounded 复励dc motor 直流电动机de machine 直流电机speed regulation 速度调节shunt 并励series 串励armature circuit 电枢电路optical fiber 光纤interoffice 局间的waveguide 波导波导管bandwidth 带宽light emitting diode 发光二极管silica 硅石二氧化硅regeneration 再生, 后反馈放大coaxial 共轴的,同轴的high-performance 高性能的carrier 载波mature 成熟的Single Side Band(SSB) 单边带coupling capacitor 结合电容propagate 传导传播modulator 调制器demodulator 解调器line trap 限波器shunt 分路器Amplitude Modulation(AM 调幅Frequency Shift Keying(FSK) 移频键控tuner 调谐器attenuate 衰减incident 入射的two-way configuration 二线制generator voltage 发电机电压dc generator 直流发电机polyphase rectifier 多相整流器boost 增压time constant 时间常数forward transfer function 正向传递函数error signal 误差信号regulator 调节器stabilizing transformer 稳定变压器time delay 延时direct axis transient time constant 直轴瞬transient response 瞬态响应solid state 固体buck 补偿operational calculus 算符演算gain 增益pole 极点feedback signal 反馈信号dynamic response 动态响应voltage control system 电压控制系统mismatch 失配error detector 误差检测器excitation system 励磁系统field current 励磁电流transistor 晶体管high-gain 高增益boost-buck 升压去磁feedback system 反馈系统reactive power 无功功率feedback loop 反馈回路automatic Voltage regulator(AVR)自动电压调整器reference Voltage 基准电压magnetic amplifier 磁放大器amplidyne 微场扩流self-exciting 自励的limiter 限幅器manual control 手动控制block diagram 方框图linear zone 线性区电气中英文术语技术资料集2010-04-02 15:23:08一．电气名词Electric items二．线路（母线、回路）Lines (Bus , circuits)三．设备Equipments四．保护、继电器Protection , relays五．电气仪表Electric instruments六．防雷Lightning protection七．接地Grounding , earthing八．室、所Room , Substation九．电修车间设备Equipments of electric repair十．材料Material十一．图名Drawings , diagrams十二．表头Tables十三．标准图词汇Terms from standard DWG一．电气名词Electric items交（直）流Alternating (direct) current短路电流Short-circuit current起始次暂态短路电流Initial subtransient short-circuit current冲击电流Impulse current稳态短路电流Steady state short-circuit current临界电流Critical current切断电流Rupturing current熔断电流Blow-out current故障电流Fault current计算电流Calculating current极限有限电流Limit effective current过电流Over current逆电流Inverse current整定电流Setting current额定电流Rated current电流密度Current density短路电流最大有效值Maximum effective value of short-circuit current 高压High-voltage , High-tension低压Low-voltage , Low-tension计算电压Calculating voltage激磁电压Exciting voltage冲击电压Impulse voltage临界电压Critical voltage残留电压Residual voltage击穿电压Puncture voltage脉动电压Pulsating voltage供电电压Supply voltage电力电压Power voltage照明电压Lighting voltage灯丝电压Filament voltage额定电压Rated voltage电压损失Voltage loss过(欠)电压Over (under) voltage线路电压Line voltage电压降Voltage drop工作电压Working voltage一次电压Primary voltage二次电压Secondary voltage电源Electric source (power supply)自控电压Power supply for process control6kV控制闪光电源Flashing supply for 6kV control 工作电源Working power supply (electric source)保安电源Emergency power supply (electric source) 直流稳压电源Stabilized D.C. source控制电源Control supply直流电源 D.C. source交流电源 A.C. source负荷计算Load calculation设备容量Installed capacity需要容量Electric demand功率因数Power factor安装高度Mounting height耐电压Breakdown voltage工频耐压High-voltage test with working frequency 表面闪络Surface flash-over直流泄漏 D.C. leakage体电阻率Volume resistivity介质损失角Dielectric loss angle击穿强度Puncture intensity电压等级Voltage grade比重Specific gravity性能Feature相序Phase sequence瞬时Instantaneous倾角Angle of inclination跨度Span正极Positive pole负极Negative pole截面(积) Cross section area辅助电源Auxiliary source遮断容量Interrupting capacity载流量Current-carrying capacity校正系数Correction factor连续负荷Continuous load长期载流量Continuous capacity长时间额定值Longtime rating电动机堵转电流Locked-rotor motor current限定负荷Limited load电感负荷Inductive load感应电流Induced current二．线路（母线、回路）Lines (Bus , circuits)母线Bus-bar合闸电源母线Closing power source bus闪光母线Flashing-bus备用母线Spare bus装在支柱上的插接式母线Post-supported plug-in bus way装在吊钩上的插接式母线Hook-supported plug-in bus way 装在支架上的插接式母线Bracket-supported plug-in bus way 小母线Miniature bus电源小母线Power supply miniature bus操作小母线Operating miniature bus事故信号小母线Miniature bus for fault signal闪光小母线Flashing miniature bus主母线Main bus直流主母线 D.C. main bus预告母线Prewarning bus干线Main line照明干线Lighting main line接地干线Grounding main line插座干线Receptacle main line电压干线Voltage main line端子出线Terminal outgoing中性线Neutral支线Branch-line引入线Lead-in电气线路Electric circuit交流配电线路A.C. distribution circuit直流配电线路 D.C. distribution circuit事故照明线路Emergency lighting circuit控制线路Control circuit接地或接零线路Grounding or neutralizing circuit信号线路Signal circuit有接地极的接地线路网Grounding with grounding electrodes定子绕组测温回路Temperature measuring circuit for stator winding 接地信号回路Grounding signal circuit闪光信号回路Flashing-signal circuit开阀回路Circuit for opening valve关（闭）阀回路Circuit for closing valve开度计回路Circuit for opening meter电流测量回路Current-measuring circuit差动保护回路Differental protective circuit过流保护回路Over-current protective circuit合闸回路Closing circuit停车延时回路Delayed shutdown circuit掉闸回路Trip circuit激磁回路Exciting circuit备用回路Spare circuit主回路Main circuit馈路Feeder circuit现有回路Existing circuit单线回路Single-wire circuit接地回路Earthed circuit有电压的电路Live circuit三．设备Equipments高压开关柜H.V. switchgear动力配电箱Power distribution cabinet电源配电箱Source distribution cabinet直流配电屏 D.C. switchboard (distribution panel)交流低压配电屏 A.C.L.V. switchboard (distribution panel)静电电容器柜Static capacitor cabinet多种电源插销箱Receptacle box for miscellaneous power supplies控制箱Control cabinet照明配电箱Lighting (distribution panel)连接箱Junction box出线盒Outlet box开关箱Switch box控制台Console分段屏Sectionalizing panel进线屏Incoming line panel电控箱Electric control panel边屏Side board端子箱Terminal box供电盘Power supply box瓶车箱Synchronizing cabinet感应调压器专用变压器高压柜Special transformer H.V. cabinet for induction voltage regulator电压互感器柜Potential transformer cabinet信号屏Signal panel浮充屏Floating panel蓄电池屏Battery panel充电屏Charging panel母线联络柜Bus tie cabinet转换开关Transfer switch电压表转换开关Voltmeter change-over switch铁壳开关Metal-clad switch (Iron-clad switch)管式熔断器Cartridge fuse真空断路器Vacuum circuit breaker (V.C.B.)自动开关Automatic switch高压负荷开关H.V. load break switch三极高压断路器3-pole HV circuit-breaker刀开关Knife switch转换开关Transfer switch双极铁壳开关2-pole iron-clad switch风扇变速开关Fan speed regulator switch密闭照明灯开关Hermetic lighting switch防爆照明灯开关Explosion-proof lighting switch行程开关Limit switch高压隔离开关H.V. disconnecting switch明装单极板钮开关Surface-mounted single-pole toggle switch 暗装单极板钮开关Flush-mounted single-pole toggle switch 三路开关Three-way switch气密式组合开关Hermetic packet type switch防护式开关Guard type switch联锁开关Interlock switch操作方式选择开关Selecting switch for types of operation控制电源开关Switch for control supply主令开关Master switch (controller)多切点切换开关Multi-point change-over switch按钮Push-button控制按钮Control push-button防爆控制按钮Explosion-proof control push-button事故紧急按钮Emergency stopping push-button起动按钮Starting push-button停止按钮Stopping push-button现场按钮Push-button in field挡板damper音响解除按钮Push-button for sound release起动器Starter磁力起动器Magnetic starter综合起动器Combination starter (Magnetic starter combination)电力变压器Power transformer调压变压器Voltage regulating transformer电压互感器Potential transformer电流互感器Current transformer照明变压器Lighting transformer三相三绕组变压器3-phase tertiary winding transformer高压试验变压器H.V. testing transformer局部照明变压器Local lighting transformer多量程仪用电流互感器Multi-range current transformer for measurement 降压变压器Step-down transformer伺服电动机Servo-motor双电压电动机Dual-voltage motor感应电动机Induction motor交流异步电动机 A.C. asynchronous motor同步电动机synchronous motor三相滑环感应电动机3-phase slip-ring induction motor三相鼠笼感应电动机3-phase squirrel-cage induction motor绕线式电动机Wound-rotor induction motor反应式电动机Reaction motor柴油发电机Diesel generator励磁发电机Excitation generator明装双极插座Surface-mounted 2-pole receptacle暗装双极插座Flush-mounted 2-pole receptacle双极带接地插座2-pole receptacle with grounding contact单相三孔明插座Surface-mounted single phase 3-pole receptacle防护式明装三相四孔插座Guard type surface-mounted 3-phase 4-pole receptacle配照型灯Standard dome lighting fitting搪瓷深照型灯Enameled high bay lighting fitting防水防尘灯Water and dust proof lighting fitting安全灯Safety lighting fitting隔爆灯Explosion-proof lighting fitting弯灯Goose-neck light壁灯Wall light高压水银灯High pressure mercury vapor lighting fitting 投光灯Flood-light (projection light)信号灯Signal lamp天棚灯Ceiling-mounted lighting fitting局部照明灯Local lighting fitting灯座Lamp holder事故照明灯Emergency lighting fitting高压水银荧光灯H.P. mercury fluorescent lighting fitting 广照型工厂灯Wide lit type industrial fitting深照型灯具High bay lighting fitting白炽灯具Incandescent lamp (bulb)圆球型灯Globe lamp嵌入式荧光灯flush type fluorescent lighting fitting红色障碍灯Red obstruction lamp for aviation厂区道路照明灯Street lighting in plant area路灯Street lamp视孔灯Inspection hole lamp立杆弯灯goose-neck post lamp , pole lamp模拟报警信号Semigraph and alarm signal自整角机Selsyn励磁机Exciter显示器Display电位器Potentiometer内电阻Internal resistance固定电阻（器）Fixed resistance脱扣Release , trip分励Shunt trip特殊失压脱扣器Special no-voltage release“或”开关放大器“Or” switch amplifier制动器Brake电容Capacitor整流器Rectifier镇流器Chock分流器Shunt油变阻器Oil immersed rheostat频敏电阻器Frequency sensitive rheostat滑线变阻器Sliding rheostat蜂鸣器Buzzer电机加热器Space heater (for motor)空气断路器电机操作机构Motor operating mechanism for air circuit-breaker可控硅励磁装置Silicon controlled rectifier excitation device保护装置Protective device (element)闪光装置Flashing device接闪装置（避雷器）Lightning arrester断相保护Phase failure protection四．保护、继电器Protection , relays信号继电器Signal relay过电流继电器Over-current relay电压继电器Voltage relay时间继电器Time relay中间继电器Auxiliary relay热继电器Thermal relay温度继电器Temperature relay瓦斯继电器Gas relay控制电源中间继电器Auxiliary relay for control supply 自动操作继电器Relay for auto-operation低电压继电器Under-voltage relay过电压继电器Over-voltage relay联锁继电器Interlock relay冲击继电器Impact relay合闸位置继电器Close position relay逆流继电器Reverse-current relay差流继电器Differential current relay差动继电器Differential relay电流继电器Current relay功率继电器Power relay接地继电器Earthing relay重合闸继电器Reclosing relay同步继电器Synchronous relay速动继电器Quick acting relay定时限继电器Definite time relay光电继电器Photoelectric relay电子继电器Electronic relay电磁式继电器Electromagnetic relay电动式继电器Electrodynamic relay气压继电器Gas-pressure relay继电器常开触点Relay N.O. contact继电器常闭触点Relay N.C. contact继电器保护触点（常开）Relay holding contact (N.O.)能自动返回的常闭按钮触点Self-return button with N.C. contact 模拟信号触点Contact for semigraph signal强励磁接点Shock excitation contact电感线圈Induction coil电流线圈Current coil脱扣线圈Trip coil合闸线圈Close coil释放线圈Releasing coil掉闸线圈Tripping coil予告信号Prewarning signal掉闸回路断线信号Breakage signal of trip circuit断路器事故掉闸信号Fault trip signal of breaker掉闸音响信号Tripping audible signal重瓦斯预告信号Heavy gas prewarning signal温度预告信号Temperature prewarning signal手动、自动操作时事故信号Fault signal in manual/automatic operation 保护掉闸Protective trip控制掉闸Control trip手动跳闸Manual trip变电所紧急停车Emergency shutdown at substation工艺故障Fault in process励磁故障Fault in excitation工作电源失电报警No-voltage alarm of working electric source工作电源分合闸On and off of working electric source工作电源投入Throw-in of working electric source保安电源送电supply of emergency electric source运转指示Indicating of operation投入指示Indicating of throw-in同步指示Indicating of synchronism延时停车Delayed shutdown电源切除Switch off the power supply速断及过流断通Instantaneous trip and over-current off/on自保持Self-holding自锁Self-lock联锁Interlocking绝缘监视Insulation supervision电压监视Voltage supervision联锁解除Release of interlock工作、保安电源切换Transfer of working and emergency power supply发电机与工作母线并车Synchronization of generator to working bus重瓦斯保护Heavy gas protection开或闭超扭矩保护Over-torque protection during opening and closing valve电机起动顺序Sequence of motor starting铭牌框注字Name plate denotation (inscription)五．电气仪表Electric instruments电流表Ammeter电压表Voltmeter三相三线有功电度表Three-phase three-wire kilowatt-hour meter , kWh meter单相电度表Single-phase kilowatt-hour meter三相无功电度表Three-phase kilovar-hour meter有功功率表Active power meter , kilowatt meter无功功率表Reactive power meter , kilovar meter三相瓦特表(功率表) Three-phase watt meter功率因数表Power factor meter频率表Frequency meter验电流器Galvanoscope欧姆表Ohmmeter相位表Phase meter转速表Tachometer波长表Wave-length meter三相四线制标准电度表3-phase 4-wire standard watthour-meter 过载电流表Overload ammeter低功率因数瓦特表Low power-factor wattmeter交直流两用钳型电流表 A.C./D.C. multi-purpose tongtester兆欧表Megger , Megohmmeter万用表Avometer微安表Microammeter毫安表Milliammeter各种测量仪表Various kind of measuring instruments接地电阻测量仪Earthing resistance tester真空管电压表Vacuum tube voltmeter电动秒表Electric second-meter六．防雷Lightning protection避雷装置Lightning protector避雷针Lightning rod避雷带Strap type lightning protector避雷网Network of lightning protector避雷针支架Lightning rod support避雷针尖Tip of lightning rod避雷针拉铁Brace for lightning rod避雷器Lightning arrester , surge discharger球型避雷器Spherical arrester管形避雷器Tubular arrester阀形避雷器Auto-valve arrester低压避雷器Low voltage arrester角形避雷器Horn arrester多隙避雷器Multigap arrester铝避雷器Aluminum cell arrester氧化膜避雷器Oxide film arrester击穿保险器Puncture lightning arrester雷击Lightning stroke直接雷击Direct lightning stroke感应雷击Induction lightning stroke雷电日Thunderbolt days雷电或然率Lightning and thunder probability 触电Electric shock静电感应Electrostatic induction七．接地Grounding , earthing接地保护Ground protection , earth protection 防雷接地Grounding for lightning保护接地Protective earthing人工接地Artificial grounding工作接地Working grounding , working earthing 重复接地Multiple earthing屏蔽接地Screen earthing , shielding ground中性点接地Neutral point grounded接地系统Grounding system , earthing system 接地故障Ground fault , earth fault单相接地Single phase earthing母线接地Bus ground接地装置Grounding device , earthing device 引下线Down-lead , down conductor引下线固定Clamping plate of support for fixing 支架夹板Down lead引下线固定支脚Support for fixing down lead 接地线Ground connector接地干线Ground(ing) main , (bus)接地网Grounding network , earthing network 接地极Earth electrode (pole)接地电阻Earth resistance接地电路Earth (ground) circuit连接条Connecting strip断接卡Connecting clamp八．室、所Room , Substation贮藏室Storage套间Compartment蓄电池室Battery room控制室Control room配电室Distribution room维修间Repair room变电所Substation高压配电室H.V. distribution room休息室Rest room九．电修车间设备Equipments of electric repair砂轮机Emery wheel grinder台钻Bench drilling machine交流电焊机 A.C. welding machine移动式空气压缩机Portable air compressor手电钻Electric hand drill单速手摇绕线机Single speed hand winding machine导线钳压器Wire jointing press-clamp油压千斤顶Hydraulic jack电吹尘器Electric dust cleaner存放柜Store chest高压试验变压器H.V. testing transformer泄漏试验变压器Leakage testing set大电流发生器Strong current generator油浸自冷感应调压器Oil-immersed self-cooled induction voltage regulator 多量程仪用电流互感器Multi-range current transformer for measurement 仪用电感互感器Instrumental voltage transformer单相自耦变压器Single-phase auto-transformer三相自耦变压器3-phase auto-transformer硅整流器Silicon rectifier仪表试验台Testing stand for instrument接触器，继电器试验台Relay and contactor testing stand慢扫描示波器Slow scanning oscillograph交流电子稳压器 A.C. electronic voltage stabilizer携带式交流电桥Portable A.C. electric bridge接地电阻测量仪Earthing resistance tester电缆故障探伤仪Cable fault detector直流单臂电桥 D.C. single-arm electric bridge , Wheatstone bridge十．材料Material绝缘包布Insulating tape填料Filler , packing绝缘膏Insulating compound电缆膏Cable compound防腐油Anti-corrosive oil沥青漆Bituminous varnish绝缘漆Insulating varnish瓷漆Enamel varnish有色金属Non-ferrous metal黑色金属ferrous metal白金属White metal云母Mica环氧树脂Epoxy resin聚氯乙烯Polyvinyl chloride , PVC 蜡Wax滑石粉Talc powder电胶木Bakelite聚丙烯外壳Polyacrylic cover耐油橡胶管Oil-proof rubber tubes 接地铜线Grounding copper wire 垫圈Pad塑料绝缘线Plastics insulated wire 橡套电缆Rubber sheathed cable 中间接头Splice填充剂Filling agent绝缘电线Insulated wire移动软电缆Movable flexible cable 补偿导线Extension wire套管Bushing母线槽Busway悬索Cable suspension滑触线Trolley conductor镀锌煤气管Galvanized gas pipe 镀锌角钢Galvanized steel angle 镀锌扁钢Galvanized steel strap 钢丝绳Steel wire rope电笛Siren电磁阀Electromagnetic valve连接片Connecting link切换片Transfering link端子排Terminal board半导体二极管Semiconductor diode 开度计Opening meter逻辑元件Logical element接线盒Junction box仪表槽板Instrument trunking电缆吊架Cable hanger出线套Outgoing line sleeve。

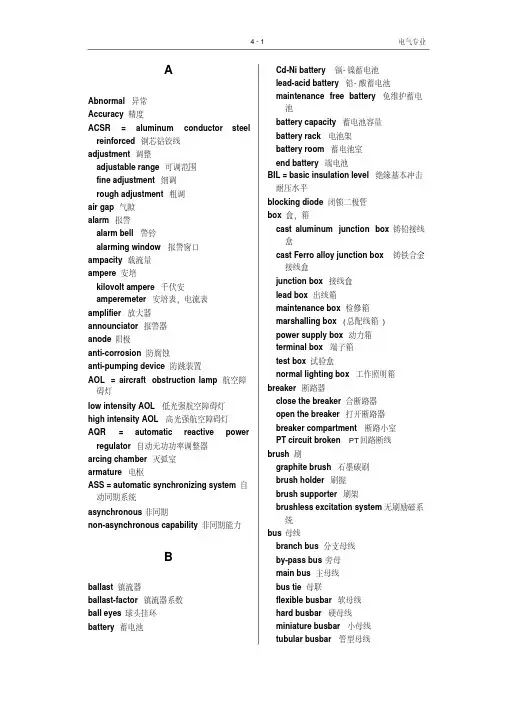

AAbnormal异常Accuracy精度ACSR = aluminum conductor steel reinforced钢芯钻铰线adjustment 调整adjustable range可调范围fine adjustment细调rough adjustment粗调air gap气隙alarm 报警alarm bell警铃alarming window报警窗口ampacity载流量ampere安培kilovolt ampere千伏安amperemeter安培表，电流表amplifier放大器announciator报警器anode阳极anti-corrosion防腐蚀anti-pumping device防跳装置AOL = aircraft obstruction lamp航空障碍灯low intensity AOL低光强航空障碍灯high intensity AOL高光强航空障碍灯AQR = automatic reactive power regulator自动无功功率调整器arcing chamber灭弧室armature电枢ASS = automatic synchronizing system 自动同期系统asynchronous 非同期non-asynchronous capability非同期能力Bballast镇流器ballast-factor镇流器系数ball eyes 球头挂环battery蓄电池Cd-Ni battery镉-镍蓄电池lead-acid battery铅-酸蓄电池maintenance free battery 免维护蓄电池battery capacity蓄电池容量battery rack电池架battery room蓄电池室end battery端电池BIL = basic insulation level绝缘基本冲击耐压水平blocking diode闭锁二极管box 盒，箱cast aluminum junction box铸铅接线盒cast Ferro alloy junction box铸铁合金接线盒junction box接线盒lead box出线箱maintenance box检修箱marshalling box(总配线箱)power supply box动力箱terminal box端子箱test box试验盒normal lighting box 工作照明箱breaker 断路器close the breaker 合断路器open the breaker打开断路器breaker compartment 断路小室PT circuit broken PT回路断线brush 刷graphite brush石墨碳刷brush holder刷握brush supporter刷架brushless excitation system无刷励磁系统bus 母线branch bus分支母线by-pass bus 旁母main bus 主母线bus tie母联flexible busbar 软母线hard busbar硬母线miniature busbar 小母线tubular busbar管型母线changeover busbars倒母线bushing 套管oil filled bushing充油套管seal-off bushing密封套管wall bushing穿墙套管bushing lead terminal套管端子button 钮子push button 按钮self-holding push-button 自保持按钮turn button旋钮buzzer蜂鸣器Ccabinet 柜control cabinet控制柜distribution cabinet 配电柜cable 电缆3 cores cable三芯电缆armoured cable铠装电缆coaxial cable同轴电缆control cable控制电缆copper wire braid shield cable铜编织线屏蔽电缆fiber-optical cable光纤电缆fire resistant cable耐火电缆flame retardant cable阻燃（难燃）电缆heat tracing cable伴热电缆heating cable加热电缆heating sensitive cable热敏电缆high voltage oil-filled cable高压充油电缆impregnated paper insulated cable油浸纸绝缘电缆lead covered cable铅皮电缆mineral insulated cable无机绝缘电缆overhead cable架空电缆power cable动力电缆signal cable信号电缆stranded copper cable铜铰线电缆telephone cable电话电缆triple-core cable 三芯电缆twin-core cable 两芯电缆unarmoured cable 非铠装电缆communication cable 通讯电缆single-core cable单芯电缆tag of cable 电缆标牌cable clip 电缆夹flexible cable conduit 电缆软管cable conduit 电缆管cable head 电缆头cable laying 电缆敷设cable laying & list 电缆敷设及清册cable mezzanine 电缆夹层cable raceway system 电缆通道系统cable rack 电缆支架cable shaft 电缆竖井cable support 电缆支架cable suspender 电缆吊架cable terminal 电缆终端头cable tray 电缆桥架cable trench 电缆沟cable tunnel电缆隧道cable vault 电缆夹层control cable with copper tape shield 铜带屏蔽的控制电缆call 呼叫call back 回叫call signal呼叫信号external calling 外部呼叫internal calling 内部呼叫calling 主叫detail calling record 呼叫详细记录candle power distribution curve 配光曲线capability 能力out-of-phase breaking capability 失步开断能力pressure relief capability 压力释放能力rated closing capability 额定关合能力short-line fault breaking capability近区故障开断能力transient overvoltage capability 暂态过电压能力capability of switching long no-load line 分合长空载线路能力capability of switching no-load transformer 分合空载变压器能力capacitance 电容adjustable capacitor 可变电容器shunt capacitor 并联电容器voltage sharing capacitor 均压电容器capacitor 电容器capacitor divider 电容分压器capacity 能量,容量current carrying capacity 载流能量spare capacity 备用容量cavity ratio 室腔比cell jar 电瓶chain link 挂环changeover 切换automatic changeover 自动切换star-delta changing device 星角切换装置charge 充电equalizing charge 均衡冲电float charge 浮充电fully charged 全充charger 充电器boost charging voltage 大充电压initial charging voltage 起始充电电压check phase order核对相序circuit 电路，回路auxiliary circuit 辅助回路follow-up circuit 跟踪回路main circuit 主电路short circuit plate 短路板spare circuit(feeder)备用回路series circuit 串联电路circuit breaker 断路器air circuit breaker 空气断路器bus tie circuit breaker 母联断路器by-pass bus circuit breaker 旁路断路器current-limiting circuit breaker 限流断路器earth leakage circuit breaker 漏电开关field circuit breaker 磁场开关oil circuit breaker 油断路器residual current circuit breaker 漏电开关sectionalized circuit breaker 分段断路器SF6 gas insulated circuit breaker 六氟化硫断路器frame-type circuit breaker 框架式断路器clamp 线夹strain clamp耐张线夹suspension clamp 悬垂线夹clearance 带电距离clip 线夹quick clip 快速线夹closing 合闸open phase closing of breaker 非全相合闸closing pulse 合闸脉冲coil 绕组arc-suppression coil 消弧线圈armature coil 电枢绕组holding coil 保持线圈redundant trip coil 双跳闸线圈reset coil 复归线圈shunt excitation coil 分励线圈trip coil 跳闸线圈combined 综合combined filter 综合滤波器combined starter 综合起动器commission 调试communication 通信communication building 通信楼communication line 通信线communication monitoring 通信监听dispatching communication system 调度通信系统intra-plant communication system 厂内通信系统wireline communication system 有线通信系统component 分量fundamental component 基波分量harmonic component 谐波分量conductor 导体high conductivity 高导电率composite conductor 组合导线flexible conductor 伸缩节flexible conductor 软导线conductor cross-section 导体截面conform to 符合connection 连接，接线double bus connection 双母线接线open-delta connection 开口三角形连接star connection 星形连接zigzag connection 曲折形连接1 and 1/2 circuit breaker connection 1个半断路器接线connection pin 连接端子connection plate 联接片double bus connection with bypass 双母线带旁路接线end connector 终端接头power connector 电源接头removable connector 可拆接头oil conservator 油枕contact 触头arcing contact 弧触头arcing-extinguishing contact 灭弧触头common alarm contact 公用报警接点electrical independent contact 无源接点main contact 主触头moving contact 动触头normally closed contact 常闭接点normally opened contact 常开接点stationary contact 静触头auxiliary contact 辅助触头contactor 接触器electromagnetic pneumatic contactor 电磁气动接触器vacuum contactor真空接触器electromagnetic contactor 电磁接触器between open contacts 断口间continuous duty (service) 连续运行continuous rating 连续额定值control 控制automatic control 自动控制centralized control 集中控制local control 就地控制one-to-one control 一对一控制photoelectric control 光电控制器remote control 远方控制control circuit 控制回路electrical auxiliary control panel 电气辅助控制屏mosaic surface control panel马赛克控制屏network control room 网控室cool 使冷却hydrogen inner cooled 氢内冷water cooled 水冷却natural cooling 自冷式forced air cooling system 强迫风冷系统copper bus-bar 铜母线core limb 铁芯柱corona 电晕corona-proof cover防晕罩correcting circuit 校正电路correction factor 校正系数COS = change-over switch 切换开关CP = candle power 烛光creepage distance 爬距crest 峰，峰值crest voltage 峰值电压CS = control switch 控制开关CT = current transformer 电流互感器burden of CT CT的二次容量zero sequence CT 零序CTCU = coefficient of utilization 利用系数current电流capacitive current 电容电流dynamic stable current 动稳定电流field current 磁场电流impressed current 外加电流inductive current 电感电流interrupting current 开断电流leakage current 泄漏电流line-charging current 线路充电电流making current 关合电流momentary current 瞬时电流negative sequence current 负序电流no-load current 空载电流nominal discharge current 标称放电电流peak withstand current 峰值耐受电流rated breaking current 额定开断电流rated short time current 额定短时耐受电流reactive current 感性电流short circuit current 短路电流starting current 起动电流stray current 泄漏电流rated continuous current 额定持续电流zero sequence current 零序电流current amplification 电流放大current collector 集电器current converter 变流器current intensity 电流强度secondary current of CT CT的二次电流current shunt 分流器phase current 相电流DDC system 直流系统de-energized equipment 不带电设备definite time lag 定时限deformation 变形dehydrating breather 吸湿器delay 延时long time delay 长延时short time delay 短延时delta connection 三角形连接depth of embedded grounding wire 接地线埋深derating factor 降容系数diagram 图图纸CWD =control wiring diagram 控制接线图EWD =elementary wiring diagram 原理接线图mimic diagram 模拟图one-line diagram 单线图dial 拔号diameter 直径direct dialling 直拨directly burying 直埋敷设discharge 放电deep discharge 过放电intercept lightning discharge 截取雷电流self discharge 自放电discharge counter 放电计数器discharge final voltage 放电未期电压disconnection 解列busbar disconnection 母线解列system disconnection 系统解列system disconnection and field extinction 解列灭磁dispatcher 调度员distortion factor 畸变系数diversity factor 分散系数document 文件double column 双柱DP = drip-proof 防滴型draw-out carriage 抽出式小车dust proof type 防尘型Eearthing 接地earthing rod 接地极earthing terminal 接地端子efficiency 效率electric 电气electric braking 电气制动electric welding machine 电焊机electrical life 电气寿命electricity engineering 电气工程electrode pole 电极electrolyte 电解液electromagnet 电磁铁electromagnetic induction 电磁感应electromotance 电动势electronic element 电子元件emergency bell 事故铃energy 能，能量forced line energization 线路强送电successful forced line energization 线路强送电成功trial line energization 线路试送电enter the cubic from the top 柜顶进线enter the cubicle from the bottom 柜底进线excitation 励磁reducing excitation 减励磁force excitation 强励low excitation 低励磁over excitation 过励磁excitation cubicle 励磁柜excitation current 励磁电流force excitation factor 强励系数excitation initiating equipment 起励设备static excitation system 静态励磁系统excitation system response ratio励磁系统响应比excitation transformer 励磁变压器excitation voltage 励磁电压exciter 励磁机main exciter 主励磁机pilot exciter 副励磁机standby exciter 备用励磁机expansion join 伸缩节expected life 期望寿命explosion-proof type 防爆型Ffailure alarming signal 事故报警信号fault 故障grounding fault 接地故障fault recollecting and recording device 事故追忆记录装置fault recorder 故障记录F-C = high-voltage current limiting fuse and vacuum contactor 高压限流熔断器及真空接触器feeder 馈线incoming feeder 进线outgoing feeder 出线feeder bay馈线间隔field 磁场field extinction 灭磁field flashing equipment起励设备field voltage 磁场电压fire 火fire proof blockage 防火堵料fire proof limit耐火极限fire proof partition 耐火隔板fire protection pillows 阻火包fire retardant coating 阻燃涂料single face exit sign fixture 单面出口标志灯flexible joint 挠性接头FOA = forced oil air cooled 强油风冷foot candle ( F.C ) 英尺-烛光forced outage 强迫停机frequency频率frequency converter station 变频站fuse 熔断器no powder-filled cartridge fuse无填料封闭管式熔断器plug-in type fuse 插入式熔断器powder-filled cartridge fuse 有填料封闭管式熔断器screw-type fuse螺旋式熔断器self-mending fuse 自复熔断器fast acting fuse 快速熔断器fuse blow熔断器熔断Ggalvanic protection system 牺牲阳极保护系统galvanized steel镀锌钢gap 间隙protective gap 保护间隙gapless metaloxide type 无间隙金属氧化型generator 发电机direct current generator 直流发电机dual inner water cooled generator 双水内冷发电机signal generator 信号发生器water-hydrogen-hydrogen cooling generator 水-氢-氢冷发电机generator hydrogen cooling system 发电机氢冷却系统generator load curve发电机负荷曲线generator pedestal发电机基座generator rotor发电机转子generator sealing oil system 发电机密封油系统generator stator 发电机定子generator terminal 发电机端子generator terminal lead 发电机引出线generator termination room 发电机出线小室generator water cooling system 发电机水冷却系统generator-transformer extension unit 发变组扩大单元generator-transformer unit 发电机变压器组GIS = gas insulated switchgear 全封闭组合电器Glare眩光glass cloth tape 波纤带grading ring 均压环、屏蔽环ground pad 接地端子groundbed 接地床anode groundbed 阳极接地床distributed-type groundbed 分散型接地床impressed current groundbed 泄漏电流接地床directly (solid) grounded 直接接地effectively grounded 有效接地un- grounded 不接地grounded through resistor 通过电阻接地grounding 接地single-phase grounding 单相接地grounding conductor 接地导体grounding megger 接地电阻测试仪main grounding network (grid)主接地网grounding system 接地系统grounding terminal 接地端子grounding wire 接地线guarantee 保证Hharmonics 谐波even harmonic 偶次谐波odd harmonic 奇次谐波heater 加热器self limiting parallel heater 自限制式并联加热器heating element 加热元件hertz (Hz) 赫兹high 高high pressure sodium ( HPS ) 高压钠灯high voltage transmission line 高压线路high-frequency amplification 高频放大high-frequency filter 高频滤波器hot-dipped galvanized 热镀锌Iidentification 识别igniter触发器illuminance 照度impedance 阻抗asymmetrical impedance 不对称阻抗negative-sequence impedance 负序阻抗positive-sequence impedance 正序阻抗zero sequence impedance 零序阻抗impressed current cathodic protection 外加电流阴极保护indicator 指示器indoor type 户内式initial 首次initial power transmission 首次送电initial synchronization 首次并网input 输入instrumentation测量仪表insulation 绝缘epoxy resin insulation 环氧树脂绝缘insulating strength绝缘强度layer insulation 层间绝缘4 - 8 电气专业mica insulation 云母绝缘plastic insulation 塑料绝缘section insulation 段间绝缘turn insulation 匝绝缘insulation between phase 相间绝缘insulation class 绝缘等级insulation level 绝缘水平porcelain insulator 瓷质绝缘子post insulator 柱式绝缘子supporting insulator支撑绝缘子suspending insulator 悬挂式绝缘子tension insulator 耐张绝缘子insulator绝缘子interlock 联锁inverse time lag反时限inverter 逆变器IPB = isolated phase bus duct 离相封闭母线Jtesting jack 试验端子Kkilovar (kVAR) 千乏kilovolt 千伏kilowatt (kW) 千瓦kilowatt-hour 千瓦时Llagging phase 滞后相lamp 灯left（right）arrow lamp 单面出口标志灯portable lamp 行灯mercury lamp 水银灯metal halide lamp 金属卤化物灯high intensity discharge lamp 高强气体放电灯fluorescent lamp荧光灯incandescent lamp 白炽灯self-ballasted lamp自镇流灯tungsten halogen lamp碘钨灯projection lamp 投光灯lamp socket 灯座layer-to-layer 层间LDD = luminaire dirt depreciation 照明器污秽减光系数leading phase 超前相down- light 筒灯light source (illuminant)光源flood lighting泛光照明local lighting 局步照明emergency lighting 应急灯lighting box 照明箱emergency lighting box 事故照明箱double-faced plate lighting fixture 双块板灯flush mounted fluorescent lighting fixture嵌入式荧光灯tube fluorescent lighting fixture 简式荧光灯anticorrosive, dust-proof and water-resistant lighting fixture三防灯具wrap-around fluorescent lighting fixture 全密封荧光灯garden lighting fixture 庭院灯waterproof fluorescent lighting fixture 防水荧光灯flameproof fluorescent lighting fixture 防爆耐火荧光灯road lighting fixture路灯lighting fixture 灯具lightning 雷电tube type lightning arrester 管形避雷器valve type lightning arrester 阀型避雷器lightning arrester避雷器lightning current 雷电流lightning protection 防雷lightning recorder 雷电记录器lightning rod避雷针4 - 9 电气专业lightning strike 雷击lightning wave front shape雷电波头形状lightning wire避雷线live line connection带电接线live line disconnection 带电拆线LLD = lamp lumen depreciation 光通量衰减系数Load 负荷target load 目标负荷load characteristic curve负载特性曲线load rejection甩负荷locked rotor current 转子堵转电流locked rotor torque 转子锁定转矩looping-off 解环loss 损耗copper loss 铜损iron loss 铁损load loss 负载损耗no-load loss空载损耗supplementary load loss附加损耗loss-ratio 损耗比louver 格栅louver all ceiling 大面积发光天棚lug 接线片ring lug 环型接线片spade lug 铲型接线片terminal lug 接线端子lumen 流明background luminance 背景亮度luminaries 照明器effective luminous intensity 有效光强LX = lux 勒克司Mmagnetic lock 电磁锁maintenance 维护malfunction 误动作manhole 人孔marking strip 标识条MCB = miniature circuit breaker 微型断路器MCCB = moulded case circuit breaker 塑壳式断路器mechanical life 机械寿命megawatt (MW) 兆瓦metal clad 金属铠装meter 表计gravity meter 比重计insulation supervision meter 绝缘监察表kVAR-hour meter 无功电度表kW-hour meter 有功电度表phase meter 相位表plier-type current meter钳型表power factor meter 功率因数表secondary meter 二次表计single-phase kilowatt-hour meter 单相电能表three-phase kilowatt-hour meter 三相电能表voltage meter 电压表watt-hour meter 电度表MF = maintenance factor维护系数MHF = mounting height above the floor 距地面安装高度MHWP = mounting height above the work-place 距工作面安装高度milliammeter 毫安表millivoltmeter 毫伏表mimic bus 模拟母线mis-operation 误操作MOC = mechanism operated cell switch 机构操作式开关motor 电动机adjustable speed motor调速电动机commutator motor整流子电动机governor motor 调速电动机horizontal type motor卧式电动机induction motor 诱导电动机synchronous motor同步电动机variable speed motor 可变速电动机vertical type motor 立式电动机motor maximum torque 电动机最大转矩mounted 镶嵌，安装standing pole mounted 立杆安装4 - 10 电气专业ceiling mounted嵌入顶棚handrail mounted 扶手安装open mounted 明装wall mounted 吸壁flush mounted 暗装pendant mounted 悬挂stanchion mounted 柱上安装surface mounted 吸顶安装mounting type 安装方式movable type 移动式Nnameplate 铭牌negative pole 负极neutral point 中性点normal 正常NPB = non-segregated phase bus duct 共箱母线Oohm 欧姆OHM = ohmmeter 欧姆表oil level indicator 油位指示器OLTC = on-load tap-changer 有载分接开关open circuit characteristic curve 开路特牲曲线operate 操作operated in single phase 分相操作operated in three phase 三相操作operating duty cycle 操作顺序hydraulic operating mechanism 液压操作机构pneumatic operating mechanism 气动操作机构spring stored-energy operating mechanism 弹簧贮能操作机构operating mechanism 操作机构operation 运行load limit operation 限负荷运行open phase operation 非全相运行trial operation 试运行pole slip operation 滑差运行operation mode 运行方式oscilloscope 示波器outdoor type 户外式outgoing feeder gantry structure 出线门型架构outgoing line 出线direction of outgoing line 出线方向output 输出shaft output轴功率output increment 增负荷output reduction降负荷overhead line 架空线over-flux 过激磁over-voltage times 过电压倍数oxygen index 氧指数PP.U. value = per unit value标幺值packing instruction 包装说明paging dispatching unit 扩音调度机panel 盘control panel 控制盘side panel 边屏parallel 并联parallel branch 并联支路parameter 参数partial discharge 局部放电periodic duty service定期运行phase 相in-phase 同相phase angle 相角phase sequence 相序phase shifter 移相器phase to ground 相对地phase-angle difference 相角差plug-in unit 插件pole and tower 杆塔pole plate 极板pole-mounting type 柱上式positive pole 正极potential 电位,电势protective potential 保护电位step potential 跨步电压touch potential 接触电压transferred potential 传递电位zero potential 零电位potentio meter 电位计power 功率,能量active power 有功功率apparent power 视载功率electric power 电功率loss of power 失电reactive power 无功功率stand by power 备用电源power factor 功率因数line power flow线路潮流power grid电网auxiliary power ratio 厂用电率AC power source 交流电源DC power source 直流电源power system swing 系统振荡auxiliary power system 厂用电系统power system 电力系统printed wiring board 印刷电路板protection 保护back-up protection 后备保护branch overcurrent protection 分支过流保护busbar protection 母线保护cathodic protection 阴极保护differential protection 差动保护distance protection 距离保护freeze protection 防冻generator main protection 发电机主保护grounding protection 接地保护high-frequency protection 高频保护impedance protection 阻抗保护instantaneous overcurrent protection 速断保护longitudinal differential protection 纵差保护loss-of field protection 失磁保护low frequency protection 低频保护negative-sequence current protection负序电流保护out-of step protection 失步保护over current protection 过流保护over excitation protection 过励磁保护reverse power protection 逆功率保护start-up protection 起动保护thermo-magnetic protection 热磁保护transverse differential protection 横差保护under voltage protection 低电压保护zero-sequence current protection 零序电流保护PT (=potential transformer) balance protection PT断线保护protection level at steep current 陡波冲击保护水平protective zone 保护范围PVC(polyvinyl chloride) insulated cable 聚氯乙烯绝缘电缆Qquality assurance 质量保证quality control 质量控制Rradio 无线电rated 额定rated input 额定输入rated output 额定输出rated value 额定值reactance 电抗capacitive reactance 容抗inductance reactance 感抗subtransient reactance 次暂态电抗synchronous reactance 同步电抗transient reactance 暂态电抗reactive power compensation device 无功补偿装置reactor 电抗器current-limiting reactor 限流电抗器disruptive reactor 分裂电抗器grounding reactor 接地电抗器shunt reactor 并联电抗器receiver 接收机receptacle (socket) 插座receptacle plug 插头re-close 重合闸recording 记录recording duration 记录时间recording instrument 记录仪表rectifier 整流器rectify 整流redial 重拨reflectance factor 反射系数reignite 重燃relative 有关的relay 继电器auxiliary relay 辅助（中间）继电器blocking relay 闭锁继电器Buchholtz relay 瓦斯/压力断电器closing relay 合闸继电器control relay 控制继电器current relay 电流继电器current-limiting relay 限流继电器delayed relay 延时继电器digital type protection relay 数字式继电保护directional relay 方向继电器distance relay 距离继电器flicker relay 闪光继电器lockout relay 出口继电器micro-processor based protective relay 微机继电保护pilot relay 辅助继电器plugging relay 防逆转继电器position relay 位置继电器reclosing relay 重合闸继电器reed relay 舌簧继电器self-starting relay 自启动继电器SIC protection relay 半导体继电保护thermal relay 热继电器time relay 时间继电器tripping relay 跳闸继电器two zone distance relay 两段距离继电器voltage relay 电压继电器voltage-controlled overcurrent relay 电压控制过电流继电器relay 继电器combined protection relay 综合保护继电器protection relay panel 继电保护屏relay protection 继电保护relay station 中继站relevant 相关的repeater 中继器repeater circuit 中继电路repeater group 中继组resistance 电阻high resistance 高阻low resistance 低阻arc suppression resistor 灭弧电阻dynamic braking resistor 制动电阻non-liner resistor 非线性电阻standard resistor 标准电阻starting resistor 起动电阻resistor 电阻器resolution 分辨率rheostat 变阻器slider-type rheostat 滑线式变阻器start rheostat 起动变阻器ripple contain factor 波纹系数RMS = root-mean-square 有效值rotor 转子squirrel-cage type rotor 鼠笼型转子wound type rotor 绕线式转子rotor conductor slot 转子线槽rotor retaining ring 转子护环rotor slip ring 转子滑环rotor winding 转子线圈rubber cushion 橡皮绝缘垫SS/MH = spacing-to-mounting height ratio 距高比sampling frequency 采样频率saturation 饱和saturation factor 饱和系数scanner 扫描器scope 范围scope of supply 供货范围scope of work 工作范围seismic 地震self-holding 自保持sensitivity 灵敏度series 串联serial capacitor compensation device 串联电容补偿装置service level 服务级别setting range 整定范围setting value 整定值SF6 gas leakage detector SF6气体泄漏检测器SF6 gas moisture analyzer SF6气体湿度分析仪SF6 gas reclaiming equipment SF6气体回收设备shade and railing 遮栏sheath 护套inner sheath 内护套outer sheath 外护套shield 屏蔽short circuit 短路three-phase short circuit 三相短路two-phase short circuit 两相短路system short circuit capacity 系统短路容量short circuit characteristic curve 短路特牲曲线short circuit ratio 短路比short time parallel 短期并列signal 信号failure signal 事故信号flash signal 闪光信号status signal 状态信号signal indicator 信号指示器SIL = switching impulse level 操作冲击水平silicon-steel sheet 硅钢片single-phase 单相sinusoid 正弦波slight pressure device 微正压装置soil resistivity 土壤电阻率solid state rectifier 固态整流器solver plated 镀银spacer 间隔棒spare parts 备品备件special tool 专用工具splice 接头factory splice 工厂接头field splice 现场接头SS = select switch 选择开关stabilized power supply device 稳压电源装置starter 起动器full-voltage starter 全电压启动器reduced-voltage starter 降压启动器rotor resistance starter 转子电阻启动器star-delta starter星-三角起动器magnetic starter 磁力起动器stator 定子stator core 定子铁芯stator end cover 定子端盖stator housing 定子外壳stator winding 定子线圈storage 贮存storage battery 蓄电池substation 变电站sub-synchronous resonance 低频共振surge 冲击浪涌surge absorber 过电压吸收装置zinc- oxide surge arrester 氧化锌避雷器surge arrester 避雷器magnetic blow surge arrester 磁吹避雷器SVC = static VAR compensator 静态无功补偿装置switch 开关disconnecting switch 隔离开关double earthing switch 双接地刀electronic switch 电子开关fuse- switch 熔断器式开关grounding (earthing) switch 接地开关iron clad switch 铁壳开关proximity switch 极近开关single earthing switch 单接地刀static transfer switch 静态转换开关voltmeter change-over switch 电压表切换开关switch 开关dimmer switch 调光开关knife switch 刀开关pull switch 拉线开关single pole switch 单极开关switch off 断开switch on 合上switch-fuse 负荷开关switchgear 配电装置in-door switchgear 屋内配电装置out-door type switchgear 户外配电装置day-night switching unit 昼夜开关step-up switchyard 升压站switchyard 开关站symmetrical 对称的synchronization 同期single phase synchro-control 单相同期控制synchronization checking 同期鉴定automatic quasi-synchronization 自动准同期manual quasi-synchronization 手动准同期synchronizing device 同期装置synchronous condenser 调相器synchroscope 同期表system 系统system oscillation 系统振荡Ttap lead 抽头tap position indicator 分接头位置指示器tapping 分接tapping range 分接范围tapping step 分接级全封闭风冷型telecontrol 遥控telemetering 遥测telephon 电话telephon set 电话机automatic exchange telephone 自动交换机dispatching telephone 调度电话机extension telephone 电话分机noise-reducing telephone 抗噪音电话机talking on the telephone 通话video telephone 可视电话telephone booth 电话亭telephone handset 电话听筒teleregulation 遥调telesignalisation 遥信terminal 端子compression terminal 压缩端子compression type terminal 压接型端子terminal block 端子排terminal screw 端子螺钉test 试验AC withstand voltage test 交流耐压试验continuous breaking capability test 连续开断能力试验DC withstand voltage test 直流耐压试验evolving fault breaking test 开断发展性故障试验insulation withstanding test 绝缘耐受试验mechanical performance test 机械性能试验out-of-phase breaking test 失步开断试验parallel breaking test 并联开断试验partial discharge test 局部放电试验performance test 性能试验rain proof test 防雨试验routine test 例行试验routine test 常规试验sealing test 密封试验seismic test 抗震试验short circuit test 短路试验short circuit making and breaking test 短路关合和开断性能试验short-line fault test近区故障试验site test 现场试验standard type test 标准型式试验static test 静态试验switching no-load long line test 分合空载长线试验switching no-load transformer test 分合空载变压器试验switching shunt reactor test 分合并联电抗器试验temperature rise test 温升试验test report 试验报告test voltage 试验电压pen tester 试电笔TEWAC = totally enclosed with water cooled air cooler 全封闭水空冷型thermo-couple 热电偶thermometer 温度计thyristor element 硅整流元件auto-reclosing dead time 自动重合闸无电流时间time 时间breaking time 分闸时间inherent closing time 固有合闸时间inherent opening time 固有分闸时间reclosing time 重合闸时间Max.breaking time 最大全分闸时间time delay de-engergizing 延时释放time delay energizing 延时带电time lead 导前时间tin galvanized 镀锡TOC = truck operated cell switch 小车操作式开关torque 转矩breakdown torque 破坏转矩starting torque 起动转矩torsional stress 扭应力transducer 变送器transformer 变压器auto- transformer 自耦变压器booster transformer 增压变压器busbar straight-through current transformer 母线式电流互感器bushing current transformer 套管式电流互感器core type transformer 芯式变压器coupling-capacitor voltage transformer 耦合电容式电压互感器current transformer 电流互感器dry type transformer 干式变压器isolated transformer隔离变压器lighting transformer 照明变压器low voltage auxiliary transformer 低压厂用变压器low voltage common transformer 低压公用变压器main transformer 主变压器maintenance transformer 检修变压器measuring transformer 测量用互感器oil-immersed type transformer 油浸变压器protecting transformer 保护用互感器PT = potential transformer 电压互感器shell type transformer壳式变压器single-phase transformer 单相变压器split winding type transformer 分裂变压器start-up/stand by transformer 起动/备用变压器step-down transformer 降压变压器step-up transformer 升压变压器three-phase transformer 三相变压器tie transformer 联络变压器transformer 变压器auxiliary building transformer辅助厂房变压器transformer angular displacement 变压器联接组别current transformer calibrating device 电流互感器校验装置transformer cooling system 变压器冷却系统transformer fitted with O.L.T.C (on-load tap-changer)有载调压变压。

电气规范-术语-中英对照.doc备用电源standby electrical source应急电源electric source for safety services导体conductor中性导体neutral conductor(N)保护导体protective conductor(PE)保护接地中性导体protective and neutral conductor(PEN)剩余电流residual current特低电压extra-low voltage(ELV)安全特低电压系统safety extra-low voltage(SELV)system保护特低电压系统protective extra-low voltage(PELV)system外露可导电部分exposed-conductive-part外界可导电部分extraneous-conductive-part 保护接地protective earthing；protective grounding功能接地functional earthing；functional grounding接地故障earth fault；ground fault接地配置earthing arrangement；grounding arrange—ment接地系统(earthing system)接地极earth electrode；ground electrode接地导体earth conductor；earthing conductor；grounding conductor接地网earth—electrode network；ground—electrode network等电位联结equipotendal bonding防雷装置lightning protection system雷电波侵入lightning surge on incoming services雷击电磁脉冲lightning electromagnetic impulse雷电防护区lightning protection zone防护区protection area禁区restricted area盲区blind zone纵深防护longitudinal-depth protection最大声压级maximum sound pressure level 传输频率特性transmission frequency characteristic 传声增益sound transmission gain声场不均匀度sound field nonuniformity建筑设备监控系统building automation system分布计算机系统distributed computer system现场总线fieldbus综合布线系统generic cabling system电磁环境electromagnetic environment电磁兼容性electromagnetic compatibility电磁干扰electromagnetic interference电磁辐射electromagnetic radiation电磁屏蔽electromagnetic shielding电子信息系统electronic information system 阻塞流choked flow流量系数K v flow coefficient管件形状修正系数F p piping correction factor雷诺数修正系数Re v reynokls number factor 舞台监督指挥系统Stage manager control system舞台监视系统stage monitoring (disp1ay) System面光桥fore stage lighting gallery耳光室fore stage side 1ighting台口柱光架lighting tower灯光吊笼lighting (cable) basket天桥侧光fly gallery lighting流动灯光movable lighting灯控室lighting control room声控室sound control room出入口控制系统accesscontrol system(ACS) 目标object目标信息object information钥匙key人员编码识别human coding identification物品编码识别article coding identification人体生物特征信息human body biologic characteristic人体生物特征信息识别human body biologic character-istic identification物品特征信息article characteristic物品特征信息识别article characteristicidentification密钥、密钥量与密钥差异key-code，amount of key-code，difference of key-code钥匙的授权key authorization误识false identification拒认refuse identification识读现场identification locale识读现场设备locale identify equipment防护面protection surface防技术开启能力anti technical opened ability复合识别combination identification防目标重入anti pass-back多重识别控制multi-identification control异地核准控制remote approve control受控区、同级别受控区、高级别受控区controlled area，the same level controlled area，high level controlled area集中式供电centralized power supply mode 分散式供电distributed power supply mode 混合式供电combined power supply mode主变电所high voltage substation牵引降压混合变电所combined substation 杂散电流stray current同步数字传输系统synchronous digital hierarchy transmission system(SDH)全球定位系统global position system(GPS) 列车自动控制automatic train control(ATC) 列车自动监控automatic train supervision(ATS)列车自动防护automatic train protection(ATP)列车自动运行automatic train operation(ATO)调度集中centralized traffic control(CTC)自动人行道moving pavement自动售检票设备automatic fare collection火灾自动报警系统fire alarm system(FAS) 区域报警系统local alarm system集中报警系统remote alarm system环境与设备监控系统building automatic system(BAS)系统集成system integration(SI)运营控制中心operation control center(0CC) 集中监控和管理concentration supervisory control and management净距net distance常用给水泵operation feed water pump工作备用给水泵standby feed water pump事故备用给水泵emergency feed water pump火灾疏散照明lighting for fire evacuation火灾疏散照明灯light for fire evacuation火灾疏散标志灯marking lamp for fire evacuation火灾备用照明reserve lighting for fire risk初始照度initial illuminance使用照度service illuminance维护系数maintenance factor主摄像机main camera辅摄像机auxiliary camera照度均匀度uniformity of illuminance均匀度梯度uniformity gradient色温(度) colour temperature相关色温(度) correlated colour temperature 显色指数ceolour rendering index一般显色指数general colour rendering index 眩光glare眩光指数(眩光值) glare rating应急照明emergency lighting疏散照明escape lighting安全照明safety lighting备用照明stand-by lightingTV应急照明TV emergency lighting障碍照明obstacle lighting。

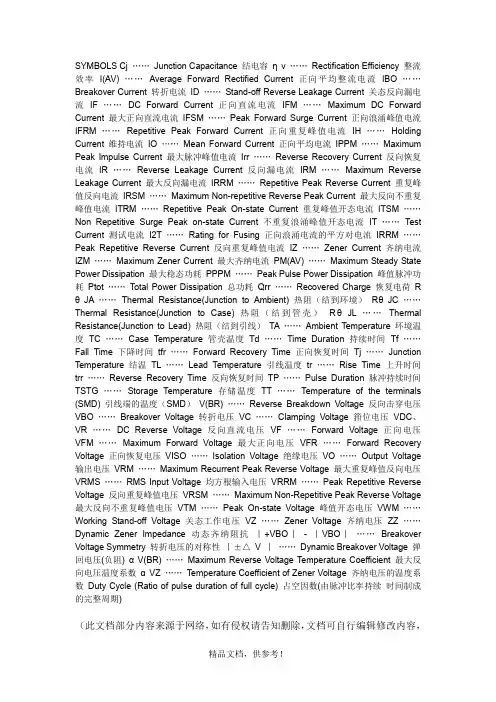

SYMBOLS Cj ……Junction Capacitance 结电容ηv ……Rectification Efficiency 整流效率I(AV) ……Average Forward Rectified Current 正向平均整流电流IBO ……Breakover Current 转折电流ID ……Stand-off Reverse Leakage Current 关态反向漏电流IF ……DC Forward Current 正向直流电流IFM ……Maximum DC Forward Current 最大正向直流电流IFSM ……Peak Forward Surge Current 正向浪涌峰值电流IFRM ……Repetitive Peak Forward Current 正向重复峰值电流IH ……Holding Current 维持电流IO ……Mean Forward Current 正向平均电流IPPM ……Maximum Peak Impulse Current 最大脉冲峰值电流Irr ……Reverse Recovery Current 反向恢复电流IR ……Reverse Leakage Current 反向漏电流IRM ……Maximum Reverse Leakage Current 最大反向漏电流IRRM ……Repetitive Peak Reverse Current 重复峰值反向电流IRSM ……Maximum Non-repetitive Reverse Peak Current 最大反向不重复峰值电流ITRM ……Repetitive Peak On-state Current 重复峰值开态电流ITSM ……Non Repetitive Surge Peak on-state Current 不重复浪涌峰值开态电流IT ……Test Current 测试电流I2T ……Rating for Fusing 正向浪涌电流的平方对电流IRRM ……Peak Repetitive Reverse Current 反向重复峰值电流IZ ……Zener Current 齐纳电流IZM ……Maximum Zener Current 最大齐纳电流PM(AV) ……Maximum Steady State Power Dissipation 最大稳态功耗PPPM ……Peak Pulse Power Dissipation 峰值脉冲功耗Ptot ……Total Power Dissipation 总功耗Qrr ……Recovered Charge 恢复电荷R θJA ……Thermal Resistance(Junction to Ambient) 热阻（结到环境）RθJC ……Thermal Resistance(Junction to Case) 热阻（结到管壳）RθJL ……Thermal Resistance(Junction to Lead) 热阻（结到引线）TA ……Ambient Temperature 环境温度TC ……Case T emperature 管壳温度Td ……Time Duration 持续时间Tf ……Fall Time 下降时间tfr ……Forward Recovery Time 正向恢复时间Tj ……Junction Temperature 结温TL ……Lead T emperature 引线温度tr ……Rise Time 上升时间trr ……Reverse Recovery Time 反向恢复时间TP ……Pulse Duration 脉冲持续时间TSTG ……Storage Temperature 存储温度TT ……Temperature of the terminals (SMD) 引线端的温度（SMD）V(BR) ……Reverse Breakdown Voltage 反向击穿电压VBO ……Breakover Voltage 转折电压VC ……Clamping Voltage 箝位电压VDC、VR ……DC Reverse Voltage 反向直流电压VF ……Forward Voltage 正向电压VFM ……Maximum Forward Voltage 最大正向电压VFR ……Forward Recovery Voltage 正向恢复电压VISO ……Isolation Voltage 绝缘电压VO ……Output Voltage 输出电压VRM ……Maximum Recurrent Peak Reverse Voltage 最大重复峰值反向电压VRMS ……RMS Input Voltage 均方根输入电压VRRM ……Peak Repetitive Reverse Voltage 反向重复峰值电压VRSM ……Maximum Non-Repetitive Peak Reverse Voltage 最大反向不重复峰值电压VTM ……Peak On-state Voltage 峰值开态电压VWM ……Working Stand-off Voltage 关态工作电压VZ ……Zener Voltage 齐纳电压ZZ ……Dynamic Zener Impedance 动态齐纳阻抗︱+VBO︱- ︱VBO︱……Breakover Voltage Symmetry 转折电压的对称性︱±△V ︱……Dynamic Breakover Voltage 弹回电压(负阻) αV(BR) ……Maximum Reverse Voltage Temperature Coefficient 最大反向电压温度系数αVZ ……Temperature Coefficient of Zener Voltage 齐纳电压的温度系数Duty Cycle (Ratio of pulse duration of full cycle) 占空因数(由脉冲比率持续时间制成的完整周期)（此文档部分内容来源于网络，如有侵权请告知删除，文档可自行编辑修改内容，供参考，感谢您的支持）。

一．电气名词Electric items二．线路（母线、回路）Lines （Bus ，circuits）三．设备Equipments四．保护、继电器Protection ，relays五．电气仪表Electric instruments六．防雷Lightning protection七．接地Grounding , earthing八．室、所Room , Substation九．电修车间设备Equipments of electric repair十．材料Material十一．图名Drawings , diagrams十二．表头Tables十三．标准图词汇Terms from standard DWG一．电气名词 Electric items交(直）流 Alternating (direct） current短路电流 Short-circuit current起始次暂态短路电流 Initial subtransient short-circuit current冲击电流 Impulse current稳态短路电流 Steady state short-circuit current临界电流 Critical current切断电流 Rupturing current熔断电流 Blow-out current故障电流 Fault current计算电流 Calculating current极限有限电流 Limit effective current过电流 Over current逆电流 Inverse current整定电流 Setting current额定电流 Rated current电流密度 Current density短路电流最大有效值 Maximum effective value of short—circuit current 高压 High—voltage ， High—tension低压 Low—voltage ， Low-tension计算电压 Calculating voltage激磁电压 Exciting voltage冲击电压 Impulse voltage临界电压 Critical voltage残留电压 Residual voltage击穿电压 Puncture voltage脉动电压 Pulsating voltage供电电压 Supply voltage电力电压 Power voltage照明电压 Lighting voltage灯丝电压 Filament voltage额定电压 Rated voltage电压损失 Voltage loss过（欠）电压 Over (under） voltage线路电压 Line voltage电压降 Voltage drop工作电压 Working voltage一次电压 Primary voltage二次电压 Secondary voltage电源 Electric source （power supply)自控电压 Power supply for process control6kV控制闪光电源 Flashing supply for 6kV control 工作电源 Working power supply （electric source）保安电源 Emergency power supply (electric source）直流稳压电源 Stabilized D。

电气术语中英文对照表电气术语中英文对照表 - 电路的基本概念及定律电源 source电压源 voltage source电流源 current source理想电压源 ideal voltage source理想电流源 ideal current source伏安特性 volt-ampere characteristic电动势 electromotive force电压 voltage电流 current电位 potential电位差 potential difference欧姆 Ohm伏特 Volt安培 Ampere瓦特 Watt焦耳 Joule电路 circuit电路元件 circuit element电阻 resistance电阻器 resistor电感 inductance电感器 inductor电容 capacitance电容器 capacitor电路模型 circuit model参考方向 reference direction参考电位 reference potential欧姆定律Ohm’s law基尔霍夫定律Kirchhoff’s law基尔霍夫电压定律Kirchhoff’s voltage law（KVL）基尔霍夫电流定律Kirchhoff’s current law（KCL）结点 node支路 branch回路 loop网孔 mesh支路电流法 branch current analysis网孔电流法 mesh current analysis结点电位法 node voltage analysis电源变换 source transformations叠加原理 superposition theorem网络 network无源二端网络 passive two-terminal network有源二端网络 active two-terminal network戴维宁定理Thevenin’s theorem诺顿定理Norton’s theorem开路（断路）open circuit短路 short circuit开路电压 open-circuit voltage短路电流 short-circuit current电气术语中英文对照表 - 交流电路直流电路 direct current circuit (dc)交流电路 alternating current circuit (ac)正弦交流电路 sinusoidal a-c circuit平均值 average value有效值 effective value均方根值root-mean-squire value (rms)瞬时值 instantaneous value电抗 reactance感抗 inductive reactance容抗 capacitive reactance法拉 Farad亨利 Henry阻抗 impedance复数阻抗 complex impedance相位 phase初相位 initial phase相位差 phase difference相位领先 phase lead相位落后 phase lag倒相，反相 phase inversion频率 frequency角频率 angular frequency赫兹 Hertz相量 phasor相量图 phasor diagram有功功率 active power无功功率 reactive power视在功率 apparent power功率因数 power factor功率因数补偿 power-factor compensation串联谐振 series resonance并联谐振 parallel resonance谐振频率 resonance frequency频率特性 frequency characteristic幅频特性amplitude-frequency response characteristic 相频特性 phase-frequency response characteristic截止频率 cutoff frequency品质因数 quality factor通频带 pass-band带宽 bandwidth (BW)滤波器 filter一阶滤波器 first-order filter二阶滤波器 second-order filter低通滤波器 low-pass filter高通滤波器 high-pass filter带通滤波器 band-pass filter带阻滤波器 band-stop filter转移函数 transfer function波特图 Bode diagram傅立叶级数 Fourier series电气术语中英文对照表 - 三相电路三相电路 three-phase circuit三相电源 three-phase source对称三相电源 symmetrical three-phase source对称三相负载 symmetrical three-phase load相电压 phase voltage相电流 phase current线电压 line voltage线电流 line current三相三线制 three-phase three-wire system三相四线制 three-phase four-wire system三相功率 three-phase power星形连接 star connection(Y-connection)三角形连接triangular connection(- connection ,delta connection)中线 neutral line电路的暂态过程分析编辑本段回目录暂态 transient state 稳态 steady state暂态过程，暂态响应 transient response换路定理 low of switch一阶电路 first-order circuit三要素法 three-factor method时间常数 time constant积分电路 integrating circuit微分电路 differentiating circuit磁路与变压器编辑本段回目录磁场magnetic field磁通 flux磁路 magnetic circuit磁感应强度 flux density磁通势 magnetomotive force磁阻 reluctance电动机编辑本段回目录直流电动机 dc motor交流电动机 ac motor异步电动机 asynchronous motor同步电动机 synchronous motor三相异步电动机 three-phase asynchronous motor单相异步电动机 single-phase asynchronous motor旋转磁场 rotating magnetic field定子 stator转子 rotor转差率 slip起动电流 starting current起动转矩 starting torque额定电压 rated voltage额定电流 rated current额定功率 rated power机械特性 mechanical characteristic电气术语中英文对照表 - 继电器-接触器控制按钮 button熔断器 fuse开关 switch行程开关 travel switch继电器 relay接触器 contactor常开(动合)触点 normally open contact常闭(动断)触点 normally closed contact时间继电器 time relay热继电器 thermal overload relay中间继电器 intermediate relay可编程控制器（PLC）可编程控制器 programmable logic controller 语句表 statement list梯形图 ladder diagram电气术语中英文对照表 - 半导体器件本征半导体intrinsic semiconductor掺杂半导体doped semiconductorP型半导体 P-type semiconductorN型半导体 N--type semiconductor自由电子 free electron空穴 hole载流子 carriersPN结 PN junction扩散 diffusion漂移 drift二极管 diode硅二极管 silicon diode锗二极管 germanium diode阳极 anode阴极 cathode发光二极管 light-emitting diode (LED)光电二极管 photodiode稳压二极管 Zener diode晶体管（三极管） transistorPNP型晶体管 PNP transistorNPN型晶体管 NPN transistor发射极 emitter集电极 collector基极 base电流放大系数 current amplification coefficient场效应管 field-effect transistor (FET)P沟道 p-channelN沟道 n-channel结型场效应管 junction FET（JFET）金属氧化物半导体 metal-oxide semiconductor (MOS)耗尽型MOS场效应管depletion mode MOSFET（D-MOSFET）增强型MOS场效应管enhancement mode MOSFET（E-MOSFET）源极 source栅极 grid漏极 drain跨导 transconductance夹断电压 pinch-off voltage热敏电阻 thermistor开路 open短路 shorted基本放大器放大器 amplifier正向偏置 forward bias反向偏置 backward bias静态工作点 quiescent point (Q-point)等效电路 equivalent circuit电压放大倍数 voltage gain总的电压放大倍数 overall voltage gain饱和 saturation截止 cut-off放大区 amplifier region饱和区 saturation region截止区 cut-off region失真 distortion饱和失真 saturation distortion截止失真 cut-off distortion零点漂移 zero drift正反馈 positive feedback负反馈 negative feedback串联负反馈 series negative feedback并联负反馈 parallel negative feedback共射极放大器 common-emitter amplifier射极跟随器 emitter-follower共源极放大器 common-source amplifier共漏极放大器 common-drain amplifier多级放大器 multistage amplifier阻容耦合放大器 resistance-capacitance coupled amplifier 直接耦合放大器 direct- coupled amplifier输入电阻 input resistance输出电阻 output resistance负载电阻 load resistance动态电阻 dynamic resistance负载电流 load current旁路电容 bypass capacitor耦合电容 coupled capacitor直流通路 direct current path交流通路 alternating current path直流分量 direct current component交流分量 alternating current component变阻器（电位器）rheostat电阻（器）resistor电阻（值）resistance电容（器）capacitor电容（量）capacitance电感（器，线圈）inductor电感（量），感应系数inductance正弦电压 sinusoidal voltage集成运算放大器及应用差动放大器 differential amplifier运算放大器 operational amplifier(op-amp)失调电压 offset voltage失调电流 offset current共模信号 common-mode signal差模信号 different-mode signal共模抑制比 common-mode rejection ratio (CMRR) 积分电路 integrator（circuit）微分电路 differentiator（circuit）有源滤波器 active filter低通滤波器 low-pass filter高通滤波器 high-pass filter带通滤波器 band-pass filter带阻滤波器 band-stop filter波特沃斯滤波器 Butterworth filter切比雪夫滤波器 Chebyshev filter贝塞尔滤波器 Bessel filter截止频率 cut-off frequency上限截止频率 upper cut-off frequency 下限截止频率 lower cut-off frequency 中心频率 center frequency带宽 Bandwidth开环增益 open-loop gain闭环增益 closed-loop gain共模增益 common-mode gain输入阻抗 input impedance电压跟随器 voltage-follower电压源 voltage source电流源 current source单位增益带宽unity-gain bandwidth频率响应 frequency response频响特性（曲线）response characteristic 波特图 the Bode plot稳定性stability补偿 compensation比较器 comparator迟滞比较器 hysteresis comparator阶跃输入电压step input voltage仪表放大器 instrumentation amplifier 隔离放大器 isolation amplifier对数放大器 log amplifier反对数放大器antilog amplifier反馈通道 feedback path反向漏电流 reverse leakage current相位phase相移 phase shift锁相环 phase-locked loop(PLL)锁相环相位监测器 PLL phase detector和频 sum frequency差频 difference frequency波形发生电路振荡器 oscillatorRC振荡器 RC oscillatorLC振荡器 LC oscillator正弦波振荡器 sinusoidal oscillator三角波发生器 triangular wave generator方波发生器square wave generator幅度 magnitude电平level饱和输出电平（电压） saturated output level电气术语中英文对照表 - 功率放大器功率放大器 power amplifier交越失真 cross-over distortion甲类功率放大器 class A power amplifier乙类推挽功率放大器class B push-pull power amplifierOTL功率放大器 output transformerless power amplifier OCL功率放大器 output capacitorless power amplifier 电气术语中英文对照表 - 直流稳压电源半波整流 full-wave rectifier全波整流 half-wave rectifier电感滤波器 inductor filter电容滤波器 capacitor filter串联型稳压电源 series (voltage) regulator开关型稳压电源 switching (voltage) regulator 集成稳压器 IC (voltage) regulator电气术语中英文对照表 - 晶闸管及可控整流电路晶闸管 thyristor单结晶体管 unijunction transistor（UJT）可控整流 controlled rectifier可控硅 silicon-controlled rectifier峰点 peak point谷点 valley point控制角 controlling angle导通角 turn-on angle电气术语中英文对照表 - 门电路与逻辑代数二进制 binary二进制数 binary number十进制 decimal十六进制 hexadecimal二-十进制 binary coded decimal （BCD）门电路 gate三态门tri-state gate与门 AND gate或门 OR gate非门 NOT gate与非门 NAND gate或非门 NOR gate异或门 exclusive-OR gate反相器 inverter布尔代数 Boolean algebra真值表 truth table卡诺图 the Karnaugh map逻辑函数 logic function逻辑表达式 logic expression电气术语中英文对照表 - 组合逻辑电路组合逻辑电路 combination logic circuit译码器 decoder编码器 coder比较器 comparator半加器 half-adder全加器 full-adder七段显示器 seven-segment display电气术语中英文对照表 - 时序逻辑电路时序逻辑电路 sequential logic circuitR-S 触发器 R-S flip-flopD触发器 D flip-flopJ-K触发器 J-K flip-flop主从型触发器 master-slave flip-flop置位 set复位 reset直接置位端direct-set terminal直接复位端direct-reset terminal寄存器 register移位寄存器 shift register双向移位寄存器bidirectional shift register 计数器 counter同步计数器 synchronous counter异步计数器asynchronous counter加法计数器 adding counter减法计数器 subtracting counter定时器 timer清除（清0）clear载入 load时钟脉冲 clock pulse触发脉冲 trigger pulse上升沿 positive edge下降沿 negative edge时序图 timing diagram波形图 waveform电气术语中英文对照表 - 脉冲波形的产生与整形稳态触发器 monostable flip-flop双稳态触发器 bistable flip-flop无稳态振荡器 astable oscillator晶体 crystal555定时器 555 timer电气术语中英文对照表 - 模拟信号与数字信号的相互转换模拟信号 analog signal数字信号 digital signalAD转换器analog -digital converter (ADC)DA转换器 digital-analog converter (DAC)电气术语中英文对照表 - 半导体存储器只读存储器 read-only memory（ROM）随机存取存储器 random-access memory（RAM）可编程ROM programmable ROM（PROM）。

电气专业术语中英对照电气专业术语中英对照LG GROUP system office room 【LGA16H-LGYY-LGUA8Q8-LGA162】一．电气名词 Electric items二．二．线路（母线、回路）Lines (Bus, circuits)三．三．设备 Equipment四．四．保护、继电器 Protection, relays五．五．电气仪表 Electric instruments六．六．防雷 Lightning protection七．七．接地 Grounding, earthing八．八．室、所 Room, Substation九．九．电修车间设备 Equipment of electric repair room十．十．材料 Material十一．十一．图名Drawings, diagrams十二．表头Tables十三．标准图词汇 Terms from standard DWG一．电气名词 Electric items交（直）流 Alternating (direct) current短路电流 Short-circuit current起始次暂态短路电流 Initial subtransient short-circuit current 冲击/脉冲电流 Impulse current稳态短路电流 Steady state short-circuit current临界电流 Critical current切断电流 Rupturing current熔断电流 Blow-out current故障电流 Fault current计算电流 Calculating current极限有限电流 Limit effective current过电流 Over current逆电流 Inverse current整定电流 Setting current额定电流 Rated current电流密度 Current density短路电流最大有效值 Maximum effective value of short-circuit current高压 High-voltage , High-tension低压 Low-voltage , Low-tension计算电压 Calculating voltage激磁电压 Exciting voltage冲击电压 Impulse voltage临界电压 Critical voltage残留电压 Residual voltage击穿电压 Puncture voltage脉动电压 Pulsating voltage供电电压 Supply voltage电力电压 Power voltage照明电压 Lighting voltage灯丝电压 Filament voltage额定电压 Rated voltage电压损失 Voltage loss过(欠)电压 Over (under) voltage 线路电压 Line voltage电压降 Voltage drop工作电压 Working voltage一次电压 Primary voltage二次电压 Secondary voltage电源 Electric source (power supply)自控电压 Power supply for process control6kV控制闪光电源 Flashing supply for 6kV control工作电源 Working power supply (electric source)保安电源 Emergency power supply (electric source)直流稳压电源 Stabilized . source控制电源 Control supply直流电源 . source交流电源 . source负荷计算 Load calculation设备容量 Installed capacity需要容量 Electric demand功率因数 Power factor安装高度 Mounting height耐电压 Withstand voltage击穿电压Breakdown voltage工频耐压 Working frequency withstandvoltage表面闪络 Surface flash-over直流泄漏 . leakage体电阻率 Volume resistivity介质损失角 Dielectric loss angle击穿强度Breakdown/Puncture intensity电压等级Voltage grade比重 Specific gravity性能Feature相序 Phase sequence瞬时Instantaneous倾角Angle of inclination跨度Span正极Positive pole负极Negative pole截面(积) Cross section area辅助电源Auxiliary source遮断容量 Interrupting capacity载流量Current-carrying capacity校正系数Correction factor连续负荷 Continuous load长期载流量 Continuous capacity长时间额定值Longtime rating 电动机堵转电流 Locked-rotor motor current限定负荷 Limited load 电感负荷Inductive load感应电流 Induced current二．线路（母线、回路）Lines (Bus , circuits) 母线 Bus-bar合闸电源母线 Closing power source bus闪光母线 Flashing-bus备用母线 Spare bus装在支柱上的插接式母线 Post-supported plug-in bus way装在吊钩上的插接式母线 Hook-supported plug-in bus way装在支架上的插接式母线 Bracket-supportedplug-in bus way小母线 Miniature bus电源小母线 Power supply miniature bus操作小母线 Operating miniature bus事故信号小母线 Miniature bus for faultsignal闪光小母线 Flashing miniature bus主母线 Main bus直流主母线 . main bus预告母线 Prewarning bus干线 Main line照明干线 Lighting main line接地干线 Grounding main line插座干线 Receptacle main line电压干线 Voltage main line端子出线 Terminal outgoing中性线 Neutral支线 Branch-line引入线 Lead-in电气线路 Electric circuit交流配电线路 . distribution circuit 直流配电线路 . distribution circuit事故照明线路Emergency lighting circuit控制线路Control circuit接地或接零线路Grounding or neutralizing circuit信号线路Signalcircuit 有接地极的接地线路网Grounding with grounding electrodes定子绕组测温回路Temperature measuring circuit for stator winding接地信号回路 Grounding signalcircuit闪光信号回路 Flashing-signal circuit 开阀回路 Circuit for opening valve关（闭）阀回路 Circuit for closing valve开度计回路Circuit for opening meter电流测量回路Current-measuring circuit 差动保护回路Differental protective circuit过流保护回路Over-current protective circuit合闸回路Closing circuit停车延时回路 Delayed shutdown circuit掉闸回路 Trip circuit激磁回路 Exciting circuit备用回路 Spare circuit主回路 Main circuit馈路Feeder circuit现有回路Existing circuit 单线回路Single-wire circuit接地回路Earthed circuit有电压的电路 Live circuit 三．红色障碍灯 Red obstruction lamp for aviation厂区道路照明灯 Street lighting in plant area路灯 Street lamp视孔灯 Inspection hole lamp立杆弯灯goose-neck post lamp , pole lamp 模拟报警信号Semigraph and alarm signal自整角机 Selsyn励磁机 Exciter显示器 Display电位器 Potentiometer内电阻 Internal resistance固定电阻（器） Fixed resistance脱扣 Release , trip分励 Shunt trip特殊失压脱扣器 Special no-voltage release“或”开关放大器“Or” switch amplifier制动器Brake电容Capacitor整流器 Rectifier镇流器 Chock分流器 Shunt油变阻器 Oilimmersed rheostat频敏电阻器 Frequency sensitive rheostat滑线变阻器 Sliding rheostat蜂鸣器 Buzzer电机加热器 Space heater (for motor)空气断路器电机操作机构Motor operating mechanism for air circuit-breaker可控硅励磁装置Silicon controlled rectifier excitation device保护装置Protective device (element)闪光装置Flashing device接闪装置（避雷器）Lightning arrester断相保护Phase failure protection四．保护、继电器 Protection , relays信号继电器 Signal relay过电流继电器 Over-current relay电压继电器 Voltage relay时间继电器 Time relay中间继电器 Auxiliary relay热继电器 Thermal relay温度继电器 Temperature relay瓦斯继电器 Gas relay控制电源中间继电器 Auxiliary relay for control supply自动操作继电器 Relay for auto-operation低电压继电器 Under-voltage relay过电压继电器 Over-voltage relay联锁继电器 Interlock relay冲击继电器 Impact relay合闸位置继电器 Close position relay逆流继电器 Reverse-current relay差流继电器 Differential current relay差动继电器 Differential relay电流继电器 Current relay功率继电器 Power relay接地继电器 Earthing relay重合闸继电器 Reclosing relay同步继电器 Synchronous relay 速动继电器 Quick acting relay 定时限继电器 Definite time relay光电继电器 Photoelectric relay电子继电器 Electronic relay电磁式继电器 Electromagnetic relay电动式继电器 Electrodynamic relay气压继电器 Gas-pressure relay继电器常开触点 Relay . contact继电器常闭触点 Relay . contact继电器保护触点（常开） Relay holdingcontact .)能自动返回的常闭按钮触点 Self-return button with . contact模拟信号触点Contact for semigraph signal强励磁接点Shock excitation contact电感线圈 Induction coil电流线圈Current coil脱扣线圈 Trip coil合闸线圈Close coil释放线圈 Releasing coil掉闸线圈Tripping coil予告信号 Prewarning signal掉闸回路断线信号 Breakage signal of trip circuit断路器事故掉闸信号Fault trip signal of breaker掉闸音响信号Tripping audible signal重瓦斯预告信号 Heavy gas prewarning signal温度预告信号Temperature prewarning signal手动、自动操作时事故信号Fault signal in manual/automatic operation保护掉闸Protective trip控制掉闸Control trip手动跳闸Manual trip变电所紧急停车Emergency shutdown at substation工艺故障 Fault in process励磁故障 Fault in excitation工作电源失电报警 No-voltage alarm of working electric source工作电源分合闸On and off of working electric source工作电源投入Throw-in of working electric source保安电源送电supply of emergency electric source运转指示Indicating of operation投入指示 Indicating of throw-in同步指示 Indicating of synchronism延时停车 Delayed shutdown电源切除 Switch off the power supply速断及过流断通 Instantaneous trip and over-currentoff/on自保持 Self-holding自锁 Self-lock联锁Interlocking绝缘监视Insulation supervision电压监视Voltage supervision联锁解除Release of interlock工作、保安电源切换Transfer of working and emergency power supply发电机与工作母线并车Synchronizationof generator to working bus重瓦斯保护 Heavy gas protection 开或闭超扭矩保护Over-torque protection during opening and closing valve电机起动顺序Sequence of motor starting铭牌框注字Name plate denotation (inscription) 五．电气仪表 Electric instruments电流表Ammeter电压表Voltmeter三相三线有功电度表Three-phase three-wire kilowatt-hour meter , kWh meter单相电度表Single-phase kilowatt-hour meter三相无功电度表 Three-phase kilovar-hour meter有功功率表 Active power meter , kilowatt meter无功功率表 Reactive power meter , kilovar meter三相瓦特表(功率表) Three-phase watt meter功率因数表 Power factor meter 频率表 Frequency meter验电流器Galvanoscope欧姆表 Ohmmeter 相位表 Phase meter转速表 Tachometer波长表 Wave-length meter 三相四线制标准电度表 3-phase 4-wirestandard watthour-meter过载电流表 Overload ammeter低功率因数瓦特表Low power-factor wattmeter 交直流两用钳型电流表./. multi-purpose tongtester兆欧表Megger , Megohmmeter万用表 Avometer微安表 Microammeter毫安表Milliammeter各种测量仪表 Various kind of measuring instruments接地电阻测量仪Earthing resistance tester真空管电压表Vacuum tubevoltmeter电动秒表Electric second-meter 六．防雷Lightning protection避雷装置Lightning protector避雷针 Lightning rod避雷带Strap type lightning protector避雷网Network of lightning protector避雷针支架Lightning rod support避雷针尖 Tip of lightning rod避雷针拉铁Brace for lightning rod避雷器Lightning arrester , surge discharger球型避雷器 Spherical arrester 管形避雷器 Tubular arrester阀形避雷器 Auto-valve arrester低压避雷器 Low voltage arrester角形避雷器 Horn arrester多隙避雷器 Multigap arrester铝避雷器 Aluminum cell arrester氧化膜避雷器 Oxide film arrester击穿保险器 Puncture lightning arrester 雷击Lightning stroke直接雷击Direct lightning stroke感应雷击Induction lightning stroke雷电日Thunderbolt days雷电或然率Lightning and thunder probability触电 Electric shock 静电感应 Electrostatic induction 七．接地Grounding, earthing接地保护Ground protection , earth protection防雷接地Grounding for lightning保护接地Protective earthing人工接地 Artificial grounding工作接地 Working grounding , working earthing重复接地 Multiple earthing屏蔽接地 Screen earthing , shielding ground中性点接地Neutral point grounded接地系统Grounding system , earthing system接地故障 Ground fault , earth fault单相接地 Single phase earthing母线接地Bus ground接地装置Grounding device , earthing device引下线Down-lead , down conductor引下线固定Clamping plate of support for fixing支架夹板 Down lead引下线固定支脚 Support for fixing down lead接地线 Ground connector 接地干线 Ground(ing) main , (bus)接地网Grounding network , earthing network接地极Earth electrode (pole)接地电阻 Earth resistance接地电路 Earth(ground) circuit连接条 Connecting strip断接卡 Connecting clamp八．室、所 Room , Substation贮藏室 Storage套间 Compartment蓄电池室 Battery room控制室 Control room配电室 Distribution room维修间 Repair room变电所 Substation高压配电室 . distribution room休息室 Rest room九．电修车间设备 Equipments of electric repair砂轮机 Emery wheel grinder台钻 Bench drilling machine交流电焊机 . welding machine移动式空气压缩机 Portable air compressor手电钻 Electric hand drill单速手摇绕线机 Single speed hand winding machine导线钳压器 Wire jointing press-clamp油压千斤顶 Hydraulic jack电吹尘器 Electric dust cleaner存放柜 Store chest高压试验变压器 . testing transformer泄漏试验变压器 Leakage testing set大电流发生器 Strong current generator油浸自冷感应调压器Oil-immersed self-cooled induction voltage regulator多量程仪用电流互感器Multi-range current transformer for measurement仪用电感互感器 Instrumental voltage transformer 单相自耦变压器 Single-phase auto-transformer三相自耦变压器 3-phase auto-transformer硅整流器 Silicon rectifier仪表试验台 Testing stand for instrument接触器，继电器试验台 Relay and contactor testing stand慢扫描示波器 Slow scanning oscillograph交流电子稳压器 . electronic voltage stabilizer携带式交流电桥 Portable . electric bridge接地电阻测量仪 Earthing resistance tester电缆故障探伤仪 Cable fault detector直流单臂电桥 . single-arm electric bridge , Wheatstone bridge 十．材料 Material绝缘包布 Insulating tape填料 Filler , packing绝缘膏 Insulating compound电缆膏 Cable compound防腐油 Anti-corrosive oil沥青漆 Bituminous varnish绝缘漆 Insulating varnish瓷漆 Enamel varnish有色金属 Non-ferrous metal黑色金属 ferrous metal白金属 White metal云母 Mica环氧树脂Epoxy resin聚氯乙烯 Polyvinyl chloride , PVC蜡 Wax滑石粉 Talc powder电胶木Bakelite 聚丙烯外壳Polyacrylic cover耐油橡胶管Oil-proof rubber tubes接地铜线 Grounding copper wire垫圈 Pad 塑料绝缘线 Plastics insulated wire橡套电缆 Rubber sheathed cable 中间接头Splice填充剂 Filling agent绝缘电线Insulated wire移动软电缆Movable flexible cable补偿导线Extension wire套管 Bushing母线槽 Busway悬索 Cable suspension 滑触线Trolley conductor镀锌煤气管 Galvanized gaspipe镀锌角钢Galvanized steel angle镀锌扁钢Galvanized steel strap钢丝绳Steel wire rope电笛Siren电磁阀Electromagnetic valve连接片 Connecting link切换片 Transfering link端子排 Terminalboard半导体二极管Semiconductor diode开度计 Opening meter 逻辑元件 Logical element接线盒 Junction box仪表槽板Instrument trunking电缆吊架Cable hanger出线套Outgoing line sleeve十一．图名 Drawings , diagrams电气图纸目录 Contents of electric drawings电力系统图Electric power system diagram照明系统图Lighting system diagram电力平面布置图Electric power layout plan照明平面布置图 Lighting layout plan单线图 One line diagram 控制箱面部布置图 Surface arrangement of control box背部接线图Back wiring (diagram)外部接线图External (outside) wiring diagram内部接线图Internal (inside) wiring diagram控制原理图Principle control diagram原理图Schematic diagram展开图Developed diagram电气标准图 Electric standard drawing电气施工图 Electric working drawing复用图 Reproducibles (drawing)电缆联系图 Cable hook-up diagram转换开关接点图Contact diagram of transfer switch箱侧视图Side view of box正视图Front view , facade 背视图 Back view剖面图 Section参考图Reference drawing 电缆敷设图 Cable laying diagram箱内框架布置图 Arrangement of frames inside the cabinet控制箱台面展开图Surface developed diagram of console出线端子示意图Schematic diagram of terminal outgoinglines端子接线图 Diagram of terminal connections电气管线表List of wire , cable and conduits设备材料表 List of equipment and materials十二．表头 Tables电力系统图Power system diagram引入线Lead in保护设备Protective device型号 Type额定值 Rating整定值 Setting主启动设备回路Circuit to starting device导线型号、芯数、截面及管径Conductor type , cores , section & diameter of conduit线长 Wire length管长Conduit length启动设备 Starting device型号规格 Type , specification保护元件Protective element计量装置 Calculating device用电设备主回路 Main circuit of electric equipment控制回路 Control circuit 控制装置Control device用电设备Electric equipment设备容量Consumer capacity生产设备Production equipment位号No. of location 名称Name备注Remarks引入线Feed in配电箱Distribution cabinet型号及编号 Type and No.开关型号 Switch type 保护装置Protective device回路编号Circuit No.相别Phase灯数Number of lamps插座数 Number of receptacles 电缆编号 No. of line起点 Starting终点Ending母线截面 Section of bus零母线Neutral bus屏编号Panel No.型号及方案号Type and variant No.控制原理图号 Principle control diagram工艺位号 Process item No.十三．标准图词汇 T erms from standard DWG电工系统图图形符号 Graphic symbols for electric system交流电的相别 . phase sequence直流电的正负极 . positive and negative poles有中性点引出线的星形连接的三相绕组Star-connected three phase windings with neutral outlet开口三角形连接的三相绕组3-phase winding with open delta connection互相连接的导线 Cross connection of wires不连接的跨越导线Crossing wires not in contact with each other可拆卸的电气连接 Removable connection电缆终端头 Pothead of cable or cable end自耦变压器 Auto-transformer感应调压器 Induction voltage regulator凸极同步电动机 Salient pole synchronous motor带接换装置的蓄电池组Accumulator battery with tap-changers空气断路器 Air circuit-breaker保持触点 Holding contact热元件 Thermal element自动复位的操作开关 Spring-return operating switch插接器 Plug-in connector电喇叭 Horn电炉 Electric furnace分流器 Shunt可控硅整流箱屏 Silicon controlled rectifier box panel直流配电屏 . distributing panel磁力起动器组Magnetic starter group自动开关箱 Automatic switch box行程开关 Limit switch局部灯Local lighting fitting荧光灯列Series fluorescent lighting fitting防护式灯开关Protective switch导线引上 Conductors turning up导线引下 Conductors turning down 导线由上引来 Conductors turning from above 导线由下引来 Conductors turning from below 电缆沟 Cable trench调压器 Voltage regulator 隔离变压器 Isolating transformer击穿保护器Puncturing safety device晶体管Transisorized diode地坪Grade level电缆与水管平行Cable running parallel to a water supply pipe电缆与热力管道交叉敷设Cable running across heat pipeline车道 Drive way 电缆穿管与管道交叉 Cable protective pipe across a pipeline双(单)侧支架电缆沟 Trench with rack on both sides (one side)室外地坪Outdoor grade跨接线Jumper金属软管Flexible metal tube过渡接头 Adapter电气工程及其自动化专业术语翻译transistor 晶体管audion 三极管capacitance 电容Diesel 柴油机AC- motors 交流电机transistor coupling 联结耦合current carrying capacity 载流能力（最大允许电流）conductivity 传导性in isolation 绝缘lead 导线leakage current 泄漏电流inductance 感应系数loops 线圈macroprocessor 微处理器multimedia show 多媒体展示medium-power distribution 中压配电motor and soft starters 电机及软起动器numerical controls 数控系统optimal 最佳的，最理想的overload relays 过载继电器overshoot 过冲peak current 峰值电流power dissipation 电力分散process automation 过程自动化process instrumentation and analytics 过程仪表及分析仪器punch 穿孔，冲压reactance 电抗recharge 再充regulated power supply 稳压电源resistance 阻抗resistor 电阻器resonate 共振self-inductance 自感应series inductance 串联感应simulation 模拟switching 配电；交流thermal cycle 热循环thickness 厚度voltage regulator 调压器warping 扭曲，变形wiring layout 线路配置图AC-drives 交流变频器asymmetrical 非对称的attenuation 衰减bridged impedance 桥接阻抗cable bridge 电缆桥架charge 电荷circuit schematic diagram 电路原理图解coefficient 系数configuration 构造constant 常量copper sheet 铜片damping 阻尼decomposition 分解decouple 分离delay circuit 延迟电路dielectric sheets 介电原片diode clamping钳位edge connector 边缘连接器electrical infrastructure 电气基础设施electrical installation 电气安装技术equations set 方程组four-layer 四层hookup 接线图human machine interface 人机界面impedance 阻抗incidence 入射incident wave 入射波incorporated 合成一体的instantaneous 瞬间的interleaved 交叉load admittance 负载导纳lumped 集中的modal 模式的modeling 建模motor management systems 电机管理系统mounting pads 安装垫片noise margins 噪音安全系数proximity effect 邻近效应radian 弧度resistive 有抵抗力的schematic 示意图services & industry solutions 服务和工业解决方案terminator 终结器undershoot 负脉冲信号；下冲。

电气的专业术语英文〔一〕电气专业术语二1. Personnel 人员职员2. Voltmeter 电压表伏特计3. Ohmmeter 欧姆计电阻表4. Megohmmeter 兆欧表5. Wattmeter 瓦特计电表功率6. Watt-hour 瓦时瓦特小时7. Ammeter 安培计电流表8. calibrate 校正9. scale 刻度量程10. rated 额定的11. interfere with 有害于...12. indicating needle仪表指针13. hazardous 危险的14. pivot 支点15. terminal 端子16. spiral 螺旋形的17. spring 弹簧18. shunt 分流,分路,并联,旁路19. rectifier 整流器20. electrodynamometer 电测力计21. strive for 争取22. vane 机器的叶,叶片23. strip 条,带,<跨接>片24. crude 不精细的,粗略的25. polarity 极性26. fuse 保险丝 ,熔丝27. rugged 坚固的28. depict 描绘 ,描写29. cartridge 盒式保险丝30. blow <保险丝>烧断31. plug fuse 插头式保险丝32. malfunction 故障33. deenergize 不给… 通电34. insulation 绝缘35. generator 发电机36. magneto 磁发电机37. humidity 湿度38. moisture 潮湿湿气39. abbreviate 缩写,缩写为40. transformer 变压器41. thumb 检查 ,查阅42. milliammeter 毫安表43. multimeter 万用表44. dynamometer 测力计,功率计45. aluminum 铝46. deteriorate 使….恶化47. eddy current 涡流48. gear 齿轮 ,传动装置49. dial 刻度盘50. semiconductor 半导体51. squirrel 鼠笼式52. diode 二极管53. thyristor 晶闸管54. transistor 电子晶体管55. triac 双向可控硅56. phase 相位<控制>57. silicon 硅58. crystal 晶体59. wafer 薄片60. anode 阳极 ,正极61. cathode 阴极62. collector 集电极]63. emitter 发射极64. schematic <电路>原理图符号65. leakage 漏电流66. rating 额定值,标称值,定额67. dissipate 散发68. breakdown 击穿69. heat sink 散热器70. self-latching 自锁71. commutation 换向72. geometry 几何结构73. squeeze 压榨,挤,挤榨74. light-dimmer 调光75. capability 容量76. studmounted 拴接式77. hockey puck 冰球78. fin 飞边79. active 有源的80. horsepower 马力81. diameter 直径82. in. <inch ,inches>英寸83. extruded 型材的84. clamp 夹住,夹紧85. compound 紧密结合86. wrench 扳手87. torque 转矩,扭矩88. enclosure 外<机>壳89. ventilation 通风,流通空气90. sealed-off 封的91. thermal 热的,热量的92. substantially 主要地,实质上地93. aptly 适当地,适宜地94. demystify 阐明95. allude 暗指,直接提到96. cease 停止,终了97. line 线电压98. ripple 脉动.99. redundant 多余的100. separately 单独励磁地101. synchronous 同步电动机102. circuitry 电路,线路103. cost-effective 花费大的104. capacitor 电容器105. dictate 确定106. trade-off 权衡,折衷107. criteria 标准,判据108. analog electronics电力电子学109. saturate 使…饱和110. active region 动态区域111. due 应得到的112. ratio 比,比率113. signify 表示114. encode 编码115. resonance 共鸣116. radiated 传播117. molecule 分子118. diaphragm 震动膜119. acoustic wave 声波120. wavy groove 起伏的沟槽121. deflection 挠度 ,挠曲122. strain gage 应变计量器123. tachometer 转速计124. thermocouple 热电偶125. oscilloscope 示波器126. analytical 解析的127. numerical 数值的128. integrate 求…的积分129. scale 改变比例130. frequency- domain 频域131. random 随机的132. audio 音频的133. operation amplifier 运算放大器134. summation 求和,加法135. sophisticated 复杂的,完善的136. mass-produce 大量生产137. subtract 减去138. inverting amplifier 反向放大器139. uninverting amplifer 同相放大器140. derive 推倒141. active filter 有源滤波器142. stabilize 使稳定143. moderate 适度的,适中的144. virtue 优点145. amplification 扩大146. capacitor 电容器147. impedance 阻抗148. bode plot 波特图149. simulate 模拟,方针150. narrowband filter 带通滤波器151. low-pass filter低通滤波器152. high-pass filter高通滤波器153. differential equation 微分方程154. prebias 预偏置155. summer 加法器156. weighted 加权的157. refinement 改进158. accommodate 适应159. envision 预见160. alphabet 字母表161. validity 正确性162. proposition 命题163. binary 二进制164. nevertheless 然而165. reveal 展现166. complement 补码167. truthtable 真值表168. algebraical 代数的169. trial and error 试错法,试凑法170. elapse 时间<流逝>171. enumerate 列举172. expire 期满,终止173. brute 僵化的174. prime 上撇号175. trigger 引起 ,触发176. inversion 反相 ,反转177. quadruple 四合一178. fabricate 制造179. integrated circuit 集成电路180. capsule 封装181. compatible 兼容的182. obsolete 废弃的183. threshold 门限,阈值184. zener diode 齐纳二极管185. adjacent 临近的,接近的186. arc welding 电弧焊187. intimately 密切地188. recast 重做189. bistable circuit 双稳电路190. cutoff 截止,关闭191. symmetry 对称192. lable 为……标号193. equilibria 平衡194. lever 杆,杠杆195. latch circuit 锁存电路196. depress 压下197. flip-flop 触发器198. glitch 同步199. leading edge 上升沿200. lagging<trailing> edge 下降沿201. inhibit 禁止202. hitherto 迄今,至今203. toggle <来回>切换204. impulse 推动力205. air gap 气隙206. aircraft 飞机207. alternating current, AC 交流208. armature 电枢209. automobile 汽车210. bearing 轴承211. brush 电刷212. carbon 碳213. circumference 圆周214. clearance 间隙215. coils 线圈绕组216. commutator 换向器217. connection 接线端218. copper bar 铜导条219. copper end rings 铜端环220. core 铁心221. cylindrical 圆柱式的222. doubly excited 双边励磁223. electromechanical 机电的224. felt 毡225. ferromagnetic 铁磁的226. field pole 磁极227. flux density 磁通密度228. frame 机座,机壳229. generator 发电机230. glue 胶合,粘贴231. graphite 石墨232. induction motor感应电动机233. laminate 叠制,叠压234. lubricant 润滑剂 ,润滑油235. magnetic flux 磁通236. magnetizing current 磁化电流,励磁电流237. mechanical rectifier 机械式换向器238. metallic 金属的239. penetrate 透过,渗透240. periphery 周围,圆周241. perpendicular 垂直的,正交的242. polarity 极性243. protrude 使伸出,突出244. reluctance 磁阻245. revolving magnetic field 旋转磁场246. rotor 转子247. salient 突出的248. salient-pole 凸极式249. servo 伺服250. singly excited 单边励磁251. slip rings 滑环252. slot 槽,开槽253. squirrel-cage 鼠笼式,笼型254. stator 定子255. synchronous machine 同步电机256. torque 转矩257. toroid 环状物258. transformer 变压器259. unidirectional 单方向的,方向不变的260. winding 绕组261. wound-rotor 绕线式262. wrap 捆,缠,环绕263. yoke 轭264. allowable temperature rise 允许温升265. alnico 铝镍钴合金266. asynchronous machine 异步电机267. automobile starter motor 汽车启动机268. backlash 啮合间隙,齿隙269. centrifugal force 离心力270. ceramic 陶瓷的271. compound-wound 复励272. constraint 强制,约束273. counter emf 反电势274. counterpart 对应物275. culminate 达到极值点276. cumulative compound 积复励277. demagnetization退磁,去磁278. denominator 分母279. differential compound 差复励280. dissipate 浪费281. equilibrium level 平均值282. equivalent circuit 等效电路283. figure of merit品质因数,优值284. flicker 闪烁,摇曳285. flux per pole 每极磁通286. friction 摩擦287. in parallel with 并联288. in series with 串联289. in terms of 根据,在……方面290. in the vicinity of 在…附近,在…左右291. indispensable 必需的,必不可少的292. inherent 固有的293. insulation 绝缘294. long-shunt 长复励295. loss 损耗296. magnetization curve 磁化曲线297. merit 优点,长处,指标298. no load 空载299. nonetheless,none the less 仍然,依然300. numerator 分子301. overload 过载302. permissible 允许的303. permanent-magnet永磁304. pertinent 有关的305. power flow diagram 功率流程图306. prefix 前缀,把…放在前面307. rated torque 额定转矩308. reaction 电感309. rheostat 变阻器,电阻箱310. series-wound 串励311. shunt-wound 并励312. short-shunt 短复励313. starting current 启动电流314. starting torque 启动转矩315. synchronous speed 同步转速316. theorem 定理317. turns 匝数318. undervoltage 欠电压319. Ward-Leonard system 发电机-电动机组系统320. windage 通风321. yield 产生,提供322. adjacent 相邻的,邻近的323. autotransformer自耦变压器324. braking 制动325. cam 凸轮326. chamber 室,腔327. conveyor 传送机328. corrosion 腐蚀329. counterclockwise 逆时针330. counter electromotive force ,CEMF反电势331. dashpot relay 油壶式继电器332. diaphragm 膜片,挡板333. drill 钻床334. elapse 过去,消逝335. enclosure 机壳336. expel 排出,放出337. fasten 固定,连接338. furnace 炉339. fuse 熔断器,保险丝340. general-purpose relay通用继电器341. hydraulic 液压传动342. initiate 引起,促进343. intake 吸入344. knob 旋钮 ,圆形把手345. latching relay 自锁继电器346. lathe 车床347. limit switch 限位开关348. moisture 潮气,湿度349. mount 安装350. octal-base 八脚的351. orifice 孔,注孔352. pedal 踏板,踏蹬353. phase sequence 相序354. piston 活塞355. pivot 轴,支点,旋转中心356. plunger 可动铁心,插棒式铁心357. pneumatic 气动的358. relay 继电器359. single-phase 单相的360. solenoids 螺线管361. solid-state relay 固态继电器362. spring 弹簧363. tap 抽头364. three-phase 三相365. timing relay 延时继电器366. toggle 搬扭,刀闸367. vibration 振动368. absolute encoder 绝对编码器369. accelerometer 加速度测量仪370. actuator 执行机构371. analog-to-digital conversion, ADC 模数转换器372. angular 角的373. auxiliary 辅助的374. as a rule of thumb 根据经验375. bellows 膜盒376. binary-coded decimal,BCD377. calibration 校准,标定,刻度378. cantilever 悬臂379. closed-loop 闭环■380. induction machine 感应式电机381. horseshoe magnet 马蹄形磁铁382. magnetic field 磁场383. eddy current 涡流384. right-hand rule 右手定则385. left-hand rule 左手定则386. slip 转差率387. induction motor 感应电动机388. rotating magnetic field 旋转磁场389. winding 绕组390. stator 定子391. rotor 转子392. induced current 感生电流393. time-phase 时间相位394. exciting voltage 励磁电压395. solt 槽396. lamination 叠片397. laminated core 叠片铁芯398. short-circuiting ring 短路环399. squirrel cage 鼠笼400. rotor core 转子铁芯401. cast-aluminum rotor铸铝转子402. bronze 青铜403. horsepower 马力404. random-wound 散绕405. insulation 绝缘406. ac motor 交流环电动机407. end ring 端环408. alloy 合金409. coil winding 线圈绕组410. form-wound 模绕411. performance characteristic 工作特性412. frequency 频率413. revolutions per minute 转/分414. motoring 电动机驱动415. generating 发电416. per-unit value 标么值417. breakdown torque 极限转矩418. breakaway force 起步阻力419. overhauling 检修420. wind-driven generator 风动发电机421. revolutions per second 转/秒422. number of poles 极数423. speed-torque curve 转速力矩特性曲线424. plugging 反向制动425. synchronous speed 同步转速426. percentage 百分数427. locked-rotor torque 锁定转子转矩428. full-load torque 满载转矩429. prime mover 原动机430. inrush current 涌流431. magnetizing reacance 磁化电抗432. line-to-neutral 线与中性点间的433. staor winding 定子绕组434. leakage reactance 漏磁电抗435. no-load 空载436. full load 满载437. Polyphase 多相<的>438. iron-loss 铁损439. complex impedance 复数阻抗440. rotor resistance 转子电阻441. leakage flux 漏磁通442. locked-rotor 锁定转子443. chopper circuit 斩波电路444. separately excited 他励的445. compounded 复励446. dc motor 直流电动机447. de machine 直流电机448. speed regulation 速度调节449. shunt 并励450. series 串励451. armature circuit 电枢电路452. optical fiber 光纤453. interoffice 局间的454. waveguide 波导波导管455. bandwidth 带宽456. light emitting diode 发光二极管457. silica 硅石二氧化硅458. regeneration 再生, 后反馈放大459. coaxial 共轴的,同轴的460. high-performance 高性能的461. carrier 载波462. mature 成熟的463. Single Side Band<SSB> 单边带464. coupling capacitor 结合电容465. propagate 传导传播466. modulator 调制器467. demodulator 解调器468. line trap 限波器469. shunt 分路器470. Amplitude Modulation<AM调幅471. Frequency Shift Keying<FSK>移频键控472. tuner 调谐器473. attenuate 衰减474. incident 入射的475. two-way configuration 二线制476. generator voltage 发电机电压477. dc generator 直流发电机478. polyphase rectifier 多相整流器479. boost 增压480. time constant 时间常数481. forward transfer function 正向传递函数482. error signal 误差信号483. regulator 调节器484. stabilizing transformer稳定变压器485. time delay 延时486. direct axis transient time constant直轴瞬变时间常数487. time invariant 时不变的488. transient response 瞬态响应489. solid state 固体490. buck 补偿491. operational calculus 算符演算492. gain 增益493. pole 极点494. feedback signal 反馈信号495. dynamic response 动态响应496. voltage control system 电压控制系统497. mismatch 失配498. error detector 误差检测器499. excitation system 励磁系统500. field current 励磁电流501. transistor 晶体管502. high-gain 高增益503. boost-buck 升压去磁504. feedback system 反馈系统505. reactive power 无功功率506. feedback loop 反馈回路507. automatic Voltage regulator<AVR>自动电压调整器508. third harmonic voltage 三次谐波电压509. reference Voltage 基准电压510. magnetic amplifier 磁放大器511. amplidyne 微场扩流发电机512. self-exciting 自励的513. limiter 限幅器514. manual control 手动控制515. block diagram 方框图516. linear zone 线性区517. potential transformer 电压互感器518. stabilization network 稳定网络519. stabilizer 稳定器520. air-gap flux 气隙磁通521. saturation effect 饱和效应522. saturation curve 饱和曲线523. flux linkage 磁链524. per unit value 标么值525. shunt field 并励磁场526. magnetic circuit 磁路527. load-saturation curve 负载饱和曲线528. air-gap line 气隙磁化线529. polyphase rectifier 多相整流器530. circuit components 电路元件531. circuit parameters 电路参数532. electrical device 电气设备533. electric energy 电能534. primary cell 原生电池535. energy converter 电能转换器536. conductor 导体537. heating appliance 电热器538. direct-current 直流539. self-inductor 自感540. mutual-inductor 互感541. the dielectric 电介质542. storage battery 蓄电池543. e.m.f = electromotive fore电动势544. unidirectional current 单方向性电流545. circuit diagram 电路图546. load characteristic 负载特性547. terminal voltage 端电压548. external characteristic外特性549. conductance 电导550. volt-ampere characteristics伏安特性551. carbon-filament lamp 碳丝灯泡552. ideal source 理想电源553. internal resistance 内阻554. active <passive> circuit elements有<无>源电路元件555. deviation 偏差556. leakage current 漏电流557. circuit branch 支路558. P.D. = potential drop 电压降559. potential distribution 电位分布560. r.m.s values = root mean square values均方根值561. permanent magnet 永磁体562. effective values 有效值563. steady direct current 恒稳直流电564. sinusoidal time function 正弦时间函数565. complex number 复数566. Cartesian coordinates 笛卡儿坐标系567. modulus 模568. real part 实部569. imaginary part 虚部570. displacement current 位移电流571. trigonometric transformations 瞬时值572. epoch angle 初相角573. phase displacement 相位差574. signal amplifier 小信号放大器575. mid-frequency band 中频带576. bipolar junction transistor<BJT双极性晶体管577. field effect transistor<FET>场效应管578. electrode 电极电焊条579. polarity 极性580. gain 增益581. isolation 隔离分离绝缘隔振582. emitter 发射管放射器发射极583. collector 集电极584. base 基极585. self-bias resistor 自偏置电阻586. triangular symbol 三角符号587. phase reversal 反相588. infinite voltage gain 无穷大电压增益589. feedback component 反馈元件590. differentiation 微分591. integration 积分下限592. impedance 阻抗593. fidelity 保真度594. summing circuit总和线路反馈系统中的比较环节595. pneumatic 气动的596. Oscillation 振荡597. inverse 倒数598. admittance 导纳599. transformer 变压器600. turns ratio 变比匝比601. ampere-turns 安匝<数>602. mutual flux 交互<主>磁通603. vector equation 向<相>量方程604. power frequency 工频605. capacitance effect 电容效应606. induction machine 感应电机607. shunt excited 并励608. series excited 串励609. separately excited 他励610. self excited 自励611. field winding 磁场绕组励磁绕组612. speed-torque characteristic 速度转矩特性613. dynamic-state operation动态运行614. salient poles 凸极615. excited by 励磁616. field coils 励磁线圈617. air-gap flux distribution 气隙磁通分布618. direct axis 直轴619. armature coil 电枢线圈620. rotating commutator 旋转<整流子>换向器621. commutator-brush combination换向器-电刷总线622. mechanical rectifier 机械式整流器623. armature m.m.f. wave 电枢磁势波624. Geometrical position 几何位置625. magnetic torque 电磁转矩626. spatial waveform 空间波形627. sinusoidal–density wave正弦磁密度628. external armature circuit 电枢外电路629. instantaneous electric power瞬时电功率630. instantaneous mechanical power 瞬时机械功率631. effects of saturation 饱和效应632. reluctance 磁阻633. power amplifier 功率放大器634. compound generator 复励发电机635. rheostat 变阻器636. self – excitation process 自励过程637. commutation condition 换向状况638. cumulatively compounded motor 积复励电动机639. operating condition 运行状态640. equivalent T – circuit T型等值电路641. rotor <stator> winding 转子<定子绕组> 642. winding loss 绕组<铜>损耗643. prime motor 原动机644. active component 有功分量645. reactive component 无功分量646. electromagnetic torque 电磁转矩647. retarding torque 制动转矩648. inductive component 感性<无功>分量649. abscissa axis 横坐标650. induction generator 感应发电机651. synchronous generator 同步发电机652. automatic station 无人值守电站653. hydropower station 水电站654. process of self – excitation 自励过程655. auxiliary motor 辅助电动机656. technical specifications 技术条件657. voltage across the terminals 端电压658. steady – state condition瞬态暂态659. reactive in respect to 相对….呈感性660. active in respect to 相对….呈阻性661. synchronous condenser 同步进相<调相>机662. coincide in phase with 与….同相663. synchronous reactance 同步电抗664. algebraic 代数的665. algorithmic 算法的666. biphase 双相的667. bilateral circuit 双向电路668. bimotored 双马达的669. corridor 通路670. shunt displacement current 旁路位移电流671. leakage 泄漏672. lightning shielding 避雷673. harmonic 谐波的674. insulator string 绝缘子串675. neutral 中性的676. zero sequence current 零序电流677. sinusoidal 正弦的678. square 平方679. corona 电晕,放电680. bypass 旁路681. voltmeter 电压表682. ammeter 电流表683. micrometer 千分尺684. thermometer 温度计685. watt-hour meter 电度表686. wattmeter 电力表687. private line 专用线路688. diameter 直径689. centimeter 厘米690. restriking 电弧再触发691. magnitude 振幅692. oscillation 振荡693. auxiliary 辅助的694. protective gap 保护性间隙放电695. receptacle 插座696. lightning arrester 避雷装置697. bushing 套管698. trigger 起动装置699. stress 应力700. deterioration 损坏,磨损701. spark gap 火花放电隙702. traveling-wave 行波703. wye-connected 星形连接704. enclosure 设备外壳705. live conductor 带电导体706. fuse 熔断器707. structural 结构上的708. out-of-step 不同步的709. resynchronize 再同步710. synchroscops 同步指示器711. automatic oscillograph 自动示波器712. nominally 标称713. sampling 采样714. potential transformer 电压互感器715. fraction 分数716. switchyard 户外配电装置717. hazard 危险718. bushing 高压套719. contact 触点720. energize 励磁721. trip coil 跳闸线圈722. over-current relay 过电流继电器723. armature 衔铁724. pickup current 始动电流725. release current 释放电流726. solenoid relay 螺管式继电器727. induction-disc relay 感应圆盘式继电器728. inverse time relay 反时限继电器729. hydraulic 液力的730. dashpot 阻尼器733. electrical stressing 电气应力734. mechanical stressing 机械应力■735. crystal 晶体的,水晶,晶体736. demodulation 解调737. derivative 导数738. diaphragm 膜片739. differentiation 微分740. discrete 离散的741. displacement 位移742. eddy 涡流743. encoder 编码器744. error 误差,偏差745. expedite 加速746. feedback 反馈747. feedforward 前馈748. forging 锻造749. hysteresis 磁滞750. immunity 抗扰性751. impedance 阻抗752. increment encoder 增量编码器753. inertia 惯性754. integration 积分755. interface 接口756. jerk 振动,冲击757. kinematic 运动的,运动学的758. longitudinal 经度了;纵向的759. manipulations 操作,控制,处理760. manipulator 机械手,操作器761. measurand 被测量,被测量对象762. modulation 调制763. multiplexer 多路转换器764. offset 偏心765. open-loop 开环766. orthogonal 垂直的,正交的767. perpendicular 垂直的,正交的768. photosensor 光电传感器769. piezoelectric 压电的770. plant 装置,设备771. potentiometer 电位器772. predominant 主要的,突出的773. prismatic 棱型的774. proximity 距离775. quantization 量化776. radial 径向的777. redundant 多余的,重复的778. representation 代表,表示779. resolver 解算器780. resonance 共振781. revolute 旋转的,转动的782. rig 设备783. robustness 鲁棒性784. rolling 轧制785. sampling period 采样周期786. signal-to-noise ration ,SNR信噪比787. strategy 策略788. subsequently 其后789. tachometer 测速仪790. terminology 术语,专门名词791. threshold 门,界限,阈值792. trajectory 轨迹793. transducer 传感器794. transient 瞬态的795. transistor-to-transistor logic,TTL 晶体管-晶体管逻辑796. transit 运输797. translatory 平移的798. algorithm 算法799. ambiguity 模棱两可800. antenna 天线801. arbitration 仲裁,公断802. autonomous 匿名的803. capacity 容量804. chao 混乱805. checksum 检查和806. circumnavigate 饶过807. client-server 客户-服务器808. client-server model 客户服务器模型809. corridor 通道,走廊810. decouple 解耦,去除干扰811. depict 描述812. distributed system 分布式系统813. dungen 地牢814. electronic mail 电子815. entity 实体816. etiquette 规则817. exponential 指数818. fallout 余波,附带结果819. forward 转发820. full-duplex 全双工821. gamut 全体,整体822. goggles 护目镜,潜水镜823. half-duplex 半双工824. hierarchy 阶梯,等级825. host 主机826. infrastructure 基础,底层结构827. interactive 交互式828. interface data unit 接口数据单元829. inventory 存货,清单830. killer 迷人的831. newsgroup 新闻组832. object-oriented 面向对象的833. outgoing 外出了,离开的834. pointer 指针835. primitive 操作,原型836. process 进程837. propagation 传播,宣传838. protocol 协议839. protocol data unit 协议数据单元840. remote database 远程数据库841. remote login 远程登陆842. remote terminal 终端843. reprisal 报复844. router 路由器845. service data unit 服务数据单元846. simultaneous 同时的847. static allocation 静态分配848. subnet 子网849. taxonomy 分类学,分类850. telemedicine 远程医疗851. terminology 术语852. testbed 测试平台853. therapy 治疗854. token 令牌855. topology 拓扑学856. videoconference 可视会议857. virtual reality 虚拟现实858. worldwide shared 全球共享的859. wide area network 广域网860. actuator 执行器861. bar code reader 条码阅读器862. by-product 副产品863. call for 需要864. contiguous 邻近的865. culprit 犯罪者866. elusive 难以捉摸的867. filter 滤波器868. fluctuation 升降剥动,不规则的变化869. hardwired 硬接线的870. havoc 大破坏871. high-volume 大容量872. induction coupling 感应耦合873. inference 干扰874. injection molding 注模875. instruction set 指令集876. interconnection 相互连接877. isolation transformer 隔离变压器878. maintenance 维护879. multiple axis drive 多轴驱动880. pilot light 信号灯881. RF noise 射频干扰882. shock 冲击883. solenoid 线圈884. stand-alone 独立的885. stepper 步进电机886. thermocouple 热电偶887. troubleshoot 排除故障888. uninterruptible power supply 不间断电源889. vendor 生产厂商890. vibration 震动891. water-tight 防水892. wreak 发泄,报复893. configuration 组态894. Cyclic Redundancy Check 循环冗余检查895. electromagnetic interference 电磁干扰896. meticulous 详细的897. nonvolatile 非挥发的898. parity 校验899. peripheral 外设900. pharmaceutical 药剂,药品901. rack mounting 机架安装902. resident program 驻留程序903. spare 备用的904. standby 后备的905. volatile 挥发的,易失的906. watchdog timer 看门狗定时器907. distribution 分配,配电908. primary 最初的,基本的,初级线圈909. radial 径向的,辐射状的910. premise 上述各点,前言,根据911. residential 住宅的,居住的912. residence 住宅913. occupancy 占有,占用,居住914. tap 抽头915. establishment 组织,部门916. dwelling 住房917. panel 操纵台,面板918. laundry 洗衣房919. means 手段,工具920. condominium <国际>共官921. branch circuit 直路922. conduit 导线,导线管923. rigid 刚性的,坚固的924. clamp 夹,钳925. bolt 螺栓926. cubicle 立方体927. interrupter 断续<流、电、路>器928. margin 余量,裕度929. nuisance 障碍,公害930. receptacle 插座,插孔931. algebraic 代数的932. virtually 实际上,实质上933. fluorescent 荧光的,有荧光性的934. fixture 设备,装置]935. vicinity 附近,邻近,接近936. ballast 镇流器937. feeder 馈电线,电源线,馈电板938. ground-fault protector <GFP>939. ground-fault circuit interrupter<GFCI> 接地故障保护器,接地故障断路器940. centrifugal 离心的,离心力941. whilst=while942. sphere 球体943. counteract 抵抗,抵消,消除944. joint 关节,铰链945. keyway 键槽946. pivot 轴,支点947. link 连杆948. throttle 节流阀,风门949. synthesis 综合物950. mass 物质,块,堆951. classic 古典的,经典的,传统的952. steer 驾驶,操纵,引导953. servomechanism 伺服机构,伺服系统954. actuate 激励,驱动955. intimately 紧密地,直接的956. academic 纯理论的957. dial 刻度盘,调节控制盘958. calibration 标定,标准化959. lubrication 润滑,注油960. arrangement 结构961. wear 磨损,损耗962. subtle 微妙的,巧妙的963. transducer 变送器964. hand-wheel 手轮,驾驶盘,操纵盘965. hydraulic 液压的,液压传动装置966. pneumatic 气动的,气动力学的967. electro-hydraulic 电动液压的968. electro-pneumatic 电动气动的969. coincidence 一致,相等970. faithful 正确的,可靠的971. fidelity 重现精度,真实,正确972. oscillatory 振动的,摆动的973. align 调整,校准974. profile 轮廓,仿行975. milling machine 铣床976. gyroscope 陀螺仪977. launcher 发生器,启动装置978. inertial 惯性的,惯量的979. electrolytic 电解的980. plate <电>镀981. distillation 蒸馏982. blend 混合,调和,配料983. philosophy 基本原理984. analytical 分析的,分解的985. orifice 侧流板,隔板986. diaphragm 膜,隔板987. knob 钮,圆形把手988. nomenclature 术语989. liable 有责任的990. autonomic 自治的991. grossly 大概,大体上的992. ideological 思想的993. morally 道德上,道义上994. boredom 讨厌,无趣995. deterioration 变化,降低品质996. ambient 环境的997. remarks 附注,要点998. differential pressure transducer差压变送器999. viscous 粘稠的1000.viscous friction 粘滞摩擦.1001.bearing 轴承1002.rolling mill 轧钢机1003.mine minder 矿坑卷扬机1004.velodyne 伺服积分器1005.feasible 可行的1006.regenerative braking 回馈制动1007.eddy current braking 涡流制动1008.dynamic braking 能耗制动1009.reverse braking 反接制动1010.advent 出现1011.prolong 延长1012.armature 电枢1013.contactor 接触器1014.hoist 起重机1015.field winding 励磁绕组1016 mutator 换向器1017.riiple 纹动1018.creep 蠕动1019.tachogenerator 测速发电机1020.quadrant 象限1021.coast 跟踪惯性1022.profile 轮廓1023.conveyance 运输工具1024.lever 手柄,控制杆1025.forced commutation 强迫换流1026.ac squirrel cage induction motor交流笼型感应电动机1027.accutrol 控制器1028.stator 定子1029.rotor 转子1030.DC link 直流环节1031.Triac 双向晶闸管1032.Adjustable-voltage inverter 电压型逆变器1033.Current source inverter 电流型逆变器1034.refinement 明确表达1035.pros and cons 优缺点1036.cogging 齿槽效应.1037.retrofit 改型1038.damper 减速器1039.pitfall 缺陷1040.vernier 游标尺1041.jog 啮合1042.runout table 输出轨道1043.clinker-cooler 熟料冷却器1044.kiln 炉1045.grinder 磨床1046.pitch 齿轮1047.inventory 存货1048.cone pulley 塔轮,快慢轮1049.escalation 升级,提高1050.forced-draft 强制通风1051.induced-draft fan 吸风机1052.elbow 弯头11. interfere with 有害于...12. indicating needle仪表指针13. hazardous 危险的14. pivot 支点15. terminal 端子16. spiral 螺旋形的17. spring 弹簧18. shunt 分流,分路,并联,旁路19. rectifier 整流器20. electrodynamometer 电测力计21. strive for 争取22. vane 机器的叶,叶片23. strip 条,带,<跨接>片24. crude 不精细的,粗略的25. polarity 极性26. fuse 保险丝 ,熔丝27. rugged 坚固的28. depict 描绘 ,描写29. cartridge 盒式保险丝30. blow <保险丝>烧断31. plug fuse 插头式保险丝32. malfunction 故障33. deenergize 不给… 通电34. insulation 绝缘35. generator 发电机36. magneto 磁发电机37. humidity 湿度38. moisture 潮湿湿气39. abbreviate 缩写,缩写为40. transformer 变压器41. thumb 检查 ,查阅42. milliammeter 毫安表43. multimeter 万用表44. dynamometer 测力计,功率计45. aluminum 铝46. deteriorate 使….恶化47. eddy current 涡流48. gear 齿轮 ,传动装置49. dial 刻度盘50. semiconductor 半导体51. squirrel 鼠笼式52. diode 二极管53. thyristor 晶闸管54. transistor 电子晶体管55. triac 双向可控硅56. phase 相位<控制>57. silicon 硅58. crystal 晶体59. wafer 薄片60. anode 阳极 ,正极61. cathode 阴极62. collector 集电极]63. emitter 发射极64. schematic <电路>原理图符号65. leakage 漏电流66. rating 额定值,标称值,定额67. dissipate 散发68. breakdown 击穿69. heat sink 散热器70. self-latching 自锁71. commutation 换向72. geometry 几何结构73. squeeze 压榨,挤,挤榨74. light-dimmer 调光75. capability 容量76. studmounted 拴接式77. hockey puck 冰球78. fin 飞边79. active 有源的80. horsepower 马力81. diameter 直径82. in. <inch ,inches>英寸83. extruded 型材的84. clamp 夹住,夹紧。

一．电气名词 Electric items二．线路（母线、回路）Lines (Bus , circuits) 三．设备 Equipments四．保护、继电器 Protection , relays五．电气仪表 Electric instruments六．防雷 Lightning protection七．接地 Grounding , earthing八．室、所 Room , Substation九．电修车间设备 Equipments of electric repair 十．材料 Material十一．图名 Drawings , diagrams十二．表头 Tables十三．标准图词汇 Terms from standard DWG 一．电气名词 Electric items交（直）流 Alternating (direct) current短路电流 Short-circuit current起始次暂态短路电流 Initial subtransient short-circuit current冲击电流 Impulse current稳态短路电流 Steady state short-circuit current临界电流 Critical current切断电流 Rupturing current熔断电流 Blow-out current故障电流 Fault current计算电流 Calculating current极限有限电流 Limit effective current过电流 Over current逆电流 Inverse current整定电流 Setting current额定电流 Rated current电流密度 Current density短路电流最大有效值 Maximum effective value of short-circuit current 高压 High-voltage , High-tension低压 Low-voltage , Low-tension计算电压 Calculating voltage激磁电压 Exciting voltage冲击电压 Impulse voltage临界电压 Critical voltage残留电压 Residual voltage击穿电压 Puncture voltage脉动电压 Pulsating voltage供电电压 Supply voltage电力电压 Power voltage照明电压 Lighting voltage灯丝电压 Filament voltage额定电压 Rated voltage电压损失 Voltage loss过(欠)电压 Over (under) voltage线路电压 Line voltage电压降 Voltage drop工作电压 Working voltage一次电压 Primary voltage二次电压 Secondary voltage电源 Electric source (power supply)自控电压 Power supply for process control6kV控制闪光电源 Flashing supply for 6kV control 工作电源 Working power supply (electric source) 保安电源 Emergency power supply (electric source) 直流稳压电源 Stabilized D.C. source控制电源 Control supply直流电源 D.C. source交流电源 A.C. source负荷计算 Load calculation设备容量 Installed capacity需要容量 Electric demand功率因数 Power factor安装高度 Mounting height耐电压 Breakdown voltage工频耐压 High-voltage test with working frequency 表面闪络 Surface flash-over直流泄漏 D.C. leakage体电阻率 Volume resistivity介质损失角 Dielectric loss angle击穿强度 Puncture intensity电压等级 Voltage grade比重 Specific gravity性能 Feature相序 Phase sequence瞬时 Instantaneous倾角 Angle of inclination跨度 Span正极 Positive pole负极 Negative pole截面(积) Cross section area辅助电源 Auxiliary source遮断容量 Interrupting capacity载流量 Current-carrying capacity校正系数 Correction factor连续负荷 Continuous load长期载流量 Continuous capacity长时间额定值 Longtime rating电动机堵转电流 Locked-rotor motor current限定负荷 Limited load电感负荷 Inductive load感应电流 Induced current二．线路（母线、回路）Lines (Bus , circuits)母线 Bus-bar合闸电源母线 Closing power source bus闪光母线 Flashing-bus备用母线 Spare bus装在支柱上的插接式母线 Post-supported plug-in bus way装在吊钩上的插接式母线 Hook-supported plug-in bus way装在支架上的插接式母线 Bracket-supported plug-in bus way 小母线 Miniature bus电源小母线 Power supply miniature bus操作小母线 Operating miniature bus事故信号小母线 Miniature bus for fault signal闪光小母线 Flashing miniature bus主母线 Main bus直流主母线 D.C. main bus预告母线 Prewarning bus干线 Main line照明干线 Lighting main line接地干线 Grounding main line插座干线 Receptacle main line电压干线 Voltage main line端子出线 Terminal outgoing中性线 Neutral支线 Branch-line引入线 Lead-in电气线路 Electric circuit交流配电线路 A.C. distribution circuit直流配电线路 D.C. distribution circuit事故照明线路 Emergency lighting circuit控制线路 Control circuit接地或接零线路 Grounding or neutralizing circuit信号线路 Signal circuit有接地极的接地线路网 Grounding with grounding electrodes定子绕组测温回路 Temperature measuring circuit for stator winding 接地信号回路 Grounding signal circuit闪光信号回路 Flashing-signal circuit开阀回路 Circuit for opening valve关（闭）阀回路 Circuit for closing valve开度计回路 Circuit for opening meter电流测量回路 Current-measuring circuit差动保护回路 Differental protective circuit过流保护回路 Over-current protective circuit合闸回路 Closing circuit。
