AgAgCl Sure-Flow pH电极操作手册_A

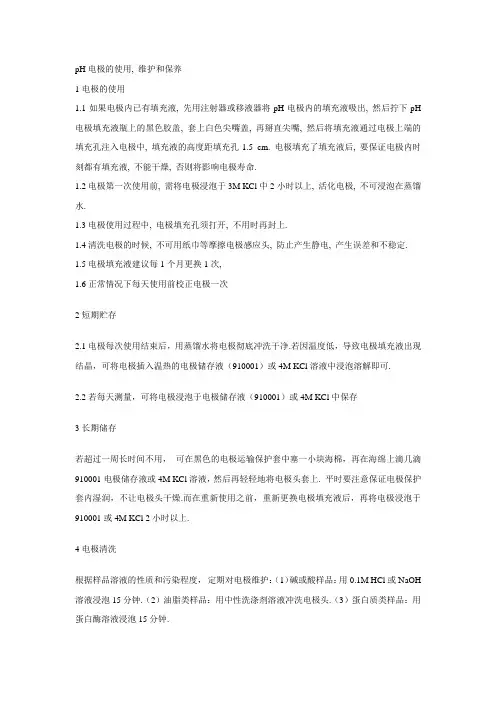

pH电极的使用, 维护和保养1电极的使用1.1如果电极内已有填充液, 先用注射器或移液器将pH电极内的填充液吸出, 然后拧下pH 电极填充液瓶上的黑色胶盖, 套上白色尖嘴盖, 再掰直尖嘴, 然后将填充液通过电极上端的填充孔注入电极中, 填充液的高度距填充孔1.5 cm. 电极填充了填充液后, 要保证电极内时刻都有填充液, 不能干燥, 否则将影响电极寿命.1.2电极第一次使用前, 需将电极浸泡于3M KCl中2小时以上, 活化电极, 不可浸泡在蒸馏水.1.3电极使用过程中, 电极填充孔须打开, 不用时再封上.1.4清洗电极的时候, 不可用纸巾等摩擦电极感应头, 防止产生静电, 产生误差和不稳定. 1.5电极填充液建议每1个月更换1次,1.6正常情况下每天使用前校正电极一次2短期贮存2.1电极每次使用结束后，用蒸馏水将电极彻底冲洗干净.若因温度低，导致电极填充液出现结晶，可将电极插入温热的电极储存液（910001）或4M KCl溶液中浸泡溶解即可.2.2若每天测量，可将电极浸泡于电极储存液（910001）或4M KCl中保存3长期储存若超过一周长时间不用，可在黑色的电极运输保护套中塞一小块海棉，再在海绵上滴几滴910001电极储存液或4M KCl溶液，然后再轻轻地将电极头套上. 平时要注意保证电极保护套内湿润，不让电极头干燥.而在重新使用之前，重新更换电极填充液后，再将电极浸泡于910001或4M KCl 2小时以上.4电极清洗根据样品溶液的性质和污染程度，定期对电极维护：（1）碱或酸样品：用0.1M HCl或NaOH 溶液浸泡15分钟.（2）油脂类样品：用中性洗涤剂溶液冲洗电极头.（3）蛋白质类样品：用蛋白酶溶液浸泡15分钟.注意：电极维护处理完毕后，视情况用冷或热的蒸馏水冲洗电极，再更换新的电极填充液后，浸泡于910001或4M KCl 2小时以上再使用.5电极性能失效判断：（1）电极不能正常自动或人工标定（2）测量标准缓冲液偏差大（前提条件：标准缓冲液PH值须准确）（3）测量缓冲液时数据不稳定（前提条件：测量环境无电磁场干扰）.（4）若电极用标准缓冲液自动或人工校正正常：电极斜率在92%-102%之间；测量缓冲液pH数值稳定；回测缓冲液pH数值重复性好.就表明电极性能正常，测量原因可能是样品或需要选购专业的pH电极。

常用PH计酸度计电极的使用方法及注意事项PH计是一种用来测量溶液酸碱性的仪器，它通过测量溶液中氢离子浓度的负对数来确定溶液的PH值。

在使用PH计的过程中需要注意以下几点：步骤一：校准PH计校准PH计是使用PH4和PH7标准缓冲溶液进行的。

首先，将PH计的电极用蒸馏水冲洗干净，然后依次将PH4和PH7标准缓冲溶液置于两个不同的容器中。

将PH计的电极插入PH4标准缓冲溶液中并等待稳定显示PH 值。

然后，将PH计的电极插入PH7标准缓冲溶液中并等待稳定显示PH值。

调节校准旋钮，使仪器的显示值与标准缓冲液的PH值一致。

步骤二：准备样品溶液将待测溶液倒入一个干净的容器中。

如果样品溶液中有悬浮物或杂质，需要先进行过滤处理。

步骤三：测量PH值将PH计的电极插入样品溶液中，搅拌一会以达到均匀混合，等待PH计显示出稳定的PH值。

记录下测量结果，并进行必要的数据处理和分析。

注意事项：-在使用之前，要确保PH计的电极是干净、干燥和无损坏的。

电极上的灵敏膜是易碎的，所以要小心操作，避免接触尖锐物体或长时间浸泡在溶液中。

-在测量过程中，应保持电极稳定，避免电极与容器壁或其他金属接触。

-测量前，还要注意将PH计的电极彻底清洗干净，以避免前一次测量的残留物对测量结果的影响。

-在校准PH计时，应注意选择与样品溶液相近的标准缓冲液进行校准，以提高测量结果的准确性。

酸度计是一种用来测量溶液酸度的仪器，它通过测量溶液中酸性物质的浓度来确定酸度。

在使用酸度计的过程中需要注意以下几点：步骤一：校准酸度计校准酸度计是使用标准酸溶液进行的。

首先，将酸度计的电极用蒸馏水冲洗干净，然后将标准酸溶液置于容器中。

将酸度计的电极插入标准酸溶液中并等待显示稳定的酸度值。

调节校准旋钮，使仪器的显示值与标准酸溶液的酸度值一致。

步骤二：准备样品溶液将待测溶液倒入一个干净的容器中。

如果样品溶液中有悬浮物或杂质，需要先进行过滤处理。

步骤三：测量酸度值将酸度计的电极插入样品溶液中，搅拌一会以达到均匀混合，等待酸度计显示出稳定的酸度值。

Agilent I9111 Fluoride Combination ISE 氟离子复合电极Operating Guide 用户手册OverviewThe I9111 Fluoride Combination ISE Electrode can measure thefree fluoride ion concentration in aqueous solutions. It is usedwith the 3200I Ion Meter or similar meters.Use this electrode according to the operating manual toavoid personal injury.The electrode solution can cause chemical burns orillness if it is taken orally or contacted by human skin.Use protective clothing or gloves to avoid contact. Incase of contact, rinse contacted area with tap water ordeionized water thoroughly.The electrode body material is glass. Handle with care toavoid damage to the instrument.SpecificationsTable 1I9111 Fluoride Combination ISE Electrode specifications Specification ValueBody material Plexiglass, PCConcentration range10 -6 mol/L to saturated0.02 mg/L to saturatedTemperature range 0-60 ºCSensitive material LaF3 crystalElectrode impedance<1 M WReference type Ag/AgClElectrode diameter12 mmElectrode length120 mmCable connector BNCCable length1000 mmFigure 1I9111 Fluoride Combination ISE Electrode assemblyOperationPreparing the electrode1Remove the storage bottle and cap from the electrode. Store the storage bottle upright for future use.2Unplug the filling hole, and rinse the measuring tip with distilled or deionized water.3Keep the electrode tip downward and swing it several times.4Connect the electrode to the meter.5Soak the measuring tip in deionized water with TISAB (for90 mL deionized water, add 10 mL TISAB). Use the magneticstirrer to agitate deionized water evenly.To prepare TISAB:a For 1 L TISAB, weight 142 g of hexamethylenetetramine((CH2)6N4), 85 g potassium nitrate (KNO3), 9.97 g tiron(C6H4Na2O8S2·H2O).b Add deionized water and stir to dissolve the solids.c Adjust the pH to 5.5 with strong HCL.d Pour into a 1000 mL volumetric flask and dilute to the 1 Lmark.e Shake the flask to make the concentration consistentthroughout.6Check that the mV reading is higher than 330 mV. If not, soak the tip again in a new solution as in step 5.7Remove the electrode. Absorb the water on the measuring tip gently.CalibrationIf the meter is an ion meter:1Calibrate the electrode according to the meter operation manual. Use more than two NaF calibration solutions.2Calibrate the electrode in these solutions from low con-centration to high concentration.3Exchange the calibration solution during calibrating, rinse the measuring tip thoroughly and absorb the wateron the measuring tip.If the meter is an mV meter (such as a pH meter):1Calibrate the electrode in more than two NaF calibration solutions, from low to high concentration.2Record mV readings of each calibration solution.3Plot a mV-pF linear diagram or calculate the linear equa-tion for the probe (pF is the negative logarithm of fluorideconcentration).4Exchange the calibration solution during calibrating, rinse the measuring tip thoroughly and absorb the wateron the measuring tip.5Recheck that the mV reading is greater than 330 mV. Measurement1Refer to national and industrial standards for the measuring method of the sample solution.2Soak the measuring tip in sample solution.3Record the readings when they become stable.4Dataa If the meter is an ion meter, read the concentration valueof sample solution directly.b If the meter is an mV meter such as a pH meter, input themV reading into the mV-pF linear diagram or the linearequation to calculate the pF value of sample solution.5Rinse the measuring tip with deionized water. Absorb the water on the measuring tip gently.6Plug the refilling hole.Operating hints•Use distilled or deionized water with a negligible concentra-tion of fluoride (< 3X10-7 mol/L).•The measuring tip is made of PC. Ensure the sample solu-tion will not damage the measuring tip before measure-ment.•Before measurement, check that the level of the reference solution in the electrode is higher than the level of samplesolution.•Keep the pH of the sample solution between 4-8.•After calibration or measurement, rinse the measuring tip with deionized water and adsorb the water on the measur-ing tip gently.•Maintain the calibration and sample solutions at a uniform temperature and flow by swinging the probe gently or agi-tate with the magnetic stirrer.•Do not soak the electrode in sample solution for anextended period of time. Rinse the probe with deionizedwater thoroughly as soon as the measurement is complete.•Use calibration solutions with the same fluoride concentra-tion as the sample solution to maintain measurement accu-racy.•Do not apply force onto the probe cap, cable, or cable inter-face.•Keep the cable interface dry.MaintenanceExchange of the reference filling solution1Siphon the reference solution and add fresh reference solu-tion (5190-0545) until the level is 5 mm lower than the fillinghole.2Repeat several times.Cleaning of inorganicsSoak the measuring tip in 0.1 mol/L HCl or EDTA solution for15 minutes.Cleaning of organicsSoak the measuring tip in absolute ethyl alcohol or othersolvent that can dissolve organics for 15 minutes.Cleaning of greaseSoak the measuring tip in warm, weakly alkaline detergent for15 minutes.Cleaning of protein precipitationSoak the measuring tip in 0.1 mol/L HCl solution that contains1% pepsin for 15 minutes.Probe restoration1Rub the measuring tip with a fine gauze soaked with abso-lute ethyl alcohol.2After cleaning, exchange the reference solution and soak the measuring tip in 10-3 mol/L NaCl solution for2 hours.TroubleshootingMetersRefer to the meter operating manual. Check all relevant parts,such as the electrode, calibration solution, and samples.Electrode1Check the mV value of the calibration solution.2Adjust the concentration of the calibration solution to ten-fold the original, and measure mV again.The difference in mV should be more than 52mV. If not, per-form maintenance as described above. Make sure the calibra-tion solution is effective. Use distilled or deionized water thatmeets requirements to make the calibration solutions. Makesure the calibration solution is not contaminated or beyond itsshelf life.MethodCheck that the measuring methods are correct.For any other problems during electrode use, contact yourAgilent Technologies customer service representative. StorageShort-termSoak the measuring tip in deionized water or distilled water.Long-term1Replace the electrode storage bottle and cap onto theelectrode body. To protect the measuring tip, keep 5-10 mmbetween the bottom of the storage bottle and the measur-ing tip when installing the electrode.2Screw the electrode storage bottle onto the storage bottle cap of the electrode until finger tight.3Place the electrode in the storage box and store it in dry conditions.Agilent I9111 氟离子复合电极用户手册概述实验室氟离子浓度测量用可充式复合氟离子电极，与3200I 仪器或类似仪器配套使用。

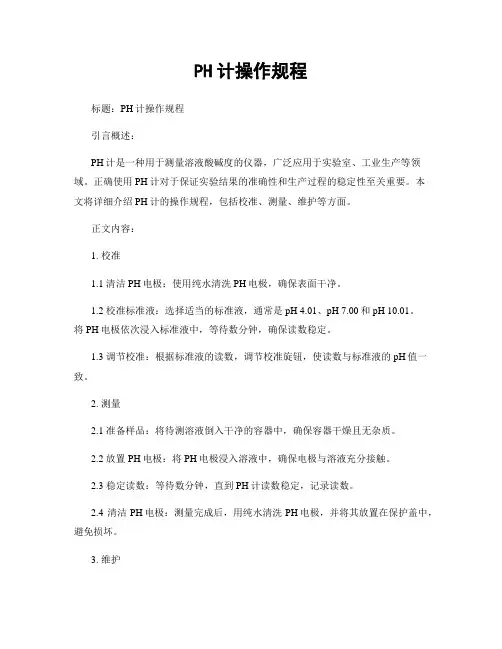

PH计操作规程标题：PH计操作规程引言概述：PH计是一种用于测量溶液酸碱度的仪器，广泛应用于实验室、工业生产等领域。

正确使用PH计对于保证实验结果的准确性和生产过程的稳定性至关重要。

本文将详细介绍PH计的操作规程，包括校准、测量、维护等方面。

正文内容：1. 校准1.1 清洁PH电极：使用纯水清洗PH电极，确保表面干净。

1.2 校准标准液：选择适当的标准液，通常是pH 4.01、pH 7.00和pH 10.01。

将PH电极依次浸入标准液中，等待数分钟，确保读数稳定。

1.3 调节校准：根据标准液的读数，调节校准旋钮，使读数与标准液的pH值一致。

2. 测量2.1 准备样品：将待测溶液倒入干净的容器中，确保容器干燥且无杂质。

2.2 放置PH电极：将PH电极浸入溶液中，确保电极与溶液充分接触。

2.3 稳定读数：等待数分钟，直到PH计读数稳定，记录读数。

2.4 清洁PH电极：测量完成后，用纯水清洗PH电极，并将其放置在保护盖中，避免损坏。

3. 维护3.1 定期校准：根据使用频率，定期进行校准，以确保准确性。

3.2 保护PH电极：在使用过程中，避免电极受到物理冲击，同时注意避免PH电极与强酸、强碱等物质接触。

3.3 存放条件：将PH电极存放在干燥、避光、通风的环境中，避免高温和湿度。

总结：在使用PH计进行酸碱度测量时，正确的操作规程至关重要。

校准是保证准确性的基础，测量时要注意样品准备和电极放置的细节。

此外，定期维护和保养PH计也是确保长期稳定性的关键。

通过遵循操作规程，我们能够获得准确可靠的测量结果，提高实验和生产的效率与质量。

请注意，本文仅提供了PH计的操作规程概述，具体操作步骤可能因仪器型号和实际情况而有所不同。

在实际操作中，请务必参考仪器的使用说明书并严格按照要求进行操作。
