求公英制管螺纹对照表！55度和60度牙型角的区别55度是英制。
美国有美制和公制。
美制和公制都是60度。
好多地方都有对照表。

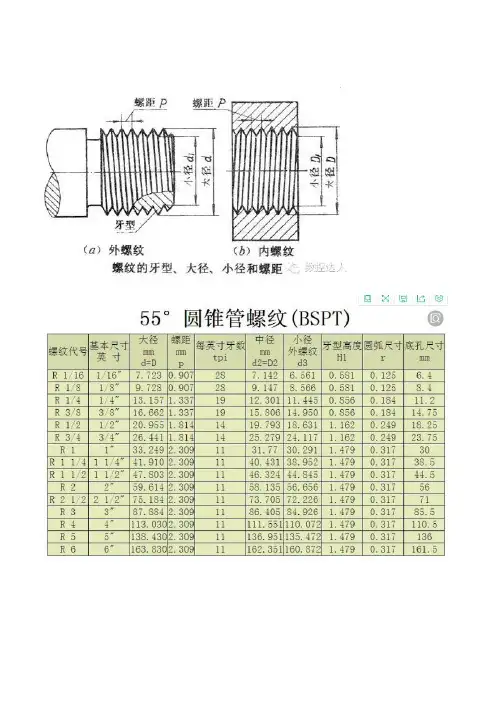

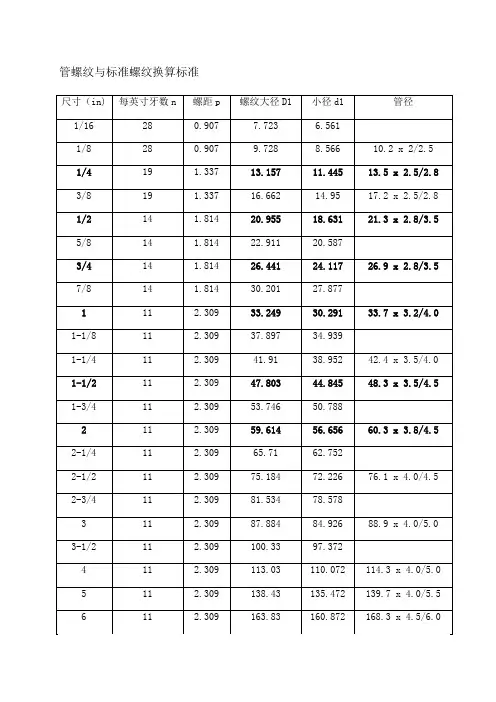

UNF谁知道是什么意思？UNF－统一制细牙螺纹（代替NF）Unified fine pitch thread ( Instead of NF )管螺纹是用英寸表示，1英寸=25.4mm,你可以直接把英寸换算成公制的毫米管螺纹与标准螺纹换算标准尺寸代号每英寸牙数螺距螺纹直径（in) n p 大径D、d 小径D1、d11/16 28 0.907 7.723 6.5611/8 28 0.907 9.728 8.5661/4 19 1.337 13.157 11.4453/8 19 1.337 16.662 14.951/2 14 1.814 20.955 18.6315/8 14 1.814 22.911 20.5873/4 14 1.814 26.441 24.1177/8 14 1.814 30.201 27.8771 11 2.309 33.249 30.2911-1/8 11 2.309 37.897 34.9391-1/4 11 2.309 41.91 38.9521-1/2 11 2.309 47.803 44.8451-3/4 11 2.309 53.746 50.7882 11 2.309 59.614 56.6562-1/4 11 2.309 65.71 62.7522-1/2 11 2.309 75.184 72.2262-3/4 11 2.309 81.534 78.5783 11 2.309 87.884 84.9263-1/2 11 2.309 100.33 97.3724 11 2.309 113.03 110.0725 11 2.309 138.43 135.4726 11 2.309 163.83 160.872注：1in=25.4mm1、用螺纹密封的管螺纹其标记及各种螺纹的特征代号规定如下：Rc—圆锥内螺纹Rp—与圆锥外螺纹配合的圆柱内螺纹R—圆锥外螺纹标准规定将螺纹尺寸代号写在特征代号之后，若螺纹为械旋应再加写左旋代号LH，具体示例如下：圆锥内螺纹：Rc1/2左旋圆柱内螺纹：Rp1/2—LH圆柱内螺纹与圆锥外螺纹的配合：Rp2/R22、非螺纹密封的管螺纹标记如下：A级外螺纹：G1/2A内螺纹：G1/2左旋B级外螺纹：G1/2B—LH螺纹副G1/2G1/2A中华标准件网首页|添加到收藏夹供货|需求|现货|标准查询|汇聚标准件商友-交流分享互助标题技术交流请输入关键字搜索首页贸易交流商友交流专家文章休闲茶楼共享下载论坛事务您当前的位置：标准件论坛→技术交流→英制螺纹对照表首页上页 1 2 下页末页上一主题| 下一主题英制螺纹对照表发表于:2010-7-15 9:49:30wcn311614身份：一般用户类型：个人用户注册时间：2011-2-26 经验值：8315发帖总数：2189回复总数：1065英美制特制螺纹对照表(附图)英制美制迫牙丝攻钻孔径对照表图美制螺纹和英制管螺纹对照表英制美制联合螺纹和英美美联细螺纹对照表英制螺纹规格和公制螺纹规格对照表6H 内螺纹小6g 外螺纹大径径序号规格型号最大最小公差最大最小公差1 M10*1 9.974 9.794 0.180 9.157 8.917 0.2402 M12*1.5 11.968 11.732 0.236 10.676 10.376 0.3003 M14*1.5 13.968 13.732 0.236 12.676 12.376 0.3004 M16*1.5 15.968 15.732 0.236 14.676 14.376 0.3005 M18*1.5 17.968 17.732 0.236 16.676 16.376 0.3006 M20*1.5 19.968 19.732 0.236 18.676 18.376 0.3007 M22*1.5 21.968 21.732 0.236 20.676 20.376 0.3008 M24*1.5 23.968 23.732 0.236 22.676 22.376 0.3009 M26*1.5 25.968 25.732 0.236 24.676 24.376 0.30010 M27*1.5 26.968 26.732 0.236 25.676 25.376 0.30011 M30*1.5 29.968 29.732 0.236 28.676 28.376 0.30012 M27*2 26.962 26.682 0.280 25.210 24.835 0.37513 M30*2 29.962 29.682 0.280 28.210 27.835 0.37514 M33*2 32.962 32.682 0.280 31.210 30.835 0.37515 M36*2 35.962 35.682 0.280 34.210 33.835 0.37516 M42*2 41.962 41.682 0.280 40.210 39.835 0.3751 G1/8-28 9.728 9.514 0.214 8.848 8.566 0.2822 G1/4-19 13.157 12.907 0.250 11.890 11.445 0.4453 G3/8-19 16.662 16.412 0.250 15.395 14.950 0.4454 G1/2-14 20.955 20.671 0.284 19.172 18.631 0.5415 G3/4-14 26.441 26.157 0.284 24.658 24.117 0.5416 G1-11 33.249 32.889 0.360 30.931 30.291 0.6407 G11/4-11 41.910 41.550 0.360 39.592 38.952 0.6408 G11/2-11 47.803 47.443 0.360 45.485 44.845 0.640英制螺纹的识别英寸制统一螺纹，在英寸制国家广泛采用，该类螺纹分三个系列：粗牙系列UNC，细牙系列UNF，特细牙系列U NFF，外加一个定螺距系列UN。
常用规格（公制）M1.2×0.25 M2.5×0.45 M6×0.75 M10×0.75 M1.4×0.3 M2.6×0.45 M6×1 M10×1M1.6×0.35 M3×0.5 M7×0.75 M10×1.25M1.7×0.25 M3×0.6 M7×1 M10×1.5M1.7×0.35 M3.5×0.6 M8×0.75 M11×1M1.8×0.35 M4×0.5 M8×1 M11×1.5M2×0.4 M4×0.7 M8×1.25 M12×1M2.2×0.45 M5×0.5 M9×1 M12×1.25M2.3×0.45 M5×0.8 M9×1.25 M12×1.5常用规格（美制）0-80UNF 5-40UNC 10-32UNF 5/16〃-32UNEF1-64UNC 5-44UNV 12-24UNC 3/8〃-16UNC1-72UNF 6-32UNC 12-28UNF 3/8〃-24UNF2-56UNC 6-40UNF 12-32UNEF 3/8〃-32UNEF2-64UNF 5/32〃-32UNC 1/4〃-20UNC 7/16〃-14UNC 3-48UNC 8-32UNC 1/4〃-28UNF 7/16〃-20UNF3-56UNF 8-36UNF 1/4〃-32UNEF 7/16〃-28UNEF4-40UNC 3/16〃-24UNC 5/16〃-18UNC 1/2〃-13UNC 4-48UNF 10-24UNC 5/16〃-24UNF 1/2〃-20UNF常用规格（英制）1/8〃-40 1/2〃-12 1〃-8 2〃-4.55/32〃-32 9/16〃-12 1-1/8〃-7 2-1/8〃-43/16〃-24 5/8〃-11 1-1/4〃-7 2-1/4〃-47/32〃-24 11/16〃-11 1-3/8〃-6 2-1/2〃-41/4〃-20 3/4〃-16 1-1/2〃-6 2-3/4〃-45/16〃-18 13/16〃-10 1-5/8〃-5 3-1/4〃-43/8〃-16 7/8〃-9 1-1/4〃-5 3-1/2〃-47/16〃-14 15/16〃-9 1-7/8〃-4.5 3-3/4〃-44〃-4英制管螺纹对照表英制锥管螺纹对照表公称直径螺距底孔直径底孔深度公称直径螺距底孔直径底孔深度G1/4 1.337 11.4 20 (19) ZG1/8 0.907 8.1 15 (28)G3/8 1.337 14.9 24 (19) ZG1/4 1.337 10.8 20 (19)G3/4 1.814 24.1 31 (14) ZG1/2 1.814 17.9 29 (14)G1 2.309 30.3 37 (11) ZG3/4 1.814 23.2 31 (14)G1-1/4 2.309 38.9 40 (11) G1 2.309 29.2 37 (11)G1-1/2 2.309 44.8 42 (11) 1-1/4 2.309 37.7 40 (11)G2 2.309 56.6 44 (11) ZG1-1/2 2.309 43.5 42 (11)ZG2 2.309 55.0 44 (11)公称直径螺距底孔直径底孔深度公称直径螺距底孔直径底孔深度G1/4 1.337 11.4 20 (19) ZG1/8 0.907 8.1 15 (28)G3/8 1.337 14.9 24 (19) ZG1/4 1.337 10.8 20 (19)G3/4 1.814 24.1 31 (14) ZG1/2 1.814 17.9 29 (14)G1 2.309 30.3 37 (11) ZG3/4 1.814 23.2 31 (14)G1-1/4 2.309 38.9 40 (11) G1 2.309 29.2 37 (11)G1-1/2 2.309 44.8 42 (11) 1-1/4 2.309 37.7 40 (11) G2 2.309 56.6 44 (11) ZG1-1/2 2.309 43.5 42 (11) ZG2 2.309 55.0 44 (11)公制螺纹(MM牙)牙深=0.6495*牙距P(牙角60度)内牙孔径= 公称直径-1.0825*PM20x2.5-6H/7g (右手)-(单头螺纹)-(公制粗牙) (公称直径20mm) (牙距2.5mm)(内螺纹配合等级6H)(外螺纹配合等级7g)左-双头-M20x1.5 (左手)-(双头螺纹)-(公制细牙) (公称直径20mm) (牙距1.5mm)美制螺纹(统一标准螺纹)牙深= 0.6495*(25.4/每吋牙数)(牙角60度)3/4-10UNC-2A(UNC粗牙)(UNF细牙)(1A 2A 3A 外牙公差配合等级)(1B 2B 3B 内牙公差配合等级)UNC美制统一标准粗牙螺纹外径3/4英吋,每英吋10牙外牙2级公差配合管螺纹(英制PT)牙深= 0.6403*(25.4/每吋牙数)(牙角55度)PT 3/4-14 (锥度管螺纹) 锥度管螺纹,锥度比1/16 3/4英吋管用,每英吋14牙螺纹(PS直螺纹)(PF细牙)牙深= 0.6403*(25.4/每吋牙数)(牙角55度)PS 3/4-14 (直形管螺纹)PF1 1/8-16 (直形管螺纹)(细牙)直形管螺纹3/4英吋管用,每英吋14牙1 1/8英吋管用,每英吋16牙管螺纹(美制NPT)(牙角60度)NPT 3/4-14 (锥形管螺纹) 锥形管螺纹,锥度比1/163/4英吋管用,每英吋14牙梯形螺纹(30度公制)TM40*6 公称直径40mm 牙距6.0mm梯形螺纹(29度爱克姆螺纹)TW26*5 外径26mm,每英吋5牙方形螺纹车牙的计算考虑条件计算公式公制牙与英制牙的转换每吋螺纹数n = 25.4 / 牙距P牙距P = 25.4 / 每吋螺纹数n因为工件材料及刀具所决定的转速转速N = (1000周速V ) / (圆周率p * 直径D )因为机器结构所决定的转速刀座快速移动的影响车牙最高转速N = 4000/ P刀座快速移动加减速的影响下刀点与退刀点的计算(不完全牙的计算) 下刀最小距离L1L1 = (牙距P ) * (主轴转速S ) / 500退刀最距离L2L2 = (牙距P ) * (主轴转速S ) / 2000牙深及牙底径d 牙深h =0.6495 * P牙底径d =公称外径D - 2 * h例题：车制外牙3/4"-10UNC 20mm长公制牙与英制牙的转换牙距P = 25.4 / (吋螺纹数n)P = 25.4 / 10 = 2.54mm因为工件材料及刀具所决定的转速外径D = 3 / 4英吋= 25.4 * (3/4) =19.05MM 转速N = (1000周速V) / (圆周率p * 直径D )N = 1000V / pD = 1000 * 120 / (3.1416*19.05)=2005 rpm (转/分)因为机器结构所决定的转速刀座快速移动的影响车牙最高转速N =4000 / P N = 4000/2.54 = 1575 rpm综合工件材料刀具及机械结构所决定的转速N = 1575 转N = 2005转两者转速选择较低者,即1575转刀座快速移动加减速的影响下刀点与退刀点的计算(不完全牙的计算) 下刀最小距离L1L1 = (牙距P) * (主轴转速S) / 500L1 = 2.54*1575/500=8.00mm退刀最小距离L2L2 = (牙距P) * (主轴转速S) / 2000L2 = 2.54*1575/2000=2.00mm牙深及牙底径d 牙深径d = 公称外径D-2*h =19.05-2*1.65 = 15.75mm。
螺纹规格-美制、英制、公制美制细牙UNF 2A 外螺纹大径UNFUN 2B内螺纹小径（UN 、UNF ）序号序号规格型号规格型号最大最大最小最小公差公差最小最小最大最大公差公差1 7/16"-20 11.079 10.874 0.206 9.728 10.033 0.305 2 1/2"-20 12.667 12.461 0.206 11.328 11.608 0.279 3 9/16"-18 14.252 14.031 0.221 12.751 13.081 0.330 4 3/4"-16 19.012 18.773 0.239 17.323 17.678 0.356 5 7/8"-14 22.184 21.923 0.262 20.269 20.676 0.406 6 11/16-12 26.944 26.655 0.290 24.689 25.146 0.457 7 15/16-12 33.294 33.005 0.290 31.039 31.496 0.457 8 15/8-12 41.229 40.940 0.290 38.989 39.446 0.457 9 17/8-12 47.579 47.290 0.290 45.339 45.796 0.457 10 21/2-12 63.452 63.162 0.290 61.214 61.671 0.457 公制细牙 6g 外螺纹大径 6H 内螺纹小径内螺纹小径1 M10*1 9.974 9.794 0.180 8.917 9.157 0.240 2 M12*1.5 11.968 11.732 0.236 10.376 10.676 0.300 3 M14*1.5 13.968 13.732 0.236 12.376 12.676 0.300 4 M16*1.5 15.968 15.732 0.236 14.376 14.676 0.300 5 M18*1.5 17.968 17.732 0.236 16.376 16.676 0.300 6 M20*1.5 19.968 19.732 0.236 18.376 18.676 0.300 7 M22*1.5 21.968 21.732 0.236 20.376 20.676 0.300 8 M24*1.5 23.968 23.732 0.236 22.376 22.676 0.300 9 M26*1.5 25.968 25.732 0.236 24.376 24.676 0.300 10 M27*1.5 26.968 26.732 0.236 25.376 25.676 0.300 11 M30*1.5 29.968 29.732 0.236 28.376 28.676 0.300 12 M27*2 26.962 26.682 0.280 24.835 25.210 0.375 13 M30*2 29.962 29.682 0.280 27.835 28.210 0.375 14 M33*2 32.962 32.682 0.280 30.835 31.210 0.375 15 M36*2 35.962 35.682 0.280 33.835 34.210 0.375 16 M42*2 41.962 41.682 0.280 39.835 40.210 0.375 英制管螺纹英制管螺纹1 G1/8-28 9.728 9.514 0.214 8.566 8.848 0.282 2 G1/4-19 13.157 12.907 0.250 11.445 11.890 0.445 3 G3/8-19 16.662 16.412 0.250 14.950 15.395 0.445 4 G1/2-14 20.955 20.671 0.284 18.631 19.172 0.541 5 G3/4-14 26.441 26.157 0.284 24.117 24.658 0.541 6 G1-11 33.249 32.889 0.360 30.291 30.931 0.640 7 G11/4-11 41.910 41.550 0.360 38.952 39.592 0.640 8 G11/2-11 47.803 47.443 0.360 44.845 45.485 0.640 公制/美制/英制螺纹对照表给大家分享一下A 型美制螺纹（UNF ）常用规格 外螺纹外螺纹内螺纹 -4 9/16"-199/16"-19牙 14.28 14.28 13.0813.08-6 11/16''-16 11/16''-16 17.46 17.46 16.116.1-8 13/16''-16 13/16''-16 20.64 20.64 19.2819.28 -10 1''-14 1''-14 25.40 25.40 23.5723.57-12 1(3/16)''-12 1(3/16)''-12 30.00 30.00 28.3228.32-16 1(7/16)''-12 1(7/16)''-12 36.51 36.51 34.6734.67-20 1(11/16)''-12 1(11/16)''-12 42.86 42.86 41.0241.02C 型JIC37度美制UNF 螺纹常用规格 -4 7/16”-20 7/16”-20 11.11 11.11 10.0310.03 -5 1/2”-20 1/2”-20 12.70 12.70 11.32 11.32-6 9/16”-18 9/16”-18 14.28 14.28 13.0813.08-8 3/4”-16 3/4”-16 19.00 19.00 17.6817.68-10 7/8”-14 7/8”-14 22.22 22.22 20.6820.68-12 1(1/16)"-12 1(1/16)"-12 26.98 26.98 25.1525.15-16 1(5/16)"-12 1(5/16)"-12 33.33 33.33 31.531.5-20 1(5/8)"-12 1(5/8)"-12 41.28 41.28 39.4439.44 -24 1(7/8)"-12 1(7/8)"-12 47.62 47.62 45.845.8-32 2(1/2)"-12 2(1/2)"-12 63.5 63.5 61.67英制圆柱管螺纹（BSPP ）常用规格 -4 1/4”-19 1/4”-19 13.157 13.157 11.55-6 3/8”-19 3/8”-19 16.662 16.662 14.9514.95-8 1/2”-14 1/2”-14 20.955 20.955 18.6318.63 -12 3/4”-14 3/4”-14 26.441 26.441 24.11-16 1”-11 1”-11 33.249 33.249 30.29-20 1(1/4)''-11 1(1/4)''-11 41.91 41.91 38.9538.95英制圆锥管螺纹（BSPT ）常用规格 基面大径基面大径基准距离1/4”-19 1/4”-19 13.157 13.157 663/8”-19 3/8”-19 16.662 16.662 6.46.41/2”-14 1/2”-14 20.955 20.955 8.28.23/4”-14 3/4”-14 26.441 26.441 9.59.51”-11 1”-11 33.249 33.249 10.410.41(1/4)''-11 1(1/4)''-11 41.91 41.91 12.712.7美制圆锥管螺纹（NPT ）1/8”-27 1/8”-27 10.24 10.24 441/4”-18 1/4”-18 13.60 13.60 443/8”-18 3/8”-18 17.04 17.04 4.324.321/2”-14 1/2”-14 21.22 21.22 4.484.483/4”-14 3/4”-14 26.57 26.57 4.754.751”-11(1/2)” 1”-11(1/2)” 33.22 33.22 4.64.61(1/4)”-11.5 1(1/4)”-11.5 41.96 41.96 4.834.83。
