热回收转轮操作和维护手册DTR-VS-ver.5.0 (09.2017)IEC/EN 60439-1 +AC Low voltage switchgears and controllersVTS 保留非预先通知而修改的权利目录1. 介绍 (2)2. 技术数据 (3)2.1. 驱动单元基本参数 (3)2.1.1. 结构 (3)2.1.2. 驱动器操作 (3)2.2. 技术规范 (4)2.2.1. 结构 (4)2.2.2. 操作参数 (4)2.2.3. 元器件的额定参数 (4)2.3. 驱动单元的安装和配置 (5)2.4. 含变频器和VTS自控的驱动单元安装和配置 (5)2.4.1. 热回收转轮驱动回路的接线图 (5)2.4.2. 驱动单元的安装和配置 (6)2.4.3. 电机防护 (7)2.5. 自控系统的驱动单元安装和配置 (7)2.5.1. 热回收转轮驱动回路的接线图 (7)2.5.2. 热回收转轮驱动单元的控制 (8)2.5.3. 变频器配置例子 (8)2.5.4. 电机保护 (9)2.6. 系统中带有EC调速器的驱动单元安装和配置 (10)2.6.1. EC调节器的ModBus RTU/RS485参数 (11)2.6.2. 通过MODBUS设置旋转速度 (12)2.7. 安装建议 (13)3. 保存和运输 (14)4. 启动 (14)5. 维护 (15)5.1. 热回收转轮和驱动皮带 (15)5.2. 转轮密封 (16)1. 介绍本文档描述了关于热回收转轮的参数、运输、保管和服务内容。
●在进行任何动作前，务必详细阅读本文档。
2. 技术数据2.1. 驱动单元基本参数2.1.1. 结构本驱动单元是每个热回收转轮的完整部件。
基本构成如下:●变频器/EC电机控制器（取决于不同的版本或区域）●热回收轮芯●轮芯驱动皮带传动装置●电机减速器-马达带有减速齿轮2.1.2. 驱动器操作驱动单元用于启动并平缓地控制热回收转轮，使得速度在3-10rpm范围内。

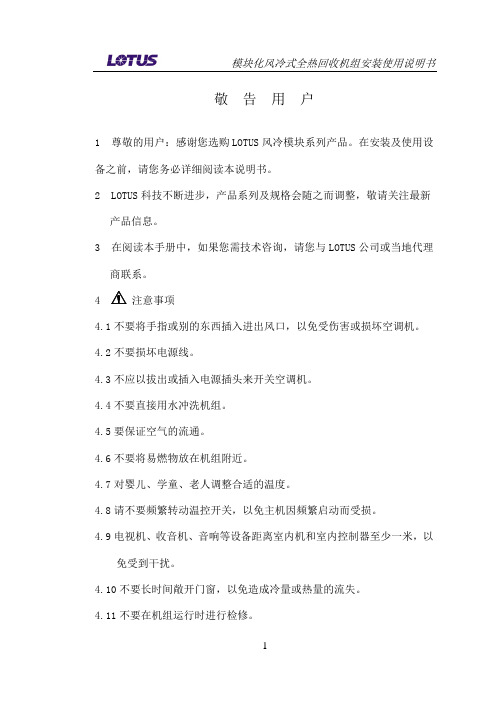

敬告用户1 尊敬的用户：感谢您选购LOTUS风冷模块系列产品。
在安装及使用设备之前，请您务必详细阅读本说明书。
2 LOTUS科技不断进步，产品系列及规格会随之而调整，敬请关注最新产品信息。
3 在阅读本手册中，如果您需技术咨询，请您与LOTUS公司或当地代理4.2不要损坏电源线。
4.3不应以拔出或插入电源插头来开关空调机。
4.4不要直接用水冲洗机组。
4.5要保证空气的流通。
4.6不要将易燃物放在机组附近。
4.7对婴儿、学童、老人调整合适的温度。
4.8请不要频繁转动温控开关，以免主机因频繁启动而受损。
4.9电视机、收音机、音响等设备距离室内机和室内控制器至少一米，以免受到干扰。
4.10不要长时间敞开门窗，以免造成冷量或热量的流失。
4.11不要在机组运行时进行检修。
目录1 产品原理 (3)3 安全事项 (6)4 技术参数 (7)5 工程应用 (11)6 安装调试 (17)7 维护与保养 (26)8 故障分析及解决办法 (27)9 机组操作说明 (29)10 售后服务与保修 (35)注意：安装和维修必须由持有效证件的专业人员来操作。
本说明书所涉及的内容，如果因我公司的设计更改，恕不另行通知。
执行标准：GB/T 18430.2-2008《蒸气压缩循环冷水（热泵）机组，户用和类似用途的冷水（热泵）机组》GB/T 18430.1-2007《蒸气压缩循环冷水（热泵）机组，工商业用和类似用途的冷水（热泵）机组》GB4706.32-2004 《家用和类似用途电器的安全》GB19577-2004 《冷水机组能效限定值及能源效率等级》1 产品原理劳特斯模块化风冷式全热回收机组是在劳特斯模块化风冷式机组基础上开发出来的新产品，它继承了所有劳特斯模块化风冷式机组的优点。
风冷式冷(热)水热回收机组原理如下图所示机组主要由全封闭压缩机、四通阀、冷凝器（风冷）、单向阀、过滤器、蒸发器、气液分离器、热回收换热器以及保护装置等组成。
麦克维尔MAC风冷模块式冷水机组—控制面板操作说明麦克维尔MAC风冷模块式冷水机组—控制面板操作说明1 开关机·按ON/OFF键，机组在开机(RUN灯亮)、关机(RUN灯灭)之间切换。
2 模式选择·按“模式”键可在制冷/制热模式之间切换，须注意的是，模式切换必须在关机状态下进行，这样对压缩机能起到一定的保护作用。
3 参数查询·使用本控制器能查询它所联网的任意一台机组的工作状态及参数（有哪几台压缩机在工作、设定的进水温度、实际进水温度、设定的出水温度、实际出水温度、机组的定时设置、制冷防冻温度、冬季防冻温度、除霜温度等）。
·按“机组”键后机组号码闪烁，此时按“▲”或“▼”键改变机组号，查看到的是不同机组的当前参数，若要查询某个机组的工作参数，找到欲查询的机组号时按“确定”键即可查询该机组的工作参数了，按“▲”或“▼”键查看该机组的不同的参数。
4 参数设置按“机组”键后机组号码闪烁，此时按“▲”或“▼”键改变机组号，找到欲设置参数的机组号时按“确定”键即可设置该机组的工作参数了(可设置的参数有：制冷进水温度、制冷出水温度、制热进水温度、制热出水温度、防冻温度、除露点A温度、除露点B温度、除霜温度)。
(password:55)按“▲”或“▼”键选择要设置的参数，按“确定”键后就可以按“▲”或“▼”键设置参数值，设置完成后按“确定”键保存设置结果。
重复步骤②可设置其它参数。
5 实时时钟设置·用针形工具按“模式”键上方的小孔，液晶显示器上显示“星期设置”的字样，按“▲”或“▼”键设置当前时间是星期几，设置好了之后再按小孔，星期设置成功，同时显示器上显示“时钟设置”字样，时间会闪烁，此时按“▲”键修改小时，按“▼”键修改分钟，再按小孔即可保存设置的时钟。
6 定时设置按“定时”键后显示器上同时显示“星期设置”和“定时设置”的字样，此时按“▲”或“▼”键选择要设置定时的时间在星期几，选好后按“确定”键，显示器上显示“定时设置”的字样，此时按“▲”键选择要设置当天的哪个定时（能设置4个，在“机组号”上方有指示）,按“▼”键选择“定时开”或“定时关”，按“确定”键后再按“▲”键修改小时，按“▼”键修改分钟，设置好时间后按“确定”键保存这个定时设置。
USER’S MANUALHeat (Energy, Heat and Energy)Recovery VentilatorVents Frigate HRV 100 DSVents Frigate ERV 100 DSVents Frigate TRV 100 DSVents Frigate HRV 150 DSVents Frigate ERV 150 DSVents Frigate TRV 150 DS2.. RV 100 (150) DSIntroduction ................................................................................................Application ..................................................................................................Delivery set ..................................................................................................Unit designation key ................................................................................Technical data .............................................................................................Safety requirements .................................................................................Structure and operating logic ..............................................................Mounting and setting-up .......................................................................Condensate drainage ..............................................................................Connection to power mains ..................................................................Unit control .................................................................................................Servicing and maintenance ..................................................................Troubleshooting ........................................................................................Storage and transportation rules ........................................................Manufacturer’s warranty ........................................................................CONTENT333445678910121314143INTRODUCTIONAPPLICATIONDELIVERY SETThe unit with heat (energy, heat and energy) recovery is designed to save thermal energy by means of heat and energy recovery and is one of the energy saving components used in the buildings and premises. The ventilator is a component unit and is not designed for independent operation. The unit is designed to provide permanent controlled air exchange by mechanical ventilation in houses, offi ces, hotels, cafés, conference halls and other residential and public premises as well as utilization of extract air heat energy to warm up supply purifi ed air. The unit is for ceiling mounting and wall mounting (only for Vents Frigate ERV 100 DS and Vents Frigate ERV 150 DS). The unit is rated for continuous operation always connected to power mains. Transporting medium must not contain any fl ammable or explosive mixtures, evaporation of chemicals, coarse dust, soot and oil particles, sticky substances, fi brous materials, pathogens or any other harmful substances.This user’s manual combines technical description, operation and service manual, technical data sheet and installation guidelines for the heat (energy, heat and energy) recovery ventilator Vents Frigate ..RV 100 (150) DS, hereinafter referred to as the unit.The unit is not designed to be used by children, physically or mentally disabled persons, persons with sensory disorder, persons with no appropriate experience or expertise. The unit can be operated by qualifi ed experts after appropriate instruction about its use and operation. The unit shall be mounted in places inaccessible for children.Unit Vents Frigate …RV 100 (150) DS - 1 pce; User’s manual - 1 pce; Packing box - 1 pce.4.. RV 100 (150) DSUnit typeHRV - Heat Recovery Ventilator;ERV - Energy Recovery Ventilator (enthalpy);TRV - Total (Heat and Energy) Recovery Ventilator.Air capacity [CFM]Frigate ..RV 100(150) DSUNIT DESIGNATION KEYMounting design modifi cation D - two recovery cores S - suspendedTECHNICAL DATAThe heat (energy) recovery ventilator is designed for indoor application with the ambienttemperature ranging from +34 °F (+1 °С) up to +122 °F (+50 °С) and relative humidity up to 80%. Ingress Protection rating: IP44 for the unit motors;IP 22 for the assembled unit connected to air ducts. The Vents Frigate H RV 100(150) DS unit net weight is 66 lbs (30 kg); the Vents Frigate ERV 100(150) DS unit net weight is 62 lbs (28 kg); the Vents Frigate TRV 100(150) DS unit net weight is 64 lbs (29 kg). The unit series designation, basic overall and connecting dimensions are shown in fi g. 1. The unit design is regularly being improved, so some models can slightly diff er from those ones described in this manual.34"30 3/16"5"8 5/16"23 1/2"20 3/8"9 13/16"Fig. 1 Overall and connecting dimensions5Temperature [º С] -30...+60 º С (-22 ºF...140 ºF)Relative humidity [%]80%Service life Warranty service life is 2 years Operating service life is 5 yearsTable 1The maximum allowable air parameters for the paper heat recovery core are stated in the table 1.SAFETY REQUIREMENTS While operating and mounting unit fulfi ll the requirements of the present operation manual as well as general requirements of all applicable codes and standards valid in USA and Canada.Ground the unit!Before connecting the unit to power mains make sure that the unit is free of any visible damages or any other foreign objects inside the casing that can damage the impeller blades.Connection of the unit to power mains by duly qualifi ed and authorized electricians only!Warning!Mounting, servicing, connection and repair works of the unit are allowed after the unit is disconnected from power mains.Do not!• Do not operate the unit beyond the specifi ed temperature range or in an aggressive and explosive medium.• Do not connect clothes dryers or similar equipment to the ventilation system.• Do not operate the unit in the air and dust mixture environment.6.. RV 100 (150) DSSTRUCTURE AND OPERATING LOGICThe unit has the following operating logic (fi g. 2): Warm stale extract air from the room fl ows through the air ducts to the unit, is purifi ed in the extract fi lter and is supplied to the heat recovery core and exhausted outside by exhaust fan. Clean cold air from outside is moved by supply fans to the unit where it is purifi ed through the supply fi lter. Then clean air fl ows through the heat recovery core and is supplied to the room by supply fan. Thermal energy of warm extract air is transferred to clean intake fresh air and warms it up. The extract and intake air fl ows are fully separated during heat recovery which excludes any transfer of odors and pathogens to supply air. Heat recovery minimizes thermal energy losses, energy demand and heating costs. Both sensible thermal energy and latent moisture energy contained in the extract air are transferred in the heat recovery cores of the Vents ERV (TRV) 100 (150) DS unit to the cold intake air fl ow from outside to warm them up before supplying to the room. The paper heat recovery cores of the units Vents Frigate ERV (TRV) 100 (150) DS operate as a moisture balancer in case of too low outdoor humidity or as air dryers in case of high outdoor air humidity. Due to high hygroscopic features of the heat and energy recovery core material the unit does not need condensate drainage. Application of the heat exchanger provides decreasing thermal energy losses and heating costs saving during cold season.EXTRACT AIRINTAKE AIR EXHAUST AIR SUPPLY AIR1233456789Fig. 2. Unit structure and operating logic7MOUNTING AND SETTING-UP1. Supply fan with backward curved blades and maintenance-free motor with external rotor and integrated thermal protection;2. Extract fan with backward curved blades and maintenance-free motor with external rotor and integrated thermal protection;3. Plate cross fl ow heat recovery core (Vents Frigate ERV 100 (150) DS — paper heat recovery core, Vents Frigate HRV 100 (1500 DS — aluminium heat recovery core, Vents Frigate TRV 100(150) DS - one paper and one aluminium heat recovery core).4. G4 supply air fi lter.5. G4 extract air fi lter.6. Frost protection thermostat.7. Control block8. Drain pan (only for Vents Frigate HRV 100(150) DS and Vents Frigate TRV 100(150) DS).9. Drain hose (only for Vents Frigate HRV 100(150) DS and Vents Frigate TRV 100(150) DS).While mounting the unit provide enough access for the unit maintenance and servicing. Mount the unit to ceiling by means of the belts that are rigidly fi xed to horizontal plane (fi g. 3) or with threaded rods fi xed inside the dowels attached to the ceiling. The unit may be mounted to the wall with a suspension bracket (fi g. 4) that is fi xed to the unit with three screws and dowels (only for the units Vents Frigate ERV 100 DS и Vents Frigate ERV 150 DS).m i n 2”Fig. 3. Ceiling unit mounting example8.. RV 100 (150) DSCONDENSATE DRAINAGEFig. 4. Wall unit mountingThe Vents Frigate HRV 100 (150) DS and Vents Frigate TRV 100 (150) DS units are equipped with a condensate drain hose for condensate drainage (fi g. 5). Connect the drain hose (1), U-trap (3) and drain system (5) with metal, plastic or rubber pipes (2 and 4). The pipes must be sloped down at least by 3°. Before starting operation of the unit fi ll the system with water and check that U-trap is always fi lled with water. Make sure that the water drainage is correct, otherwise some condensate may be accumulated inside the unit and provoke subsequent equipment damage and water ingress to the room. The condensate drainage system is designed for operation at the ambient temperature above 32 ºF (0 °С). If the ambient temperature is below 32 ºF (0 °С), insulate the drain system and provide air heating.min 3°13524fi g. 5. Condensate drainageThis installation example is applicable only for Vents Frigate ERV 100 DS and Vents Frigate ERV 150 DS9CONNECTION TO POWER MAINSCut power supply off before any operations with the unit. The unit shall be connected to power mains by a duly qualifi ed electrician only. Rated values of the electrical parameters are shown on the rating plate. Any modifi cations of the internal connections are not allowed and will void the warranty.The unit is designed for connection to single-phase ac 120 V / 60 Hz power mains. The unit is equipped with a power cable and a plug and can be connected to any standard grounded outlet. The power cable is connected to the terminal X1 by default. Connect the unit to power mains through the external automatic switch integrated into the fi xed wiring system that breaks the circuit in case of short circuit or overload. Install the circuit breaker to have a free quick access in case of need to turn the unit off promptly. The unit has overload protection provided by the thermal fuse which is activated in case of overload or short circuit. To replace the thermal fuse, disconnect the unit from power mains, remove the overload or short circuit. Remove the thermal fuse and check the unit. Wiring diagram is shown in fi g. 6. The thermostat TS1 (fi g. 6) provides freezing protection of the unit during cold season. As the thermostat is activated, the supply fan stops and the heat recovery core is warmed up with extract air stream. To adjust the thermostatic switch, rotate the control dial to required setpoint. The setpoint depends on the operating conditions. Recommended setting of the thermostat is 37°F (+3ºС), set in the factory by default.РЕL N Kon 1Kon 2PE M1PE M2Brown M1Cap1Black M1Cap1Black M2Cap2Brown M2Cap2Blue M1Term Term Blue M2Х1Х2Х3SW1123Сap1Сap2TS1М1FAN MOTORМ2FAN MOTORtSW2Low Stand by Med1К1К2К3291011Setup of Low Setup of MedtermostatLow Med G0High~24V PE Two wire control921021134Y/G Y/G 51617612181987141513C 2~24V~120V Х5.1Х5.2Х6.1Х6.2Red RedWhite White TR1GreenBlackWhite120V 60Hz12345612345678910111213141516Х4W1Fig. 6. Unit wiring diagram10.. RV 100 (150) DSUNIT CONTROLThe unit is controlled by a three-position speed switch that enables low-speed modes «Low» as well as «Med» and «Stand by» mode which enables total air quality control (fi g. 7). Up to fi ve external control devices may be connected to the terminals 2-11 (fi g. 7) that turn the unit to high-speed ventilation in case of activation of any of the control devices.Switch the three-position speed controller to «Standby» mode for correct operation from the remote control panel.Fig. 7. Unit controlThree-speed switchTerminals for connection of theremote control devices11 1. Remote control (Thermostat).Set the three-position switch into the Stand by position to activate the remote control.Remote control (thermostat) functions:• Unit turning on/off• Setting air fl ow• Displaying indoor air temperature2. CO2 sensor.Recommended for use in offi ce buildings and public premises. When carbon dioxide concentrationexceeds the set point, the unit changes into the High Speed Mode.3. Humidistat.The humidistat is used for indoor humidity control. When indoor humidity level rises above the setpoint, the unit changes into the High Speed Mode and runs with the high speed until the humidity levelfalls down below the set point. The humidity set point is adjustable.4. Remote mechanical timer.In case of the timer activation the unit changes into the High Speed Mode.5. Switch.In case of the switch contact closing the unit changes into High Speed Mode and reverts to permanentLow Speed Mode when the switch contacts are opened.12.. RV 100 (150) DS SERVICING AND MAINTENANCEServicing of the unit is required 3-4 times per year. Besides general cleaning, the following operations are required:1. Filter maintenance (3-4 times per year).fi lters increase air resistance in the system and reduce supply air fl ow to Dirtythe premises.C lean or replace the fi lters as often as required, but at least 3-4 times per year.Clean the fi lter with running water or a vacuum cleaner.A fter two cleaning replace the fi lter. Contact your local supplier for new fi lters.2. Heat recovery core maintenance (once per year).Some dust can get accumulated on the heat recovery core block even if you clean or replace the fi lters regularly in compliance with above procedure. To maintain the high heat exchange effi ciency,regular cleaning is required.To clean the paper heat and energy recovery core of the units Vents Frigate ERV 100 (150) DS and Vents Frigate TRV 100 (150) DS, pullt it out of the unit and clean it with a vacuumcleaner. Do not use water, sharp objects, abrasive detergents and aggressive solvents to prevent theheat recovery core damage. Make sure that the heat and energy recovery core is dry and re-install itback inside the unit.To clean the aluminium heat recovery core of the units Vents Frigate HRV 100 (150) DS and Vents Frigate TRV 100 (150) DS, pull it out of the unit and clean the heat recovery corewith warm detergent solution. Make sure that the heat recovery core is dry and re-install it back insidethe unit.3. Fan maintenance (once per year).Even if you perform regular maintenance of the fi lters and the heat recovery core, some dust and grease can get accumulated inside the fans and reduce the fan performance and supply air fl ow.Clean the fans with a soft brush or dry cloth. No water and abrasive detergent, sharp objects or solvents are allowed for cleaning to prevent the impeller damage.4. Condensate drainage system maintenance (once per year).The drain hose can get clogged with the extracted particles. Clean the drain hose is required.Check proper functioning of the drain system by pouring some water into the drain pan at the unitbottom. Clean the U-trap and the drain tubes if required.5. Supply air fl ow inspection (twice per year).Leaves and other objects can clog the intake grille and decrease the unit performance and supply air fl ow. Check the intake grille twice per year and clean it if required.6. Air ductwork maintenance (once in 5 years).Even if you fulfi ll all the above maintenance guidelines regularly, a certain amount of dust is accumulated inside air ducts. That reduces the ventilation system performance. Clean or replace the airducts periodically.13TROUBLESHOOTINGProblem Possiblereasons SolvingThe fan(s) do(es) not start running. Power supply is off.Make sure the power supply lineis connected correct, otherwisetroubleshoot the connection error. Thermal fuse is melted.Disconnect the unit from powermains. Remove the overload. Replacethe thermal fuse and check the unit.Cold supply air.The extract fi lter is clogged. Clean or replace the extract fi lter. The heat recovery core is frozen.Check the heat recovery corecondition. Shutdown the unit andturn it on after the freezing dangeris no longer imminent. Check thethermostat setpoints.Low air capacity.Too low set rotation speed.Check the speed control settings. The fi lters, fans or heat recoverycore are clogged.Clean or replace the extract fi lters;clean the fans and the heat recoverycore.The ventilation system is cloggedor damaged.Check the diff users and louvregravity shutters opening, check theexhaust hood and intake grille andclean those if required; make surethat the air ducts are not clogged ordamaged.Noise, vibration.The impeller(s) is (are) clogged.Clean the fan impeller(s).Fan screw tightening is loose.Check and tighten the screws ifrequired.Water leakage The drain system is clogged,damaged or wrong arranged.Clean the drain pipe is required.Check the drain pipe slope, U-trapand temperature conditions.Possible malfunctions and fault handling14.. RV 100 (150) DSMANUFACTURER’S WARRANTYProduction meets standard operating requirements in the USA and Canada. VENTS US warrants to the original purchaser of the unit that it will be free from defects in materials or workmanship for a period of 60 months from the date of original purchase. The VENTS US warrants to the original purchaser of the unit that the integrated control unit will be free from defects in materials and workmanship for a period of 24 months from the date of original purchase.VENTS US warrants to the original purchaser of the unit that it will be free from defects in materials or workmanship for a period of 60 months from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During the stated warranty period, VENTS US will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service. This warranty does not cover (a) normal maintenance and normal service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by VENTS US), faulty installation or negligence, accident, improper maintenance or repair (other than by VENTS US), faulty installation or installation contrary to recommended installation instructions. Labor to remove and replace products is not covered. The duration of any implied warranty is limited to the time period specifi ed for the express warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.VENTS US OBLIGATION TO REPAIR OR REPLACE, AT VENTS US OPTION, SH ALL BE TH E PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. VENTS US SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitations of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties. If proof of sales date is absent, warranty period is calculated from the production date.The unit can be exchanged at the following address:Bodor Vents, LLC DBA: Vents-US11013 Kenwood Road Cincinnati, Ohio 45242Phone: (513)348-3853e-mail:*****************Please follow guidelines in this manual for product problem-free operation.STORAGE AND TRANSPORTATION RULESStore the unit in the manufacturer’s original packing box in a ventilation premise with the temperature range from +14 °F (-10 °С) up to +104 °F (+40 °С) and relative humidity less than 60% (at +68 °F (+20 °С)). Vapors or particles which can cause corrosion or damage the insulation or connection tightness are not allowed in the stock. Use hoist equipment for loading and storage operations to prevent the unit falling or excessive oscillation.Transportation with any vehicle type is allowed provided that the goods are protected against mechanical and weather damage.15V-US100(FRIGATE_HRV-ERV-TRV100-150DS)-03。

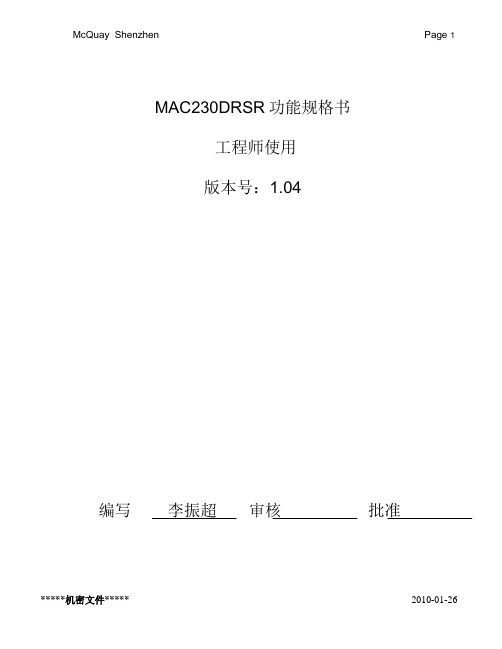

MAC230DRSR功能规范书V1本文档旨在介绍MAC230DRSR的功能规范，以帮助用户了解和使用该产品。
1. 产品概述MAC230DRSR是一款具有丰富功能的电子设备。
它具备以下主要特点：- 高性能：MAC230DRSR采用先进的技术，拥有卓越的性能表现。
高性能：MAC230DRSR采用先进的技术，拥有卓越的性能表现。
- 多功能：该设备提供多种功能，可满足用户的不同需求。
多功能：该设备提供多种功能，可满足用户的不同需求。
- 简单易用：MAC230DRSR的操作界面简单直观，用户可以轻松上手。
简单易用：MAC230DRSR的操作界面简单直观，用户可以轻松上手。
2. 功能特点2.1 功能一功能一的介绍。
2.2 功能二功能二的介绍。
2.3 功能三功能三的介绍。
3. 技术规格MAC230DRSR的技术规格如下：- 处理器：xxx处理器：xxx- 内存：xxx内存：xxx- 存储空间：xxx存储空间：xxx- 操作系统：xxx操作系统：xxx- 接口：xxx接口：xxx4. 使用说明MAC230DRSR的使用说明如下：1. 步骤一。
2. 步骤二。
3. 步骤三。
5. 常见问题解答以下是一些关于MAC230DRSR的常见问题及解答：问题一：问题描述。
问题描述。
解答一。
问题二：问题描述。
问题描述。
解答二。
6. 其他注意事项以下是MAC230DRSR的一些其他注意事项：- 注意事项一。
- 注意事项二。
以上就是MAC230DRSR的功能规范。
如需更详细的信息，请参考产品手册或与我们联系。
谢谢使用MAC230DRSR！。
适用于麦克维尔模块式风冷冷水/热泵机组MAC210/MAC230D /DS/DM/DR/DRS/DR MC302l控制器使用手册一、操作1、开关机按ON/OFF键，机组在开机（RUN灯亮）、关机（RUN灯灭）之间切换。
2、模式选择按“模式”键可在制冷/制热模式之间切换，须注意的是，模式却换必须在关机状态下进行。
3、参数查询使用本控制器能查询它所联网的任意一台机组的工作状态及参数（有哪几台压缩机在工作、进水设置温度、进水温度、出水设置温度、出水温度、机组的定时设置、制冷防冻温度、冬季防冻温度、除霜温度等）。
按“机组”键后机组号码闪烁，此时按“▲”或“▼”键改变机组号，查看到的是不同机组的当前参数，若要查询某个机组的工作参数，找到欲查询的机组号时按“确定”键即可查询该机组的工作参数了，按“▲”或“▼”键查看该机组的不同的参数。
4、参数设置①按“密码”键显示器左下框内显示“密码输入”和“00”，按“▲”或“▼”键改变数值，当选择到正确的用户密码后按“确定”键（出厂密码为“00”），显示框内显示时间，则表示已经输入正确的用户密码，可以进行以下设置：A、运行参数修改：在输入正确密码后，按照步骤②→③→④就能够完成运行参数的修改设置。
B、用户密码修改：在输入正确密码后，按“密码”键显示框内只显示“00”，则表示进入用户密码修改设置，按“▲”或“▼”键改变数值后，按“确定”键修改拥护密码完成，同时跳出参数设置状态。
②按“机组”键后机组号码闪烁，此时按“▲”或“▼”键改变机组号，找到欲设置参数的机组号时按“确定”键即可设置该机组的工作参数了（可设置的参数有：制冷进水温度、制热进水温度）。
③按“▲”或“▼”键选择要设置的参数，按“确定”键后就可以按“▲”或“▼”键设置参数值，设置完成后按“确定”键保存设置结果。
④重复步骤②可设置其他参数（注意：60秒内没有按键则退出参数设置）。
⑤设置参数值必须在关机状态下进行。
5、实时时钟设置用针形工具按“模式”键上方的小孔，液晶显示器上显示“星期设置”的字样，按“▲”或“▼”键设置当前时间是星期几，设置好了之后再按小孔，星期设置成功，同时显示器上显示“时钟设置”时间会闪烁，此时按“▲”键修改小时，按“▼”键修改分钟，再按小孔即可保存设置的时钟。
模块式风冷冷水模块式风冷冷水//热泵机组热泵机组MAC230 DRSR/DRMSR/DRSSR目录1产品介绍 (1)1.1特性 (1)1.2命名 (2)2技术参数 (3)2.1规格参数 (3)运行范围 (4)机组运行范围2.2机组2.3性能参数变化曲线 (5)2.4外形尺寸 (9)3机组安装 (11)3.1机组安装 (11)3.2水系统安装示意图 (19)水系统储水箱容量计算方法：： (21)3.3水系统储水箱容量计算方法3.4水质要求 (21)3.5辅助电加热器的选型 (22)3.6电气连接及参数 (23)4维修和保养 (26)4.1维修和保养 (26)4.2常见故障及处理方法 (27)5用户须知 (33)5.1权利和义务 (33)5.2检查 (33)5.3使用须知 (33)5.4安全注意事项 (33)6售后服务及保修 (35)6.1售后服务 (35)6.2保修期 (35)维修））记录 (36)7维护维护（（维修11 产品介绍1.1 特性概述麦克维尔MAC系列风冷冷水/热泵机组设计满足用户对产品可靠性、安全性、灵活性上的最高要求。
机组经过精心设计，外型美观高雅。
同时，机组搭配灵活，可以配接不同规格、不同类型的风机盘管或空气处理机组。
机组以其高效、低噪声、操作简便、运行安全、安装维护方便等优点，广泛适用于工厂、车站、宾馆、酒店、别墅、写字楼、高档住宅等场所，也可用于工业冷却。
多级调节MAC230DRSR/DRMSR/DRSSR能力可分二级调节，模块组合后就可以实现多级调节，例如8台MAC230DRMSR/DRSSR机组模块组合后就可以实现16级调节，效果已经非常接近无级调节。
电子控制机组分级运行，有利于减少机组启动时对电网的冲击，有利于节能。
性能优异MAC230系列产品运用世界领先技术，选用世界知名配件，并进行严格测试以确保其合理匹配。
全封闭涡旋压缩机和低噪声风机，使运行噪声极低；高效涡旋压缩机及精密的电子膨胀阀节流系统保证了机组高的EER及COP值，特别是在部分负荷运行时，其能效比会更高。
机组能在低温环境（-10度以上）能够正常制热运行，能满足温度较低地域的使用，而且在低温环境下能力衰减较少；也可以提供生活热水，机组最高出水温度能达到55℃；机组能同时为房间制冷，而且能同时提供生活热水，多功能用途更能满足客户的多方面要求。
控制方便机组采用电子控制，可以对机组进行集中控制，也可以对机组进行单独控制；控制器的抗干扰能力强，最远可以在1000米对机组进行控制；机组维修方便，当机组发生故障时，控制器会显示相应故障代码。
安装简单易行机组设计最大限度考虑用户的安装。
制冷系统已在工厂制作成封闭系统，用户无需进行任何铜管连接和制冷剂充注。
水系统预留进出水接口与末端设备连接，用户按安装要求安装后，在确保水质及水泵管道清洁的基础上注入水后即可通电运行。
除霜方式由控制器根据机组运行时间和热交换器的温度自动除霜。
安全运行控制制冷系统带有高压、低压保护，保证制冷系统不出现过高排气压力和过低吸气压力；排气温度保护, 保证制冷系统不出现过高排气温度;制冷防冻保护，在水温过低时，防止板式换热器内部冻裂；机组的防冻功能，防止了机组在冬天停止运行，室外温度过低时引起板式换热器的冻裂（此功能在主电源保持通电并处于制热控制状态情况下才有效）。
环境适应性强机组壳体采用镀锌钢板制作，经过磷化处理，并在表面喷涂纯聚脂粉末涂料，使之可以承受日晒雨淋，水浸风蚀。
机组结构设计合理，占地面积小，安装时不需专用机房，可置于房前屋后、阳台屋顶。
机组优良的性能，在高温或低温恶劣工况下，均能正常运行。
维修方便拆卸机组侧面板或前面板，即可接触到任何部件，方便维修和维护。
异常情况跳机时，控制器会提示故障原因，有利于问题的迅速解决。
21.2机型名称代号——MAC、MACS……制冷量代号——050、080、150……设计序号– A、B、C……功能形式– R：冷暖型；单冷机型缺省机组并联运行时的特征：对模块式风冷冷水（热泵）机组，M：主机，S：从机对非组合机组和已组合机组则缺省制冷剂代号——3：R134a；4：R407C；5：R410A；R22：缺省产品型式—— 标准型 ：缺省LC：低温制冷型；LH：低温制热型；SR：全热回收型；电源特性：F：380V/3N~/50Hz；A：220V~/50Hz产品规格变化的具体描述– AA，AB，AC ……ZZ内外销的标志——外销按相关企业标准执行，内销则缺省2 技术参数2.1 规格参数型 号 MAC230 DRSR/DRMSR/DRSSR额定制冷量 kW 65 额定制冷功率kW 19.2 性能系数COP 3.39 能效等级2 空调制冷模式额定制冷水流量 m³/h 11.2 额定制热量kW 68 额定制热功率kW 19.1 空调制热模式额定制热水流量 m³/h 11.7 额定制热量 kW 78 额定热水功率 kW 19.1 性能系数COP 4.08 热水模式 额定产水量 m³/h 13.4 额定制冷量 kW 65 热回收量 kW 75 额定热回收功率 kW 18.0 综合性能系数COP 7.78 热回收侧水流量 m³/h 12.9 热回收模式 冷水侧水流量 m³/h 11.2电源 380V/3N~/50Hz 换热器形式 高效板式热交换器 节流装置电子膨胀阀 型式全封闭涡旋式压缩机数量 台 2型式轴流式大叶片低噪声风机风机型式功率(高速/低速档)kW 0.7×2 / 0.3×2长mm 1990 宽mm 840 机组尺寸 高 mm 1840 空调侧kPa 45 水阻力热水侧kPa 68制冷剂/充注量 kg R22/10.0 x 2空调侧供回水管径接口 公称直径 DN50 热水侧供回水管径接口 公称直径 DN50 机组净重/运行重量kg 550/560 噪声dB(A)66注：1. 名义制冷量的工况: 出水温度7℃，水流量0.172[m 3/(h ·kW)]，室外环境温度35℃。
2. 名义制热量的工况: 出水温度45℃，水流量0.172[m 3/(h ·kW)]，室外环境干球温度7℃，湿球温度6℃。
3. 热水模式额定制热工况：环境温度20/15℃，热水进/出水温度40/45℃。
4. 额定热回收工况：冷冻水进出水温度12/7℃，热水进/出水温度40/45℃。
5. 表中空调侧水阻力参数包含机组水压降和随机附带的Y 型水过滤器压降，热水侧水阻力参数为机组水压降。
6. 表中的规格参数会随厂家产品设计的变更而有所改变，恕不另行通知。
7. 能效等级执行标准为 GB 19577-2004。
2.2 机组运行范围5545403530冷冻水出水温度℃空调热水出水温度℃26211510环境温度℃环境温度℃2515203035 运行范围251520-5 03035515制冷模式40485107.5402048 运行范围-5 0 5101555制热模式30354540212650-1050-10生活热水出水温度℃-73235-540环境温度℃51015 运行范围2025301015202530热水模式353532434045355055432530405055生活热水出水温度℃冷冻水出水温度℃运行范围101040热回收模式12.51530251512.5505557.57.517.512.5155107.52017.512.554277使用条件电源电压 额定电压的±10%以内 电源频率额定频率的±1%以内各相之间不平衡 电源任意两相之间电压差值须小于额定电压的2％ 空气质量不能含有腐蚀铜、铝、铁的溶解物 冷冻水的流量 额定水流量的±30%以内 冷冻水的水速 0.5~2.0m/s 冷冻水的水压 0.7Mpa 以下冷冻水的水质 不含腐蚀铜、铁、焊材的溶解物 安装场所 根据需要采取防积雪、通风的措施 环境温度 以上图（运行范围）为准 相对湿度90%以下备注：此运行范围按照GB/T 18430.1-2007，在额定水流量下测得，为机组的正常运行范围，超出此范围时，机组只能作短暂的运行，否则会出现机组故障报警。
2.3 性能参数变化曲线性能参数变化曲线1. 机组制冷能力曲线2. 机组制冷输入功率曲线4. 机组制热输入功率曲线6. 机组制热水输入功率曲线8 7. 机组热回收能力曲线8.机组热回收功率机组热回收功率曲线曲线注：以上表格中的参数是在机组额定水流量情况下测得的。
92.4 外形尺寸型号型号：：MAC230 DRSR/ DRMSR / DRSSR14x20地脚螺栓固定孔放大图单位：mm机组模块组合方式机组模块组合方式：：单位：mm注意：1. 安装基础必须是能够承受机组运行压力的混凝土地面或槽型钢架结构；2. N 表示安装的模块总数；3. 每台机组用4个M12的螺栓固定；4. 在机组和安装基础之间应安装6个20mm 厚的橡胶减震器；5. 安装基础必须配备排水设施，以方便排走冷凝水和融霜水。
3 机组安装3.1 机组安装安装与调试注意注意：：机组必须由麦克维尔服务人员或受过专门培训的安装人员来完成机组必须由麦克维尔服务人员或受过专门培训的安装人员来完成。
安装时应安装时应符合国家和地方政府颁布符合国家和地方政府颁布的相关电气的相关电气、、建筑建筑、、环境保护等法律法规环境保护等法律法规、、标准以及产品安装说明书的要求标准以及产品安装说明书的要求。
1. 安装前的准备 a. 检验所有冷水机组均用托盘装运，各机组内已预先充注有制冷剂，用户无须再添加。
收到货物时，用户应仔细检查机组，以确认在运输过程中货物无受损现象，且所有零配件均已收到。
对运输过程中货物的损伤，本公司不承担任何责任。
b. 搬运为便于搬运，搬运者应使用叉车式起重机车或缆绳式吊车。
使用缆绳吊车式，缆绳应通绕货盘，并使用合适的保护措施来保护机组的表层和侧面板。
搬运过程中，机组应保持水平状态，避免因鲁莽操作而损坏机组。
c. 拆卸把机组放在所需位置后，去掉包装，割断包装带，除去底部木托盘，如使用缆绳，把缆绳穿到托盘底座的边上。
2. 选择安装位置为了获得较好的制冷（制热）效果，应根据以下几方面来选择冷水机组的安装位置：●安装位置应使机组排出的热空气不被重新吸回机组，同时避免吸入其他机组排出的热空气，并预留足够的空间以备保养机组。
●在冷水机组排风和吸风的通道上，不应有障碍物阻挡气流。
●机组安装位置应有良好的通风，以帮助机组更好的换热。
●安装位置应有足够的强度以承担机组的重量及运行时的振动。
●应避免安装在脏物多或油污、含盐量大、及有大量硫化气体的地方。
