CATC18发动机培训

CATC18柴油发电机组操作规程一、安全操作规程1.在操作发电机组前，必须了解发动机和发电机的基本知识，并经过相关岗位培训。

2.在操作和维护过程中，必须按照操作手册和相关安全标准进行操作。

3.发电机组应安装在干燥、通风良好且无腐蚀性气体的场所，远离易燃易爆物品。

4.在操作发电机组前，必须检查燃油、水、润滑油等供给是否充足。

5.在操作发电机组前，必须确保电池电量充足，并检查电池连接线路是否牢固。

二、启动和停机操作规程1.启动操作：a.确保发电机组的控制开关在停止位置。

b.打开天然气或燃油阀门，使其进入发动机燃烧室。

c.按下启动按钮，启动发动机。

d.观察仪表盘上的指示灯，确保机组正常运转。

2.停机操作：a.将负载开关设置为停机状态。

b.将控制开关设置为停机状态。

c.关闭天然气或燃油阀门，切断燃料供给。

d.等待发动机冷却，停止运转，然后关闭发动机。

三、运行操作规程1.在发电机组运行期间，定期检查仪表盘上的各种指示灯，确保机组正常运转。

2.根据操作手册中的规定，定期检查发电机组的润滑油、水位和冷却液。

3.定期清洁发电机组的滤芯和空气滤清器，确保其畅通无阻。

4.同时监控发电机组的温度和压力指示，确保运行在安全范围内。

5.定期检查发电机组的电池电量，确保电量充足。

6.定期检查发电机组的接线端子，确保连接牢固。

四、维护操作规程1.定期更换发电机组的滤芯和空气滤清器。

2.定期清洗发电机组的散热器和冷却系统。

3.定期更换发电机组的润滑油和冷却液。

4.定期检查发电机组的电线、插头和接线端子，确保没有松动或腐蚀。

5.定期检查发电机组的传动系统和风扇带，确保其良好运转。

6.定期进行发电机组的维护保养，如清洗和润滑。

以上是CATC18柴油发电机组的操作规程，按照这些规程进行操作和维护，可以确保发电机组的安全、稳定运行。

同时，还应遵循相关的操作手册和安全标准，以保证操作和维护的正确性和有效性。

CAT C18柴油发电机组操作规程1 适用范围本规程适用于CAT C18柴油发电机组操作方法及操作过程注意事项等内容和要求。

2 风险提示3 操作步骤3.1 启动前的检查3.1.1检查护罩是否完好。

3.1.2检查旋转部件周围有无杂物，底盘固定及输出端连接是否牢固。

3.1.3空气进气系统：1）保证空气进气管道和空气滤清器位置正确。

2）保证所有的管夹和接头都安全可靠。

3）观察空气滤清器维护指示器。

当黄色隔条进入红色区域，或红色活塞卡死在看得见的位置时，要清洁或更换空气滤清器。

3.1.4冷却系统：1）检查冷却系统是否泄漏或接头是否松动。

2）检查冷却系统软管是否断裂，管夹是否松动。

3）检查水泵是否有泄漏现象。

4）检查风扇传动带是否断裂和磨损。

5）检查冷却液液位，必要时加入冷却液。

3.1.5发电机：1）进行发电机所需的所有保养。

2）保证主电路断路器处于断开位置。

3.1.6电器系统：1）检查导线是否有接头松动、磨损。

2）保证接地牢靠。

3.1.7燃油系统：1）检查燃油管是否有接头松动和泄漏。

保证燃油管妥善地夹好。

2）保证燃油罐到发动机油路畅通（必要时排空气）。

3.1.8润滑系统：1）检查发动机曲轴箱机油油位，维持此油位在“ADD（加）”和“FULL（满）”刻度之间。

2）检查下列部件是否有泄漏：曲轴密封、曲轴箱、机油滤清器、回油孔塞、传感器和气门罩。

3）检查曲轴箱通气孔上的管道、T形连接件和夹子。

3.1.9起动系统：1）检查电瓶电源24VDC，开关正常。

右侧发电机输出开关Q1，处于“OFF”位置，VFD房辅助发电机断路器处于“OFF”位置。

2）检查油水分离器是否良好，油雾器油量是否适当。

3）检查起动马达有无松动。

4）检查仪表和控制面板是否处于良好状态。

5）将关机和报警组件复位。

3.2 寒冷气候下的起动3.2.1发动机在温度低于16℃时，利用水套水加热器把水加热到32℃左右。

3.2.2在环境温度0℃以下时可使用辅助起动液起动。

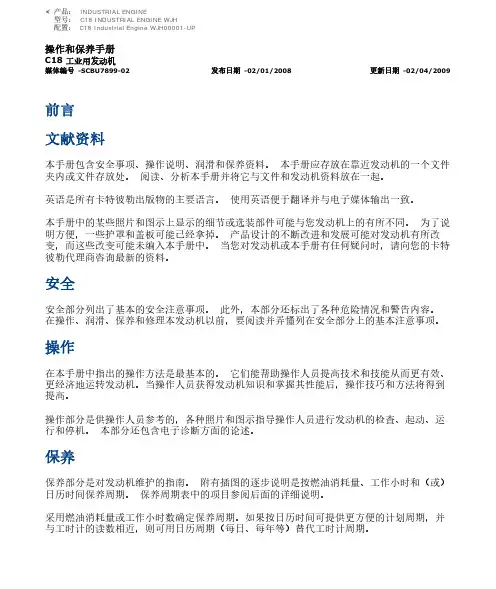

产品：INDUSTRIAL ENGINE型号：C18 INDUSTRIAL ENGINE WJH配置： C18 Industrial Engine WJH00001-UP操作和保养手册C18 工业用发动机媒体编号 -SCBU7899-02 发布日期 -02/01/2008 更新日期 -02/04/2009前言文献资料本手册包含安全事项、操作说明、润滑和保养资料。

本手册应存放在靠近发动机的一个文件夹内或文件存放处。

阅读、分析本手册并将它与文件和发动机资料放在一起。

英语是所有卡特彼勒出版物的主要语言。

使用英语便于翻译并与电子媒体输出一致。

本手册中的某些照片和图示上显示的细节或选装部件可能与您发动机上的有所不同。

为了说明方便，一些护罩和盖板可能已经拿掉。

产品设计的不断改进和发展可能对发动机有所改变，而这些改变可能未编入本手册中。

当您对发动机或本手册有任何疑问时，请向您的卡特彼勒代理商咨询最新的资料。

安全安全部分列出了基本的安全注意事项。

此外，本部分还标出了各种危险情况和警告内容。

在操作、润滑、保养和修理本发动机以前，要阅读并弄懂列在安全部分上的基本注意事项。

操作在本手册中指出的操作方法是最基本的。

它们能帮助操作人员提高技术和技能从而更有效、更经济地运转发动机。

当操作人员获得发动机知识和掌握其性能后，操作技巧和方法将得到提高。

操作部分是供操作人员参考的，各种照片和图示指导操作人员进行发动机的检查、起动、运行和停机。

本部分还包含电子诊断方面的论述。

保养保养部分是对发动机维护的指南。

附有插图的逐步说明是按燃油消耗量、工作小时和（或）日历时间保养周期。

保养周期表中的项目参阅后面的详细说明。

采用燃油消耗量或工作小时数确定保养周期。

如果按日历时间可提供更方便的计划周期，并与工时计的读数相近，则可用日历周期（每日、每年等）替代工时计周期。

应按保养周期表中指出的相应间隔期进行推荐的保养。

发动机的实际工作环境也会影响保养周期。

824H/834HCoal ScoopsEngine – 824H Engine – 834HEngine Model Cat® C15 ACERT™ Engine Model Cat® C18 ACERT™ Direct Drive – Gross Power 299 kW 401 hp Direct Drive – Gross Power 414 kW 555 hp Net Power – ISO 9249 264 kW 354 hp Net Power – ISO 9249 390 kW 523 hp Weights – 824H Weights – 834HOperating Weight 30 874 kg 68,064 lb Operating Weight 49 070 kg 108,180 lbScoop FeaturesProductivityProductivity is critical to your bottom line.Cat® coal scoops offer features and systems that help improve performance and lower your costs. ReliabilityCat coal scoops offer fi eld proven components and systems, high hour machine life standards and multiple rebuild options for continued uptime and long machine life.SafetyCaterpillar continues to be proactive in developing machines that meet or exceed safety standards. Safety is an integral part of all machines and system designs, and can be seen throughoutthe coal scoops.ServiceabilityEasy access to the engine and other key serviceability features make servicing customer machines and in-fi eld component exchange quick, easy, and effi cient.Operator ComfortCat coal scoops have been ergonomically designed to enhance operator comfort, allowing for higher operating effi ciencies and production.ContentsProductivity (3)Reliability (4)Safety (5)Serviceability (6)Operator Comfort (7)Customer Support (8)824H/834H Specifications (9)824H/834H Standard Equipment (13)824H/834H Optional Equipment (14)Notes ...................................................................15 Cat® coal scoops have been proven in the field, helping customers achieve top efficiency and productivity while keeping costs down. With the 824H and 834H, you get a purpose built machine that provides industry leading uptime, safety, serviceability and operator comfort.Purpose Built Front LinkageCat coal scoops have the unique capability of maximizing your production by both dozing and carryinga load with each pass. A purpose built hydraulic system is optimized for use with this work tool tomaximize machine productivity and efficiency.Auto Idle Kickdown (AIK) (834 only)If an operator is not actively operating the machine for a period of time, the AIK system will temporarilyreduce the engine speed to save fuel. After an automated engine speed reduction, the system willautomatically resume the engine speed to the previous setting when the operator engages the implementcontrol pod of the F-N-R switch to the STIC™ Steer.Impeller Clutch Torque Converter (ICTC) Left Pedal ControlThe ICTC works with throttle lock to allow the operator to modulate rimpull to the wheels and slow themachine down without reducing engine speed. This allows the machine to maintain full hydraulic powerfor blade and steering control which gives the 824H and 834H a hydrostatic feel while keeping the benefits ofthe world’s most efficient and powerful drive train and powershift transmission with lock-up control system.Oscillating Rear AxleThe fixed front, oscillating rear axle ensures four-wheel ground contact for optimum traction and stability.The front axle is rigidly mounted to the front loader frame, while the rear axle is allowed to oscillate.This configuration allows the operator’s view of the scoop to remain constant as the rear axle oscillatesenabling the operator to maintain a smooth and properly graded work area in any underfoot conditions.Load Sense SteeringThe steering system utilizes a variable displacement pump for maximum machine performance by directingpower through the steering system only when needed. This improves efficiency and reduces heat build up.3ReliabilityMaximizing uptime, long life – it’s what you expect for your bottom lineCat C15/C18 Engine with ACERT™ TechnologyThe Cat C15/C18 engine with ACERT technology is U.S. EPATier 3 and EU Stage III compliant. It features increasedhorsepower and efficient fuel management for quick response,high productivity and exceptional service life. A sculpturedcylinder block provides greater strength and is lighter weight.Cat Planetary, Power Shift TransmissionElectronic shifting provides smooth, consistent shifts.Large diameter clutches coupled with four planet geartrains provide added durability for extended, trouble free life.StructuresCombining the use of robotic welding and castings incritical high stress areas, more than 80 percent of themachine structure is robotically welded to provide highlyconsistent welds and increased strength. Castings are alsoused in several areas to increase strength by helping spreadthe loads and reduce the number of parts.Axle-Shaft, Oil Disc BrakesThese brakes are adjustment free, fully hydraulic andcompletely sealed. Disc face grooves provide coolingeven when brakes are applied for a longer component life.• Location of brakes allow for improved serviceability.The axle shaft brake design allows for brake servicewhile leaving the final drive intact.• Axle-shaft brakes require less force by operating on thelow torque side of the axle. Combined with improvedaxle oil circulation for increased cooling, the oil-enclosed,multiple disc brake design improves durability.4SafetyBuilt to protect youEntry and ExitGetting on and off the machine is one of the leading causes of injury on a job site. Cat coal scoops havea number of features to ensure your operator gets safely on and off the machine. They include primaryand secondary stairwell exits, punch stamped tread plates, ground level nighttime stairwell light switch,full perimeter railings on upper platforms, side platform emergency egress and toe kicks and optionalroading fenders.Rearview CameraWith the new optional rearview camera, visibility is greatly enhanced. The camera is located in a pocketon the grill to protect it from damage and the elements. The camera can be set to activate only when thetransmission is in reverse to help eliminate distractions in the cab, especially when in dark environments.VisibilityCat coal scoops offer a number of standard and optional features to enhance job site visibility.Standard and optional features include articulated wiper/washer system with intermittent features,optional rear vision camera, optional high intensity discharge lights, optional warning beacon andoptional turn signals.5ServiceabilityEasy to maintain. Easy to service.Optional Swing Out Radiator FanThe optional swing out radiator fan provides for easy accessto the radiator cores for easy cleaning and inspection.Optional Auto Reversing FanThe fan reverses automatically at preset intervals to removedebris from the inlet screen. It can also be reversed manuallyfrom the cab.Hydraulically Driven Demand FanThe demand fan automatically adjusts fan speed for optimalcooling, resulting in reduced power draw on the engine, betterfuel efficiency and more power for hydraulics and rimpull.Component AccessSwing out doors on both sides of the engine compartmentprovide easy access to the engine oil dipstick and filler spout,S·O·S SM ports, fuel filters air conditioner compressor, engine oilfilters, alternators, starting receptacle, air filter service indicator,cooler fill and ether starting aid. There are also ground levelviewable sight gauges on all major systems and centralizedremote pressure taps.Shutdown and Lockout FeaturesAn electrical disconnect switch and hydraulic lockout switchallow service technicians to perform maintenance while themachine stays static. Other shutdown or lockout devicesinclude ground level engine shutdown and ground levelsteering hitch lock lever.Operator ComfortBest-in-class working environmentBest-in-Class Working EnvironmentA comfortable operator is a productive operator, which is why Caterpillar has designed the 824H and834H with a best in-class working environment for this size scoop. The world class cab incorporatesfeatures for operator comfort and ergonomics, visibility and ease of operation.An updated Implement Pod is fully adjustable and designed for low-effort comfort. Switches andcontrols are located within easy reach of the operator.Interior noise levels are reduced to a quiet 73 dB(A).Options include heated seat for cold weather operations and Bluetooth, MP3, or satellite radio options.STIC Steering System (834H only)The STIC steer controller uses a single lever for steering and transmission control. Left-hand operationsenable the operator to shift and change directions without letting go of the steering controls.Idle Shutdown (834 only)This new feature will automatically shutdown the engine after the machine has been in a safe idlingstate for an extended amount of time. The operator in the cab will be audibly and visually warned beforethe shutdown occurs.7Customer SupportCount on Cat dealers for business solutionsSelectionCat dealers can help customers compare and choose the right machine for their business.FinancingCat dealers offer financing options to meet a variety of needs.OperationImprove operating technique for better productivity and profit with the latest Cat dealer training resources. Product SupportCat dealers are with customers every step of the way with unsurpassed worldwide parts support, trained technicians and customer support agreements.8824H/834H Specifications Engine – 824H Service Refill Capacities – 824H Cab – 824HEngine Model Cat® C15 ACERT™ Direct Drive –Gross Power299 kW 401 hpDirect Drive –Flywheel Power264 kW 354 hpConverter Drive –Gross Power299 kW 401 hpConverter Drive –Flywheel Power264 kW 354 hpNet Power –ISO 9249264 kW 354 hpNet Power –EEC 80/1269264 kW 354 hp Bore 137 mm 5.4 in Stroke 171 mm 6.7 in Displacement 15.2 L 928 in3 Weights – 824HOperating Weight 30 874 kg 68,064 lb Axles – 824HFront Planetary-Fixed Oscillating Rear ±13 Fuel Tank 700 L 185 galCooling System 83 L 21.9 galCrankcase 34 L 9 galTransmission 62 L 16.4 galDifferentials and 90 L 23.8 galFinal Drives – FrontDifferentials andFinal Drives – RearHydraulic Tank90 L88 L23.8 gal23.2 galScoop Capacities – 824HCarryDozeTransmission – 824H13.5m327 m317.5 yd335 yd3Converter DriveForward 1Forward 2Forward 3Forward 4Reverse 1Reverse 2Reverse 3Reverse 46.1 km/h10.5 km/h18.3 km/h32.1 km/h6.9 km/h12 km/h20.8 km/h36.6 km/h3.8 mph6.5 mph11.5 mph20 mph4.3 mph7.5 mph13 mph22.7 mphBrakes – 824HBrakes Meet SAE/ISO 3450 1996Cab ROPS/FOPS isstandardSound Performance Meet ANSI/SAE,Levels SAE andISO standardsROPS/FOPS Meets SAE andISO standards• Integrated Rollover Protective Structure(ROPS) and Falling Objects ProtectiveStructure (FOPS) is standard inNorth America, Europe and Japan.• Operator sound exposure Leq (equivalentsound pressure level) measured accordingto the work cycle procedures specifi ed inANSI/SAE J1166 OCT98 is 78 dB(A)for the cab offered by Caterpillar whenproperly installed, maintained and testedwith the doors and windows closed.• Hearing protection may be needed whenoperating with an open operator stationand cab (when not properly maintained ordoors/windows open) for extended periodsor in noisy environment.• Exterior sound pressure level for thestandard machine measured at a distanceof 15 m (49.2 ft) according to the testprocedures specified in SAE J88 JUN86,mid-gear moving operation is 81 dB(A).• Sound power level is 114 dB(A) measuredaccording to the dynamic test procedureand conditions specified in ISO 6395:1988/Amd. 1:1996 for a standard machineconfi guration.• For CE marked confi gurations, labeledsound power level is 109 dB(A) measuredaccording to the test procedures andconditions specified in 2000/14/EC.• ROPS meets SAE J1394, SAE J1040 APR88,ISO 3471-1:1986 and ISO 3471:1994.• FOPS meets SAE J231 JAN81 andISO 3449-1992 Level II.9824H/834H SpecificationsEngine – 834H Service Refill Capacities – 834H Cab – 834HEngine Model Cat® C18 ACERT™ Direct Drive – 414 kW 555 hp Gross PowerDirect Drive – 349 kW 468 hp Flywheel PowerConverter Drive – 413 kW 554 hp Gross PowerConverter Drive – 372 kW 499 hp Flywheel PowerNet Power – 390 kW 523 hp ISO 9249Net Power – 373 kW 501 hp EEC 80/1269Bore 145 mm 5.71 in Stroke 183 mm 7.2 in Displacement 18.1 L 1,104.5 in3Weights – 834HOperating Weight 49 070 kg 108,180 lbAxles – 834HFront Planetary-Fixed Oscillating Rear ±13 Fuel Tank 793 L 209.5 galCooling System 107 L 28.3 galCrankcase 60 L 15.9 galTransmission 83 L 21.9 galDifferentials and 186 L 49.1 galFinal Drives – FrontDifferentials andFinal Drives – Rear190 L 50.2 galHydraulic Tank 267 L 70.5 galScoop Capacities – 834HCarry 23m3 30 yd3Doze 46 m3 60 yd3Transmission – 834HConverter DriveForward 1 6.8 km/h 4.2 mphForward 2 11.6 km/h 7.2 mphForward 3 20.3 km/h 12.6 mphForward 4 35.4 km/h 22 mphReverse 1 6.8 km/h 4.2 mphReverse 2 12.2 km/h 7.6 mphReverse 3 21.4 km/h 13.3 mphReverse 4 N/A N/ADirect DriveForward 1 Lock Up DisabledCab Integrated RolloverProtective Structure(ROPS)/FallingObject ProtectiveStructure (FOPS)standardSound PerformanceLevelsMeets ANSI/SAE,SAE andISO standardsROPS/FOPS Meet SAE andISO standards• Operator sound exposure Leq (equivalentsound pressure level) measured accordingto the work cycle procedures specifi ed inANSI/SAE J1166 OCT 98 is 77 dB(A)for the cab offered by Caterpillar whenproperly installed and maintained andtested with the doors and windows closed.• Hearing protection may be needed whenoperating with an open operator stationand cab (when not properly maintained ordoors/windows open) for extended periodsor in noisy environment.• Exterior sound pressure level for thestandard machine measured at a distanceof 15 m (49.2 ft) according to the testprocedures specified in SAE J898 JUN86,mid-gear-moving operation is 81 dB(A).• Sound power level is 115 dB(A) measuredaccording to the dynamic test procedureand conditions specified in ISO 6395:1988/ Forward 2 12.4 km/h 7.7 mph Amd. 1:1996 for a standard machine Forward 3Forward 422.1 km/h38.5 km/h13.7 mph23.9 mphconfi guration.• For “CE” marked confi gurations, thelabeled sound power level is 110 dB(A) Reverse 1 7.2 km/h 4.5 mph measured according to the test procedures Reverse 2 13 km/h 8.1 mph and conditions specified in 2000/14/EC. Reverse 3 23 km/h 14.3 mph • ROPS meets SAE J1394, SAE J1040 APR88,ISO 3471-1:1986 and ISO 3471:1994 Reverse 4 N/A N/A standards.Brakes – 834H • FOPS meets SAE J231 JAN81 andISO 3449-1992 Level II standards. Brakes Meet SAE/ISO 3450 199610Dimensions – 824HAll dimensions are approximate.mm ft1 Height to top of cab 3700 12.142 Height to top of exhaust pipe 3590 11.783 Height to top of hood 2635 8.644 Ground clearance to bumper 885 2.905 Center line of rear axle to edge of bumper 2787 8.826 Center line of rear axle to hitch 1850 6.077 Center line of front axle to hitch 1850 6.078 Wheelbase 3700 12.149 Length with scoop on ground 10 453 34.3010 Ground clearance 358 1.17824H Scoop Specifications Capacity (Carry) Capacity (Doze) Overall Width Heightm3 yd3 m3 yd3mm ft mm ft6.5 Coal Scoop 13.5 17.5 27 35 4058 13.3 199211824H/834H Specifications Dimensions – 834HAll dimensions are approximate.1 Height to top of cab2 Height to top of exhaust pipe3 Height to top of hood4 Ground clearance to bumper5 Center line of rear axle to edge of bumper6 Center line of rear axle to hitch7 Center line of front axle to hitch8 Wheelbase9 Length with scoop on ground 10 Ground clearance mm4083 4104 3146 970 3132 2275 2275 4550 11 916 531ft 13.40 13.46 10.32 3.18 10.28 7.46 7.46 14.93 39.10 1.74 834H Scoop Specifications Coal ScoopCapacity (Carry)m 3yd 3 23 30Capacity (Doze) m 3yd 3 4660Overall Width mm ft 485415.9Height mm ft 23827.812824H/834H Standard Equipment Standard equipment may vary. Consult your Cat dealer for details.ELECTRICALAlarm, back-upAlternator (100-amp)Batteries, maintenance-freeDeutsch terminal connectorsElectrical system (24-volt)Lighting system, halogen (front and rear),access stairwayStarter, electric (heavy-duty)Starting receptacle for emergency starts OPERATOR ENVIRONMENTAir conditionerCab, sound suppressed and pressurized Internal four-post rollover protectivestructure(ROPS/FOPS), radio ready (entertainment) includes antenna, speakers and converter (12-volt, 15 amp), 12-volt power port,tinted glassCigar lighter (12-volt, 15-amp) and ashtray Coat hookElectro-hydraulic lift, tilt and dump Heater and defrosterHorn, electricLight, cab (dome)Lock-up clutch disable switchLunch box and beverage holders Monitoring system (EMS-III)Action alert system, three category Instrumentation, gauges:Engine coolant temperatureFuel levelHydraulic oil temperature Speedometer/tachometerTransmission oil temperatureInstrumentation, warning indicatorsAxle/brake oil temperature (front/rear)Brake oil pressureElectrical system, low voltageEngine intake/combustion air temperatureEngine oil pressureEngine overspeedFuel pressureHydraulic oil fi lter statusParking brake statusTransmission fi lter statusMirrors, rearview (externally mounted)Rimpull select switchSeat, Comfort Series (cloth), air suspensionSeat belt, retractable, 76 mm (3 in) wideSTIC control system with steering lockTilt and lift control system lockTransmission gear indicatorWet-arm wipers/washers (front and rear)Intermittent front wiperPOWER TRAINBrakes, full hydraulic, enclosed, wet-discMultiple disc service brakesCase drain fi ltersDemand fanFuel priming pump (electric)Parking brakePrecleaner, engine air intakeRadiator, Next Generation ModularRadiator (NGMR)Separated cooling systemStarting aid (ether) automaticThrottle lockTorque converter, impeller clutch withlockup control system and rimpullcontrol system (switch and dial in cab)Transmission, planetary, autoshift (4F/3R)OTHER STANDARD EQUIPMENTDoors, service access (locking)Engine, crankcase, 500 hour intervalwith CH-4 oilGrouped Electronic Clutch PressureControl, remote mounted pressure tapsHitch, drawbar with pinHood, metallic with lockable service doorsHydraulic oil coolerMuffler (under hood)Oil sampling valvesSteering, load sensingVandalism protection caplocksVenturi stackTIRES, RIMS AND WHEELSA tire must be selected from the mandatoryattachments section – base machineprice includes a tire allowanceANTIFREEZEPremixed 50 percent concentrationof Extended Life Coolant with freezeprotection to –34° C (–29° F)13824H/834H Optional Equipment Optional equipment may vary. Consult your Cat dealer for details.Lock-up clutch (834H only)Cab, guard front windowsCab, rear fan and grillCab, rubber-mounted glass Camera, rear visionComputer Aided Earthmoving System (CAES) attachment ready option Differentials, No-SPIN (rear) Fast fi ll systemHeater, engine coolantHeater, fuelLighting, HIDLight, warning fl ashing strobeLight, warning rotating beaconMirror, inside (panoramic)Oil Change System, high speedPrecleanersRadio, AM/FM/CD/MP3Radio, CB (ready)Radio, Satellite, BluetoothSound suppressionSwitch, disconnect, remote mountedVisor, front14Notes15824H/834H Coal ScoopsFor more complete information on Cat products, dealer services, and industry solutions,visit us on the web at AEHQ6669 (02-2012) © 2012 Caterpillar Inc.All rights reservedMaterials and specifications are subject to change without notice. Featured machinesin photos may include additional equipment. See your Cat dealer for available options.CAT, CATERPILLAR, , their respective logos, “Caterpillar Yellow”and the “Power Edge” trade dress, as well as corporate and product identity used herein,are trademarks of Caterpillar and may not be used without permission.。

CAT发动机培训教程引言CAT发动机是全球知名的重型机械设备制造商卡特彼勒公司生产的高质量、高性能的发动机。

CAT发动机以其卓越的性能、可靠性和耐用性而闻名于世，广泛应用于各种重型机械设备、船舶、发电设备等领域。

为了更好地满足用户的需求，本教程旨在为CAT发动机用户提供全面、系统的培训，帮助用户更好地了解、使用和维护CAT发动机。

第一章：CAT发动机概述1.1CAT发动机的发展历程CAT发动机自诞生以来，历经数十年的发展，不断进行技术革新和产品升级。

从最早的四冲程柴油机，到现代的电子控制燃油喷射系统，CAT发动机始终保持着行业领先地位。

1.2CAT发动机的系列产品CAT发动机拥有丰富的产品线，包括小型、中型和大型柴油机，功率范围广泛，可满足不同用户的需求。

主要产品系列有：（1）C系列：C4.4、C7.1、C13、C15等，适用于小型和中型机械设备。

（2）ACERT系列：ACERT技术是CAT发动机的核心技术之一，通过先进的燃烧优化和排放控制技术，实现高效、环保的动力输出。

（3）3400系列：3406E、3412E等，适用于大型机械设备、船舶和发电设备。

第二章：CAT发动机的工作原理与构造2.1工作原理CAT发动机是一种四冲程柴油机，其工作原理包括进气、压缩、燃烧和排气四个过程。

通过这四个过程的循环往复，实现发动机的动力输出。

2.2发动机构造（1）气缸体：是发动机的主体部分，承担着承受高温、高压气体压力的重要任务。

（2）曲轴连杆机构：将活塞的直线运动转换为曲轴的旋转运动，实现动力输出。

（3）燃油系统：负责将燃油喷入气缸内，与空气混合后进行燃烧。

（4）冷却系统：通过循环水冷却发动机，保持发动机工作温度稳定。

（5）润滑系统：为发动机各运动部件提供润滑，降低磨损。

（6）电子控制系统：通过电子控制单元（ECU）对发动机各系统进行精确控制，实现高效、环保的动力输出。

第三章：CAT发动机的使用与维护3.1使用注意事项（1）确保发动机的运行环境符合要求，避免在高温、高湿、高海拔等恶劣环境下长时间运行。

01汽油发动机通过汽油和空气混合、压缩、点火、排气四个冲程实现动力输出。

02柴油发动机利用高压喷油嘴将柴油直接喷入气缸，通过压缩自燃产生动力。

03混合动力结合汽油发动机和电动机的优点，实现更高效、环保的动力输出。

发动机类型及工作原理配气机构控制进气和排气过程，保证发动机正常工作。

将活塞的往复运动转化为旋转运动，输出动力。

活塞在汽缸内往复运动，实现进气、压缩、做功和排气四个冲程。

汽缸体发动机的骨架，承载各种负荷。

汽缸盖密封汽缸，形成燃烧室。

发动机主要部件与功能常用术语解析下止点汽缸工作容积活塞在汽缸内运动到最底端的位置。

活塞从上止点到下止点所扫过的容积。

上止点活塞行程发动机排量活塞在汽缸内运动到最顶端的位置。

上止点和下止点之间的距离。

各汽缸工作容积的总和。

03卡特catc 发动机采用先进的燃油系统和高效的涡轮增压技术，确保在各种工况下都能提供卓越的动力输出。

强大的动力输出通过精确的燃油喷射控制、优化的燃烧室设计以及先进的热管理系统，卡特catc 发动机实现了低油耗，为客户节省运营成本。

优秀的燃油经济性卡特catc 发动机具备宽广的扭矩范围，使得车辆在各种负载和道路条件下都能保持稳定的性能表现。

宽广的扭矩范围高性能与低油耗表现先进排放控制技术高效的尾气后处理系统卡特catc发动机配备了先进的尾气后处理系统，包括选择性催化还原（SCR）技术和颗粒捕集器（DPF），有效降低氮氧化物和颗粒物排放。

精确的燃油喷射控制通过高精度的燃油喷射器和先进的电子控制系统，卡特catc发动机实现了燃油的精确计量和喷射，从而优化燃烧过程，降低排放。

环保认证卡特catc发动机符合全球最严格的环保法规要求，如欧VI、美EPA Tier 4 Final等标准，展现出卓越的环保性能。

可靠耐用，维护便捷坚固耐用的设计卡特catc发动机采用高品质的材料和先进的制造工艺，确保发动机在恶劣的工作环境下也能保持出色的耐久性和可靠性。

长维护周期优化的设计和高品质的零部件使得卡特catc发动机的维护周期更长，减少了客户的维护成本和停机时间。
