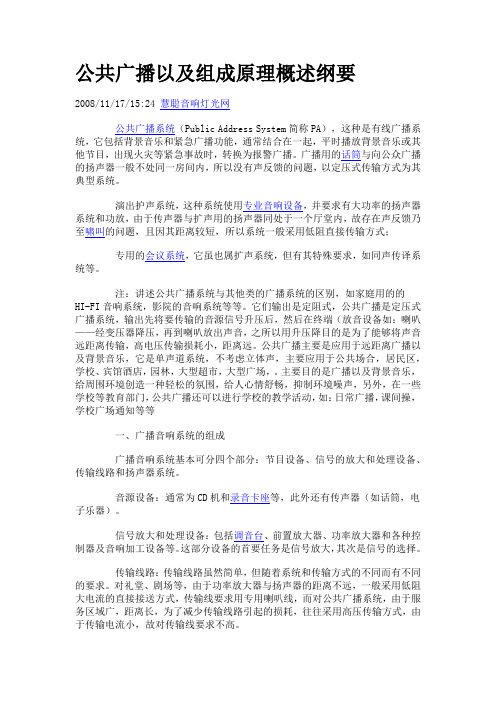

公共广播以及组成原理概述纲要2008/11/17/15:24 慧聪音响灯光网公共广播系统（Public Address System简称PA），这种是有线广播系统，它包括背景音乐和紧急广播功能，通常结合在一起，平时播放背景音乐或其他节目，出现火灾等紧急事故时，转换为报警广播。
广播用的话筒与向公众广播的扬声器一般不处同一房间内，所以没有声反馈的问题，以定压式传输方式为其典型系统。
演出护声系统，这种系统使用专业音响设备，并要求有大功率的扬声器系统和功放，由于传声器与扩声用的扬声器同处于一个厅堂内，故存在声反馈乃至啸叫的问题，且因其距离较短，所以系统一般采用低阻直接传输方式；专用的会议系统，它虽也属扩声系统，但有其特殊要求，如同声传译系统等。
注：讲述公共广播系统与其他类的广播系统的区别，如家庭用的的HI-FI音响系统，影院的音响系统等等。
它们输出是定阻式，公共广播是定压式广播系统，输出先将要传输的音源信号升压后，然后在终端（放音设备如：喇叭——经变压器降压，再到喇叭放出声音，之所以用升压降目的是为了能够将声音远距离传输，高电压传输损耗小，距离远。
公共广播主要是应用于远距离广播以及背景音乐，它是单声道系统，不考虑立体声，主要应用于公共场合，居民区，学校、宾馆酒店，园林，大型超市，大型广场，。
主要目的是广播以及背景音乐，给周围环境创造一种轻松的氛围，给人心情舒畅，抑制环境噪声，另外，在一些学校等教育部门，公共广播还可以进行学校的教学活动，如：日常广播，课间操，学校广场通知等等一、广播音响系统的组成广播音响系统基本可分四个部分：节目设备、信号的放大和处理设备、传输线路和扬声器系统。
音源设备：通常为CD机和录音卡座等，此外还有传声器（如话筒，电子乐器）。
信号放大和处理设备：包括调音台、前置放大器、功率放大器和各种控制器及音响加工设备等。
这部分设备的首要任务是信号放大，其次是信号的选择。
传输线路：传输线路虽然简单，但随着系统和传输方式的不同而有不同的要求。
迪⼠普OTEWA品牌公共⼴播系统--TA1234T说明书TA1234TMP3定时播放器使⽤说明欢迎惠顾。
您对本产品之选⽤显⽰了您的专业眼光。
使⽤前请仔细阅读本说明书。
性能特点●液晶屏幕显⽰，单键飞梭，中⽂字幕，操作⽅便、⼯作状态⼀⽬了然。
●⼀周程控定时操作，每天可编制上百个时间点，且信息掉电记忆。
●1个话筒录⾳输⼊⼝、2个线路录⾳输⼊⼝、1个放⾳输出⼝、1个短路输出⼝。
●话筒具有最⾼优先权；放⾳可优先线路输⼊。
●具有录⾳功能，可录制长达26个⼩时的节⽬并能对其进⾏定时播放。
●带汉字字库,可直接显⽰节⽬名称。
●1个程控/⼿控电源供给通道。
●可通过局域⽹访问该设备，⾃由更新MP3节⽬；可连接U盘。
此页留空供⽤户记事。
1前⾯板⑴⑵⑶⑷⑸⑹⑺⑻⑼⑽⑾⑿⒀⑴电源开关⑵电源指⽰灯⑶录⾳电平调节⑷电平指⽰⑸录⾳话筒输⼊⑹液晶显⽰屏⑺电源⼿动控制键⑻播放键⑼返回键⑽停⽌/删除按键⑾录⾳键⑿播放模式键⒀飞梭操作键后⾯板⑴⑵⑶⑷⑸⑹⑺⑻⑼⑽⑾⑴录⾳信号输⼊⑵放⾳输出⑶短路输出⼝⑷ USB 接⼝（尚未使⽤）⑸ USB 接⼝⑹⽹络接⼝⑺显⽰屏对⽐度调节⑻定时电源保险丝⑼定时电源插座⑽ AC 输⼊保险丝⑾ AC 电源电线连接⽅法该接法可实现⼿动播放、程控定时播放、紧急话筒和背景⾳乐等功能。
正在播放节⽬时可通过⾯板话筒接⼝插⼊讲话，此时将掩盖正在播放节⽬的声⾳，即此话筒接⼝有优先功能；当播放器没有播放节⽬时，⾳频输出⼝将输出后板线路输⼊的节⽬，此时话筒接⼝也有优先功能。
这三种⾳源的优先级别从⾼到低为：话筒输⼊、播放节⽬、线路输⼊。
⽹线制作⽅式如果使⽤本机的“DATA ”接⼝通过⽹络交换机接⼊局域⽹，要使⽤T-568A ～T-568A ⽹线接法；如果不通过⽹络交换机⽽直接接到PC 的⽹卡上，则要使⽤T-568A ～T-568B ⽹线接法，两者略有不同，T-568A 和T-568B ⽹线的制作⽅法参照下图。
本公司所配备的⽹线是⽤来通过⽹络交换机接⼊局域⽹更改设备节⽬的，为T-568A ～T-568A 接法。
1 公共广播系统1.1 系统概述公共建筑的背景音响与应急广播系统（公共广播系统）功能一般可分为业务性广播、服务性广播和火灾事故广播三种，服务性广播又包括背景音乐广播。
它是公共建筑的基础支持系统，主要用于突发情况的紧急广播，如消防紧急广播的播出；其次用于服务性广播掩盖环境噪声并营造舒适的环境气氛，以及业务广播通知、呼叫播音等信息播出；再次，随着技术发展及产品功能完善，能够实现区域内本地音源节目的现场接入播出。
大型体育场馆的公共广播系统应用以火灾应急广播功能为主，兼备背景音乐及业务广播、竞赛信息广播等功能，并可以根据所采用的组网方式和设备灵活设置辅助功能，分区能够灵活设置并选择不同音源播出，最大程度的发挥公共广播系统在体育场里的作用。
1.2 需求分析根据招标要求及本项目的结构特点，同时考虑公共广播对扩声要求的特殊性，除以上功能区域分析、基本需求分析外，我们也充分考虑并提供给用户如下特色功能：分区灵活——由于拥有多个功能区域，系统可以对背景音乐分区进行灵活的组合以适应不同区域的需要；多音乐输出——背景音乐系统在必要情况下，要能为不同的功能区提供不同的背景音乐；针对以上特色功能，并充分发挥我们对于智能广播系统的技术集成优势，在充分满足当前需求的前提下，为将来的系统扩容预留足够的空间，提出了如下设计构想：在xx区体育中心设立一个广播系统总控机房，用于对整个广播系统的控制和管理，总控机房配备一套前端音源、总控呼叫站、系统控制主机（主机）和供给整个建筑扬声器的功率放大器；在消防控制室/消防中央控制室设立广播系统分控呼叫站。
分控呼叫站与总控呼叫站具有相同的功能。
分控呼叫站通过RJ45线缆传输，最长有效距离为1000米。
广播总控机房的功能主要有：➢能够对所有广播进行控制管理；➢能够对所有分区的扬声器进行音量调整和音源监听；➢系统监测，所有主机设备的故障信息能够即时反馈在系统主机和控制计算机上，便于及时排除故障；➢线路监测，能够对本系统内的线路进行监测（包括断路、短路和接地）并反馈给系统主机和控制计算机。
校园广播工程河南声雅科技3 孙海亮校园广播系统的作用发布作息信号（如上下课钟声）； 发布通知；向师生传达上级的政策、指示，播送校长讲话； 广播新闻； 寻呼；大会（包括校运会）扩声,大教室（阶梯教室）扩声； 播送礼仪乐曲、保健操乐曲、课前课后的背景音乐；播送教学语音文件，课前问候（祝福）语音文件，放学嘱咐语音文件； 必要时强行发布灾害性事故警报，指挥现场救护和疏散。
校园广播系统的结构方案一、 简易的校园广播系统 二、 简易的自动定时广播系统 三、 简易系统的扩展 四、 大功率系统 五、 最小系统 六、 典型系统 七、 矩阵系统 八、 智能化系统 九、 网络化系统十、 基于CATV 的系统下面，以 欧特华（OTEW A ） 公共广播系统的 TA12 系列为例，介绍各种方案的具体构成。
一、 简易的校园广播系统最简易的系统如图一。
LD 系列广播扬声器LD 系列广播扬声器广播功放、广播线路和广播扬声器与普通家用的或HiFi 的专业功放、音箱线、扬声器不尽相同。
由于广播线路通常相当长（几十米乃至上千米），为减少传输损耗，广播信号原则上是用高电压 / 小电流的方式传输。
所以广播功放须提供高压信号，因此广播功放都内置有输出变压器用以提升广播信号电压；同时，为了便于配接广播扬声器，广播功放应是定压输出模式，其输出端子标示70V / 100V / 120V 等规格。
另外，300W 以下常规的小功率广播功放通常自带前置级（典型的如OTEW A-TA22/33系列），属合并式功放。
由于系统用高压传输，所以广播线路一般不必使用昂贵的HiFi 音箱线而只须用普通的双绞线；如果配置在室外，则应加防雷设施（见下文）。
相应地，广播扬声器原则上应是高阻扬声器，它们都有内置的“线间变压器” （阻抗变换 / 降压用），其输入端子也标示70V/100V/120V 等适用电压规格。
广播扬声器同广播功放之间的匹配规则非常简单：首先，广播扬声器的输入标称电压原则上应同广播功放的输出标称电压相同；在这样的前提下，只要所有广播扬声器的总功率不大于广播功放的额定输出功率即可（这是理论值，有关规程另有限定，见下文）。
公共广播系统方案排版介绍公共广播系统是一种集语音、音乐等多种功能于一体的信息发布系统。
它被广泛应用于学校、办公楼、商场、医院等各类公共场所，用于为人们提供实时信息、紧急通知以及背景音乐等服务。
本文将详细探讨公共广播系统的方案排版，包括系统需求、布局设计、音频设备选择等方面内容。
系统需求区域划分公共场所通常分为不同的区域，例如会议室、走廊、办公区等。
广播系统需要能够独立控制不同区域的音量、音乐选择等功能。
因此，在方案排版时需要根据实际情况将场所划分为不同的区域，并为每个区域分配相应的音频设备。
紧急通知在紧急情况下，例如火警、自然灾害等，公共广播系统需要能够迅速发布通知，以便及时疏散人员。
因此，在方案排版时需要考虑并配备紧急通知装置，以确保紧急通知的及时性和可靠性。
音质要求公共广播系统的音质直接关系到用户体验，因此在方案排版时，需要注意选择高质量的音频设备，并合理设计扬声器的布局，以保证音质的清晰、均衡。
系统可扩展性公共场所的布局可能存在变动，例如会议室合并、普通办公区调整等。
因此，在方案排版时，需要考虑系统的可扩展性，即能够根据实际情况方便地增减音频设备或重新布局。
布局设计案例分析：学校公共广播系统以学校为例，公共广播系统的方案排版应考虑以下几个因素：1.学校布局：学校通常由教学楼、图书馆、食堂、操场等区域组成。
在方案排版时，应根据不同区域的特点和使用频率，合理划分较小的区域。
2.主控室位置选择：主控室的位置应该尽量靠近各个区域，以减小音频线路的传输损耗，确保信号的稳定性。
3.扬声器布局：扬声器应根据各个区域的布局和面积合理摆放，并考虑声音的覆盖范围和反射情况。
在教室等环境中，扬声器应尽量避免反射产生的回音。
4.音频设备选择：根据场地的大小和环境的噪音情况，选择合适的音频设备，例如功率放大器、混音器、音源接口等。
方案排版示意图下图为一个学校公共广播系统的方案排版示意图：音频设备选择公共广播系统的音频设备选择应考虑以下几个因素：1.功率放大器：选择功率适中的放大器，使音频信号在传输过程中不会因为功率不足而导致信噪比下降。
公共广播系统设计说明1. 引言公共广播系统是为了满足大型公共场所如商场、学校、医院等的语音广播需求而设计的一种系统。
它通过高效地传输声音信号，使得人们可以迅速、方便地进行广播。
本文档将对公共广播系统的设计进行详细说明，包括系统的组成部分、功能需求、技术要求等。
2. 系统组成公共广播系统主要由以下几个部分组成：2.1 控制中心控制中心是整个系统的核心部分，它负责接收广播指令并控制调度不同的广播终端。
控制中心应具备以下功能：•接收和解析广播指令•控制广播终端的开关和音量调节•支持多路广播同时进行•提供广播日志记录和管理功能2.2 广播终端广播终端是用户接收广播内容的设备，常见的有喇叭、耳机、扬声器等。
广播终端应具备以下功能：•支持音量调节•支持广播节目选择•支持多路广播同时播放•具备故障报警功能2.3 信号传输设备信号传输设备负责将音频信号从控制中心传输到广播终端，常见的有音频线缆、无线传输设备等。
信号传输设备应具备以下功能：•提供稳定且高质量的音频传输•支持大范围覆盖和传输距离•具备抗干扰能力3. 功能需求公共广播系统应满足以下功能需求：3.1 广播节目选择用户可以通过控制中心选择不同的广播节目进行播放，可以是预先录制的音频文件也可以是实时语音。
3.2 多路广播系统应支持多路广播同时进行，以满足不同区域的广播需求。
3.3 音量调节用户可以通过广播终端调节音量大小，以适应不同场景的需求。
3.4 故障报警系统中的广播终端应具备故障自检和报警功能，一旦出现故障应及时发出报警信号。
4. 技术要求公共广播系统应满足以下技术要求：4.1 信号传输稳定系统应采用高品质的音频传输设备，以确保音频信号传输稳定且保持高音质。
4.2 大范围覆盖系统应支持大范围的信号覆盖和传输距离，以适应不同场所的需求。
4.3 抗干扰能力系统应具备较强的抗干扰能力，以保证广播的清晰和稳定。
4.4 安全性系统应具备一定的安全性措施，以防止未授权人员对广播内容进行篡改或干扰。
INTEVIO Compact Public Address SystemINTEVIO Public Address SystemThe INTEVIO Public Address System is an ideal solution for retail shops, offices, hotels, factories, and K-12 schools that need a robust and economical paging solution.It supports business operation with effective voice communication and promotes customer experience with delightful background music. INTEVIO featuresan intuitive user interface, flexible paging configuration, and extra systemreliability – all of which result in cost savings and improved efficiency.Office Buildings Factories SchoolsShoppingMallHotelsThe Latest Hardware Platform to Boost Performance• Expand capacity for comprehensive functional integration, enabling size and cost reduction.• Provide the foundation for smooth operation.• Strengthen the backbone for system fault prevention.Power Amplifier Backup Reduces System Vulnerability • Avoid operation disruption caused by amplifier breakdowns.• Provide flexible backup options to meet economic targets.• Feature auto-switch function to save time for new amplifier reset. Full Monitoring Functions Accelerate Troubleshooting • Report system disconnections to save time on diagnosis.• Indicate line faults and speed up trouble locating.• Pass environmental test under extreme conditionsto ensure system robustness.Ease-of-Use Design Saves Time and Money• Add LCD screen with intuitive interface on controllerto reduce the learning curve.• Preloaded common configuration enables system setupvia plug and play.• Provide software tool that customizes system configuration at will.The INTEVIO Public Address System improvesthe design standard for small to medium-sized building applications. Usability, simplicity, and reliabilityare the key criterion amplified by INTEVIO.INTEVIO is proud to choose a cutting-edge hardwareplatform, focus on the details of user experience,and raise the norm for safety features in the bestinterest of users and installers.3.5Operator productivity at small to medium-sized facilities is often subjectto the operator’s knowledge of the system, which day-to-day businessrelies on. To improve performance without requiring them to besubject matter experts, INTEVIO can flexibly adapt to the operationalrequirements, and lower the threshold for users with an intuitive userinterface, programmable keypads, and remote access.Intuitive User Interface Remote Access Programmable Keypad 3.5" Thin-Film-Transistor (TFT) Screen• Embedded with a graphical user interfacefor easy adoption.• Improves operational efficiency with simpleaccess to system control.• User log lets you monitor component detailswhenever you want.• Step guide identifies fault conditions so youremployees don’t have to – saving you timeand money on training.Remote Live Paging and Audio Routing• Up to 6 call stations are available.• Dual communication port support with twodirection “star” connect.• Has a local audio source input and remote audiomonitoring.• Digitalized volume control for all inputs meansthere’s no need for a preamplifier.• One CAT5 cable connects all routing, includingthe power supply.• A speaker embedded in the call station lets yourecord and play messages.Programmable Buttons• Completely programmable buttons allow youto customize the system to fit your needs.One-Key Operation• Simple, one-key task and zone operation makesthe job easier than ever.Integrated WiringAn optimized internal wiring layout within this integrated system makes installation and wiring simple and cost-efficient.• Assigned function group terminal layout for straight connection wiring architecture eliminates the need for complicated crossover connections.• A single CAT5 cable is used for audio routing, controls, supervision, and power.Centralized MonitoringFaults can be quickly identified and resolvedby conveniently accessing trouble and log details through the screen of the INTEVIO controller.• Information is easily accessible through the 3.5" LCD controller.• Manage configuration and fault diagnosticsby exporting log files.• Monitor your system around the clock with accessto all details and supervision.Seamless and Easy IntegrationSystem allows for third-party integration through monitored dry contacts.Day-to-day school operations rely on a public address system. Any failure leads to an interruption in school operations, a loss in productivity, and increased operational costs. Therefore, in addition to rich features and cost efficiency, a school requires a system it can depend on. The PA That Deserves an A+• Improve efficiency by automatically delivering a preset school bell schedule throughout campus.• Give trained personnel access to the system so they can broadcast recorded messages or deliver live paging.• The system can add up to 6 call stations within 400 meters while being powered through Power over Ethernet (PoE) – eliminating the cost of any additional wiring.• INTEVIO monitors the system’s input/outputs, power supply, and speaker circuits for you. This is a key feature that can be checked on your LCD screen or with notifications via LED indicators to ensure the system is running properly.Customize System ConfigurationWith the configuration tool, users can program the school bell schedule for days, weeks, or years, and even use special programming for holidays and summer programs. The system can be synchronized with the Network Time Protocol (NTP) server to accommodate time synchronization and time zone changes.Full access to the current schedule and a user’s ability to temporarily enable or disable any task allows for last-minute changes without the need to reset the entire system.Target Specific ZonesINTEVIO’s remote call stations enable live paging to targeted zones. Functional buttons on the controller are configurable for different operations while allowingthe user to easily change the message for specific zones – without extra hardware.Control Access and Set RestrictionsThe controller provides programmable access restrictions with user password configuration. Scheduled tasks are automatically delivered, and users can override announcements based on priority levels.Unsolicited broadcasting could be tempting to curious individuals in a school setting, so an access control scheme can be applied to prevent unauthorized access.EducationYou know that a public address system can be used as a standalone paging system, but did you know it can also be used to create the perfect atmosphere in your office? Choose specific areas to broadcast background music and you can boost productivity or greet your guests with a special tune. Get the Job Done with INTEVIO• Background music or message announcements are deliveredin parking lots, reception lobbies, and corridors.• Volume control can be adjusted to accommodate the ambient noise level in specific zones.• The system is lightweight and designed to have a clean look– inside and out – for simple installation and an appealing aesthetic in a crowded room.• Security guards can use the system to monitor the premiseand broadcast specific messages to individual zones duringan emergency. A call station can also be designated as the master controller to override background and paging announcementsin crucial scenarios.• Every segment of audio is delivered perfectly to ensure the lowest distortion.• Smart power distribution allows for excess power to be sharedto effective zones, reducing waste.Cost-Cutting PerformanceTo increase savings, INTEVIO provides a highly compact design witha user-friendly interface. Combined with the Honeywell Leadway Series loudspeaker family and high-efficiency ClassD amplifiers, INTEVIOcan achieve professional grade sound while providing power-saving performance.Office BuildingsHotels provide a unique and relaxing experience.A public address system is an essential part of that. Enhancing a visitor’s experience means more than offering a pleasant ambiance – it also means providing a safe and secure surrounding.Did you know......that the INTEVIO system can be self-managed? With a world class design anda flexible structure, this public addresssystem provides customized audiodelivery through multiple audio sourceinputs and local connectivity.• From lobbies and bars, to restaurants, spas, and swimming pools, each hotel area should benefit from a local audio source input. The standard solution is an independent audio system with I/O triggering that prioritizes emergency messages.• In the lobby, a generous variety of audio content should be played throughout the day..• Automatic broadcast makes the audio content easy to manage.• Paging is not allowed in hotels – except for emergency situations. This means the system needs a foolproof design, providing quick access to control features..• Hotel sound intelligibility is important, as the volume level hasto be adjusted multiple times to different environments.• INTEVIO amplifiers can be extended to a remote area for local broadcast. The system can deliver audio to local amplifiers through a 100V power line.• With a storage of a 1 GB flash combined with a 4 GB SD card, the system can host up to over 900 minutes of music and has USB ports available for external storage.• All audio sources, including AUX inputs and internal memories,can be programmed to broadcast day by day. Content is easyto update through configuration or the USB data port.• In the configuration tool, the maximum volume levelcan be set according to environmental settings.HotelsMallsGET REAL-TIME FEEDBACKIn shopping malls and supermarkets, a public address system is oneof the most frequently used platforms. Environmental challenges like high turnover of staff or a complicated system can significantly increase training expenses. With the user-friendly INTEVIO features, you are empowered to improve operational efficiency in malls and supermarkets. Easy operations are driven by real-time information, as users receive feedback from the system with every step they take.WORRY LESS WITH INTEVIO• Use multi-language, scheduled reminders to manage the population flow within your facility.• Enhance shopping ambiance in different areas with customizable background music.• Program promotional messages by setting intermission times, configuring playlists, and more.• The service call station in your control room oversees parkinglots and different areas of the building, ensuring synchronized service paging.• Eliminate operational errors and big training efforts witha user-friendly, simple-stepped system interface.• Define audio source inputs within the “scheduled tasks” menu for external audio sources, or use default settings for routine messages.• With a 1 GB flash plus a 4 GB SD card, the system can storeup to +900 minutes of music and has a USB port availableto support external storage and easy updates.• Store prerecorded messages in the system for promotional announcements.• INTEVIO supports temporary record and play functions, enabling user and content verification for broadcast access.• Intuitive user experience with interaction messages that appear after each button operation.INTEVIO Controller RKMCUINTEVIO Amplifier RKAMP500INTEVIO Call Station RKMIC The INTEVIO Public Address Controller featuresaudio storage, signal processing, routing, control,and supervision functions for the entire system.This solution is dedicated to single buildingupgrades that offer stability, cost savings, optimaluser experience, and enhanced performance.The INTEVIO High Efficiency Power Amplifierprovides audio signal amplification for theINTEVIO Public Address System. This lightweightplatform offers reliability and efficiency,as its design is focused on easy installationand adding a power boost to any application.The INTEVIO Call Station allows usersto deliver live paging, enable background musicand service announcements, and broadcastemergency messages to selected speaker zones.It further enhances the user experienceby allowing volume control, message recording,and audio monitoring all from a remote location.Features:• Complies with international standards.• Plug-and-play options for easy commissioning.• Fully configurable keys to complete any task at thepress of a button.• Modular architecture, expandable up to128 speaker zones.• Dual channel audio capability.• Flexible amplifier backup modes that ensure lowcost of ownership and high reliability.• Digital volume control on all inputs or outputs.• Comprehensive fault detection and indication.Features:• ClassD technology, high efficiency, and low powerconsumption.• Maximum 500W rated output power.• Supports 70V/100V audio outputs.• Supports balanced or unbalanced audio inputs.• Supports 100V audio input.• Programmed air cooling.• Automatically limits the output voltage.• Supports automatic protection and fault detection.Features:• Built-in speaker for audio channel monitor.• Temporary recording function for instant messagerecording and broadcasting.• Audio line to facilitate background music from anexternal audio source.• Separate volume controller for mic input, line-in,and speaker.• 8 freely programmable buttons.• Expandable with HMCK4/HMCK8 keypad modulesif required.• Automatic fault detection.• CAT5 cable connection with RKMCU. Maximumdistance is 600m.• Powered by RKMCU or external power.• Up to 6 RKMIC can be connected in one system.INTEVIO24-Zone ExpanderRKZONE24INTEVIO8-Zone ExpanderRKZONE8The INTEVIO 24-Zone Expander offers seamless integration with additional speaker lines to extend the reach in new and retrofit applications.The INTEVIO 8-Zone Expander integrates additional speaker lines - while achieving a broader reach in new and retrofit applications.Features:• Supports up to 24 speaker zones.• Single channel operation.• Independent volume control for each audio channel.• Up to 500 W output capacity on any zone.• Can connect up to 6 main amplifiers and 1 backup amplifier.• Flexible amplifier backup mode that can support all other system amplifiers.• 24 dry contact inputs (non-monitored).• Automatic fault detection: main power, backup power, CPU, amplifier, speaker line, speaker line grounding, dry contact inputs, and network.• With 1 line input port, use it in standalone mode or if the controller CPU fails..• Can work as standalone (for PA announcements in case main controller RKMCU CPU fails) or in network mode along with main controller RKMCU.• Ability to connect up to 5 units of RKZONE24, providing a system with up to 128 speaker zones.Features:• Supports up to 8 speaker zones.• Dual channel operation to support two audio channels simultaneously.• Independent volume control for each audio channel.• Up to 500 W output capacity on any zone.• Can connect up to 4 main amplifiers and 1 backup amplifier.• Flexible amplifier backup mode that can support all other system amplifiers.• 8 monitored dry contact inputs.• 8 dry contact outputs.• Supports 3-wire and 4-wire volume controllers.• Automatic fault detection: main power, backup power, CPU, amplifier, speaker line, speaker line grounding, dry contact inputs, and network.• Can be used with 1 line input port in standalone mode or if the controller CPU fails.• 24DC output to power external devices.• Can work as standalone (for PA announcements in case system fails) or in network mode along with the main controller RKMCU.• Ability to connect up to 15 units of RKZONE8 providing a system with up to 128 speaker zones.Honeywell Security and Fire 12 Clintonville Road Northford, CT 06472, USA Tel:+1.800.323.4576/Notification BINT-PA | Rev 01 | 11/17© 2017 Honeywell International Inc.HONEYWELL EXCELS IN DESIGNING AND MANUFACTURING HIGH QUALITY PUBLIC ADDRESS AND VOICE ALARM SOLUTIONS. OUR PRODUCTS HAVE BEEN INSTALLED IN THOUSANDS OF COMMERCIAL AND PUBLIC FACILITIES AROUND THE WORLD.。
