RUCKUS R300型号AP操作指南

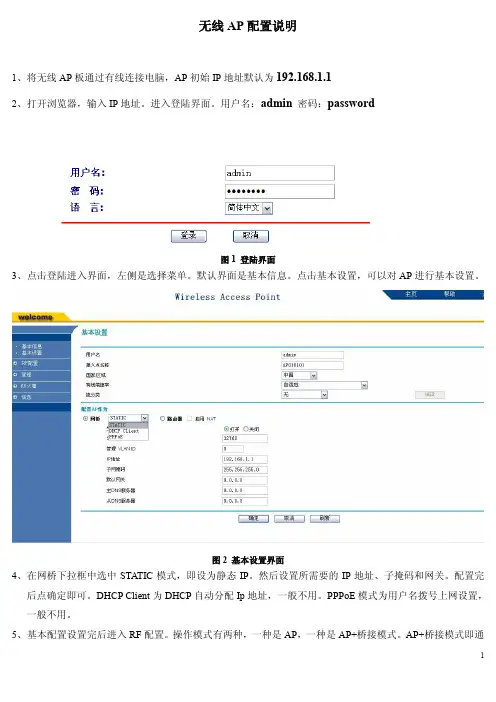

无线AP配置说明1、将无线AP板通过有线连接电脑，AP初始IP地址默认为192.168.1.12、打开浏览器，输入IP地址。

进入登陆界面。

用户名：admin密码：password图1 登陆界面3、点击登陆进入界面，左侧是选择菜单。

默认界面是基本信息。

点击基本设置，可以对AP进行基本设置。

图2 基本设置界面4、在网桥下拉框中选中STATIC模式，即设为静态IP。

然后设置所需要的IP地址、子掩码和网关。

配置完后点确定即可。

DHCP Client为DHCP自动分配Ip地址，一般不用。

PPPoE模式为用户名拨号上网设置，一般不用。

5、基本配置设置完后进入RF配置。

操作模式有两种，一种是AP，一种是AP+桥接模式。

AP+桥接模式即通过AP建桥。

配置是选择AP+桥接，信道默认6信道，其它选项默认，不需要修改。

配置完后点击确定，AP自动保存配置，不需要重启。

图3 无线设定界面6、安全配置文件主要是配置SSID地址和启用网络通道。

最多支持8个SSID信道。

选中所需的通道，单击编辑更改SSID名字。

打开一栏中可选择通道是否打开。

图4 安全配置界面7、无线AP间的连接是基于MAC地址，对于MAC地址的设定可以手动添加，也可以自动获取。

进入WDS界面启用AutoWDS则是启动自动添加MAC地址，当无线检测到后及可自动添加。

图5 WDS设定界面8、如果使用无线传输模式，则所用的无线板均要配置成AP+桥接模式，并且在同一信道。

并启用AutoWDS 即可。

配置完后把一台接入电脑，用电脑PING其它无线板的IP地址图6 无线AP板在工作面的应用。

3.3R3胖AP 使用指导信锐网科技术有限公司2017年3月3日一版本说明 (3)二基本配置 (3)1、AP登录 (3)2、AP模式确认 (3)3、接口配置 (3)4、配置无线网络 (5)三、无线桥接 (6)1、普通桥接 (6)2、移动桥接 (8)三系统维护场景 (9)场景1：将瘦AP转换胖AP (9)场景2：将胖AP切换为瘦AP (11)一版本说明3.3R3的AP为胖瘦一体的AP，与之前版本的区别是：1、可以直接在界面上进行胖瘦切换；2、支持无线桥接；3、面板AP支持胖模式；4、WAN口支持自动获取地址;5、支持用户从不同的VLAN中获取地址。

二基本配置1、AP登录电脑直接连接LAN口，或者将电脑和AP连在同个交换机上，胖AP模式的管理地址还是192.168.100.1/24。

电脑设置同个网段的IP，输入http://192.168.100.1，登陆AP管理界面2、AP模式确认在系统状态--运行状态查看AP模式，胖AP还是瘦AP。

3、接口配置Internet口，可以设置静态IP，PPPOE拨号，也可以设置自动获取地址。

有线接口是指AP上的物理二层口，可以配置成Trunk口和Access口。

当VLAN属性为Trunk 时，允许VLAN是可以放通vlan范围，Native VLAN是判断是否添加或剥离vlan信息。

支持不同SSID的终端可以获取到不同网段的地址。

本地子网，VLAN接口作为无线客户端的网关以及提供DHCP服务。

支持划分多个VLAN。

点击编辑，可以配置VLAN接口的DHCP服务，可以只给本AP下的无线终端分配地址，默认勾选本VLAN受信任的DHCP服务器。

4、配置无线网络设置SSID和认证方式，注意这里有个用户VLAN，这里指定终端从哪个VLAN上获取地址。

三、无线桥接1、普通桥接编辑Root AP，配置桥接SSID、接入密码、VLAN编辑Client AP，配置桥接SSID、接入密码、VLAN与Root AP一致2、移动桥接移动桥接用于桥接AP需要移动的场景，如地铁和公交车上的WIFI部署。

AccessC-230E provides Wi-Fi networks that require less time and resources to deploy and maintain compared to traditional devices, resulting in significant cost savings.•Plug and play provisioning using either Cloud or On-premise deployments - Arista Access Points take less than two minutes to activate and configure after connecting to the cloud•Support for up to eight individual SSIDs per radio providing maximum flexibility in network design•Network controls like NAT, Firewall and QoS implemented at the Access Point, ensuring faster and more reliable networks •Continuous scanning of all 2.4 GHz and 5 GHz channels by a dedicated 2x2 third radio provides a dynamic, 360-degree view of the RF environment to assist in RF optimization and client handling•Network availability and performance assurance using the third radio as a client to conduct on-demand and scheduled connectivity and performance tests•Smart steering addresses sticky client issues by automatically pushing clients with low data rates to a better access point•Band steering manages channel occupancy, pushing clients to the 5 GHz channel for optimal throughput•Smart load balancing distributes load evenly across neighboring APs to optimize the use of network resources•Arista Wi-Fi’s distributed data plane architecture continues to serve users and secure the network even if connection with the management plane is interrupted•Interference avoidance from LTE/3G small/macro cells in commonly used TDD/FDD frequency bandsSecurityC-230E offers complete visibility and control of the wireless airspace ensuring network integrity while actively protecting userswithout manual intervention.•C-230E is equipped with industry leading fully integrated wireless intrusion prevention capabilities•Multifunction third radio provides uninterrupted spectrum scanning or client emulation for always on security coverage alongside dedicated 2.4G/5G client radios.•Arista’s patented Marker Packets TM help accurately detect rogue access points on any network while minimizing false positives •Third radio used as a dedicated security sensor for 24x7x365 scanning and automated over-the-air (OTA) prevention •Deterministic rogue AP detection and prevention by monitoring all WiFi and non-WiFi VLANs.•Over-the-air and on-the-wire prevention techniques assure automatic and reliable threat prevention to keep unauthorized clients and rogue APs off the network without impacting authorized connections.•Access Points autonomously scan for wireless threats and enforce security policy even if disconnected from the cloud management plane•VLAN monitoring enables a virtual connection to non-WiFi networks for complete network rogue detection and prevention AnalyticsThe C-230E collects telemetry on connected and unconnected WiFi clients and supports immersive guest network experiences that help Arista’s customers develop and reinforce the relationship with their end customers.•Reports of customer footfall, demographic, loyalty and other analytics provide insightful and actionable information.•Supports proximity marketing programs that trigger when certain devices are present, which includes automatic messaging vis MMSin-browser notifications and real time notifications sent to 3rd party systems that alert to the presence of enrolled devices.Operational Specifications Input Power12V DC (5.5mm overall diameter/2.1mm center pin hole) PoE +•Full function PoE•USB off•Both 5Ghz & 2.4GHz limited to 2x2 operation •Tx power reduced by 6dB for both radiosNumber of Radios 2 access radios; one 2x2:2 2.4GHz and one 4x4:4 5GHz radio for simultaneous dual band access. 1 multi-function 2x2 radio for continuous WIPS and client connectivity testsMax Clients Supported 1024 - 512 clients per radio (dependent upon use cases) MU-MIMO4X4 on 5GHz radio and 2X2 on 2.4GHz radioNumber of Spatial Streams 4 for 5GHz radios, 2 for 2.4GHz radio, 2 for multipurpose radio Maximum EIRP29dBm on 5GHz radio (max) and 26dBm on 2.4GHz radio (max)180+80MHz Non-Contiguous Channel Bonding No Bandwidth AgilityYes3G/4G Macro and Small Cells InterferenceMitigation YesFrequency Bands 22.4-2.4835 GHz, 5.15-5.25 GHz; (UNII-1), 5.25-5.35 GHz, 5.47-5.6 GHz, 5.650-5.725 GHz (UNII-2), 5.725-5.85 GHz (UNII-3)Dynamic Frequency SelectionSupported in compliance to all latest amendments from FCC, CE, IC, TELEC, KCC, NCC and ANZ regarding certifications.WiFi SpecificationsIEEE 802.11a/n/ac/axFrequency BandScanning TransmissionAll regions USA & Canada (FCC/IC)Europe (ETSI)5GHz Band5.15 ~ 5.25 GHz 5.25 ~ 5.35 GHz5.47~ 5.725 GHz 5.725 ~ 5.825 GHz5.15 ~ 5.25 GHz 5.25 ~ 5.35 GHz 5.725~ 5.825 GHz5.15 ~ 5.25 GHz 5.25 ~ 5.35 GHz 5.47~ 5.725 GHzDynamic Frequency Selection DFS and DFS2 Modulation Type OFDM / OFDMA Peak Data Rates Up to 2.4 GbpsAntennaExternal with RPSMA female type connectors1 Max EIRP will be restricted to Country/Regulatory domain limits 2The frequency ranges are restricted to Country/Regulatory domain limitsIEEE802.11b/g/n/axFrequency BandScanning TransmissionAll regions USA & Canada (FCC/IC) Europe (ETSI) 2.4GHz Band2400 ~ 2483.5 MHz 2400 ~ 2473.5 MHz 2400 ~ 2483.5 MHz Modulation Type DSSS / OFDM / OFDMAPeak Data Rates Up to 0.6 GbpsAntenna External with RPSMA female type connectorsReceive Sensitivity5GHz 2.4GHzMode Rate Sensitivit y (dBm)802.11a 6 Mbps-93 54 Mbps-7611n_HT20MCS 0-94 MCS 7-7611n_HT40MCS 0-91 MCS 7-7311ac_VHT20MCS 0-94 MCS 8-7211ac_VHT40MCS 0-91 MCS 9-6811ac_VHT80MCS 0-88 MCS 9-6511ax_HE20MCS 0-94 MCS 11-6511ax_HE40MCS 0-91 MCS 11-6211ax_HE80MCS 0-88MCS 11-59Mode Rate Sensitivit y (dBm)802.11b1 Mbps-9811 Mbps-90802.11g6 Mbps-9354 Mbps-7711n_HT20MCS 0-95MCS 7-7611n_HT40MCS 0-91MCS 7-7311ax_HE20MCS 0-94MCS 11-6511ax_HE40MCS 0-91MCS 11-62Aggregate Transmit Power5GHz 2.4GHzMode Rate Power(dBm)802.11a6 ~ 18 Mbps 29 24 ~ 54 Mbps 29802.11n_HT20 MCS 0 ~ 4 29 MCS 5 ~ 7 29802.11n_HT40 MCS 0 ~ 4 29 MCS 5 ~ 7 29802.11ac_VHT20 MCS 0 ~ 4 29 MCS 5 ~ 7 29 MCS 8 ~ 9 29802.11ac_VHT40 MCS 0 ~ 4 29 MCS 5 ~ 7 29 MCS 8 ~ 9 28802.11ac_VHT80 MCS 0 ~ 4 29 MCS 5 ~ 7 29 MCS 8 ~ 9 28802.11ax_HE20MCS 0 ~ 4 29 MCS 5 ~ 7 29 MCS 8 ~ 9 29 MCS 10- 11 28802.11ax_HE40MCS 0 ~ 4 29 MCS 5 ~ 7 29 MCS 8 ~ 9 28 MCS 10- 11 28802.11ax_HE80MCS 0 ~ 4 29MCS 5 ~ 7 28MCS 8 ~ 9 28MCS 10 ~ 11 28Mode Rate Power(dBm)802.11b 1 ~ 11 Mbps 26802.11g6 ~ 18 Mbps 2624 ~ 54 Mbps 26802.11n_HT20MCS 0 ~ 4 26MCS 5 ~ 7 26802.11n_HT40MCS 0 ~ 4 26MCS 5 ~ 7 26802.11ax_HE20MCS 0 ~ 4 26MCS 5 ~ 7 24MCS 8 ~ 9 24MCS 10 ~ 11 24802.11ax_HE40MCS 0 ~ 4 26MCS 5 ~ 7 24MCS 8 ~ 9 23MCS 10 ~ 11 23Data SheetOrdering Information Access PointPowerSupportSalessupport-wifi@408-547-5502866-476-0000sales@ 408-547-5501 866-497-0000Copyright 2023 Arista Networks, Inc. The information contained herein is subject to change without notice. Arista, the Arista logo and EOS are trademarks of Arista Networks. Other product or service names may be trademarks or service marks of others.October 30, 2023Mounting OptionsFor details of mounting options, see the Access Points Mounting Brackets Guide Part NumberDescriptionPWR-AP-W4 Universal AC power supply for C-230, 12VDC, 3.3APWR-AP-PLUS-NA One port PoE+ injector for use with all Access Point models. Includes USA power cord. Not for outdoor use.Headqu arters5453 Great America Parkway Santa Clara, California 95054408-547-5500External AntennasFor details of compatible antennas, see Antenna Selection GuideRegulatory Specifications RF and Electromagnetic Compatibility (EMC)Country CertificationUSA FCC Part 15.247, 15.407, 15B Canada ICES-003, RSS-247, RSS-102EuropeEN 300 328, EN 300 440, EN 301 893, EN 301 489 , EN 55024, EN 55032, EN 55035Countries covered under Europe certification: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czechia, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom.CountryCertificationUL/cUL 62368, UL 2043EN 62368, RoHS GB/T 26125 RoHSSafety & EnvironmentalTaiwanCNS 14336, CNS 15663 RoHSUSA , Canada E ur uropean Union (EU)opean Union (EU)China *For complete country certification records, please visit the site: https:///en/support/product-certificatePart NumberDescriptionAP-C 230E C -230E 4x4 + 2x2 tri radio 802.11ax (WiFi 6) access point with external antennaconnectors. Antennas not included.AP-C 230E -SS-3YC -230E 4x4 + 2x2 tri radio 802.11ax (WiFi 6) access point with external antenna connectors. Includes 3 year cloud service. Antennas not included.AP-C 230E -SS-5Y C -230E 4x4 + 2x2 tri radio 802.11ax (WiFi 6) access point with external antenna connectors. Includes 5 year cloud service. Antennas not included.。

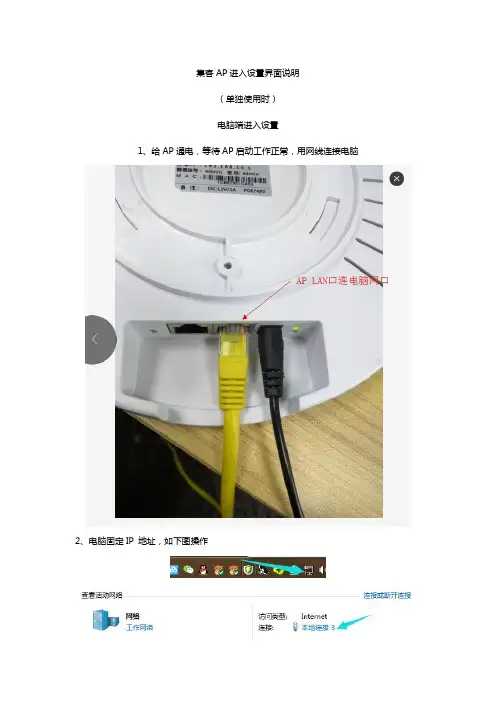

集客AP进入设置界面说明（单独使用时）电脑端进入设置1、给AP通电，等待AP启动工作正常，用网线连接电脑2、电脑固定IP地址，如下图操作3、浏览器输入6.6.6.6（建议使用搜狗、谷歌浏览器），进入AP管理页面，默认密码：admin4、设置WIFI名字和密码（单频只有2.4G，双频有2.4G和5G，黑白名单策略需配合网关，VALN需要需要配合具备VLAN终结功能的VLAN交换机或者路由器使用）5、无线用户：列表显示连接本机的手机MAC以及连接信号及连接速度。

右侧可将连接手机踢出。

6、救援SSID开关：·救援SSID提供了一种在异常情况下快速登陆本无线AP的便捷方式。

·内网有多个DHCP、网线断开、VLAN错误、AC宕机等多种原因都会导致AP与AC通讯异常。

·当本无线AP检测到不到AC超过约5分钟，则会释放一个名为SOS_XXXXXX的救援SSID。

·救援SSID的连接认证密码为88888888。

·连接救援SSID后，可以通过http://8.8.8.8登陆本AP的WEB管理界面（后面将详解进入方法）7、有线设置：自动获取：自动前端设备下发IP地址固定地址：手动指定和前端设备同一网段的IP,可防止用户设备使用静态地址和本机发生冲突。

8、扩展VLAN手机设置一、(手机静态IP地址设置)手机进入设置界面：打开手机WLAN，可以看到JikeAP_xxxxxx或者SmartAP_xxxxxx的信号，点击右侧按钮（手机不同，系统不同，请自行根据情况操作），选择静态IP，IP地址栏填写 6.6.6.x(6以外的数字），路由器栏填写 6.6.6.1，DNS填写8.8.8.8打开手机浏览器，输入6.6.6.6，进入AP设置页面，默认密码admin二、通过SOS救援信号设置未设置的AP通电启动正常后约5分钟左右，会出现一个SOS_xxxxxx信号，连接该信号，输入密码88888888，浏览器输入8.8.8.8，进入设置页面，默认密码admin进入后设置同电脑端。
