Aruba WLAN简明配置手册目录1. 2. 3. 4. 录 ...................初始化配置1.1. 无线1.2. 恢复1.3. 恢复基本网络参2.1. 基本2.2. 控制2.3. 管理理解Aruba 3.1. 基本3.2. 基于配置范例 ...4.1. 建立4.2. 建立4.3. 建立4.4. 同一4.5. 设置4.6. 设定4.7. 配置4.8. 带宽.....................置 ...................线控制器初始复出厂设置－复出厂设置－参数配置及维本网络参数配制器基本维护理员帐号管理WLAN 配置结本WLAN 服务于角色的用户.....................立WPA2‐PSK 服立Portal 认证 立802.1X 认证一SSID 中为不置用户期限 ...定区域管理 ...置日志服务器宽限制 .....................................................化配置 ........无线控制器 Aruba AP .....护 .................置 ................操作 ............ ....................结构框架 ........务配置 ............策略管理 .........................服务...................................证 ...................不同用户配置.......................................... ........................................................................................................................................................................................................................................................................................................................................................................................置不同的权限....................................................................................目录................................................................................................................................................................................................................................................................................................................................限 ........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................ 2 (3)...... 3 ...... 4 ...... 4 (6)...... 6 ...... 7 ...... 9 . (11).... 11 .... 12 . (14).... 14 .... 19 .... 28 .... 38 .... 39 .... 43 .... 49 . (49)1. Ente Ente Ente Ente Ente Ente 项影You Ente Ente 间，Ente Ente Re-t Ente Re-t Do y Curr Syst VLAN VLAN IP D Swit Coun Time Port If y Type Do y Crea Syst初始1.1. 无线er System n er VLAN 1 i er VLAN 1 i er IP Defau er Switch R er Country 影响have chose er Time Zon er Time in er Date (MM er Password type Passwo er Password type Passwo you wish to rent choice tem name: N 1 interfa N 1 interfa Default gat tch Role: m ntry code: e Zone: UTC ts shutdown you accept e <ctrl-P> you wish to ating confi tem will no 化配置线控制器初name [Aruba interface I interface s ult gateway Role, (mast code (ISO-en Country ne [PST-8:0UTC [06:07M/DD/YYYY) d for admin ord for adm d for enabl ord for ena o shutdown es are: ace IP addr ace subnet teway: none master cn C8:0 n: no the change to go back o accept th iguration..ow restart!置初始化配置a3400]: P address ubnet mask y [none]: er|local) 3166), <ctr code CN for 0]: UTC8:0—7:59]: 6:11[8/14/2011n login (up min login: *e mode (up able mode: *all the por ress: 172.16mask: 255.2e es the swit k and chang he changes . Done. 置[172.16.0.2[255.255.2[master]: —rl-I> for s r China (ye ——————:30————]: to 32 char ****** to 15 char ****** rts (yes|no 6.0.254 255.255.0ch will res e answer fo (yes|no)yes 254]: 255.0]: ——————supported l es|no)?: ye ———————————— rs): ******rs): ******o)? [no]: start! or any ques s ——————ist: cn ——es ————－时—————— 否则* * stion ——控制器角—————— 可用时区系统（UT —所选时区系则控制器的时角色 —控制器所在用RF channe C、PST 等）系统的标准时时钟可能就不在国家代码，el 及功率参数及所在时区时间而不是本不对了。

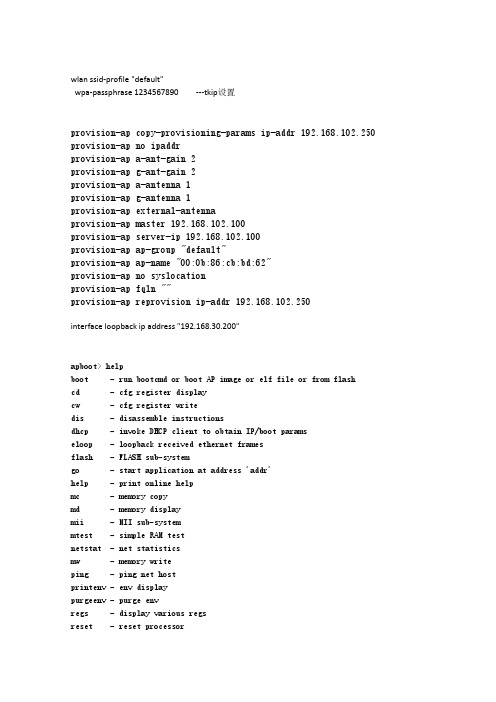

wlan ssid-profile "default"wpa-passphrase 1234567890 ---tkip设置provision-ap copy-provisioning-params ip-addr 192.168.102.250 provision-ap no ipaddrprovision-ap a-ant-gain 2provision-ap g-ant-gain 2provision-ap a-antenna 1provision-ap g-antenna 1provision-ap external-antennaprovision-ap master 192.168.102.100provision-ap server-ip 192.168.102.100provision-ap ap-group "default"provision-ap ap-name "00:0b:86:cb:bd:62"provision-ap no syslocationprovision-ap fqln ""provision-ap reprovision ip-addr 192.168.102.250interface loopback ip address "192.168.30.200"apboot> helpboot - run bootcmd or boot AP image or elf file or from flashcd - cfg register displaycw - cfg register writedis - disassemble instructionsdhcp - invoke DHCP client to obtain IP/boot paramseloop - loopback received ethernet framesflash - FLASH sub-systemgo - start application at address 'addr'help - print online helpmc - memory copymd - memory displaymii - MII sub-systemmtest - simple RAM testnetstat - net statisticsmw - memory writeping - ping net hostprintenv - env displaypurgeenv - purge envregs - display various regsreset - reset processorrun - run commands in an environment variablesaveenv - save environment variables to persistent storagesetenv - set variable in env (ipaddr/netmask/gatewayip/master/serverip) setenv ipaddr x.x.x.xsetenv netmask x.x.x.xsetenv gatewayip x.x.x.xsetenv serverip x.x.x.xsetenv master x.x.x.xtcpdump - dump received packetstcpsend - send TCP packettftpboot - boot via tftptlb - dump TLBtrace - dump trace bufferversion - print monitor versionwdog - stop refreshing watchdog timerapboot>No spanning-tree 关闭spanning-treeAdp discover disable 关闭ADPAdp imgp-join disable 关闭im-j一、WEB页面认证1、wlan ssid-profile (staff-ssid-profile) ：定义ssid配置文件1.1 essid staff ：定义ssid下的essid—显示出来的ssid2、wlan virtual-ap (staff-vap-profile) ：定义virtual-ap的配置文件2.1 ssid-profile (staff-ssid-profile) :在virtual-ap下引用定义过SSID2.2 vlan ID aa，bb :把virtual-ap加入到要ssid所属VLAN3、aaa profile staff-aaa-profile ：定义AAA认证配置文件4、aaa server-group (staff-servergroup) ：定义server-group配置文件4.1 auth-server internal ：定义认证服务器为本地认证4.2 set role condition role value-of 设置角色set role condition <condition> set-value <role> position <number>5、aaa authentication captive-portal (staff-auth-profile) ：captive-portal配置5.1 server-group staff-servergroup ：在下面引用定义过的server-group6、user-role staff-logon ：定义用户登陆前权限的配文件6.1 access-list session logon-control position 1定义用户登陆前的权限--位置16.2 access-list session captiveportal position 2 定义用户登陆前的权限--26.3 Captive-Portal staff-auth-profile position 3定义过captive-portalRe-authentication interval 480 再次认证间隔480秒默认3600秒7、user-role vip-role ：定义用户成功登陆后的配置文件7.1session-acl allowall 赋予所有允许权限session-acl http-acl 只有http8、wlan virtual-ap staff-vap-profile ：进入定义过的virtual-ap配置文件8.1 aaa-profile staff-aaa-profile ：引用定义过的AAA配置文件9、ap-group default ：定义ap-group，最好用默认的9.1 virtual-ap staff-vap-profile ：引用定义过的Virtual-ap配置文件10、aaa profile staff-aaa-profile ：进入定义过的AAA配置文件10.1 initial-role staff-logon ：把initial-role改为定义过用户登陆前配置11、aaa authentication-server internal use-local-switch ：定义认证SERVER为本地交换机12、local-userdb add username staff password 123456 role vip-role :定义用户的登陆的用户名和密码及权限二、MAC 地址认证配置1、wlan ssid-profile (staff-ssid-profile) ：定义ssid配置文件1.1 essid staff ：定义ssid下的essid2、wlan virtual-ap (staff-vap-profile) ：定义virtual-ap的配置文件2.1 ssid-profile (staff-ssid-profile) :virtual-ap下引用定义过的SSID配置文件2.2 vlan ID :把virtual-ap加入到要ssid所属的VLAN3、aaa profile staff-aaa-mac-profile ：定义AAA认证配置文件4、aaa authentication mac staff-mac-profile :定义mac配置文件4.1 Delimiter dash ：定义mac地址的格式4.2 Case upper （upper/lower）：定义mac地址的大/小写备注：aaa authentication mac staff-mac-profileclone <profile>delimiter {colon|dash|none}max-authentication-failures 数字aaa authentication mac mac-blacklist MAC黑名单max-authentication-failures 5 最多认证失败次数5、aaa server-group (staff-macservergroup) ：定义server-group配置文件5.1 auth-server internal ：定义认证服务器为本地认证5.2 set role condition role value-of6、user-role staff-logon ：定义用户登陆前权限的配文件6.1 access-list session logon-control ：定义用户登陆前的权限6.2 access-list session captiveportal ：定义用户登陆前的权限7、user-role vip-role ：定义用户成功登陆后的配置文件7.1session-acl allowall ：赋予权限8、wlan virtual-ap staff-vap-profile ：进入定义过的virtual-ap配置文件8.1 aaa-profile staff-aaa-mac-profile ：引用定义过的AAA配置文件9、ap-group default ：定义ap-group，最好用默认的9.1 virtual-ap staff-vap-profile ：引用定义过的Virtual-ap配置文件10、aaa profile staff-aaa-mac-profile ：进入定义过的AAA配置文件10.1 initial-role staff-logon ：把initial-role改为定义过的用户登陆前的配置文件10.2 authentication-mac staff-mac-profile :把定义的authentication mac文件引用10.3 mac-server-group staff-macservergroup :把定义的servergroup加入11、aaa authentication-server internal use-local-switch ：定义认证SERVER为本地交换机12、local-userdb add username mac地址password mac地址 role vip-role :定义用户的登陆的用户名和密码及权限注意：如果是有线直接连在端口上的话要进行认证必须把连接口设为UNTRUSTED.同时在设定：进入aaa authentication wired 后设定：profile (staff-aaa-profile) 为你设定认证的AAA profileBlacklist：5次错误就拒绝访问show aaa authentication captive-portal default：Max authentication failures 改为5次show aaa authentication dot1x default：Max authentication failures 改为5次1、aaa bandwidth-contract "256" kbits "256"2、aaa bandwidth-contract "256" kbits 256ip access-list session "pass"any any any permit queue low!user-role "ap512"access-list "pass" position 1bw-contract "256" per-user upstreambw-contract "256" per-user downstreamaaa bandwidth-contract "2M-BW" mbits "2" 带宽2M控制aaa bandwidth-contract 128_up kbits 128 带宽128k控制aaa bandwidth-contract 512 kbits 512aaa bandwidth-contract 64 kbits 64aaa bandwidth-contract 256 kbits 256aaa bandwidth-contract 1 mbits 1 带宽1M控制aaa bandwidth-contract 128_up kbits 128user-role 128bw-contract 128_up per-user upstreamuser-role ap-rolesession-acl controlsession-acl ap-acl!user-role pre-employeesession-acl allowallMaster mobility controller configuration1Initial setup of Aruba-master2Core VLAN configuration and IP addressing3Core VLAN port assignment4Loopback IP address ----- interface loopback ip address 设置环回地址Deploy APs5配置AP VLAN6配置 AP VLAN DHCP Server7Connect Aruba APs8Provisioning Aruba APs(Aruba-master) (config-if)#write mSaving Configuration...ip dhcp pool "userpool" 定义pool的名字default-router 192.168.11.254 定义默认路由网关—loopback地址dns-server 192.168.11.254---202.106.0.20 定义DNS网关lease 8 0 0network 192.168.11.0 255.255.255.0service dhcp 启动dhcpinterface gigabitethernet 1/1no muxportswitchport mode trunkip default-gateway 192.168.0.254interface vlan 1no ip addressno ip igmpinterface gigabitethernet 1/1no switchport access vlaninterface loopback ip address "192.168.0.100"(Aruba800-4) (config) # show ip interface briefInterface IP Address / IP Netmask Admin Protocolvlan 1 172.16.0.254 / 255.255.255.0 up upvlan 10 192.168.0.1 / 255.255.255.0 up upvlan 30 192.168.30.200 / 255.255.255.0 up uploopback unassigned / unassigned up up(Aruba800-4) (config) # rf arm-profile default ----------关闭ARM后调整channel---ok (Aruba800-4) (Adaptive Radio Management (ARM) profile "default") #assignment disable (Aruba800-4) (Adaptive Radio Management (ARM) profile "default") #no scan(Aruba800-4) (Adaptive Radio Management (ARM) profile "default") #write memoryrf dot11g-radio-profile "default"tx-power 20 ------------------------发射功率调整rf dot11g-radio-profile "default"channel 11 ------------------------调整AP信道interface vlan 20ip address 192.168.0.1 255.255.255.0ip nat insideno ip igmp存配置：24 (Aruba2400) #configure t25(Aruba2400) (config) #copy tftp: 172.16.0.100 aruba2400-0904.cfg flash: 2400.bak 26(Aruba2400) (config) #copy flash: 2400.bak flash: 2400.cfg27(Aruba2400) # copy running-config tftp: 192.168.4.100 aruba2400-0904.cfgRadius配置：aaa authentication-server radius Radius1host <ipaddr>key <key>enableaaa server-group corpnetauth-server Radius1dot1x配置：aaa authentication dot1x corpnetaaa profile corpnetauthentication-dot1x corpnetdot1x-default-role employeedot1x-server-group corpnetvirtual AP:wlan ssid-profile corpnetessid Corpnetopmode wpa2-aeswlan virtual-ap corpnetvlan 1aaa-profile corpnetssid-profile corpnetap-group defaultvirtual-ap corpnet时间设定：time-range workhours periodic周期weekday 09:00 to 17:00ip access-list session restricted 受限制any any svc-http permit time-range workhoursany any svc-https permit time-range workhoursuser-role guestsession-acl restrictedmesh设置：ap mesh-radio-profile <profile-name>11a-portal-channel <11a-portal-channel>11g-portal-channel <11g-portal-channel>a-tx-rates [6|9|12|18|24|36|48|54]beacon-period <beacon-period>children <children>clone <source-profile-name>g-tx-rates [1|2|5|6|9|11|12|18|24|36|48|54]heartbeat-threshold <count>hop-count <hop-count>link-threshold <count>max-retries <max-retries>metric-algorithm {best-link-rssi|distributed-tree-rssimpv <vlan-id>rts-threshold <rts-threshold>tx-power <tx-power>ap mesh-radio-profile <profile-name>clone <source-profile-name>ap-group <group>mesh-radio-profile <profile-name>ap-name <name>mesh-radio-profile <profile-name>wlan ssid-profile <profile>essid <name>opmode <method> 方式wpa-passphrase <string> (if necessary)wlan virtual-ap <name>ssid-profile <profile>vlan <vlan>forward-mode bridgeaaa-profile <name>rap-operation {always|backup|persistent}ap-group <name>virtual-ap <name># ip access-list session "Employee-Policy"any any any permit queue lowRemote AP配置The firewall must be configured to pass NAT-T traffic (UDP port 4500) to the controller.)1、Configure a public IP address for the controller.2、Configure the VPN server on the controller. The remote AP will be a VPN client to the server.3、Configure the remote AP role.4、Configure the authentication server that will validate the username and password for the remote AP.5、Provision the AP with IPSec settings, including the username and passwordfor the AP, before you install it at the remote location.1、Cli：vlan <id>interface fastethernet <slot>/<port>switchport access vlan <id>interface vlan <id>ip address <ipaddr> <mask>2、Using the CLI to configure VPN server:vpdn group l2tpppp authentication PAPip local pool <pool> <start-ipaddr> <end-ipaddr>crypto isakmp key <key> address <ipaddr> netmask <mask>3、Using the CLI to configure the user role:(table1) (config) # user-role remote(table1) (config-role) #session-acl allowallip access-list session <policy>any any svc-papi permitany any svc-gre permitany any svc-l2tp permitany alias mswitch svc-tftp permitany alias mswitch svc-ftp permit4、Using the CLI to configure the VPN authentication profile:4.1 aaa server-group <group>auth-server <server>4.2 aaa authentication vp ndefault-role <role>server-group <group>5、Using the CLI to enable double encryption:ap system-profile <profile>double-encryptap-name <name> 需要插上远端AP后配置ap-system-profile <profile>Using the CLI to enable double encryption:ap system-profile <profile>double-encryptap-name <name>ap-system-profile <profile>Using the CLI to configure the AAA profile:aaa profile <name>initial-role <role>authentication-dot1x <dot1x-profile>dot1x-default-role <role>dot1x-server-group <group>Using the CLI to define the backup configuration in the virtual AP profile: wlan ssid-profile <profile>essid <name>opmode <method>wpa-passphrase <string> (if necessary)wlan virtual-ap <name>ssid-profile <profile>vlan <vlan>forward-mode bridgeaaa-profile <name>rap-operation {always|backup|persistent}ap-group <name>virtual-ap <name>orap-name <name>virtual-ap <name>Using the CLI to configure the DHCP server on the AP:ap system-profile <name>lms-ip <ipaddr>master-ip <ipaddr>rap-dhcp-server-vlan <vlan>wlan virtual-ap <name>ssid-profile <profile>vlan <vlan>forward-mode bridgeaaa-profile <name>rap-operation {always|backup|persistent}ap-group <name>ap-system-profile <name>virtual-ap <name>orap-name <name>ap-system-profile <name> virtual-ap <name>。
第二卷安装Aruba移动边缘系统第2章部署基本移动边缘系统这章主要介绍如何将Aruba移动控制器和Aruba AP接入你的有线网络。
看完这章的介绍以后，你就可以配置AP,同样的介绍在第3卷里。
这章主要介绍了以下几部分：⏹“配置的介绍” 第48页⏹“配置Aruba移动控制器” 第52页⏹“部署APs” 第57页⏹“附加的配置” 第61页配置的介绍这个部分介绍了典型的部署情况和任务，你必须把Aruba移动控制器和Aruba AP接入到你的有线网络。
部署环境一：路由器是控制器和客户端的默认网关在这个部署环境中，Aruba AP和移动控制器连接在相同的子网上，并且使用被指定的子网IP地址。
在AP与控制器中间没有路由器。
AP能够被物理的连接到控制器上。
控制器上的上行端口被连接到2层交换机或者路由器上。
你必须完成下列任务：1. 进行初始化设置●设置VLAN 1的IP地址●设置默认网关的IP地址，将控制器连接到上行的路由器2. 把移动控制器上的上行端口连接到交换机或者路由器的端口上，默认的，控制器上的所有端口都是Access端口并且所有端口都属于同一个VLAN3. 部署AP。
所有的AP会使用Aruba Discovery Protocol（ADP）协议来发现移动控制器。
为所有用户指定VLAN并且配置VLAN 1的SSID。
部署环境二：对于所有客户端来说移动控制器是默认网关在这个部署环境中，Aruba移动控制器和AP在不同的子网中，而且AP在多个子网中。
移动控制器将作为无线网络的一个路由器（移动控制器作为无线客户端的默认网关）。
控制器上的上行端口被连接到2层交换机或路由器上；这是一个属于VLAN 1的Access 端口。
你必须完成下列任务：1. 进行初始化设置●设置VLAN 1的IP地址●设置默认网关的IP地址，将控制器连接到上行的路由器2. 把移动控制器上的接口连接到交换机或者路由器的接口上3. 部署AP。
所有的AP会使用DNS或DHCP来发现移动控制器。
![[vip专享]aruba配置手册](https://img.taocdn.com/s1/m/7374e33648d7c1c708a14565.png)
wlan ssid-profile "default"wpa-passphrase 1234567890 ---tkip设置provision-ap copy-provisioning-params ip-addr 192.168.102.250 provision-ap no ipaddrprovision-ap a-ant-gain 2provision-ap g-ant-gain 2provision-ap a-antenna 1provision-ap g-antenna 1provision-ap external-antennaprovision-ap master 192.168.102.100provision-ap server-ip 192.168.102.100provision-ap ap-group "default"provision-ap ap-name "00:0b:86:cb:bd:62"provision-ap no syslocationprovision-ap fqln ""provision-ap reprovision ip-addr 192.168.102.250interface loopback ip address "192.168.30.200"apboot> helpboot - run bootcmd or boot AP image or elf file or from flashcd - cfg register displaycw - cfg register writedis - disassemble instructionsdhcp - invoke DHCP client to obtain IP/boot paramseloop - loopback received ethernet framesflash - FLASH sub-systemgo - start application at address 'addr'help - print online helpmc - memory copymd - memory displaymii - MII sub-systemmtest - simple RAM testnetstat - net statisticsmw - memory writeping - ping net hostprintenv - env displaypurgeenv - purge envregs - display various regsreset - reset processorrun - run commands in an environment variablesaveenv - save environment variables to persistent storagesetenv - set variable in env (ipaddr/netmask/gatewayip/master/serverip) setenv ipaddr x.x.x.xsetenv netmask x.x.x.xsetenv gatewayip x.x.x.xsetenv serverip x.x.x.xsetenv master x.x.x.xtcpdump - dump received packetstcpsend - send TCP packettftpboot - boot via tftptlb - dump TLBtrace - dump trace bufferversion - print monitor versionwdog - stop refreshing watchdog timerapboot>No spanning-tree 关闭spanning-treeAdp discover disable 关闭ADPAdp imgp-join disable 关闭im-j一、WEB页面认证1、wlan ssid-profile (staff-ssid-profile) ：定义ssid配置文件1.1 essid staff ：定义ssid下的essid—显示出来的ssid2、wlan virtual-ap (staff-vap-profile) ：定义virtual-ap的配置文件2.1 ssid-profile (staff-ssid-profile) :在virtual-ap下引用定义过SSID2.2 vlan ID aa，bb :把virtual-ap加入到要ssid所属VLAN3、aaa profile staff-aaa-profile ：定义AAA认证配置文件4、aaa server-group (staff-servergroup) ：定义server-group配置文件4.1 auth-server internal ：定义认证服务器为本地认证4.2 set role condition role value-of 设置角色set role condition <condition> set-value <role> position <number>5、aaa authentication captive-portal (staff-auth-profile) ：captive-portal配置5.1 server-group staff-servergroup ：在下面引用定义过的server-group6、user-role staff-logon ：定义用户登陆前权限的配文件6.1 access-list session logon-control position 1定义用户登陆前的权限--位置16.2 access-list session captiveportal position 2 定义用户登陆前的权限--26.3 Captive-Portal staff-auth-profile position 3定义过captive-portalRe-authentication interval 480 再次认证间隔480秒默认3600秒7、user-role vip-role ：定义用户成功登陆后的配置文件7.1session-acl allowall 赋予所有允许权限session-acl http-acl 只有http8、wlan virtual-ap staff-vap-profile ：进入定义过的virtual-ap配置文件8.1 aaa-profile staff-aaa-profile ：引用定义过的AAA配置文件9、ap-group default ：定义ap-group，最好用默认的9.1 virtual-ap staff-vap-profile ：引用定义过的Virtual-ap配置文件10、aaa profile staff-aaa-profile ：进入定义过的AAA配置文件10.1 initial-role staff-logon ：把initial-role改为定义过用户登陆前配置11、aaa authentication-server internal use-local-switch ：定义认证SERVER为本地交换机12、local-userdb add username staff password 123456 role vip-role :定义用户的登陆的用户名和密码及权限二、MAC 地址认证配置1、wlan ssid-profile (staff-ssid-profile) ：定义ssid配置文件1.1 essid staff ：定义ssid下的essid2、wlan virtual-ap (staff-vap-profile) ：定义virtual-ap的配置文件2.1 ssid-profile (staff-ssid-profile) :virtual-ap下引用定义过的SSID配置文件2.2 vlan ID :把virtual-ap加入到要ssid所属的VLAN3、aaa profile staff-aaa-mac-profile ：定义AAA认证配置文件4、aaa authentication mac staff-mac-profile :定义mac配置文件4.1 Delimiter dash ：定义mac地址的格式4.2 Case upper （upper/lower）：定义mac地址的大/小写备注：aaa authentication mac staff-mac-profileclone <profile>delimiter {colon|dash|none}max-authentication-failures 数字aaa authentication mac mac-blacklist MAC黑名单max-authentication-failures 5 最多认证失败次数5、aaa server-group (staff-macservergroup) ：定义server-group配置文件5.1 auth-server internal ：定义认证服务器为本地认证5.2 set role condition role value-of6、user-role staff-logon ：定义用户登陆前权限的配文件6.1 access-list session logon-control ：定义用户登陆前的权限6.2 access-list session captiveportal ：定义用户登陆前的权限7、user-role vip-role ：定义用户成功登陆后的配置文件7.1session-acl allowall ：赋予权限8、wlan virtual-ap staff-vap-profile ：进入定义过的virtual-ap配置文件8.1 aaa-profile staff-aaa-mac-profile ：引用定义过的AAA配置文件9、ap-group default ：定义ap-group，最好用默认的9.1 virtual-ap staff-vap-profile ：引用定义过的Virtual-ap配置文件10、aaa profile staff-aaa-mac-profile ：进入定义过的AAA配置文件10.1 initial-role staff-logon ：把initial-role改为定义过的用户登陆前的配置文件10.2 authentication-mac staff-mac-profile :把定义的authentication mac文件引用10.3 mac-server-group staff-macservergroup :把定义的servergroup加入11、aaa authentication-server internal use-local-switch ：定义认证SERVER为本地交换机12、local-userdb add username mac地址password mac地址 role vip-role :定义用户的登陆的用户名和密码及权限注意：如果是有线直接连在端口上的话要进行认证必须把连接口设为UNTRUSTED.同时在设定：进入aaa authentication wired 后设定：profile (staff-aaa-profile) 为你设定认证的AAA profileBlacklist：5次错误就拒绝访问show aaa authentication captive-portal default：Max authentication failures 改为5次show aaa authentication dot1x default：Max authentication failures 改为5次1、aaa bandwidth-contract "256" kbits "256"2、aaa bandwidth-contract "256" kbits 256ip access-list session "pass"any any any permit queue low!user-role "ap512"access-list "pass" position 1bw-contract "256" per-user upstreambw-contract "256" per-user downstreamaaa bandwidth-contract "2M-BW" mbits "2" 带宽2M控制aaa bandwidth-contract 128_up kbits 128 带宽128k控制aaa bandwidth-contract 512 kbits 512aaa bandwidth-contract 64 kbits 64aaa bandwidth-contract 256 kbits 256aaa bandwidth-contract 1 mbits 1 带宽1M控制aaa bandwidth-contract 128_up kbits 128user-role 128bw-contract 128_up per-user upstreamuser-role ap-rolesession-acl controlsession-acl ap-acl!user-role pre-employeesession-acl allowallMaster mobility controller configuration1Initial setup of Aruba-master2Core VLAN configuration and IP addressing3Core VLAN port assignment4Loopback IP address ----- interface loopback ip address 设置环回地址Deploy APs5配置AP VLAN6配置 AP VLAN DHCP Server7Connect Aruba APs8Provisioning Aruba APs---- ---- -----1 Default5 VLAN0004 Fa2/0-23 Gig2/24 Gig2/25(Aruba-master) (config-if)#write mSaving Configuration...ip dhcp pool "userpool" 定义pool的名字default-router 192.168.11.254 定义默认路由网关—loopback地址 dns-server 192.168.11.254---202.106.0.20 定义DNS网关lease 8 0 0network 192.168.11.0 255.255.255.0service dhcp 启动dhcpinterface gigabitethernet 1/1no muxportswitchport mode trunkip default-gateway 192.168.0.254interface vlan 1no ip addressno ip igmpinterface gigabitethernet 1/1no switchport access vlaninterface loopback ip address "192.168.0.100"(Aruba800-4) (config) # show ip interface briefInterface IP Address / IP Netmask Admin Protocolvlan 1 172.16.0.254 / 255.255.255.0 up upvlan 10 192.168.0.1 / 255.255.255.0 up upvlan 30 192.168.30.200 / 255.255.255.0 up uploopback unassigned / unassigned up up(Aruba800-4) (config) # rf arm-profile default ----------关闭ARM后调整channel---ok (Aruba800-4) (Adaptive Radio Management (ARM) profile "default") #assignment disable (Aruba800-4) (Adaptive Radio Management (ARM) profile "default") #no scan(Aruba800-4) (Adaptive Radio Management (ARM) profile "default") #write memoryrf dot11g-radio-profile "default"tx-power 20 ------------------------发射功率调整rf dot11g-radio-profile "default"channel 11 ------------------------调整AP信道interface vlan 20ip address 192.168.0.1 255.255.255.0ip nat insideno ip igmp存配置：24 (Aruba2400) #configure t25(Aruba2400) (config) #copy tftp: 172.16.0.100 aruba2400-0904.cfg flash: 2400.bak26(Aruba2400) (config) #copy flash: 2400.bak flash: 2400.cfg27(Aruba2400) # copy running-config tftp: 192.168.4.100 aruba2400-0904.cfgRadius配置：aaa authentication-server radius Radius1host <ipaddr>key <key>enableaaa server-group corpnetauth-server Radius1dot1x配置：aaa authentication dot1x corpnetaaa profile corpnetauthentication-dot1x corpnetdot1x-default-role employeedot1x-server-group corpnetvirtual AP:wlan ssid-profile corpnetessid Corpnetopmode wpa2-aeswlan virtual-ap corpnetvlan 1aaa-profile corpnetssid-profile corpnetap-group defaultvirtual-ap corpnet时间设定：time-range workhours periodic周期weekday 09:00 to 17:00ip access-list session restricted 受限制any any svc-http permit time-range workhoursany any svc-https permit time-range workhoursuser-role guestsession-acl restrictedmesh设置：ap mesh-radio-profile <profile-name>11a-portal-channel <11a-portal-channel>11g-portal-channel <11g-portal-channel>a-tx-rates [6|9|12|18|24|36|48|54]beacon-period <beacon-period>children <children>clone <source-profile-name>g-tx-rates [1|2|5|6|9|11|12|18|24|36|48|54]heartbeat-threshold <count>hop-count <hop-count>link-threshold <count>max-retries <max-retries>metric-algorithm {best-link-rssi|distributed-tree-rssi mpv <vlan-id>rts-threshold <rts-threshold>tx-power <tx-power>ap mesh-radio-profile <profile-name>clone <source-profile-name>ap-group <group>mesh-radio-profile <profile-name>ap-name <name>mesh-radio-profile <profile-name>wlan ssid-profile <profile>essid <name>opmode <method> 方式wpa-passphrase <string> (if necessary)wlan virtual-ap <name>ssid-profile <profile>vlan <vlan>forward-mode bridgeaaa-profile <name>rap-operation {always|backup|persistent}ap-group <name>virtual-ap <name># ip access-list session "Employee-Policy"any any any permit queue lowRemote AP配置The firewall must be configured to pass NAT-T traffic (UDP port 4500) to the controller.)1、Configure a public IP address for the controller.2、Configure the VPN server on the controller. The remote AP will be a VPN client to the server.3、Configure the remote AP role.4、Configure the authentication server that will validate the username and password for the remote AP.5、Provision the AP with IPSec settings, including the username and passwordfor the AP, before you install it at the remote location.1、Cli：vlan <id>interface fastethernet <slot>/<port>switchport access vlan <id>interface vlan <id>ip address <ipaddr> <mask>2、Using the CLI to configure VPN server:vpdn group l2tpppp authentication PAPip local pool <pool> <start-ipaddr> <end-ipaddr>crypto isakmp key <key> address <ipaddr> netmask <mask>3、Using the CLI to configure the user role:(table1) (config) # user-role remote(table1) (config-role) #session-acl allowallip access-list session <policy>any any svc-papi permitany any svc-gre permitany any svc-l2tp permitany alias mswitch svc-tftp permitany alias mswitch svc-ftp permit4、Using the CLI to configure the VPN authentication profile:4.1 aaa server-group <group>auth-server <server>4.2 aaa authentication vp ndefault-role <role>server-group <group>5、Using the CLI to enable double encryption:ap system-profile <profile>d ouble-encryptap-name <name> 需要插上远端AP后配置ap-system-profile <profile>Using the CLI to enable double encryption:ap system-profile <profile>double-encryptap-name <name>ap-system-profile <profile>Using the CLI to configure the AAA profile:aaa profile <name>initial-role <role>authentication-dot1x <dot1x-profile>dot1x-default-role <role>dot1x-server-group <group>Using the CLI to define the backup configuration in the virtual AP profile: wlan ssid-profile <profile>essid <name>opmode <method>wpa-passphrase <string> (if necessary)wlan virtual-ap <name>ssid-profile <profile>vlan <vlan>forward-mode bridgeaaa-profile <name>rap-operation {always|backup|persistent}ap-group <name>virtual-ap <name>orap-name <name>virtual-ap <name>Using the CLI to configure the DHCP server on the AP:ap system-profile <name>lms-ip <ipaddr>master-ip <ipaddr>rap-dhcp-server-vlan <vlan>wlan virtual-ap <name>ssid-profile <profile>vlan <vlan>forward-mode bridgeaaa-profile <name>rap-operation {always|backup|persistent}ap-group <name>ap-system-profile <name> virtual-ap <name>orap-name <name>ap-system-profile <name> virtual-ap <name>。
wlan ssid-profile "default"wpa-passphrase 1234567890 ---tkip设置provision-ap copy-provisioning-params ip-addr 192.168.102.250 provision-ap no ipaddrprovision-ap a-ant-gain 2provision-ap g-ant-gain 2provision-ap a-antenna 1provision-ap g-antenna 1provision-ap external-antennaprovision-ap master 192.168.102.100provision-ap server-ip 192.168.102.100provision-ap ap-group "default"provision-ap ap-name "00:0b:86:cb:bd:62"provision-ap no syslocationprovision-ap fqln ""provision-ap reprovision ip-addr 192.168.102.250interface loopback ip address "192.168.30.200"apboot> helpboot - run bootcmd or boot AP image or elf file or from flashcd - cfg register displaycw - cfg register writedis - disassemble instructionsdhcp - invoke DHCP client to obtain IP/boot paramseloop - loopback received ethernet framesflash - FLASH sub-systemgo - start application at address 'addr'help - print online helpmc - memory copymd - memory displaymii - MII sub-systemmtest - simple RAM testnetstat - net statisticsmw - memory writeping - ping net hostprintenv - env displaypurgeenv - purge envregs - display various regsreset - reset processorrun - run commands in an environment variablesaveenv - save environment variables to persistent storagesetenv - set variable in env (ipaddr/netmask/gatewayip/master/serverip) setenv ipaddr x.x.x.xsetenv netmask x.x.x.xsetenv gatewayip x.x.x.xsetenv serverip x.x.x.xsetenv master x.x.x.xtcpdump - dump received packetstcpsend - send TCP packettftpboot - boot via tftptlb - dump TLBtrace - dump trace bufferversion - print monitor versionwdog - stop refreshing watchdog timerapboot>No spanning-tree 关闭spanning-treeAdp discover disable 关闭ADPAdp imgp-join disable 关闭im-j一、WEB页面认证1、wlan ssid-profile (staff-ssid-profile) ：定义ssid配置文件1.1 essid staff ：定义ssid下的essid—显示出来的ssid2、wlan virtual-ap (staff-vap-profile) ：定义virtual-ap的配置文件2.1 ssid-profile (staff-ssid-profile) :在virtual-ap下引用定义过SSID2.2 vlan ID aa，bb :把virtual-ap加入到要ssid所属VLAN3、aaa profile staff-aaa-profile ：定义AAA认证配置文件4、aaa server-group (staff-servergroup) ：定义server-group配置文件4.1 auth-server internal ：定义认证服务器为本地认证4.2 set role condition role value-of 设置角色set role condition <condition> set-value <role> position <number>5、aaa authentication captive-portal (staff-auth-profile) ：captive-portal配置5.1 server-group staff-servergroup ：在下面引用定义过的server-group6、user-role staff-logon ：定义用户登陆前权限的配文件6.1 access-list session logon-control position 1定义用户登陆前的权限--位置16.2 access-list session captiveportal position 2 定义用户登陆前的权限--26.3 Captive-Portal staff-auth-profile position 3定义过captive-portalRe-authentication interval 480 再次认证间隔480秒默认3600秒7、user-role vip-role ：定义用户成功登陆后的配置文件7.1session-acl allowall 赋予所有允许权限session-acl http-acl 只有http8、wlan virtual-ap staff-vap-profile ：进入定义过的virtual-ap配置文件8.1 aaa-profile staff-aaa-profile ：引用定义过的AAA配置文件9、ap-group default ：定义ap-group，最好用默认的9.1 virtual-ap staff-vap-profile ：引用定义过的Virtual-ap配置文件10、aaa profile staff-aaa-profile ：进入定义过的AAA配置文件10.1 initial-role staff-logon ：把initial-role改为定义过用户登陆前配置11、aaa authentication-server internal use-local-switch ：定义认证SERVER为本地交换机12、local-userdb add username staff password 123456 role vip-role :定义用户的登陆的用户名和密码及权限二、MAC 地址认证配置1、wlan ssid-profile (staff-ssid-profile) ：定义ssid配置文件1.1 essid staff ：定义ssid下的essid2、wlan virtual-ap (staff-vap-profile) ：定义virtual-ap的配置文件2.1 ssid-profile (staff-ssid-profile) :virtual-ap下引用定义过的SSID配置文件2.2 vlan ID :把virtual-ap加入到要ssid所属的VLAN3、aaa profile staff-aaa-mac-profile ：定义AAA认证配置文件4、aaa authentication mac staff-mac-profile :定义mac配置文件4.1 Delimiter dash ：定义mac地址的格式4.2 Case upper （upper/lower）：定义mac地址的大/小写备注：aaa authentication mac staff-mac-profileclone <profile>delimiter {colon|dash|none}max-authentication-failures 数字aaa authentication mac mac-blacklist MAC黑名单max-authentication-failures 5 最多认证失败次数5、aaa server-group (staff-macservergroup) ：定义server-group配置文件5.1 auth-server internal ：定义认证服务器为本地认证5.2 set role condition role value-of6、user-role staff-logon ：定义用户登陆前权限的配文件6.1 access-list session logon-control ：定义用户登陆前的权限6.2 access-list session captiveportal ：定义用户登陆前的权限7、user-role vip-role ：定义用户成功登陆后的配置文件7.1session-acl allowall ：赋予权限8、wlan virtual-ap staff-vap-profile ：进入定义过的virtual-ap配置文件8.1 aaa-profile staff-aaa-mac-profile ：引用定义过的AAA配置文件9、ap-group default ：定义ap-group，最好用默认的9.1 virtual-ap staff-vap-profile ：引用定义过的Virtual-ap配置文件10、aaa profile staff-aaa-mac-profile ：进入定义过的AAA配置文件10.1 initial-role staff-logon ：把initial-role改为定义过的用户登陆前的配置文件10.2 authentication-mac staff-mac-profile :把定义的authentication mac文件引用10.3 mac-server-group staff-macservergroup :把定义的servergroup加入11、aaa authentication-server internal use-local-switch ：定义认证SERVER为本地交换机12、local-userdb add username mac地址password mac地址 role vip-role :定义用户的登陆的用户名和密码及权限注意：如果是有线直接连在端口上的话要进行认证必须把连接口设为UNTRUSTED.同时在设定：进入aaa authentication wired 后设定：profile (staff-aaa-profile) 为你设定认证的AAA profileBlacklist：5次错误就拒绝访问show aaa authentication captive-portal default：Max authentication failures 改为5次show aaa authentication dot1x default：Max authentication failures 改为5次1、aaa bandwidth-contract "256" kbits "256"2、aaa bandwidth-contract "256" kbits 256ip access-list session "pass"any any any permit queue low!user-role "ap512"access-list "pass" position 1bw-contract "256" per-user upstreambw-contract "256" per-user downstreamaaa bandwidth-contract "2M-BW" mbits "2" 带宽2M控制aaa bandwidth-contract 128_up kbits 128 带宽128k控制aaa bandwidth-contract 512 kbits 512aaa bandwidth-contract 64 kbits 64aaa bandwidth-contract 256 kbits 256aaa bandwidth-contract 1 mbits 1 带宽1M控制aaa bandwidth-contract 128_up kbits 128user-role 128bw-contract 128_up per-user upstreamuser-role ap-rolesession-acl controlsession-acl ap-acl!user-role pre-employeesession-acl allowallMaster mobility controller configuration1Initial setup of Aruba-master2Core VLAN configuration and IP addressing3Core VLAN port assignment4Loopback IP address ----- interface loopback ip address 设置环回地址Deploy APs5配置AP VLAN6配置 AP VLAN DHCP Server7Connect Aruba APs8Provisioning Aruba APs1 Default5 VLAN0004 Fa2/0-23 Gig2/24 Gig2/25(Aruba-master) (config-if)#write mSaving Configuration...ip dhcp pool "userpool" 定义pool的名字default-router 192.168.11.254 定义默认路由网关—loopback地址dns-server 192.168.11.254---202.106.0.20 定义DNS网关lease 8 0 0network 192.168.11.0 255.255.255.0service dhcp 启动dhcpinterface gigabitethernet 1/1no muxportswitchport mode trunkip default-gateway 192.168.0.254interface vlan 1no ip addressno ip igmpinterface gigabitethernet 1/1no switchport access vlaninterface loopback ip address "192.168.0.100"(Aruba800-4) (config) # show ip interface briefInterface IP Address / IP Netmask Admin Protocolvlan 1 172.16.0.254 / 255.255.255.0 up upvlan 10 192.168.0.1 / 255.255.255.0 up upvlan 30 192.168.30.200 / 255.255.255.0 up uploopback unassigned / unassigned up up(Aruba800-4) (config) # rf arm-profile default ----------关闭ARM后调整channel---ok (Aruba800-4) (Adaptive Radio Management (ARM) profile "default") #assignment disable (Aruba800-4) (Adaptive Radio Management (ARM) profile "default") #no scan(Aruba800-4) (Adaptive Radio Management (ARM) profile "default") #write memoryrf dot11g-radio-profile "default"tx-power 20 ------------------------发射功率调整rf dot11g-radio-profile "default"channel 11 ------------------------调整AP信道interface vlan 20ip address 192.168.0.1 255.255.255.0ip nat insideno ip igmp存配置：24 (Aruba2400) #configure t25(Aruba2400) (config) #copy tftp: 172.16.0.100 aruba2400-0904.cfg flash: 2400.bak 26(Aruba2400) (config) #copy flash: 2400.bak flash: 2400.cfg27(Aruba2400) # copy running-config tftp: 192.168.4.100 aruba2400-0904.cfgRadius配置：aaa authentication-server radius Radius1host <ipaddr>key <key>enableaaa server-group corpnetauth-server Radius1dot1x配置：aaa authentication dot1x corpnetaaa profile corpnetauthentication-dot1x corpnetdot1x-default-role employeedot1x-server-group corpnetvirtual AP:wlan ssid-profile corpnetessid Corpnetopmode wpa2-aeswlan virtual-ap corpnetvlan 1aaa-profile corpnetssid-profile corpnetap-group defaultvirtual-ap corpnet时间设定：time-range workhours periodic周期weekday 09:00 to 17:00ip access-list session restricted 受限制any any svc-http permit time-range workhoursany any svc-https permit time-range workhoursuser-role guestsession-acl restrictedmesh设置：ap mesh-radio-profile <profile-name>11a-portal-channel <11a-portal-channel>11g-portal-channel <11g-portal-channel>a-tx-rates [6|9|12|18|24|36|48|54]beacon-period <beacon-period>children <children>clone <source-profile-name>g-tx-rates [1|2|5|6|9|11|12|18|24|36|48|54]heartbeat-threshold <count>hop-count <hop-count>link-threshold <count>max-retries <max-retries>metric-algorithm {best-link-rssi|distributed-tree-rssi mpv <vlan-id>rts-threshold <rts-threshold>tx-power <tx-power>ap mesh-radio-profile <profile-name>clone <source-profile-name>ap-group <group>mesh-radio-profile <profile-name>ap-name <name>mesh-radio-profile <profile-name>wlan ssid-profile <profile>essid <name>opmode <method> 方式wpa-passphrase <string> (if necessary)wlan virtual-ap <name>ssid-profile <profile>vlan <vlan>forward-mode bridgeaaa-profile <name>rap-operation {always|backup|persistent}ap-group <name>virtual-ap <name># ip access-list session "Employee-Policy"any any any permit queue lowRemote AP配置The firewall must be configured to pass NAT-T traffic (UDP port 4500) to the controller.)1、Configure a public IP address for the controller.2、Configure the VPN server on the controller. The remote AP will be a VPN client to the server.3、Configure the remote AP role.4、Configure the authentication server that will validate the username and password for the remote AP.5、Provision the AP with IPSec settings, including the username and passwordfor the AP, before you install it at the remote location.1、Cli：vlan <id>interface fastethernet <slot>/<port>switchport access vlan <id>interface vlan <id>ip address <ipaddr> <mask>2、Using the CLI to configure VPN server:vpdn group l2tpppp authentication PAPip local pool <pool> <start-ipaddr> <end-ipaddr>crypto isakmp key <key> address <ipaddr> netmask <mask>3、Using the CLI to configure the user role:(table1) (config) # user-role remote(table1) (config-role) #session-acl allowallip access-list session <policy>any any svc-papi permitany any svc-gre permitany any svc-l2tp permitany alias mswitch svc-tftp permitany alias mswitch svc-ftp permit4、Using the CLI to configure the VPN authentication profile:4.1 aaa server-group <group>auth-server <server>4.2 aaa authentication vp ndefault-role <role>server-group <group>5、Using the CLI to enable double encryption:ap system-profile <profile>double-encryptap-name <name> 需要插上远端AP后配置ap-system-profile <profile>Using the CLI to enable double encryption:ap system-profile <profile>double-encryptap-name <name>ap-system-profile <profile>Using the CLI to configure the AAA profile:aaa profile <name>initial-role <role>authentication-dot1x <dot1x-profile>dot1x-default-role <role>dot1x-server-group <group>Using the CLI to define the backup configuration in the virtual AP profile: wlan ssid-profile <profile>essid <name>opmode <method>wpa-passphrase <string> (if necessary)wlan virtual-ap <name>ssid-profile <profile>vlan <vlan>forward-mode bridgeaaa-profile <name>rap-operation {always|backup|persistent}ap-group <name>virtual-ap <name>orap-name <name>virtual-ap <name>Using the CLI to configure the DHCP server on the AP:ap system-profile <name>lms-ip <ipaddr>master-ip <ipaddr>rap-dhcp-server-vlan <vlan>wlan virtual-ap <name>ssid-profile <profile>vlan <vlan>forward-mode bridgeaaa-profile <name>rap-operation {always|backup|persistent}ap-group <name>ap-system-profile <name>virtual-ap <name>or如不慎侵犯了你的权益，请联系告知！ap-name <name>ap-system-profile <name>virtual-ap <name>（本资料素材和资料部分来自网络，仅供参考。
ARUBA 无线控制器用户配置手册苏宁电器Aruba 无线控制器用户配置手册Version 1.3苏宁电器 Aruba 无线控制器用户配置手册一、连接 Aruba 无线控制器1．将 console 线 RJ45 一端连接至无线控制器的SERIAL端口，另一端连接至电脑COM 口（笔记本没有COM 口的可以使用USB-COM线）。
2．打开相应的配置终端软件（可以使用Secure-CRT或者使用系统自带的超级终端软件，建议使用Secure-CRT这款第三方终端软件）3．配置终端软件的参数Secure-CRT配置步骤：协议选择Serial，点击“下一步”端口选择好本电脑上使用的 COM 接口，波特率选择“ 9600 ”，数据流控制选型将前面的勾全部去掉，其它选项保持不变，点击“下一步”点击“完成”即可登录到配置界面。
超级终端配置步骤：点击“开始” >“所有程序” >“附件” >“通讯” >“超级终端”在名称一栏自定义输入一个名称，例如：“ suning ”，点击“确定”在连接时使用选择好相应的COM 接口，点击“确定”点击“还原为默认值” ，再点击“确定”即可登录到配置界面。
二、配置向导第一次登录控制器会出现配置向导进行简单的配置开机运行到如下图所示，即到了配置向导界面配置如下：Enter System name [Aruba200]: 此处直接回车即选择 []内的内容，例如此处回车即选择设备名称为： Aruba200 ，也可自己自定义系统名称Enter VLAN 1 interface IP address [172.16.0.254]: 此处直接回车即选择 VLAN 1 的 IP 地址为：172.16.0.254，一般此处直接回车，后面可以另行更改Enter VLAN 1 interface subnet mask [255.255.255.0]: 此处直接回车即选择 VLAN 1 的 IP 地址的子网掩码为： 255.255.255.0Enter IP Default gateway [none]: 此处为指定控制器的网关地址，即路由地址，一般这边不指定，等进入系统后重新配置指定Enter Switch Role, (master|local) [master]:此处为指定控制器角色，一般默认为master ，可直接回车到下一步Enter Country code (ISO-3166), <ctrl-I> for supported list: 此处为指定国家代码，中国即输入“ CN”You have chosen Country code CN for China (yes|no)?: 此处为让您确认是否为中国，可直接“ yes”到下一步Enter Time Zone [PST-8:0]:此处为指定时区，一般我们指定为“GMT+8:0”Enter Time in UTC [11:44:55]: 此处为指定时间，我们可根据当时北京时间进行配置Enter Date (MM/DD/YYYY) [11/22/2010]:此处为配置日期，月/ 日 / 年份Enter Password for admin login (up to 32 chars): 此处为配置admin 登录密码，自定义Re-type Password for admin login: 重新确认admin 登录密码Enter Password for enable mode (up to 15 chars): 指定 enable 密码Re-type Password for enable mode: 重新确认enable 密码Do you wish to shutdown all the ports (yes|no)? [no]:此处为询问您是否想shutdown 所有端口，默认配置为“no”，一般选择默认配置直接回车Do you wish to accept the changes (yes|no) 此处询问你是否接受刚才的配置，直接“ yes”此时控制器会重新启动，启动完之后便可进入系统。
ARUBA无线控制器的基本网络配置本章主要描述有关控制器的基本的网络配置，主要内容如下：一、VLANs 配置二、配置端口三、VLAN 协议四、配置静态路由五、环回IP地址配置六、控制器IP地址配置七、GRE隧道配置第一部分：VLANs配置/虚拟局域网配置2层交换机控制器的操作运用是以VLAN作为广播域，作为2层交换机，控制器要求需要外界的路径来实现与VLANs的路径连通。
该控制器还可以作为第三层交换机，可以定义VLAN 之间的交通路线的控制器。
你可以在控制器上配置一个/多个物理端口实现一个虚拟局域网。
另外，每个无线客户端口关联是连接到一个特定的虚拟局域网的端口控制器上。
你可以根据你的网络需要替换所有经认证授权的无线用户到单个VLAN或者替换到不同的VLANs。
VLANs可以单独存在在控制器里面或者可以通过802.1q VLAN标签存在在控制器外部。
你可以选择在控制器上为VLAN配置一个IP地址和子网掩码，当VLAN上最近的物理端口被激活的同时，该IP地址也被激活。
该VLAN IP地址可以作为外部设备的一个接入点，指向虚拟局域网IP地址的数据包不是为控制器指定的而是根据控制器的IP路由表来转发的。
创建和更新VLANs：创建和更新单个/多个VLANs1. 通过WEBUI 来创建或者修改单个VLAN1)打开2)点击“ADD新建”按钮创建一个新的VLAN。
（若需要修改，点击Edit按钮）具体参照58页创建一系列的VLANs。
3)为VLAN增加一个物理端口，点击选项4)点击2. 通过CLI(命令）创建或者修改VLAN3.通过WEBUI 来创建或者修改多个VLAN1)一次性增加并联的VLANs，点击2)在弹出的窗口，输入你想要创建的VLANs 序列。
例如，增加一个ID号码为200-300和302-350的VLAN，输入200-300，302-350。
3)点击“OK”4)为VLAN增加物理端点，点击“EDIT”进入你想要配置的VLAN页面，点击“PortSelection”选项设置端口。
Aruba无线控制器用户初始配置手册(suning)苏宁电器Aruba无线控制器用户配置手册Version 1.3苏宁电器Aruba无线控制器用户配置手册一、连接Aruba无线控制器1．将console线RJ45一端连接至无线控制器的SERIAL端口，另一端连接至电脑COM口（笔记本没有COM口的可以使用USB-COM线）。
2．打开相应的配置终端软件（可以使用Secure-CRT或者使用系统自带的超级终端软件，建议使用Secure-CRT这款第三方终端软件）3．配置终端软件的参数Secure-CRT配置步骤：协议选择Serial，点击“下一步”端口选择好本电脑上使用的COM接口，波特率选择“9600”，数据流控制选型将前面的勾全部去掉，其它选项保持不变，点击“下一步”点击“完成”即可登录到配置界面。
超级终端配置步骤：点击“开始”>“所有程序”>“附件”>“通讯”>“超级终端”在名称一栏自定义输入一个名称，例如：“suning”，点击“确定”在连接时使用选择好相应的COM接口，点击“确定”点击“还原为默认值”，再点击“确定”即可登录到配置界面。
二、配置向导第一次登录控制器会出现配置向导进行简单的配置开机运行到如下图所示，即到了配置向导界面配置如下：Enter System name [Aruba200]:此处直接回车即选择[]内的内容，例如此处回车即选择设备名称为：Aruba200，也可自己自定义系统名称Enter VLAN 1 interface IP address [172.16.0.254]:此处直接回车即选择VLAN 1的IP地址为：172.16.0.254，一般此处直接回车，后面可以另行更改Enter VLAN 1 interface subnet mask [255.255.255.0]:此处直接回车即选择VLAN1的IP地址的子网掩码为：255.255.255.0 Enter IP Default gateway [none]:此处为指定控制器的网关地址，即路由地址，一般这边不指定，等进入系统后重新配置指定Enter Switch Role, (master|local) [master]:此处为指定控制器角色，一般默认为master，可直接回车到下一步Enter Country code (ISO-3166), <ctrl-I> for supported list:此处为指定国家代码，中国即输入“CN”You have chosen Country code CN for China (yes|no)?:此处为让您确认是否为中国，可直接“yes”到下一步Enter Time Zone [PST-8:0]:此处为指定时区，一般我们指定为“GMT+8:0”Enter Time in UTC [11:44:55]:此处为指定时间，我们可根据当时北京时间进行配置Enter Date (MM/DD/YYYY) [11/22/2010]:此处为配置日期，月/日/年份Enter Password for admin login (up to 32 chars):此处为配置admin登录密码，自定义Re-type Password for admin login:重新确认admin登录密码Enter Password for enable mode (up to 15 chars):指定enable密码Re-type Password for enable mode:重新确认enable密码Do you wish to shutdown all the ports (yes|no)? [no]:此处为询问您是否想shutdown所有端口，默认配置为“no”，一般选择默认配置直接回车Do you wish to accept the changes (yes|no)此处询问你是否接受刚才的配置，直接“yes”此时控制器会重新启动，启动完之后便可进入系统。
三、基础网络配置1．输入用户名密码登录系统2．添加license（在有license需要添加的前提下，如果没有可以省略）(Aruba200) #license add 3jmKex2d-qoH9At9K-jWBS4V7e-uWVGGkML-89191D/t-PmQ红色字为license激活序列号此处会提示你重新启动系统，可以暂时不重启，等基础配置完成后再重启3．配置基本网络信息（包括VLAN、IP地址以及网关）(Aruba200) #configure terminalEnter Configuration commands, one per line. End with CNTL/Z(Aruba200) (config) #control-plane-security(Aruba200)(config-control-plane-sec) #no cpsec(Aruba200)(config-control-plane-sec)#exit(Aruba200) (config) #vlan 10(Aruba200) (config) #interface vlan 10(Aruba200) (config-subif)#ip address 192.168.10.1 255.255.255.0(Aruba200) (config-subif)#no shutdown(Aruba200) (config-subif)#exit(Aruba200) (config) #ip default-gateway 192.168.10.254(Aruba200) (config) #4．配置接口（分为ACCESS以及TRUNK模式）ACCESS模式配置(Aruba200) (config) #interface gigabitethernet 1/1(Aruba200) (config-if)#switchport mode access(Aruba200) (config-if)#switchport access vlan 10(Aruba200) (config-if)#no shutdown(Aruba200) (config-if)#exit(Aruba200) (config) #TRUNK模式配置(Aruba200) (config) #interface fastethernet 1/0(Aruba200)(config-if)#switchport mode trunk(Aruba200) (config-if)#no shutdown(Aruba200) (config-if)#exit(Aruba200) (config) #5．配置DHCP服务器（如果本地有DHCP服务器可以不用配置，这个视具体情况而定）(Aruba200) (config) #service dhcp 开启DHCP服务器功能(Aruba200) (config) #ip dhcp pool suning 建立一个DHCP地址池(Aruba200) (config-dhcp)#network 192.168.10.0 255.255.255.0(Aruba200)(config-dhcp)#default-router192.168.10.1(Aruba200)(config-dhcp)#dns-server 192.168.10.1 (Aruba200) (config-dhcp)#exit(Aruba200) (config) #6．更改控制器管理地址默认情况下控制器的管理地址为VLAN 1的IP地址，而往往VLAN 1的地址我们并不使用，此时我们就需要更改其地址(Aruba200) (config) #controller-ip vlan 10 更改控制器的地址为某个VLAN的IP地址Since controller IP address will change, connectivity to this controller might be affected. Do you want to proceed with this action [y/n]: yThis configuration change requires a reboot.PLEASE SAVE THE CONFIGURATION AND REBOOT.此时可以删除VLAN 1的IP地址(Aruba200) (config) #interface vlan 1(Aruba200) (config-subif)#no ip addressSwitch IP Address is Modified. Switch should be rebooted now(Aruba200) (config-subif)#exit(Aruba200) (config) #此时又会提示重新启动到此为止我们基础网络信息配置已经基本完成，可以保持配置并重启(Aruba200) (config) #write memory 保存配置Saving Configuration...Configuration Saved.(Aruba200) (config) #reload 重启机器Do you really want to reset thesystem(y/n):y四、无线信息配置基础网络信息配置完成后，我们可以通过web方式进行配置输入控制器管理IP地址进行登录无线信息配置主要分为三个配置信息：1．AAA文件配置2．SSID文件配置3．Virtual AP文件配置AAA文件配置Configuration>Security>Authentication>AAA Profile添加一个AAA文件点击最下方的“Add”输入一个文件名（自定义）后点击后面的“Add”这样在列表最下方我们可以看到我们新建的AAA 文件，此时AAA文件创建完成Virtual AP文件配置Configuration>Wireless>APconfiguration>AP Group点击“default”组后面的“Edit”点击“Wireless LAN”后在它的下拉菜单中点击“virtual AP”Add a profile输入新建的文件名（自定义）点击后面的“Add”我们会发现列表中会多出刚刚新建的virtual AP文件对应AAA Profile的下拉菜单中我们选择前面刚刚新建好的AAA Profile“suning-aaa-profile”点击“Apply”应用即可在对应SSID profile处我们在下拉菜单中选择“NEW”，我们新建一个，会出现如下界面：在SSID profile处输入新建的SSID文件的名称（可自定义），例：“suning-ssid-profile”在SSID处我们可以输入相应的ESSID信号，例：“suning”而此处便是选择相应的加密方式最终点击“Apply”应用即可再点击网页右下角的“Appy”点击左列表处刚刚新建的virtual AP文件“suning-vap-profile”有窗口处会出现如下配置信息：此处我们只需在VLAN配置处在下拉菜单中选择相应的VLAN进行应用，此处调用的VLAN是为无线客户端分配应用的。
