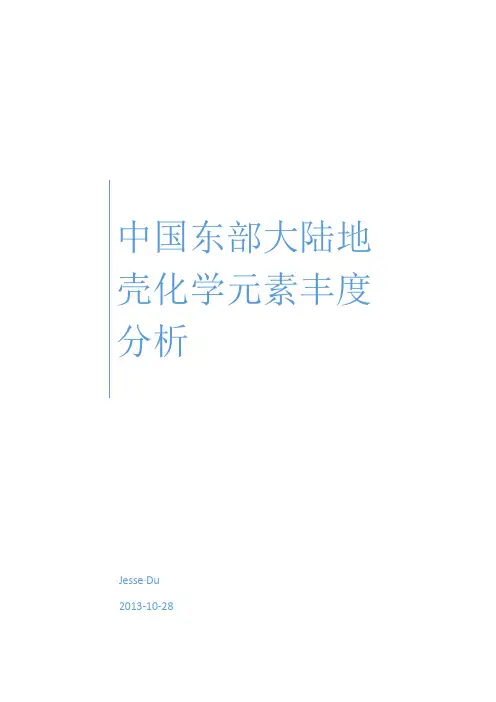

中国东部大陆地壳化学元素丰度分析Jesse·Du2013-10-28中国东部大陆地壳化学元素丰度分析摘要：本文通过对中国东部、内蒙兴安—吉黑造山带、华北地台以及华东南地块的总陆壳、上陆壳、中下陆壳元素丰度的文献数据值进行整理分析，主要着眼于特征元素之间的差别对不同地区的不同层次地壳元素丰度进行对比分析，得出一系列结论。
文章从亲石元素、亲铁元素、亲铜元素、亲生物元素以及稀土元素入手，总结了元素变化的一般规律，研究了其地质意义并总结了地球丰度的意义。
关键词：大陆地壳元素丰度变化规律地质意义0、引言大陆地壳是在地质历史过程中通过地幔部分熔融的岩浆向上侵入或喷出逐步形成的，部分熔融形成地壳后残余的地幔部分就成了现今的贫化或亏损地幔。
大陆地壳覆盖地球表面的45％，主要表现为大陆、大陆边缘海以及较小的浅海。
地壳的化学组成以硅铝质为特点，可分为两大类岩石：一类是地壳上部的相对未变形的沉积岩或火山岩堆积，另一类是已经变形变质的沉积岩、火成岩和变质岩带。
后者构成地球表面的山脉或在地壳深部，前者多在地壳表层的盆地及其边缘。
地壳可以承受强烈的板块构造运动，所以目前能寻找到38亿年前的地壳。
元素克拉克值反映了地壳的平均化学成分，确定着地壳作为一个物理化学体系的总特征以及地壳中各种地球化学过程的总背景。
它既是一种影响元素地球化学行为的重要因素，又为地球化学提供了衡量地壳体系中元素集中分散程度的标尺。
本文立足于中国东部各构造单元前人的大量实测资料，有条理的选择并分析了部分化学元素丰度值差异。
对于前人的数据进行了综合性的整理分析，对于更好认识地壳组成以及地球化学元素丰度的重要性有着重要意义。
1、数据处理方法对所有地壳微量元素进行原始地幔标准化（除REE），对稀土元素进行球粒陨石标准化；在整个数据处理中，对数据含量单位进行了处理，使所有元素含量单位均为ppm；对所成表格纵坐标取对数刻度。
在本次实验中，我们主要对亲石元素、亲铁元素、亲铜元素、亲生物元素、稀土元素等五项进行了处理分析。

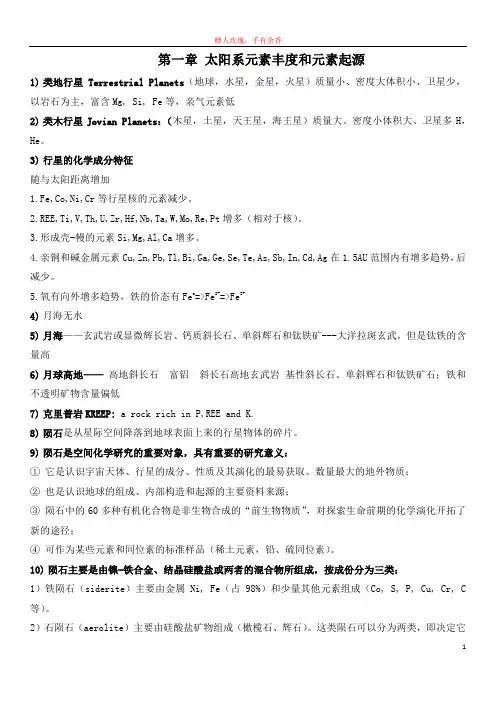

第一章太阳系元素丰度和元素起源1)类地行星Terrestrial Planets（地球，水星，金星，火星）质量小、密度大体积小、卫星少，以岩石为主，富含Mg, Si, Fe等，亲气元素低2)类木行星Jovian Planets：（木星，土星，天王星，海王星）质量大、密度小体积大、卫星多H，He。
3)行星的化学成分特征随与太阳距离增加1.Fe,Co,Ni,Cr等行星核的元素减少。
2.REE,Ti,V,Th,U,Zr,Hf,Nb,Ta,W,Mo,Re,Pt增多（相对于核）。
3.形成壳-幔的元素Si,Mg,Al,Ca增多。
4.亲铜和碱金属元素Cu,Zn,Pb,Tl,Bi,Ga,Ge,Se,Te,As,Sb,In,Cd,Ag在1.5AU范围内有增多趋势，后减少。
5.氧有向外增多趋势，铁的价态有Fe o=>Fe2+=>Fe3+4)月海无水5)月海——玄武岩或显微辉长岩、钙质斜长石、单斜辉石和钛铁矿---大洋拉斑玄武，但是钛铁的含量高6)月球高地——高地斜长石富铝斜长石高地玄武岩基性斜长石、单斜辉石和钛铁矿石；铁和不透明矿物含量偏低7)克里普岩KREEP: a rock rich in P,REE and K.8)陨石是从星际空间降落到地球表面上来的行星物体的碎片。
9)陨石是空间化学研究的重要对象，具有重要的研究意义：①它是认识宇宙天体、行星的成分、性质及其演化的最易获取、数量最大的地外物质；②也是认识地球的组成、内部构造和起源的主要资料来源；③陨石中的60多种有机化合物是非生物合成的“前生物物质”，对探索生命前期的化学演化开拓了新的途径；④可作为某些元素和同位素的标准样品（稀土元素，铅、硫同位素）。
10)陨石主要是由镍-铁合金、结晶硅酸盐或两者的混合物所组成，按成份分为三类：1）铁陨石（siderite）主要由金属Ni, Fe（占98%）和少量其他元素组成（Co, S, P, Cu, Cr, C 等）。

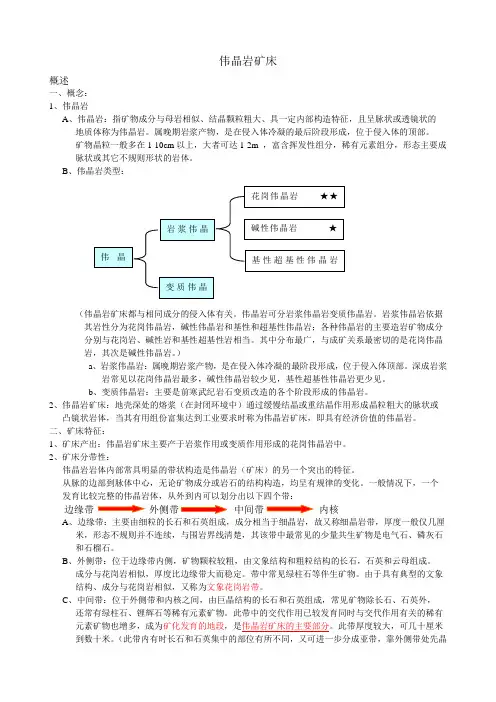

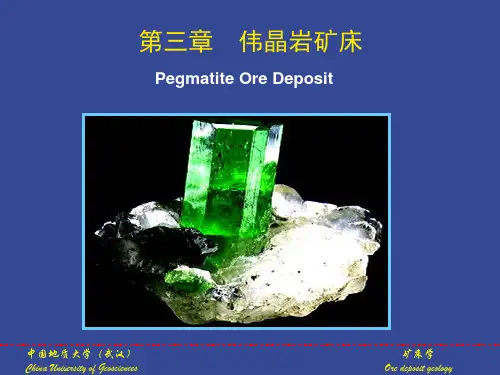

伟晶岩矿床概述一、概念：1、伟晶岩A 、伟晶岩：指矿物成分与母岩相似、结晶颗粒粗大、具一定内部构造特征，且呈脉状或透镜状的 地质体称为伟晶岩。
属晚期岩浆产物，是在侵入体冷凝的最后阶段形成，位于侵入体的顶部。
矿物晶粒一般多在1-10cm 以上，大者可达1-2m ，富含挥发性组分，稀有元素组分，形态主要成 脉状或其它不规则形状的岩体。
B 、伟晶岩类型：（伟晶岩矿床都与相同成分的侵入体有关。
伟晶岩可分岩浆伟晶岩变质伟晶岩。
岩浆伟晶岩依据 其岩性分为花岗伟晶岩，碱性伟晶岩和基性和超基性伟晶岩；各种伟晶岩的主要造岩矿物成分 分别与花岗岩、碱性岩和基性超基性岩相当。
其中分布最广，与成矿关系最密切的是花岗伟晶 岩，其次是碱性伟晶岩。
）a 、岩浆伟晶岩：属晚期岩浆产物，是在侵入体冷凝的最阶段形成，位于侵入体顶部。
深成岩浆 岩常见以花岗伟晶岩最多，碱性伟晶岩较少见，基性超基性伟晶岩更少见。
b 、变质伟晶岩：主要是前寒武纪岩石变质改造的各个阶段形成的伟晶岩。
2、伟晶岩矿床：地壳深处的熔浆（在封闭环境中）通过缓慢结晶或重结晶作用形成晶粒粗大的脉状或 凸镜状岩体，当其有用组份富集达到工业要求时称为伟晶岩矿床，即具有经济价值的伟晶岩。
二、矿床特征：1、矿床产出：伟晶岩矿床主要产于岩浆作用或变质作用形成的花岗伟晶岩中。
2、矿床分带性：伟晶岩岩体内部常具明显的带状构造是伟晶岩（矿床）的另一个突出的特征。
从脉的边部到脉体中心，无论矿物成分或岩石的结构构造，均呈有规律的变化。
一般情况下，一个 发育比较完整的伟晶岩体，从外到内可以划分出以下四个带：边缘带外侧带 中间带 内核A 、边缘带：主要由细粒的长石和石英组成，成分相当于细晶岩，故又称细晶岩带，厚度一般仅几厘 米，形态不规则并不连续，与围岩界线清楚，其该带中最常见的少量共生矿物是电气石、磷灰石 和石榴石。
B 、外侧带：位于边缘带内侧，矿物颗粒较粗，由文象结构和粗粒结构的长石，石英和云母组成。

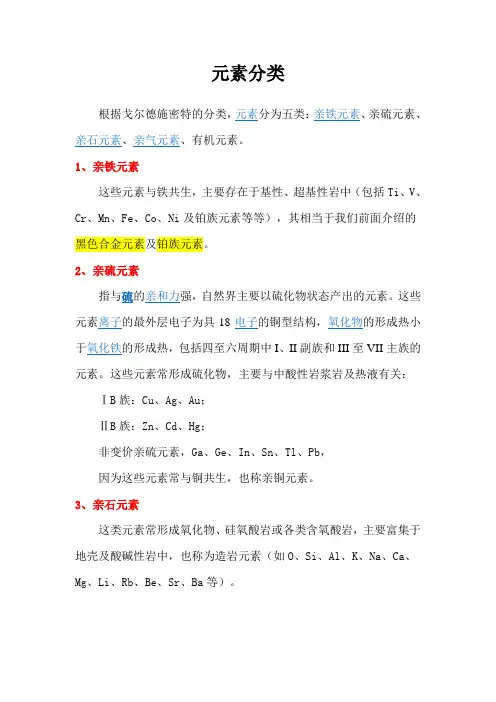

元素分类1、亲铁元素这些元素与铁共生，主要存在于基性、超基性岩中（包括Ti、V、Cr、Mn、Fe、Co、Ni及铂族元素等等），其相当于我们前面介绍的黑色合金元素及铂族元素。
2、亲硫元素于氧化铁的形成热，包括四至六周期中I、II副族和III至VII主族的元素。
这些元素常形成硫化物，主要与中酸性岩浆岩及热液有关：ⅠB族：Cu、Ag、Au；ⅡB族：Zn、Cd、Hg；非变价亲硫元素，Ga、Ge、In、Sn、Tl、Pb，因为这些元素常与铜共生，也称亲铜元素。
3、亲石元素这类元素常形成氧化物、硅氧酸岩或各类含氧酸岩，主要富集于地壳及酸碱性岩中，也称为造岩元素（如O、Si、Al、K、Na、Ca、Mg、Li、Rb、Be、Sr、Ba等）。
碱土金属与碱金属元素都属于亲石元素，主要为成岩元素，Li、Be产于伟晶岩中；Na、Mg、Al、Si、K、Ca一般岩石矿物的主要组成元素；Rb、Cs、Sr、Ba、稀有金属可以形成独立矿物。
一些放射性元素U、Th、Ra也主要与亲石元素共生，尤其是与碱性岩元素共生。
一些稀有元素，Sc、Y、Zr、Hf、Nb、Ta、W、Mo、REE，一般形成氧化物，可以形成独立矿物或作为伴生微量元素出现。
4、亲气元素以气态为主要存在状态的元素，常易于形成易溶、易挥发的化合物，由于其较大的流动性，是有利于成矿元素的迁移富集的。
亲气元素是岩浆射气的主要成分：如B、C、N、O、F、P、S、Cl，包括主要的卤素元素，常与金属元素形成络合物或络阴离子：[FeOH]2+、[FeCl]2+、［FeCl3]1-、［FeSO4]1+、[Fe(SO4)2]1-、［CuCl2]-、[CuCl3]2-、[CuCl]1+、[Cu(S2O3)2]3-、[AgCl2]-、[Ag(NH2)2]2+、［Ag(S2O3)2]3-、［PbCl3]-、［ZnCl3]-、［ZnCl4]2-、［PbCl]1+、［ZnCl]1+；络阴离子可以增加金属元素的溶解度，因此也称为矿化剂或挥发性元素。
