1内容与缩写内容1.内容与缩写2.前言3.贴花6.安全9.概览11.安装与调试20.操作指令37.维护42.故障排除缩写与符号####同上海英格索兰压缩机有限公司联系索取序号—>####直到序号####—>从序号起*没有图示+选项NR不要求AR根据要求SM总图HA高环境温度选项WC水冷却机组AC风冷却机组ERS能量恢复系统T.E.F.C.闭式电机O.D.P.开式电机2前言该手册包含的内容应该视为上海英格索兰压缩机有限公司的财产，属于上海英格索兰压缩机有限公司的机密。
未征得上海英格索兰压缩机有限公司的事先书面许可，不得复制。
本文件中的任何内容均无意扩大文件中直接说明或间接隐含的关于上海英格索兰产品的讲话、保证和说明。
任何此类保单或产品销售的条款及条件，将遵守此类产品销售的标准条款和条件。
如有需要，可来信索取。
本指南包含指令和技术数据，以及操作和维修人员进行例行操作和定期维修所需执行的任务。
大型检修不在本指南包括范围之内，应由指定的上海英格索兰压缩机有限公司维修部门承担。
附加在压缩空气系统上的所有备件、附件、管子和连接器都必须：●有良好的质量，从知名厂家获得。
而且，如有可能，属于上海英格索兰压缩机有限公司认可的类型。
●能承受的压力至少相等于机器最大允许的工作压力。
●与空压机的润滑剂/冷却剂相容。
●伴有安全安装、操作和维修的指令。
任何设备的细节可从上海英格索兰维修部门获取。
如使用仿造备件，即不包括在上海英格索兰压缩机有限公司认可部件清单中的维修备件，可能会造成上海英格索兰压缩机有限公司无法控制的危险条件。
因此，上海英格索兰压缩机有限公司对因安装非标准维修部件所造成的损失概不承担任何责任。
标准的保质条件也会受到影响。
上海英格索兰压缩机有限公司有权不加通告便改变及改良产品，没有义务对已销产品补加改良措施。
版权2010年上海英格索兰压缩机有限公司3贴花ISO符号图形及国际标准符号的意义4贴花5贴花V SERIES 15-37机组贴花序号零件号数量名称序号零件号数量名称1992899441电压380/3/5012190002561QS 标志2928674071不准吸入符号13468448661现场施工注意928674981排气口468465071额定工况运行3928675302热表面符号468729091贴花机组维护指南4929305851压力容器符号468730141贴花皮带张力推荐参数表5929305933电击警告符号14428731391铭牌6929306681维护15468729411标签运输支架190515491三滤注意16189908381贴花警告190193481贴花开机调试警告17231752431贴花加油468542531贴花电气原理图星三角启动182********胶带直径3’’468729251贴花维护保养零件15-22kW19468577851Logo SIRC 15-22kW 468729331贴花维护保养零件30-37kW 468577771Logo SIRC 30-37kW 7931659592转动时使用防护罩20468578191贴花前面板15-22kW 8931659832转向468577931贴花前面板30-37kW 9931664601冷却剂排放符号21992661991安装贴花10931665021油滤芯更换符号11931712624起吊前视图机器内部（前）启动门内部机器内部（后）顶视图左视图机器内部（左）右视图6安全概览操作人员在维修或操作之前须阅读并理解《贴花》，并参阅《手册》。
1 EMERGENCY STOP紧急停机开关按此开关便使空压机立即停机。
此开关手动复位后，空压机才能重新启动。
顺时针转动，使紧急停机开关复位，控制器显示屏会亮，指出线路电压和控制电压已具备。
2 START启动如果显示屏显示“Ready To Start”，按下此按钮使空压机启动。
如有足够用气量要求，空压机启动便自动加载。
3 STOP停机按此按钮将激活卸载停机顺序。
如空压机正在加载运行，则先卸载，维持卸载运行10到30秒（可调节），然后停机。
如空压机已在卸载运行，则立即停机。
4 UNLOAD卸载按此按钮将使空压机卸载并维持卸载状态。
显示屏显示机器在“Running Unloaded”（卸载运行）及“Mode:UNLOAD”（模式：卸载）。
5 LOAD加载如空压机已在运行且“Discharge Pressure”（排气压力）小于“Online Pressure”（回跳压力），则按此按钮将使空压机加载。
同时也会使空压机回到由“Mode of Operation”（运行模式）设定点规定的运行模式。
利用其它五个按钮可供操作者选择多种不同功能，令机器进入各种运行状态。
每个按钮的作用由当时的屏幕显示及正在执行的那个功能所决定。
6 ARROWS箭头按钮这些上下箭头按钮具有与显示屏有半相关的多种功能，当屏幕上出现功能表时，箭头按钮用来上下选点表上的项目。
7 DISPLAY BUTTONS 显示按钮显示屏幕下面三个按钮的功能是改变紧接在它们上面的屏幕最下一行的显示字符，并由这些字符定义。
二、CURRENT STATUS 当前状态CURRENT STATUS屏幕是控制器的“正常”显示状态。
CURRENT STATUS参数项Package Discharge Temperature 机组排气温度Airend Discharge Temperature 主机排气温度Injected Temperature 喷油温度Sump Pressure 分离前压力Separator Pressure Drop 油分离器压降Coolant Filter 油过滤器Invet Vacuum 进气负压Inlet Filter 进气过滤器Total Hour 总运行小时Loaded Hour 加载小时%Load Modulation 加载调节百分比Software Title and Version 软件名称及版本如30秒内不按任何按钮，控制器便自动从其它屏幕回到CURRENT STATUS屏幕。

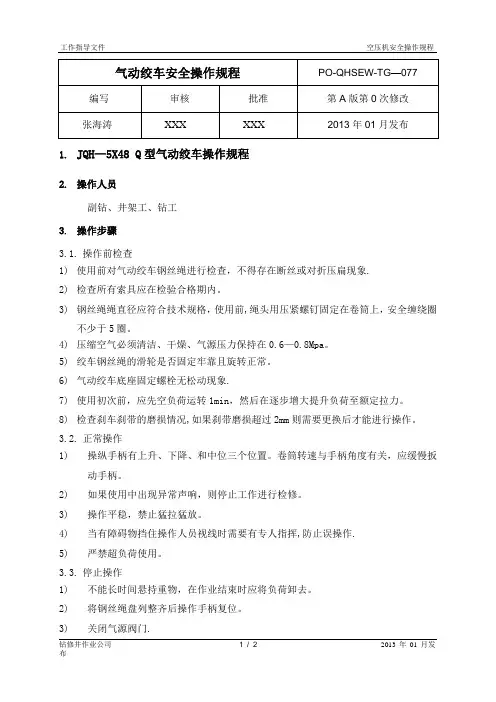

1.JQH—5X48 Q型气动绞车操作规程
2.操作人员
副钻、井架工、钻工
3.操作步骤
3.1.操作前检查
1)使用前对气动绞车钢丝绳进行检查，不得存在断丝或对折压扁现象.
2)检查所有索具应在检验合格期内。
3)钢丝绳绳直径应符合技术规格，使用前,绳头用压紧螺钉固定在卷筒上，安全缠绕圈
不少于5圈。
4)压缩空气必须清洁、干燥、气源压力保持在0.6—0.8Mpa。
5)绞车钢丝绳的滑轮是否固定牢靠且旋转正常。
6)气动绞车底座固定螺栓无松动现象.
7)使用初次前，应先空负荷运转1min，然后在逐步增大提升负荷至额定拉力。
8)检查刹车刹带的磨损情况,如果刹带磨损超过2mm则需要更换后才能进行操作。
3.2.正常操作
1)操纵手柄有上升、下降、和中位三个位置。
卷筒转速与手柄角度有关，应缓慢扳
动手柄。
2)如果使用中出现异常声响，则停止工作进行检修。
3)操作平稳，禁止猛拉猛放。
4)当有障碍物挡住操作人员视线时需要有专人指挥,防止误操作.
5)严禁超负荷使用。
3.3.停止操作
1)不能长时间悬持重物，在作业结束时应将负荷卸去。
2)将钢丝绳盘列整齐后操作手柄复位。
3)关闭气源阀门.
4.相关文件和记录
《机械设备管理办法》
《JQH型气动绞车使用维护说明书》。

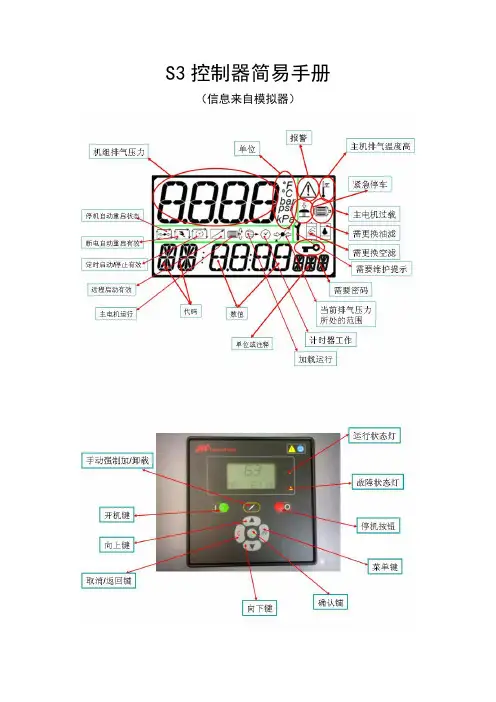

S3控制器简易手册（信息来自模拟器）一，菜单名称与定义：1，P00（默认菜单）：显示空压机运行参数。
2，P01：标准设置菜单，用于更改常用空压机参数。
3，P02：故障历史记录查询。
4，P03：高级设置菜单，用于更改高级的空压机参数。
5，P04：工厂设置菜单，用于更改机组的工厂设置点。
6，P05：用于诊断和设置参数，检测模拟量的输入与输出。
7，P06：用于S3版本的升级与降级二，菜单密码：按“菜单键“后，进入密码提示栏，输入密码，按“上，下键”选择菜单，按“确认键“进入菜单。
1，P00不需要密码。
2，密码：0000，可进入：P00，PO1，P023，密码：0101，可进入：P00，P01，P02，P034，密码：****，可进入：P00，P01，P02，P03，P045，密码：****，可进入：P00，P01，P02，P03，P04，P05，P06备注：P00，P01，P02在开机状态下也可进入并修改。
P03，P04，P05，P06必须在停机状态下方可进入并修改。
只能将密码：0000告之客户。
三，P00菜单讲解：POO（默认菜单）：相当于SE控制的DISPLAY键。
按“向上/向下键“在各项间进行转换。
1，Ae:主机排气温度2，Rn:运行时间3，Ld:加载时间4，Mn:距离维护的时间（此时间会随运行时间的增加而减少，到零时即到保养时间）。
5，Mn:%距维护的期限（此百分比也会逐渐减小）。
四，P01菜单讲解：相当于SE控制器的SET中的前几项。
P01：用于更改空压机的基本常用参数1，Un:调节卸载压力（上限），调整范围：（5.2BAR-----额定压力+0.2BAR）2，Ld:调节加载压力（下限）,调整范围：（4.5BAR-----额定压力-0.4BAR）3，As:卸载运行到自动停车的时间（360S-3600S，0S可以设但不要设）。
4，Md:调节阀控制模式打开或关闭（ON/OFF），更改需要密码5，Eu:工程单位（度/BAR，度/KPA，度/PSI，华氏度/PSI）。

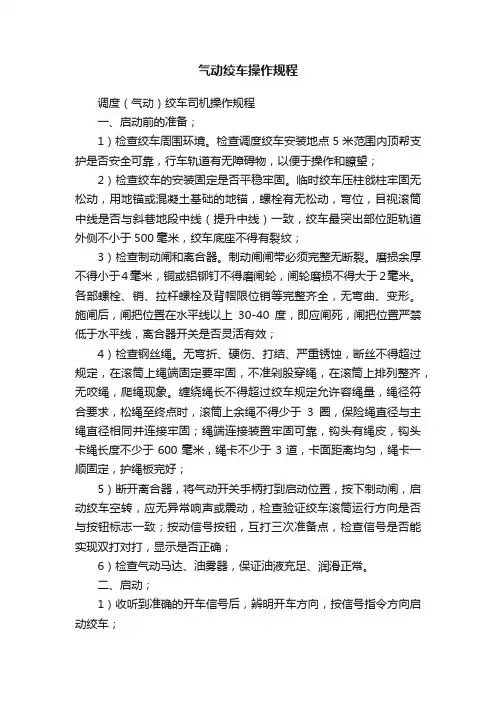

气动绞车操作规程调度（气动）绞车司机操作规程一、启动前的准备；1）检查绞车周围环境。
检查调度绞车安装地点5米范围内顶帮支护是否安全可靠，行车轨道有无障碍物，以便于操作和瞭望；2）检查绞车的安装固定是否平稳牢固。
临时绞车压柱戗柱牢固无松动，用地锚或混凝土基础的地锚，螺栓有无松动，弯位，目视滚筒中线是否与斜巷地段中线（提升中线）一致，绞车最突出部位距轨道外侧不小于500毫米，绞车底座不得有裂纹；3）检查制动闸和离合器。
制动闸闸带必须完整无断裂。
磨损余厚不得小于4毫米，铜或铝铆钉不得磨闸轮，闸轮磨损不得大于2毫米。
各部螺栓、销、拉杆螺栓及背帽限位销等完整齐全，无弯曲、变形。
施闸后，闸把位置在水平线以上30-40度，即应闸死，闸把位置严禁低于水平线，离合器开关是否灵活有效；4）检查钢丝绳。
无弯折、硬伤、打结、严重锈蚀，断丝不得超过规定，在滚筒上绳端固定要牢固，不准剁股穿绳，在滚筒上排列整齐，无咬绳，爬绳现象。
缠绕绳长不得超过绞车规定允许容绳量，绳径符合要求，松绳至终点时，滚筒上余绳不得少于3圈，保险绳直径与主绳直径相同并连接牢固；绳端连接装置牢固可靠，钩头有绳皮，钩头卡绳长度不少于600毫米，绳卡不少于3道，卡面距离均匀，绳卡一顺固定，护绳板完好；5）断开离合器，将气动开关手柄打到启动位置，按下制动闸，启动绞车空转，应无异常响声或震动，检查验证绞车滚筒运行方向是否与按钮标志一致；按动信号按钮，互打三次准备点，检查信号是否能实现双打对打，显示是否正确；6）检查气动马达、油雾器，保证油液充足、润滑正常。
二、启动；1）收听到准确的开车信号后，辨明开车方向，按信号指令方向启动绞车；2）操纵气动开关手柄（按箭头标记指示，向里拉为提升，向外推为下降，中间为停止），缓慢松开制动闸把，使滚筒平稳运转，达到正常运行速度；3）司机必须站在护绳板后进行操作，严禁司机在绞车两侧或滚筒前面（出绳侧）操作；严禁司机在开车的同时处理爬绳；三、运行；1）绞车运转过程中，司机应注意力集中，时刻注意观察倾听设备运转情况及信号。
In gersoll-Ra nd （英格索兰）空压机操作说明INGERSOLL-RANDINTELLISYS62 4 5 3一、ntellisvs 控制器1EMERGENCY ST紧急停机开关按此开关便使空压机立即停机。
此开关手动复位后，空压机才能重新启动。
顺时针转动，使紧急停机开关复位，控制器显示屏会亮，指出线路电压和控制电压已具备。
2START启动如果显示屏显示“ Ready To Start ”，按下此按钮使空压机启动。
如有足够用气量要求，空压机启动便自动加载。
3STOP停机按此按钮将激活卸载停机顺序。
如空压机正在加载运行，则先卸载，维持卸载运行到30秒（可调节），然后停机。
如空压机已在卸载运行，则立即停机。
4UNLOADS按此按钮将使空压机卸载并维持卸载状态。
显示屏显示机器在“Running Unl oaded （卸载运行）及“ Mode:UNLOA”（模式：卸载）。
5LOAD加载如空压机已在运行且“ Discharge Pressure ” （排气压力）小于“ Online Pressure （回跳压力），则按此按钮将使空压机加载。
同时也会使空压机回到由“Mode ofOperation ” （运行模式）设定点规定的运行模式。
利用其它五个按钮可供操作者选择多种不同功能，令机器进入各种运行状态。
每个按钮的作用由当时的屏幕显示及正在执行的那个功能所决定。
6ARROW箭头按钮这些上下箭头按钮具有与显示屏有半相关的多种功能，当屏幕上出现功能表时，箭头按钮用来上下选点表上的项目。
7DISPLAY BUTTON显示按钮显示屏幕下面三个按钮的功能是改变紧接在它们上面的屏幕最下一行的显示字符，并由这些字符定义。
、CURRENT STATUS前状态CURRENT STAT屏幕是控制器的正常”显示状态。
CURRENT STAT 参数项Package Discharge Temperature 机组排气温度Airend Discharge Temperature 主机排气温度Injected Temperature 喷油温度Sump Pressure 分离前压力Separator Pressure Drop 油分离器压降Coolant Filter 油过滤器Invet Vacuum 进气负压Inlet Filter 进气过滤器Total Hour 总运行小时Loaded Hour 加载小时%Load Modulation 加载调节百分比Software Title and Version 软件名称及版本如30秒内不按任何按钮，控制器便自动从其它屏幕回到CURRENT STATUS幕。
