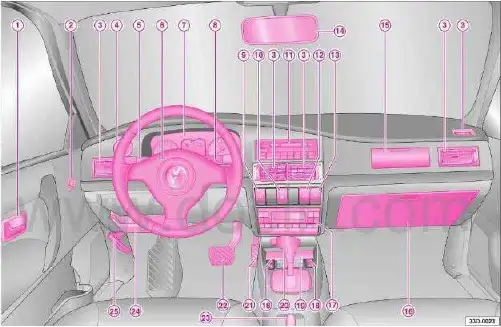

概览图此总体概览用来帮助您迅速熟悉各种仪器、仪表和控制设备。
序号名称页码① 车门内开扳手②电动外后视镜调节旋钮 .................. 1-21③出风口. .................................................. 1-32④灯光开关............................................... 1-16⑤转向信号灯和变光拨杆 .................. 1-18⑥ 方向盘－驾驶员正面安全气囊.................. 2-16－喇叭车内后视镜............................................... 1-20杂物盒* ............................................. 1-28前排乘员侧储物箱................................ 1-28空调设备－手动空调的控制器* .......................1-30－自动空调的控制器* .......................1-33电动车窗玻璃升降器 ........................... 1-16点烟器*和烟灰盒................................... 1-27换档杆－5档手动变速器................................... 1-41－4档自动变速器* .............................1-42油门踏板制动踏板■鉴于配置的组合方案多种多样。
因而您所购车辆操纵部件的选件范畴和配置可能与您在概览图中的有所不同。
1）对于已由厂方配置收音机、CD-换碟机和MP3播放器的车辆单独提供操作说明书。
而在自行装配的情况下，则要对“附件、改动和更换配件”标题下有关更改和零部件替换以及“安装收放机”标题下有关装配和“无线电设备”章节予以注意。

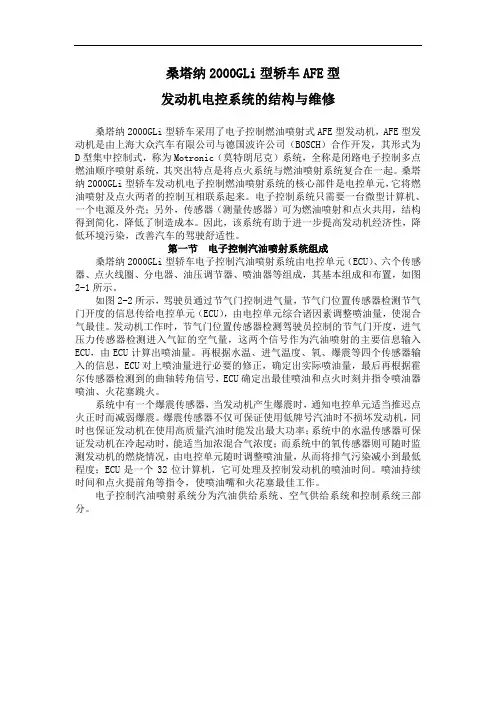

桑塔纳2000GLi型轿车AFE型发动机电控系统的结构与维修桑塔纳2000GLi型轿车采用了电子控制燃油喷射式AFE型发动机，AFE型发动机是由上海大众汽车有限公司与德国波许公司（BOSCH）合作开发，其形式为D型集中控制式，称为Motronic（莫特朗尼克）系统，全称是闭路电子控制多点燃油顺序喷射系统，其突出特点是将点火系统与燃油喷射系统复合在一起。
桑塔纳2000GLi型轿车发动机电子控制燃油喷射系统的核心部件是电控单元，它将燃油喷射及点火两者的控制互相联系起来。
电子控制系统只需要一台微型计算机、一个电源及外壳；另外，传感器（测量传感器）可为燃油喷射和点火共用，结构得到简化，降低了制造成本。
因此，该系统有助于进一步提高发动机经济性，降低环境污染，改善汽车的驾驶舒适性。
第一节电子控制汽油喷射系统组成桑塔纳2000GLi型轿车电子控制汽油喷射系统由电控单元（ECU）、六个传感器、点火线圈、分电器、油压调节器、喷油器等组成，其基本组成和布置，如图2-1所示。
如图2-2所示，驾驶员通过节气门控制进气量，节气门位置传感器检测节气门开度的信息传给电控单元（ECU），由电控单元综合诸因素调整喷油量，使混合气最佳。
发动机工作时，节气门位置传感器检测驾驶员控制的节气门开度，进气压力传感器检测进入气缸的空气量，这两个信号作为汽油喷射的主要信息输入ECU，由ECU计算出喷油量。
再根据水温、进气温度、氧、爆震等四个传感器输入的信息，ECU对上喷油量进行必要的修正，确定出实际喷油量，最后再根据霍尔传感器检测到的曲轴转角信号，ECU确定出最佳喷油和点火时刻并指令喷油器喷油、火花塞跳火。
系统中有一个爆震传感器，当发动机产生爆震时，通知电控单元适当推迟点火正时而减弱爆震。
爆震传感器不仅可保证使用低牌号汽油时不损坏发动机，同时也保证发动机在使用高质量汽油时能发出最大功率；系统中的水温传感器可保证发动机在冷起动时，能适当加浓混合气浓度；而系统中的氧传感器则可随时监测发动机的燃烧情况，由电控单元随时调整喷油量，从而将排气污染减小到最低程度；ECU是一个32位计算机，它可处理及控制发动机的喷油时间。

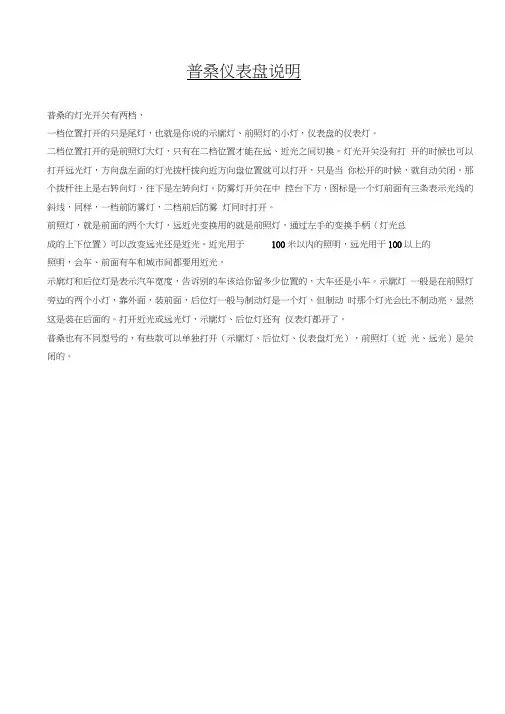

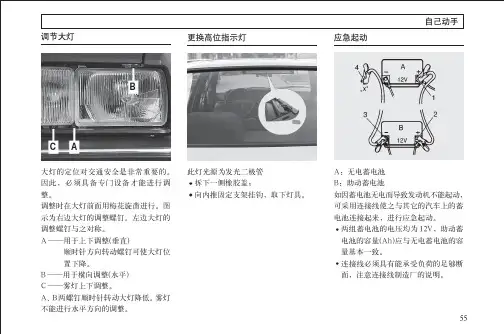

普桑仪表盘说明普桑的灯光开关有两档，一档位置打开的只是尾灯，也就是你说的示廓灯、前照灯的小灯，仪表盘的仪表灯。
二档位置打开的是前照灯大灯，只有在二档位置才能在远、近光之间切换。
灯光开关没有打开的时候也可以打开远光灯，方向盘左面的灯光拨杆拨向近方向盘位置就可以打开，只是当你松开的时候，就自动关闭。
那个拨杆往上是右转向灯，往下是左转向灯。
防雾灯开关在中控台下方，图标是一个灯前面有三条表示光线的斜线，同样，一档前防雾灯，二档前后防雾灯同时打开。
前照灯，就是前面的两个大灯，远近光变换用的就是前照灯，通过左手的变换手柄（灯光总成的上下位置）可以改变远光还是近光。
近光用于100米以内的照明，远光用于100以上的照明，会车、前面有车和城市间都要用近光。
示廓灯和后位灯是表示汽车宽度，告诉别的车该给你留多少位置的，大车还是小车。
示廓灯一般是在前照灯旁边的两个小灯，靠外面，装前面，后位灯一般与制动灯是一个灯，但制动时那个灯光会比不制动亮，显然这是装在后面的。
打开近光或远光灯，示廓灯、后位灯还有仪表灯都开了。
普桑也有不同型号的，有些款可以单独打开（示廓灯、后位灯、仪表盘灯光），前照灯（近光、远光）是关闭的。
转向灯变光川关侑恸信号灯灯光开关刮水器卄关雾灯开关片窗加热警告灯开关转向指不发屯机指示水温衣水温报警机油油压报警远光灯指示关闭状态 第一档：雾灯 第二档：雾灯和后雾灯老到二档位置.幵关上佶号灯即发亮•雾灯只有在灯光开关打开时能起作用注：图是桑塔纳的说明书上的，但不是我们训练用的车型。
但里面的介绍信息说明的不错12 3 4 5 6 7 8 9 10 11 121出城口................................ ......... 19 10 警告灯开光.......................... ........... 17 2 灯比开关及仪表板聘叨调节器...........11• W 19 3 制动倍号灯 ............................ ..... 卩 12 AB5指示灯说明 ................................ 17 4 组合仪表和指示灯...................... ....... 12 13 保验疑护板壳........................ ........... 24 5 腹风歴通凤或空隅装置的裁风肌14 转向信号灯圧变光拨杆开关............. .. (17)和控制杆 .............................. (19)15 喇％按钮6 收址机/CD 机 .......................... ......... 24 16 转向黠禰/点火开栄................... ......+ 10 7 备用幵关座 ............. ........... .. ....... 16 17 风窗岀冰器及洗制装置拨杆开关 ...... (18)R 籌灯开关.. .......................... ...... 16 18 (22)9 后风窗加煥开关........................ ...... 16 19 杂物箱.............................. .. (24)13 14 15 1& 171B19组合仪表和指示灯的使用图解:组合仪表和指示灯掏示灯I1 •在转向猶示 C 】接通该转向信号*该掃示灯闪烁。
第六节润滑系统的结构与维修一、润滑系统的总体的构造润滑系的作用是对发动机所有运动的部件进行润滑，减少零件的摩擦和磨损，流动的机油不仅可以清除摩擦表面的磨屑等杂质，而且还可以冷却摩擦表面。
气缸壁与活塞环上的油膜还能提高气缸的密封性。
此外，机油还可以防止零件生锈。
桑塔纳轿车无论采用何种型号的发动机，其润滑系都是压力润滑与飞溅润滑相结合的复合润滑系统。
桑塔纳轿车润滑系统的结构与油路如图1-126所示。
图1-126 桑塔纳轿车发动机润滑系统示意图1-旁通阀 2-机油泵 3-粗集油器 4-油底壳 5-放油塞 6-安全阀 7-机油滤清器 8-主油道 9-油道 10-曲轴 11-中间轴 12-压力开关 13-凸轮轴油底壳内的润滑油经粗集滤器滤掉大的机械杂质后，被机油泵压入机油滤清器后分三路送出。
第1路经主油道后分为两支：一支送入曲轴主轴承分油道，润滑主轴承，经曲轴内油道滑润连杆大端轴承，再经连杆内油道润滑连杆小端轴承后回到油底壳；另一支则进入中间轴的轴承（AJR型发动机无中间轴）后流回油底壳。
第2路从主油道进入凸轮轴的轴承后再润滑气门机构，然后流回油底壳。
第3路，在主油道油压太高或流量太大的情况下，润滑油冲开安全阀，分流回油底壳。
机油滤清器上没有旁通阀，起动压力为0.18MPa。
当机油滤清器堵塞，润滑油通过压力开关短路进入主油道，防止发动机运动副因缺润滑油而烧坏。
二、AFE型发动机润滑系统的结构与维修AFE型发动机润滑系零件如图1-127所示。
图1-127 润滑系零件分解图l-放油螺塞（拧紧力矩30N·m） 2-O形密封圈 3-油底壳紧固螺栓（拧紧力矩 20N· m）4-油底壳 5-机油泵盖长螺栓（拧紧力矩20N·m） 6-机油泵齿轮 7-机油泵壳体 8-机油滤清器盖衬垫 9-机油滤清器体 10-机油滤清器盖紧固螺栓（拧紧力矩 25N·m） 11-机油滤清器盖 12-密封圈 13-0.18MPa油压开关（拧紧力矩25N·m） 14-0.03lMPa油压开关（拧紧力矩25N·m） 15-密封圈 16-机油尺 17-加油口盖 18-橡胶由封垫圈 19-带眼压阀的机油泵盖 20-O形圈 21-机油集滤器 22-机油泵盖短螺栓（拧紧力矩10N·m）23-油底壳密封垫（一）机油泵的结构与维修AFE型发动机的机油泵为齿轮泵，由中间轴上的螺旋齿轮驱动，安装在气缸体底平面第3缸附近设计的平台上。

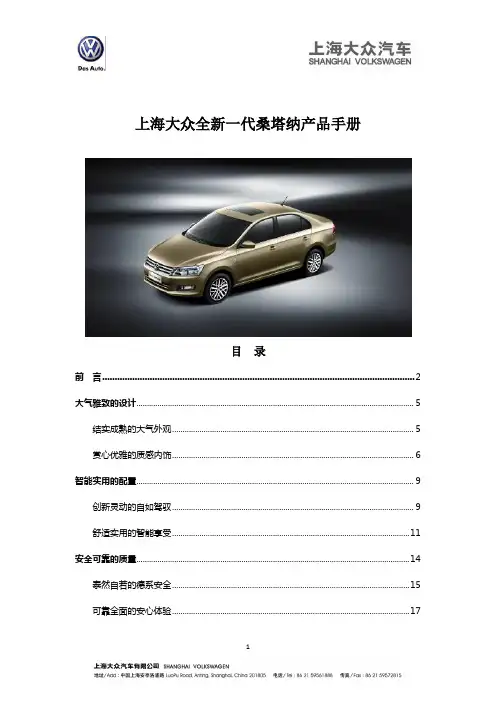

上海大众全新一代桑塔纳产品手册目录前言 (2)大气雅致的设计 (5)结实成熟的大气外观 (5)赏心优雅的质感内饰 (6)智能实用的配置 (9)创新灵动的自如驾驭 (9)舒适实用的智能享受 (11)安全可靠的质量 (14)泰然自若的德系安全 (15)可靠全面的安心体验 (17)前言作为上海大众Santana品牌2012年在中国市场的最新力作，全新一代桑塔纳是一款大气舒适、至真品质的经典德系中级轿车，为当今社会中求真进取, 值得信赖的新中坚力量度身打造。
全新一代桑塔纳在保持原有Santana品牌优势的基础上，基于中国消费者的需求，通过对外观造型、内饰设计、驾驭享受、智能科技、德系安全、安心体验六大方面的全面升级，进一步丰富了产品的技术内涵，为Santana品牌注入新的价值和意义。
全新一代桑塔纳的整体设计采用大众汽车集团最新的设计语言，外观造型大气成熟、内饰赏心优雅，满足国内消费者最新的审美观念，彰显出全新一代桑塔纳现代与经典交织的成熟气质；同时，全新一代桑塔纳搭载了强劲高效的动力系统，以及灵动自如的辅助驾驭系统，为消费者提供了拥有大众品质保障的驾控体验；另外，全新一代桑塔纳还拥有了代表卓越品质的生产工艺、绿色环保的节能配置、实用舒适的多媒体享受、技术悉心驱动的主动安全、以及绝不妥协的被动安全设计，使其具备了超越同级别车的综合优势。
自1983年进入中国以来，Santana品牌已经创造了近400万辆的销售奇迹。
时至今日，Santana品牌始终保持约20万辆的年销量，这样的市场表现在当前车市依旧可以跻身“畅销车”的行列，Santana品牌无愧于中国车坛常青树的经典美誉。
在中国车市扎根29年来，Santana品牌与中国汽车工业共同成长，见证了中国的改革开放，见证了国家的富强，见证了中国逐步融入世界的历程，见证了人们生活节奏和生活方式的变化。
Santana品牌凭借一贯坚持的德系经典品质，为中国车市建立起真诚务实的品牌形象。
The new and improved SONATA is for those who appreciate how something can change over time.Sensuous Gasoline 1.6 Turbo Inspiration (Serenity White Pearl)Keep GrowingDesignThe coupe style adds to the SONATA’s sporty image.Front design (Sensuous Gasoline 2.0 Inspiration l Biophilic Blue Pearl)High-gloss black outside mirror18-inch alloy wheels & pirelli tiresRear design (Sensuous Gasoline 1.6 Turbo Inspiration l Serenity White Pearl)19-inch alloy wheels & pirelli tires (Sensuous Gasoline 1.6 Turbo-exclusive)Single twin tip muffler (Sensuous Gasoline 1.6 Turbo-exclusive)Front designSide seal molding & N Line emblemRear design (Sensuous Gasoline 1.6 Turbo Specifications)19-inch alloy wheels & pirelli tiresN Line Design Edition (Sensuous Gasoline 2.0 / 1.6 Turbo)Inspiration (Greige)SpaceThe efficient use of indoor space enhances the driving experience for the driver and passengers alike.* The screen layout/design of the infotainment system may change with the regular updates.Inspiration (Greige)ConvenienceEquipped with multiple smart mobility features, the SONATA is the pinnacle of driving convenience.Hyundai Digital keyUse your smartphone to lock or unlock the door or start the vehicle. When necessary, the digital key can be shared with others.10.25-inch navigation system (Bluelink, phone projection, Hyundai CarPay)The SONATA is equipped with several driver-friendly functions, including a high-resolution display, voice recognition vehicle control, and Over-The-Air navigation updates.Bluetooth multi connectionYou can link two Bluetooth devices simultaneously and,depending on the circumstances, choose to use only one of them at a time.* Hyundai Digital key NFC can only be used via smart phones programmed with this function.* For compatible smart phone models, please refer to the Hyundai Motor website.Built-in camUse the built-in camera to make video recordings of the environment just ahead of or behind your vehicle. (Videos can also be viewed on a smartphone through an exclusive application.) By linking with an exclusive smart phone application via wireless Wi-Fi or USB cable, the driver can view real-time screens, replay recorded videos, download recorded videos,and link saved time-lapse videos to social media accounts.* To use services after linking with a smart phone, the built-in cam application must be installed on the smart phone.Depending on the smart phone model/make, the built-in cam application may be downloaded from the Google Play Store or the App Store.* When selecting the built-in cam, you can choose H Genuine Accessories built-in cam supplemental battery.Passenger relaxation comfort seatHave a restful ride that feels as if you are in a zero-gravity environment.Hyundai CarPayBy registering the card in the dedicated app, drivers can conveniently pay for gas and parking at affiliated stores.Voice recognition vehicle controlThe voice recognition button, which is located on the steering wheel, can be used to control the car's diverse functions (air conditioner, heater, road navigation, etc.).Remote Smart Parking AssistThis function lets the driver enter and leave a parking space from outside of the car.Blind-spot View MonitorEngaging the turn signal in either direction shows the driver video footage of what’s next to and behind the car in the instrument cluster.Surround View MonitorThis function displays real-time video footage of the vehicle’s immediate surroundings to ensure safe parking.①②③④⑤⑥⑦⑧⑨SafetySONATA's top priority is the safety of the driver and passengers.Rear Occupant AlertThe SONATA automatically determines whether there is a passenger in the back seat.An alarm sounds after the ignition is turned off and the driver’s door is opened to remind the driver to check for passengers.9 airbag systemA total of nine airbags, including advanced airbags for front seats, driver’s knee airbags, 1st/2nd row side airbags, androllover-resistant curtain airbags, protect passengers from crashes.Sensuous Gasoline 1.6 Turbo Inspiration (Nocturne Gray Metallic) / Sensuous Gasoline 2.0 Inspiration (Serenity White Pearl)PerformanceOur 3rd-generation platform improves driving stability.160Max.PowerPS/6,500rpm20.0Max.Torquekgf .m/4,800rpm12.7Gas mileagekm/ℓ (6-speed A/T/17-inch, with built-in cam)Smartstream Gasoline 2.0 engine180Max.PowerPS/5,500rpm27.0Max.Torquekgf .m/1,500~4,500rpm13.8Gas mileagekm/ℓ (8-speed A/T/17-inch, without built-in cam)Smartstream Gasoline 1.6 Turbo engineMax.Torquekgf .m/1,650~4,000rpm290Max.PowerPS/5,800rpm43.011.1Gas mileagekm/ℓ (8-speed wet N DCT/19-inch, without built-in cam)Smartstream Gasoline 2.5 Turbo engine152Max.Engine PowerPS/6,000rpm19.2Max.Engine Torquekgf .m/5,000rpm38.0Max.Motor PowerkW205Max.Motor TorqueNm20.1Gas mileagekm/ℓ (6-speed A/T/16-inch, without built-in cam)Smartstream Gasoline 2.0 Hybrid engine / Electric motorThis platform, which realizes an optimum balance of the vehicle’s body, minimizes vibration and noise while driving even at high speeds.3rd-Generation PlatformHyundai SmartSense keeps the driver and passengers safe and protected.Lane Following AssistThis system keeps the car in the center of the lane. When necessary, automatic steering wheel control is activated to prevent the car from drifting outside the lane.Forward Collision-avoidance AssistAn alarm sounds when a risk of collision is detected with a vehicle, pedestrian, or cyclist just in front of your vehicle or a car facing you at an intersection.If necessary, the brakes are activated automatically.Highway Driving AssistHighway Driving Assist controls the distance between vehicles andmaintains the vehicle's position within its lane. * The Advanced Driver Assistance System (ADAS) is a group of functions that help the driver operate the vehicle more safely. Please make sure to drive carefully.* Depending on the environment and driving conditions, the given function may not operate properly. Please refer to the manual for details.* The above specifications are applied differently depending on the trim, powertrain, and options.* The specifications in this brochure include options. For detailed specifications, please refer to the price list for the relevant month.Blind-spot Collision-avoidance AssistAn alarm sounds when a risk of collision is detected with a car approaching from the rear. If necessary, the brakes are activated automatically.Rear Cross-Traffic Collision-Avoidance AssistAn alarm sounds when a risk of collision is detected with a car approaching from the rear while you are backing out of a parking space.If necessary, the brakes are activated automatically.Safety Exit AssistWhen the car is parked and the electronic child lock is deactivated,an alarm will sound when a risk of collision is detected with a carapproaching from the rear. The door is kept locked from the inside toprevent a collision or crash.Driver Attention Warning / Front vehicle start alarmAnalyses are done of the driver’s driving patterns and/or the locations ofother cars in your lane. If exhaustion or careless driving is detected,a warning is displayed that encourages the driver to take a break.An alarm sounds when, while at a stop, the car in front starts to move forward.Hybrid Inspiration (Nocturne Gray Metallic)HybridThe SONATA Hybrid is a pioneer of sustainable mobility.Combined fuel economy : 20.1km/ℓ (16-inch wheels, without built-in cam)1. Regenerative braking systemThe kinetic energy generated when the vehicle slows down is used to charge the battery, thus improving energy efficiency.2. Hybrid high-voltage & lithium-ion batteryThe battery is mounted under the rear seat, which allows thetrunk’s space to be used more efficiently.3. Permanent magnet electric motorThe high-efficiency motor assists the gasoline engine and is capable of takingthe vehicle to speeds of up to 120km/h in electric vehicle (EV) mode.213BatteryMotorEngine Hybrid systemN Line (Abyss Black Pearl)N LineExperience the specifications that are offered exclusively for the N Line to ensure an exciting, high-performance drive.N Line (Abyss Black Pearl)High-gloss black radiator grille / Air intake in the front (N Line-exclusive)19-inch alloy wheels & pirelli tires / N wheel capN Line-exclusive SpecifiationsActive Sound DesignA different engine sound is produced according to the driving conditions (e.g. engine RPM, torque, speed).Smartstream Gasoline 2.5 Turbo engineThis engine is an advanced next-generation engine that offers high efficiency and 290 horsepower.Launch ControlMinimize acceleration time and achieve maximum performance when accelerating from standstill.N Power ShiftWhen shifting to a higher gear, you will feel as if you are being REVolution MatchingWhen downshifting, this function makes shifts quick and smooth.Sport-tuned chassisHigh-friction brake pads have been installed to improve braking performance.Improved shock absorption between the axle and body allows the vehicle to move in a more stable manner.Smartstream LPG 2.0 engine The SONATA's Smartstream LPG 2.0 engine is a highly-economical option.Smartstream LPG 2.0 Inspiration (Nocturne Gray Metallic)Sensuous Gasoline 2.0 Modern (Curated Silver Metallic)ModernFull LED headlamps (MFR type) / LED Daytime Running Lights 4.2-inch color LCD clusterLED rear combination lamps Manual air conditioning Double-glazed soundproof glass (windshield, 1st row doors)Shift By Wire Circular gas tank (Smartstream LPG 2.0 only)8-inch display audio(6 speakers, radio, MP3, Bluetooth hands-free)16-inch alloy wheels(Hybrid-exclusive)17-inch alloy wheels * Hybrid Modern trim comes standard with dual-zone full automatic air conditioning.Sensuous Gasoline 2.0 Premium Plus (Serenity White Pearl)Premium Plus10.25-inch navigation system(Bluelink, phone projection, Hyundai CarPay)8-way power-adjustable driver's seat,2-way power-adjustable driver's lumbar supportDual-zone full automatic air conditioning(with air cleaning mode, auto defog system)Hi-passSynthetic leather-upholstered crash pad Power windows with pinch protection(front passenger's seat)Ambient mood lighting Rain sensor17-inch alloy wheels18-inch alloy wheels17-inch alloy wheels(Hybrid-exclusive)Sensuous Gasoline 2.0 Inspiration (Nocturne Gray Metallic)InspirationFull LED headlamps (projection type) / LED Daytime Running Lights Head-Up DisplaySolar glass (front)Nappa leather seats BOSE premium sound (12 speakers and external amp)Rear manual door curtain Passenger's seat walk-in deviceMotorized rear seat curtain19-inch alloy wheels (SensuousGasoline 1.6 Turbo-exclusive)18-inch alloy wheels17-inch alloy wheels (Hybrid-exclusive)N Line (Abyss Black Pearl)N LineHigh-gloss black outside mirror 12.3-inch color LCD cluster Dual twin tip muffler Heated rear seats Red stitched steering wheel & Paddle shifters Shift By Wire (N emblem applied)Exclusive bucket seat(front)19-inch alloy wheelsColorsBlack one tone Synthetic leather seatsNavyNatural leather seatsBlack one toneNatural leather seatsDark Gray (with red stitching / N Line-exclusive) Suede + Nappa leather seatsNappa leather seatsSuede Interior colors* Vehicle colors presented here may differ from actual appearance. * Ultimate Red Metallic cannot be paired with a Navy interior.* The above color chart is based on the gasoline, hybrid, N Line, and LPG (commercial) models. Trim names may vary for rented or disability service vehicles. For further information on specifications, please refer to the pricing chart for the respective month.Exterior colorsSeat combination chartCamelNappa leather seatsGreige Nappa leather seats NavyNappa leather seatsCurated Silver Metallic (R9S)Transmission Blue Pearl (NY9)Biophilic Blue Pearl (XB9)Ultimate Red Metallic (R2P)Nocturne Gray Matte ㅣMatte color (T9M)Serenity White Pearl (W6H)Personalize your SONATA with the help of some special items.* The availability of the items shown above depends on the trim level and the options selected. For further information on specifications, please refer to the price chart for the respective month. Luggage matFloor matProtection mat package Lighting package (LED)Door spot lampSun visor lampFoot mood lampLuggage lamp* The SONATA N Line comes standard with monotube rear shock absobers. For sportier handling, Hyundai recommends a firmer shock absorber.* The availability of the items shown above depends on the trim level and the options selected. For further information on specifications, please refer to the price chart for the respective month.Enjoy the appearance and function of N Performance parts,each of which has been applied with Hyundai Motor’s peerless motorsports technologies.Monotube shock absorbers Red lowering springMonoblock brake & 19-inch lightweight wheels package Real carbon wheel cap Monoblock 4-pad caliper & Hybrid disc & Low steel pad 19-inch lightweight black wheels * Available for purchase separately only wheelsN Performance suspensionOverall Height 1,445Wheel Tread, Front 1,610 (1,623)Overall Width1,860Wheel Base2,840Overall Length4,900Wheel Tread, Rear 1,617 (1,630)Unit: mm, Wheel tread measurement made using 245/40R19 tires(( ) is based on SONATA Hybrid 215/55R17 tires)DimensionsSpecifications※ The benefits offered through the warranties above may be subject to change.※ Contact a branch or dealership for details.Maintain a constant speed to drive more efficiently.-The fuel economy described above is based on the standard model and may differ during actual driving depending on road conditions, driving technique, cargo load, vehicle maintenance, and outdoor temperature. -Some of the images presented here include optional specifications, so their appearance may differ from the car you purchase. -The specifications, colors, and sources presented here may be modified to improve vehicle exterior and performance. -The engine performance described above is the “Net Number,” a new measure reflecting exhaust resistance that complies with legislation enforced by Korea’s Ministry of Land and Transport since 1997. It can be marginally lower than “Gross Output Number,” the previous measurement. -Nappa leather/leather seats include some synthetic leather. -Vehicle colors presented here may differ from actual appearance. -A high-performance brake that has been applied with a low steel pad may create noise (due to the nature of the performance functions). This is a normal phenomenon. -Some specifications may vary for rented/handicap vehicles and regular vehicles. -All of the measurements in this brochure apply to the Gasoline/Hybrid/N Line models. Therefore, the specifications and the features of the LPG models might differ. -Hyundai Motor Company is committed to fair trade practices, with the same price and quality of vehicles nationwide. -Use of engine oil or fuel that is of low quality may result in damage to the vehicle. -For more information about the new technologies and specifications described in this brochure, please refer to a user’s manual.*Free of charge for 5 years for first-time Bluelink members after vehicle purchase. Light Service (emergency call, airbag deployment notification, monthly report, traffic data, etc.) is provided free of charge for additional five years. *Certain functions (Digital Key 2, Hyundai CarPay, OTA (Over-The-Air) software updates, and wireless navigation system updates) are provided only to Bluelink members. Provided functions may vary by model.*Over-The-Air software update is available during the Light Service period, and the features available may vary by model. *Inquiries: Bluelink Kakao Talk Customer Service Center (enter 'Bluelink' in Kakao Talk search screen and add as friend)The advanced technology of Hyundai’s Bluelink system helps keep both the driver and the vehicle safe in any situation.Bluelink is always there to keep you safe, regardless of the location or time of day. Experience the unique joy of safe and comfortable driving.Remote controlIn the extremely hot summer or cold winter months, you can link your smartphone to the air conditioner or heater to set and control the temperature inside the vehicle. Enjoy a pleasant driving experience with Bluelink.The Bluelink Center works 24 hours a day, 365 days a year. If an airbag opens due to an accident, the Center automatically detects your location and takes appropriate actions according to the situation, such as contacting the police, ambulance, insurance company, etc.Safety securityServices include real-time trouble detection while the vehicle is running and regular vehicle inspections on pre-arranged dates. In the event of vehicle trouble, immediate professional consulting is available, and you may conveniently make reservations for repair at the time and location of your choice.Vehicle managementThis function enables the driver to conveniently search for destinations through voice command and suggests optimum routes based on an independent analysis of real-time traffic information. The driver can search a database of upto- date information to find even newly created destinations.NavigationThe features introduced in this brochure may vary from model to model. Please refer to the monthly price table for more detailed features of each model.Hyundai Motor Company ranked first for the ninth consecutive year in 2022 across 2022 KS-QEI(Korea Standard-Quality Excellence Index)Ranked first place in the automobile warranty service category of the Korean Standard-2022 Korea Customer Satisfaction Index (KCSI)Ranked 1st in the sedan sector for SONATA Homepage SONATA N Line HomepageSONATA HybridHomepage。

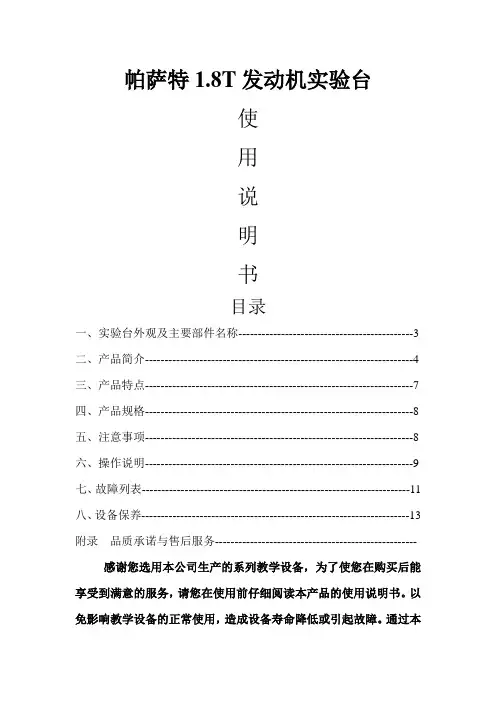

帕萨特1.8T发动机实验台使用说明书目录一、实验台外观及主要部件名称---------------------------------------------3二、产品简介---------------------------------------------------------------------4三、产品特点---------------------------------------------------------------------7四、产品规格---------------------------------------------------------------------8五、注意事项---------------------------------------------------------------------8六、操作说明---------------------------------------------------------------------9七、故障列表---------------------------------------------------------------------11八、设备保养---------------------------------------------------------------------13 附录品质承诺与售后服务---------------------------------------------------- 感谢您选用本公司生产的系列教学设备，为了使您在购买后能享受到满意的服务，请您在使用前仔细阅读本产品的使用说明书。
以免影响教学设备的正常使用，造成设备寿命降低或引起故障。
通过本说明书您将了解到本系列设备的基本知识和正确使用方法。
一、 实验台外观及主要部件名称二、 产品简介本产品采用原厂帕萨特1.8T （配有当前高新技术的涡轮增压系统及电子节气门系统）发动机制作，下面就1.8T 发动机作以下介绍 发动机参数标准引擎 直列4缸每缸5气门，涡轮增压发动机，带可变气门正气门数 20 最大功率 120/5700kw/rpm时控制排量1781 cc 油耗 6.3 燃油系统多点电喷发动机带T与不带T的区别：T及Turbo：即涡轮增压，其简称为T，一般在车尾标有1.8T、2.8T等字样。
第十章 空调系统的结构与维修第一节 空调系统的结构与技术参数一、桑塔纳轿车空调系统的结构桑塔纳2000系列轿车空调系统采用了替代R12的、对大气层无害的新型制冷剂HCF134a （R134a）。
空调系统在原普桑空调的基础上对蒸发器、压缩机、冷凝器、储液器、软管、加注阀等总成或零件作了重大改进，使它的降温效果有了明显提高。
桑塔纳2000系列轿车空调系统布置如图10-1所示。
图10-1 空调系统布置l-控制装置 2-进气罩 3-蒸发箱 4-S管 5-D管 6-冷凝器 7-C管 8-空调压缩机 9-储液干燥管 10-L管 11-加热器空调系统的工作过程如图10-2所示。
由蒸发器1出来的低温、低压制冷剂HCF134a气体，经低压软管2、低压阀9进入压缩机3。
压缩机内将气态制冷剂吸进并压缩，变成高温、高压的制冷剂气体，由高压阀出来经过高压管4进入冷凝器5，并把热量排出车外，被冷却为高温、高压的液态R134a，从冷凝器底部流向储液干燥器6，经过滤、脱水后由高压管4送至膨胀阀8。
经膨胀阀的高压液态制冷剂减压后，成为低温、低压的雾状物进入蒸发器，通过蒸发器芯管吸收周围空气中的热量而变为气体，冷却后的空气即为冷气，经风扇被强制送回车内，完成了降温的目的。
低温、低压的气态制冷剂，经低压软管回到压缩机，开始新一轮工作循环。
空调系统操纵杆及空调系统出风口如图10-3和图10-4所示。
图10-2 系统工作原理1-蒸发器 2-低压软管 3-压缩机 4-高压软管 5-冷凝器 6-储液干燥器 7-高压阀 8-膨胀阀 9-低压阀 10-压力开关图10-3 空调系统操纵杆1-中央出风口 2-空调控制开关 3-自然风鼓风机开关 4、5-气流分布拨杆 6-温度选择拨杆图10-4 空调系统出风口布置1、压缩机由于桑塔纳2000系列轿车空调系统的制冷剂由R12改为R134a，这种制冷剂具有高渗透性，因此普通桑塔纳轿车空调系统所用的SD-508型压缩机已不适用，改为SE-5H14型压缩机。
概览图此总体概览用来帮助您迅速熟悉各种仪器、仪表和控制设备。
序号名称页码① 车门内开扳手②电动外后视镜调节旋钮 .................. 1-21③出风口. .................................................. 1-32④灯光开关............................................... 1-16⑤转向信号灯和变光拨杆 .................. 1-18⑥ 方向盘－驾驶员正面安全气囊.................. 2-16－喇叭车内后视镜............................................... 1-20杂物盒* ............................................. 1-28前排乘员侧储物箱................................ 1-28空调设备－手动空调的控制器* .......................1-30－自动空调的控制器* .......................1-33电动车窗玻璃升降器 ........................... 1-16点烟器*和烟灰盒................................... 1-27换档杆－5档手动变速器................................... 1-41－4档自动变速器* .............................1-42油门踏板制动踏板■鉴于配置的组合方案多种多样。
因而您所购车辆操纵部件的选件范畴和配置可能与您在概览图中的有所不同。
1）对于已由厂方配置收音机、CD-换碟机和MP3播放器的车辆单独提供操作说明书。
而在自行装配的情况下，则要对“附件、改动和更换配件”标题下有关更改和零部件替换以及“安装收放机”标题下有关装配和“无线电设备”章节予以注意。
售后服务3文件盒编号保养手册上汽大众全新桑塔纳轿车 2013 ▶, 上汽大众浩纳（Gran Santana）轿车 2015 ▶版本 05.20193免责声明技术信息使用1.维修技术信息内容会根据维修技术的标准及要求不断更新和调整，请始终以最新发布的内容为准。
2.禁止不具备维修资质与能力，不具备适当的维修设备和专用工具，以及超出其经营范围的滥用维修技术信息行为。
使用者因上述不当使用或不按手册规定操作所导致的一切损失，维修技术信息提供方及维修技术信息所有方不承担任何责任。
3.使用者应遵守关于知识产权保护的法律规定，不得以任何形式侵犯维修技术信息所有方的知识产权。
使用者不得超出规定范围使用维修技术信息。
未经授权，使用者不得将维修技术信息用于转售、出版、公开或其他商业用途。
4.使用者在使用维修技术信息时应遵守下述警告说明。
使用者未遵守下述警告说明所导致的一切损失，维修技术信息提供方及维修技术信息所有方不承担任何责任。
5.使用者因为违反上述规定而触犯中华人民共和国法律的，一切法律后果自行负责，维修技术信息提供方及维修技术信息所有方不承担任何责任。
6.除非法律另有强制性规定，维修技术信息提供方及维修技术信息所有方对使用者获取和/或使用维修技术信息产生的一切直接或间接损失均不承担任何责任。
注意警告说明。
标志说明：提示带有此标志的文本包含补充的有用信息。
在执行所有装配和维修作业前，请先阅读并遵守相应信息工具的安全提示。
3售后服务保养内容上汽大众全新桑塔纳轿车 2013 ▶, 上汽大众浩纳（Gran Santana）轿车 2015 ▶文件盒编号 - 手册编号：版本 05.2019请在存放技术须知前将此须知编号填入相应的要点后方。
如此您可以在使用保养手册时对存有技术须知的要点处一目了然。
要点技术须知A00车型发动机B00保养工作C00概述D00工作描述工长和机工必需掌握所有技术信息。
因为认真和持久地维护并遵循注意事项是保证车辆行驶和安全的基本条件。
桑塔纳AJR发动机参考资料☆内部参考资料☆检查气缸直径使用50～100mm的量缸表检查气缸直径，如图1-79所示，检查结果与标准尺寸（见表1-10）的偏差最大为0.08mm。
检查时应在上中下三个位置上，进行横向（A向）和纵向（B 向）垂直测量，如图1-80所示）。
如果气缸体已用VW540装配架固定在装配台上，则不可测量缸径，因为夹紧后测量不准。
图1-79 用量缸表检查缸径图1-80 气缸的测量部位表3-4 活塞与气缸配合尺寸搪磨后气缸的圆度和圆柱度误差应不大于0.005mm。
各缸直径之差不得超过0.05mm。
将活塞倒装入气缸中，在气缸壁与活塞之间垂直活塞销方向插入厚0.03mm、宽12～15mm的厚薄规，再用拉力计（弹簧秤）检查拉出厚薄规时的拉力，其值应为98～245N，拉力过小或过大，则表明气缸搪磨过量或不足。
气缸与活塞的配合间隙应为0.025～0.030mm，磨损极限值为0.11mm。
（l）对活塞做标记时，应从发动机前端向后打上气缸号，并打上指向发动机前端的箭头。
（2）拆卸连杆和连杆轴承盖时，应打上所属气缸号。
安装连杆时，浇铸的标记须朝V 形带轮方向（发动机前方）。
（3）连杆螺母为 M8×1，拧紧连杆螺母时，应在接触面涂机油，用30N·m力拧紧，接着再转动180°。
4）拆装活塞环时应使用专用工具，如图1-85所示。
安装活塞环时，应使活塞环开口错开120°，有“TOP”记号的一面颊朝活塞顶部。
（5）拆装活塞销时，应将活塞加热至60℃，用拇指仅需较小的力就应能将涂有机油的活塞销压入活塞销座孔中，如图1-86所示。
而且在垂直状态时，活塞销不能在自重作用下从销座孔中自行滑出，用手晃动活塞销时应无间隙感，这表明活塞销与销座孔配合适宜。
拆装活塞销卡簧时需用专用工具。
图1-81 JV 型发动机活塞连杆组分解图 1-第一道气环 2-第二道气环 3-组合油环 4-活塞销 5-活塞 6-连杆 7-连杆螺栓 8-连杆轴承 9-连杆轴承盖图1-82 活塞的结构(a=22.2mm b=5.1mm c=20mm d=81mm)图1-83 活塞销的结构（a=54mm b=20mm 装配工具为VW222a ）图1-84 连杆的结构（a=144mm b=50.6mm c=20mm ）（图1-85 拆装活塞环图1-86 装配活塞环◆检查活塞环（1）检查活塞环侧隙。
附录一、发动机和底盘编号方法发动机与底盘的编号是上海桑塔纳轿车在维修站维修和购买配件时，必须提供的技术资料，也是在汽车被盗，向公安机关报警时，必须提供的技术资料。
1、发动机编号方法发动机编号由两部分组成。
第一部分为发动机型号代号，由字母组成，如“JV”、“AFE”和“AJR”；第二部分为发动机所编号码数，由阿拉伯数字组成，如“03421”。
所以该发动机编号为 JV-03421或AFE-03421或AJR-03421。
发动机编号用钢印字打在缸体的左侧，汽油泵上方。
2、底盘编号方法底盘编号由七部分组成，用钢印字打在发动机舱的后部前围板上。
编号示例：WVW ZZZ 33 Z S W 0283-61。
WVW——厂商标记，表示德国大众汽车公司；ZZZ——填充字母；33——车型代号，33表示桑塔纳2000型轿车；Z－一空格，填充年份备用；S－一车型年份，A表示1980年产品，按字母顺序类推；W——制造厂代号，表示德国大众汽车公司沃尔夫斯堡汽车厂；028361——六位数字表示底盘所编号码数。
在使用底盘编号时，一般情况下只要记住车型代号、车型年份、制造厂、底盘所编号码数就够了。
如：33SW028361。
二、桑塔纳轿车的主要结构、性能和维修技术参数桑塔纳2000型轿车有关的结构、性能和维修技术参数见附表1~附表3。
附表1 桑塔纳2000型轿车的主要结构、性能参数附表2 桑塔纳2000型轿车检测维修技术参数附表3 桑塔纳轿车联接件紧固技术参数三、桑塔纳轿车的维护规范（一）首次7500km维护汽车行驶里程在7500km～10000km时，或行驶里程不足7500km但行驶时间已达到 6个月时，须到设在各地的上海大众汽车特约维修站去进行维护。
该项维护主要内容如下：(1)检查发动机有无渗漏机油、防冻液、汽油以及空调系统有无渗漏；(2)检查发动机的点火正时是否正确，必要时调整；(3)检查发动机怠速运转时的CO含量，必要时调整；(4)更换机油和机油滤清器；(5)检查变速箱及传动轴有无渗漏及损坏；(6)检查蓄电池酸液是否符合要求，必要时添加蒸馏水；(7)检查发动机冷却系统的防冻液液面高度及防冻能力，必要时更换并进行压力测试；(8)检查发动机盖锁、门铰链、门拉带的润滑情况；(9)检查前制动摩擦片的厚度。
桑塔纳2000型号说明2007-12-0812:57:29|分类：默认分类|标签：|字号大中小订阅塔纳2000系列虽已停产，但以他的经济耐用一直受到广大用户的称赞，也是二手市场的抢手货。
桑塔纳2000系列有很多车型，外型又基本相似，以致很多用户也搞不清楚自己开的是哪种型号，许多想够买的爱车族也常辨别不清，上当的也不在少数，特发此贴供大家参考。
1．桑塔纳2000化油器车型，普桑JV化油器发动机，尾标GLS，1996年4月投放市场。
桑塔纳2000GLI 车型，俗称小电喷，在普桑JV发动机上加装电喷装置，发动机型号为AFE，尾标GLI。
GLS、GLI两车型的前门窗都有三角玻璃，保险杠与车身不同色。
2．桑塔纳2000时代超人，编号为SVW7182CFI（包括98款、00改款），尾标GSI，1998年3月投放市场，发动机型号为AJR，从时代超人起前门窗玻璃为整块，保险杠与车身同色，00改款于00年7月投放市场，仪表为蓝色。
桑塔纳2000俊杰，编号为SVW7182EFI，发动机型号为AYJ，尾标GSI，4挡自动，前翼子板有AT标志，方向盘中间有VW金属标志，空调开关为旋纽，仪表为蓝色，尾标GSI，00年11月上市。
3．桑塔纳2000自由沸点，00年8月上市，应该为00改款时代超人的简配，保险杠与车身不同色。
4．桑塔纳2000时代超人01改款，编号为SVW7182GFI，发动机型号为AYJ，尾标1.8，01年下半年投放市场，该款车型是在原桑塔纳2000时代超人的基础上作了12项技术改进而成的01款汽车的改进项目主要有：在车身前围板、车顶、地板、轮罩等处作了减噪处理，令汽车行驶噪声更低；增加了遥控功能，通过遥控发射器开启或锁紧汽车所有门锁；座椅及门内饰板采用了新面料；增加左脚搁脚板；采用新换档机构、新款组合尾灯、新造型方向盘（方向盘中间有VW金属标志）等等。
5．桑塔纳2000时代骄子，编号为SVW7182HFI，发动机型号为AYJ，尾标1.8，02年6月投放市场，三幅方向盘带气囊，同原有车型比较，时代骄子在舒适性、安全性、产品外观的时尚性以及产品的质量四个方面都有了重大突破。
