磷酸铁锂电池 18650-1500-3.2V中文规格书 蒋合你好

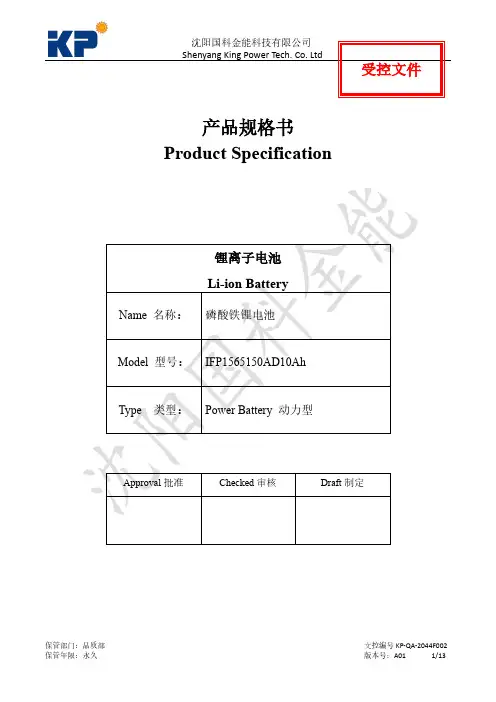

受控文件产品规格书Product Specification锂离子电池Li-ion BatteryName 名称：磷酸铁锂电池Model 型号：IFP1565150AD10AhType 类型：Power Battery 动力型Approval批准Checked审核Draft制定History of Revision受控文件规格书修订记录Date日期Contents内容Remarks备注2019-04-29First Issue受控文件Contents 目录1.Scope 试用范围 (4)2.Parameters for Battery主要技术参数 (4)3.Battery Performance and Test 电池性能检查及测试 (5)3.1 Appearance and Structure 外观和结构 (5)3.2 Measurement Apparatus and Requirements 测试设备要求 (5)3.3 Standard test condition 标准的测试条件 (5)3.4 Standard charge 标准充电 (5)3.5 Common Performance 产品的常规性能 (6)3.6 Safety and Reliability Performance 产品安全性和可靠性 (7)3.7 Rest Period 搁置时间 (8)4.Storage and Others 贮存及其它事项 (8)4.1 Long Time Storage 长期贮存 (8)4.2 Others 其它事项 (8)5.Battery Size Draft 电池外形尺寸图 (8)Appendix (9)1.Charging充电 (9)1.1 Charging Current 充电电流 (9)1.2 Charging V oltage 充电电压 (9)1.3 Charging Temperature 充电温度 (10)1.4 Prohibition of reverse charging 禁止反向充电 (10)2.Discharging 放电 (10)2.1 Discharging Current 放电电流 (10)2.2 Discharging Temperature 放电温度 (10)2.3 Over-discharging 过放电 (10)3.Store 贮存 (11)4.Handling Instructions 电池的注意事项 (11)Shenyang King Power Tech. Co. Ltd1.Scope 适用范围This specification is made for lithium ion battery which type is IFP1565150AD10Ah. And the product is manufactured by Shenyang King Power Tech. Co. Ltd.本规格书适用沈阳国科金能科技有限公司生产的IFP1565150AD10Ah锂离子可充电电池。

18650单电芯规格书BATTERY CO., LTD. DOC NO.: QR-WI-733-003-002/A REV. : APAGE: 1 of 8Specification Approval Sheet (cylinder Cell) 产品规格确认书（圆柱电池）Model/型号：ZZ18650Capacity/容量：1500mAhVoltage/电压：3.7V制定（Prepared By）审核（CheckedBy）批准（ApprovedBy）DOC NO.: QR-WI-733-003-002/A REV. : APAGE: 2 of 81.0基本特性Basic performance型号Model BJ18650P 外壳材质Can Material 镀镍钢Nickel-plated 标称容量NominalCapacity，（0.2C5A）1300mAh额定电压Nominal 3.70V 充电截止电压Max 4.20 V 放电终止电压 2.80V 最大充电电流Max.Charge Current1C5A标准持续放电流10C5A最大瞬间放电电流Max. Discharge Curent20 C5A电池最大直径（光壳）18.5电池最大高度（光壳）66mm 电池重量(Approx.) 约36g 内阻（Max, at 1000Hz.）≤16mΩ充电方法Charge 标准0.2C5A×快速 1 C5A×操作温度Operating Temperature 充电Charge0℃～45℃放电Discharge-20℃～60℃贮存Storage-10℃～45℃2.0 外形图figure2.1结构图Structure3.0 主要放电曲线Mainly capability graphBJ18650P-1300mAh 15C Discharge Cruve BJ18650P-1300mAh 1C Charge CruveBJ18650P-1300mAh 13C Cycle Life BJ18650P-1300mAh -20℃Discharge CruveDOC NO.: QR-WI-733-003-002/A REV. : APAGE: 3 of 84.0 电池性能Characteristic若没有特别说明，电池在做各项试验前，均需在86KPa～106 KPa大气压，环境温度20℃±5℃，相对湿度为45％～75％的条件下，以0.2C5A恒流放电至终止电压2.8V，并在收到产品两周内进行以下试验。

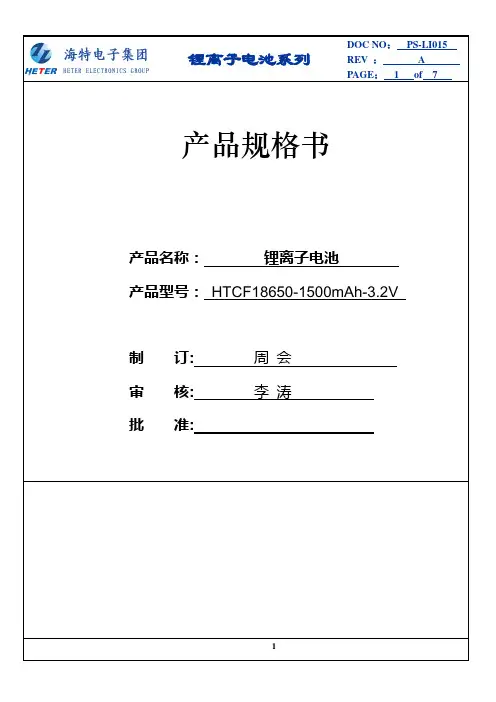

产品规格书产品名称：锂离子电池产品型号：HTCF18650-1500mAh-3.2V制订:周会审核:李涛批准:目录1. 适用范围 (3)2. 型号 (3)3. 外观及尺寸 (3)4. 主要技术参数 (3)5. 性能曲线 (4)6. 安全性能 (5)7. 环境适应性能 (6)8. 标准测试环境 (6)9. 储存及其它事项 (6)10. 电池使用操作注意事项 (6)1. 适用范围本产品规格书描述了海特电子集团有限公司（以下简称海特电子）生产的锂离子电池产品性能指标。

2. 型号HTCF18650-1500mAh-3.2V3. 外观及尺寸项目尺寸(mm)直径（Ф）18.2±0.1高度（H）64.8±0.44. 主要技术参数序号项目标准备注1 标称容量1500mAh 0.5C，（本型号1C电流值为1500mA）2 容量范围1450~1550mAh 0.5C3 标称电压 3.2 V4 交流内阻≤60mΩ加PTC型5 充电条件截止电压 3.65±0.05V 以0.5C恒流充电至3.65V，恒压充电至电流降至0.01C截止截止电流0.01C6 放电截至电压 2.5V7 循环性能2000次1C充电/1C放电，容量保持率≥80%，100%DOD8 最大持续放电电流 4.5A9 脉冲放电电流10A，5s10 工作温度充电：0°C ~ 55°C；放电：-20°C ~ 60°C11 储存温度-20°C ~ 45°C12 电池重量42g (约)5. 性能曲线18650-1500mAh-3.2V电池0.5C充放电曲线22.22.42.62.833.23.43.63.8020040060080010001200140016001800容量/mAh电压/V充电放电18650-1500mAh-3.2V 不同倍率放电曲线22.32.62.93.23.53.8020040060080010001200140016001800容量/mAh电压/V0.1C 0.2C 0.5C 1C 2C 3C18650-1500mAh-3.2V不同温度放电曲线（0.5C）11.522.533.540300600900120015001800容量/mAh电压/V60℃30℃10℃0℃-10℃-20℃-40℃6.安全性能序号项目测试方法标准1 过充性能电池标准充电后，测量电池的初始状态，电池状态正常时，以3C 电流充电至10.0V ，然后转恒压充电至截至电流0.01C 时终止。

文件修订履历版次修订内容修订页次修订日期A/00初版发行无无R&D-D-18650HP-Fe 2007-4-170011李鑫郑荣鹏张建文Edition PagesApprovedCheckedDesigned电芯型号: 18650HP-Fe Cell Type: 18650HP-FeDocument NoEffective dateforLithium-ion Rechargeable CellSpecification锂离子电芯规格书6.1 Standard Test Conditions 标准测试条件6.3 Quick Charge Method 快速充电制式8. Environment Characteristic 环境性能This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited.2该规格书为比克公司企业标准,未经授权,不可翻印,传播.13. Consultation 技术咨询14. Requirement for Safety Assurance 安全保证要求12.2.2 Discharging 放电12.2.3 Storage Recommendation 储存条件12. Precautions and Safety Instructions 安全守则12.1 Standard cell Precaution 电芯防范措施12.2 Cell Operation Instruction 电芯使用说明12.2.1 Charging 充电10. Shipment 出货11. Warranty 质量保证4. Construction 电芯结构5. Specification 标准6. Test Conditions 测试条件7. Electrical Characteristics 电性能6.2 Standard Charge Method 标准充电制式9. Safety Test 安全测试Contents 目录1. Preface 前言2. Description 说明3. Cell Size电芯尺寸2.3 Designation 名称:BAK——— 18 650 HP ——— Fe ① ② ③ ④ ⑤①：Indicates the manufacturing plant 代表厂家名称The letter "BAK" difines ShenZhen BAK Battery Co., LTD. "BAK"代表深圳市比克电池有限公司②：Indicates the diameter of cell 代表电芯直径 18=18mm③：Indicates the overall height of cell 代表电芯高度 650=65mm④：Indicates the performance of celll 代表电池性能 The letter "HP" difines high power cell "HP"代表高功率⑤ ：Indicates the property of the cell 代表电池性能 The letter "Fe" difines LiFePO4 series cathode "Fe"代表以LiFePO4为正极材料体系对于图形结构的详细资讯,请参阅图A.A cell is made of cathode,anode,seperator,can and header.电芯由正极,负极,隔膜,壳体和盖板组成.Figure AThis spec manual is the enterprise standard of BAK , without authorization, any pirate or circulation is prohibited.31. Preface 前言This Product Specification describes the technique requirements,test procedure and precaution notes ofprismatic type Lithium-ion Rechargeable cell to be supplied to customer by Shenzhen BAK Battery Co., LTD.该规格书为比克公司企业标准,未经授权,不可翻印,传播.本标准规定了由深圳市比克电池有限公司生产的锂离子电芯的技术要求,测试方法及注意事项.2. Description 说明2.1 Product 产品: Lithium-ion Rechargeable cell 锂离子可充性电芯2.2 Model (Type) 电芯型号: 18650HP-Fe3. Cell Size 电芯尺寸4. ConstructionFor details,please refer to Figure A.This spec manual is the enterprise standard of BAK , without authorization, any pirate or circulation is prohibited.45.9 Charging Time充电时间8.0hours0.2C 5rate 5.13 Specific Power 额定功率>70W 5.11 Max Continuous Discharge current 最大持续放电电流20A 5.12 Pulse Discharge at 10 Sec 脉冲放电电流40A 5.10 Charge Method 充电方式Recommended standard charge method 建议标准充电方式2C 5mA to 3.60V CC/CV70min Recommended quick charge method 建议快速充电方式5C 5mA to 3.60V CC/CV30min该规格书为比克公司企业标准,未经授权,不可翻印,传播.5. Specification 标准Item 项目Specification 标准Remark 备注5.3 Internal Impedance 交流内阻≤18m ΩBy AC 1 kHZ 5.4 Nominal Voltage 标称电压 3.20 V From 3.60 V to 2.00V5.6 End-of-charge Voltage 充电截止电压3.60V±0.05V 5.5 Cell Weight 电芯重量35±2g Discharging Temperature 放电温度-30～45℃Ambient temperature.Cell skin temperature not exceed 80℃5.7 End-of-charge Current 充电截止电流0.02C 5A At CV mode 5.8 End-of-discharge Voltage 放电截止电压 2.00 V 5.16 Shelf Life 保质期1yearTypical value from ship stateover 500 cycles10C 5A Continual Discharge ( 100% DOD)5.14 Cycle Life 循环性能5.15 Operating Temperature Range操作温度范围Charging Temperature 充电温度0～45℃Ambient temperature.Cell skin temperature must be <65℃.5.17 Appearance 外观Without break, scratch, distortion, contamination, leakage and so on 无破裂、划痕、变形、污迹、电解液泄露等5.1 Typical Capacity 典型容量1100mAh0.2C 5rate discharge capacity5.2 Mininum Capacity 最小容量1050mAh Storage Temperature 存储温度 -30～45℃Recommended temperature range for long term storage is –10 ~ +20°若无特别要求，此规格书上的产品测试条件均为温度：20℃±5℃，湿度：65%±20% RH.6.2 Standard Charge Method 标准充电制式The "Standard Charge" means charging the Cell at a constant current of 2C 5A until the voltage is 3.6V, then charged at a constant voltage of 3.6V until its current is less than 0.02C 5A.“标准充电”即在环境温度为20℃±5℃的条件下,先以恒定电流2C 5A 充电至3.6V,再以3.6V 的恒压充电至电流小于0.02C 5A.6.3 Quick Charge Method 快速充电制式The "Quick Charge" means charging the Cell at a constant current of 5C 5A until the voltage is 3.6V, then charged at a constant voltage of 3.6V until its current is less than0.02C 5A.“快速充电”即在环境温度为20℃±5℃的条件下,先以恒定电流5C 5A 充电至3.6V,再以3.6V 的恒压充电至电流小于0.02C 5A.This spec manual is the enterprise standard of BAK , without authorization, any pirate or circulation is prohibited.5the discharging time is not less than 5min.放电时间不低于5min.6. Test Conditions 测试条件6.1 Standard Test Conditions 标准测试条件Unless otherwise specified, all tests stated in this Product Specification are conducted at temperature 20℃±5℃ and humidity 65%±20% RH.该规格书为比克公司企业标准,未经授权,不可翻印,传播.7. Electrical Characteristics 电性能Test Item 测试项目Test Method 测试方法Criteria 检验标准7.1 Discharge Performance (0.2C 5A) 0.2C 5A 放电性能 A cell is charged in accordance with 6.2 or 6.3, and then stored in an ambient temperature of 20℃±5℃for 0.5h ～1h, finally discharged to cut-off voltage at a constant current of 0.2C 5A.电芯按6.2或6.3规定充电后，在环境温度为20℃±5℃的条件下搁置0.5h ～1h,而后以0.2C 5A 电流放电到终止电压.the discharging time is not less than 5h.放电时间不低于5h.7.2 DischargePerformance (10C 5A) 10C 5A 放电性能A cell is charged in accordance with 6.2 or 6.3, and then stored in an ambient temperature of 20℃±5℃for 0.5h ～1h, finally discharged to cut-off voltage at a constant current of 1.0C 5A电芯按6.2或6.3规定充电后在环境温度为20℃±5℃的条件下搁置0.5h ～1h,而后以10C 5A 电流放电到终止电压.8. Environment Characteristic 环境性能This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited.67.6 Cycle Life 循环寿命A cell is charged in accordance with 6.2,and stored for 0.5h ～1h,then discharged to cut-off voltage,after that, stored 0.5h ～1h prior to next charge-discharge cycle.The cell shall be continuously charged and discharged for 300 times.电芯按6.2规定充电,而后搁置0.5～1h,然后以0.2C 5A 电流放电至终止电压,放电结束后,搁置0.5～1h,再进行下一次充放电循环,连续进行充放电循环500次.capacity retention ≥80%容量保持率≥80%该规格书为比克公司企业标准,未经授权,不可翻印,传播.Test Item 测试项目Test Method 测试方法Criteria 检验标准8.1 ConstantTemperature and Humidity恒定湿热性能A cell is charged in accordance with 6.2 or 6.3,and stored in an ambient temperature of 40±2℃(90～95%RH ) for48h,then placed in room temperature for 2h. After that,check its appearance prior to being discharged to cut-off voltage at a constant current of 1C 5A.电芯按6.2或6.3规定充电结束后,将电芯放入40±2℃(90～95%RH)的恒温恒湿箱中搁置48h 后,将电芯取出在室温下搁置2h,目测电芯外观,再以1C 5A 电流放电至终止电压．1.no distorsion,no rust,no fume,no explosion;2.the discharging time is not less than 36min.1.电芯外观应无变形,锈蚀,冒烟或爆炸;2.放电时间应不低于36min.7.5 Charge(Capacity) Retention 荷电保持能力A cell is charged in accordance with 6.2 or 6.3,and stored in an ambient temperature of 20℃±5℃ for 28d,then discharged to cut-off voltage at a constant current of 0.2C 5A.电芯按6.2或6.3规定充电结束后,在环境温度为20℃±5℃条件下,将电芯搁置28天,再以0.2C 5A 电流放电至终止电压.Retention:90%C 5Ah 容量保持率:90%C 5Ah 7.3 High Temperature Performance 高温性能A cell is charged in accordance with 6.2 or 6.3,and stored in an ambient temperature of 55℃±2℃ for 2h,then discharged to cut-off voltage at a constant current of 1.0C 5A. Afterthat,fetch out the cell and place it in the ambient temperature of 20℃±5℃ for 2h, then check its appearance.电芯按6.2或6.3规定充电结束后,将电芯放入55℃±2℃的高温箱中恒温2h,然后以1.0C 5A 电流放电至终止电压,实验结束后,将电芯取出在环境温度为20℃±5℃的条件下搁置2h,然后目测电芯外观．1.the discharging time is not less than 51min;2.no distortion,no rupture.1.放电时间不低于51min;2.电芯外观无变形,无爆裂.7.4 Low Temperature Performance 低温性能A cell is charged in accordance with 6.2 or 6.3,and stored in an ambient temperature of -20℃±2℃ for 16h ～24h,then discharged to cut-off voltage at a constant current of 0.2C 5A.After that,fetch out the cell and place it in the ambienttemperature of 20℃±5℃ for 2h, then check its appearance.电芯按6.2或6.3规定充电结束后,将电芯放入-20℃±2℃的低温箱中恒温16～24h,然后以0.2C 5A 电流放电至终止电压,实验结束后,将电芯取出在环境温度为20℃±5℃的条件下搁置2h,然后目测电芯外观．1.the discharging time is not less than 3h;2.no distortion,no ruptu 1.放电时间不低于3h;2.电芯外观无变形,无爆裂.This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited.7A cell is charged in accordance with 6.2 or 6.3,then installed onto the vibration desk with clamps.Equipment parameters of frequency and amplitude are as follows(the frequency is to be varied at the rate of 1oct/min between 10 and 55 herts,and repeat vibration for 30min.The cell is to be tested in three mutually perpendicular directions): frequency:10Hz~30Hz amplitude: 0.38mm frequency:30Hz~55Hz amplitude: 0.19mm电芯按6.2或6.3的规定充电结束后,将电芯用夹具安装在振动台的台面上，按下面的振动频率和对应的振幅调整好实验设备.X,Y,Z 三个方向每个方向上从10～55Hz 循环扫频振动30min ，扫频速率为1oct/min:振动频率：10Hz ～30Hz 位移幅值(单振幅)：0.38mm;振动频率：30Hz ～55Hz 位移幅值(单振幅)：0.19mm. 1.no scratch,no leakage, no fume,no explosion;2.the voltage is min3.2V.1.电芯外观应无明显损伤，漏液，冒烟或爆炸； 2.单体电芯电压不低于3.2V.8.2 Vibration Test 振动测试该规格书为比克公司企业标准,未经授权,不可翻印,传播.8.4 Drop test 自由跌落A cell is charged in accordance with 8.3,then dropped from a height of 1000mm to a wooden board(18-20mm thick) which is placed on the concrete ground.Cells shall be dropped in each of three mutuallyperpendicular directions.Total drop times are 6.After that,the cell is discharged to cut-off voltage at CC of 1C 5A,then repeat charge & discharge at a current of 1C 5A until the discharge time is not less than 51min,the cycle times should be not more than 3.电芯按8.3的规定试验结束后,将电芯样品由高度为1000mm 的位置自由跌落到置于水泥地面上的18-20mm 厚的木板上，从X,Y,Z 正负方向(六个方向)每个方向自由跌落1次.自由跌落结束后,将电芯以1C 5A 电流放电至终止电压,然后以1C 5A 的电流进行充放电循环,直至放电时间不低于51min,即可终止充放电循环,充放电循环次数应不多于3次.no leakage,no fume,no explosion.电芯应不漏液，冒烟或爆炸8.3 Shock Test 碰撞测试A cell is tested in accordance with 8.2,then secured to the testing machine by means of rigid mount which supports all mounting surfaces of the cell. Each cell shall be subjected to a total of three shocks of equal magnitude. The shocks are to be applied in each of three mutually perpendicular directions.The acceleration and impulse time are as follows:acceleration of impulse peakvalue:100m/s2,shock frequency:40~80times/min,impulse lasting time:16min,shock times:1000±10电芯按8.2的规定试验结束后,将电池分别按X,Y,Z 三个互相垂直轴通过夹具固定在振动台面上,按下述要求调好加速度,脉冲持续时间进行碰撞实验:脉冲峰值加速度:100m/s2,每min 碰撞次数:40～80,脉冲持续时间:16ms,碰撞次数：1000±10.1.no scratch,no leakage,no fume,no explosion;2.the voltage is min3.2V.1.电芯外观应无明显损伤，漏液，冒烟或爆炸；2.单体电芯电压不低于3.2V.All below tests are carried out on the equipments with foreced ventilation and explosion-proof device.Before test all cells are charged in accordance with 6.2 or 6.3, and stored 24h prior to testing.下述试验应在有强制排风条件及防爆措施的装置内进行,在试验前所有的电芯都按6.2或6.3规定充电,并搁置24h 后,再进行以下试验.This spec manual is the enterprise standard of Bak, without authorization, any pirate or circulation is prohibited.89.2 Crush Testing挤压测试A cell is to be placed on the crush flat, the axis is parallel to the crush flat ,it is to be crushed between two flat surfaces.Crushing force is approximately 13 KN and hold for 1 min 电芯放在挤压设备的两个挤压表面之间，圆柱电芯轴平行于挤压平面，逐渐增加压力至13 kN ，保持压力1min.no fire,no explosion 电芯不起火,不爆炸9.1 Impact Test 重物冲击9.2 Heating Test 热冲击该规格书为比克公司企业标准,未经授权,不可翻印,传播.no fire,no explosion 电芯不起火,不爆炸A cell is to be placed on the impact flat.A 10 kg weight is to be dropped from a height of 1m onto the cell, the distortion is allowed.将电芯放在冲击台上,将10kg 重锤自1m 高度自由落下,冲击电芯,电芯允许发生变形.A cell is to be heated in a circulating air oven. Thetemperature of the oven is to be raised at a rate of 5℃±2℃per minute to a temperature of 130℃±2℃ and remain for 30min at that temperature before the test is discontinued.将电芯放在电热鼓风干燥箱中,温度以5℃±2℃/min 的速率由室温升至130℃±2℃并保持30min.no fire,no explosion 电芯不起火,不爆炸9.5 Nail penetration test 针刺测试 A cell is to be penetrated completely the center of the largest side at the speed of 20-40mm per second by a Φ3.0mm stainless steel nail and hold for 1 min.将接有热电偶的电芯置于通风橱中,用 Φ3.0mm 的不锈钢针以20-40mm/s 的速度刺透电芯最大表面的中心位置，并保持1min1.no fire,no explosion2.Max.temp.< 150℃1.电芯不起火,不爆炸2.最高温度<150℃9.3 overcharge test （3C/10V) 过充电9. Safety Test 安全测试Test Item 测试项目Test Method 测试方法Criteria 检验标准A cell is discharged to cut-off voltage at CC of 1C5A.then it is to be subjected to CC/CV power by connecting its positive &negative terminal, then set the current as 3C 5A,the voltage as 10V,after that,Charge the cell up to 10V at CC of 3C 5A ,until that last 7h at the voltage of 10V or the voltage is no more increased.先将电池以0.2C 5A 放电至终止电压,然后将电芯正负极连接于恒压电源,调节电流至3C 5A,电压为10V,然后对电芯以3C 5A 充电,直到输出电压不低于10V,持续充电7h 或电压不再增大.no fire,no explosion 电芯不起火,不爆炸9.4 Short-circuit test 短路测试A Cell is to be short-circuited by connecting the positive and negative terminals of the cell with copper wire having a maximum resistance load of 50m Ω.Monitor its temperature while testing,the cell is to be discharged until the cell case temperature has returned to be 10℃ less then peak temperature.将接有热电偶的电芯置于通风橱中,用铜线短路其正负极(线路总电阻不大于50毫欧),实验过程中监视电芯温度变化,当电芯温度下降到比峰值低约10℃时,结束实验.1.no fire,no explosion2.Max.temp.< 150℃1.电芯不起火,不爆炸2.最高温度<150℃The remaining capacity before charging shall be changed depending on the storage time and conditions.单体电芯按3.20～3.40V的充电电压或客户要求出货,电芯出货后充电前的剩余容量取决于储存时间和条件.自出货之日起.电芯的保质期限依合同而定.但是,在此期限内,如果非比克公司的制程原因而是客户的误用造成的电芯质量问题,比克公司不承诺免费更换.＞ BAK will not be responsible for trouble occurred by handling outside of the precautions in instructions.比克公司对违反安全守则操作所产生的问题不承担任何责任.＞ BAK will not be responsible for trouble occurred by matching electric circuit, cell pack and charger. 比克公司对与电路,电池组,充电器搭配使用所产生的问题不承担任何责任.＞ BAK will be exempt from warrantee any defect cells during assembling after acceptance.出货后客户在电芯组装过程中产生的不良电芯不在比克公司质量保证的范围之列.安全守则：不要将电芯暴露在极热或有火星的环境中.不要将电芯短路,过充或过放.不要使电芯承受过重的机械冲击.不要将电芯浸入海水或水中,或者使其吸湿.不要颠倒电芯的正负极.This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited. 9该规格书为比克公司企业标准,未经授权,不可翻印,传播.b. Do not short circuit, over-charge or over-discharge the cell.c. Do not subject the cell to strong mechanical shocks.d. Do not immerse the cell in water or sea water, or get it wet..e. Do not reverse the polarity of the cell for any reason.Note 2. BAK will take no responsibility for any accident when the cell is used under other conditions than those described in this Document.注释2.在该文件说明的条件之外使用该电芯而产生的事故,比克公司不承担任何责任.12.1 Standard cell Precaution 电芯防范措施a. Do not expose the cell to extreme heat or flame.Lithium-Ion rechargeable batteries subject to abusive conditions can cause damage to the cell and/or personal injury. Please read and observe the standard cell precautions below before using utilization.滥用锂离子充电电芯可能会造成电芯的损害或人身的伤害.在使用锂离子充电电芯以前,请仔细阅读以下的Note 1. The customer is required to contact BAK in advance, if and when the customer needs other applications or operating conditions than those described in this document.注释1.如果客户需要将电芯在该文件之外的条件下操作或应用,请先咨询比克公司相关事宜.occurs within this period, BAK won’t replace a new cell for free as long as the problem is not due to the failure of BAK manufacturing process or is due to customer’s abuse or misuse.12. Precautions and Safety Instructions 安全守则10. Shipment 出货The Cell shall be shipped in voltage range of 3.20 ~ 3.40 V or in accordance with customers' requirement.11. Warranty 质量保证The Warranty period of cell is made according to business contract,However, even though the problem不要拆卸或修整电芯.h. Do not handle or store with metallic like necklaces, coins or hairpins, etc.不要和项链,硬币或发夹等金属物品放置在一起.i. Do not use the cell with conspicuous damage or deformation.不要使电芯受到明显的损害或变形.j. Do not connect cell to the plug socket or car-cigarette-plug.不要将电芯与插座连接.k. Do not make the direct soldering onto a cell.不要直接焊接电芯.不要直接接触泄漏的电芯.不要将电芯用于其它设备.不要将锂离子电芯混合使用.o. Do not use or leave the cell under the blazing sun (or in heated car by sunshine).不要将电芯放置在太阳光直射的地方.将电芯放置在远离儿童的地方.q. Do not drive a nail into the cell, strike it by hammer or tread it.不要针刺,锤打或践踏电芯.不要撞击或投掷电芯.电芯充电温度范围为0℃～45℃.c. Maintain charge voltage at 3.60V for 3.0 hours (recommended for maximum capacity).恒压3.6V 充电3小时（最大容量）.* Use a constant current, constant voltage (CC/CV) lithium-ion (Li+) cell charge controller.使用恒压恒流锂离子电芯充电器.* Do not continue to charge cell over specified time.不要超过标准时间持续充电.a. Recommended cut-off voltage to 2.0V. Recommended max discharge current is 20A建议放电终止电压为2.0V,建议最大恒流放电电流为20A.This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited. 10a. Charge the cell in a temperature range of 0°C to + 45°C.b. Charge the cell at a constant current of 0.5C until 3.60V is attained. Charge rates greater than 5C are NOT recommended. (C : Rated Capacity of cell)以0.5C 的电流恒流充电至3.60V.超过5C 的电流建议不要使用（C ：标称容量）该规格书为比克公司企业标准,未经授权,不可翻印,传播.12.2.2. Discharging 放电p. Keep cell away from children.r. Do not give cell impact or fling it.12.2 cell Operation Instruction 电芯使用说明12.2.1. Charging 充电f. Do not disassemble or modify the cell.l. Do not touch a leaked cell directly.m. Do not use for other equipment.n. Do not use Lithium-ion cell in mixture.b. For maximum performance, discharge the cell in a temperature range of –30°C to + 45°C.为了达到较好的性能,电芯的放电温度范围为–30℃ ～ + 45℃.12.2.3. Storage Recommendations 储存建议a.Storage Temperature and Humidity 储存温度和湿度• Storage the cell at temperature of –30 ~ 45°C, low humidity and no corrosive gas atmosphere.电芯应储存在温度范围为–30 ～45℃,低湿度和不含腐蚀性气体的环境中.• No press on the cell不要让电芯承担任何压力.b. Long Period Storage 长期存放• In case of long period storage (more than 3 months), storage the cell at temperature range of –10 ~+20°C, low humidity, no corrosive gas atmosphere.如果要长时间存放(超过3个月),电芯应存储在温度范围为–10～20℃,低湿度和不含腐蚀性气体的环境中.• No press on the cell不要让电芯承受任何压力.13.Consultation 技术咨询As to the obscurity, contact the following.Shenzhen BAK Battery Co., Ltd.BAK Industrial Park on Kuichong Street, Longgang District, shenzhen.Tel No.: 86—755—89770369Fax No.: 86—755—89770224如有疑问，请按以下方式咨询：厂址：深圳市比克电池有限公司－深圳市龙岗区葵涌街道比克工业园14.Requirement for Safety Assurance 安全保证要求For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell with BAK in advance.And consult about the high rate current, rapid charge and special application in the same way.为了安全起见,如有设备设计,锂离子电芯系统保护电路或高电流,快速充电和其它方面的特殊应用,请先咨询比克公司相关事宜.该规格书为比克公司企业标准,未经授权,不可翻印,传播.This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation isprohibited. 11Annex 附件:This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited.该规格书为比克公司企业标准,未经授权,不可翻印,传播.Figure2.Typical 25℃ Discharge Curve at Various Discharge CurrentsFigure1.Charge and Discharge Curve1.81.922.12.22.32.42.52.62.72.82.933.13.23.33.43.53.63.73.8010020030040050060070080090010001100Capacity （mAh ）V o l t a g e （V ）Charge:CC/CV,2A,3.60V,20-25℃Discharge:CC,10A,2.00V,20-25℃1.81.922.12.22.32.42.52.62.72.82.933.13.23.33.43.53.63.73.8V o l t a g e (V )This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited. 该规格书为比克公司企业标准,未经授权,不可翻印,传播.Figure3. Cycle Life Performance ,100% DOD(10A Continual Discharge )0%10%20%30%40%50%60%70%80%90%100%110%050100150200250300350400450500Cycle number C a p a c i t y r a t i o。

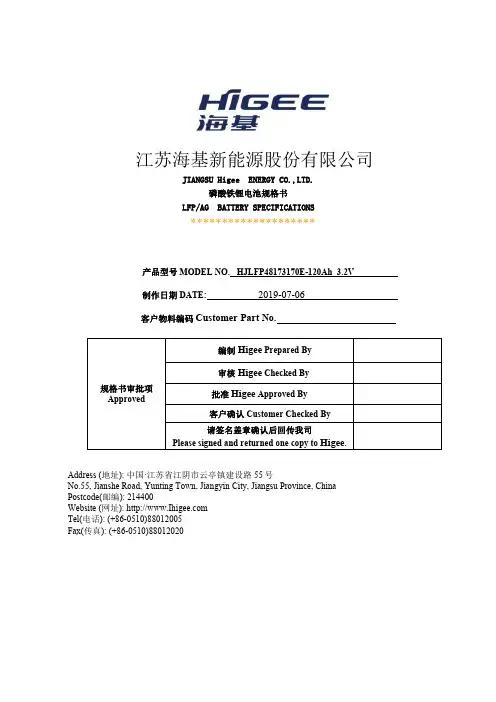

江苏海基新能源股份有限公司JIANGSU Higee ENERGY CO.,LTD.磷酸铁锂电池规格书LFP/AG BATTERY SPECIFICATIONS********************产品型号MODEL NO.HJLFP48173170E-120Ah 3.2V制作日期DATE:2019-07-06e 客户物料编码Customer Part No.e规格书审批项Approved编制Higee Prepared By审核Higee Checked By批准Higee Approved By客户确认Customer Checked By请签名盖章确认后回传我司Please signed and returned one copy to Higee.Address(地址):中国·江苏省江阴市云亭镇建设路55号No.55,Jianshe Road,Yunting Town,Jiangyin City,Jiangsu Province,China Postcode(邮编):214400Website(网址):Tel(电话):(+86-0510)88012005Fax(传真):(+86-0510)88012020目录Catalogue术语定义Term definition (4)1.适用范围Scope (6)2.产品说明Product instruction (6)3.外观Appearance (6)4.产品能指标Product performance (6)4.1电芯基本参数Battery specific rating (6)4.2.电池性能Performance (6)5.产品寿命终止管理Product life ending manage (8)6.应用条件Applying condition (8)7.安全防范Safe guard (10)8.免责声明Liability declaration (11)9.风险警告Danger warning (12)10.电芯图纸Battery drawings (13)更新记录Updating record版本Version描述Description日期Date承认状态Status A/00新制定作废A/01增加电芯循环曲线2018-08-09作废B/00更改版式2019-07-06受控客户要求Custom requirement型号Model：HJLFP48173170E-120Ah磷酸铁锂电池版本Version：1.0要求客户写出他们的需求信息并提前与海基沟通。

电芯技术规格书280Ah磷酸铁锂锂离子电芯(储能型)产品型号：LFP71173207/280Ah版本：A/1厦门海辰新能源科技有限公司年月目录1. 术语定义 (4)2. 适用范围 (5)3. 规范性引用文件 (5)4. 测试条件 (5)4.1 测量设备及精度 (5)4.2 充放电模式 (6)4.3 极柱与Busbar焊接参数 (6)5. 电芯技术参数 (6)5.1 电芯基本参数 (6)5.2 电芯性能参数 (7)5.3 电芯寿命 (8)6. 电芯标识、包装、运输及存储要求 (8)7. 应用条件 (8)8. 注意事项 (11)9. 其他约定 (13)10. 电芯图纸 (15)1.术语定义2.适用范围本技术规格书规定了LFP71173207/280Ah型锂离子电芯（该规格书仅适用于B品）的性能要求、试验方法、运输、贮存要求和注意事项等。

3.规范性引用文件下列文件对于本文件的应用是必不可少的，凡是注日期的引用文件，仅注日期的版本适用于本文件。

凡是不注日期的引用文件，其最新版本（包括所有的修改单）适用于本文件。

GB/T 36276-2018 电力储能用锂离子电池GB/T 31485-2015电动汽车用动力蓄电池安全要求及试验方法 6.2.84.测试条件若无特别说明，电芯的参数均为新电芯状态下的参数，测试对象为新电芯状态的电芯(除自放电测试外)。

除非有其他说明，实验和测量需在室温(25±2)℃、标准湿度（55±20）%以及大面夹具力为(3000±200)N条件下进行。

4.1 测量设备及精度(1) 测试设备精度：±0.1%(2) 电流测量精度: ≥0.5 级，电压测量精度: ≥0.5 级(3) 温度测量精度: ±0.5℃(4) 时间测量精度: ±0.1%(5) 尺寸测量精度: ±0.1%(6) 重量测量精度: ±0.1%4.2 充放电模式若无特别说明，充放电模式均应为标准充电/放电模式。

地址：广东省深圳市坪山新区金荔科技园4栋DATE: TEL：86（0）0755-2308 8336 FAX：86（0）0755-2308 83962015/11/04地址：广东省深圳市坪山新区金荔科技园4栋TEL：86（0）0755-2308 8336 FAX：86（0）0755-2308 8396DATE:2015/11/04 Cylindrical LIFEPO4 BatterySpecification圆柱型磷酸铁锂电池规格书MODEL/型号: IFR 14500-450mAh 3.2VPrepared By/Date 编制/日期Checked By/Date审核/日期Approved By/Date批准/日期冯时春/2015.11.04Customer Approval 客户批准Signature确认Date日期Company Name：公司名称：Company Stamp：客户印章：地址：广东省深圳市坪山新区金荔科技园4栋TEL：86（0）0755-2308 8336 FAX：86（0）0755-2308 8396DATE:2015/11/04Amendment Records（修正记录）Edition (版本) Description（记述）Prepared by（编制）Approved by（批准）Date（日期）A First Publish 冯时春2015/11/04地址：广东省深圳市坪山新区金荔科技园4栋TEL：86（0）0755-2308 8336 FAX：86（0）0755-2308 8396DATE:2015/11/041Scope（适用范围）This specification is applied to the reference battery in this Specification that manufactured by Yinkai Power Technology Co., Ltd.本说明书适用于本书中所提及的银凯动力科技有限公司制造的电池。

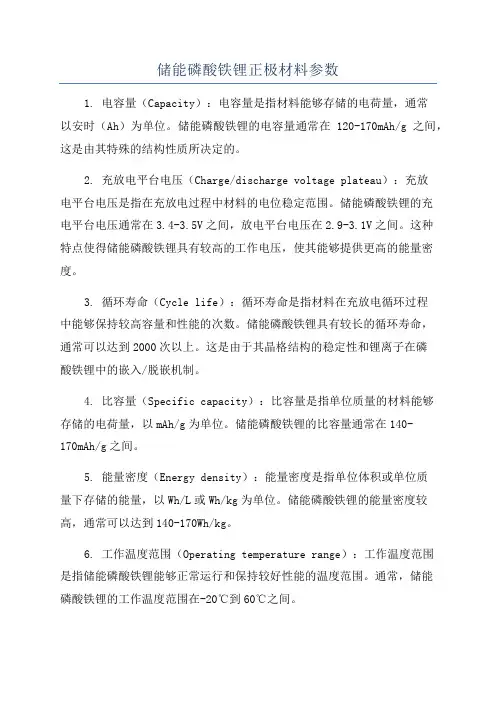

储能磷酸铁锂正极材料参数1. 电容量（Capacity）：电容量是指材料能够存储的电荷量，通常以安时（Ah）为单位。

储能磷酸铁锂的电容量通常在120-170mAh/g之间，这是由其特殊的结构性质所决定的。

2. 充放电平台电压（Charge/discharge voltage plateau）：充放电平台电压是指在充放电过程中材料的电位稳定范围。

储能磷酸铁锂的充电平台电压通常在3.4-3.5V之间，放电平台电压在2.9-3.1V之间。

这种特点使得储能磷酸铁锂具有较高的工作电压，使其能够提供更高的能量密度。

3. 循环寿命（Cycle life）：循环寿命是指材料在充放电循环过程中能够保持较高容量和性能的次数。

储能磷酸铁锂具有较长的循环寿命，通常可以达到2000次以上。

这是由于其晶格结构的稳定性和锂离子在磷酸铁锂中的嵌入/脱嵌机制。

4. 比容量（Specific capacity）：比容量是指单位质量的材料能够存储的电荷量，以mAh/g为单位。

储能磷酸铁锂的比容量通常在140-170mAh/g之间。

5. 能量密度（Energy density）：能量密度是指单位体积或单位质量下存储的能量，以Wh/L或Wh/kg为单位。

储能磷酸铁锂的能量密度较高，通常可以达到140-170Wh/kg。

6. 工作温度范围（Operating temperature range）：工作温度范围是指储能磷酸铁锂能够正常运行和保持较好性能的温度范围。

通常，储能磷酸铁锂的工作温度范围在-20℃到60℃之间。

7. 导电性（Conductivity）：导电性是指材料的电导率，也是评估其电化学性能的重要参数之一、导电性较好的储能磷酸铁锂可以提供更高的电流输出。

总结起来，储能磷酸铁锂正极材料具有较高的电压平台和较长的循环寿命。

其参数包括电容量、充放电平台电压、循环寿命、比容量、能量密度、工作温度范围和导电性等。

这些参数决定了储能磷酸铁锂正极材料的电化学性能，以及其在储能领域应用的潜力。

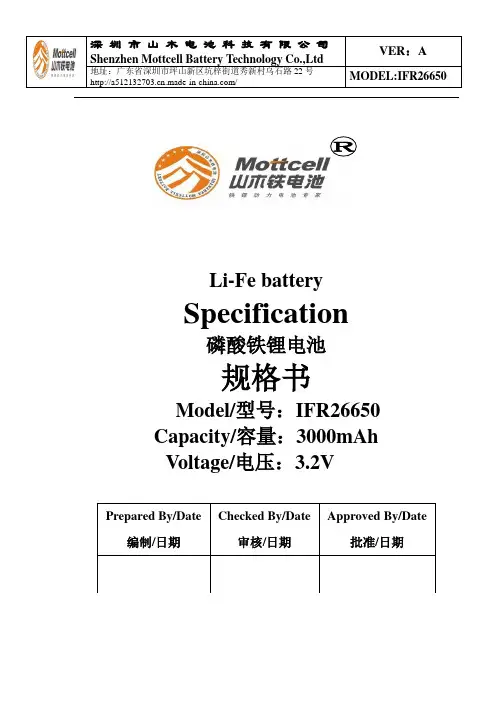

/MODEL:IFR26650Li-Fe batterySpecification磷酸铁锂电池规格书Model/型号：IFR26650 Capacity/容量：3000mAh Voltage/电压：3.2VPrepared By/Date编制/日期Checked By/Date审核/日期Approved By/Date批准/日期/MODEL:IFR26650Amendment Records（修正记录）Edition （版本）Description(记述）Prepared by（编制）Approved by（批准）Date（日期）A First Edition/MODEL:IFR266501 Scope（使用范围）This specification is applied to the reference battery in this Specification and manufactured by Shenzhen Mottcell Battery Technology Co.,Ltd.本规格书适用于本书中所提及的深圳市山木电池科技有限公司制造的电池。

2 Product Specification（产品技术规格）Table 1（表1）No. (序号)Item（项目）General Parameter（常规参数）Remark（备注）1 Rated Capacity（额定容量）Typical（标称容量）3000mAh Standard discharge（0.2C5A）after standard charge（标准充电后0.2C5A标准放电）Minimum（最小容量）2980mAh2 Nominal Voltage（正常电压）3.2VMean Operation Voltage（即工作电压）3V oltage at end ofDischargr（放电终止电压）2.0VDischarge Cut-off Voltage（放电截止电压）4 Charging at end ofVoltage(充电最高电压)3.65V5 Standard charge（标准充电）Constant Current 0.2C5A Constant V oltage 3.65V0.02C5A cut-off（持续电流：0.2C5A 持续电压：3.65V 截止电流：0.02C5A）Charge time：Approx 6.0h（充电时间：大约6个小时）6 Standard discharge（标准放电）Constant Current 0.2C5A end V oltage 2.0V（持续电流：0.2C5A 截止电压2.0V）7 internal impedance（内阻）R≤30mΩ/MODEL:IFR26650 Continuous the table 1（续表1）No. (序号)Item（项目）General Parameter（常规参数）Remark（备注）8Fast charge（快速充电）Constant Current 1C5A Constant Voltage3.65V 0.01C5A cut-off（持续电流：1C5A 持续电压：3.65V 截止电流：0.01C5A）Charge time：Approx 2.5h（充电时间：大约2.5个小时）9 Fast discharge（快速放电）Constant Current 1C5A end V oltage 2.0V（持续电流：1C5A 截止电压2.0V）10 Maximum Continuous ChargeCurrent（最大充电持续电流）1C5A11 Maximum Continuous DischargeCurrent（最大放电持续电流）3C5A12 Operation Temperature Range（工作温度范围）Charge（充电）：0~45℃60±25%R.H. Bare Cell(单体电池储存湿度范围)Discharge（放电）：-20~60℃13 Storage Temperature Range（储存温度范围）Less than 1 year：-20~25℃(小于1年：-20~25℃)60±25%R.H. at theshipment state（出货状态时的湿度范围）Less then 3 months：-20~45℃(小于3个月：-20~45℃)14Weight（重量）Approx：85g（大约：85克）FYI15 Pack Dimension（包装后尺寸）Height：(h)（高度）：65. 9±0.5mm）Initial Dimension（初始尺寸）Width：(d)（直径）：26.2±0.2mm）hdMODEL:IFR26650 /3Performance And Test Conditions（电池性能及测试条件）Standard Test Conditions（标准测试条件）Test should be conducted with new batteries within one week after shipment from our factory and the cell shall not be cyded more than five times before the test. Unless otherwise specified,test and measurement shall be done under temperature of 20±5℃and relative humidity of 45~48%.if it is judged that the test results are not affected by such conditions,the tests may be conducted at temperature 15~30℃ and humidity 25-85%R.H.测试必须使用出厂时间不超过一个星期的新电池，且未进行过5次以上的充放电循环。

生效日期：2014-06-24 锂离子动力电池产品规格书产品名称：磷酸铁锂电池组产品规格： 48V16Ah（18650）制定审核批准孔永乐任鹏任士界生效日期：2014-06-24目录1. 前言 (3)2. 产品规格及型号 (3)3. 电池组相关参数 (4)4．标准测试条件 (4)5．充放电特性 (5)6. 充放电曲线 (5)7. 注意事项 (6)8. 产品责任 (6)生效日期：2014-06-24 1. 前言本标准描述了磷酸铁锂48V16Ah电池组的外型尺寸、特性、技术要求及注意事项，本标准适用于磷酸铁锂48V16Ah电池组。

2. 产品规格及型号2.1产品规格: 锂离子电池组2.2型号: 16IFR48-16-Y （18650-3.2V-16S10P）2.3相关图片及出线方式（以实物为准）正极输出红色一根14号线线长（500±10）mm威浦WS20系列两芯防水航空接插件（1正2负）负极输出黑色一根14号线线长（500±10）mm生效日期：2014-06-24 3.电池组相关参数项目标准备注标称电压48V典型容量16±0.5Ah 0.2C放电率正常电流15A最大持续放电电流30A ＜2min最大瞬间放电电流120±20A 10±5ms放电截止电压约40V充电电压57.6±0.1V充电方式CC/CV，请用专用充电器充电充电电流≤10A内阻≤100mΩ放电正极和放电负极两端之间内阻工作温度范围充电0℃～+45℃放电-20℃～+60℃当环境温度大于45℃时，请注意通风散热存储温度范围0℃～40℃（容量80%）长期存储温度在 15℃～25℃储存使用环境湿度5%≤RH≤85%包装材质PVC重量7.2±0.1Kg外部尺寸（385±2）*（150±2）*（75±2）mm保护功能过充保护、过放保护、过流保护、均衡功能、温度保护4.标准测试条件测试电池组必须是本公司出厂时间不超过一个月。
