阿里斯顿壁挂炉常见故障表机器型号故障代码故障描述处理方法晶蓝E1风机/风压开关/烟道管重新启动，检查烟道是否堵塞无效报修。
E2点火失败必须手动复位。
检查燃气开关是否打开；燃气供应是否正常或管内是否有空气。
E3采暖温度传感器故障/过热复位或断电重启无效报修。
E4淋浴温度传感器故障/过热复位或断电重启无效报修。
E5EEROM必须手动复位无效报修。
E6系统缺水复位或断电重启。
检查压力表水压是否过低，重新注水。
E7假火焰复位或断电重启。
E8外界因素熄火检查是否停气，烟道是否迎风，室外风力是否偏大否则报修。
E9机械温控过热保护询问用户暖气管道是否关闭，复位无效报修。
BS逸温度指示灯90℃和点火失过热询问用户暖气管道是否关闭，复位无效败指示灯同时恒光报修。
温度指示灯40℃、50℃和循环水不足（警告）检查压力表水压是否过低，重新注水。
烟道异常指示灯同时闪光温度指示灯40℃、50℃和循环水不足（停机）检查压力表水压是否过低，重新注水。
点火失败指示灯同时恒光温度指示灯60℃、70℃和供暖出水温度探头开或短路复位或断电重启无效报修。
烟道异常指示灯同时闪光温度指示灯70℃、80℃和供暖回水温度探头开或短路复位或断电重启无效报修。
烟道异常指示灯同时闪光温度指示灯70℃和烟道异存储器故障复位或断电重启无效报修。
常指示灯同时闪光温度指示灯80℃和烟道异PCB控制面板通讯错误复位或断电重启无效报修。
常指示灯同时闪光温度指示灯80℃和点火失主PCB故障复位或断电重启无效报修。
败指示灯同时恒光点火失败指示灯恒光点火失败复位或断电重启无效报修。
温度指示灯50℃、60℃、假火焰复位或断电重启无效报修。
70℃和烟道异常指示灯同时闪光温度指示灯60℃、70℃、意外熄火复位或断电重启无效报修。
80℃和烟道异常指示灯同时闪光烟道异常指示灯同时恒光排烟故障复位或断电重启无效报修，检查烟道是否堵塞无效报修。
能（CLAS）智101 过热询问用户暖气管道是否关闭，复位（GENU）S 凝无效报修。

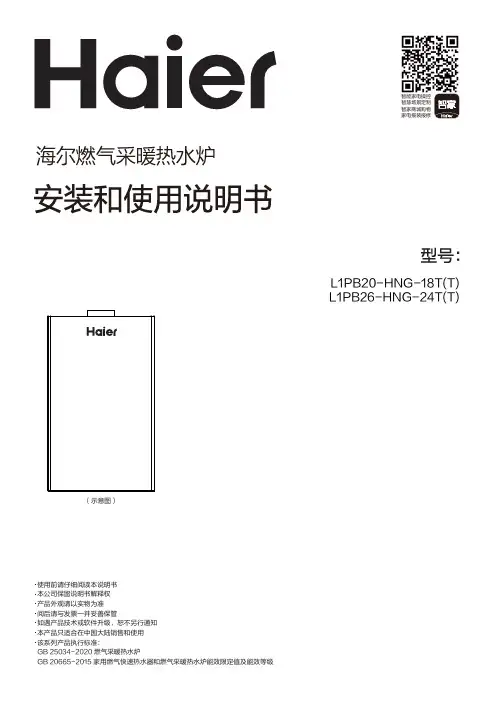

L1PB20-HNG-18T(T)L1PB26-HNG-24T(T)使用前请仔细阅读本说明书本公司保留说明书解释权产品外观请以实物为准阅后请与发票一并妥善保管如遇产品技术或软件升级，恕不另行通知本产品只适合在中国大陆销售和使用该系列产品执行标准：GB 25034-2020 燃气采暖热水炉（示意图）智能家电操控智慧场景定制智家商城购物家电报装报修“1+5”成套服务尊敬的用户：感谢您选择和使用我们的产品。
我们承诺：您的产品需要安装或维修等服务时，我们将提供：“1+5″的成套服务：1：一次就好服务。
5：五项增值服务：（1）安全测电服务：为您提供安全测电并提醒讲解到位服务；（2）讲解指导服务：向您讲解产品使用、保养常识，指导用户正确使用服务；（3）一站通检服务：服务好本产品，对家中其他本企业产品进行通检服务；（4）全程无忧服务：为您提供设计、送货、安装、清洗、延保、以旧换新等服务；（5）现场清理服务：服务完成后将服务现场清理干净。
为体现真诚、贴心，我们友情提醒：产品的安装服务，因用户的安装环境、个性需求不同，安装过程中如需辅加材料或有特殊服务项目需要支付材料等费用，您可通过“海尔智家”APP-“智家服务”-“收费标准”进行查看，并给予监督。
如未按标准收费或服务规范执行不到位，可拨打服务监督电话400 699 9999，或通过“海尔智家”APP-“智家服务”-“在线客服”进行监督、评价。
如果您的产品有服务需求，欢迎体验海尔智家自助服务专区（预约服务、一键安装、一键维修）：手机搜索安装“海尔智家”APP，您可通过“智家服务”版块选择安装、维修等服务。
如您需要选购更多产品，可在“海尔智家”APP-“商城”进行选购。
（更便捷、更快速、更省钱）期待您的参与！1213141516安装注意事项安装方法1455-6采暖系统水压实时监控，防止缺水工作；外接储水箱功能设置（仅限部分型号产品）；L1PB20-HNG-18T(T)1.出水阀体2.热水NTC3.采暖出水NTC4.燃气阀5.三通阀电机6.点火针7.安全限温器8.主换热器9.风机10.风压开关11.燃烧器12.分配器13.分段阀126.热水出水口15.水压传感器17.水泵排气阀16.采暖回水NTC18.安全阀19.水泵20.水流量传感器21.冷水NTC22.进水阀体23.采暖回水口24.冷水进水口25.燃气进气口14.点火器27.采暖出水口L1PB26-HNG-24T(T)1.出水阀体2.热水NTC3.采暖出水NTC4.燃气阀5.三通阀电机6.分段阀17.点火针8.安全限温器9.主换热器10.风机11.风压开关12.燃烧器13.分配器26.燃气进气口15.点火器17.采暖回水NTC 16.水压传感器18.水泵排气阀19.安全阀20.水泵21.水流量传感器22.冷水NTC23.进水阀体24.采暖回水口25.冷水进水口14.分段阀227.热水出水口28.采暖出水口2.安装须知说明燃气入口G3/4补水阀旋钮生活进水口G1/2进水接头生活出水口G1/2采暖回水口G3/4安全阀泄水口水泵排污口采暖供水口G3/45.用不燃耐热保温材料填充排烟管与墙孔之间的缝隙，装上墙孔罩。
目录功能与特点 (1)各部分零件名称 (2)使用前准备 (5)使用方法 (6)使用注意事项 (10)防冻注意事项 (12)安装 (13)试运行 (19)日常检查及保养 (19)故障、异常的判断及处理方法 (20)规格表 (21)配线图 (22)一.功能与特点一. 功能与特点采用静电喷涂处理，可搭配各款现代厨房设计，结构紧凑，机身小巧，大大节省了安装空间。
操作简单双低压启动缓点火设计操作面板显示水温调节方便可拆式过滤装置瞬间停电或降压的安全保护设计1外型美观12345678多重安全保护装置，使用更放心10● 自动熄火保护装置, 使用过程中发生意外熄火时，本机会自动关闭气源，防止燃气外泄，安全可靠。
● 超时使用安全装置，连续使用30分钟后，热水器自动停机，若要继续使用，只需关上热水阀，数秒后再开启即 可重新点火。
● 强制鼓风燃烧方式设计，采用高效能风机将烟气全部排放室外，确保使用安全。
●另配有过热保护装置，水过压泄压装置，风机停转安全保护装置，防止空烧安全保护装置，排烟管堵塞保护装 置，防冻保护装置(仅限防冻机型)等，确保热水器在正常状态下工作。
●Pa1/Pa2机型使用auto功能模式时有48°安全锁保护。
●Pb1机型提供使用48°安全锁保护的选项，使用此选项可确保热水器在出水温度不高于48°的火力分段下燃烧， 确保您的安全使用。
当供电网络电压瞬间跌落或停电时，仍能保持热水器正常工作或安全停机。
自动变升功能(Pa1/Pa2)9特设有自动变升功能，在自动变升模式下使用时，系统会根据用户的实际需求与季节不同，自动变升调节火力段进行燃烧，以最优化的状态工作，节能省气。
省电设计11本机处于待机并显示屏点亮的状态下，如2分钟内未做任何操作，则显示器背光源会关闭，如需查看只需按触电源开关按键则背光源点亮。
P1/Pa1/Pb1面板操作器可以自由调控升位大小，燃烧指示灯显示工作状态；Pa2 LED数码显示屏显示出水温度、升位大小及工作状态，一目了然 。
燃气壁挂炉的使用方法燃气壁挂炉是一种常见的供暖设备，它能够为家庭提供温暖舒适的生活环境。
正确的使用方法不仅可以延长壁挂炉的使用寿命，还可以确保其安全高效运行。
下面将为大家介绍燃气壁挂炉的使用方法。
首先，安装壁挂炉时一定要找专业的安装人员进行安装，确保安装过程符合相关规范和要求。
安装完成后，要仔细阅读壁挂炉的使用说明书，了解壁挂炉的各项功能和操作方法。
接下来，进行壁挂炉的点火操作。
首先确保壁挂炉的天然气阀门已经打开，然后按照说明书上的指引进行点火操作。
在点火的过程中，要注意观察火焰的颜色和形态，确保火焰清晰蓝色，没有明显的波动和异味。
在壁挂炉点火成功后，需要设置合适的温度。
一般来说，夏季温度设置在15-20摄氏度，冬季温度设置在18-22摄氏度。
合适的温度不仅可以保持室内舒适，还可以节约能源。
在日常使用中，要定期清洁壁挂炉的滤网和换热器，确保它们的通风畅通。
同时，要定期检查壁挂炉的排气口和烟道，防止积灰和堵塞。
在使用过程中，如发现壁挂炉出现异常情况，如漏水、异常噪音等，应立即停止使用并联系专业维修人员进行检修。
此外，要定期进行壁挂炉的维护保养工作，包括清洗燃烧器、检查点火系统、检查燃气阀门等。
这些工作可以确保壁挂炉的正常运行，延长其使用寿命。
最后，要注意壁挂炉的安全使用。
在使用过程中，要保持通风良好，避免燃气泄漏。
同时，要定期检查燃气管道和阀门，确保其完好无损。
在壁挂炉出现故障或需要维修时，一定要找专业的维修人员进行处理，切勿私自拆卸或修理。
总之，正确的使用方法和定期的维护保养可以确保燃气壁挂炉的安全高效运行，为家庭提供舒适的取暖环境。
希望大家能够按照上述方法正确使用壁挂炉，让冬日温暖如春。

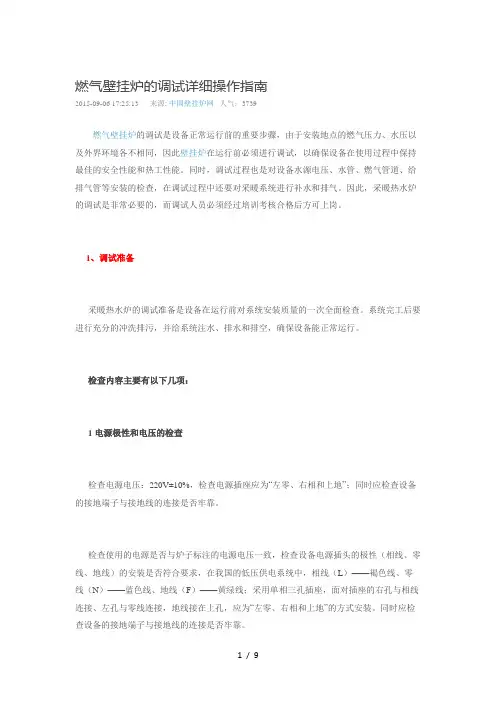

燃气壁挂炉的调试详细操作指南2015-09-06 17:25:13来源: 中国壁挂炉网人气：3739燃气壁挂炉的调试是设备正常运行前的重要步骤，由于安装地点的燃气压力、水压以及外界环境各不相同，因此壁挂炉在运行前必须进行调试，以确保设备在使用过程中保持最佳的安全性能和热工性能。
同时，调试过程也是对设备水源电压、水管、燃气管道、给排气管等安装的检查，在调试过程中还要对采暖系统进行补水和排气。
因此，采暖热水炉的调试是非常必要的，而调试人员必须经过培训考核合格后方可上岗。
1、调试准备采暖热水炉的调试准备是设备在运行前对系统安装质量的一次全面检查。
系统完工后要进行充分的冲洗排污，并给系统注水、排水和排空，确保设备能正常运行。
检查内容主要有以下几项：1电源极性和电压的检查检查电源电压：220V±10%，检查电源插座应为“左零、右相和上地”；同时应检查设备的接地端子与接地线的连接是否牢靠。
检查使用的电源是否与炉子标注的电源电压一致，检查设备电源插头的极性（相线、零线、地线）的安装是否符合要求，在我国的低压供电系统中，相线（L）——褐色线、零线（N）——蓝色线、地线（F）——黄绿线；采用单相三孔插座，面对插座的右孔与相线连接、左孔与零线连接，地线接在上孔，应为“左零、右相和上地”的方式安装。
同时应检查设备的接地端子与接地线的连接是否牢靠。
2水管连接检查检查供水压力，其值不得大于设备标称的最高压力，一般在0.03-0.6MPa范围内，采暖系统的热机运转压力应在0.15-0.20MPa（冷机注水压力为0.10-0.15MPa）范围内；并检查系统水密性与安全阀性能。
3燃气管连接检查主要检查管道气密性（5kPa气压不泄露）、燃气类别和额定压力的匹配性（与铭牌相符）、供气能力（高峰用气并在最大热负荷时，供气压力应在0.75~1.5Pn范围内）。
4给排气系统检查检查设备安装场所的给排气条件与说明书和铭牌的匹配性，并检查给排气性能和可靠性。
CN供用户/安装人员使用安装和使用说明书TURBO燃气采暖热水炉（单采暖）N1PB20 - VU CN 182/2-3 H TURBO N1PB26 - VU CN 242/2-3 H TURBO N1PB30 - VU CN 282/3-3 H TURBON1PB38 - VU CN 352/2-3 H TURBO燃气采暖热水炉L1PB20 - VUW CN 182/2-3 H TURBO L1PB26 - VUW CN 242/2-3 H TURBO L1PB30 - VUW CN 282/3-3 H TURBOL1PB38 - VUW CN 352/2-3 H TURBO供用户使用使用说明书TURBO目录设备特性 (1)设备简介 (1)1 文档说明 (2)1.1 其它适用资料 (2)1.2 保管 (2)1.3 符号说明 (2)2 安全 (3)2.1 紧急措施 (3)2.2 误使用风险警示 (3)2.3 设备检查和保修服务 (4)3 安装和保养说明 (4)3.1 安装和维护说明 (4)3.2 符合规定的使用 (4)3.3 安装地点的要求 (4)3.4 保养 (4)3.5 循环使用和废弃处理 (4)4 控制面板 (5)4.1 控制面板说明 ....................................................................54.2 运行准备.. (5)4.3 投入运行 (6)4.4 设置生活热水温度 (6)4.5 供暖模式 (7)4.5.1 设置供暖供水温度（未连接外部控制器） (7)4.5.2 设置供暖供水温度 (连接外部控制器) (7)4.5.3 关闭供暖（夏季模式） (7)4.5.4 设置室内温控器或气候补偿器 (8)4.6 状态显示（供工程师在维护和修理时参考） (8)4.7 故障检修 (9)4.7.1 缺水引起的故障 (9)4.7.2 点火故障 (9)4.7.3 排烟系统故障 (10)4.7.4 给燃气采暖热水炉/供暖系统注水 (10)4.8 关闭燃气采暖热水炉 (10)4.9 防冻 (11)4.9.1 防冻保护功能 (11)4.9.2 通过排水防冻 (11)4.10 维护与客户服务 (11)燃气采暖热水炉（单采暖）N1PB20 - VU CN 182/2-3 H TURBON1PB26 - VU CN 242/2-3 H TURBON1PB30 - VU CN 282/3-3 H TURBON1PB38 - VU CN 352/2-3 H TURBO燃气采暖热水炉L1PB20 - VUW CN 182/2-3 H TURBOL1PB26 - VUW CN 242/2-3 H TURBOL1PB30 - VUW CN 282/3-3 H TURBOL1PB38 - VUW CN 352/2-3 H TURBO设备特性图例1、 排烟口2、 空气入口3、 风机4、 风压开关5、 主热交换器6、 火焰检测电极7、 燃烧器8、 回水NTC9、 三通换向阀10、供水NTC 11、泄水阀12、燃气阀13、循环水泵14、板式热交换器15、自动排气阀16、火焰检测电极17、膨胀水箱18、膨胀水箱补气图 TURBO VUW 型主要零部件图示及名称设备特性感谢您选择使用威能集团的燃气采暖热水炉产品。
User’ manualCondensing wall hung system boilerG.C.N : 47-116-51 (24 kW) G.C.N : 47-116-52 (30 kW)G.C.N : 47-116-53 (38 kW)CLAS HECLAS HE 24CLAS HE 30CLAS HE 38The code of practice for the installation,commissioning & servicing of central heating systemsuser’ manualDear Customer,Thank you for choosing an ARISTON boiler.We guarantee that your boiler is a reliable and technically sound product.This manual provides detailed instructions and recommendations for proper installation, use and maintenance.Remember to keep this manual in a safe place for future reference i.e. by the gas meter.Your local MTS Servicing Centre is at your complete disposal for all requirements.The installation and first ignition of the boiler must be performed by qualified personnel in compliance with current national regulations regarding installation, and in conformity with any requirements established by local authorities and public health organisations.After the boiler has been installed, the installer must ensure that the end user receives the declaration of conformity and the operating manual, and should provide all necessary information as to how the boiler and the safety devices should be handled.This appliance is designed to produce hot water for domestic use. It should be connected to a heating system and anetwork for domestic hot water, both of which must be compatible with its performance and power levels.The use of the appliance for purposes other than those specified isstrictly forbidden. The manufacturer cannot be held responsible for any damage caused by improper, incorrect and unreasonable use of the appliance or by the failure to comply with the instructions given in this manual.Installation, maintenance and all other interventions must be carriedout in full conformity with the governing legal regulations and the instructions provided by the manufacturer. Incorrect installation can harm persons,animals and possessions; the manufacturinga result.In theevent of any maintenance or otherstructural work inimmediate vicinity of the ductsor flue gas exhaust devices andtheir accessories, switch the appliance off by switching the external bipolar switch to the “OFF” position and shutting off the gas valve. When the work has been completed, ask a qualified technician to check the efficiency of the ducting and the devices.If the boiler should be out of use for a prolonged period, it is recommended that the electrical power supply be disconnected and that the external gas cock be closed. If low temperatures are expected, the boiler and system pipe work should be drained in order to prevent frost damage.Turn the boiler off and turn the external switch “OFF” to clean theexterior parts of the appliance.Do not allow children or inexperienced persons to use the appliance without supervision.CE labellingThe CE mark guarantees that the appliance conforms to the follow-ing directives:- 90/396/CEErelating to gas appliances - 2004/108/CEErelating to electromagnetic compatibility - 92/42/CEErelating to energy efficiency - 2006/95/CEErelating to electrical safetyGUARANTEEThe appliance is guaranteed for 4 months from the date of purchase.Aristons only obligation under the guarantee will be to repair or repla-ce the faulty appliacnce at Aristons discretion. This will be carried out where the fault arises from within defects in the appliance, caused either by material or workmanship of the manufacturer.This guarantee does not protect malfunction or damage arising from incorrect installation, commissioning or maintenance procedures as laid out in the installation and servicing manual, inefficient flue system, poor or incorrect electricicty, wrong gas supply or pressure, tampering by inexperienced persons and any other cause not directly due to manufac-ture.MTS (GB) Limited cannot accept responsibility for any cost arising from repair or maintenance carried out by any third party.Service under the guarantee does not affect the expiry date of the gua-rantee. The guarantee on parts and appliances which are exchanged ends when the guarantee on the original appliance expires.This guarantee does not affect your statutory rights.You must have your boiler serviced at the end of the first year to validate your guarantee for the second year.Safety regulationsKey to symbols:Failure to comply with this warning implies the risk of personal injury, in some circumstances even fatalFailure to comply with this warning implies the risk of damage, in some circumstances even serious, to property, plants or animals.Do not perform operations which involve opening the ap-pliance.Electrocution from live components.Personal injury caused by burns due to overheated components, or wounds caused by sharp edges or protrusions.Do not perform operations which involve removing the ap-pliance from its installation space .Electrocution from live components.Flooding caused by water leaking from disconnected piping.Explosions, fires or intoxication caused by gas leaking from discon-nected piping.Do not damage the power supply cable.Electrocution from live uninsulated wires.Do not leave anything on top of the appliance.Personal injury caused by an object falling off the appliance as a result of vibrations.Damage to the appliance or items underneath it caused by the object falling off as a result of vibrations.Do not climb onto the appliance.Personal injury caused by the appliance falling.Damage to the appliance or any objects underneath it caused by the appliance falling away from its installation space.Do not climb onto chairs, stools, ladders or unstable supports to clean the appliance.Personal injury caused by falling from a height or cuts (step ladders shutting accidentally).Do not attempt to clean the appliance without first switching it off and turning the external switch to the OFF position.Electrocution from live components.Do not use insecticides, solvents or aggressive detergents to clean the appliance.Damage to plastic and painted parts.Do not use the appliance for any use other than normal dome-stic use.Damage to the appliance caused by operation overload.Damage caused to objects treated inappropriately.Do not allow children or inexperienced individuals to operate the appliance.Damage to the appliance caused by improper use.If you detect a smell of burning or smoke coming from the appliance, discon-nect it from the electricity supply, turn off the main gas valve, open all windows and call for assistance.Personal injury caused by burns, smoke inhalation, intoxication.If there is a strong smell of gas, turn off the main gas valve, open all windows and call for assistance.Explosions, fires or intoxication.user’ manualControl PanelInitial operating proceduresIf the boiler is installed inside the apartment, make sure that all provisions relating to the air inlet and room ventilation (in compliance with current legislation) are respected.Check the water pressure on the display regularly and make sure that the figure is between 0.6 and1.5 bar when the system is cold. If the pressure is just under the minimum value the display will request a filling procedure.Re-establish the correct pressure by filling loop.If the pressure drops very frequently, there may be a water leak at some point in the system. If this is the case a plumber should be contacted.Ignition procedurePress the ON/OFF button on the control panel to switch on the boiler. The display shows:C - Central heating request c - Heating post-circulation d - Domestic hot water request H - Hot water post-circulation F - Circulation pump anti-freeze protection enabled - burner anti-freeze protection enabledThe second and third figures indicate:- the flow temperature when no heating requests have been made - the flow temperature in central heating mode- the temperature of the hot water in domestic hot water mode - the flow temperature in anti-freeze mode.Auto FunctionThe AUTO function serves to optimise boiler performance, while maintaining an optimum radiator temperature and maximum user comfort. It ensures the building stays at the ideal temperature, whilst saving energy.The principle is that the water temperature at the boiler outlet is automatically adjusted, depending on the interior ambient temperature.Legend :1. Display . R eset button. R ed indicator locking light4. O range indicator C OmfORt fonction5. Pressure gauge6. Heating temperature regulation knob7. button _8. m enu /O k button (Programming key) 9. e sC button 10. button +11. Domestic Hot Water adjustment knob 1 . Time clock1 . ON/OFF button14. Blue indicator burner ON15. Y ellow indicator A utO fonction16. A utO button (To active Thermoregulation) 17. C OmfORt buttonuser’ manualWinter or summer functionTurn the heating button 6to select the desired operating mode (winter or summer). In winter mode every heating is shown on the display by the heating temperature.Summer mode is set by putting the button 6 in position (hea-ting off).Adjusting the heatingIt is possible to set the temperature of the heating water by adjusting the knob 6. By placing the indicator somewhere between min. and max. a temperature may be obtained which varies from about 0°C to about 45°C (low temperature) and about 5°C to about 8 °C (high temperature).adjusting the knob 11The value set previously will flash on the display.user’ manual COMFORT functionTo activate the comfort mode it is necessary to press the comfortbutton 17, this will be indicatd by a yellow light 4. The comfortmode has priority over any other heating request.There are two settings for the comfort mode (they can be adjustedin the parameters menu):1. As soon as DHW is drawn, the secondary heat exchanger is keptwarm for 0 mins.. As soon as DHW is drawn, the secondary heat exchanger is keptwarm permanently.Switching off the heating. The boiler switches in sanitary mode only and indicating theset temperature.Stand byClose the gas tap.user’ manualAppliance shut-off conditionsThe boiler is protected from malfunctions by means of internal checks performed by the electronic P.C.B., which stops the boiler from operating if necessary. In the event of the boiler being shut off in this manner, a code appears on the control panel display which refers to the type of shut-off and the reason behind it.Two types of shut-off may occur:Safety shut-offThis type of error is “volatile”, which meansthat the boiler starts up again automaticallyas soon as the problem which caused theshut-off is removed. The display will flash”Err” and the error code.In fact, as soon as the cause of the shut-off disappears, the boiler starts up again and continues to operate normally.While the boiler is shut off for safety reasons, it is possible to attempt to restore normal operation by switching the appliance off and on again using the ON/OFF button on the control panel.If the boiler still indicates a safety shut-off, switch it off. Make sure the external electric switch is in the OFF position, close the gas tap and contact a qualified technician.Safety shut-off due to insufficient water pressureIf the water pressure inside the heating circuit is insufficient, the boiler will perform a safety shut-off. (See table).To re-pressurise the boiler, it will be necessary to connectthe silver flexible hose supplied to the two isolating points underneath the boiler, once the hose is connected, open up both of the black quarter turn handles, once the pressure reads 1.5 bar on the display, close both handles and disconnect the hose .If the pressure drops very frequently, there may be a water leakat some point in the system. If this is the case please contact your installer and ask them to check it.Operation shutdownThis type of error is “non volatile”, which means that it is notErr and the errorcodeIn this case the boiler does not restart automatically, but it maybe reset by pressing the button. If the problem manifestsitself again after several attempts to reset the appliance, contact aqualified technician.IMPORTANTIF THIS SHUTDOWN OCCURS FREQUENTLY, CONTACT ANAUTHORISED SERVICE CENTRE FOR ASSISTANCE. FOR SAFETYREASONS, THE BOILER WILL ALLOW A MAXIMUM OF 5 RESETOPERATIONS TO TAKE PLACE IN 15 MINUTES (INDIVIDUALPRESSES OF THE BUTTON).Operation shutdown error tableAnti-frost Device.The anti-frost function acts on the central heating flow temperature probe,independently from other settings, when the electrical supply is turnedon.If the primary circuit temperature falls below 8°C the pump will run forminutes.After the two minutes of circulation (fixed) the boiler will check the fol-lowing:a) if the central heating flow temperature is > 8°C, the pump stops;b) if the central heating flow temperature is between 4 and 8°C, the pumpwill run for another two minutes;c) if the central heating flow temperature is < 4°C, the burner will fire(heating position) at minimum power until the temperature reaches°C, the burner will go off and the pump will continue to run for twominutes.The anti-frost device activates only when (with the boiler operating cor-rectly):- the system pressure is correct,- the boiler is electrically powered,- there is a supply of gas.Display Description1 01Overheating5 01No flame detection1 0Insufficient circulation1 041 051 061 0705P.C.B error06P.C.B error07P.C.B erroruser’ manual Auto button - Temperature adjustment activationThe AUTO function enables boiler operation to be adapted toenvironmental conditions and to the type of system it is installedon.Comfortable temperature is reached inside the room in the quickestway possible, without wasting money, energy or efficiency, whilesubstantially reducing the amount of wear experienced by thecomponents.Your installer will advise you on the devices connectable tothe boiler and will program it according to the system.In normal boilers the water temperature inside the heating elementsis usually set to a high value (70-80°C), thereby ensuring effectiveheating during the few really cold winter days. It then becomesexcessive on less cold days (of which there are many) more typicalof the autumn and winter seasons. This leads to excessive roomheating after the thermostat has been switched off, resulting inenergy waste and uncomfortable conditions inside the room.The AUTO function “takes control” of the boiler and selects the bestoperating regime based on environmental conditions, externaldevices connected to the boiler and the performance required. Itconstantly decides at which power level to operate based on theenvironmental conditions and the room temperature required.Change of gas typeOur boilers are designed to function either with Natural Gas (meth-ane) or L.P.G. gas. If you need to change from one gas to the other,one of our Authorised Service Centres must be contacted to con-vert the appliance.MaintenanceSchedule an annual maintenance check-up for the boiler with acompetent person.Correct maintenance always results in savings in the cost ofrunning the system.Failure to arrange an annual service for the appliance will invalidatethe second year of the manufacturers guarantee.0010096900 - 1 / 007Commercial subsidiaries: MTS (GB) Limited Professional Team Limited MTS BuildingSuites 9 & 10, Plaza 56Hughenden Avenue Blanchardstown Corporate Park High Wycombe Ballycoolin Bucks HP1 5FTDublin 15Telephone: (01494) 755600 Telephone: (01) 810 7 Fax: (01494) 459775Fax: (01) 810 7 7Internet: /uk Internet: /ie E-mail:****************.com E-mail:****************.com Technical Advice: 0870 41 8180 Technical Advice: (01) 4 7 01 1 CustomerService************Customer Service: (01) 4 7 01 1。
Operation / Installation ManualBuilt-In Hob (LPG / NG)RB-72S RB-72G RB-73TS RB-73TG RB-92G RB-93TS RB-93US RB-93TG RB-93UGRinnai CorporationE n g l i s h252741警告!只有合格的人员才能转换此设备. 从灶具主体上拆下锅架支架，燃烧器和旋钮。
. 使用十字螺丝刀拆下不锈钢顶板。
小心不要在拆卸钢制顶板 时损坏电极和热电偶。
. 使用附带的钥匙拧松文丘里管的支架，如图1所示。
. 使用＃12＆＃14型固定扳手拆下铜针上的螺母和文丘里管上 的喷嘴，如图2所示。
. 从文丘里管中取出所有喷嘴，并放回正确的喷嘴。
确保风门板和减震器弹簧正确安装。
. 将螺母和喷嘴拧紧到铜管上。
. 如果使用城镇煤气，使用扳手卸下LPG 适配器， 如果使用LPG ，则使用扳手安装。
确保它足够紧。
. 进行所有接头的泄漏试验，以确保没有发现泄漏。
. 将所有部件重新放回到炉盘上。
. 更改标签以显示气体类型更改。
Pic 2Pic 1气种置换NG 换LPG & LPG 换NGRB70-021-4130317• 切勿使用超大的炊具或超负荷使用 烹饪器具。
• 不要取下锅架，并用锅架围住燃烧 器，因为这会使热量集中并偏转到 燃气灶上。
• 不要在锅和锅支架之间放置任何东西，例如火焰温度计， 石棉垫，否则可能会对器具造成严重损坏。
• 不要将炊具盘放在锅架支撑面 上，否则可能不稳并翻侧。
• 只能使用设备制造商提供或推 荐的锅支架。
警示强化玻璃ContentGuide to Appliances RB-72S / RB-72G / RB-73TS / RB-73TG / RB-92G / RB-93TS Guide to Appliances RB-93TG / RB-93US / RB-93UGGuide to the AppliancesSpecificationSafety InstructionsUsing for the first timeInstallation GuideOperationSuitable PansCleaning and CareTrouble Shooting GuideRinnai Customer Care CentersConversion from NG to LPG & LPG to NGCaution For the Tempered Glass 123468913151619202121Rinnai Customer Care CentersChina |中国Guangzhou Rinnai Gas & ElectricRoom 2805, No.31 Jianghe Building,Tianshou Road, Guangzhou, China广州林内燃具电器有限公司中国广州天河区天寿路31号江河大厦2805室Tel 电话: (86) 20 3821 7976Email 邮箱:*******************.cnURL 网址: IndonesiaCustomer Care of PT. Rinnai IndonesiaJl. Raya Pejuangan No.21,Komp. Ruko Sastra Graha No.11 -13Jakarta 11530Tel:(62************(Customercare)*************(SMS Center)E mail :**************************URL : www.rinnai.co.idMacau |澳門Rinnai Appliance Service CenterEdificio Industrial, 3andar F.A da Zona Macau林內爐具服務中心澳門青洲跨境工業大廈3樓F座Phone電話 :+853 2852-7799Fax 傳真 : +853 2827-0572URL 网址: /moPhilippinesMitsui Industia Corporation10 Buenaventura St., Cor MacArthurHighway, Dalandan Valenzuela City,PhilippinesTel : (63) 2 292 9177 / 292 9179Fax : (63) 2 292 8187SingaporeRinnai Holdings (Pacific) Pte Ltd 61 Ubi Road 1#02-20 & 21Oxley BizhubSin gap ore 408727Tel : (65) 6748 9478 Fax : (65) 6745 9240Email:********************:www.rinnai.sgThailand | ประเทศไทยRinnai (Thailand) Co., Ltd. / Lucky Flame Co., Ltd.61/1 Soi Kingkaew 9, Kingkaew Rd.Racha Thewa, Bangphli, Samutprakarn 10540,Thailandเลขที่ 61/1 ซอยก่่งแกว9 ถนนก่่งแกประเทศไทย10540Tel : (66) 2 3124330 -40Email:*********************.thURL : www.luckyflame.co.thVietnam | Việt NamRong Viet Commerce Company Limited120 3/2 Street, Ward 12, District 10,Ho Chi Minh City, VietnamCông Ty TNHH Th ngươM i ạRôồn g Vi t ệ120 Đngườ3/2, Ph ngườ12, Qu nậ10,TP. H ôồChí Minh, Vi t ệNamTel : (84) 8 3862 3409 Fax : (84) 8 5404 1964Email:************************URL : www. 40MalaysiaRinnai (M) Sdn BhdD2-3-G & D2-3-1, BlockD2, Pusat PerdaganganDana 1, Jalan PJU 1A/46, 47301 Petaling Jaya,Selangor Darul Ehsan, Malaysia.Tel: (60) 3 7832 0037 / 7832 0038 / 7832 0039Fax: (60) 3 7832 0036 Toll Free : 1800-88-3180Email:***********************.myURL: .myGuide to the AppliancesRB-72SRB-73TS1SmallBurnerLeft Control Right ControlBig BurnerBig BurnerBig Burner Big BurnerBig BurnerRB-72GLeft Control Right ControlExtra Small BurnerLeft Control Right ControlRear RightControlLeft Control Right ControlRear RightControlBig Burner Extra Small BurnerRB-73TGSmallBurnerRB-92GBig Burner Big BurnerLeft Control Right ControlLeft Control Right ControlRear RightControlBig Burner Small BurnerRB-93TSMediumBurner常见问题与解决方法问题可能导致的原因解决方法无点火(DC)自动点火功能不工作燃烧器火焰不均匀。
TECHNICAL MANUAL1. 安装 ............................................................................................................................................. 错误!未定义书签。
1.1 规格尺寸 .......................................................................................................................... 错误!未定义书签。
1.2排烟系统-City Plus 24 F – 30 F ......................................................................................... 错误!未定义书签。
2. 技术数据 ..................................................................................................................................... 错误!未定义书签。
2.1连接数据 .......................................................................................................................... 错误!未定义书签。
2.2打火循环 .......................................................................................................................... 错误!未定义书签。
使用壁挂炉给地暖供热时不热的现象1.地暖管盘管长度太长。
如果是计划安装壁挂炉提前和地暖安装公司商议。
建议每路管长度60米左右。
过长的话会间接的加大取暖效果。
室内升温过慢导致不热。
2.回填层过于厚，建议在节能环保的基础上回填最好控制在4厘米以内。
这样才能即能达到一定的热量。
3.主管走的太长，水流太慢。
所谓的长度即消减压力也能散失热量。
所以建议壁挂炉最好离集地暖分水器近一些。
这样才能让热水即使的送入地暖。
4.壁挂炉和地暖的面积不匹配，在购买时一定要认清供暖面积。
建议壁挂炉的面积最好比实际的面积大80平米左右。
所谓的大马拉小车不费力是很好的保证。
5.地面材料不符合要求。
建议客户最好用石材料质和符合木质地板。
杜绝用实木材，因为他们的散热系数有很大的区别。
6.主管有局部堵塞现象。
这就需要及时的时行清洗。
或者安装过滤出盾装置。
7.天然气和煤气的压力不够，这就需要和燃气公司时行协商，增加气源压力。
8.壁挂炉长期得不到即使的清洗。
因为经过一个冬季的使用换热舱里有过多的碳结块儿。
产生了有火而不热的现象。
9.壁挂炉内部水压太低，达不到启动的标准。
这个情况炉会自动报警，提示进行加压。
气体的种类不符。
这就需要及时的和小区物业协商弄清气源的各类再进行针对性的购买。
如何根据房子面积选择不同功率的壁挂炉呢？应根据房屋面积大小以及是否需要同时供热水及气种来选择合适的壁挂炉。
一般每平米需要的供热功率大约在120w-180w 之间，并且根据房型、结构、建筑材料的不同而有所变化。
因此，当选择壁挂炉前，应先征求服务商的意见，看看房子大概要按照哪种功率计算，然后测算一个大致的总体功率。
推荐一个计算大致功率的公式：房子的建筑面积×65%×150w。
通常采暖面积会在建筑面积的60%-70%之间，如果是一套150平方米的公寓房，它的采暖面积大概在90-105平方米之间。
若按照100平方米的采暖面积计算，预计需要15kw的供热功率，再加上平时生活热水需求，基本上就要选择一个18kw的壁挂炉炉。
