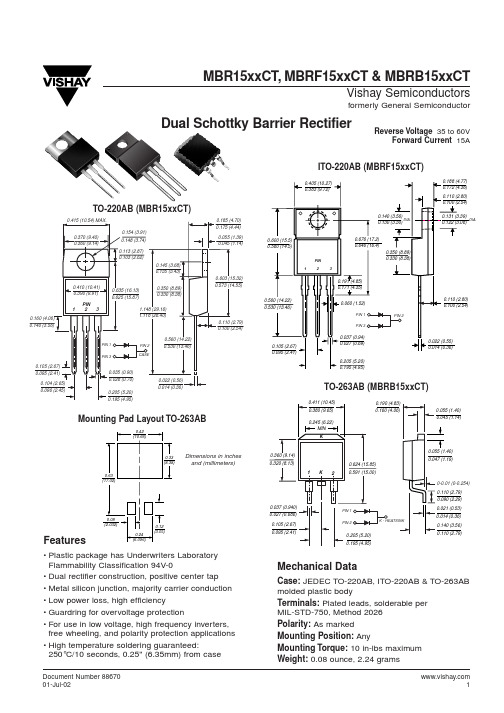

MBR15xxCT,MBRF15xxCT & MBRB15xxCTVishay Semiconductorsformerly General SemiconductorDocument Number Reverse Voltage 35 to 60VForward Current 15AMechanical DataCase:JEDEC TO-220AB, ITO-220AB & TO-263AB molded plastic bodyTerminals:Plated leads, solderable per MIL-STD-750, Method 2026Polarity:As marked Mounting Position:AnyMounting Torque:10 in-lbs maximum Weight:0.08 ounce, 2.24 gramsFeatures• Plastic package has Underwriters LaboratoryFlammability Classification 94V-0• Dual rectifier construction, positive center tap • Metal silicon junction, majority carrier conduction • Low power loss, high efficiency• Guardring for overvoltage protection• For use in low voltage, high frequency inverters,free wheeling, and polarity protection applications • High temperature soldering guaranteed:250°C/10 seconds, 0.25" (6.35mm) from caseMounting Pad Layout TO-263ABITO-220AB (MBRF15xxCT)TO-220AB (MBR15xxCT)TO-263AB (MBRB15xxCT)MBR15xxCT,MBRF15xxCT & MBRB15xxCTVishay Semiconductorsformerly General Semiconductor Document Number 88670Maximum Ratings(T C = 25°C unless otherwise noted)ParameterSymbol MBR1535CT MBR1545CT MBR1550CT MBR1560CT Unit Maximum repetitive peak reverse voltage V RRM 35455060V Working peak reverse voltage V RWM 35455060V Maximum DC blocking voltageV DC 35455060V Maximum average forward rectified current T otal device 15at TC = 105°C Per leg I F(AV)7.5A Peak repetitive forward current at T C = 105°C (rated V R , 20 KHz sq.wave)I FRM15APeak forward surge current8.3ms single half sine-wave superimposed I FSM 150A on rated load (JEDEC Method)Peak repetitive reverse surge current per leg at t p = 2.0µs, 1KH ZI RRM 1.00.5A Voltage rate of change (rated V R )dv/dt 10,000V/µs Operating junction temperature range T J –65 to +150°C Storage temperature rangeT STG –65 to +175°C RMS Isolation voltage (MBRF type only) from terminals to 4500 (NOTE 1)heatsink with t = 1.0 second, RH ≤30%V ISOL3500 (NOTE 2)V1500 (NOTE 3)Electrical Characteristics (T C = 25°C unless otherwise noted)ParameterSymbol MBR1535CT MBR1545CT MBR1550CT MBR1560CT UnitMaximum instantaneous forward voltage per leg (Note 4)at I F = 7.5A,T C = 25°C –0.75at I F = 7.5A,T C = 125°C V F 0.570.65Vat I F = 15A,T C = 25°C 0.84–at I F = 15A,T C =1 25°C 0.72–Maximum instantaneous reverse current T C = 25°C 0.1 1.0at rated DC blocking voltage per leg (Note 4)T C =125°CI R 1550mAThermal Characteristics (T C = 25°C unless otherwise noted)ParameterSymbol MBR MBRF MBRB Unit Maximum thermal resistance per legR ΘJA 60–60°C/WR ΘJC3.05.03.0Notes:(1) Clip mounting (on case), where lead does not overlap heatsink with 0.110”offset (2) Clip mounting (on case), where leads do overlap heatsink(3) Screw mounting with 4-40 screw, where washer diameter is ≤ 4.9 mm (0.19”)(4) Pulse test:300µs pulse width, 1% duty cycleOrdering InformationProductCase Package CodePackage OptionMBR1535CT - MBR1560CT TO-220AB 45Anti-Static tube, 50/tube, 2K/carton MBRF1535CT - MBRF1560CT ITO-220AB 45Anti-Static tube, 50/tube, 2K/carton 3113”reel, 800/reel, 4.8K/carton MBRB1535CT - MBRB1560CTTO-263AB45Anti-Static tube, 50/tube, 2K/carton 81Anti-Static 13”reel, 800/reel, 4.8K/cartonMBR15xxCT,MBRF15xxCT & MBRB15xxCTVishay Semiconductorsformerly General SemiconductorDocument Number Ratings andCharacteristic Curves (TA= 25°C unless otherwise noted)Case Temperature (°C)Fig. 1 – Forward CurrentDerating CurveA v e r a g e F o r w a r d C u r r e n t (A )Fig. 3 – Typical Instantaneous Forward Characteristics Per LegInstantaneous Forward Voltage (V)I n s t a n t a n e o u s F o r w a r d C u r r e n t (A )Percent of Rated Peak Reverse Voltage (%)I n s t a n t a n e o u s R e v e r s e C u r r e n t (m A )Fig. 4 – Typical Reverse Characteristics Per LegFig. 6 – Typical Transient ThermalImpedance Per Leg501001500510152025502575100125150175Number of Cycles at 60 H Zt, Pulse Duration (sec.)Fig. 2 – Maximum Non-Repetitive Peak Forward Surge Current Per LegP e a k F o r w a r d S u r g e C u r r e n t (A )0.010.1110500.0010.010.111050101001,0004,000Reverse Voltage (V)J u n c t i o n C a p a c i t a n c e (p F )T r a n s i e n t T h e r m a l I m p e d a n c e (°C W )Fig. 5 – Typical Junction Capacitance Per Leg0.010.11101000.1110100。
MBR20200FCT肖特基二极管，ASEMI品牌进口全新
型号：MBR20200FCT
品牌：ASEMI
封装：TO-220
特性：肖特基二极管
★电性参数：20A，200V
★芯片材质：SI
★正向电流(Io)：20A
★芯片个数：2
★正向电压(VF)：0.87V
★芯片尺寸：102MIL
★浪涌电流Ifsm：150A
★是否进口：是
★漏电流(Ir)：10UA
★工作温度：-50~125
★恢复时间(Trr)：<5nS
★引线数量：3
★编辑人：李绚
ASEMI品牌12年专业生产MBR20200FCT，拥有170人研发团队和8500㎡肖特基生产厂房，MBR20200FCT等肖特基均
采用俄罗斯Mikron芯片，28条台湾健鼎测试线，确保MBR20200FCT的高可靠性。
肖特基二极管MBR20200FCT参数规格：电流：20A ；电压：200V；管装：50/管；盒装：2000PCS/盒。
MBR20200FCT肖特基二极管广泛应用于开关电源、变频器、驱动器等电路，作高频、低压、大电流整流二极管、续流二极管、保护二极管使用，或在微波通信等电路中作整流二极管、小信号检波二极管使用。
欢迎咨询取样测试。
编辑人：MM

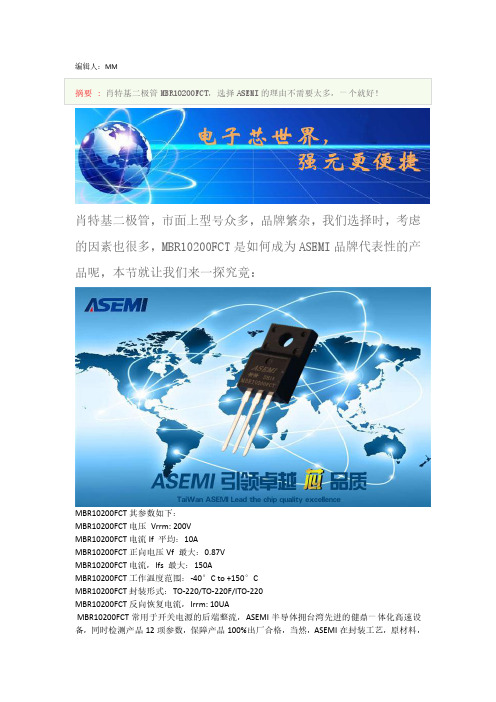

摘要:肖特基二极管MBR10200FCT，选择ASEMI的理由不需要太多，一个就好！
肖特基二极管，市面上型号众多，品牌繁杂，我们选择时，考虑的因素也很多，MBR10200FCT是如何成为ASEMI品牌代表性的产品呢，本节就让我们来一探究竟：
MBR10200FCT其参数如下：
MBR10200FCT电压Vrrm:200V
MBR10200FCT电流If平均：10A
MBR10200FCT正向电压Vf最大：0.87V
MBR10200FCT电流，Ifs最大：150A
MBR10200FCT工作温度范围：-40°C to+150°C
MBR10200FCT封装形式：TO-220/TO-220F/ITO-220
MBR10200FCT反向恢复电流，Irrm:10UA
MBR10200FCT常用于开关电源的后端整流，ASEMI半导体拥台湾先进的健鼎一体化高速设备，同时检测产品12项参数，保障产品100%出厂合格，当然，ASEMI在封装工艺，原材料，
物流配送，等等方面均处于国际领先水平。
而这当中让ASEMI引以为豪的是米克朗芯片，这种芯片，无论是在稳定性还是在抗冲击能力上有着优于其它芯片的明显优势。
这也是国内外众多商家的所看重的。
编辑：GGASEMI肖特基二极管的型号众多，接下来所列型号主要以电流电压大小，分为大类，再以封装区分作为辅助分类。
ASEMI肖特基二极管型号大全，找找MBR4045PT属于哪一类1A~5A 20V~150V 肖特基二极管两者型号都在用SS封装：SS110 、SS14 。
10A 45V~200V 肖特基二极管采用TO-220AC封装的有：MBR10200AC、MBR10150AC、MBR10100AC、MBR1060AC、MBR1045AC、MBR1040AC采用TO-220封装的有：MBR1040FCT、MBR10200FCT、MBR10100FCT、MBR10150FCT、 MBR1040CT、MBR10200CT、MBR1040FCT、MBT1045FCT、 MBR1045CT、MBR1040CT、 MBR1045CT、MBR1060CT、MBR1060FCT、MBR10100CT、MBT10100FCT、MBR10150CT该封装有FCT和CT结尾的型号命名，区别于前者是塑封封装、后者是铁头封装。
采用TO-251封装的有：BD1045CT、BD1060CT、BD10100CT、BD10150CT、BD10200CT、BD1040CT采用TO-252封装的有：BD1040CS、BD1045CS、BD1060CS、BD10100CS、BD10150CS、 BD10200CS 采用TO-263封装的有：MBR10200DC、MBR1040DC、MBR1045DC、MBR1060DC、MBR10100DC、MBR10150DC20A 45V~200V肖特基二极管采用TO-220AC封装的有：MBR20200AC、MBR20150AC、MBR20100AC、MBR2060AC、 MR2045AC采用TO-251封装的有：BD2060CT、BD2045CT、BD20100CT、BD20150CT、BD20200CT、采用TO-252封装的有：BD20100CS、BD20150CS、BD20200CS、BD2045CS、BD2060CS采用TO-263封装的有：MBR2045DC、MBR2060DC、MBR20100DC、MBR20150DC、MBR20200DC采用TO-220封装的有：MBR2045CT、MBR2045FCT、MBR20200FCT、MBR2060CT、 MBR20100FCT、MBR2060FCT、MBR20100CT、MBR20100FCT、 MBR20150CT、MBR20150FCT、MBR20200CT、MBR20200FCT采用TO-247/3封装的有：MBR20200PT30A 45V~200V 肖特基二极管采用TO-247/3P封装的有：MBR3045PT、MBR3060PT、MBR30100PT、MBR30150PT、MBR30200PT采用TO-263封装的有：MBR30200DC、MBR3060DC、MBR30100DC、MBR30150DC、MBR3045DC采用TO-220封装的有：MBR3045CT、MBR3045FCT、MBR3060CT、MBR3060FCT、MBR30100CT、MBT30100FCT、MBR30150CT、MBR30150FCT、 MBR30200CT、MBR30200FCT 40A 45V~200V 肖特基二极管采用TO-263封装的有：MBR4045DC、MBR40200DC、MBR4060DC、MBR40100DC、MBR40150DC采用TO-247/3P封装的有：MBR40200PT、MBR4045PT、MBR4060PT、MBR40100PT、 MBR40150PT、采用TO-220封装的有：MBR4045FCT、MBR4045CT、MBR4060FCT、MB40100FCT、 MBR4060CT、MBR40100CT60A 45V~220V 肖特基二极管采用TO-247/3P封装的有：MBR6045PT、MBR6060PT、MBR60100PT、MBR60150PT、 MBR60200PT 10A~60A 20V~100V 肖特基二极管采用ITO-220AB封装的有：SBT10150UCT、SBT10100UCT、SBT1060UCT、SBT1045UCT、SBT10150VCT、SBT10100VCT、SBT1060VCT、SBT1045VCT、SBT30150UCT、SBT2045VCT、SBT2060VCT、SBT20100VCT、SBT20150VCT、SBT2045UCT、 SBT2060UCT、SBT20100UCT、 SBT20150UCT、SBT3045VCT、SBT3060VCT、SBT30100VCT、 SBT30150VCT、SBT3045UCT、SBT3060UCT、SBT30100UCT、SBT1045UFCT、SBT30100UFCT、SBT1060UFCT、SBT10150VFCT、SBT10100VFCT、SBT1060VFCT、SBT1045VFCT、SBT10100UFCT、SBT2045VFCT、SBT10150UFCT、 SBT2060VFCT、SBT20100VFCT、SBT20150VFCT、SBT2045UFCT、SBT2060UFCT、SBT20100UFCT、SBT20150UFCT、SBT3045VFCT、SBT3060VFCT、SBT30100VFCT、 SBT30150VFCT、SBT3045UFCT、SBT3060UFCT、SBT30150UFCT、SBT1045UFCT、 SB10100LCT、SB10150LCT、SB1045LFCT、SB1045LFCT、SB30100LFCT、 SB1060LFCT、SB30150LFCT、SB10100LFCT、SB2045LFCT、SB10150LFCT、SB2060LFCT、SB20100LFCT、SB3060LCT采用TO-220AB封装的有：SB1060LCT、SB30150LCT、SB30150LCT、SB10100LCT、SB2060LCT、SB10150LCT、SB20150LCT、SB3060LCT、SB30100LCT、SB1045LCT采用TO-277封装的有：10V45这款肖特基二极管型号是超低压降、贴片小封装的。
