福特嘉年华维修手册 (31)

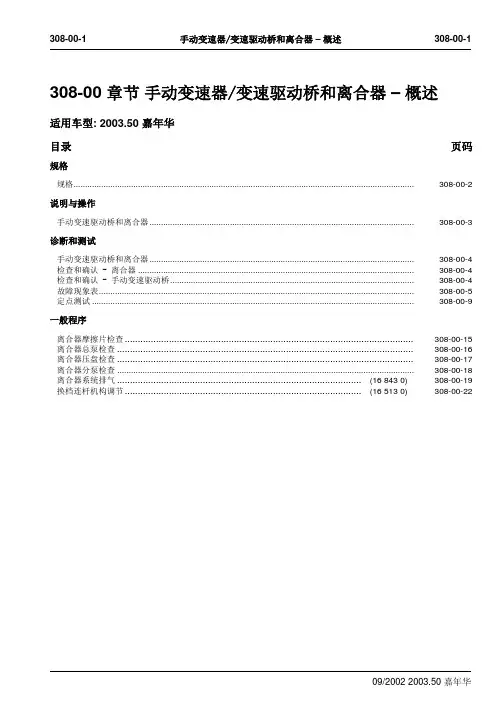

308-00 章节手动变速器/变速驱动桥和离合器–概述适用车型: 2003.50 嘉年华目录页码规格规格.................................................................................................................................................... 308-00-2说明与操作手动变速驱动桥和离合器................................................................................................................... 308-00-3诊断和测试手动变速驱动桥和离合器................................................................................................................... 308-00-4检查和确认- 离合器........................................................................................................................ 308-00-4检查和确认- 手动变速驱动桥 ......................................................................................................... 308-00-4故障现象表......................................................................................................................................... 308-00-5定点测试 ............................................................................................................................................ 308-00-9一般程序离合器摩擦片检查............................................................................................................... 308-00-15离合器总泵检查 .................................................................................................................. 308-00-16离合器压盘检查 .................................................................................................................. 308-00-17离合器分泵检查 ................................................................................................................................. 308-00-18离合器系统排气 .............................................................................................. (16 843 0) 308-00-19换档连杆机极调节........................................................................................... (16 513 0) 308-00-22规格说明与操作手动变速驱动桥和离合器离合器相关信息参见308-01章节。

414-02章节发电机和电压调节器适用车型: 2003.50 嘉年华内容页码规格规格 .................................................................................................................................. 414-02-2诊断与测试发电机 ................................................................................................................................ 414-02-3拆卸与安装发电机— 1.3L/1.6L Duratec ........................................................................................ (31 414 0) 414-02-4规格诊断与测试发电机请参阅 414-00节拆卸与安装发电机— 1.3L/1.6L Duratec (31 414 0) 拆卸所有车型1. 断开蓄电池接地线。

相关信息请参阅414-01。

2. 拆卸附件驱动皮带。

1. 顺时针旋转皮带张紧器。

2. 拆卸附件驱动皮带。

.3. 断开发电机接头。

4. 拆卸发电机上固定螺栓。

5. 将散热器右上角固定。

6. 将散热器左上角固定。

7. 拆卸发动机挡泥板。

相关信息请参阅 502-00。

8. 拆卸散热器支架左边固定螺栓。

拆卸与安装(续)9. 断开散热器支架上的二极管。

10. 拆卸散热器支撑支架。

带动力转向的车型11. 取下动力转向油管卡子。

所有车型12. 拆卸发电机。

安装所有车型1. 安装过程与拆卸顺序相反。

带动力转向的车型拆卸与安装(续) 所有车型。

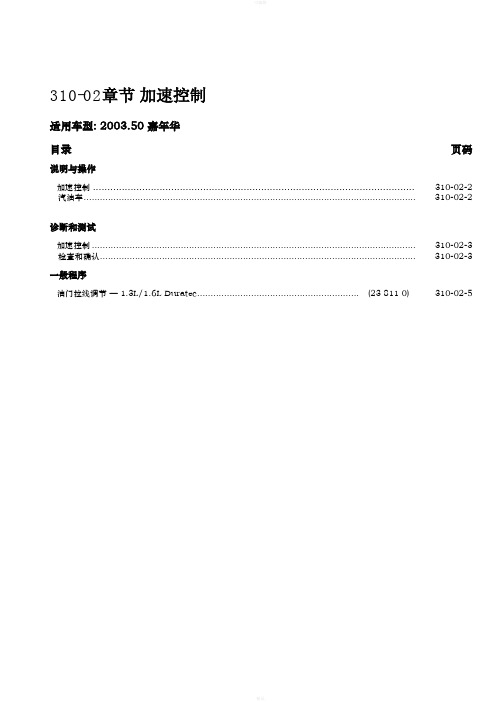

310-02章节加速控制适用车型: 2003.50 嘉年华目录页码说明与操作加速控制 ............................................................................................................... 310-02-2汽油车........................................................................................................................... 310-02-2诊断和测试加速控制........................................................................................................................ 310-02-3检查和确认..................................................................................................................... 310-02-3一般程序油门拉线调节— 1.3L/1.6L Duratec ............................................................ (23 811 0) 310-02-5加速控制汽油车加速控制系统包含加速踏板，油门拉线以及安装在节气门体上的拉线支架。

加速踏板的回位通过节气门回位弹簧实现。

加速控制检查和确认1. 确认客户抱怨的故障。

2. 目视检查明显的机械和电气故障。

3. 如发现了明显的故障原因，在进行下步诊断或维修前先解决此故障原因。

501-29 章节侧金属蒙皮修理适用车型: 2003.50 嘉年华目录页码拆卸和安装A柱外蒙皮部份和加强板............................................................................... (44 331 5) 501-29-1 弯刀形蒙皮 ................................................................................................ (44 447 0) 501-29-4弯刀形蒙皮部份 .......................................................................................... (44 475 0) 501-29-5弯刀形蒙皮前部份 ....................................................................................... (44 475 4) 501-29-6弯刀形蒙皮后部份 ....................................................................................... (44 475 5) 501-29-7 B柱加强板 ................................................................................................. (44 584 2) 501-29-8Ａ柱外蒙皮部份和加强板(44 331 5)名称规格Ａ柱外蒙皮Ａ柱底部加强蒙皮Ａ柱顶部加强蒙皮Ａ柱内蒙皮翼子板加强板通风道支撑蒙皮挡泥板支承蒙皮拆卸1. 综述•挡泥板、车门、发动机盖、前挡风玻璃和车门胶条在修理前必须拆卸。

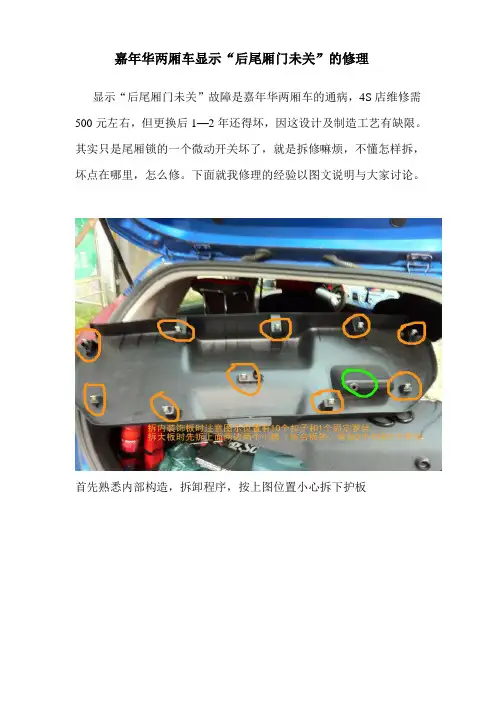

嘉年华两厢车显示“后尾厢门未关”的修理显示“后尾厢门未关”故障是嘉年华两厢车的通病，4S店维修需500元左右，但更换后1—2年还得坏，因这设计及制造工艺有缺限。

其实只是尾厢锁的一个微动开关坏了，就是拆修嘛烦，不懂怎样拆，坏点在哪里，怎么修。

下面就我修理的经验以图文说明与大家讨论。

首先熟悉内部构造，拆卸程序，按上图位置小心拆下护板
小心拔下这里的插头（锁扣的用手指捏紧后向外拉）
测量发现感应开关已坏，因是环氧树脂胶死的无法修换，只能想法加装修复。

这里的感应开关触控轮正好有秃起的把，我就在开关的侧面加装了微动开关，将原黑色和红色线开断后接在微动开关的常开接柱上，将开关和护板一一装回去就和新时的功能一样了。

1GeneralInformation2Table of ContentsGeneral Maintenance Information ...............3What Maintenance Schedule Do You Follow?. (5)Normal Schedule (6)Severe Duty Schedule (18)Owner Maintenance Checks ........................36Maintenance Schedule andRecordGeneral Maintenance Information The required Scheduled Maintenance Services listed in this booklet are considered essential to the proper operation,safety and performance of your Ford Motor Company vehicle.We recommend that you also perform the Owner Maintenance Checks listed.These services are matters of day-to-day care that are also important to the proper operation of your vehicle.The recommended lubricants,fluids and service parts conforming to Ford Specifications are available from your dealer.This booklet gives you a place to record the services that are performed on your vehicle so that you can keep a record of when parts should be checked or replaced.Give your Maintenance Schedule and Record booklet to the dealer service manager.Maintenance Schedule and Record34Maintenance:An investmentAn investment which will pay dividends in the form of improved reliability,durability,and resale value.To assure the durability of your vehicle and its emission control systems,it is necessary that scheduled maintenance be performed at the designated intervals.Ford strongly recommends the use of genuine Ford replacement parts.If other than Ford or Motorcraft parts or Ford authorized remanufactured parts are used for maintenance replacements or for the service of components affecting emission control,such non-Ford parts should be equivalent to genuine Ford Motor Company parts in performance and durability.It is the owner’s responsibility to determine the equivalency of such parts.Please consult your warranty booklet for complete warranty information.No Cost PCV Valve ReplacementTHE PCV VALVE IS A CRITICAL EMISSION COMPONENT.YOUR DEALER WILL REPLACE THE VALVE AT NO COST AT 60,000MILES/96,000KILOMETERS (EXCEPT CANADA AND CALIFORNIA VEHICLES).PRE-DELIVERY CHECKu Pre-Delivery Service InspectionCompletedWhat Maintenance Schedule Do You Follow?NormalScheduleFollow the Normal Schedule for most normal everyday driving conditions.Severe DutyScheduleFollow the Severe Duty Schedule if your driving habits FREQUENTLY include one or more of the following conditions:u Towing a trailer.u Operating in severe dust conditions.u Extensive idling,such as police,taxi or door-to-door delivery service.u Short trips of less than10miles(16km) when outside temperatures remain below0˚F (-18˚C).56Normal ScheduleNormal ScheduleNOTE:Items for Emission Control Service are shown in this type and style.For items marked with a number in parentheses such as (1),see footnote at the end of this section.NOTE:Rear axle lube quantities must be replaced every 100,000miles (160,000km)or if the axle has been submerged in water.Otherwise,the lube should not be checked or changed unless a leak is suspected or repair required.Regular Maintenance Intervals for the Normal Schedule 5,000MILES (8,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 5,000miles (8,000km).uRotate tires and adjust air pressure.Normal Schedule 710,000MILES (16,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 5,000miles(8,000km).15,000MILES (24,000Kilometers)u Change engine oil and replace oil filter.u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (24,000km)or 12months.u Adjust clutch by lifting pedal every 5,000miles (8,000km).u Rotate tires andadjust air pressure.20,000MILES (32,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 5,000miles(8,000km).8Normal Schedule 25,000MILES (40,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 5,000miles (8,000km).u Rotate tires andadjust air pressure.30,000MILES (48,000Kilometers)u Change engine oil and replace oil filter.u Replace air cleaner filter.u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (24,000km)or 12months.u Adjust clutch by lifting pedal every 5,000miles (8,000km).u Change automatic transmission fluid.u Inspect exhaustheat shield(s).Normal Schedule 935,000MILES (56,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 5,000miles (8,000km).uRotate tires and adjust air pressure.40,000MILES (64,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by liftingpedal every 5,000miles (8,000km).45,000MILES (72,000Kilometers)u Change engine oil and replace oil filter.u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (24,000km)or 12months.u Adjust clutch by lifting pedal every 5,000miles (8,000km).u Rotate tires and adjust air pressure.10Normal Schedule 50,000MILES (80,000Kilometers)u Change engine oil and replace oil filter.u Change engine coolant initially at 50,000miles (80,000km)or 48months.Thereafter,change engine coolant every 30,000miles (48,000km)or 36months.u Adjust clutch by lifting pedal every 5,000miles(8,000km).55,000MILES (88,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 5,000miles (8,000km).u Rotate tires and adjustair pressure.Normal Schedule 1160,000MILES (96,000Kilometers)u Change engine oil and replace oil filter.u Inspect accessory drive belts —3.8L and 4.6L (2V)engines only.u Replace air cleaner filter.u Replace PCV valve.(2)u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (24,000km)or 12months.u Adjust clutch by lifting pedal every 5,000miles (8,000km).u Change automatic transmission fluid.u Inspect exhaust heat shield(s).u Inspect front and rearbrakes.(1)65,000MILES (104,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 5,000miles (8,000km).u Rotate tires and adjustair pressure.12Normal Schedule 70,000MILES (112,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 5,000miles(8,000km).75,000MILES (120,000Kilometers)u Change engine oil and replace oil filter.u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (24,000km)or 12months.u Adjust clutch by lifting pedal every 5,000miles (8,000km).u Rotate tires and adjustair pressure.Normal Schedule 1380,000MILES (128,000Kilometers)u Change engine oil and replace oil filter.u Change engine coolant every 30,000miles (48,000km)or 36months.u Adjust clutch by lifting pedal every 5,000miles (8,000km).85,000MILES (136,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 5,000miles (8,000km).u Rotate tires andadjust air pressure.14Normal Schedule 90,000MILES (144,000Kilometers)u Change engine oil and replace oil filter.u Inspect accessory drive belts —3.8L and 4.6L (2V)engines only.u Replace air cleaner filter.u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (24,000km)or 12months.u Adjust clutch by lifting pedal every 5,000miles (8,000km).u Change automatic transmission fluid.u Inspect exhaust heat shield(s).u Inspect front and rearbrakes.(1)95,000MILES (152,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 5,000miles (8,000km).u Rotate tires and adjustair pressure.Normal Schedule 15100,000MILES (160,000Kilometers)u Change engine oil and replace oil filter.u Inspect accessory drive belt(s)—4.6L (4V)engines only.u Replace spark plugs.u Replace rear axle lubricant.u Adjust clutch by lifting pedal every 5,000miles(8,000km).105,000MILES (168,000Kilometers)u Change engine oil and replace oil filter.u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (24,000km)or 12months.u Adjust clutch by lifting pedal every 5,000miles (8,000km).u Rotate tires andadjust air pressure.16Normal Schedule 110,000MILES (176,000Kilometers)u Change engine oil and replace oil filter.u Change engine coolant every 30,000miles (48,000km)or 36months.u Adjust clutch by lifting pedal every 5,000miles (8,000km).115,000MILES (184,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 5,000miles (8,000km).u Rotate tires andadjust air pressure.Normal Schedule 17120,000MILES (192,000Kilometers)u Change engine oil and replace oil filter.u Inspect accessory drive belts —3.8L and 4.6L (2V)engines only.u Replace air cleaner filter.u Replace PCV valve.u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (24,000km)or 12months.u Check clutch pedal operation (if equipped).u Adjust clutch by lifting pedal every 5,000miles (8,000km).u Change automatic transmission fluid.u Inspect exhaust heat shield(s).u Inspect front and rear brakes.(1)(1)If your driving habits include continuous stop-and-godriving or driving in hilly areas,more frequent intervals may be required.(2)At 60,000miles (96,000km)your dealer will replace thePCV valve at no cost except on Canada and California vehicles.Severe Duty ScheduleNOTE:Items for Emission Control Service are shown in this type and style.For items marked with a number in parentheses such as(1),see footnote at the end of this section.NOTE:The Severe Duty Schedule provides maintenance intervals for replacingyour air cleaner filter if you drive insevere dust conditions.However,theconditions you drive in may requireeven more frequent air cleanerreplacement intervals than thoseshown.Check with your dealer. NOTE:Rear axle lube quantities must bereplaced every100,000miles(165,000km)or if the axle has beensubmerged in water.Otherwise,thelube should not be checked or changedunless a leak is suspected or repairrequired.18Severe Duty ScheduleSevere Duty Schedule 19Maintenance Intervals for Severe Duty Schedule 3,000MILES (5,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles(5,000km).6,000MILES (10,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Rotate tires andadjust air pressure.20Severe Duty Schedule 9,000MILES (15,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).12,000MILES (20,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles(5,000km).15,000MILES (25,000Kilometers)u Change engine oil and replace oil filter.u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (25,000km)or 12months.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Rotate tires and adjustair pressure.Severe Duty Schedule 2118,000MILES (30,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles(5,000km).21,000MILES (35,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Changeautomatic transmission fluid.24,000MILES (40,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Rotate tires andadjust air pressure.22Severe Duty Schedule 27,000MILES (45,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles(5,000km).30,000MILES (50,000Kilometers)u Change engine oil and replace oil filter.u Replace air cleaner filter.u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (25,000km)or 12months.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Inspect exhaust heat shield(s).u Inspect front and rearbrakes.(1)Severe Duty Schedule 2333,000MILES (55,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Rotate tires andadjust air pressure.36,000MILES (60,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).39,000MILES (65,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).24Severe Duty Schedule 42,000MILES (70,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Change automatic transmission fluid.u Rotate tires andadjust air pressure.45,000MILES (75,000Kilometers)u Change engine oil and replace oil filter.u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (25,000km)or 12months.u Adjust clutch by lifting pedal every 3,000miles(5,000km).Severe Duty Schedule 2548,000MILES (80,000Kilometers)u Change engine oil and replace oil filter.u Change engine coolant initially at 48,000miles (80,000km)or 48months.Thereafter,change engine coolant every 30,000miles (50,000km)or 36months.u Adjust clutch by lifting pedal every 3,000miles(5,000km).51,000MILES (85,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Rotate tires andadjust air pressure.54,000MILES (90,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles(5,000km).26Severe Duty Schedule 57,000MILES (95,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).60,000MILES (100,000Kilometers)u Change engine oil and replace oil filter.u Replace spark plugs.u Inspect accessory drive belts —3.8L and 4.6L (2V)engines only.u Replace air cleaner filter.u Replace PCV valve.(2)u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (25,000km)or 12months.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Inspect exhaust heat shield(s).u Inspect front and rear brakes.(1)u Rotate tires and adjustair pressure.Severe Duty Schedule 2763,000MILES (105,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Change automatictransmission fluid.66,000MILES (110,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).69,000MILES (115,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Rotate tires andadjust air pressure.28Severe Duty Schedule 72,000MILES (120,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles(5,000km).75,000MILES (125,000Kilometers)u Change engine oil and replace oil filter.u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (25,000km)or 12months.u Adjust clutch by lifting pedal every 3,000miles (5,000km).Severe Duty Schedule 2978,000MILES (130,000Kilometers)u Change engine oil and replace oil filter.u Change engine coolant every 30,000miles (50,000km)or 36months.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Rotate tires and adjustair pressure.81,000MILES (135,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles(5,000km).84,000MILES (140,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Change automatictransmission fluid.30Severe Duty Schedule 87,000MILES (145,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Rotate tires andadjust air pressure.90,000MILES (150,000Kilometers)u Change engine oil and replace oil filter.u Inspect accessory drive belts —3.8L and 4.6L (2V)engines only.u Replace air cleaner filter.u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (25,000km)or 12months.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Inspect exhaust heat shield(s).u Inspect front and rearbrakes.(1)Severe Duty Schedule 3193,000MILES (155,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles(5,000km).96,000MILES (160,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Rotate tires andadjust air pressure.99,000MILES (165,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).32Severe Duty Schedule 100,000MILES (165,000Kilometers)u Inspect accessory drive belt(s)—4.6L (4V)engine.uReplace rear axle lubricant.102,000MILES (170,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every3,000miles (5,000km).105,000MILES (175,000Kilometers)u Change engine oil and replace oil filter.u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (25,000km)or 12months.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Change automatic transmission fluid.uRotate tires and adjust air pressure.Severe Duty Schedule 33108,000MILES (180,000Kilometers)u Change engine oil and replace oil filter.u Change engine coolant every 30,000miles (50,000km)or 36months.u Adjust clutch by lifting pedal every 3,000miles(5,000km).111,000MILES (185,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).114,000MILES (190,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Rotate tires and adjust air pressure.34Severe Duty Schedule 117,000MILES (195,000Kilometers)u Change engine oil and replace oil filter.u Adjust clutch by lifting pedal every 3,000miles (5,000km).120,000MILES (200,000Kilometers)u Change engine oil and replace oil filter.u Replace spark plug.u Inspect accessory drive belts —3.8L and 4.6L (2V)engines only.u Replace air cleaner filter.u Replace PCV valve.u Inspect engine cooling system,hoses,and clamps;and check coolant strength every 15,000miles (25,000km)or 12months.u Adjust clutch by lifting pedal every 3,000miles (5,000km).u Inspect exhaust heat shield(s).uInspect front and rear brakes.(1)(1)If your driving habits include continuous stop-and-godriving or driving in hilly areas,more frequent intervals may be required.(2)At60,000miles(96,000km)your dealer will replace thePCV valve at no cost except on Canada and Californiavehicles.Severe Duty Schedule35Owner Maintenance ChecksThe following lists are vehicle checks and inspections that should be performed by the owner or qualified service technician at the frequencies indicated to help ensure safe, dependable operation of your vehicle.Any adverse conditions should be brought to the attention of your dealer or qualified service technician for service advice as soon as possible. These Owner Maintenance Checks are generally not covered by warranties and you may be charged for labor,parts and lubricants used.When You Stop for Fuel:u Check the engine oil level.u Check coolant level in the coolant recovery reservoir.u Check the windshield washer fluid level.u Look for low or under-inflated tires.36Owner Maintenance ChecksWhile Operating Your Vehicle:u Note any changes in the sound of the exhaust or any smell of exhaust fumes in the vehicle. u Check for vibrations in the steering wheel.Notice any increased steering effort orlooseness in the steering wheel.u Notice if your vehicle constantly turns slightly or“pulls”to one side of the road.u When stopping,listen and check for strange sounds,pulling to one side,increased brake pedal travel or“hard to push”brake pedal.u If any slipping or changes in the operation of your transmission occur,check thetransmission fluid level.u Check automatic transmission P(Park) function.u Check parking brake.u Check for fluid leaks under your vehicle (water dripping from the air conditioningsystem after use is normal).u Check warning lights and gauges.At least monthly:u Check the tire pressure—check tires when cold,not after a long drive.u Check coolant level in the coolant recovery reservoir.u Check the operation of all exterior lamps, including the brakelamps,turn signals andhazard warning flashers.Owner Maintenance Checks37At least twice a year:(i.e.,every Spring and Fall)u Check radiator,heater and air-conditioning hoses for leaks or damage.u Check the power steering fluid level.u Check windshield washer spray and wiper operation.Clean wiper blades with cleancloth dampened with washer fluid.u Check for worn tires and loose wheel lug nuts.u Check muffler,exhaust pipes,shields and clamps.u Check headlamp alignment.u Check the lap-shoulder belts for wear and function.u Check air pressure in spare tire.u Lubricate all hinges,checks,latches and all outside key locks.38Owner Maintenance ChecksAt least once a year:u Check engine cooling system,hoses and clamps and check coolant strength.u Lubricate door rubber weatherstrips.u Clean the body water drain holes.u Check the air conditioning system before the warm weather season.u Check the brake fluid level.u Clean the battery connections.u Lubricate the transmission controls and linkage.u Check manual transmission fluid.If any of these conditions are noted,bring them to the attention of your dealer or qualified service technician as soon as possible.Owner Maintenance Checks39。

303-13 燃油蒸发排放适用车型: 2003.50 嘉年华目录页码说明与操作燃油蒸发排放 ..................................................................................................................... 303-13-2诊断和测试燃油蒸发排放 ..................................................................................................................... 303-13-4检查与确认 ........................................................................................................................ 303-13-4拆卸和安装燃油蒸发排放净化碳罐..................................................................................... (29 250 0) 303-13-5燃油蒸发排放净化碳罐放气阀........................................................................... (33 772 0) 303-13-6说明与操作燃油蒸发排放说明与操作 (续)一组由塑料管和橡胶软管组成的混合管路将燃油箱、燃油蒸发净化碳罐、燃油蒸发碳罐放气阀、进气歧管连接起来组成燃油蒸发排放系统。

其功能是减少来自燃油箱的碳氢化合物的排放。

当燃油蒸发碳罐放气阀关闭（常态）时，燃油箱中的燃油蒸气进入并被吸附在燃油蒸发净化碳罐中而不会释放到大气中。
