振动式物理治疗仪操作说明
【适用范围】
协助手术后或体弱患者增强排除痰液能力并改善瘀滞的肺部血液循环状况 【禁忌症】
1、肺结核、气胸、肺肿瘤和胸壁疾病；肺脓肿和胸壁感染症状；感染部位；出血部位或可能出血部位；恶性肿瘤部位；血栓性静脉炎或淋巴结炎；心脏部位；静脉曲张；不能耐受震动的病人
2、支气管或肺实质感染合并多痰病人慎用 【操作流程】
【注意事项】
1、进食半小时内不可进行治疗
2、使用时留意仪器表面的各种指（警）示，确保操作人员安全和仪器正常工作
3、使用或备用时不可弯折动力管，以免动力管爆裂或损坏
4、运行过程中，如需调整时间、速度，必须先按“启动/暂停”键，待调整
将治疗仪固定放置，接通电源
开机，检查并
确认工作正常
选择合适的叩击头
更换叩击套
点击“启动/暂停”键
握住动力头，将叩击头放置于患儿治疗部位
操作完毕 关机
由下而上、由外向内叩击
整理、清洁治疗仪，放回指定位置
确认叩击强度、方向无异
常
完毕方可继续治疗。
如需终止操作，请按“停止”键，不可直接拔除电源。
5、在仪器周围应留有20cm以上的空间，方便仪器正常散热
6、仪器维护或维修前，必须先切断电源
7、振动式物理治疗仪使用中出现故障，应立即检查原因，同时通知设备科检修，已坏或有故障的仪器不得出现在固定位置。
【故障处理】
2016.1。

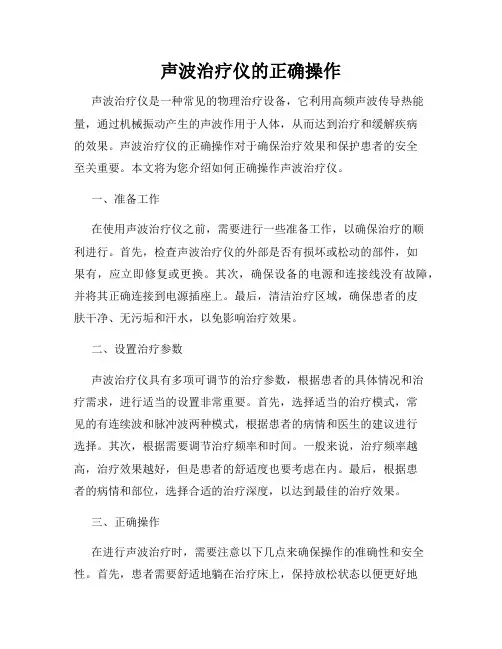

声波治疗仪的正确操作声波治疗仪是一种常见的物理治疗设备，它利用高频声波传导热能量，通过机械振动产生的声波作用于人体，从而达到治疗和缓解疾病的效果。
声波治疗仪的正确操作对于确保治疗效果和保护患者的安全至关重要。
本文将为您介绍如何正确操作声波治疗仪。
一、准备工作在使用声波治疗仪之前，需要进行一些准备工作，以确保治疗的顺利进行。
首先，检查声波治疗仪的外部是否有损坏或松动的部件，如果有，应立即修复或更换。
其次，确保设备的电源和连接线没有故障，并将其正确连接到电源插座上。
最后，清洁治疗区域，确保患者的皮肤干净、无污垢和汗水，以免影响治疗效果。
二、设置治疗参数声波治疗仪具有多项可调节的治疗参数，根据患者的具体情况和治疗需求，进行适当的设置非常重要。
首先，选择适当的治疗模式，常见的有连续波和脉冲波两种模式，根据患者的病情和医生的建议进行选择。
其次，根据需要调节治疗频率和时间。
一般来说，治疗频率越高，治疗效果越好，但是患者的舒适度也要考虑在内。
最后，根据患者的病情和部位，选择合适的治疗深度，以达到最佳的治疗效果。
三、正确操作在进行声波治疗时，需要注意以下几点来确保操作的准确性和安全性。
首先，患者需要舒适地躺在治疗床上，保持放松状态以便更好地接受治疗。
其次，将声波治疗仪的振头或探头正确地贴在患者的治疗部位上，确保与患者的皮肤贴合良好，没有间隙。
同时，可以使用适当的导电剂来改善声波的传导效果，提高治疗效果。
在治疗过程中，医生或操作人员需要保持轻柔的手法，避免过度施力或挤压患者的皮肤。
四、注意事项在操作声波治疗仪时，还需要注意以下几点以保证患者的安全和治疗效果。
首先，治疗过程中应密切观察患者的反应，如出现不适或疼痛感，应立即停止治疗并与医生进行沟通。
其次，避免在患者眼睛和颈部等敏感部位使用声波治疗仪，以免对患者的健康造成影响。
另外，对于孕妇、心脏病患者和具有血液循环系统疾病的患者，使用声波治疗仪需谨慎，并根据医生的指导进行操作。
振动仪的使用教程振动仪作为一种用于测量物体振动情况的仪器，被广泛应用于工业、科研等领域。
它可以帮助我们了解物体的振动频率、振幅等重要参数，进而为我们提供有效的数据支持和分析结果。
本文将介绍振动仪的使用方法，并提供一些使用技巧。
I. 振动仪的基本构造和工作原理振动仪大致分为三个主要组成部分：传感器、信号放大器和数据记录器。
传感器负责捕捉物体的振动信号，并将其转化为电信号；信号放大器将传感器输出的微弱电信号放大，以便于后续的数据处理和分析；数据记录器则用于存储和展示振动信号。
换句话说，振动仪所实现的基本原理是将物体的振动信号转化为电信号，然后通过放大和记录这些电信号来分析和研究物体的振动。
II. 振动仪的使用步骤1. 准备工作：在使用振动仪之前，我们需要先检查仪器的状态。
确认传感器是否完好无损，检查电池电量，同时确保数据记录器和电源连接良好。
2. 放置传感器：传感器的放置位置对于振动信号的捕捉至关重要。
首先，选择合适的测点，通常是物体表面最可能发生振动的位置。
然后，使用传感器底部的吸盘将其固定在测点上，以确保传感器能够稳定地接触到物体表面。
3. 调整参数：振动仪通常具有一些可调参数，如采样频率、测量范围等。
我们可以根据实际需要进行相应的调整。
较高的采样频率可以提供更准确的数据，但也会增加数据处理的难度和存储要求。
4. 开始测量：在完成上述准备工作后，我们可以按下仪器上相应的开始按钮，进入测量状态。
此时，振动仪将开始记录振动信号。
5. 数据分析：测量完成后，我们可以通过数据记录器上的屏幕或连接电脑进行数据读取和分析。
常见的分析方法包括时域分析、频域分析等。
时域分析主要关注信号的时间特性，频域分析则注重振动信号在不同频率上的分布。
III. 使用技巧和注意事项1. 合理设置采样频率：采样频率过低会导致数据丢失，而过高的采样频率则会导致数据冗余和存储困难。
因此，我们应根据所测振动的特性和信号的频率范围来合理设置采样频率。
振动仪操作流程振动仪是一种用于测量和监测振动信号的仪器，广泛应用于机械设备运行状态的监测与分析。
本文将详细介绍振动仪的操作流程，包括准备工作、操作步骤和注意事项。
一、准备工作1. 确定振动仪的类型和型号，并阅读相应的操作说明书，了解仪器的特点和使用方法。
2. 检查振动仪的连接线是否完好，并确保仪器的电源充足。
3. 确保测量对象已停止运行，并进行必要的安全防护工作，例如戴好安全帽和手套等。
二、操作步骤1. 将振动仪与测量对象相连接。
根据具体情况，可以将传感器固定在测量对象上或者采用手持式传感器进行测量。
2. 打开振动仪的电源，并进行启动自检。
根据仪器自带的说明书，查看参数设置和界面设置是否满足需要。
3. 设置测量参数。
根据实际需求，选择合适的采样频率、测量范围和时间间隔等参数。
4. 开始振动测量。
点击开始按钮或者按下相应的测量键，开始记录振动信号数据。
5. 结束振动测量。
根据实际需求，设定合适的测量时间或者通过仪器的自动停止功能结束测量。
6. 停止振动仪的记录功能，并保存测量数据。
根据仪器的要求，将数据保存到内部存储器或者连接电脑进行数据传输。
7. 分析振动数据。
将保存的测量数据导入专业的分析软件中，进行振动信号的频谱分析、周期图分析等，以获取更详细的振动信息。
三、注意事项1. 在操作振动仪之前，必须了解测量对象的特点和振动信号的特征，以便正确设置测量参数。
2. 振动仪应放置在稳定的位置上，避免受到外界的振动干扰。
3. 使用振动仪过程中，应注意保护传感器，避免受到外力撞击或者弯曲。
4. 在操作振动仪时，应戴好防护手套和安全帽等个人防护装备，确保人员安全。
5. 仔细阅读仪器的操作说明书，了解每个功能的使用方法和注意事项。
6. 定期进行振动仪的维护和校准工作，确保仪器的准确性和稳定性。
总结：本文介绍了振动仪的操作流程，包括准备工作、操作步骤和注意事项。
在使用振动仪进行测量之前，用户应了解振动仪的特点和使用方法，并进行必要的安全防护工作。
