SHARP PC357 光耦芯片

产品规格书SPECIFICATION产品名称：光敏晶体管输出型光耦合器DESCRIPTION:Photo-transistor Output Opto-coupler产品型号：HPC357×PART NO.：HPC357×电话Tel ：86-0592-*******传真Fax ：86-0592-*******网址Web ：地址：厦门市翔安区舫阳南路189号Add ：No.189,Fangyang South Road,Xiangan District,Xiamen China.拟制Prepared 审核Verified 批准Approved厦门华联电子股份有限公司Xiamen Hualian Electronics Corp.,Ltd.1概述GeneralHPC357×是光敏晶体管输出型光耦合器，将红外LED芯片和光敏晶体管芯片封装在一起，以实现电一光一电转换。

The HPC357×is Photo-transistor Output Opto-coupler,that infrared LED chip andPhoto-transistor chip are assembled on lead frame,in order to change theelectricity-light-electricity.图1产品Figure1-Product 2特点Features●光敏晶体管输出Phototransistor output●输入、输出端之间绝缘电压高Isolation voltage between input and output VISO≥3750Vrms●双列贴片式4L塑料封装SOP4L Plastic Package●UL安全认证Safety certification of UL●VDE安全认证Safety certification of VDE●符合RoHS指令最新要求及REACH法规最新要求。

_________________________________概述MAX3570/MAX3571/MAX3573低成本、宽带、两次变频调谐器芯片设计用于数字电视接收机。

每款芯片集成了所有必需的射频功能模块，其中包括一个集成的高中频滤波器、全集成VCO、中频VGA。

工作频率范围从50MHz 至878MHz，同时提供超过60dB的RF及IF可控增益范围。

MAX3570/MAX3571具有以44MHz为中心的中频频率，而MAX3573具有以36MHz为中心的中频输出。

这三款芯片都包括了可变增益射频前端，噪声系数仅为8dB。

双频合成器产生两个本振(LO)频率，提供优异的相位噪声性能，在10kHz频偏时相位噪声为-86dBc/Hz。

集成的高中频(HI-IF)滤波器有55dBc (典型值)的镜像抑制。

仅需要一个中频SAW滤波器、无源环路滤波器和晶体振荡器即可构建完整的单芯片调谐器。

MAX3570芯片编程和配置由3线串行接口完成，而MAX3571/MAX3573芯片编程和配置由2线串行接口完成。

MAX3570/MAX3571/MAX3573采用48引脚QFN-EP封装，可工作于商业温度范围(0°C 至+70°C)。

_________________________________应用DVB-C数字电视接收机ATSC数字电视接收机有线电视调制解调器DOCSIS/EURO DOCSIS调制解调器ITU J.83数字机顶盒___________________________________特性♦全集成HI-IF滤波器♦全集成VCO，无需外部元器件和走线。

♦8dB低噪声系数♦高线性—大于54dBc, CSO, CTB, X-MOD。

♦业界最小的封装♦优异的相位噪声，可用于256-QAM、8-VSB和COFDM。

MAX3570/MAX3571/MAX3573高中频(HI-IF)单片宽带调谐器________________________________________________________________Maxim Integrated Products1_____________________引脚排列和功能框图______________________________定购信息*EP = 裸露焊盘。

pc357光耦参数摘要：1.PC357 光耦概述2.PC357 光耦参数列表3.PC357 光耦参数详解3.1 输入参数3.2 输出参数3.3 其他参数4.PC357 光耦参数应用实例5.PC357 光耦参数总结正文：【PC357 光耦概述】PC357 是一款光电耦合器，它是由发光二极管、光敏三极管以及相应的驱动和接收电路组成的。

光电耦合器具有电气绝缘、抗干扰能力强、传输信号速度快等特点，广泛应用于数字电路、模拟电路、功率驱动等领域。

【PC357 光耦参数列表】以下是PC357 光耦的主要参数：- 输入参数：IF=10mA，VCEO=3.0V，VCC=5.0V- 输出参数：IOH=100mA，VCOL=2.0V，VCC=5.0V- 其他参数：传输速率=100kbps，响应时间=500ns，电源电压范围=3.0-5.5V，工作温度范围=-40°C 至+85°C【PC357 光耦参数详解】【3.1 输入参数】- IF：输入电流，表示光电耦合器正常工作时所需的最小电流，PC357 的IF 为10mA。

- VCEO：发射极开路电压，表示光电耦合器正常工作时，发射极与集电极之间的电压，PC357 的VCEO 为3.0V。

- VCC：电源电压，表示光电耦合器正常工作时所需的电源电压，PC357 的VCC 为5.0V。

【3.2 输出参数】- IOH：输出电流，表示光电耦合器正常工作时所能提供的最大输出电流，PC357 的IOH 为100mA。

- VCOL：集电极开路电压，表示光电耦合器正常工作时，集电极与发射极之间的电压，PC357 的VCOL 为2.0V。

- VCC：电源电压，表示光电耦合器正常工作时所需的电源电压，PC357 的VCC 为5.0V。

【3.3 其他参数】- 传输速率：表示光电耦合器传输信号的速度，PC357 的传输速率为100kbps。

- 响应时间：表示光电耦合器接收到输入信号后输出信号的反应速度，PC357 的响应时间为500ns。

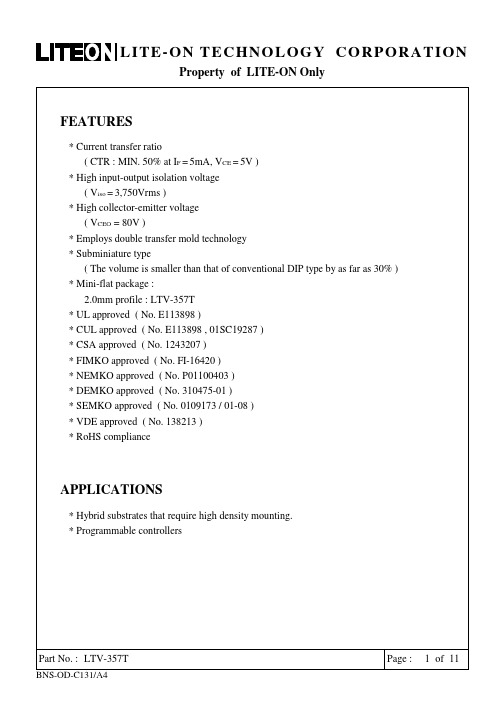

FEATURES* Current transfer ratio( CTR : MIN. 50% at I F =5mA, V CE =5V )* High input-output isolation voltage( V iso =3,750Vrms )* High collector-emitter voltage( V CEO = 80V )* Employs double transfer mold technology* Subminiature type( The volume is smaller than that of conventional DIP type by as far as 30% ) * Mini-flat package :2.0mm profile : LTV-357T* UL approved ( No. E113898 )* CUL approved ( No. E113898 , 01SC19287 )* CSA approved ( No. 1243207 )* FIMKO approved ( No. FI-16420 )* NEMKO approved ( No. P0******* )* DEMKO approved ( No. 310475-01 )* SEMKO approved ( No. 0109173 / 01-08 )* VDE approved ( No. 138213 )* RoHS complianceAPPLICATIONS* Hybrid substrates that require high density mounting.* Programmable controllersABSOLUTE MAXIMUM RATING( Ta = 25°C ) PARAMETER SYMBOL RATING UNITForward Current I F50 mA INPUTReverse Voltage V R 6 VPower Dissipation P 70 mWCollector - Emitter Voltage V CEO80 VEmitter - Collector Voltage V ECO 6 V OUTPUTCollector Current I C50 mACollector Power Dissipation P C150 mW Total Power Dissipation P tot170 mW*1 Isolation Voltage V iso3,750 Vrms Operating Temperature T opr-55 ~ +110 °CStorage Temperature T stg-55 ~ +150 °C*2 Soldering Temperature T sol260 °C Junction Temperature Tj 125 °C*1. AC For 1 Minute, R.H. = 40 ~ 60%Isolation voltage shall be measured using the following method.(1) Short between anode and cathode on the primary side and between collector andemitter on the secondary side.(2) The isolation voltage tester with zero-cross circuit shall be used.(3) The waveform of applied voltage shall be a sine wave.*2. For 10 SecondsRANK TABLE OF CURRENT TRANSFER RATIO CTRMODEL NO. RANK MARK CTR ( % )A 80 ~ 160B 130 ~ 260C 200 ~ 400D 300 ~ 600E 50 ~ 150F 100 ~ 300LTV-357TA orB orC orD or No mark 50 ~ 600CONDITIONS I F = 5 mA V CE = 5 V Ta = 25 °Ctr Fig.9 Collector Dark Current vs.Ambient TemperatureFig.10 Response Time vs. LoadFig.11 Frequency Response 0C E Ambient temperature Ta ( C)Ambient temperature Ta ( C)Ambient temperature Ta ( C)Frequency f (kHz)e ( s )R e l a t i v e c u r r e n t t r a n s f e r r a t i o (%)V o l t a g e g a i n A v (d B )C o l l e c t o r -e m i t t e r s a t u r a t i o n v o l t a g e V (s a t ) (V )ooooo2040608010050100150 020408010020406080100501002005000.52010210100500Resistance0.020.040.060.080.1015205060C o l l e c t o r d a r k c u r r e n t I C E O (n A )V CE =20VI F =5mA V CE =2V I F =20mA I C =1mA V CE =2V I C =2mA Ta=25 CR L =10k Ω1k Ω100ΩV CE =2V I C =2mA Ta=25 C1101000010001000Ambient temperature T a ( C)R e l a t i v e c u r r e n t t r a n s f e r r a t i o (%)o2040608010050100150I F =5mAV CE =2VC E Ambient temperature Ta ( C)V (s a t ) (V )o2040801000.020.040.060.080.1060I F =20mAI C =1mATEMPERATURE PROFILE OF SOLDERING REFLOW(1)One time soldering reflow is recommended within the condition of temperature and timeprofile shown below.LITE-ON TECHNOLOGY CORPORATIONProperty of LITE-ON OnlyTEMPERATURE PROFILE OF SOLDERING REFLOW - Lite-On is continually improving the quality, reliability, function or design andLite-On reserves the right to make changes without further notices.- The products shown in this publication are designed for the general use in electronicapplications such as office automation equipment, communications devices,audio/visual equipment, electrical application and instrumentation.- For equipment/devices where high reliability or safety is required, such as spaceapplications, nuclear power control equipment, medical equipment, etc, pleasecontact our sales representatives.- When requiring a device for any ”specific” application, please contact our sales inadvice.- If there are any questions about the contents of this publication, please contact us atyour convenience.- The contents described herein are subject to change without prior notice.Do not immerse unit’s body in solder paste.Part No. :LTV-357T Page :11 of 11 BNS-OD-C131/A4。
