2-382882-3 Product Details
Home | Customer Support | Suppliers | Site Map | Privacy Policy | Browser Support
© 2008 Tyco Electronics Corporation All Rights Reserved Search
Products Documentation Resources My Account Customer Support Home > Products > By Type > Socket/Card Products > Product Feature Selector > Product Details
2-382882-3
Active DIP Sockets
Always EU RoHS/ELV Compliant (Statement of Compliance)
Product Highlights:
?DIP Socket
?Number of Positions = 6
?Row-to-Row Spacing = 7.87 mm
?Thru Hole
?Mount Style = Vertical
View all Features | Find Similar
Products
Check Pricing &
Availability
Search for Tooling
Product Feature
Selector
Contact Us About
This Product
Quick Links
Documentation & Additional Information
Product Drawings:
?SOCKET ASSY, DIP, 6 POS, DIPLOMATE DL(PDF, English)
Catalog Pages/Data Sheets:
?None Available
Product Specifications:
?None Available
Application Specifications:
?DIPLOMATE DL (Dual Leaf) DIP Sockets(PDF, English)
?Diplomate DL (Dual-Leaf) Dip Socket(PDF, English)
Instruction Sheets:
?None Available
CAD Files:
?None Available
List all Documents Additional Information:
?Product Line Information
Related Products:
?Tooling
Product Features (Please use the Product Drawing for all design activity)
Product Type Features:
?Product Type = DIP Socket
?Number of Positions = 6
?Profile = Standard
?Frame Style = Ladder
?Leg Style = Straight
?Proprietary Name = DIPLOMATE DL
?Color = Black
?Product Series = Standard
Electrical Characteristics:
?Insulation Resistance (M?) = 10,000
?Contact Resistance (m?) = 30
Termination Related Features:
?Termination (Solder) Post Length (mm [in]) =
3.25 [0.128]
Body Related Features:
?Row-to-Row Spacing (mm [in]) = 7.87 [0.310]
?Mount Style = Vertical
?Centerline (mm [in]) = 2.54 [0.100]
Contact Related Features:
?Contact Mount = Thru Hole
?Contact Material = Phosphor Bronze
?Contact Mating Area Plating = Tin
?Contact Style = Stamped + Formed
?Mating Contact Type = Dual Leaf Housing Related Features:
?Housing Material = Thermoplastic Glass
Reinforced
?Housing Flammability Rating = UL 94V-0 Configuration Related Features:
?Height Above PC Board (mm [in]) = 5.33
[0.210]
Industry Standards:
?RoHS/ELV Compliance = RoHS compliant, ELV
compliant
?Lead Free Solder Processes = Wave solder
capable to 240°C
?RoHS/ELV Compliance History = Always was
RoHS compliant
Conditions for Usage:
?Temperature Range (°C) = 105
Operation/Application:
?Application = Production
Packaging Related Features:
?Packaging Method = Tube
Other:
?Brand = AMP
Provide Website Feedback | Contact Customer Support。

合集下载

1952238资料

1952238资料

Extract from the onlinecatalogMCDNV 1,5/ 9-G1-3,5 RNP26THROrder No.: 1952238The figure shows a 10-position version of the producthttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1952238Headers with engagement nose, 3.5 mm pitch, pin length 2.6 mm, plug-in direction vertical to the PCBhttp://Please note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads. Technical dataDimensions / positionsLength16 mmHeight13.3 mmPitch 3.5 mmDimension a28 mmNumber of positions9Pin dimensions0,8 x 0,8 mm Pin spacing 3.5 mmHole diameter 1.4 mmTechnical dataInsulating material group IIIaRated surge voltage (III/3) 2.5 kVRated surge voltage (III/2) 2.5 kVRated surge voltage (II/2) 2.5 kVRated voltage (III/2)200 VRated voltage (II/2)250 VNominal current I N8 ANominal voltage U N160 V Maximum load current8 A (per position) Insulating material LCP Inflammability class acc. to UL 94V0Certificates / ApprovalsApproval logoCULNominal voltage U N150 VNominal current I N8 AULNominal voltage U N150 VNominal current I N8 A Certification CUL, ULAccessoriesItem Designation DescriptionMarking0805030SK 3,5/2,8:SO Marker card, special printing, self-adhesive, labeled acc. tocustomer requirements, 14 identical marker strips per card, max.25-position labeling per strip, color: White0804109SK 3,81/2,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 10-section markerstrip, 14 identical decades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for 140 terminal blocksPlug/Adapter1734634CP-MSTB Coding profile, is inserted into the slot on the plug or invertedheader, red insulating materialDrawingsDrilling diagramDimensioned drawingAddressPHOENIX CONTACT GmbH & Co. KGFlachsmarktstr. 832825 Blomberg,GermanyPhone +49 5235 3 00Fax +49 5235 3 41200http://www.phoenixcontact.de© 2008 Phoenix ContactTechnical modifications reserved;。

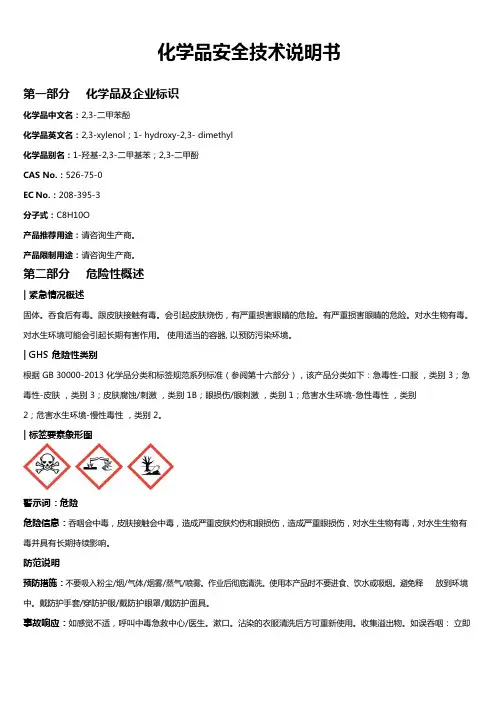

2,3-二甲苯酚安全技术说明书MSDS

2,3-二甲苯酚安全技术说明书MSDS

化学品安全技术说明书第一部分化学品及企业标识化学品中文名：2,3-二甲苯酚化学品英文名：2,3-xylenol；1- hydroxy-2,3- dimethyl化学品别名：1-羟基-2,3-二甲基苯；2,3-二甲酚CAS No.：526-75-0EC No.：208-395-3分子式：C8H10O产品推荐用途：请咨询生产商。

产品限制用途：请咨询生产商。

第二部分危险性概述| 紧急情况概述固体。

吞食后有毒。

跟皮肤接触有毒。

会引起皮肤烧伤，有严重损害眼睛的危险。

有严重损害眼睛的危险。

对水生物有毒。

对水生环境可能会引起长期有害作用。

使用适当的容器, 以预防污染环境。

| GHS 危险性类别根据 GB 30000-2013 化学品分类和标签规范系列标准（参阅第十六部分），该产品分类如下：急毒性-口服，类别 3；急毒性-皮肤，类别 3；皮肤腐蚀/刺激，类别 1B；眼损伤/眼刺激，类别 1；危害水生环境-急性毒性，类别2；危害水生环境-慢性毒性，类别 2。

| 标签要素象形图警示词：危险危险信息：吞咽会中毒，皮肤接触会中毒，造成严重皮肤灼伤和眼损伤，造成严重眼损伤，对水生生物有毒，对水生生物有毒并具有长期持续影响。

防范说明预防措施：不要吸入粉尘/烟/气体/烟雾/蒸气/喷雾。

作业后彻底清洗。

使用本产品时不要进食、饮水或吸烟。

避免释放到环境中。

戴防护手套/穿防护服/戴防护眼罩/戴防护面具。

事故响应：如感觉不适，呼叫中毒急救中心/医生。

漱口。

沾染的衣服清洗后方可重新使用。

收集溢出物。

如误吞咽：立即呼叫中毒急救中心/医生。

如误吸入：将受人转移到空气新鲜处，保持呼吸舒适的体位。

立即脱掉所有沾染的衣服，清洗后方可重新使用。

如误吞咽：漱口。

不要诱导呕吐。

如皮肤(或头发)沾染：立即去除/脱掉所有沾染的衣服。

用水清洗皮肤或淋浴。

如进入眼睛：用水小心冲洗几分钟。

如戴隐形眼镜并可方便地取出，取出隐形眼镜。

继续冲洗。

安全储存：存放处须加锁。

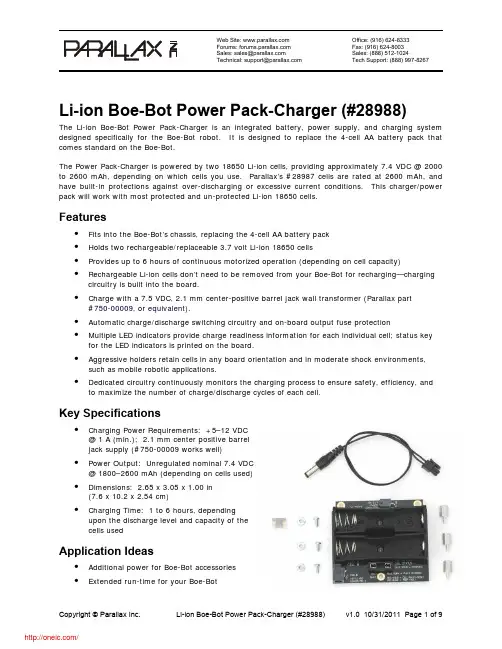

28988;中文规格书,Datasheet资料

28988;中文规格书,Datasheet资料


Application Ideas Additional power for Boe-Bot accessories Extended run-time for your Boe-Bot
Copyright © Parallax Inc. / Li-ion Boe-Bot Power Pack-Charger (#28988) v1.0 10/31/2011 Page 1 of 9
Packing List (1) Li-ion Boe-Bot Power-Pack / Charger – 2 Cell PCB, 2.63 in x 3.0 in (6.7 cm x 7.6 cm) (1) Li-ion Battery Cable (#802-00020) (2) 2-amp fuses; 1 pre-installed, 1 spare (#452-00065) (3) Hex Aluminum F/M standoffs (#713-00024) (3) #4-40 x ¼” pan head screws (#700-00028) (3) #4-40 hex nuts (#700-00003 Additional Items Required (2) Li-ion 18650-size cells (#28987 or similar) +5 to +12 VDC power supply, center positive, + 2.1 mm barrel jack (#750-00009 or equiv.) Safety glasses Small Phillips screwdriver Needle-nose pliers Multi-meter (VOM) Assembly Instructions

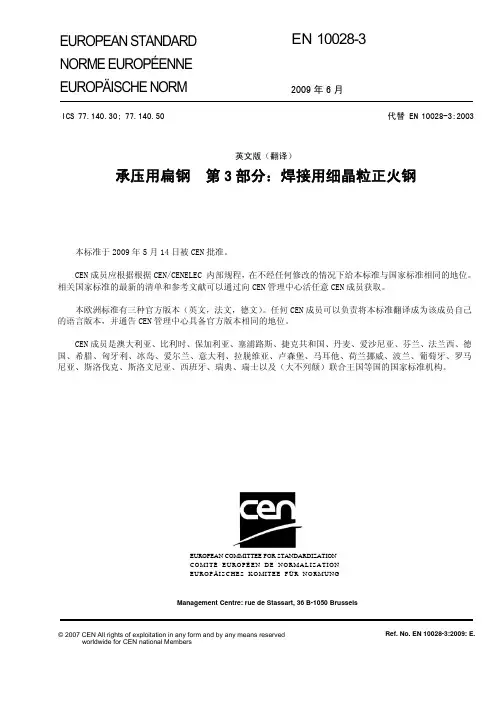

EN10028.3-2009承压用扁钢 第3部分_焊接用细晶粒正火钢.pdf (416KB)中文
