DUAL HIGH OUTPUT CURRENT OPERATIONAL AMPLIFIER
SEMICONDUCTOR TECHNICAL DATA
8 1
8 1Leabharlann • • • • • • •
D SUFFIX PLASTIC PACKAGE CASE 751 (SO–8)
P1 SUFFIX PLASTIC PACKAGE CASE 626
ORDERING INFORMATION
Device VEE MC33076D MC33076P1 MC33076P2 Operating Temperature Range TA = – 40° to + 85°C Package SO–8 Plastic DIP Power Plastic
Rev 0
元器件交易网
Order this document by MC33076/D
MC33076
Dual High Output Current, Low Power, Low Noise Bipolar Operational Amplifier
The MC33076 operational amplifier employs bipolar technology with innovative high performance concepts for audio and industrial applications. This device uses high frequency PNP input transistors to improve frequency response. In addition, the amplifier provides high output current drive capability while minimizing the drain current. The all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source and sink AC frequency performance. The MC33076 is tested over the automotive temperature range and is available in an 8–pin SOIC package (D suffix) and in both the standard 8 pin DIP and 16–pin DIP packages for high power applications. • 100 Ω Output Drive Capability
Characteristics Output Short Circuit Current (VID = ±1.0 V Output to Gnd) (VCC = +15 V, VEE = –15 V) Source Sink (VCC = +2.5 V, VEE = –2.5 V) Source Sink Power Supply Current per Amplifier (VO = 0 V) (VS = ±2.5 V to ±15 V) TA = +25°C TA = –40° to +85°C Figure 12, 13 Symbol ISC 190 — 63 — 14 ID — — 2.2 — 2.8 3.3 +250 –280 +94 –80 — –215 — –46 mA Min Typ Max Unit mA
NOTES: 1. Either or both input voltages should not exceed VCC or VEE. 2. Power dissipation must be considered to ensure maximum junction temperature (TJ) is not exceeded (see power dissipation performance characteristic, Figure 1). See applications section for further information.
© Motorola, Inc. 1996
MOTOROLA ANALOG IC DEVICE DATA
1
元器件交易网
MC33076
MAXIMUM RATINGS
Rating Power Supply Voltage (Note 2) Input Differential Voltage Range Input Voltage Range Output Short Circuit Duration (Note 2) Maximum Junction Temperature Storage Temperature Maximum Power Dissipation Symbol VCC to VEE VIDR VIR tSC TJ Tstg PD Value +36 (Note 1) (Note 1) 5.0 +150 –60 to +150 (Note 2) Unit V V V sec °C °C mW
Large Output Voltage Swing Low Total Harmonic Distortion High Gain Bandwidth: 7.4 MHz High Slew Rate: 2.6 V/µs Dual Supply Operation: ±2.0 V to ±18 V High Output Current: ISC = 250 mA typ Similar Performance to MC33178
DC ELECTRICAL CHARACTERICISTICS (VCC = +15 V, VEE = –15 V, TA = 25°C, unless otherwise noted.)
Characteristics Input Offset Voltage (RS = 50 Ω, VCM = 0 V) (VS = ±2.5 V to ±15 V) TA = +25°C TA = –40° to +85°C Input Offset Voltage Temperature Coefficient (RS = 50 Ω, VCM = 0 V) TA = –40° to +85°C Input Bias Current (VCM = 0 V) TA = +25°C TA = –40° to +85°C Input Offset Current (VCM = 0 V) TA = +25°C TA = –40° to +85°C Common Mode Input Voltage Range Large Signal Voltage Gain (VO = –10 V to +10 V) (TA = +25°C) RL = 100 Ω RL = 600 Ω (TA = –40° to +85°C) RL = 600 Ω Output Voltage Swing (VID = ±1.0 V) (VCC = +15 V, VEE = –15 V) RL = 100 Ω RL = 100 Ω RL = 600 Ω RL = 600 Ω (VCC = +2.5 V, VEE = –2.5 V) RL = 100 Ω RL = 100 Ω Common Mode Rejection (Vin = ±13 V) Power Supply Rejection (VCC/VEE = +15 V/–15 V, +5.0 V/–15 V, +15 V/–5.0 V) 5 6 3, 4 Figure 2 Symbol |VIO| — — ∆VIO/∆T — IIB — — |IIO| — — VICR AVOL 25 50 25 7, 8, 9 VO+ VO– VO+ VO– VO+ VO– 10 11 CMR PSR 80 120 — 10 — 13 — 1.2 — 80 +11.7 –11.7 +13.8 –13.8 +1.66 –1.74 116 — –10 — –13 — –1.2 — dB dB — 200 — — — — V –13 5.0 — –14 +14 70 100 V 13 kV/V 100 — 500 600 nA 2.0 — nA 0.5 0.5 4.0 5.0 µV/°C Min Typ Max Unit mV
2
MOTOROLA ANALOG IC DEVICE DATA
元器件交易网
MC33076
DC ELECTRICAL CHARACTERICISTICS (VCC = +15 V, VEE = –15 V, TA = 25°C, unless otherwise noted.)
AC ELECTRICAL CHARACTERICISTICS (VCC = +15 V, VEE = –15 V, TA = 25°C, unless otherwise noted.)
Characteristics Slew Rate (Vin = –10 V to +10 V, RL = 100 Ω, CL = 100 pF, AV = +1) Gain Bandwidth Product (f = 20 kHz) Unity Gain Frequency (Open Loop) (RL = 600 Ω, CL = 0 pF) Gain Margin (RL = 600 Ω, CL = 0 pF) Phase Margin (RL = 600 Ω, CL = 0 pF) Channel Separation (f = 100 Hz to 20 kHz) Power Bandwidth (VO = 20 Vpp, RL = 600 Ω, THD ≤ 1%) Total Harmonic Distortion (RL = 600 Ω, VO = 2.0 Vpp, AV = +1) f = 1.0 kHz f = 10 kHz f = 20 kHz Open Loop Output Impedance (VO = 0 V, f = 2.5 MHz, AV = 10) Differential Input Resistance (VCM = 0 V) Differential Input Capacitance (VCM = 0 V) Equivalent Input Noise Voltage (RS = 100 Ω) f = 10 Hz f = 1.0 kHz Equivalent Input Noise Current f = 10 Hz f = 1.0 kHz Figure 15 16 — 19, 20 19, 20 21 — 22 Symbol SR GBW fU Am ∅m CS BWp THD — — — 23 — — 24 |ZO| Rin Cin en — — — in — — 0.33 0.15 — — 7.5 5.0 — pA/√Hz — — — 0.0027 0.011 0.022 75 200 10 — — — — — — Ω kΩ pF nV/√Hz Min 1.2 4.0 — — — — — Typ 2.6 7.4 3.5 15 52 –120 32 Max — — — — — — — Unit V/µs MHz MHz dB Deg dB kHz %

合集下载

MC34167MC33167中文资料

MC34167MC33167中文资料

MC34167 MC331671简介该MC34167, MC33167系列单片电源开关可用于dc–to–dc优化调节器申请.这些器件的固定频率，电压模式稳压器包含了所有的积极作用需要直接和实施step–down以最小的转换数量voltage–inverting外部元件.它们也可以用于成本效益在step–up转换器应用.潜在市场包括汽车，计算机，工业和成本敏感的消费产品.每一个设备的部分介绍给下面与代表框图所示图13.2振荡器振荡器频率内部编程72 kHz的电容CT和修剪电流源.该充放电率控制在产生一个95%在开关输出的最大占空比.在CT的放电，振荡器产生内部消隐脉冲持有的反相输入与门高，禁用输出开关晶体管.标称振荡器峰值和山谷门槛4.1 V和2.3 V分别.3脉宽调制器脉宽调制器由一个比较器振荡器斜坡电压施加到非反相输入端，而误差放大器的输出应用到反相输入.输出开关导通时启动CT检查排放到振荡器峰谷电压.至于收费的CT电压超过误差放大器的输出，锁存复位，终止输出晶体管的导通时间振荡器的ramp–up时期.这PWM /锁存结合防止在给定的多输出脉冲振荡器时钟周期.数字6和14说明开关输出电压与占空比的补偿.4电流检测该系列采用MC34167当前cycle–by–cycle限制，作为保护手段输出开关晶体管从过度紧张.在每个周期视为一个单独的情况.电流限制是通过监测输出开关晶体管的电流传导期间建设，并经检测过流情况，请立即关闭为振荡器的ramp–up期内开关.集电极电流转换为电压由内部微调电阻和对一个参考比较由电流检测比较器.当电流限制达到阈值，比较器重置PWM 锁存.限流门限点往往设在6.5 A.图9说明开关与输出电流限制门槛温度.5误差放大器和参考一个误差放大器的高增益提供了访问反相输入和输出.该放大器具有典型dc电压增益80 dB,和单位增益带宽600 kHz与相边缘 70度（图3).同相输入偏置内部5.05 V参考并且不固定了.参考具有精度±2.0%在室温下.以提供负载5.0 V中，参考编程50以上mV 5.0 V补偿在电缆的电压降和1.0%从连接器转换器输出.如果转换器设计需要一个输出电压高于5.05 V,电阻更大R1必须加入形成一个分压网络的反馈输入中所示数字13和18.了确定输出方程与分压网络的电压为：Vout+5.05R2R1)1外部回路补偿所需的转换器稳定.一个简单的low–pass滤波器是由连接电阻(R2)从稳压输出到反相输入，以及一系列resistor–capacitor (RF, CF)之间Pins 1和5.补偿网络的元件值显示在电路的申请被选定为each在稳定工作条件下进行测试.该step–down转换器（图18)是最容易补偿稳定.该step–up（图20)和voltage–inverting（图22)配置运作，连续导反激式转换器，而且更难以弥补.该最简单的方法来优化网络是补偿观察输出电压的负载响应一步变化，而调整临界阻尼RF和CF.该最终电路应验证以下四个稳定边界条件.这些条件是最小和最大输入电压，最小和最大负载.通过箝位的电压误差放大器的输出（引脚5)不到150 mV,内部电路将放置到一个低功耗待机模式，从而将权力电源电流36µA与12 V电源电压.图10说明了备用电源电流与电源电压.误差放大器的输出有一个100µA电流源pull–up，可用于实现soft–start.图17显示充电电流源通过一个电容CSS系列二极管.该二极管断开从反馈CSS回路电阻时1.0 M操作它上面的收费销5.范围开关输出输出开关晶体管的设计最大的40 V,以最小的峰值集电极电流时5.5 A.配置为step–down或voltage–inverting应用，如在图18和22,电感会把偏置的输出整流开关关闭时.整流器与较高的正向电压降或长期拖延的时间应该打开不能使用.如果发射器被允许去充分负，集电极电流流过，造成额外的装置暖气，降低转换效率.图8显示到箝位的发射器0.5集电极电流V,在一系列的100µA温度过高.阿1N5825或肖特基势垒整流器相当于推荐履行这些要求.欠压分离欠压分离一直比较成立以保证完全集成电路在输出级的功能已启用.内部参考电压比较器的监测使输出阶段VCC超过5.9 V.为了防止不稳定的输出交叉切换的阈值，0.9 V迟滞.6摩托罗拉设备数据模拟ICMC34167 MC33167热保护内部热关断电路，以保护在事件集成电路的最大结温度超过.当被激活时，通常在170°C,是被迫的锁存成'复位'的状态，关闭输出开关.此功能防止灾难性故障提供偶然的设备过热.它的目的不是要作为一个适当的散热片的替代品.该MC34167包含在5–lead TO–220类型包装.该标签包装是很常见的中心引脚（引脚3)，通常连接到地.设计考虑不要试图建立一个转换器上wire–wrap或plug–in原型板.特别应注意分开的信号电流和接地接地通路从负载电流路径.所有高电流回路应尽可能短尽可能使用重型铜runs到尽量减少振荡和辐射EMI.为了获得最佳的操作，严密元件布局建议.电容器Cin, CO,和所有的反馈元件应尽可能靠近IC在身体可能.这也是必须的肖特基二极管连接到开关输出是尽可能靠近尽可能IC.图15.低功耗待机电路+100µA错误放大器1图16.过电压关断电路+100µA错误放大器1120补偿5120补偿R15R1I =待机模式VShutdown = VZener + 0.7图17. Soft–Start电路+100µA错误放大器1120补偿D2Vin1.0 MCss5D1R1tSoft–Start≈35,000 Css。

MC3303D中文资料

MC3303D中文资料

PACKAGING INFORMATIONOrderable DeviceStatus (1)Package Type Package DrawingPins Package Qty Eco Plan (2)Lead/Ball Finish MSL Peak Temp (3)MC3303D ACTIVE SOIC D 1450Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM MC3303DR ACTIVE SOIC D 142500Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM MC3303N ACTIVE PDIP N 1425Pb-Free (RoHS)CU NIPDAU Level-NC-NC-NC MC3303PW ACTIVE TSSOP PW 1490Pb-Free (RoHS)CU NIPDAU Level-1-250C-UNLIM MC3303PWR ACTIVE TSSOP PW 142000Pb-Free (RoHS)CU NIPDAU Level-1-250C-UNLIM MC3403D ACTIVE SOIC D 1450Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM MC3403DR ACTIVE SOIC D 142500Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM MC3403N ACTIVE PDIP N 1425Pb-Free (RoHS)CU NIPDAU Level-NC-NC-NC MC3403NSLE OBSOLETE SO NS 14None Call TI Call TIMC3403NSR ACTIVE SO NS 142000Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM MC3403PW ACTIVE TSSOP PW 1490Pb-Free (RoHS)CU NIPDAU Level-1-250C-UNLIM MC3403PWRACTIVETSSOPPW142000Pb-Free (RoHS)CU NIPDAULevel-1-250C-UNLIM(1)The marketing status values are defined as follows:ACTIVE:Product device recommended for new designs.LIFEBUY:TI has announced that the device will be discontinued,and a lifetime-buy period is in effect.NRND:Not recommended for new designs.Device is in production to support existing customers,but TI does not recommend using this part in a new design.PREVIEW:Device has been announced but is not in production.Samples may or may not be available.OBSOLETE:TI has discontinued the production of the device.(2)Eco Plan -May not be currentlyavailable -please check /productcontent for the latest availability information and additional product content details.None:Not yet available Lead (Pb-Free).Pb-Free (RoHS):TI's terms "Lead-Free"or "Pb-Free"mean semiconductor products that are compatible with the current RoHS requirements for all 6substances,including the requirement that lead not exceed 0.1%by weight in homogeneous materials.Where designed to be soldered at high temperatures,TI Pb-Free products are suitable for use in specified lead-free processes.Green (RoHS &no Sb/Br):TI defines "Green"to mean "Pb-Free"and in addition,uses package materials that do not contain halogens,including bromine (Br)or antimony (Sb)above 0.1%of total product weight.(3)MSL,Peak Temp.--The Moisture Sensitivity Level rating according to the JEDECindustry standard classifications,and peak solder temperature.Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided.TI bases its knowledge and belief on information provided by third parties,and makes no representation or warranty as to the accuracy of such information.Efforts are underway to better integrate information from third parties.TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.TI and TI suppliers consider certain information to be proprietary,and thus CAS numbers and other limited information may not be available for release.In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s)at issue in this document sold by TI to Customer on an annual basis.PACKAGE OPTION ADDENDUM4-Mar-2005元器件交易网IMPORTANT NOTICETexas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications,enhancements, improvements, and other changes to its products and services at any time and to discontinueany product or service without notice. Customers should obtain the latest relevant information before placingorders and should verify that such information is current and complete. All products are sold subject to TI’s termsand conditions of sale supplied at the time of order acknowledgment.TI warrants performance of its hardware products to the specifications applicable at the time of sale inaccordance with TI’s standard warranty. T esting and other quality control techniques are used to the extent TIdeems necessary to support this warranty. Except where mandated by government requirements, testing of allparameters of each product is not necessarily performed.TI assumes no liability for applications assistance or customer product design. Customers are responsible fortheir products and applications using TI components. T o minimize the risks associated with customer productsand applications, customers should provide adequate design and operating safeguards.TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right,copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or processin which TI products or services are used. Information published by TI regarding third-party products or servicesdoes not constitute a license from TI to use such products or services or a warranty or endorsement thereof.Use of such information may require a license from a third party under the patents or other intellectual propertyof the third party, or a license from TI under the patents or other intellectual property of TI.Reproduction of information in TI data books or data sheets is permissible only if reproduction is withoutalteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproductionof this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable forsuch altered documentation.Resale of TI products or services with statements different from or beyond the parameters stated by TI for thatproduct or service voids all express and any implied warranties for the associated TI product or service andis an unfair and deceptive business practice. TI is not responsible or liable for any such statements.Following are URLs where you can obtain information on other Texas Instruments products and applicationsolutions:Products ApplicationsAmplifiers Audio /audioData Converters Automotive /automotiveDSP Broadband /broadbandInterface Digital Control /digitalcontrolLogic Military /militaryPower Mgmt Optical Networking /opticalnetworkMicrocontrollers Security /securityTelephony /telephonyVideo & Imaging /videoWireless /wirelessMailing Address:Texas InstrumentsPost Office Box 655303 Dallas, Texas 75265Copyright 2005, Texas Instruments Incorporated。

MC33067DWR2中文资料

MC33067DWR2中文资料

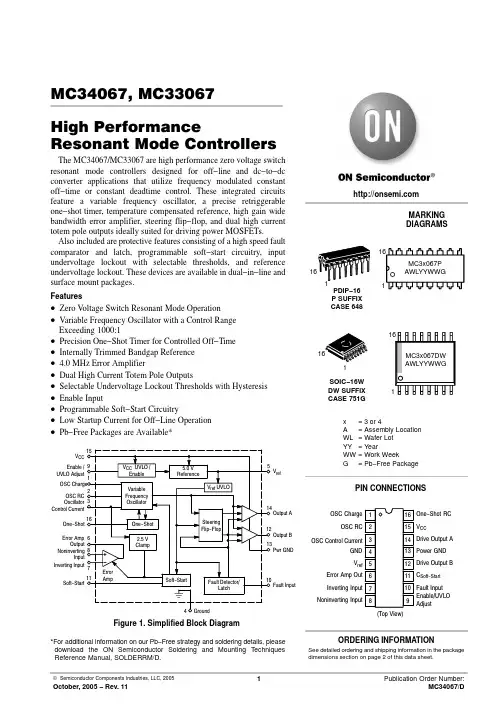

Also included are protective features consisting of a high speed fault comparator and latch, programmable soft−start circuitry, input undervoltage lockout with selectable thresholds, and reference undervoltage lockout. These devices are available in dual−in−line and surface mount packages.
