PACKAGING INFORMATIONOrderable DeviceStatus (1)Package Type Package DrawingPins Package Qty Eco Plan (2)Lead/Ball Finish MSL Peak Temp (3)MC3303D ACTIVE SOIC D 1450Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM MC3303DR ACTIVE SOIC D 142500Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM MC3303N ACTIVE PDIP N 1425Pb-Free (RoHS)CU NIPDAU Level-NC-NC-NC MC3303PW ACTIVE TSSOP PW 1490Pb-Free (RoHS)CU NIPDAU Level-1-250C-UNLIM MC3303PWR ACTIVE TSSOP PW 142000Pb-Free (RoHS)CU NIPDAU Level-1-250C-UNLIM MC3403D ACTIVE SOIC D 1450Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM MC3403DR ACTIVE SOIC D 142500Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM MC3403N ACTIVE PDIP N 1425Pb-Free (RoHS)CU NIPDAU Level-NC-NC-NC MC3403NSLE OBSOLETE SO NS 14None Call TI Call TIMC3403NSR ACTIVE SO NS 142000Pb-Free (RoHS)CU NIPDAU Level-2-260C-1YEAR/Level-1-235C-UNLIM MC3403PW ACTIVE TSSOP PW 1490Pb-Free (RoHS)CU NIPDAU Level-1-250C-UNLIM MC3403PWRACTIVETSSOPPW142000Pb-Free (RoHS)CU NIPDAULevel-1-250C-UNLIM(1)The marketing status values are defined as follows:ACTIVE:Product device recommended for new designs.LIFEBUY:TI has announced that the device will be discontinued,and a lifetime-buy period is in effect.NRND:Not recommended for new designs.Device is in production to support existing customers,but TI does not recommend using this part in a new design.PREVIEW:Device has been announced but is not in production.Samples may or may not be available.OBSOLETE:TI has discontinued the production of the device.(2)Eco Plan -May not be currentlyavailable -please check /productcontent for the latest availability information and additional product content details.None:Not yet available Lead (Pb-Free).Pb-Free (RoHS):TI's terms "Lead-Free"or "Pb-Free"mean semiconductor products that are compatible with the current RoHS requirements for all 6substances,including the requirement that lead not exceed 0.1%by weight in homogeneous materials.Where designed to be soldered at high temperatures,TI Pb-Free products are suitable for use in specified lead-free processes.Green (RoHS &no Sb/Br):TI defines "Green"to mean "Pb-Free"and in addition,uses package materials that do not contain halogens,including bromine (Br)or antimony (Sb)above 0.1%of total product weight.(3)MSL,Peak Temp.--The Moisture Sensitivity Level rating according to the JEDECindustry standard classifications,and peak solder temperature.Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided.TI bases its knowledge and belief on information provided by third parties,and makes no representation or warranty as to the accuracy of such information.Efforts are underway to better integrate information from third parties.TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.TI and TI suppliers consider certain information to be proprietary,and thus CAS numbers and other limited information may not be available for release.In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s)at issue in this document sold by TI to Customer on an annual basis.PACKAGE OPTION ADDENDUM4-Mar-2005元器件交易网IMPORTANT NOTICETexas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications,enhancements, improvements, and other changes to its products and services at any time and to discontinueany product or service without notice. Customers should obtain the latest relevant information before placingorders and should verify that such information is current and complete. All products are sold subject to TI’s termsand conditions of sale supplied at the time of order acknowledgment.TI warrants performance of its hardware products to the specifications applicable at the time of sale inaccordance with TI’s standard warranty. T esting and other quality control techniques are used to the extent TIdeems necessary to support this warranty. Except where mandated by government requirements, testing of allparameters of each product is not necessarily performed.TI assumes no liability for applications assistance or customer product design. Customers are responsible fortheir products and applications using TI components. T o minimize the risks associated with customer productsand applications, customers should provide adequate design and operating safeguards.TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right,copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or processin which TI products or services are used. Information published by TI regarding third-party products or servicesdoes not constitute a license from TI to use such products or services or a warranty or endorsement thereof.Use of such information may require a license from a third party under the patents or other intellectual propertyof the third party, or a license from TI under the patents or other intellectual property of TI.Reproduction of information in TI data books or data sheets is permissible only if reproduction is withoutalteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproductionof this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable forsuch altered documentation.Resale of TI products or services with statements different from or beyond the parameters stated by TI for thatproduct or service voids all express and any implied warranties for the associated TI product or service andis an unfair and deceptive business practice. TI is not responsible or liable for any such statements.Following are URLs where you can obtain information on other Texas Instruments products and applicationsolutions:Products ApplicationsAmplifiers Audio /audioData Converters Automotive /automotiveDSP Broadband /broadbandInterface Digital Control /digitalcontrolLogic Military /militaryPower Mgmt Optical Networking /opticalnetworkMicrocontrollers Security /securityTelephony /telephonyVideo & Imaging /videoWireless /wirelessMailing Address:Texas InstrumentsPost Office Box 655303 Dallas, Texas 75265Copyright 2005, Texas Instruments Incorporated。

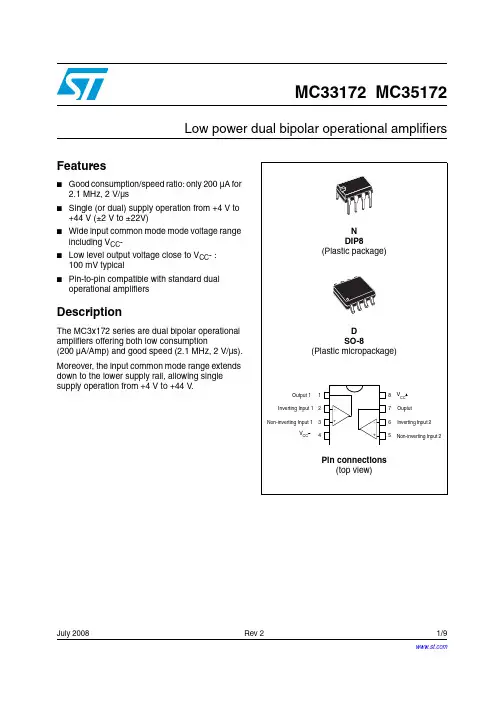

July 2008 Rev 21/9MC33172 MC35172Low power dual bipolar operational amplifiersFeatures■Good consumption/speed ratio: only 200µA for 2.1MH z,2V/µs ■Single (or dual) supply operation from +4V to +44V (±2V to ±22V)■Wide input common mode mode voltage range including V CC -■Low level output voltage close to V CC - : 100mV typical■Pin-to-pin compatible with standard dual operational amplifiersDescriptionThe MC3x172 series are dual bipolar operational amplifiers offering both low consumption(200µA/Amp) and good speed (2.1MHz, 2V/µs).Moreover, the input common mode range extends down to the lower supply rail, allowing single supply operation from +4V to +44V .Circuit schematics MC33172 MC351722/91 Circuit schematicsMC33172 MC35172Absolute maximum ratings and operating conditions3/92 Absolute maximum ratings and operating conditionsTable 1.Absolute maximum ratings (AMR)Symbol ParameterValue Unit V CC Supply voltage±22V V id Differential input voltage see note (1)1.Either or both input voltages must not exceed the magnitude of V CC .V V inInput voltagesee note 1V Output short-circuit durationIndefinite s T operOperating free-air temperature range MC33172MC35172-40 to 105-55 to 125°CR thjaThermal resistance junction to ambient (2)SO-8DIP82.Short-circuits can cause excessive heating and destructive dissipation. Values are typical.12585°C/WR thjc Thermal resistance junction to case (2)SO-8DIP84041°C/W T j Junction temperature 150°C T stgStorage temperature -65 to 150°C ESDHBM: human body model (3)3.Human body model: A 100pF capacitor is charged to the specified voltage, then discharged through a1.5k Ω resistor between two pins of the device. This is done for all couples of connected pin combinations while the other pins are floating. 2kV MM: machine model (4)4.Machine model: A 200pF capacitor is charged to the specified voltage, then discharged directly betweentwo pins of the device with no external series resistor (internal resistor < 5Ω). This is done for all couples of connected pin combinations while the other pins are floating.200V CDM: charged device model (5)5.Charged device model: all pins and the package are charged together to the specified voltage and thendischarged directly to the ground through only one pin. This is done for all pins.1kVLatch-up immunityClass ATable 2.Operating conditionsSymbol ParameterValue Unit V CCSupply voltage±2 to ±22VElectrical characteristics MC33172 MC351724/93 Electrical characteristicsTable 3.V CC + = +15V, V CC - = -15V, R L connected to Ground, T amb = 25°C (unless otherwisespecified)SymbolParameterMin.Typ.Max.UnitV ioInput offset voltageV CC + = +15V , V CC - = -15V , V ic = 0VV CC + = 5V , V CC - = 0V , V ic = 0V , V o = 1.4VV CC + = +15V , V CC - = -15V , V ic = 0V , T min ≤ T amb ≤ T max 11 4.556.5mVDV io Input offset voltage drift 10µV/°CI io Input offset current (V ic = 0V)T min ≤T amb ≤ T max 52040nA I ib Input bias current (V ic = 0V) T min ≤T amb ≤ T max 20100200nA A vdLarge signal voltage gain (R L = 10k Ω, V o = ±10V)T min ≤ T amb ≤ T max5025100V/mVV OHHigh level output voltageV CC += 5V , V CC -= 0V , R L = 10k ΩV CC += +15V , V CC = -15V , R L = 10k ΩV CC += +15V , V CC -= -15V , R L = 10k Ω, T min ≤ T amb ≤ T max 3.513.613.34.214.2VV OLLow level output voltageV CC += 5V , V CC -= 0V , R L = 10k ΩV CC += +15V , V CC -= -15V , R L = 10k ΩV CC += +15V , V CC -= -15V , R L = 10k Ω, T min ≤ T amb ≤ T max 0.1-140.15-13.6-13.3VI scOutput short-circuit current (V id = ±1V , V o = 0V)Source Sink315627mAV icm Input common mode voltage rangeT min ≤T amb ≤ T max V CC - to V CC + - 1.8)V CC - to (V CC + - 2.2)VCMR Common-mode rejection ratio (V ic = V icm-min )80100dB SVRSupply voltage rejection ratio (V CC = ±5 to ±15V)80100dBI CCSupply currentV CC + = 5V , V CC - = 0V , no loadV CC + = +15V , V CC - = -15V , no loadV CC + = +15V , V CC - = -15V no load, T min ≤ T amb ≤ T max 200220250250300µASR Slew rate (V in = ±10V , R L = 10k Ω, C L = 100pF) 1.62V/µs GBP Gain bandwidth productR L = 10k Ω, C L = 100pF , F= 100kHz 1.42.1MHz φm Phase margin (R L = 10k Ω, C L = 100pF)45Degreese n Equivalent input noise voltage (F = 1kHz)29THDT otal harmonic distortion0.05%V O1/V O2Channel separation120dBnV Hz-----------MC33172 MC35172Package information5/94 Package informationIn order to meet environmental requirements, STMicroelectronics offers these devices inECOPACK ® packages. These packages have a lead-free second level interconnect. The category of second level interconnect is marked on the package and on the inner box label, in compliance with JEDEC Standard JESD97. The maximum ratings related to soldering conditions are also marked on the inner box label. ECOPACK is an STMicroelectronics trademark. ECOPACK specifications are available at: .Package information MC33172 MC351726/94.1 DIP8 package informationTable 4.DIP8 package mechanical dataRef.DimensionsMillimetersInches Min.Typ.Max.Min.Typ.Max.A 5.330.210A10.380.015A2 2.92 3.30 4.950.1150.1300.195b 0.360.460.560.0140.0180.022b2 1.14 1.52 1.780.0450.0600.070c 0.200.250.360.0080.0100.014D 9.029.2710.160.3550.3650.400E 7.627.878.260.3000.3100.325E1 6.106.357.110.2400.2500.280e 2.540.100eA 7.620.300eB 10.920.430L2.923.303.810.1150.1300.150MC33172 MC35172Package information7/94.2 SO-8 package informationTable 5.SO-8 package mechanical dataRef.DimensionsMillimetersInches Min.Typ.Max.Min.Typ.Max.A 1.750.069A10.100.250.0040.010A2 1.250.049b 0.280.480.0110.019c 0.170.230.0070.010D 4.80 4.90 5.000.1890.1930.197E 5.80 6.00 6.200.2280.2360.244E1 3.803.904.000.1500.1540.157e 1.270.050h 0.250.500.0100.020L 0.40 1.270.0160.050k 1°8°1°8°ccc0.100.004Ordering information MC33172 MC351728/95 Ordering information6 Revision historyTable 6.Order codesOrder code TemperaturerangePackage Packing Marking MC33172N -40°C, +105°CDIP8Tape MC33172N MC33172D MC33172DT SO-8T ape or T ape & reel 33172MC35172N -55°C, +125°CDIP8Tape MC35172N MC35172D MC35172DTSO-8T ape or T ape & reel35172Table 7.Document revision historyDate RevisionChanges24-Nov-20011Initial release.01-Jul-20082ESD values and latch-up immunity added in Table 1: Absolutemaximum ratings (AMR).MC33172 MC35172Please Read Carefully:Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice.All ST products are sold pursuant to ST’s terms and conditions of sale.Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein.No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST.ST and the ST logo are trademarks or registered trademarks of ST in various countries.Information in this document supersedes and replaces all information previously supplied.The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.© 2008 STMicroelectronics - All rights reservedSTMicroelectronics group of companiesAustralia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America9/9。
