管道工程常用英语词汇.

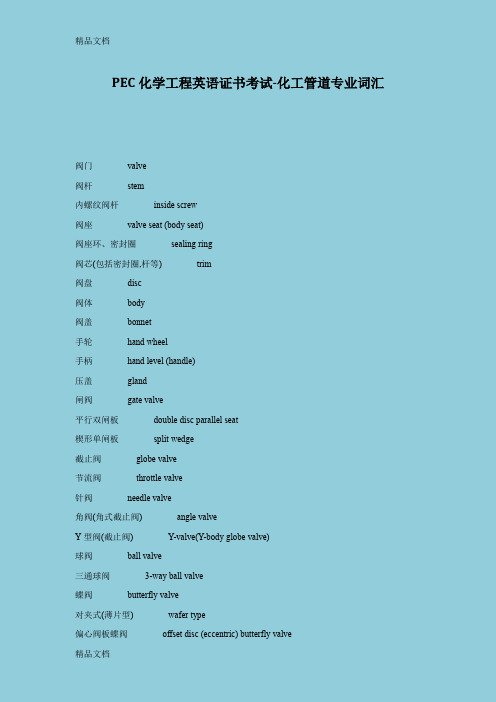

PEC化学工程英语证书考试-化工管道专业词汇阀门valve阀杆stem内螺纹阀杆inside screw阀座valve seat (body seat)阀座环、密封圈sealing ring阀芯(包括密封圈,杆等) trim阀盘disc阀体body阀盖bonnet手轮hand wheel手柄hand level (handle)压盖gland闸阀gate valve平行双闸板double disc parallel seat楔形单闸板split wedge截止阀globe valve节流阀throttle valve针阀needle valve角阀(角式截止阀) angle valveY型阀(截止阀) Y-valve(Y-body globe valve)球阀ball valve三通球阀3-way ball valve蝶阀butterfly valve对夹式(薄片型) wafer type偏心阀板蝶阀offset disc (eccentric) butterfly valve斜阀盘蝶阀canted disc butterfly valve连杆式蝶阀link butterfly valve止回式蝶阀combined non-return butterfly valve 柱塞阀piston type valve旋塞阀plug valve三通旋塞阀three-way plug valve四通旋塞阀four-way plug valve旋塞cock衬套旋塞sleeve cock隔膜阀diaphragm valve橡胶衬里隔膜阀rubber lined diaphragm valve 直通式隔膜阀straight way diaphragm valve夹紧式胶管阀pinch valve止回阀check valve升降式止回阀lift check valve旋启式止回阀swing check valve落球式止回阀ball check valve弹簧球式止回阀spring ball check valve底阀foot valve切断式止回阀stop check valve活塞式止回阀piston check valve翻板止回阀flap check valve蝶式止回阀butterfly check valve安全泄气阀safety[SV]安全泄放阀relief valve[RV]安全泄压阀safety relief valve杠杆重锤式lever and weight type罐底排污阀flush-bottom tank valve波纹管密封阀bellow sealed valve电磁阀solenoid (operated) valve电动阀electrically(electric-motor)operated valve气动阀pneumatic operated valve低温用阀cryogenic service valve蒸汽疏水阀steam trap机械式疏水阀mechanical trap浮桶式疏水阀open (top) bucket trap浮球式疏水阀float trap倒吊桶式疏水阀inverted bucket trap自由浮球式疏水阀loose float trap恒温式疏水阀thermostatic trap压力平衡式恒温疏水阀balanced pressure thermostatic trap 热动力式疏水阀thermodynamic trap脉冲式蒸汽疏水阀impulse steam trap放汽阀(自动放汽阀) (automatic) air vent valve换向阀diverting (reversing) valve呼吸阀breather valve减压阀pressure reducing valve控制阀control valve执行机构actuator差压调节阀differential pressure regulating valve切断阀block (shut-off, stop) valve调节阀regulating valve快开阀quick opening valve快闭阀quick closing valve隔断阀isolating valve三通阀three way valve夹套阀jacketed valve非旋转式阀non-rotary valve管子pipe(按标准制造的配管用管)tube(不按标准规格制造的其它用管)钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel[C.S.]pipe合金钢管alloy steel pipe不锈钢管stainless steel[S.S.]pipe奥氏体不锈钢管austenitic stainless steel pipe铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless[SMLS] steel pipe焊接钢管welded steel pipe电阻焊钢管electric-resistance-welded steel pipe电熔(弧)焊钢板卷管electric-fusion(arc)-welded steel-plate pipe 螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe排污阀blowdown valve集液排放阀drip valve排液阀drain valve放空阀vent valve卸载阀unloading valve排出阀discharge valve吸入阀suction valve取样阀sampling valve手动阀hand operated(manually-operated) valve(水)龙头bibb;bib;faucet抽出液阀(小阀) bleed valve旁路阀by-pass valve软管阀hose valve混合阀mixing valve破真空阀vacuum breaker冲洗阀flush valve根部阀root (primary, header) valve水煤气钢管water-gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube壁厚wall thickness[WT]壁厚系列号schedule number[SCH.NO.]加厚的,加强的extra heavy (strong)双倍加厚的,双倍加强的double extra heavy (strong) 弯头elbow异径弯头reducing elbow长半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return三通tee异径三通reducing tee等径三通straight tee带支座三通base tee45°斜三通45°lateralY型三通true"Y"四通cross异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer管接头coupling;full coupling活接头union短管nipple预制弯管fabricated pipe bendU型弯管"U"bend法兰端flanged end万向接头universal joint对焊的butt welded[BW]螺纹的threaded[THD]承插焊的socket welded[SW]法兰flange[FLG]整体管法兰integral pipe flange钢管法兰steel pipe flange螺纹法兰threaded flange滑套法兰slip-on flange平焊法兰slip-on-welding flange承插焊法兰socket welding flange 松套法兰lap joint flange[LJF]对焊法兰weld neck flange[WNF]法兰盖blind flange;blind异径法兰reducing flange压力级pressure rating(class)突面raised face[RF]凸面male face凹面female face全平面;满平面flat face;full face[FF]管道特殊件piping speciality粗滤器strainer过滤器filter临时过滤器temporary strainer(cone type) Y型过滤器Y-type strainerT型过滤器T-type strainer永久过滤器permanent filter洗眼器及淋浴器eye washer and shower 视镜sight glass阻火器flame arrester喷咀;喷头spray nozzle喷射器ejector取样冷却器sample cooler消音器silencer膨胀节expansion joint波纹膨胀节bellow补偿器compensator软管接头hose connection[HC]快速接头quick coupling金属软管metal hose橡胶管rubber hose挠性管flexible tube特殊法兰special flange漏斗funnel8字盲板spectacle (figure 8) blind爆破板rupture disk碳素钢carbon steel [C.S.]不锈钢stainless steel[S.S.]铸铁cast iron[C.I.]铝aluminum铜,紫铜copper钛titanium抗拉强度tensile strength非金属材料non-metallic material塑料plastic陶瓷ceramic搪瓷porcelain enamel玻璃glass橡胶rubber垫片gasket[GSKT]平垫片flat gasket填料packing型钢shaped steel角钢angle steel槽钢channel工字钢I-beam宽缘工字钢或H钢wide flanged beam扁钢flat bar圆钢round steel; rod钢带strap steel网络钢板checkered plate材料表bill of material[BOM]材料统计material take-off[MTO]散装材料bulk material综合管道材料表consolidated piping material summary sheet[CPMSS]汇总表summary sheet中心线center line装置边界boundary limit[BL]区界area limit设备布置equipment arrangement (layout);plot plan标高,立面elevation[EL]支撑点point of support[POS]工厂北向plant north方位orientation危险区hazardous area classification净正吸入压头net positive suction head绝对标高absolute elevation坐标coordinate管道研究piping study管道布置平面piping arrangement plan[PAP]管道布置piping assembly; layout详图detail"X"视图view "X""A-A" 剖视section "A-A"轴测图isometric drawing索引图key plan管道及仪表流程图piping and instrument diagram[P&ID] 管口表list of nozzles地上管道above ground piping地下管道under ground piping管线号line number总管header; manifold旁路by pass常开normally open常闭normally closed取样接口sampling connection伴热管tracing pipe蒸汽伴热steam tracing热水伴热hot-water tracing电伴热electrical tracing夹套管jacketed line全夹套管full jacketed比例scale图figure草图sketch图例legend符号symbol件号part n管道工程piping engineering。

工程管道英文缩写对照AA Anchor 固定ABS Absolute 绝对的AISI American Iron and Steel Institute 美国钢铁学会ANSI American National Standards Institute 美国国家标准学会API American Petroleum Institute 美国石油学会APPROX Approximate 大约，近似的ASB Asbestos 石棉ASME *American Society Of Testing Material 美国机械工程师协会ASSY *Assembly 装配，组装ASTM *American Society OfTesting Material 美国材料实验协会ATM *Atmosphere 大气压AWG *American Wire Gage 美国线规AWS *American Wel**** Society 美国焊接协会AWWA *American Water WorksAssociation 美国水工协会BBB Bolted Bonnet 栓柱连接的阀盖BB By Buyer 买方供货B-B Beveled End-Beveled End 两端为坡口端BC Bolt Circle 螺栓中心圆B.C Bolted Cover(cap) 螺栓连接的阀兰盖（帽）BE Beveled End (for wel****) 坡口（焊接用）B.E Bell End 承口BEP Both Ends Plain 两端平BET Both Ends Threaded 两端带螺纹BL Battery Limit 装置区边界BF Blind Flange 法兰盖BLD Blind 盲板BLDG *Buil**** 建筑物BM Bill Of Material 材料表BOP Bottom Of Pipe 管底B-P Beveled End —Plain End 坡口端.平端BV Butterfly valve 蝶阀BWG * Birmingham Wire Gage 伯明翰线规BW Butt Weld 对焊CC Cap 管帽C-C Center to Center 中至中C-E Center to End 中至端面C-F Center to Face 中至面CH-OP Chain Operated 链条操纵的CH.PL Checkered Plate 花纹钢管C.I *Cast Iron 铸铁CL *Class 英制压力等级，等级，种类CLEAR Clearance 间隙COD Continued on Drawing 接续图COL *Column 柱，塔CONC Concentric 同心的CONN Connection 连接，接口CONT *Continue 连续CONT.V. Control Valve 控制阀CPLG Coupling 管接头，连轴节C.R. Concentric Reducer 同心异径管C.S. *Carbon Steel 碳钢C.S. Cold Spring 冷紧C.S.C. Car Seal Close 在关闭状态下封住C.S.O. Car Seal Open 在开启状态下封住CUST Customer 客C.V Check Valve 止回阀DDEG *Degree 度DF Drain funnel 排液漏斗DIA *Diameter 直径DIM *Dimension 尺寸DISCH *Discharge 出口，排出Diaphragm VELVE 隔膜阀DMF Double Male And Female 双重凹凸DN *Double Male And Female 公称直径DN Down 下DR Drain 排液DS Directional Stop 定向限为架DWG *Drawing 图EE *East 东EC External Coating 外面涂防腐层ECC Eccentric 偏心EFW Electric Fusion Welded 电容焊的EL(ELEV) *Elevation 标高；立面ELL Elbow 弯头EQIOP Equipment 设备，装置EQUIV Equivalent 相当的E.R. Eccentric Reducer 偏心异经管ERW Electric Resistance Welded 电阻焊的EW Eye Washer & Shower 洗眼器及淋浴器EXP.JT Expansion Joint 膨胀节FFDN Foundation 基础FF Flat Faced Or Full Faced 全平面；满平面F-F Face To Face 面至面FGW Fusion Gas Wel**** 气熔焊FIG *Figure 图FL Floor 楼面FLEX TUBE Flexible Tube 挠性管FLG Flange 法兰FLGD Flanged 法兰式的FLGF Flanged Face 法兰面FOB Flat On Bottom 底面平FOT Flat On Top 顶面平FP Fix Point 固定点FS Forged Steel 锻钢FTF Fitting To Fitting 管件直连FTG Fitting 管件FURND Furnished 提供的，装设的FW Field Weld 现伤焊GG Guide 导向GA *Gage 表，表压，规（线规）GALV *Galvanize 镀锌GL Ground Level 地面GLV Globe Valve 截止阀GEAR OP Gear Operated 齿轮传动的GMAW Gas Metal Arc Wel**** 金属极惰气体保护焊GSKT Gasket 垫片GTAW (Inert)Gas Tungsten Arc Wel**** 惰性气体保护钨极电弧焊GV Gate Valve 闸阀HH Hanger 吊架HC Hose Connection 软管接头H.CPLG Half Coupling 半节管接头HDR Header 总管HEX *Hexagon 六角形HF Hard Alloy Face on阀内件（阀心）为Valve Trim 硬质合金密封面HH Hand Pole 手孔HOR Horizontal 水平的H.P *High Pressure 高压HS Hose Station 软管IID *Inside Diameter 内径IN *Inch 英寸INS Insulation 隔热INST Instrument 仪表INV Invert (inside bottom of pipe) 管子内底IPS Iron Pipe size 铁管尺寸ISO Isometric Drawing 周测图（空视图）I.S.B.L Inside Battery Limit 装置边界内恻ISNS Inside screw & Non-rising Stem 内螺纹非升杆ISRS Inside screw & Rising stem 内螺纹升杆JJT Joint 接头JS Jack Screw 顶开（起）螺栓LLC Locked Closed 在关闭状态下锁定LEP Large end plain 大端为平的LET Large end Threaded 大端带螺纹LG Long 长LGF Lens Gasket Face 透镜垫连接面L.H.THD Left Hand Thread 左螺纹LIFT Lift Type 升降式LJ Lap Joint 搭接LJF Lap Joint Flange 松套法兰LO Locked Open 在开启状态下锁定L.P. Low Pressure 低压LR Long Radius 长半径LRE Long Radius Elbow 长半径弯头LTG Large Tongue & Groove 大椎槽MMATL Material 材料MAX Maximum 最大MB Machine Bolt 机器螺栓（单头）MF Male and Female 凸和凹MFG Manufacture 制造MF *Manufacture 制造厂MH Manhole 人孔MI Malleable Iron 可锻铸铁MIN *Minimum 最小MJ Mechanical Joint 机械接头M.L Match Line 连续线MSS * Manufacturers Standardization Society of the Valve and Fittings Industry, Inc. 美国阀门和管件制造商标准化协会MTO Material take-off 材料统计MW Minimum Wall 最小壁厚M.W. Mineral Wool 矿（物）棉NN *North 北NB Nominal Bore 公称孔径N.B. Non-Bonnet 无阀盖NC Normally Closed 常闭NIP Nipple 短管NO Normally Open; 常开*Number号；数量NO INS No Insulation 不隔热NOM Nominal 公称的；额定的NOZ Nozzle 管口NPS Nominal Pipe Size 公称管径NPSH Net Positive Suction Head 净正吸入压头NPT *American National Taper 美国锥管螺纹Pipe ThreadNS Nominal Size 公称直径NV Needle Valve 针形阀OOD *Outside Diameter 外径OET One end Threaded 一端带螺纹OR Outside Radius 外半径ORF Orifice 孔板ORIENT Orientation 方位OS & Y Outside Screw and Yoke 外螺纹阀杆和阀轭OSNB Outside Screw Non-Bonnet 外螺纹无阀盖PP Plug 堵头PAP Piping Arrangement Plan 管道布置平面图PB Pressure Seal Bonnet 压力密封的阀盖P-B Plain End –Bevel End 平端—坡口端PC Pressure Seal Cap 压力密封的阀帽P.C.D. Pitch Circle Diameter 节圆直径PE Plain End (not beveled) 平端（无坡口）PF Platform 平台PID Piping & Instrument Diagram管道及仪表流程图PN *Nominal Pressure 公称压力PN Plant North 工厂北向POS point of Support 支承点P-P Plain End—Plain End 两端为平端PREP Preparation 加工准备PSIA *Pounds Per Square InchAbsolute 磅/PSIG Pounds Per Square Inch Gage 磅/PT Point 点PTFE *Polytetrafluoroethylene聚四氟乙烯PT.NO Part No. 件号PV Plug Valve 旋塞阀PVC *Poly Vinyl Chloride 聚氯乙烯QQTY *Quantity 数量RR *Radius 半径RED Reducer 异径管REF Reference 参考REINF Reinforce 加强REQD Required 需要；申请REV *Revision 修改RF Raised Face 凸面RG Ring Gasket 环形垫片R.H.THD Right Hand Thread 右螺旋RJ Ring Joint 环垫接头RO Restriction Orifice 限流孔板RPM *Revolutions Per Minute 转/分RPS *Revolutions Per Second 转/秒RS Resting Support 支承架，滑动架RTJ Ring Type Joint（见RJ）RV Relief Valve 安全泄液阀SS *South 南S Spring 弹簧（管架用）SAW (Automatic)Submerged Arc Wel**** 自动埋弧焊SB Stud Bolt 双头螺栓SB Screwed Bonnet 螺纹阀盖SC Sample Cooler 取样冷却器SCH *Schedule 管壁厚系列号SCRD Screwed 螺纹SEP Small end Plain 小端为平的SET Small end Threaded 小端带螺纹SF Semi-Finished 半光SG Sight Glass 视镜SH Surface Hard Facing 硬质密封面SK Sketch 草图SMAW Shielded Metal Arc Wel**** 有保护的金属电弧焊SMLS Seamless 无缝SN Swaged Nipple 异径短管SO Slip – On 滑套SOF Slip – On Flange 滑套法兰SPEC *Specification 规定，说明SPL Sound Pressure Lever 升压水准SQ *Square 方的，平方SR Shout Radius 短半径SRE Short Radius Elbow 短半径弯头SS *Stainless Steel 不锈钢ST Steam Trap 蒸汽疏水阀STD *Standard 标准STG Small Tongue & Groove 小椎槽面STL *Steel 钢STM Steam 蒸汽STM.TR Steam Tracing 蒸汽拌热SUCT Suction 吸入口SV Safety Valve 安全泄气阀SW Socket Weld 承插焊SWG Swage 锻造，模锻SWMG Swing Type 旋启式SYM Symmetrical 对称的TT Tee 三通TE Threaded End 螺纹端TEMP *Temperature 温度TG Tongue & Groove 椎槽THD *Threaded 螺纹的THK *Thickness 厚度TL Tangent Line 切线TN True North 真实北向TOC Top of Concrete 混凝土北向TOP Top of pipe 管顶TOS Top of Support 支架顶面Top of Steel 钢结构顶面TYP Typical 典型的UUB Union Bonnet 带活接头的阀盖UC Union Cap 带活接头的阀帽UN Union 活接头VV Valve 阀VAC Vacuum 真空VAR Variable 可变的VERT Vertical 垂直的VOL *Volume 卷，册，容量，体积WW *West 西WB Weld Branch 焊接支管WC Weld Cap 焊接管帽WD Width 宽度WE Weld End 焊接端WL Wel**** Line 焊接线WN Wel**** Neck 对焊法兰（颈部）WNF Weld Neck Flange 对焊法兰WP Working Pressure 工作压力W.P. Working Point 工作点WT Wall Thickness 壁厚Weight 重量XXH Extra Heavy 加强的，加厚的XXH Double Extra Heavy 双倍加强（厚）的XS Extra Strong 加强的XXS Double Extra Strong 双倍加强的YYP Yield Point 屈服点。

管道工程英文术语缩写标准化文件发布号：（9312-EUATWW-MWUB-WUNN-INNUL-DDQTY-KII管道工程英文术语缩写（中英对照）1.管子及管件P 管子 PipeEL 弯头ELL 长半径弯头ELS 短半径弯头MEL 斜接弯头（虾米腰弯头）REL 异径弯头T 三通 TeeLT 斜三通RT 异径三通R 异径管接头（大小头） ReducerCR 同心异径管接头（同心大小头） Concentric reducerER 偏心异径管接头（偏心大小头） Eccentric reducerCPL 管箍 CouplingFCPL 双头管箍 Full couplingHCPL 单头管箍 Half couplingRCPL 异径管箍 Reducing couplingBU 内外螺纹接头 BushingUN 活接头 UnionHC 软管接头 Hose couplerSE 翻边短节 Stub endNIP 短节 Pipe nipple or straight nippleSNIP 异径短节 Swaged nippleCP 管帽（封头） CapPL 管堵（丝堵） PlugBLK 盲板 BlankSB 8字盲板 Spectacle blind (blank)RP 补强板 Reinforcing pad2.法兰 FLG 法兰 FlangeWNF 对焊法兰 Welding neck flangeSOF 平焊法兰 Slip-on flangeSWF 承插焊法兰 Socket-welding flangeT 螺纹法兰 Threaded flangeLJ 松套法兰 Lapped joint flangeREDF 异径法兰 Reducing flangeBF 法兰盖（日法兰） Blind flangeFSF 法兰密封面 Flange scaling FF 全平面 Flat face RF 凸台面 Raised faceMFF 凹凸面 Male and female faceLF 凹面 Female faceLM 凸面 Male faceRJ 环连接面 Ring joint faceTG 榫槽面 Tongue and groove faceTF 榫面 Tongue faceGF 槽面 Groove face3.垫片 G 垫片 GasketNMG 非金属垫片 Non-metallic gasketAG 石棉垫片 Asbestos gasketRG 橡胶垫片 Rubber gasketTEG 聚四氟乙烯包复垫片 PTFE envelope gasket SMG 半金属垫片 Semimetallic gasketMJG 金属包垫片 Meta-jacket gasketSWG 缠绕式垫片 Spiral wound gasketMG 金属垫片 Metallic gasketFMG 金属平垫片 Flat metallic gasketSMSG 齿形金属垫片 Solid metal serrated gasket LER 透镜式金属环垫 Lens ring gasketOCR 八角形金属环垫 Octagonal ring gasketOVR 椭圆形金属环垫 Oval ring gaksetIR/OR 内外定位环 Inner ring and outer ringIR 内定位环 Inner ringOR 外定位环 Outer ring4.坚固件 B 螺栓 BoltSB 螺柱 Stud boltNU 螺母 NutTB 花蓝螺母 TurnbuckleWSR 垫圈 WasherSWSR 弹簧垫圈 Spring washer5.阀门 GV 闸阀 Gate valveGLV 截止阀 Globe valveCHV 止回阀 Check valveBUV 蝶阀 Butterfly valveBAV 球阀 Ball valvePV 旋塞阀 Plug valve (cock)CV 调节阀 Control valveSV 安全阀 Safety valveRV 减压阀 Pressure reducing valveST 蒸汽疏水阀 Steam trapPRV 泄压阀 Pressur relief valveBV 呼吸阀 Breather valveNV 针形阀 Needle valveAV 角阀DV 隔膜阀TWV 三通阀SGV 插板阀6.管道上用的小型设备 SPR 气液分离器 Separator FA 阻火器 Flame arresterSR 过滤器 StrainerSRY Y型过滤器 Y-type strainerSRT T型过滤器 T-type strainerSRB 桶式过滤器 Bucket type strainerTSR 临时过滤器 Temporary strainerSIL 消声器 SilencerSG 视镜 Slight glassSC 取样冷却器 Sample coolerDF 排液漏斗 Drain funnelLM 管道混合器 Line mixerRO 限流孔板 Restriction orificeMO 混合孔板 Mixing orificeRD 爆破片（爆破膜） Rupture diskEJ 补偿器 Expansion joint7.隔热、伴热 INS 隔热 Thermal insulationH 保温 Hot insulationC 保冷 Cold insulationP 防烫伤隔热 Personnel protection insulationT&I 伴热 Tracing and insulationT 管道伴热（冷） TracingEST 蒸汽外伴热 External steam tracingIST 蒸汽内伴热 Internal steam tracingSJT 蒸汽夹套伴热 Steam-jacket tracingET 电伴热 Electric tracing8.配管材料和等级 M 金属材料 Metallic material CS 碳钢 Carbon steelCAS 铸钢 Cast steelFS 锻钢 Forged steelAS 合金钢 Alloy steelSS 不锈钢 Stainless steelAUSTSS 奥氏体不锈钢 Austenitic stainless-steelCI 铸铁 Cast ironMI 可锻铸铁 Malleable ironDI 球墨铸铁 Ductile ironAL 铝 AluminumBRS 黄铜 BrassBRZ 青铜 BronzeCU 紫铜 CopperLAS 低合金钢 Low alloy steelFLAS 低合金锻钢 Forged low alloy steelCLAS 低合金铸钢 Cast low alloy steelTHK 壁厚 ThicknessSCH 表号 Schedule numberSTD 标准 StandardXS 加强 Extra strongXXS 特强 Double extra strong9.装置布置 CN 建北 Construction northE 东 EastW 西 WestS 南 SouthN 北 NorthH 水平 HorizontalV 竖直、铅直、直立 VerticalGRD 地坪 GroundUG 地下 UndergroundBL 装置边界线 Battery limit lineESEW 事故沐浴洗眼器 Emergency shower and eye washer HS 软管站 Hose stationML 接续分界线 Match linePS 管道支架（管架） Piping supportPR 管桥 Pipe rackSTRU 构架（构筑物） StructureBLDG 建筑物 BuildingPD 清扫设施 Purge devicePT 池 PitSHLT 棚 ShelterCOFF 围堰 CofferdamFL 楼板 FloorPF 平台 Plateform10.尺寸标注 EL 标高 Elevation BOP 管底 Bottom of pipeCOP 管中心Center of pipeTOP 管顶 Top of pipeFOB 底平 Flat on bottomFOT 顶平 Flat on topCL(屯) 中心线 Center lineTL 切线 Tangent lineSYM 对称的 SymmetricalBOS 支架底 Bottom of supportTOS 支架顶 Top of supportCL 净距（净空） ClearanceCTC 中心至中心 Center to centerCTF 中心至面 Center to faceCTE 中心至端部 Center to endETE 端到端 End to endFEF 法兰端面 Flange and faceFTF 面到面 Face to faceD 直径 DiameterDN 公称直径 Nominal diameterID 内径 Inside diameterOD 外径 Outside diameterDIM 尺寸 DimensionMAX 最大 MaximumMIN 最小 MinimumAVG 平均 AverageAPP 约、近似 Approximate点标高 Point elevation11.图表 PFD 工艺流程图 Process flow diagramPID 管道和仪表流程图 Piping & instrument diagramCOD 接续图 Continued on drawingDTL 详图 DatailSPDWG(ISODWG) 管段图 Spool drawing (each line isometric drawing) DWGNO 图号 Drawing numberDWGI 所在图号 Drawing identificationLOW 材料表 List of materialMTO 汇料 Material take-offAPPX 附录 AppendixJOB. No. 工号 Job NumberBEDD 基础工程设计数据 Basic engineering design dataDEDD 详细工程设计数据 Detail engineering design dataREV. No. 修改号 Recision numberREFDWG 参考图 Reference drawingSC 采样接口 Sample connection12.操作方式及工作参数 AUT 自动 Automatic ML 手动 Manual controlCHOP 链条操作 Chain operatedCSC 铅封关 Car seal closeCSO 铅封开 Car seal openLC 锁闭 Lock closedLO 锁开 Lock openNC 正常关 Normally closeNO 正常开 Normally openATM 大气压 AtmospherePN 公称压力 Nominal pressureA 绝压G 表压(T) 温度 Temperature(P) 压力 Pressure13.施工 W 焊接 WeldingAW 电弧焊 Arc weldingGSAW 气体保护电弧焊 Gas shielded-acr welding EFW 电熔焊 Elecric fusion weldingERW 电阻焊 Electric Resistance weldingGW 气焊 Gas weldingLW 搭接焊 Lap weldingBW 对焊 Butt weldingTW 定位焊 Tack weldingSW 承插焊 Socket weldingCW 连续焊 Continuous weldingSEW 密封焊 Seal weldingSFG 堆焊 SurfacingFW 现场焊接 Field weldingHT 热处理 Heat treatmentPH 预热 PreheatingSR 应力消除 Stress reliefPWHT 焊后热处理 Post weld heat treatmentEIT 检查、探伤和实验 Examination, inspection & testing VE 外观检查 Visual examinationUI (UT) 超声探伤 Ultrasonic inspection (test)RI (RT) 射线探伤 Radiographic inspection (test)MPI (MT) 磁粉探伤 Magnetic particle inspection (test) LPI (PT) 液体渗透检验 Liquid penterant inspection (test) HADT 硬度实验 Hardness testingHYDT 水压实验 Hydraulic testingPNET 气压实验 Pneumatic testingCE 焊条 Covered electrodeWW 焊丝 Welding wireASSY 装配、组合 AssemblyF 现场 FieldF/F 现场制造 Field faricatedSF 现场决定 Suit in fieldCSP 冷紧 Cold springBCT 螺栓冷紧 Bolt cold tighteningBHY 螺栓热紧 Bolt hot tighteningCO 清洗口 Clean outANNY 退火 AnnealedPE 平端面 Plain endBE 坡口端 Belelled endTHR 螺纹 ThreadHB 布氏硬度 Brinnel hardnessRC 洛氏硬度14.其他 FDN 基础 FoundationINF 信息（资料） InformationREF 参考 ReferenceREV 修改 RevisionSEQ 序号（顺序） SequenceW/E 设备带来 With equipmentW/I 仪表带来 With instrumentCM 色标 Colour markCA 腐蚀裕度 Corrosion allowanceUTL 公用系统 UtilityUC 公用工程接头 Utility connectionQTY 数量 QuantityWT 重量 WeightMHR 工时 Man hourBC 螺栓分布圆 Bolt circleHP 高点 High pointLP 低点Low pointSUC 吸入（口） SuctionDIS 排出（口） DischargeSO 蒸气吹扫（口） Steam outNPT 美国标准锥管螺纹 National standard taper pipe thread NPS 美国标准直管螺纹 National standard straight pipe thread DR 排液 DrainVT 放气 VentRTG （压力）等级 RatingCL 等级 ClassSMLS 无缝 Seamless螺旋缝。

管道工程英文术语缩写管道工程英文术语缩写（中英对照）1.管子及管件P 管子 PipeEL 弯头ELL 长半径弯头ELS 短半径弯头MEL 斜接弯头（虾米腰弯头）REL 异径弯头T 三通 TeeLT 斜三通RT 异径三通R 异径管接头（大小头） ReducerCR 同心异径管接头（同心大小头） Concentric reducer ER 偏心异径管接头（偏心大小头） Eccentric reducer CPL 管箍 Coupling FCPL 双头管箍 Full couplingHCPL 单头管箍 Half couplingRCPL 异径管箍 Reducing couplingBU 内外螺纹接头 BushingUN 活接头 UnionHC 软管接头 Hose couplerSE 翻边短节 Stub endNIP 短节 Pipe nipple or straight nippleSNIP 异径短节 Swaged nippleCP 管帽（封头） CapPL 管堵（丝堵） PlugBLK 盲板 BlankSB 8字盲板 Spectacle blind (blank)RP 补强板 Reinforcing pad2.法兰 FLG 法兰 FlangeWNF 对焊法兰 Welding neck flangeSOF 平焊法兰 Slip-on flangeSWF 承插焊法兰 Socket-welding flangeT 螺纹法兰 Threaded flangeLJ 松套法兰 Lapped joint flangeREDF 异径法兰 Reducing flangeBF 法兰盖（日法兰） Blind flangeFSF 法兰密封面 Flange scaling FF 全平面 Flat face RF 凸台面Raised faceMFF 凹凸面 Male and female faceLF 凹面 Female faceLM 凸面 Male faceRJ 环连接面 Ring joint faceTG 榫槽面 T ongue and groove faceTF 榫面 T ongue faceGF 槽面 Groove face3.垫片 G 垫片 GasketNMG 非金属垫片 Non-metallic gasketAG 石棉垫片 Asbestos gasketRG 橡胶垫片 Rubber gasketTEG 聚四氟乙烯包复垫片 PTFE envelope gasketSMG 半金属垫片 Semimetallic gasketMJG 金属包垫片 Meta-jacket gasketSWG 缠绕式垫片 Spiral wound gasketMG 金属垫片 Metallic gasketFMG 金属平垫片 Flat metallic gasketSMSG 齿形金属垫片 Solid metal serrated gasketLER 透镜式金属环垫 Lens ring gasketOCR 八角形金属环垫 Octagonal ring gasketOVR 椭圆形金属环垫 Oval ring gaksetIR/OR 内外定位环 Inner ring and outer ringIR 内定位环 Inner ringOR 外定位环 Outer ring4.坚固件 B 螺栓 BoltSB 螺柱 Stud boltNU 螺母 NutTB 花蓝螺母 TurnbuckleWSR 垫圈 WasherSWSR 弹簧垫圈 Spring washer5.阀门 GV 闸阀 Gate valveGLV 截止阀 Globe valveCHV 止回阀 Check valveBUV 蝶阀 Butterfly valveBAV 球阀 Ball valvePV 旋塞阀 Plug valve (cock)CV 调节阀 Control valveSV 安全阀 Safety valveRV 减压阀 Pressure reducing valveST 蒸汽疏水阀 Steam trapPRV 泄压阀 Pressur relief valveBV 呼吸阀 Breather valveNV 针形阀 Needle valveAV 角阀DV 隔膜阀TWV 三通阀SGV 插板阀6.管道上用的小型设备SPR 气液分离器Separator FA 阻火器Flame arresterSR 过滤器 StrainerSRY Y型过滤器 Y-type strainerSRT T型过滤器 T-type strainerSRB 桶式过滤器 Bucket type strainerTSR 临时过滤器 Temporary strainerSIL 消声器 SilencerSG 视镜 Slight glassSC 取样冷却器 Sample coolerDF 排液漏斗 Drain funnelLM 管道混合器 Line mixerRO 限流孔板 Restriction orificeMO 混合孔板 Mixing orificeRD 爆破片（爆破膜） Rupture diskEJ 补偿器 Expansion joint7.隔热、伴热 INS 隔热 Thermal insulationH 保温 Hot insulationC 保冷 Cold insulationP 防烫伤隔热 Personnel protection insulationT&I 伴热 Tracing and insulationT 管道伴热（冷） TracingEST 蒸汽外伴热 External steam tracingIST 蒸汽内伴热 Internal steam tracingSJT 蒸汽夹套伴热 Steam-jacket tracingET 电伴热 Electric tracing8.配管材料和等级 M 金属材料 Metallic material CS 碳钢 Carbon steelCAS 铸钢 Cast steelFS 锻钢 Forged steelAS 合金钢 Alloy steelSS 不锈钢 Stainless steelAUSTSS 奥氏体不锈钢 Austenitic stainless-steelCI 铸铁 Cast ironMI 可锻铸铁 Malleable ironDI 球墨铸铁 Ductile ironAL 铝 AluminumBRS 黄铜 BrassBRZ 青铜 BronzeCU 紫铜 CopperLAS 低合金钢 Low alloy steelFLAS 低合金锻钢 Forged low alloy steelCLAS 低合金铸钢 Cast low alloy steelTHK 壁厚 ThicknessSCH 表号 Schedule numberSTD 标准 StandardXS 加强 Extra strongXXS 特强 Double extra strong9.装置布置 CN 建北 Construction northE 东 EastW 西 WestS 南 SouthN 北 NorthH 水平 HorizontalV 竖直、铅直、直立 VerticalGRD 地坪 GroundUG 地下 UndergroundBL 装置边界线 Battery limit lineESEW 事故沐浴洗眼器 Emergency shower and eye washer HS 软管站 Hose stationML 接续分界线 Match linePS 管道支架（管架） Piping supportPR 管桥 Pipe rackSTRU 构架（构筑物） StructureBLDG 建筑物 BuildingPD 清扫设施 Purge devicePT 池 PitSHLT 棚 ShelterCOFF 围堰 CofferdamFL 楼板 FloorPF 平台 Plateform10.尺寸标注 EL 标高 Elevation BOP 管底 Bottom of pipe COP 管中心Center of pipeTOP 管顶 Top of pipeFOB 底平 Flat on bottomFOT 顶平 Flat on topCL(屯) 中心线 Center lineTL 切线 Tangent lineSYM 对称的 SymmetricalBOS 支架底 Bottom of supportTOS 支架顶 Top of supportCL 净距（净空） ClearanceCTC 中心至中心 Center to centerCTF 中心至面 Center to faceCTE 中心至端部 Center to endETE 端到端 End to endFEF 法兰端面 Flange and faceFTF 面到面 Face to faceD 直径 DiameterDN 公称直径 Nominal diameterID 内径 Inside diameterOD 外径 Outside diameterDIM 尺寸 DimensionMAX 最大 MaximumMIN 最小 MinimumAVG 平均 AverageAPP 约、近似 Approximate点标高 Point elevation11.图表 PFD 工艺流程图 Process flow diagramPID 管道和仪表流程图 Piping & instrument diagramCOD 接续图 Continued on drawingDTL 详图 DatailSPDWG(ISODWG) 管段图 Spool drawing (each line isometric drawing) DWGNO 图号 Drawing numberDWGI 所在图号 Drawing identificationLOW 材料表 List of materialMTO 汇料 Material take-offAPPX 附录 AppendixJOB. No. 工号 Job NumberBEDD 基础工程设计数据 Basic engineering design dataDEDD 详细工程设计数据 Detail engineering design dataREV. No. 修改号 Recision numberREFDWG 参考图 Reference drawingSC 采样接口 Sample connection12.操作方式及工作参数 AUT 自动 AutomaticML 手动 Manual controlCHOP 链条操作 Chain operatedCSC 铅封关 Car seal closeCSO 铅封开 Car seal openLC 锁闭 Lock closedLO 锁开 Lock openNC 正常关 Normally closeNO 正常开 Normally openATM 大气压 AtmospherePN 公称压力 Nominal pressureA 绝压G 表压(T) 温度 Temperature(P) 压力 Pressure13.施工 W 焊接 WeldingAW 电弧焊 Arc weldingGSAW 气体保护电弧焊 Gas shielded-acr welding EFW 电熔焊Elecric fusion weldingERW 电阻焊 Electric Resistance weldingGW 气焊 Gas weldingLW 搭接焊 Lap weldingBW 对焊 Butt weldingTW 定位焊 Tack weldingSW 承插焊 Socket weldingCW 连续焊 Continuous weldingSEW 密封焊 Seal weldingSFG 堆焊 SurfacingFW 现场焊接 Field weldingHT 热处理 Heat treatmentPH 预热 PreheatingSR 应力消除 Stress reliefPWHT 焊后热处理 Post weld heat treatmentEIT 检查、探伤和实验 Examination, inspection & testing VE 外观检查 Visual examinationUI (UT) 超声探伤 Ultrasonic inspection (test)RI (RT) 射线探伤 Radiographic inspection (test)MPI (MT) 磁粉探伤 Magnetic particle inspection (test)LPI (PT) 液体渗透检验 Liquid penterant inspection (test) HADT 硬度实验 Hardness testingHYDT 水压实验 Hydraulic testingPNET 气压实验 Pneumatic testingCE 焊条 Covered electrodeWW 焊丝 Welding wireASSY 装配、组合 AssemblyF 现场 FieldF/F 现场制造 Field faricatedSF 现场决定 Suit in fieldCSP 冷紧 Cold springBCT 螺栓冷紧 Bolt cold tighteningBHY 螺栓热紧 Bolt hot tighteningCO 清洗口 Clean outANNY 退火 AnnealedPE 平端面 Plain endBE 坡口端 Belelled endTHR 螺纹 ThreadHB 布氏硬度 Brinnel hardnessRC 洛氏硬度14.其他 FDN 基础 FoundationINF 信息（资料） InformationREF 参考 ReferenceREV 修改 RevisionSEQ 序号（顺序） SequenceW/E 设备带来 With equipmentW/I 仪表带来 With instrumentCM 色标 Colour markCA 腐蚀裕度 Corrosion allowanceUTL 公用系统 UtilityUC 公用工程接头 Utility connectionQTY 数量 QuantityWT 重量 WeightMHR 工时 Man hourBC 螺栓分布圆 Bolt circleHP 高点 High pointLP 低点Low pointSUC 吸入（口） SuctionDIS 排出（口） DischargeSO 蒸气吹扫（口） Steam outNPT 美国标准锥管螺纹 National standard taper pipe thread NPS 美国标准直管螺纹 National standard straight pipe thread DR 排液 DrainVT 放气 VentRTG （压力）等级 RatingCL 等级 ClassSMLS 无缝 Seamless螺旋缝。

stake No. 桩号elevation标高coordinates坐标mileage（chainage）里程obstacle/ barrier障碍物instrument 仪器alignment sheet 线路图/定线图benchmark 基准点restricted 受限制的ROW/ right-of-way 作业带Clear/clean the ROW 清理作业带land scraper (grader) 平地机excavator 挖掘机dozer 推土机width 宽度pipe yard 堆管场camp 营地crane 吊车load 装车offload 卸车side boom 吊管机low-bed trailer 低板车move forward往前移know well of 对…熟悉pipe hauling 运管destination目的地preheat 加热be in charge of 负责tie-in 连头pipe jacking 顶管quality control/QC 质量控制root face钝边manual welding 手工焊lower-in 下沟backfill 回填complete完成bedding material 垫层材料spread 摊铺compact 压实interval间隔partial backfilling 小回填conform to 符合，遵照cubic meter立方米carry out 执行hydro testing试压section管段tightness 严密性strength强度flow rate流速filling pig注水球dewater 排水density密度foam pig泡沫球swab扫水dryer干燥机epoxy resin 环氧树脂inspect检验coincident with 与……一致solidify凝结，冻结holiday detector 电火花检漏仪embed 埋设temporary 临时的calibration 校验permanent 永久的verify 核实test pole 测试桩tape ruler 卷尺parallel to 与……平行radically 根本上furthermore 此外respectively分别地diagram 简图veragely平均地clay泥土，粘土rotate旋转failure 失败，失误exceed 超过guarantee 保证jacking work 顶管施工duty-on-shift 轮流值班round o’clock 24小时fatigue 疲劳hose 软管refuel 加油grouting 灌浆bentonite 膨润土，泥浆ream 扩孔bore pipe 钻杆bore bit 钻头pilot hole 导孔slurry 泥浆friction 摩擦stability 稳定性facility设施satisfactory 满意sufficient充足的strictly 严格地risk assessment 风险评估frac-out 漏浆dispose 处理fluid 液体，泥浆municipality 市政occupy占用obtain获取pollute污染absolutly 绝对地turf 草皮slant 使倾斜periodically 定期地sprout 发芽timber木料guarding tape警示带personnel 人员，人事concrete saddle weight混凝土压块adjacent 相邻的rubber 胶皮perform 执行torque 扭矩approximately 大约penetrate 渗透cutting machine 切割机plate roller滚板机wall plate, shell plate 壁板annular plate边缘板accessories 附件material yard 料场the 2nd layer plate二层板top angle 角钢stairway 盘梯termination 停工defect缺陷welding slag焊渣thermometer 温度计roundnes圆度verticalit垂直度concavit凹度convexity凸度diameter直径height 高度flange法兰gasket 垫圈feeding pump 上水泵flow rate流量oxygen cylinder 氧气瓶hoisting devices起吊设备nacelle吊篮wire rope钢丝绳grounding接地resistance 电阻acetylene乙炔oxygen cylinder 氧气瓶weather forecast 天气预报chord length弦长cater-corner对角线quality certificates质量证明书product certificate 出厂合格证re-inspection report复验报告foundation基础calibrate校验sample inspection 抽检check and accept验收embedded bolts预埋螺栓embedded steel plate预埋钢板safetyinspection安全检查potential safety hazard安全隐患safety risk安全风险work at height高空作业in place就位steel wire rope钢丝绳tie-rod支柱拉杆wedge 斜垫铁misplacement移位rectify调整adjustment next procedure consolidate加固assessment评估technical kick-off 技术交底gap 间隙preheat repairsafety valves安全阀rust removal 除锈coating 刷漆mechanical property 机械性能lay-out 布置图location plan 位置图installation record 安装记录process curve 工艺曲线trenchless非开挖micro tunneling微型盾构settlement calculation 沉降计算traffic flow交通量NOC许可undertaking letter保证书bank guarantee银行保函indispensable不可缺少的authority 权威；权力；当局method statement 施工方案alignment sheets 线路施工图legislations 立法，法律essential 基本的，必须的repatriate遣返temporary vacancy临时空缺subsidiary津贴，补贴recruiting招聘，聘请release 发布，发表reinforce加强emergency exit紧急出口fire extinguishers 灭火器professional quality专业素质consciousness意识concentrate on 集中精力aspect方面strengthen加强humanized management人性化管理dedication spirit 奉献精神humanistic care 人文关怀basic salary 基本工资interview 面试periodically定期地accommodation allowance住房津贴traffic allowance交通补贴overtime salary加班工资Muslim canteen穆斯林餐厅transfer 转移，转让leak泄露inconvenience不便 i nconsideration考虑不周in particular尤其comply with遵守hygiene卫生cooperation合作logistics后勤run into遭遇，陷入personal affairs私人事情life garbage生活垃圾sewage污水，污物reasonable合理的reliable值得信赖的domestic enterprises 国内企业technician技术员make an investigation调查look forward to期待come to an agreement达成一致on-the-spot investigation现场调查reserve预订check in办理宾馆入住手续cash or credit card receipt收据Burma缅甸 Vietnam越南 Laos老挝 Cambodia柬埔寨 Malaysia Indonesia Philippines Sigapore Bengal孟加拉 Nepal Pakistan Afghan Bhutan不丹Brunei文莱 UAE（ united arab emirates）SaudiArabia。

1 管道组成件 Piping component1.1 管子 Pipe管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管 steel pipe铸铁管 cast iron pipe衬里管 lined pipe复合管 clad pipe碳钢管 carbon steel pipe合金钢管 alloy steel pipe不锈钢 stainless steel pipe奥氏体不锈钢管 austenitic stainless steel pipe铁合金钢管 ferritic alloy steel pipe轧制钢管 wrought-steel pipe锻铁管 wrought-iron pipe无缝钢管 seamless (SMLS) steel pipe焊接钢管 welded steel pipe电阻焊钢管 electric-resistance welded steel pipe电熔（弧）焊钢板卷管 electric-fusion (arc)-welded steel-plate pipe 螺旋焊接钢管 spiral welded steel pipe镀锌钢管 galvanized steel pipe热轧无缝钢管 hot-rolling seamless pipe冷拔无缝钢管 cold-drawing seamless pipe水煤气钢管 water-gas steel pipe塑料管 plastic pipe玻璃管 glass tube橡胶管 rubber tube直管 run pipe; straight pipe1.2 管件 Fitting弯头 elbow异径弯头 reducing elbow带支座弯头 base elbowk半径弯头 long radius elbow短半径弯头 short radius elbow长半径180°弯头 long radius return短半径180°弯头 short radius return带侧向口的弯头（右向或左向） side outlet elbow (right hand or left hand) 双支管弯头（形） double branch elbow三通 tee异径三通 reducing tee等径三通 straight tee带侧向口的三通（右向或左向） side outlet tee (right hand or 1eft hand) 异径三通（分支口为异径） reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通 base tee异径三通（一个直通口及分支口为异径） reducing tee (reducing on one run and outlet)异径三通（两个直通口为异径，双头式） reducing tee (reducing on both runs, bull head)45°斜三通45° lateral45°斜三通（支管为异径）45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45° lateral (reducing on one run and branch)Y型三通（俗称裤衩）true “Y”四通 cross等径四通 straight cross异径四通 reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet) 异径四通（一个直通口及分支口为异径） reducing cross (reducing on one run and outlet)异径四通（两个分支口为异径） reducing cross (reducing on both outlet) 异径四通（一个直通口及两个分支口为异径） reducing cross (reducing on one run and both outlet)异径管 reducer同心异径管 concentric reducer偏心异径管 eccentric reducer锻制异径管 reducing swage螺纹支管台 threadolet焊接支管台 weldolet承插支管台 sockolet弯头支管台 elbolet斜接支管台 latrolet镶入式支管嘴 sweepolet短管支管台 nipolet支管台，插入式支管台 boss管接头 coupling, full coupling半管接头 half coupling异径管接头 reducing coupling活接头 union内外螺纹缩接（俗称补芯） bushing管帽 cap (C)堵头 plug短节 nipple异径短节 reducing nipple; swage nipple1.3 弯管 Bend预制弯管 fabricated pipe bend跨越弯管（^ 形） cross-over bend偏置弯管（~ 形） offset bend90°弯管 quarter bend环形弯管 cirele bend单侧偏置90°弯管（? 形） single offset quarter bendS形弯管“S” bend单侧偏置U形膨胀弯管（| ?形）single offset “U” bendU形弯管“U” bend双偏置U膨胀弯管double offset expansion “U” bend斜接弯管 mitre bend三节斜接弯管 3-piece mitre bend折皱弯管 corrugated bend圆度 roundness1.4 法兰 Flange (FLG）整体管法兰 integral pipe flange钢管法兰 steel pipe flange螺纹法兰 threaded flange滑套法兰（包括平焊法兰） slip-on flange (SO); slip-on welding flange 承插焊法兰 socket welding flange松套法兰 lap joint flange (LJF)对焊法兰 welding neckflange (WNF)法兰盖 blind flange, blind孔板法兰 orifice flange异径法兰 reducing flange盘座式法兰 pad type flange松套带颈法兰 loose hubbed flange焊接板式法兰 welding plate flange对焊环 welding neck collar （与stub end相似）平焊环 welding-on collar突缘短节 stub end, lap翻边端 lapped pipe end松套板式法兰 loose plate flange压力级 pressure rating, pressure rating class压力—温度等级 pressure-temperature rating法兰密封面，法兰面 flange facing突面 raised face (RF)凸面 male face (MF)凹面 female face (FMF)榫面 tongue face槽面 groove face环连接面 ring joint face全平面；满平面 flat face; full face (FF)光滑突面 smooth raised face (SRF)法兰面加工 facing finish粗糙度 roughness光滑的 smooth齿形 serrated均方根 root mean square (RMS)算术平均粗糙高度 arithmetical average roughness height (AARH) 配对法兰 companion-flange螺栓圆 bolt circle (B.C.)1.5 垫片 Gasket (GSKT)垫片的型式 type of gasket平垫片 flat gasket环形平垫片 flat ring gasket平金属垫片 flat metal gasket夹棉织物的橡胶 elastomer with cotton fabric insertion夹石棉织物的橡胶 elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶 elastomer with asbestos fabric insertion and with wire reinforcement无石墨压缩白石棉垫片 non graphited compressed white asbestos gasket 天然白橡胶垫片 natural white rubber gasket压缩石棉垫片 compressed asbestos class gasket浸聚四氟乙烯的石棉垫片 PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片 spiral-wound metal gasket with asbestos filler 内环 inner ring外环，外定位环 outer ring波纹金属垫片 corrugated metal gasket波纹金属包嵌石棉垫片 corrugated metal gasket with asbestos inserted 双夹套波纹金属包石棉垫片 corrugated metal double jacketed asbestos filled gasket双夹套垫片 double jacketed gasket金属包石棉平垫片 flat metal jacketed asbestos filled gasket整体金属齿形垫片 solid metal serrated gasket槽形金属垫片 grooved metal gasket环形连接金属垫片 ring joint metal gasket八角环形垫片 octagonal ring gasket椭圆环形垫片 oval ring gasket透镜式垫片 lens gasket非金属垫片 non-metallic gasket1.6 阀门 Valve1.6.1 阀门结构、零件阀轭 yoke外螺纹阀杆及阀轭 outside screw and yoke (OS & Y) 阀杆 stem内螺纹 inside screw (IS)阀轭套 yoke sleeve阀杆环 stem ring阀座 valve seat (body seat)阀座环、密封圈 seat ring整体（阀）座 integral seat堆焊（阀）座 deposited seat阀芯（包括密封圈、杆等内件） trim阀盘 disc阀盘密封圈 disc seat阀体 body阀盖 bonnet阀盖衬套 bonnet bush螺纹阀帽 screw cap螺纹阀盖 screw bonnet螺栓连接的阀盖 bolted bonnet (BB)活接阀盖（帽） union bonnet (cap)螺栓连接的阀帽 bolted cap (BC)焊接阀盖 welded bonnet (WB)本体阀杆密封 body stem seal石棉安全密封 asbestos emenen seal倒密封 back seal压力密封的阀盖 pressure-tight bonnet动力操纵器 powered operator电动操纵器 electric motor operator气动操纵器 pneumatic operator液压操纵器 hydraulic operator快速操纵器 quick-acting operator滑动阀杆 sliding stem正齿轮传动 spur gear operated伞齿轮传动 bevel gear operated扳手操作 wrench operated链轮 chain wheel手轮 hand wheel手柄 hand lever (handle)气缸（或液压缸）操纵的 cylinder operated链条操纵的 chain operated等径孔道 full bore; full port异径孔道 reducing bore, reduced port,venturi port 短型 short pattern紧凑型（小型） compact type笼式环 lantern ring压盖 gland阀杆填料 stem packing阀盖垫片 bonnet gasket升杆式（明杆） rising stem (RS)非升杆式（暗杆） non-rising stem (NRS)指示器/限位器 indicator/stopper注油器 grease injector可更换的阀座环 renewable seat ring1.6.2 常用阀(1)闸阀 gate valve平行双闸板 double disc parallel seat开口楔形闸板 split wedge挠性整体楔形闸扳 flexible solid wedge整体楔形闸板 solid wedge塞型闸阀 plug gate valve直通型闸阀 through conduit gate valve(2) 截止阀 globe valve球心型阀盘 globe type disc塞型阀盘 plug type disc可转动的阀盘 swivel disc(3) 节流闪阀 throttle valve针阀 needle valve(4) 角阀 angle valve(5) Y型阀（Y 型阀体截止阀） Y-valve (Y-body globe valve)(6) 球阀 ball valve三通球阀 3-way ball valve装有底轴的 trunnion mounted耐火型 fire safe type浮动球型 floating ball type防脱出阀杆 blowout proof stem(7) 蝶阀 butterfly valve对夹式（薄片型） wafer type凸耳式 lug type偏心阀板蝶阀 offset disc burerfly valve; eccentric butterfly valve 斜阀盘蝶阀 canted disc butterfly valve连杆式蝶阀 link butterfly valve(8) 柱塞阀 piston type valve(9) 旋塞阀 plug valve三通旋塞阀 three-way plug valve四通旋塞阀 four-way plug valve旋塞 cock衬套旋塞 sleeve cock(10) 隔膜阀 diaphragm valve橡胶衬里隔膜阀 rubber lined diaphragm valve直通式隔膜阀 straight way diaphragm valve堰式隔膜阀 weir diaphragm valve(11) 夹紧式胶管阀 pinch valve（用于泥浆、粉尘等）(12) 止回阀 check valve升降式止回阀 lift check valve旋启式止回阀 swing check valve, flap check valve 落球式止回阀 ball check valve弹簧球式止回阀 spring ball check valve双板对夹式止回阀 dual plate wafer type check valve 无撞击声止回阀 non-slam cheek valve底阀 foot valve切断式止回阀 stop check valve; non-return valve活塞式止回阀 piston check valve斜翻盘止回阀 tilting disc check valve蝶式止回阀 butterfly check valve1.6.3 其它用途的阀安全泄气阀 safety valve (SV)安全泄液阀 relief valve (RV)安全泄压阀 safety relief valve杠杆重锤式 lever and weight type引导阀操纵的安全泄气阀 pilot operated safety valve复式安全泄气阀 twin type safety valve罐底排污阀 flush-bottom tank valve电磁阀 solenoid valve, solenoid operated valve电动阀 electrically operated valve, electric-motor operated valve气动阀 pneumatic operated valve低温用阀 cryogenic service valve蒸汽疏水阀 steam trap机械式疏水阎 mechanical trap浮桶式疏水阀 open bucket trap, open top bucket trap浮球式疏水阀 float trap倒吊桶式疏水阀 inverted bucket trap自由浮球式疏水阀 loose float trap恒温式疏水阀 thermostatic trap金属膨胀式蒸汽疏水阀 metal expansion steam trap液体膨胀式蒸汽疏水阀 liquid expansion steam trap双金属膨胀式蒸汽疏水阀 bimetallic expansion steam trap压力平衡式恒温疏水阀 balanced pressure thermostatic trap热动力式疏水阀 thermodynamic trap脉冲式蒸汽疏水阀 impulse steam trap放气阀（自动放气阀） air vent valve (automatic air vent valve) （疏水阀用）平板式滑动闸阀 slab type sliding gate valve盖阀 flat valve换向阀 diverting valve, reversing valve热膨胀阀 thermo expansion valve自动关闭阀 self-closing gate valve自动排液阀 self-draining valve管道盲板阀 line-blind valve挤压阀 squeeze valve（用于泥浆及粉尘等）呼吸阀 breather valve风门、挡板 damper减压阀 pressure reducing valve, reducing valve控制阀 control valve膜式控制阀 diaphragm operated control valve执行机构 actuator背压调节阀 back pressure regulating valve差压调节阀 differential pressure regulating valve 压力比例调节阀 pressure ratio regulating valve1.6.4 未指明结构（或阀型）的阀切断阀 block valve; shut-off valve; stop valve调节阀 regulating valve快开阀 quick opening valve快闭阀 quick closing valve隔断阀 isolating valve三通阀 three way valve夹套阔 jacketed valve非旋转式阀 non-rotary valve排污阀 blowdown valve集液排放阀 drip valve排液阀 drain valve放空阀 vent valve卸载阀 unloading valve排出阀 discharge valve吸入阀 suction valve多通路阀 multiport valve取样阀 sampling valve手动阀 hand-operated valve; manually operated valve 锻造阀 forged valve铸造阀 cast valve（水）龙头 bibb; bib; faucet抽出液阀（小阀） bleed valve旁路阀 by-pass valve软管阀 hose valve混合阀 mixing valve破真空阀 vacuum breaker冲洗阀 flush valve第一道阀；根部阀 primary valve根部阀 root valve总管阀 header valve事故切断阀 emergency valve1.7 管道特殊件 Piping Specialty1.7.1 管道特殊件（组件）粗滤器 strainer过滤器 filter临时粗滤器（锥型） temporary strainer (cone type)y 型粗滤器 y-type strainerT型粗滤器 T-type strainer永久过滤器 permanent filter丝网粗滤器 gauze strainer洗眼器及淋浴器 eye washer and shower视镜 sight glass阻火器 flame arrester喷嘴；喷头 spray nozzle取样冷却器 sample cooler消声器 silencer膨胀节 expansion joint波纹膨胀节 bellow expansion joint单波 single bellow双波 double bellow多波 multiple bellow压力平衡式膨胀节 pressure balanced expansion带铰链膨胀节 hinged expansion joint轴向位移型膨胀节 axial movement type expansion joint自均衡膨胀节（外加强环）self-equalizing expansion joint 带接杆膨胀节 tied expansion joint万向型膨胀节 universal type expansion joint球形补偿器 ball type expansion joint填函式补偿器 slip type (packed type) expansion joint单向滑动填料函补偿器 single actionpacked slip joint1.7.2 管道特殊元件Piping Special Element软管接头 hose connection (HC)快速接头 quick coupling金属软管 metal hose橡胶管 rubber hose挠性管 flexible tube鞍形补强板 reinforcing saddles补强板 reinforcement pad特殊法兰 special flange漏斗 funnel排液环 drip ring排液漏斗 drain funnel插板 blank垫环 spacer8字盲板 spectacle blind; figure 8 blind 限流孔板 restriction orifice爆破片 rupture disk法兰盖贴面 protective disc费托立克接头 victaulic coupling1.8 端部连接 End Connection法兰端 flanged end坡口端 beveled end (BE)对焊端 butt welded end平端 plain end (PE)承插焊端 socket welding end螺纹端 threaded end (TE)承口 bell end焊接端 welding end法兰连接（接头） flanged joint对焊连接（接头） butt welded joint螺纹连接，管螺纹连接 threaded joint, pipe threaded joint 锥管螺纹密封焊连接 seal-welded taper pipe threaded joint 承插焊连接（接头） socket welded joint承插连接（接头） bell and spigot joint环垫接头 ring joint (RJ)万向接头 universal joint软钎焊连接（接头） soldered joint搭接接头，松套连接 lapped joint外侧厚度切斜角 bevel for outside thickncss内侧厚度切斜角 bevel for inside thickness内外侧厚度切斜角 bevel for combined thickness法兰式的 flanged (FLGD)对焊的 butt welded (BW)螺纹的 threaded (THD)承插焊的 socket welded (SW)小端为平的 small end plain (SEP)大端为平的 large end plain (LEP)两端平 both ends plain (BEP)小端带螺纹 small end thread (SET)大端带螺纹 large end thread (LET)两端带螺纹 both end thread (BET)一端带螺纹 one end thread (OET)支管连接 branch connection焊接支管 branch pipe welded directly to the run pipe2 管道用紧固件及螺纹2.1 紧固件螺栓 bolt六角头螺栓 hexagonal head bolt方头螺栓 square head bolt螺柱，双头螺栓 stud bolt环头螺检 eye bolt沉头螺栓 countersunk (head) screw地脚螺栓 anchor bolt; foundation bolt 松紧螺旋扣（花篮螺丝） turnbuckleU形螺栓 U-boltT形螺栓 T-bolt圆头螺钉 round head bolt机螺栓，机螺钉 maehine bolt顶开螺栓，顶起螺栓 Jack screw自攻螺钉 self tapping screw膨胀螺栓 expansion bolt粗制的 coarse精制的 finished, fine螺母 nut六角螺母 hexagonal nut方螺母 square nut蝶形螺母 wing nut扁螺母 flat nut锁紧螺母 lock nut垫圈 washer平垫圈 plain washer球面垫圈 spherical washer弹簧垫圈 spring washer方垫圈 square washer斜垫圈 slant washer销轴 pinned shan销 pin开口销 cotter pin定位销 dowel pin带孔销 pin with hole圆锥销 taper pin铆钉 rivet键 key2.2 螺纹左螺纹left hand thread右螺纹 right hand thread管螺纹 pipe thread锥管螺纹 taper pipe thread直管螺纹straight pipe thread梯形螺纹 trapezoid thread螺距pitch of thread粗牙螺纹coarse thread细牙螺纹 fine thread特细牙螺纹extra fine thread通长螺纹full thread惠氏螺纹whitworth thread公制螺纹 metric ibread美国标准锥管螺纹 American standard taper pipe thread (NPT) 螺孔 tap3 材料、型钢及填料3.1 金属材料3.1.1 黑色金属 Ferrous Metal碳素钢 carbon steel (CS)低碳钢 low-carbon steel中碳钢 medium-carbon steel高碳钢 high-carbon steel普通碳素钢 general carbon steel优质碳素钢 high-quality carbon steel普通低合金结构钢 general structure low-alloy steel 合金结构钢 structural alloy steel合金钢 alloy steel低合金钢 low alloy steel中合金钢 medium alloy steel高合金钢 high alloy steel耐热钢 heat resisting steel高强度钢 high strength steel复合钢 clad steel工具钢 tool steel弹簧钢 spring steel钼钢 molybdenum steel镍钢 nickel steel铬钢 chromium steel铬钼钢 chrome-molybdenum steel铬镍钢 chromium-nickel steel,chrome-nickel steel 不锈钢 stainless steel (S.S.)奥氏体不锈钢 Austenitic stainless steel马氏体不锈钢 Martensitic stainless steel司特来合金（钨铬钴台金） Stellite耐蚀耐热镍基合金 Hastelloy铬镍铁合金 inconel耐热铬镍铁合金 incoloy20合金 20 alloy平炉钢（马丁钢） Martin steel镇静钢 killed steel半镇静钢 semi-killed steel沸腾钢 rimmed steel; rimming steel; open-steel锻钢 forged steel铸钢 cast steel铸铁 cast iron (C.I.)灰铸铁 grey cast iron可锻铸铁 malleable iron (MI)球墨铸铁 nodular cast iron; nodular graphite iron 生铁 pig iron熟铁，锻铁 wrought iron铸件 casting高硅铸铁 high silicon cast iron3.1.2 镀层及制造方法渗铬钢，镀铬钢 chromized steel镀铬的 chromium-plated, chrome-plated镀层 plating锻造，型钢 swage锻造的，锻造 forging轧制 rolling热轧 hot rolling冷轧 cold rolling挤压 extruding冷加工 cold working热加工 hot working拔制 drawing3.1.3 有色金属Non-ferrous Metal铝 aluminum铜，紫铜 copper黄铜 brass青铜 bronze铝青铜 aluminum bronze磷青铜 phosphor bronze铝镁合金 aluminum magnesium锰青铜 manganese bronze蒙乃尔（注：镍及铜合金） Monel 镍铜台金 nickel copper alloy非铁合金 nonferrous alloy钛 titanium铅 lead硬铅 hard lead3.1.4 材料性能极限强度 ultimate strength抗拉强度 tensile strength屈服极限 yield limit屈服点 yield point延伸率 percentage elongation抗压强度 compressive strength抗弯强度 bending strength弹性极限 elastic limit冲击值 impact value疲劳极限 fatigue limit蠕变极限 creep limit持久极限 endurance limit布氏硬度 Brinell hardness洛氏硬度 Rockwell hardness维氏硬度 Vickers diamond hardness, diamond penetrator hardness 蠕变断裂强度 creep rupture strength断面收缩率 reduction of area韧性 toughess脆性 brittleness延性 ductility冷脆 cold shortness冷流 cold flow3.2 非金属材料 Non-metallic Material塑料 plastic丙烯腈—丁二烯—苯乙烯 acrylonitrile-butadiene-styrene (ABS) 聚乙烯 polyethylene (PE)聚氯乙烯 polyvinyl chloride (PVC)苯乙烯橡胶 styrene-rubber (SR)聚丁烯 polybutylene (PB)聚丙烯 polypropylene (PP)聚苯乙烯 polystyrene (PS)氯化聚醚 chlorinated polyether (CPE)聚酰胺 polyamide (PA)聚碳酸酯 polycarbonate (PC)聚甲基丙烯酸甲酯 polymethyl methacrylate (PMMA)醋酸丁酸纤维素cellulose acetate butyrate (CAB)氯化聚氯乙烯 chlorinated polyvinyl chloride (CPVC)聚偏二氟乙烯 polyvinylidene fluoride (PVDF)缩醛塑料 acetal plastic尼龙塑料 nylon plastic聚烯烃 polyolefin (PO)石墨酚醛塑料 graphite phenolic plastics聚四氟乙烯 polytetrafluoroethylene (PTFE)纤维增强热塑性塑料 fiber reinforced thermoplastics热塑性塑料 thermoplastic热固性塑料 thermosetting plastics胶粘剂 adhesive溶剂胶接剂 solvent cement树脂 resin环氧树脂 epoxy, epoxy resin聚酯树脂 polyester resin聚酯纤维 polyester fibers氟塑料 fluoroplastics聚氨基甲酸酯 polyurethane丙烯酸树脂 acrylic resin脲醛树脂 urea resin呋哺树脂 furan resin乙烯丙烯二烃单体 ethylene propylene diene monomer (EPDM)合成橡胶 synthetic rubber橡胶 rubber丁腈橡胶 nitrile butadiene rubber氯丁橡胶 neoprene天然橡胶 natural rubber乙丙橡胶 ethylene propylene rubber (EPR) 玻璃 glass硼硅玻璃 borosilicate glass耐火砖 fire brick陶瓷 ceramic搪瓷 porcelain enamel木材 wood3.3 型材型钢 shaped steel, section steel, swage 角钢 angle steel槽钢 channel工字钢 I-beam宽缘工字钢或H钢 wide flanged beamT型钢 T-bar方钢 square bar扁钢 flat bar角钢 hexagonal steel bar圆钢 round steel; rod钢带 strap steel钢板 plate网纹钢板 checkered plate腹板（指型钢的立板） web翼缘（指型钢的缘） wing3.4 填料及填料函填料 packing石棉绳 asbestos rope, asbestos cord．O形环 O-ring自密封 self-sealing四氟带 Teflon tap带铬镍合金丝的石棉绳 asbestos rope with inconel wire, inconel wire asbestos浸聚四氟乙烯的石棉填料 Teflon impregnated asbestos packing金属填料 metallic stuffing填料箱，填料函 packing box, stuffing box填料函压盖 stuffing box gland4 管道等级及材料统计4.1 管道材料规定 Piping Material Specification管道等级 piping class; piping classification管道等级号 class designation公称直径 nominal diameter (DN); nominal (pipe) size公称压力 nominal pressure (PN)压力级，等级，类别 class (CL)低压 low pressure (L.P.)中压 medium pressure (M.P.)高压 high pressure (H.P.)大气压 atmosphere (ATM)真空 vacuum工作压力 operating pressure; working pressure设计压力 design pressure工作温度 operating temperature设计温度 design temperature环境温度 ambient temperature腐蚀裕量 corrosion allowance管道附件 piping attachment管道元件 piping element壁厚 wall thickness (WT)壁厚系列号 schedule number (SCH. No.)加厚的，加强的 extra heavy, extra strong双倍加厚的，双倍加强的 double extra heavy, double extra strong 通用连接组 typieal installation分组（类）形式（如管道等级表） block form数据库 data base文件 file4.2 材料统计 Material Take-off (MTO)汇总表 summary sheet材料表 bill of material (BM)综合管道材料表 consolidated piping material summary sheet (CPMSS) 统计材料准确度 accuracy of take-off材料情况报告 material status report (MSR)散装材料 bulk material编位号的 itemized代码 code number短代码 short code数量 quantity (QTY)重力 weight净重 net weight毛重 gross weight5设备布置及管道布置Plot Plan and Piping Layout,Equipment and Piping Arrangement 5.1 设备名称 Equipment Name5.1.1 容器 Vessel(1) 塔 tower, column洗涤塔 scrubber吸收塔 absorber冷却塔 cooling tower精馏塔 fractionating tower蒸馏塔 distillation tower再生塔 regenering tower造粒塔 prflling tower汽提塔 stripper脱气塔 degasifier合成塔 synthesis tower(2) 反应器 reactor聚台釜 polymerizer转化器，变换器 converter脱硫反应器 desulphurization reactor甲烷化器 methanator(3) 气柜 gas-holder螺旋式气柜 helical gas-holder湿式气柜 wet gas-holder干式气柜 dry gas-holder(4) 槽罐贮罐 tank; storage tank缓冲罐 knock out drum球罐 spheroid, spherical tank 罐 drum接受槽 receiver计量槽 measuring tank加料槽 feed tank排污罐 blow down tank闪蒸罐 flash drum汽包 steam drum溶液贮槽 solution storage tank 地下槽 sloptank(5) 其它设备分离器 separator旋风分离器 cyclone分子筛 molecular sieve脱氧器 deaerator搅拌器 agitator干燥器 dryer混合器 mixer萃取器 extractor结晶器 crystallizer澄清器 gravity settler净化器 purifier气化器 vaporizer吸附器 adsorber融解槽 melter减温器 desuperheater升压器 booster喷射器 ejector喷头 sprayer火炬 flare消声器 silencer(6) 换热器、加热器、冷却器换热器 heat exchanger空冷器 air cooler水冷却器 water cooler冷凝器 condenser螺旋板式换热器 spiral plate heat exchanger 蒸发器 evaporator再沸器 reboiler急冷器 quencher深冷器 chiller预热器 preheater再热器 reheater加热器 heater电加热器 electric heater过热器 super heater给水加热器 feed water heater中间冷却器 inter cooler后冷却器 after cooler5.1.2 工业炉及锅炉炉子 furnace烧嘴 burner锅炉 boiler烟囱 stack废热锅炉 waste heat boiler辅助锅炉 auxiliary boiler省煤器 economizer回热炉 direct-fired heater辐射段 radiant section对流段 convection section裂化炉 reformer焚烧炉 incinerator回转窑 rotary kiln炉管 furnace tube吹灰器 soot blower观察孔 observation door, peep door防爆门 explosion door5.2 辅助用房名称5.2.1 生产用房分析室 analyzer room变压器室 transformer room配电室，变电所 substation, switch room 蓄电池室 battery room控制室 control room通风室 ventilating room贮藏室 storage room维修间 maintenance room办公室 office5.2.2 生活用房更农室 locker room盥洗室，厕所 closet, lavatory, toilet管道布置平面 piping arrangement plan (PAP)管道布置 piping layout轴测图 isometric drawing分区索引图 key plan初版设备布置图（“A”版）preliminary plot plan ( “A” issue)内部审查版设备布置图（“B”版） inrernal approval plot pla n ( “B” issue)用户审查版设备布置图（“C”版) owner approval plot plan ( “C” issue)确认版设备布置图（“D”版）confirm plot plan ( “D” issue)研究版设备布置图（“e”版）planning plot plan ( “E” issue)设计版设备布置图（“F”）designing plot plan ( “F” issue)施工版设备布置图（“G”版）construction plot plan ( “G” issue)5.4 厂房、站、单元压缩机房 compressor house (room)泵房 pump house (room)洗眼站 eye washer station泡沫站 foam station软管站，公用工程站 hose station (HS), utility station成套设备 package unit设施 facilities罐区 tank yard空分装置 air separation facility5.5 设备布置设备位号 equipment item number工厂区界 plant limit项目区界内侧 inside battery limit (I.S.B.L.) 项目区界 batterylimit (BL)区界 area limit区域边界 zone iimit界外 off site东 east (E)西 west (W)南 south (S)北 north (N)上 up下 down工厂北向 plant north真实北向 true north道路 road小过道 cat walk, cat way走道，过道 walk way, gangway, access way污水坑（井） sump pit集水池 catch basin沟槽 through预留区 trough场地 future area铺砌区 paving area非铺砌区 unpaved area碎石铺面 gravel paving橡皮铺面 rubber paving面积，区域 area体积，容积 volume (VOL)5.6 管道布置管道设计 piping design管道研究 piping study走向研究 routing study重要管道 critical piping地上管道 above ground piping地下管道 under ground piping管网 network of pipes管廊 pipe rack管沟 piping trench管间距 line spacing管道跨距 line span总管 header, manifold旁路 by pass排液 drain放空 vent上升管，垂直管 riser导管 canduit裸管 bare iine管件直接 fitting to fitting (FTF)管段，接口 spool piece, spool取样接口 sampling connection集液包 drip leg伴热管 tracing pipe蒸汽伴热 steam tracing热水伴热 hot-water tracing电伴热 electrical tracing夹套管 jacketed line, jacketed piping全夹套的 full jacketed平面 plan详图 detail“ ”视图X view “X”“ ”剖视A-A section “A-A”连接图 hook up drawing接续图 continue on drawing (COD)接续线 match line (M.L.)比例 scale图例 legend符号 symbol管口表 list of nozzles方位 orientation管口方位 nozzle orientation定位 location相交 intersection水平的 horizontal垂直的，立式的 vertical垂直，正交，垂直的 perpendicular平行，平行的 parallel水平安装 horizontal installation垂直安装 vertical installafion对称的 symmetric相反（的），对面（的） opposite顺时针方向 clock wise逆时针方向 counter clock wise计算机辅助设计 computer aided design (CAD)5.7 图面标注绝对标高 abselute elevation海平面标高 over-sea mean level (OSL)标高，立面 elevation (EL)混凝土顶面 top of concrete架顶面 top of support (TOS)钢结构顶面 top of steel梁项面 top of beam (TOB)支撑点 point of suppon (POS)管顶 top of pipe (TOP)管底 bouom of pipe (BOP)沟底 boaom of trench管子内底 invert (inside bottom of pipe) 底平 flat on bottom (FOB)顶平 flat on top (FOT)工作点 working point (W.P.)面至面 face to face (F-F)中心至端面 center to end (C-E)中心至面 center to face (C-F)中心至中心，中至中 center to center (C-C) 坐标 coordinate坐标原点 origin of coordinate出口中心线 center line of discharge入口中心线 center line of suction中心线 centerline (CL)入口 inlet, suction出口 outlet, discharge排出口 exhaust距离 distance5.8 相关专业的专业词汇5.8.1 工艺(1) 图及表流程图 flow diagram工艺流程图 process flow diagram (PFD)管道及仪表流程图 piping andinstrument flow diagram (PID)公用工程流程图 utility flow diagram (UFD) 管线表 line list; line schedule命名表；管道表 nomenclature设备表 equipment list (schedule)(2) 流体 fluid空气 air仪表空气 instrument air工艺空气 process air低压蒸汽 low pressure steam中压蒸汽 medium pressure steam高压蒸汽 high pressure steam伴热蒸汽 tracing steam饱和蒸汽 saturated steam过热蒸汽 superheated steam氧气 oxygen氢气 hydrogen氮气 nitrogen燃料气 fuel gas天然气 natural gas火炬气 flare gas酸性气 sour gas液化石油气 liquefired petroleum gas (LPG) 氨气 ammonia gas冷却水 cooling循环水 circulating water锅炉给水 boiler feed water热水 hot water蒸汽冷凝水 steam condensate盐水 brine工艺水 process water化学污水 chemical sewage防腐剂 corrosion inhibitor重油 heavy oil石脑油 naphtha燃料油 fuel oil润滑油 lubricating oil密封油 sealing oil冷冻剂 refrigerant载热体 heating medium溶剂 solvent溶液 solution母液 mother liquor单体 monomer聚合物 polymer均聚物 homopolymer共聚物 copolymer工艺液体 process liquid工艺气体 process gas硫酸 sulphuric acid盐酸 chlorhydric acid硝酸 nitric acid烧碱 caustic soda(3) 流体特性 fluid characteristics 蒸汽压 vapor pressure临界温度 critical temperature临界点 critical point临界压力 critical pressure比热 specific heat湿度 humidity密度 density比重 specific gravity粘度 viscosity闪点 flash point融点 melting point凝固点 freezing point浓度 concentration爆炸极限 limit of explosion有毒的 toxic可燃的；易燃的 flammable(4) 其它回收 recovery再生 regeneration循环 cireulatlon再循环；再生 recycle补充 make-up制备 preparation蒸汽吹扫 steaming out吹扫 purge抽空；排空 evacuation吹出 blow-off排污 blow down破真空 vacuum breaker大气腿 barometric leg备用 stand-by化学清洗 chemical cleaning净正吸入压头 net positive suction head (NPSH) 进料 feed成品 product污染 contamination大气污染 atmospheric pollution环境温度 ambient temperature5.8.2 建筑、结构建筑物 building钢结构 steel structure已有钢结构 existing steel structure钢筋混凝土结构 reinforced concrete construction 楼面 floor平台 platform (PF)地面 ground level栏杆 handrail楼梯 stair; stair way直梯 ladder柱 column; post; stanchion基础 foundation; footing粱 beam斜撑；支撑 bracing桁架；主粱 girder构件 member隔墙 partition wall墙 wall篦子板 grate; grating吊装孔 erection opening吊梁 hoisting beam棚 shelter窗 window天窗 skylight门 door防火门 fire door地漏 floor drain防火层 fire-proofing总图 general plot plan路肩 shoulder桩 pile灌浆 grouting风荷载 wind load雪荷载 snow load动力荷载 dynamic load静荷载 dead load活荷载 live load风速 wind velocity主导风向 most frequent wind direction5.8.3 仪表盘（操作盘） panel就地盘 local panel仪表盘 instrument panel常开 normally open常闭 normally closed电缆槽（架） cable tray (channel); cable rack 仪表电缆槽（架） instrument cable tray (duct) 压力计 manometer; pressure gauge热电偶 thermocouple温度计 thermometer液位计 level gauge玻璃液位计 gage glass温度计保护管 thermowell流量计 flow meter孔板 orifice变送器 transmitter联锁 interlock仪器；设备 apparatus仪器分析 instrumental analysis自动分析 automatic analysis气体分析 gas analysis化学分析 chemical analysis气相色谱仪 gas chromatograph液相色谱仪 liquid chromatograph质谱分析 mass spectrometric analysis5.8.4 电气危险区划分 hazardous area classification 危险区平面图 hazardous area plan电气盘 electrical panel配电盘 switch board电缆沟 cable trench电流 current直流 direct current交流 alternating current频率 frequency相位 phase功率因数 power factor电压 voltage电阻 resistance电容 capacitance静电 static electricity接地 grounding; easthing照明 lighting; illumination避雷针 lightning preventer电话 telephone电线 wire接线箱（盒） junction box导线管 conduit tube5.8.5 设备固定鞍座 fixed saddle滑动鞍座 sliding saddle管口 nozzle。

建筑工地的英语建筑工地是一个充满活力和挑战的地方，需要一系列专业知识和技能。

以下是一些在建筑工地上常用的英语词汇和短语：1. Blueprint: 蓝图2. Construction site: 建筑工地3. Excavator: 挖掘机4. Crane: 起重机5. Cement mixer: 水泥搅拌机6. Scaffolding: 脚手架7. Hard hat: 安全帽8. Safety harness: 安全带9. Power tools: 电动工具10. Welding: 焊接除了这些常见的词汇和短语，建筑工地上还需要了解一些安全规定和程序，例如：1. Follow safety protocols: 遵守安全规程2. Wear safety gear: 穿戴安全装备3. Attend safety training: 参加安全培训4. Report safety hazards: 报告安全隐患5. Evacuate in case of emergency: 在紧急情况下疏散建筑工地上的工作需要团队协作和密切沟通。

以下是一些关于沟通的英语短语：1. Coordinate with team members: 与团队成员协调2. Communicate progress: 沟通进展情况3. Collaborate on projects: 合作完成项目4. Address any issues: 处理任何问题5. Provide regular updates: 提供定期更新在建筑工地上工作的人需要具备一定的专业知识和技能。

以下是一些与建筑工作相关的英语词汇和短语：1. Structural engineering: 结构工程学2. Architectural design: 建筑设计3. Plumbing: 管道工程4. Electrical wiring: 电气布线5. HVAC systems: 暖通空调系统建筑工地是一个充满挑战和机会的地方，需要不断学习和发展自己的技能。

管道专业术语常用英语单词在引进装置、涉外及中外合资技术改造工程的技术资料中，经常要接触到英语单词。

由于管道安装涉及多项工程技术，而不从属于任何一项工程技术分支，故其技术性质有一定特殊性，不少英语词汇是在实践中逐渐形成的，借助一般科技英汉词典有时也难以找到它们的确切含意。

现将管道安装工程中出现较多的单词整理列出，如果能熟悉这些单词，对阅英文图纸能收到事半功倍的效果。

一、专业名词术语设计图ayout；design 毛重gross weight施工图final 净重net weight平面图plan 支座saddle立面图elevation 支架support轴测图、透视图isometric drawing；detail drawing 吊架cradle详图、大样图、接点图record drawing 间距distance；clearance；spacing修改图竣工图as-completed drawing；as-built drawing 跨距span图名title 焊接welding图号drawn No. 焊缝weld；welding seam；bead比例scale 石棉水泥接口asbestos-cement joint温度temperature 青铅接口lead joint设计温度design temperature 承口、大头hub；bell；socket湿度humidity 插口、小头spigot流量flow 压力试验pressure test流速flow velocity 水压试验hydraulic test摄氏温度centigrade scale(℃) 渗漏leakage华氏温度Fahrenheit scale(°F) 关闭close公称直径nominal diameter(DN) 型号、类型type；model外径outside diameter(OD) 尺寸、体积size；volume内径inside diameter(ID) 功率power一览表list；breviate；catalogue 转速rotating speed重量weight二、材料设备镀锌钢管galvanized steel pipe 溢流管overflow pipe焊接钢管welded steel pipe 循环管circulation pipe无缝钢管seamless steel pipe 放水管ajutage不锈钢管stainless steel pipe 煤气管gas pipe铸铁给水管cast iron pipe for water 压缩空气管compressed air pipe 铸铁排水管cast iron pipe for waste 液化石油气管LPG pipe铜管copper pipe 氧气管O2 pipe聚氯乙烯塑料管PVC pipe 乙炔管C2H2 pipe硬聚氯乙烯塑料管UPVC pipe 真空管vacuum pipe陶土管、缸瓦管vitrified pipe 地下管道underground pipe预应力混凝土管prestressed concrete pipe 顶管jacking螺纹连接管道screwed pipe；thread pipe 埋深placing depth套管、保护管casing pipe；casing protected pipe 管沟trench管道附件pipe auxiliaries 管道工plumber阀门valve 安装install；erect；fit；fix手动阀manually operated valve 安装工程installation气动阀pneumatically operated valve 组装make-up；assemble电磁阀electromagnetically operated valve 热水采暖hot water heating 电动阀electrically operated valve 蒸汽采暖steam heating闸阀gate valve 自动消防系统automatic fire system截止阀break valve 喷水灭火系统sprinker system止回阀、单向阀check valve；back-pressure valve 埋设、暗敷built-in球阀globe valve；ball cock 总管main pipe减压阀pressure reducing valve 立管stack；riser疏水阀steam trap 横管horizontal安全阀safety valve 水平管horizontal浮球阀float valve 支管branch pipe角阀angle valve 向上去to above(T/A)蝶阀butterfly valve 向下去to below(T/B)底阀、吸水阀foot valve 坐标coordinates过滤器strainer；filter 绝对标高absolute elevation；absolute level水嘴、龙头tap 相对标高relative elevation；relative level冲洗阀flush valve 坡度slope旁通阀by-pass valve 找中心centring旋塞cock；plug cock 安装误差installation deviation管件pipe fitting 绝对压力absolute pressure马铁配件mitis iron fittings 相对压力relative pressure弯头elbow 设计压力design pressure三通Tee 操作压力operating pressure四通cross 盲板、法兰盖blind补芯、内外丝bushing 垫片gasket管接头coupler；socket 螺栓bolt活接头、由任union 螺母nut异径管、大小头reducer 盘根、密封填料packing短接头、对丝nipple 软管接头connection锁母、纳子nut U形螺丝、U形轧头stirrup管堵、塞头plug 洗脸盆、面盆washbasin；lavatory套筒、套袖sleeve 大便器、马桶closet；water closet；lavatory bowl 弯管bend 浴缸bath tub乙字管offset 小便斗urinalU形弯close return bend 莲蓬头、淋浴器shower；shower nozzle法兰flange 地漏floor drain设计design 存水弯siphon trap；trap；running trap校对check 卫生设备plumbing fixture；sanitary fitting专业负责人chief 水泵pump设计总负责人project chief 水塔water tower投标tender；bid 水表disc meter；rating meter概算budget estimate 离心泵centrifugal pump预算(表)budget 消火栓、消防龙头fire hydrant；fire plug决算actual budget 室内消火栓indoor fire hydrant规范、标准、准则code；standard 室外消火栓outdoor fire hydrant底层ground floor(英)；first floor(美) 地上消火栓post fire hydrant二层first floor(英)；second floor(美) 地下消火栓flush fire hydrant三层second floor(英)；third floor(美) 消防箱fire box锅炉房boiler room 泡沫灭火器foam fire extinguisher泵房pump room 卤代烷灭火器halon fire extinguisher楼上upstairs 二氧化碳灭火器CO2 fire extinguisher楼下downstairs 干粉灭火器powder fire extinguisher夹层mezzanine 清水灭火器plain water fire extinguisher地下室basement；cellar 消防器材five apparatus；fire-fight extinguisher 顶层groof；ceiling；top floor 报警器warning卧室、起居室bed room；living room 水箱tank盥洗间lavatory 锅炉boiler厕所toilet 补偿器、膨胀节compensator；expander浴室bathroom 散热器(片)radiator厨房kitchen 加热器heater技术要求specification 热交换器heat exchanger外观检查visual inspection 人孔man hole；hatch验收、认可accept；acceptance 空调器air conditioner现场site；job site, working site 煤气表gas meter工期completion period 煤气灶gas cooker扫地出门job clean up 绝缘跨接导线bridle wire竣工complete 冷凝器condenser进水管inlet pipe 油分离器oil separator出水管outlet pipe 防锈漆rust protection paint上水管water pipe；feed water；water supply 保温层insulation；insulator 下水管drain pipe；waste pipe 压力表pressure gauge废水管waste pipe 温度计temperature gauge；thermometer粪便污水管soil pipe, sewer pipe 液位计level gauge；level indicator透气管vent pipe 下水窨井drain well雨水管storm drain pipe；storm sewer 污水窨井sewer man-hole 冷水管cold water pipe 化粪池septic tank；anaerobic tank热水管hot water pipe 阀门井valve well蒸气管steam pipe 冷冻水管freezing water pipe冷凝水管condensate pipe 回水管return water pipe冷却水管cooling water pipe。

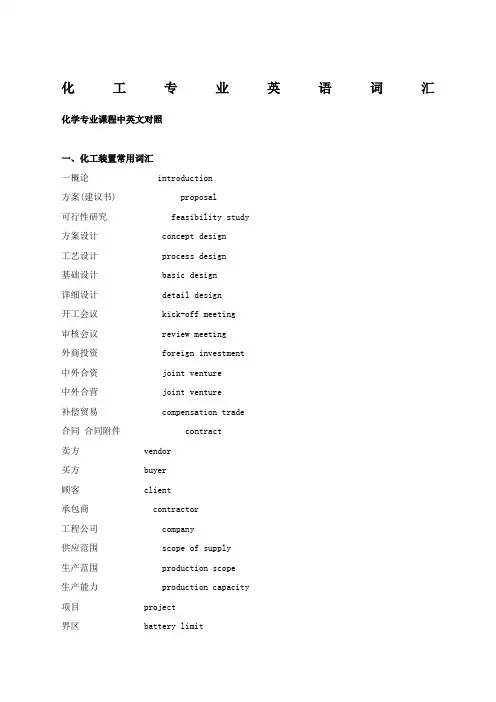

化工专业英语词汇化学专业课程中英文对照一、化工装置常用词汇一概论introduction方案(建议书) proposal可行性研究feasibility study方案设计concept design工艺设计process design基础设计basic design详细设计detail design开工会议kick-off meeting审核会议review meeting外商投资foreign investment中外合资joint venture中外合营joint venture补偿贸易compensation trade合同合同附件contract卖方vendor买方buyer顾客client承包商contractor工程公司company供应范围scope of supply生产范围production scope生产能力production capacity项目project界区battery limit装置plant公用工程utilities工艺流程图process flow diagram工艺流程方块图process block diagram管道及仪表流程图piping and instrument drawing物料及热量平衡图mass & heat balance diagram蒸汽及冷凝水平衡图steam & condensate balance diagram 设备布置图equipment layout设备表equipment list成品(产品) product(final product)副产品by-product原料raw-material设计基础数据basic data for design技术数据technical data数据表data sheet设计文件design document设计规定design regulation现场服务site service项目变更project change用户变更client change消耗定额consumption quota技术转让technical transfer技术知识technical know-howtechnical knowledge技术保证technical guarantee咨询服务consultative services技术服务technical services工作地点location施工现场construction field报价quotation标书bidding book公司利润company profit固定价合同fixed price contract固定单价合同fixed unit price contract成本加酬金合同cost plus award fee contract 定金mobilization银行保证书bank guarantee letter保留金retention所得税income taxes特别承包人税special contractor's taxes城市和市政税city and municipal taxes工作手册work manual工作流程图work flow diagram质量保证程序QA/QC procedures采购计划procurement plan施工计划construction plan施工进度construction schedule项目实施计划project execution plan项目协调程序project coordination procedure 项目总进度计划project master schedule设计网络计划engineering network logic项目质量保证project quality assurance项目质量控制project quality control采购procurement采购周期procurement period会签the squad check计算书calculation sheets询价inquiry检验inspection运输transportation开车start up / commission验收inspection & acceptance校核check审核review审定approve版次version部门department专业specialty项目号project number图号drawing number目录contents序言foreword章chapter节section项itemMR material requisitionSPEC engineering specificationDATA SHEET（技术表）technical data sheetTBA(技术评标）technical bid analysisPDP preliminary design packagePM (项目经理) project managerLDE(专业负责人) lead discipline engineerMRQ(材料询价单) Material requisition for quotationMRP(材料采购单) material requisition for purchaseBEP(基础工程设计包) basic engineering packageP&ID(管道及仪表流程图) piping and instrument drawing(diagram) PFD process flow diagramNNF normally no flowFO failure openFC failure closeC/S/A civil/structure/architectureDDP（详细设计阶段）detail design phase 二、工艺流程连续过程continuous process间歇过程batch process工艺叙述process description工艺特点process feature操作operation反应reaction副反应side reaction絮凝flocculation浮洗flotation倾析decantation催化反应catalytical reaction萃取extraction中和neutralization水解hydrolysis过滤filtration干燥drying还原reduction氧化oxidation氢化hydrogenation分解decomposition离解dissociation合成synthetics吸收absorption吸附adsorption解吸desorption结晶crystallization溶解solution调节modulate控制control悬浮suspension循环circulation再生regeneration再活化reactivation沥取leaching破碎crushing煅烧caloination沉降sedimentation沉淀precipitation气化gasification冷冻refrigeration固化、结晶solidification 包装package升华sublimation燃烧combustion引烧ignition蒸馏distillation碳化carbonization压缩compression三、化学物质及特性固体solid液体liquid气体gas化合物compound混合物mixture粉powder片状粉未flake小粒granule结晶crystal乳化物emulsion氧化物oxidizing agent还原剂reducing agent有机物organic material真空vacuum母液master liquor富液rich liquor贫液lean liquor萃出物extract萃余物raffinate絮凝剂flocculants冷冻盐水brine酸度acidity浓度concentration碱度alkalinity溶解度solubility凝固点solidificalion point 沸点boiling point熔点melting point蒸发率evaporation rate粘度viscosity吸水的water absorbent(a) 无水的anhydrous(a)外观appearance无色的colorless(a)透明的transparent(a)半透明的translucent密度density比重specific gravity催化剂catalyst燃烧combustion引燃ignition自然点self-ignition temperature可燃气体combustible gas可燃液体inflammable liquid易燃液体volatile liquid爆炸混合物explosive mixture爆炸性环境explosive atmosphere(environment) 爆炸极限explosive concentration limit废水waste water废液waste liquid废气off-gas噪声noise pollution成分composition挠度deflection力和力矩force and moment弯矩bending moment应力-应变曲线stress-strain diagram百分比percentage环境温度ambient temperature工作温度operating设计温度design temperature(pressure)相对湿度RH=relative humidity油渣、淤泥sludge杂质impurity四、化工设备泵pump轴流泵axial flow pump真空泵vacuum pump屏蔽泵canned pump柱塞泵plunger pump涡轮泵turbine pump涡流泵vortex pump离心泵centrifugal pump喷射泵jet pump转子泵rotary pump管道泵inline pump双作用往复泵double action reciprocating pump计量泵metering pump深井泵deep well pump齿轮泵gear pump手摇泵hand(wobble) pump螺杆泵screw (spiral) pump潜水泵submersible pump斜转子泵inclined rotor pump封闭式电磁泵hermetically sealed magnetic drive pump 气升泵air-lift-pump轴承bearing叶轮impeller虹吸管siphon高压容器high pressure vessel焚化炉incinerator火焰清除器flame arrester 工业炉furnace烧嘴burner锅炉boiler回转窑rotary kiln加热器heater电加热器electric heater 冷却器cooler冷凝器condenser换热器heat exchanger反应器reactor蒸馏釜still搅拌器agitator混合器mixer静态混合器static mixers 管道混合器line mixers混合槽mixing tanks破碎机crusher磨碎机grinder研磨机pulverizer球磨机ballmill过滤器filter分离器separator干燥器drier翅片fins烟囱stack火炬flare筛子screen煅烧窑calciner倾析器decanter蒸发器evaporator再沸器reboiler萃取器extractor离心机centrifuger吸附（收）器adsorber结晶器crystallizer电解槽electrolyzer电除尘器electric precipitator洗涤器scrubber消石灰器slaker料仓bin料斗hopper加料器feeder增稠器thickener澄清器clarifier分级器classifier浮洗器flocculator废液池sump喷射器ejector喷头sprayer成套设备package unit仪器设备apparatus附属设备accessory旋转式压缩机rotary compressor往复式压缩机reciprocating compressor 水环式压缩机nash compressor螺杆式压缩机helical screw compressor离心式压缩机centrifugal compressor多级压缩机mutiple stages compressor固定床反应器fixed bed reactor流化床反应器fluidized bed reactor管式反应器tubular reactor列管式换热器tubular heat exchanger螺旋板式换热器spiral plate heat exchanger 萃取塔extraction column板式塔plate column填料塔packed column洗涤塔scrubber吸收塔absorber冷却塔cooling tower精馏塔fractionating tower汽提塔stripper再生塔regenerator造粒塔prill tower塔附件tower accessories液体分配（布）器liquid distributor填料支持板support plate定距管spacer降液管downcomer升气管chimney顶(底)层塔盘top (bottom) tray挡板baffle抽出口draw nozzle溢流堰weir泡罩bubble cap筛板sieve plate浮阀float valve除沫器demister pad塔裙座skirt椭圆封头elliptical head高位槽head tank中间槽intermediate tank加料槽feed tank补给槽make-up tank计量槽measuring tank电解槽cell溜槽chute收集槽collecting tank液滴分离器knockout drum稀释罐thinning tank缓冲罐surge drum回流罐reflux drum闪蒸罐flash drum浮顶罐floating roof tank内浮顶罐covered floating roof tank球罐spheroid气柜gas holder湿式气柜wet gas-holder干式气柜dry gas-holder螺旋式气柜helical gas-holder星型放料器,旋转阀rotary valve抽滤器mutche filter压滤器filter press压滤机pressure filter板框压滤器plate-and-fram filter press转鼓过滤器rotary drum filter带式过滤器belt filter翻盘式过滤器袋滤器bag filter旋风分离器cyclone separator盘式干燥箱compartment tray drier真空干燥器vacuum drier隧道式干燥器tunnel drier回转干燥器rotary drier穿流循环干燥器through circulation drier 喷雾干燥器spray drier气流干燥器pneumatic conveyor drier圆盘式加料器dish feeder螺旋式加料器screw feeder颚式破碎机jaw crusher回转破碎机gyratory crusher滚洞破碎机roll crusher锤式破碎机hammer crusher冲击破碎机rotor impact breaker气流喷射粉碎机jet pulverizer棍磨机rod mill雷蒙机raymond mill锤磨机hammer mill辊磨机roller mill振动筛vibrating screen回转筛rotary screen风机fan罗茨鼓风机root's blower起重机crane桥式起重机bridge crane电动葫芦motor hoist发电机generator电动机motor汽轮机steam turbine五、管道工程piping engineering1 阀门valve阀杆stem内螺纹阀杆inside screw阀座valve seat (body seat)阀座环、密封圈sealing ring阀芯(包括密封圈,杆等) trim阀盘disc阀体body阀盖bonnet手轮hand wheel手柄hand level (handle)压盖gland闸阀gate valve平行双闸板double disc parallel seat楔形单闸板split wedge截止阀globe valve节流阀throttle valve针阀needle valve角阀(角式截止阀) angle valveY型阀(截止阀) Y-valve(Y-body globe valve) 球阀ball valve三通球阀3-way ball valve蝶阀butterfly valve对夹式(薄片型) wafer type偏心阀板蝶阀offset disc (eccentric) butterfly valve 斜阀盘蝶阀canted disc butterfly valve连杆式蝶阀link butterfly valve止回式蝶阀combined non-return butterfly valve柱塞阀piston type valve旋塞阀plug valve三通旋塞阀three-way plug valve四通旋塞阀four-way plug valve旋塞cock衬套旋塞sleeve cock隔膜阀diaphragm valve橡胶衬里隔膜阀rubber lined diaphragm valve直通式隔膜阀straight way diaphragm valve夹紧式胶管阀pinch valve止回阀check valve升降式止回阀lift check valve旋启式止回阀swing check valve落球式止回阀ball check valve弹簧球式止回阀spring ball check valve底阀foot valve切断式止回阀stop check valve活塞式止回阀piston check valve翻板止回阀flap check valve蝶式止回阀butterfly check valve安全泄气阀safety[SV]安全泄放阀relief valve[RV]安全泄压阀safety relief valve杠杆重锤式lever and weight type罐底排污阀flush-bottom tank valve波纹管密封阀bellow sealed valve电磁阀solenoid (operated) valve电动阀electrically(electric-motor)operated valve气动阀pneumatic operated valve低温用阀cryogenic service valve蒸汽疏水阀steam trap机械式疏水阀mechanical trap浮桶式疏水阀open (top) bucket trap浮球式疏水阀float trap倒吊桶式疏水阀inverted bucket trap自由浮球式疏水阀loose float trap恒温式疏水阀thermostatic trap压力平衡式恒温疏水阀balanced pressure thermostatic trap 热动力式疏水阀thermodynamic trap脉冲式蒸汽疏水阀impulse steam trap放汽阀(自动放汽阀) (automatic) air vent valve换向阀diverting (reversing) valve呼吸阀breather valve减压阀pressure reducing valve控制阀control valve执行机构actuator差压调节阀differential pressure regulating valve切断阀block (shut-off, stop) valve调节阀regulating valve快开阀quick opening valve快闭阀quick closing valve隔断阀isolating valve三通阀three way valve夹套阀jacketed valve非旋转式阀non-rotary valve2管子,管件,法兰管子pipe(按标准制造的配管用管)tube(不按标准规格制造的其它用管)钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel[C.S.]pipe合金钢管alloy steel pipe不锈钢管stainless steel[S.S.]pipe奥氏体不锈钢管austenitic stainless steel pipe铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless[SMLS] steel pipe焊接钢管welded steel pipe电阻焊钢管electric-resistance-welded steel pipe电熔(弧)焊钢板卷管electric-fusion(arc)-welded steel-plate pipe 螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe排污阀blowdown valve集液排放阀drip valve排液阀drain valve放空阀vent valve卸载阀unloading valve排出阀discharge valve吸入阀suction valve取样阀sampling valve手动阀hand operated(manually-operated) valve (水)龙头bibb;bib;faucet抽出液阀(小阀) bleed valve旁路阀by-pass valve软管阀hose valve混合阀mixing valve破真空阀vacuum breaker冲洗阀flush valve根部阀root (primary, header) valve水煤气钢管water-gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube壁厚wall thickness[WT]壁厚系列号schedule number[SCH.NO.]加厚的,加强的extra heavy (strong)双倍加厚的,双倍加强的double extra heavy (strong) 弯头elbow异径弯头reducing elbow长半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return三通tee异径三通reducing tee等径三通straight tee带支座三通base tee45°斜三通45°lateralY型三通true"Y"四通cross异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer管接头coupling;full coupling活接头union短管nipple预制弯管fabricated pipe bendU型弯管"U"bend法兰端flanged end万向接头universal joint对焊的butt welded[BW]螺纹的threaded[THD]承插焊的socket welded[SW]法兰flange[FLG]整体管法兰integral pipe flange 钢管法兰steel pipe flange螺纹法兰threaded flange滑套法兰slip-on flange平焊法兰slip-on-welding flange 承插焊法兰socket welding flange 松套法兰lap joint flange[LJF] 对焊法兰weld neck flange[WNF] 法兰盖blind flange;blind异径法兰reducing flange压力级pressure rating(class)突面raised face[RF]凸面male face凹面female face全平面;满平面flat face;full face[FF]3.管道特殊件piping speciality粗滤器strainer过滤器filter临时过滤器temporary strainer(cone type) Y型过滤器Y-type strainerT型过滤器T-type strainer永久过滤器permanent filter洗眼器及淋浴器eye washer and shower视镜sight glass阻火器flame arrester喷咀;喷头spray nozzle喷射器ejector取样冷却器sample cooler消音器silencer膨胀节expansion joint波纹膨胀节bellow补偿器compensator软管接头hose connection[HC]快速接头quick coupling金属软管metal hose橡胶管rubber hose挠性管flexible tube特殊法兰special flange漏斗funnel8字盲板spectacle (figure 8) blind爆破板rupture disk4,其它材料碳素钢carbon steel [C.S.]不锈钢stainless steel[S.S.]铸铁cast iron[C.I.]铝aluminum铜,紫铜copper钛titanium抗拉强度tensile strength非金属材料non-metallic material 塑料plastic陶瓷ceramic搪瓷porcelain enamel玻璃glass橡胶rubber垫片gasket[GSKT]平垫片flat gasket填料packing型钢shaped steel角钢angle steel槽钢channel工字钢I-beam宽缘工字钢或H钢wide flanged beam 扁钢flat bar圆钢round steel; rod钢带strap steel网络钢板checkered plate材料表bill of material[BOM]材料统计material take-off[MTO]散装材料bulk material综合管道材料表consolidated piping material summary sheet[CPMSS]汇总表summary sheet5.设备布置及管道设计中心线center line装置边界boundary limit[BL]区界area limit设备布置equipment arrangement (layout);plot plan标高,立面elevation[EL]支撑点point of support[POS]工厂北向plant north方位orientation危险区hazardous area classification净正吸入压头net positive suction head绝对标高absolute elevation坐标coordinate管道研究piping study管道布置平面piping arrangement plan[PAP]管道布置piping assembly; layout详图detail"X"视图view "X""A-A" 剖视section "A-A"轴测图isometric drawing索引图key plan管道及仪表流程图piping and instrument diagram[P&ID]管口表list of nozzles地上管道above ground piping地下管道under ground piping管线号line number总管header; manifold旁路by pass常开normally open常闭normally closed取样接口sampling connection伴热管tracing pipe蒸汽伴热steam tracing热水伴热hot-water tracing电伴热electrical tracing夹套管jacketed line全夹套管full jacketed比例scale图figure草图sketch图例legend符号symbol件号part n普通化学 General Chemistry分析化学 Analytical Chemistry有机化学 Organic Chemistry物理化学 Physical Chemistry谱学导论 Introducton of Spectroscopy无机化学 Inorganic Chemistry普通化学和分析化学实验 Experiments of General and Analytical Chemistry 现在基础化学 The Principle of Mordern Chemistry现在基础化学实验 Experiments of Modern Fundamental Chemistry有机化学实验 Experiments of Organic Chemistry仪器分析和物理化学实验 Experiments of Instrumental Analysis and Physical Chemistry 合成化学实验 Experiments of Synthetic Chemistry现代化学专题 Topic of Modern Chemistry化学综合实验 Experiments of Comprehensive Chemistry化工原理 Principle of Chemical Engineering化工原理实验 Experiments of Chemical Engineering应用化学实验 Experiments of Applied Chemistry无机合成化学 Synthetic Inorganic Chemistry近代分析化学 Modern Analytical Chemistry分离分析化学 Separation Analytical Chemistry有机化合物波谱鉴定 Spectrum Identification of Organic Compounds有机合成及反应机理 Organic Synthesis and Mechanics化学进展 Progress in Chemistry化学反应工程 Chemical Reaction Engineering应用电化学 Applied Electrochemistry工业催化 Industrial Catalysis环境化学 Environmental Chemistry环境监测 Environmental Monitoring化学科技英语 Scientific English for Chemistry数理方法在化学中的应用 Mathematical Statistics for Chemistry化工制图 Chemical Engineering Cartography计算机与化学测量实验 Computer and Chemical Measurement化学信息学 Chemoinformatics or Chemical Informatics应用化学专题 Special Topics in Applied Chemistry。

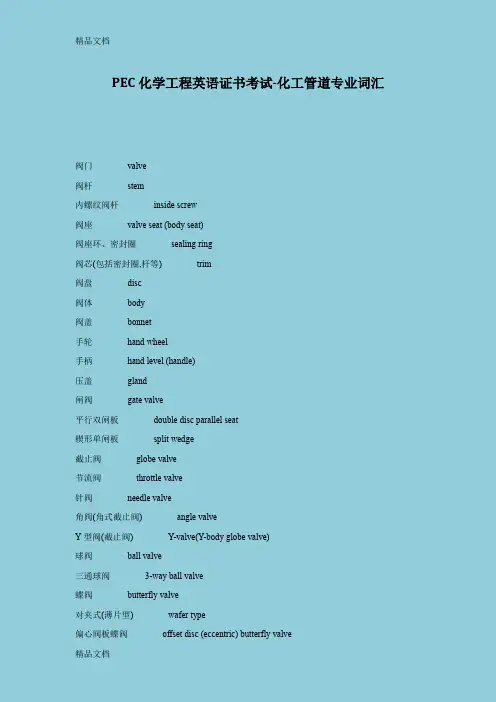

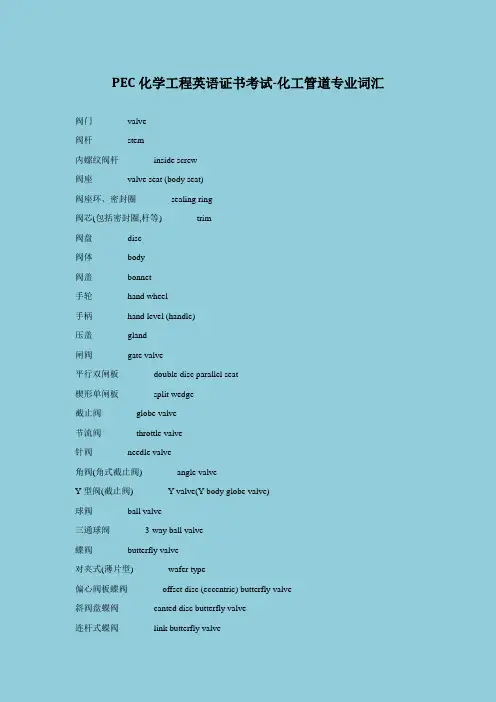

PEC化学工程英语证书考试-化工管道专业词汇阀门valve阀杆stem内螺纹阀杆inside screw阀座valve seat (body seat)阀座环、密封圈sealing ring阀芯(包括密封圈,杆等) trim阀盘disc阀体body阀盖bonnet手轮hand wheel手柄hand level (handle)压盖gland闸阀gate valve平行双闸板double disc parallel seat楔形单闸板split wedge截止阀globe valve节流阀throttle valve针阀needle valve角阀(角式截止阀) angle valveY型阀(截止阀) Y-valve(Y-body globe valve)球阀ball valve三通球阀3-way ball valve蝶阀butterfly valve对夹式(薄片型) wafer type偏心阀板蝶阀offset disc (eccentric) butterfly valve斜阀盘蝶阀canted disc butterfly valve连杆式蝶阀link butterfly valve止回式蝶阀combined non-return butterfly valve 柱塞阀piston type valve旋塞阀plug valve三通旋塞阀three-way plug valve四通旋塞阀four-way plug valve旋塞cock衬套旋塞sleeve cock隔膜阀diaphragm valve橡胶衬里隔膜阀rubber lined diaphragm valve 直通式隔膜阀straight way diaphragm valve夹紧式胶管阀pinch valve止回阀check valve升降式止回阀lift check valve旋启式止回阀swing check valve落球式止回阀ball check valve弹簧球式止回阀spring ball check valve底阀foot valve切断式止回阀stop check valve活塞式止回阀piston check valve翻板止回阀flap check valve蝶式止回阀butterfly check valve安全泄气阀safety[SV]安全泄放阀relief valve[RV]安全泄压阀safety relief valve杠杆重锤式lever and weight type罐底排污阀flush-bottom tank valve波纹管密封阀bellow sealed valve电磁阀solenoid (operated) valve电动阀electrically(electric-motor)operated valve 气动阀pneumatic operated valve低温用阀cryogenic service valve蒸汽疏水阀steam trap机械式疏水阀mechanical trap浮桶式疏水阀open (top) bucket trap浮球式疏水阀float trap倒吊桶式疏水阀inverted bucket trap自由浮球式疏水阀loose float trap恒温式疏水阀thermostatic trap压力平衡式恒温疏水阀balanced pressure thermostatic trap 热动力式疏水阀thermodynamic trap脉冲式蒸汽疏水阀impulse steam trap放汽阀(自动放汽阀) (automatic) air vent valve换向阀diverting (reversing) valve呼吸阀breather valve减压阀pressure reducing valve控制阀control valve执行机构actuator差压调节阀differential pressure regulating valve切断阀block (shut-off, stop) valve调节阀regulating valve快开阀quick opening valve快闭阀quick closing valve隔断阀isolating valve三通阀three way valve夹套阀jacketed valve非旋转式阀non-rotary valve管子pipe(按标准制造的配管用管)tube(不按标准规格制造的其它用管)钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel[C.S.]pipe合金钢管alloy steel pipe不锈钢管stainless steel[S.S.]pipe奥氏体不锈钢管austenitic stainless steel pipe铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless[SMLS] steel pipe焊接钢管welded steel pipe电阻焊钢管electric-resistance-welded steel pipe电熔(弧)焊钢板卷管electric-fusion(arc)-welded steel-plate pipe 螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe排污阀blowdown valve集液排放阀drip valve排液阀drain valve放空阀vent valve卸载阀unloading valve排出阀discharge valve吸入阀suction valve取样阀sampling valve手动阀hand operated(manually-operated) valve(水)龙头bibb;bib;faucet抽出液阀(小阀) bleed valve旁路阀by-pass valve软管阀hose valve混合阀mixing valve破真空阀vacuum breaker冲洗阀flush valve根部阀root (primary, header) valve水煤气钢管water-gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube壁厚wall thickness[WT]壁厚系列号schedule number[SCH.NO.]加厚的,加强的extra heavy (strong)双倍加厚的,双倍加强的double extra heavy (strong) 弯头elbow异径弯头reducing elbow长半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return三通tee异径三通reducing tee等径三通straight tee带支座三通base tee45°斜三通45°lateralY型三通true"Y"四通cross异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer管接头coupling;full coupling活接头union短管nipple预制弯管fabricated pipe bendU型弯管"U"bend法兰端flanged end万向接头universal joint对焊的butt welded[BW]螺纹的threaded[THD]承插焊的socket welded[SW]法兰flange[FLG]整体管法兰integral pipe flange钢管法兰steel pipe flange螺纹法兰threaded flange滑套法兰slip-on flange平焊法兰slip-on-welding flange承插焊法兰socket welding flange松套法兰lap joint flange[LJF]对焊法兰weld neck flange[WNF]法兰盖blind flange;blind异径法兰reducing flange压力级pressure rating(class)突面raised face[RF]凸面male face凹面female face全平面;满平面flat face;full face[FF]管道特殊件piping speciality粗滤器strainer过滤器filter临时过滤器temporary strainer(cone type)Y型过滤器Y-type strainerT型过滤器T-type strainer永久过滤器permanent filter洗眼器及淋浴器eye washer and shower 视镜sight glass阻火器flame arrester喷咀;喷头spray nozzle喷射器ejector取样冷却器sample cooler消音器silencer膨胀节expansion joint波纹膨胀节bellow补偿器compensator软管接头hose connection[HC]快速接头quick coupling金属软管metal hose橡胶管rubber hose挠性管flexible tube特殊法兰special flange漏斗funnel8字盲板spectacle (figure 8) blind爆破板rupture disk碳素钢carbon steel [C.S.]不锈钢stainless steel[S.S.]铸铁cast iron[C.I.]铝aluminum铜,紫铜copper钛titanium抗拉强度tensile strength非金属材料non-metallic material塑料plastic陶瓷ceramic搪瓷porcelain enamel玻璃glass橡胶rubber垫片gasket[GSKT]平垫片flat gasket填料packing型钢shaped steel角钢angle steel槽钢channel工字钢I-beam宽缘工字钢或H钢wide flanged beam扁钢flat bar圆钢round steel; rod钢带strap steel网络钢板checkered plate材料表bill of material[BOM]材料统计material take-off[MTO]散装材料bulk material综合管道材料表consolidated piping material summary sheet[CPMSS]汇总表summary sheet中心线center line装置边界boundary limit[BL]区界area limit设备布置equipment arrangement (layout);plot plan标高,立面elevation[EL]支撑点point of support[POS]工厂北向plant north方位orientation危险区hazardous area classification净正吸入压头net positive suction head绝对标高absolute elevation坐标coordinate管道研究piping study管道布置平面piping arrangement plan[PAP]管道布置piping assembly; layout详图detail"X"视图view "X""A-A" 剖视section "A-A"轴测图isometric drawing索引图key plan管道及仪表流程图piping and instrument diagram[P&ID] 管口表list of nozzles地上管道above ground piping地下管道under ground piping管线号line number总管header; manifold旁路by pass常开normally open常闭normally closed取样接口sampling connection伴热管tracing pipe蒸汽伴热steam tracing热水伴热hot-water tracing电伴热electrical tracing夹套管jacketed line全夹套管full jacketed比例scale图figure草图sketch图例legend符号symbol件号part n管道工程piping engineering。
