ESAM产品说明及应用操作指令流

V1.1.0• Feedback loop for monitoring downstream contactors orexpansion modules• Cyclical monitoring of the output contacts • Indication of the switching state via LED • 2 start behaviors possible: - monitored manual start - automatic start• Short circuit and earth fault monitoring • Up to PL e, SILCL 3, category 4Correct UseESM-BT4.. is an emergency stop safety relay combination that combines non-time-delayed and time-delayed contacts in a very compact housing. This permits dangerous components of a system to be switched off quickly and safely in an emergency situation. At the same time, other circuits can continue to be supplied with voltage for up to 30 seconds to allow a tool to be moved to its idle position or to brake following parts, for exam-ple.Features• 4 positively driven safety relays contacts. Possible vari-ants:- 3 non-time-delayed and 1 time-delayed contact - 2 non-time-delayed and 2 time-delayed contact - 1 non-time-delayed and 3 time-delayed contact• Continuously adjustable time delay (1 to 30s) or fixed time delay (ESM-BT4..-20S (2s); ESM-BT4..-50S (5s)) • Connection of:- emergency stop buttons - safety switches- non-contacts safety switches - OSSD-Outputs• 1- or 2-channel activation possibleFunctionThe moving parts of a machine or system can be quickly and safely stopped in case of danger with the non-time-delayed contacts of the ESM-BT4...Safety contacts with time-delay switch-off are also integrated into the ESM-BT4... They are used whenever it is safer to keep supplying voltage to parts of a machine after the emer-gency stop switch is operated.It is ensured that a single fault or malfunction does not lead to a loss of the safety function and that every fault is de-tected by cyclical self-monitoring no later than when theInstallationAs per DIN EN 60204-1, the device is intended for installa-tion in control cabinets with a minimum degree of protection of IP54. It is mounted on a 35-mm DIN rail according to DIN EN 60715 TH35.system is switched off and switched on again. The time-delay contacts are activated at the same time asthe non-time-delay contacts; however, when the emer-gency stop button is pressed, the contacts are only deacti-vated after the time set on the potentiometer (1 … 30s) or after a fixed time delay (ESM-BT4..-20S; ESM-BT4..-50S).During timeout, no power-loss is accepted.Electrical ConnectionFig. 1 Block diagram: ESM-BT401 (1nd/3d); ESM-BT411 (2nd/2d); ESM-BT421(3nd/1d)V1.1.0Depending on the application or the result of the risk assessment according to EN ISO 13849-1, the device must be wired as shown in Fig. 1 to Fig. 11. Non-time delayed contacts can be used up to category 4, PL e, time-delayed safety contacts up to category 3, PL e.ApplicationsFig. 3:Single-channel emer-gency stop circuit with earth fault monitoring. (category 1, up to PL c)Fig. 2:Two-channel emergen-cy stop circuit with earth fault monitoring.(category 3, up to PL d)Fig. 1:Two-channel emergen-cy stop circuit with short circuit and earth fault monitoring.(category 4, up to PL e)Fig. 4:Two-channel sliding guard monitoring with short circuit and earth fault monitoring.(category 4, up to PL e)Emergency StopCircuitFig. 7:Automatic start (e.g. for application with a safety door).Max perm. delay during closing of the safety switches on S12 and S13: S12 before S13: 300ms; S13 before S12: anyWarning:Safety contacts switch when the power supply is connected.Fig. 8:Feedback loop for monitored manual start:The feedback loop monitors contactors or the expansion modules .Starting Behavior Feedback LoopNote: The items listed under “Electrical connection” must be observed during commissioning . Commissioning Procedure1. Wiring emergency stop circuit:Wirethe emergency stop circuit according to the requiredPerformance Level determined (see Fig. 1 to Fig 5). 2. Wiring start circuit:Wire the start circuit according to Fig. 6 or Fig. 7 to set the starting behavior. Warning:If “Automatic start” is set, bear in mind that the safety con-tacts will switch immediately after the power supply is connected.If“Monitored manual start” is set, the start button must be opened after wiring. 3. Wiring feedback loop:If your application provides for external contactors or ex-pansion modules, connect them to the device according to Fig. 8 or Fig. 9.4. Wiring power supply:Connect the power supply to terminals A1 and A2 (Fig. 10). Warning: Wiring only in de-energized state. 5. Set time delay:Set the desired time delay on the rotary knob (not for fixed delay time)Warning:Scale divisions should be regarding only as a setting aid. Always make shure to measure the delay time. 6. Starting the device:Switch on the operating voltage. Warning:If the “Automatic start” starting behavior is set, the safety contacts will close immediately.If the “Monitored manual start” starting behavior is set, close the start button to close the safety contacts. LEDs K1, K2, K3 and K4 are lit. 7. Triggering safety function:Open the emergency stop circuit by actuating the connec-ted safety switch. The safety contacts open immediately. Warning: Measure the delay-time. 8. Reactivation:Close the emergency stop circuit. If “Automatic start” is selected, the safety contacts will close immediately.If the “Monitored manual start” starting behavior is set, close the start button to close the safety contacts.Warning:In order to activate earth fault monitoring, the PE must be connected only to the power supply unit in accordance with EN60204-1.Corresponded to the application, the starting circuit have to be wired according to Fig. 6 or Fig. 7.Fig. 5:Two-channel emergency stop with pnp-outputs/OSSD-outputs with short circuit monitoring. (category 4, up to PL e)Fig. 9:Feedback loop for automatic start: The feedback loop monitors contac-tors or the expansion modules .Power supply andSafety contactsFig. 10:Power supply A1 and A2.(Power supply according to techn. data )Fig. 11:Connecting load to safety contacts.(Figure shows example.Voltage …+V“ according to techn. data)Fig. 6:Manual start.User InformationV1.1.0MaintenanceDevice cannot be switched on again after an emergency stop:• Check whether the emergency stop circuit was closed again.• Was the start button opened before closing of the emer-gency stop circuit (with manual start)? • Is the feedback loop closed?If the fault still exists, perform the steps listed under “Commissioning Procedure”.If these steps do not remedy the fault either, return the device to the manufacturer for examination.Opening the device is impermissible and will void the warranty.What to Do in Case of a Fault?The device must be checked once per month for proper function and for signs of tampering and bypassing of the safety function (to do this, check the wiring of the device and activate the emergency stop function. Check the delay time).The device is otherwise maintenance free, provided that it was installed properly.Note:Additional data can be requested from the manufacturer for applications that deviate from these conditions.SafetyCharacteristics According to EN ISO 13849-1The device is certified according to EN ISO 13849-1 up to a Performance Level of PL e.Device does not switch on:• Check the wiring by comparing it to the wiring diagrams. • Check the safety switch used for correct function and adjustment.• Check whether the emergency stop circuit is closed. • Check whether the start button (with manual start) is closed.• Check the operating voltage at A1 and A2. • Is the feedback loop closed?*) If several ESM-BT4.. devices are closely spaced under load, the max. total current at the ambient temperature of T=20 °C: 9 A; at T=30 °C: 3 A; at T=40 °C =1 A. If these currents are exceeded, a spacing of 5 mm between the devices must be observed.Safety characteristics according to EN ISO 13849-1 for all variants of ESM-BT4 Load (DC-13; 24 V) <= 0.1 A <= 1 A <= 2 A T10d [years] 20 20 20 Category: Time-delay Non-time-delay 3 4 3 4 3 4 PLe e e PFHd [1/h]: Time-delay Non-time-delay8,84E-08 4,22E-088,84E-08 4,22E-088,84E-08 4,22E-08 nop [cycle / year]<= 500,000<= 350,000<= 100,000User InformationV1.1.0Dimension DrawingS u b j e c t t o t e c h n i c a l m o d i f i c a t i o n s , n o r e s p o n s i b i l i t y i s a c c e p t e d f o r t h e a c c u r a c y o f t h i s i n f o r m a t i o n . © E U C H N E R G m b H + C o . K G 109074-09-02/18 (T r a n s l a t i o n o f t h e O r i g i n a l O p e r a t i n g I n s t r u c t i o n s ) Fixed TerminalsPlug-InTerminals。

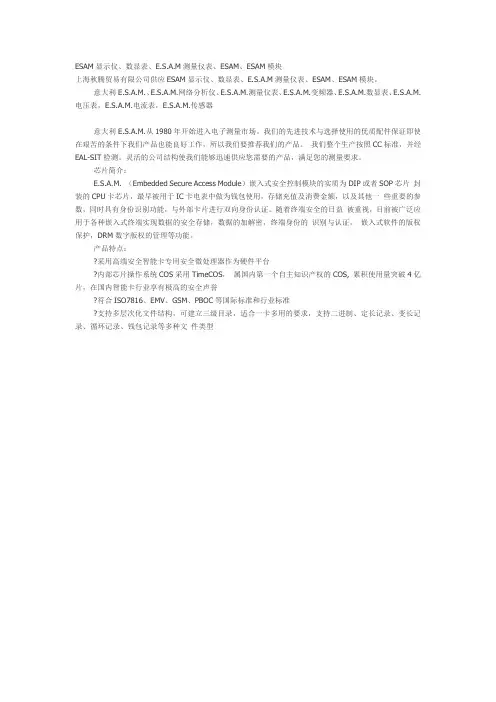

ESAM显示仪、数显表、E.S.A.M测量仪表、ESAM、ESAM模块上海秋腾贸易有限公司供应ESAM显示仪、数显表、E.S.A.M测量仪表、ESAM、ESAM模块。

意大利E.S.A.M.、E.S.A.M.网络分析仪、E.S.A.M.测量仪表、E.S.A.M.变频器、E.S.A.M.数显表、E.S.A.M.电压表，E.S.A.M.电流表，E.S.A.M.传感器意大利E.S.A.M.从1980年开始进入电子测量市场。

我们的先进技术与选择使用的优质配件保证即使在艰苦的条件下我们产品也能良好工作，所以我们要推荐我们的产品。

我们整个生产按照CC标准，并经EAL-SI T检测。

灵活的公司结构使我们能够迅速供应您需要的产品，满足您的测量要求。

芯片简介：E.S.A.M. （Embedded Secure Access Module）嵌入式安全控制模块的实质为DIP或者SOP芯片封装的CPU卡芯片，最早被用于IC卡电表中做为钱包使用，存储充值及消费金额，以及其他一些重要的参数，同时具有身份识别功能，与外部卡片进行双向身份认证。

随着终端安全的日益被重视，目前被广泛应用于各种嵌入式终端实现数据的安全存储，数据的加解密，终端身份的识别与认证，嵌入式软件的版权保护，DRM数字版权的管理等功能。

产品特点：?采用高端安全智能卡专用安全微处理器作为硬件平台?内部芯片操作系统COS采用TimeCOS，属国内第一个自主知识产权的COS, 累积使用量突破4亿片，在国内智能卡行业享有极高的安全声誉?符合ISO7816、EMV、GSM、PBOC等国际标准和行业标准?支持多层次化文件结构，可建立三级目录，适合一卡多用的要求，支持二进制、定长记录、变长记录、循环记录、钱包记录等多种文件类型。

4ECM-SMART模块使用手册产品描述SM ECM-SMAR电化学气体传感器模块是利用电化学原理，对环境中的CO、H2S、NO2等有毒有害气体浓度进行检测。

模块以盛密科技四系列三电极电化学传感器为敏感元件（传感器具体技术参数详见数据手册），在采样电路控制下实现气体浓度的检测，具有良好的稳定性、选择性。

本模块与接收终端采用四线制连接方式，将气体浓度信号通过UART总线输出，方便用户使用。

本品具有零偏压断电自动短接PIN脚功能，对于零偏压传感器，上电30分钟后即可稳定使用；对于带偏压的传感器，建议用户上电24小时以上再进行使用。

图1盛密4系列电化学传感器俯视图侧视图仰视图图2模块尺寸及引脚定义Vin GND TXD RXD 电源输入正极电源输入负极串口发送串口接收技术指标产品型号SM ECM-SMART检测气体CO、H2S、NO2等有毒有害气体检测原理电化学量程详见数据手册分辨率详见数据手册测量误差<±5%FS工作电压(3.5~5.5)VDC工作电流≤2mA@+5.0VDC输出方式UART(+3.3V TTL电平)工作温度-20℃~+50℃工作湿度0%~90%RH(无冷凝)工作压力1±0.1标准大气压存储温度-20℃~+60℃外形尺寸Φ24.2x26.8mm重量10克通讯设置波特率9600bps数据位8位停止位1位校验位无通讯命令本模块采用串口（TXD/RXD）进行数据传输，传输方式采用问答式。

数据传输均为16进制（HEX）格式。

无特殊说明时，应答回复时间小于100ms（特殊情况请参考具体指令说明），当前命令回复前无法响应其他指令。

1.终端读取模块信息命令示例：AA0F01C580EEByte1--AA：命令起始符；Byte2--0F：信息读取命令；Byte3--01：模块地址（默认为0x01）；Byte4--C5：CRC16（Modbus）；Byte5--80：CRC16（Modbus）；Byte6--EE：命令结束符；注：本命令中对Byte2、Byte3进行CRC16（Modbus）校验校验方法参照附录1模块应答（向终端发送信息数据）示例：AA0F010F001400050002000102C599EEByte1--AA：命令起始符；Byte2--0F：信息读取命令；Byte3--01：模块地址；Byte4--0F：传感器类型；Byte5/6--00/14：模块测量范围（16进制）Byte7/8--00/05：标定气体浓度（16进制）Byte9/10--00/02：高报警点（16进制）Byte11/12--00/01：低报警点（16进制）Byte13--02：传感器读数单位（%LEL：0x00；%VOL：0x01；PPM：0x02；PPB：0X03；无：0x04）Byte14--C5：CRC16（Modbus）；Byte15--99：CRC16（Modbus）；Byte16--EE：命令结束符；注：本命令中对Byte2~Byte13进行CRC16（Modbus）校验校验方法参照附录1附表:传感器类型代码（十进制）00无01无02CO03O204H205CH406无07CO208O309H2S10SO211NH312无13ETO14HCL15PH316无17HCN18无19HF20无21NO22NO223NOX 24CLO225无26无27无28无29无30无31THT32C2H233C2H434CH2O35无36无37无38无39C2H3CL40无41CH3SH例：AA0F010F001400050002000102C599EE（十六进制0F=十进制15，即得到该传感器为PH3传感器）2.终端发送浓度数据读取命令示例：AA0101C1E0EEByte1--AA：命令起始符；Byte2--01：数据读取命令；Byte3--01：模块地址；Byte4--C1：CRC16（Modbus）；Byte5--E0：CRC16（Modbus）；Byte6--EE：命令结束符；注：本命令中对Byte2、Byte3进行CRC16（Modbus）校验校验方法参照附录1模块应答（向终端发送浓度数据）示例：AA01018000000015CA EEByte1--AA：命令起始符；Byte2--01：数据读取命令；Byte3--01：模块地址；Byte4--80：数据符号位（0x80：负；0x00：正）；Byte5/6--00/00：数据（ppm）整数部分（0~65535）；Byte7--00：数据（ppm）小数部分（0.00~0.99）；Byte8--15：CRC16（Modbus）；Byte9--CA：CRC16（Modbus）；Byte10--EE：命令结束符；注：本命令中对Byte2~Byte7进行CRC16（Modbus）校验校验方法参照附录13.终端发送模块校零命令示例：AA0201C110EEByte1--AA：命令起始符；Byte2--02：校零命令；Byte3--01：模块地址；Byte4--C1：CRC16（Modbus）；Byte5--10：CRC16（Modbus）；Byte6—EE：命令结束符；注：1)本命令中对Byte2、Byte3进行CRC16（Modbus）校验；校验方法参照附录12)校零期间LED以1秒/次的频率闪烁，持续时间30秒。

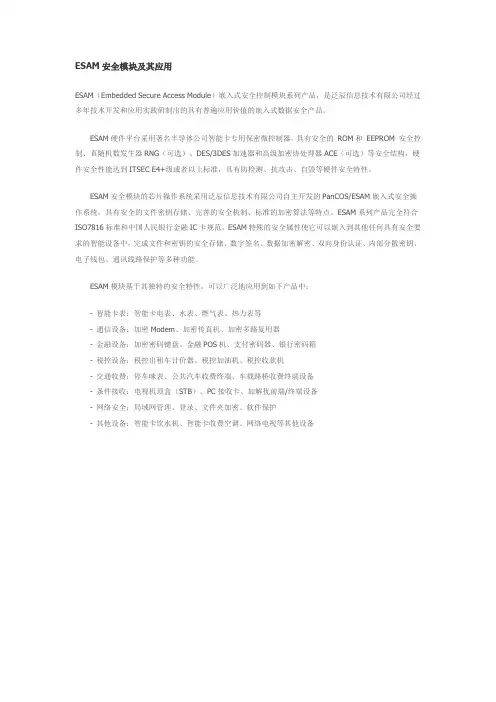

ESAM安全模块及其应用
ESAM（Embedded Secure Access Module）嵌入式安全控制模块系列产品，是泛辰信息技术有限公司经过多年技术开发和应用实践研制出的具有普遍应用价值的嵌入式数据安全产品。

ESAM硬件平台采用著名半导体公司智能卡专用保密微控制器，具有安全的ROM和EEPROM 安全控制、真随机数发生器RNG（可选）、DES/3DES加速器和高级加密协处理器ACE（可选）等安全结构，硬件安全性能达到ITSEC E4+级或者以上标准，具有防检测、抗攻击、自毁等硬件安全特性。

ESAM安全模块的芯片操作系统采用泛辰信息技术有限公司自主开发的PanCOS/ESAM嵌入式安全操作系统，具有安全的文件密钥存储、完善的安全机制、标准的加密算法等特点。

ESAM系列产品完全符合ISO7816标准和中国人民银行金融IC卡规范。

ESAM特殊的安全属性使它可以嵌入到其他任何具有安全要求的智能设备中，完成文件和密钥的安全存储、数字签名、数据加密解密、双向身份认证、内部分散密钥、电子钱包、通讯线路保护等多种功能。

ESAM模块基于其独特的安全特性，可以广泛地应用到如下产品中：
- 智能卡表：智能卡电表、水表、燃气表、热力表等
- 通信设备：加密Modem、加密传真机、加密多路复用器
- 金融设备：加密密码键盘、金融POS机、支付密码器、银行密码箱
- 税控设备：税控出租车计价器、税控加油机、税控收款机
- 交通收费：停车咪表、公共汽车收费终端、车载路桥收费终端设备
- 条件接收：电视机顶盒（STB）、PC接收卡、加解扰前端/终端设备
- 网络安全：局域网管理、登录、文件夹加密、软件保护
- 其他设备：智能卡饮水机、智能卡收费空调、网络电视等其他设备。
