面是以前我在一家isp工作时维护的一个客户路由器上的配置，这个客户租了我们12条IP-

VPN线路，是个大客户。对于IP-VPN内部专线，这个客户主要用于访问远程ERP系统和VOIP语音电话。下面是完整的配置，除了名称用xxx代替外，其它都保留不变。对于爱好网络技术的朋友是一个学习cisco技术的难得的参考。有兴趣的朋友可以分析一下，注：一般IP-VPN专线其实就是DDN加IPVPN技术，一般采用EIGRP协议的。

User Access Verification

Username: xxxx01x

Password:

xxxx01-BJ-4>en

Password:

xxxx01-BJ-4#sh run

Building configuration...

Current configuration : 5624 bytes

!

! Last configuration change at 12:05:04 SHT Thu Feb 2 2006

by xxxx01user

! NVRAM config last updated at 12:05:05 SHT Thu Feb 2 2006

by xxxx01user

!

version 12.1

service timestamps debug datetime localtime

service timestamps log datetime localtime

service password-encryption

!

hostname xxxx01-BJ-4

!

logging buffered 4096 debugging

enable secret 5 $1$Tmai$BXXdfdfdfdfdf&%$$#Y4xm2uMbBBW/

enable password 7 01100B081E1D

!

username netuser password 7 121A0A041F041F

username netuser autocommand menu netuser

username xxxx01user password 7 070C2C400B1F1dfdfd60C07

username ispuser privilege 15 password 7 13061A1E0Adfdfd

!

!

!

!

clock timezone SHT 8

ip subnet-zero no ip finger

no ip domain-lookup

!

!

!

!

interface Loopback0

description "Loopback for Voice"

ip address 10.136.71.254 255.255.255.255

!

interface Tunnel40101

description "BJ-xxxx01 - SH-xxxx02"

ip address 172.16.255.14 255.255.255.252

tunnel source 10.136.252.50

tunnel destination 10.23.252.70

!

interface Tunnel40102

description "BJ-xxxx01 - SH-xxxx02 (Voice)"

ip address 172.16.254.14 255.255.255.252

tunnel source 10.136.71.254

tunnel destination 10.16.67.254

!

interface Tunnel40201

description "BJ-xxxx01 - SZ-xxxx02"

ip address 172.16.255.22 255.255.255.252

tunnel source 10.136.252.50

tunnel destination 10.144.253.58

!

interface Tunnel40202

description "BJ-xxxx01 - SZ-xxxx02 (Voice)"

ip address 172.16.254.22 255.255.255.252

tunnel source 10.136.71.254

tunnel destination 10.144.80.254

!

interface Tunnel40301

description "BJ-xxxx01 - SH-xxxx01"

ip address 172.16.255.6 255.255.255.252

ip mtu 1600

tunnel source 10.136.252.50

tunnel destination 10.23.252.82

!

interface Tunnel40302

description "BJ-xxxx01 - SH-xxxx01 (Voice)"

ip address 172.16.254.6 255.255.255.252 tunnel source 10.136.71.254

tunnel destination 10.16.70.254

!

interface Tunnel40501

description "To xxxx01-GZ"

ip address 172.16.255.29 255.255.255.252

ip mtu 1600

tunnel source 10.136.252.50

tunnel destination 10.144.253.78

!

interface Tunnel40502

description "To xxxx01-GZ (Voice)"

ip address 172.16.254.29 255.255.255.252

tunnel source 10.136.71.254

tunnel destination 10.144.85.254

!

interface Ethernet0

ip address 192.168.2.253 255.255.255.0

!

interface Serial0

bandwidth 256

ip address 10.136.252.50 255.255.255.252

encapsulation ppp

priority-group 1

!

router eigrp 1

redistribute static metric 100 100 255 1 1500 route-map

rm_static2eigrp

network 172.16.254.0 0.0.0.255

network 172.16.255.0 0.0.0.255

network 192.168.2.0

distribute-list prefix 111 out Tunnel40101

distribute-list prefix 112 out Tunnel40102

distribute-list prefix 111 out Tunnel40201

distribute-list prefix 112 out Tunnel40202

distribute-list prefix 111 out Tunnel40301

distribute-list prefix 112 out Tunnel40302

distribute-list prefix 111 out Tunnel40501

distribute-list prefix 112 out Tunnel40502

no auto-summary

no eigrp log-neighbor-changes

!

ip classless

ip route 0.0.0.0 0.0.0.0 Serial0 ip route 10.0.0.0 255.0.0.0 Serial0

ip route 10.16.67.254 255.255.255.255 Serial0

ip route 10.16.70.254 255.255.255.255 Serial0

ip route 10.23.252.70 255.255.255.255 Serial0

ip route 10.23.252.82 255.255.255.255 Serial0

ip route 10.23.253.0 255.255.255.0 Serial0

ip route 10.144.80.254 255.255.255.255 Serial0

ip route 10.144.85.254 255.255.255.255 Serial0

ip route 10.144.253.58 255.255.255.255 Serial0

ip route 10.144.253.78 255.255.255.255 Serial0

ip route 192.168.2.252 255.255.255.255 Ethernet0

ip route 192.168.4.0 255.255.255.0 192.168.2.254

ip route 192.168.5.0 255.255.255.0 192.168.2.254

ip route 192.168.30.0 255.255.255.0 192.168.2.254

ip route 192.168.31.0 255.255.255.0 192.168.2.254

no ip http server

!

!

ip prefix-list 111 description "Deny Voice"

ip prefix-list 111 seq 5 permit 0.0.0.0/0 le 31

!

ip prefix-list 112 description "Permit Voice"

ip prefix-list 112 seq 5 permit 0.0.0.0/0 ge 32

access-list 1 permit 192.168.2.252

access-list 1 permit 192.168.4.0 0.0.0.255

access-list 1 permit 192.168.5.0 0.0.0.255

access-list 1 permit 192.168.30.0 0.0.0.255

access-list 1 permit 192.168.31.0 0.0.0.255

access-list 10 permit 10.23.253.0 0.0.0.255

access-list 101 permit ip host 10.136.71.254 any

priority-list 1 protocol ip high list 101

priority-list 1 queue-limit 100 100 100 100

!

menu netuser title ^C

Testing Menu

合集下载

Cisco路由器配置实例(经典)

Cisco路由器配置实例(经典)

实训报告

实训一 路由基本配置

1、实验目的：路由器基本配置及ip设置

2、拓扑结构图

Router0 fa0/0: 192.168.11.1

Fa0/1:192.168.1.1

Router1 fa0/0: 192.168.11.2

Fa0/1:192.168.2.1

Znn1:192.168.1.2

Znn2:192.168.2.2

3、实验步骤

Router1

Router>en 用户模式 进入特权模式

Router#conf t 特权模式 进入全局模式

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#host rznn1 改名字为 rznn1

rznn1(config)#int fa0/0 进入fa0/0端口

rznn1(config-if)#ip add 192.168.11.1 255.255.255.0 设置ip地址

rznn1(config-if)#no sh 激活

rznn1(config)#int fa0/1

rznn1(config-if)#ip add 192.168.1.1 255.255.255.0

rznn1(config-if)#no sh

rznn1(config-if)#exit

rznn1(config)#exit

EIGRP协议基本配置和常用命令

EIGRP协议基本配置和常用命令

配置EIGRP协议

#conf t#router eigrp 100 *EIGRP需要配置AS号*

*AS标识了属于一个互连网络中的所有路由器，*

*同一个AS内的不同路由如果想要互相学习路由信息，必须配置相同的AS号。*

#net 1.1.1.0 0.0.0.255

*宣告接口，使用的是反掩码形式，如果不输入反掩码，路由默认会使用接口的主类网络号*

"net 12.1.1.0" 等价于 "net 12.0.0.0 0.255.255.255"

#net 0.0.0.0

*如果路由的所有接口都宣告进EIGRP进程，则可以使用"net 0.0.0.0"一次性宣告所有接口 *

查询EIGRP 在running-config中的配置明细

#sh running-config | section r ei

router eigrp 100

network 1.1.1.0 0.0.0.255

network 12.1.1.0 0.0.0.255

network 21.1.1.0 0.0.0.255auto-summary

EIGRP表

EIGRP中有三张表：邻居表、路由表、拓扑表

邻居表（Neighbor Table）

在EIGRP中，两台相邻路由器要建立起邻接关系需要满足两个条件：

1）具有相同的AS号； 2）具有相匹配的K值； 可以通过下面的命令来查看EIGRP默认的K

值：

#show ip protocols

/*AS=100*/

Routing Protocol is "eigrp 100"

/*K值*/

EIGRP metric weight K1=1, K2=0, K3=1, K4=0, K5=0

/*最大负载均衡线路条数*/

Maximum path: 4

/*本路由运行了EIGRP的接口*/

Routing for Networks:

1.1.1.0/24

12.1.1.0/24

21.1.1.0/24

Cisco路由器配置命令集

Cisco路由器配置命令集

Cisco路由器配置命令集

第1章OSI参考模型和路由

1.5.8 IP路由先择配置任务

1,IP地址配置

Router# term ip

Router(config-if)# term ip

2,动态路由选择配置

Router(config)# router

Router(config-router)# network

3,RIP

Router(config)# router rip

第2章 局域网交换

2.5 生成树协议

Router# show spantree

第5章 路由先择协议:IGRP

5.6 了解IGRP的有关*作

5.6.2 创建IGRP路由选择过程

Router(config)# router igrp

Router(config-router)# network

Router(config)# no router igrp

5.6.3 提高IGRP的稳定性

Router(config-router)# timers basic

(例:Router(config-router)# timers basic 15 45 0 60,其默认的设置为Router(config-router)#

timers basic 90 270 0 450)

Router(config-router)# no metric holddown

(注:使用holddown命令,可以使旧的路由被去除后,新增加的路由立即生效)

5.6.6 最大跳数

Router(config-router)# metric maximum-hop

第6章 访问控制列表

6.3 ACL配置任务

Router(config)# access-list {permit | deny}

Router(config-if)# {ip | ipx} access-group

6.3.2 为每一个ACL分配唯一的表号

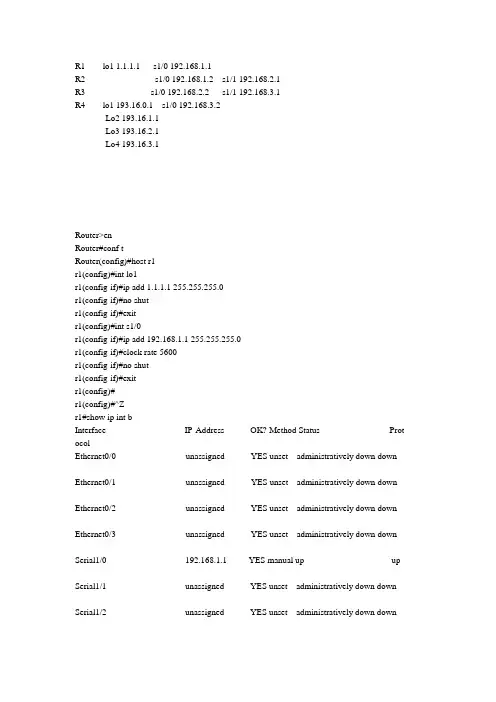

eigrp路由汇总
