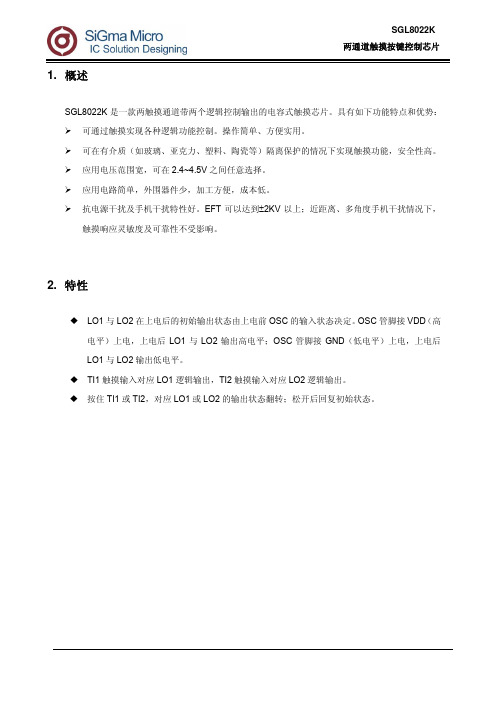

1. 概述SGL8022K是一款两触摸通道带两个逻辑控制输出的电容式触摸芯片。
具有如下功能特点和优势：¾可通过触摸实现各种逻辑功能控制。
操作简单、方便实用。
¾可在有介质（如玻璃、亚克力、塑料、陶瓷等）隔离保护的情况下实现触摸功能，安全性高。
¾应用电压范围宽，可在2.4~4.5V之间任意选择。
¾应用电路简单，外围器件少，加工方便，成本低。
¾抗电源干扰及手机干扰特性好。
EFT可以达到±2KV以上；近距离、多角度手机干扰情况下，触摸响应灵敏度及可靠性不受影响。
2. 特性LO1与LO2在上电后的初始输出状态由上电前OSC的输入状态决定。
OSC管脚接VDD（高电平）上电，上电后LO1与LO2输出高电平；OSC管脚接GND（低电平）上电，上电后LO1与LO2输出低电平。
TI1触摸输入对应LO1逻辑输出，TI2触摸输入对应LO2逻辑输出。
按住TI1或TI2，对应LO1或LO2的输出状态翻转；松开后回复初始状态。
3. 封装及引脚说明DIP8SOP8管脚序号 管脚名称 输入/输出 功能描述1 OSC 输入选项输入脚2 VC 输入采样电容接入脚3 VDD 电源电源正4 GND 电源电源负5 TI1 输入触摸输入6 TI2 输入触摸输入7 LO1 输出控制输出8 LO2 输出控制输出4. 封装尺寸图DIP8SOP85. 应用电路图注：当介质材料及厚度等差异较大时，可通过调整VC与GND之间的C3采样电容来调节触摸灵敏度。
电容容值越大，灵敏度越高；电容容值越小，灵敏度越低。
VC与GND之间C3采样电容介质类型器件类型器件参数直接触摸金属外壳 333涤纶电容0.033uF/25V3mm以内亚克力玻璃 103涤纶电容0.01uF/25V3-6mm亚克力玻璃 203涤纶电容0.02uF/25V6-10mm亚克力玻璃 473涤纶电容0.047uF/25V6. 电气参数参数典型值单位工作电压 3.0 V工作电流60 uA待机电流8 uA输入高电平(2/3)VDD V输入低电平(1/3)VDD V 输出高电平电流7 mA参数典型值单位输出低电平电流10 mA 工作温度-20~70 ℃存储温度-50~100 ℃7. BOM表器件标示器件名称器件参数R2 碳膜电阻2KΩ/0.25WR3 碳膜电阻2KΩ/0.25WRm 碳膜电阻视应用情况而定Rn 碳膜电阻视应用情况而定C2 瓷片电容0.1uF/25VC3 瓷片电容0.01 uF /25VC4 点解电容10 uF/25VU1 低压差线性稳压器 3.3V输出LDOQ1 NPN三极管8050Q2 NPN三极管8050Dm 发光二极管LEDDn 发光二极管LED8. 修改记录版本更新日期更新内容修改人确认人V1.0 2008-12-18 原始版本Apple branden V1.1 2009-3-11 修改Q1,Q2的值Apple branden V1.2 2009-4-17 修改特性描述、应用电路及BOM表Apple branden V1.3 2009-9-17 修改特性描述、应用电路、电气参数及BOM表Apple branden V1.4 2011-1-11 修改应用电路及BOM表刘洋branden。
