M12工业以太网交换机,EN50155嵌入式轨道交通插座

产品特性支持8个10/100M以太网M12接口，2个1000M光口或2个10/100/1000M电口（M12）符合轨道交通EN50155标准,M12航空插头接口设计支持MR-Ring快速环网（自愈时间<20ms），兼容STP/RSTP/MSTP生成树协议支持QoS，基于端口的流量监管，WRR、DRR、SP、队列调度算法、报文的802.1p支持bypass功能可选满足工业4级电磁兼容性，IP54等级，无风扇设计产品概述MIES-5710系列产品是一款二层千兆工业以太网交换机，配置了8个10/100M以太网接口，2个1000M光口或2个10/100/1000M M12电口。

该交换机提供丰富的功能：支持MR-ring 环网协议，兼容STP/RSTP/MSTP、基于端口的VLAN、基于802.1Q的VLAN、QOS、IGMP Snooping、广播风暴抑制、端口聚合、端口镜像、端口状态管理等。

可选支持bypass功能。

设备符合IEEE802.3，IEEE802.3u标准，IEEE802.3ab和IEEE802.3x规范。

MIES-5710支持Console、Telnet、Web多种管理方式。

该系列具备IP54防护等级，适合在各种干扰较大的场合使用，如交通行业中震动和冲击非常频繁，使用M12则可以使得连接更为牢固。

此外MIES-5710系列安装方式提供壁挂式安装，可为现场安装节省空间。

产品参数属性MIES-5710接口8个1O/1OOM自适应以太网电口，M12接口2个1000M光口或2个10/100/1000M M12电口以太网口速率和距离1O/1OO/1000M自适应双绞线,最大传输距离100m光口属性及传输距离单模1310nm，多模850nm；单模20km,多模550m（长距离模块可定制）背板带宽 5.6Gbps包转发速率 4.6Mpps包缓存区2MbitMAC表支持8K个MAC地址VLAN支持基于端口的VLAN（4096个），802.1QVLAN支持GVRP二层环网协议支持MR-ring（自愈时间<20ms）支持STP/RSTP/MSTP自愈环组网方式支持多组自愈环支持相切环端口聚合支持静态聚合支持LACP动态聚合DHCP DHCP Client DHCP Relay DHCP Server端口镜像支持流镜像支持本地镜像组播支持IGMP Snooping v1/v2/v3，MLD Snooping v1支持IGMP v3QoS 支持对端口接收报文的速率和发送报文的速率进行限制支持CAR（Committed Access Rate）功能支持每个端口支持8个输出队列支持灵活的队列调度算法，可以同时基于端口和队列进行设置支持SP、WRR、SP+WRR三种模式ACL 支持L2（Layer2）~L4（Layer4）包过滤功能，提供基于源MAC地址、目的MAC地址、源IP(IPv4)地址、目的IP(IPv4)地址、TCP/UDP 端口号的流分类NTP<10ms网络安全支持用户分级管理和口令保护支持802.1X认证支持RADIUS认证支持端口隔离支持动态ARP检测支持IP/Port/MAC的绑定功能管理与维护支持FTP/TFTP加载升级支持命令行接口（CLI）配置支持Telnet远程配置支持通过Console口配置支持SNMP v1/v2/v3支持系统日志，分级告警，调试信息输出支持Ping风暴抑制可分别对广播、组播、未知单播速率控制指示灯电源指示，接口灯指示电源输入电压：AC/DC85～265V支持过载保护，反接保护，冗余保护最大功耗：10W工作环境工作温度：-40℃～+75℃储存温度：-40℃～85℃相对湿度：5％～95％无凝露安装方式DIN 桌面式/壁挂式安装外形尺寸宽×高×深：180×73×248mm 防护等级IP 54防护等级，无风扇设计MTBF350,000小时质保期5年符合标准IEEE802.3：CSMA/CDIEEE802.3i：10Base-TIEEE802.3u：100Base-TIEEE802.3z:1000Base-LXIEEE 802.3ad：链路聚合IEEE 802.3x：全双工以太网数据链路层流控IEEE 802.1p：流量优先级IEEE 802.1Q：VLANIEEE 802.1w：快速生成树IEEE 802.1X：基于端口的网络访问控制铁路电气标准EN50155EMI 电磁干扰度测试EMCIEC61000-4-2(ESD)±8kV(contact),±15kV(air)IEC61000-4-3(RS)10V/m(80MHz～2GHz)IEC61000-4-4(EFT)Power Port:±4kV;Data Port:±2kVIEC61000-4-5(Surge)Power Port:±2kV/DM,±4kV/CM;Data Port:±2kVIEC61000-4-6(CS)3V(10kHz～150kHz);10V(150kHz～80MHz)IEC61000-4-16(共模传导)30V(cont.),300V(1s)安装图示订货信息产品型号规格参数MIES-5710M8个10/100M 以太网口，2个1000M 多模光口或2个10/100/1000M 电口（M12连接器），输入电压：AC/DC85～265V MIES-5710S 8个10/100M 以太网口，2个1000M 单模光口或2个10/100/1000M 电口（M12连接器），输入电压：AC/DC85～265V上海兆越通讯技术有限公司创立于 2003 年，是国家科技部创新基金立项企业；公司致力于工业通信的产品研发与技术创新，专注于工业以太网通信、工业无线通信、现场总线、光纤通信、嵌入式通信，目前已成功推出数十条产品线、几百种产品，已成为国内工业通信领域的品牌。

原版操作手册的译本© 2020 Festo SE & Co. KG 保留一切权利1适用文件有关产品的所有可用文件 è 。

2安全2.1安全注意事项–仅在无电压情况下进行插拔连接。

–仅允许将产品安装在处于安全状态的部件上。

2.2按规定使用连接电缆用于连接现场用设备（传感器、执行元件）和控制器。

3结构3.1产品配置1插座 M12x12插头 M12x13电缆Fig. 1 NEBU-M12G5-...-M12G...1插座 M12x12插头 M12x13电缆Fig. 2 NEBU-M12G5-...-M12W...1插座 M12x12插头 M12x13电缆4开关状态显示（可选）Fig. 3 NEBU-M12W5...-M12G...1插座 M12x12插头 M12x13电缆4开关状态显示（可选）Fig. 4 NEBU-M12W5...-M12W...1插座 M12x12插头 M12x13电缆Fig. 5 NEBU-M12G5-E-...-Q8N-M12G53.2针脚分配1) 颜色代码符合 IEC 60757:1983-01Tab. 1 针脚分配4装配4.1安装现场设备端1.将插座 1 与适配的插头对齐。

2.将插座 1 插到插头上。

3.拧紧插座 1 的螺丝紧固。

拧紧扭矩：0.3 Nm ± 67 %4.2安装控制端1.将插头 2 与适配的插座对齐。

2.将插头 2 插入插座中。

3.拧紧插头 2 的螺丝紧固。

拧紧扭矩：0.3 Nm ± 67 %4.3电缆敷设属性电缆属性电缆敷设-K-标准拖链中（弯曲半径 75 mm）或柔性（可自由移动，无导向的敷设）电缆可灵活弯曲，但不可用于机器人。

-E-适合于导向链中继用于拖链中或柔性敷设-R-适合于机械手用在机器人上、用于拖链中或柔性敷设Tab. 2 电缆敷设4.4拖链中的安装1.根据实际铺设情况截取所需长度的拖链。

2.拖链中的电缆铺设无扭曲。

Aquam8012A12/9+3G/8+4G端口二层千兆网管型EN50155系列工业以太网交换机产品简介Aquam8012A系列是专为轨道交通行业设计的二层网管型工业以太网交换机，最大支持8个百兆快速以太网接口及4个千兆上行接口，支持壁挂式安装方式，支持宽范围的可操作温度（-40℃~+70℃），满足EN50155、EN50121等轨道交通行业标准的要求。

Aquam8012A具有更优化的外形尺寸，便于灵活安装；支持IP65高防护等级，满足设备对防尘防水性能的要求；支持M12接口形式，保证端口连接的密封性和牢固性，尤其适合有强烈的振动和冲击的应用场景。

Aquam8012A系列交换机提供支持PoE功能的型号，支持宽范围的隔离电源（电源输入范围可达24VDC~110VDC），可提供9个支持IEEE802.3at PoE+（兼容IEEE802.3af）的百兆快速以太网接口，能够驱动9个支持IEEE802.3at/af的受电设备PD，减少终端设备的线缆连接。

交换机作为PSE设备可为每个端口提供最大30.8W的功率，整机可提供最大61.6W+的PoE功率输出。

Aquam8012A系列以太网交换机支持用于IP地址自动分配的DHCP协议，并且支持DRP和RSTP环网冗余协议，可以灵活组网，以满足铁路市场的需求。

Aquam8012A可广泛用于车载PIS、CCTV、视频监控系统、列车控制系统，同时也适用于任何对振动冲击、EMC兼容性要求严酷的工业应用场合。

关键特性该系列最多支持3个千兆电口+9个百兆电口或者4个千兆口+8个百兆口或12个百兆口支持最多达9个PoE接口支持Bypass功能可选该系列支持带PoE型号和不带PoE型号可选POE支持IEEE802.3af和IEEE802.3at标准电源接口及端口连接器型号支持M12支持DRP和RSTP环网冗余保护符合EN50155和EN50121行业标准要求,专为轨道交通应用设计防护等级IP65，需IP67请联系我司性能参数机械尺寸订购信息推荐型号带散热肋型号产品型号Aquam8012A-Ports-PS1-PS2代码定义代码选型Ports:端口3GE9T=3X10/100/1000BASE-TX M12电口; 9X10/100BASE-TX M12电口;4GE8T=4X10/100/1000BASE-TX M12电口; 8X10/100BASE-TX M12电口;3GE9P=3X10/100/1000BASE-TX M12电口; 9X10/100BASE-TX M12 PoE电口;4GE8P=4X10/100/1000BASE-TX M12电口; 8X10/100BASE-TX M12 PoE电口;9T=9X10/100BASE-TX M12电口;9P=9X10/100BASE-TX M12 PoE电口;产品型号Aquam8012A-B-Ports-PS1-PS2B:4GE型号千兆口支持2对Bypass功能;3GE型号千兆口支持1对Bypass功能;Ports:端口3GE9T=3X10/100/1000BASE-T(X) M12电口; 9X10/100BASE-T(X) M12电口;4GE8T=4X10/100/1000BASE-T(X) M12电口; 8X10/100BASE-T(X) M12电口;3GE9P=3X10/100/1000BASE-T(X) M12电口; 9X10/100BASE-T(X) M12 PoE电口;4GE8P=4X10/100/1000BASE-T(X) M12电口; 8X10/100BASE-T(X) M12 PoE电口;PS1-PS2:电源输入非PoE型号：H6-H6=72-110VDC(50.4-137.5VDC),冗余输入L14-L14=48VDC(33.6-60VDC),冗余输入L13-L13=24VDC(16.8-30VDC),冗余输入PoE型号：WV-WV=24-110VDC(16.8-154VDC),冗余输入去散热肋型号产品型号Aquam8012A-Ports-PS1-PS2-LVPorts:端口3GE9T=3X10/100/1000BASE-T(X) M12电口; 9X10/100BASE-T(X) M12电口;4GE8T=4X10/100/1000BASE-T(X) M12电口; 8X10/100BASE-T(X) M12电口;9T=9X10/100BASE-T(X) M12电口;产品型号Aquam8012A-B-Ports-PS1-PS2-LVB:4GE型号千兆口支持2对Bypass功能;3GE型号千兆口支持1对Bypass功能;Ports:端口3GE9T=3X10/100/1000BASE-T(X) M12电口;9X10/100BASE-T(X) M12电口;4GE8T=4X10/100/1000BASE-T(X) M12电口;8X10/100BASE-T(X) M12电口;PS1-PS2:电源输入H6-H6=72-110VDC(50.4-137.5VDC),冗余输入L14-L14=48VDC(33.6-60VDC),冗余输入L13-L13=24VDC(16.8-30VDC),冗余输入选购配件配件型号描述备注M12-A-4P-F M12, A-Coding, 4 Pin母头电缆连接器电源连接器头M12-A-4P-M M12, A-Coding, 4 Pin公头电缆连接器Console/USB口连接器头M12-D-4P-M M12, D-Coding, 4 Pin公头电缆连接器百兆电口连接器头M12-X-8P-M M12, X-Coding, 8 Pin公头电缆连接器千兆电口连接器头DT-XL-PWR-M12-XXX-3m电源接口连接线M12 to裸端，3m电源接头线缆Version:2020-07-22 17:26:18。

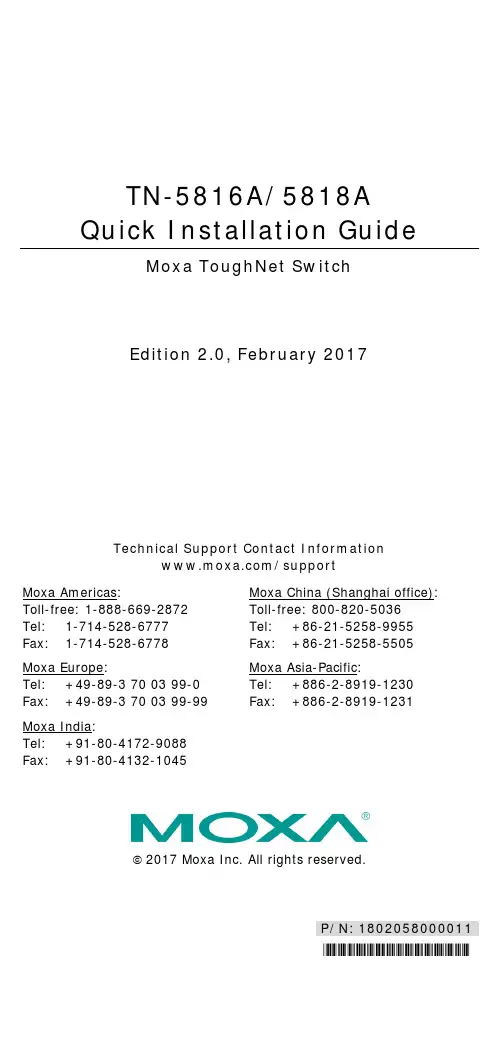

P/N: 1802058000011 *1802058000011*TN-5816A/5818A Quick Installation GuideMoxa ToughNet SwitchEdition 2.0, February 2017Technical Support Contact Information/supportMoxa Americas:Toll-free: 1-888-669-2872 Tel: 1-714-528-6777 Fax: 1-714-528-6778 Moxa China (Shanghai office): Toll-free: 800-820-5036 Tel: +86-21-5258-9955 Fax: +86-21-5258-5505 Moxa Europe:Tel: +49-89-3 70 03 99-0 Fax: +49-89-3 70 03 99-99 Moxa Asia-Pacific:Tel: +886-2-8919-1230 Fax: +886-2-8919-1231 Moxa India:Tel: +91-80-4172-9088 Fax: +91-80-4132-10452017 Moxa Inc. All rights reserved.OverviewThe ToughNet TN-5816A/5818A switches are high performance M12 Layer 3 Ethernet switches that support Layer 3 routing functionality to facilitate the deployment of applications across networks.TN-5816A/5818A switches use M12 and other circular connectors to ensure tight, robust connections and guarantee reliable operation against environmental disturbances, such as vibration and shock.TN-5816A/5818A switches support isolated power in the 24 to 110 VDC power input range, allowing the same model to be used at different sites around the globe. TN-5816A/5818A switches provide up to 16 Fast Ethernet M12 ports with 2 bypass relay ports, and 2 Ethernet interface Gigabit ports with bypass relay functionality. Furthermore, with a -40 to 75°C operating temperature and IP54-rated waterproof enclosure, the switches can be deployed in harsh environments. The TN-5816A/5818A series Ethernet switches are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications. Package ChecklistYour ToughNet TN-5816A/5818A switch is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance.• 1 Moxa ToughNet switch•M12 to DB9 console port cable• 2 protective caps for console and relay output ports•Panel mounting kit•CD-ROM with user’s manual, Windows utility, and SNMP MIB file •Quick installation guide (printed)•Warranty cardFeaturesAnti-Vibration Circular Connectors for Robust Links•M12 D-coding 4-pin female connectors for Fast Ethernet 10/100BaseT(X) ports.•M12 X-coded 8-pin connector for Gigabit Ethernet10/100/1000BaseT(X) ports•M12 A-coding 5-pin male connectors for console and relay output. •M23 6-pin male connector for power input.Dual Isolated Power Inputs•24 to 110 VDC (16.8 to 137.5 VDC), isolated.Designed for Industry-specific Applications•Two Gigabit Ethernet ports to meet high bandwidth requirements. •Bypass relay ensures non-stop data communication in the event the switch stops working due to a power failure.•Complies with all EN 50155 mandatory test items*.•-40 to 75°C operating temperature range.•IP54, rugged high-strength case.•Panel mounting or DIN-rail mounting installation capability.*This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: /doc/specs/EN_50155_Compliance.pdfRecommended Optional Accessories•CBL-M23(FF6P)Open-BK-100-IP67: 1-meter M23 to 6-pin power cable with IP67-rated female 6-pin M23 connector•CBL-M12D(MM4P)/RJ45-100 IP67: 1-meter M12-to-RJ45 Cat-5E UTP Ethernet cable with IP67-rated male 4-pin M12 D-coded connector •CBL-M12(FF5P)/OPEN-100 IP67: 1-meter M12-to-5-pin power cable with IP67-rated female 5-pin M12 A-coded connector•M12D-4P-IP68: Field-installable M12 D-coded screw-in connector, male 4-pin, IP68-rated•M12A-5P-IP68: Field-installable M12 A-coded screw-in connector, female 5-pin, IP68-rated•CAP-M12F-M: Metal cap for M12 female connector•DK-DC50131: DIN-rail mounting kit, 50 x 131 mm1.Model name2.Screw holes for panel mounting kit3.Console port4.Grounding screw5.Relay output port6.Power input voltage range indicator7.Power input port (male 6-pin shielded M23 connector)8.PWR1 LED: for power input 19.PWR2 LED: for power input 210.FAULT LED11.MSTR/HEAD LED: for ring master or chain head12.CPLR/TAIL LED: for ring coupler or chain tail13.TP port’s 10/100 Mbps LED14.10/100BaseT(X) port (female 4-pin shielded M12 connector with Dcoding)15.Waterproof vent16.Product label17.12 screw holes for DIN-rail mounting kit18.E2 LED: Not used by the TN-5816 series19.E1 LED: Not used by the TN-5816 series20.Ports 9-10, 13-14 with relay bypass function1.Model name2.Screw holes for panel mounting kit3.Console port4.Grounding screw5.Relay output port6.Power input voltage range indicator7.Power input port (male 5-pin shielded M23 connector)8.PWR1 LED: for power input 19.PWR2 LED: for power input 210.FAULT LED11.MSTR/HEAD LED: for ring master or chain head12.CPLR/TAIL LED: for ring coupler or chain tail13.TP port’s 10/100 Mbps LED14.10/100BaseT(X) port (female 4-pin shielded M12 connector with Dcoding)15.Waterproof vent16.Product label17.12 screw holes for DIN-rail mounting kit18.E2 LED: Down-side E2 Gigabit port’s 10/100/1000 Mbps LED19.E1 LED: Down-side E1 Gigabit port’s 10/100/1000 Mbps LED20.Gigabit Ethernet port E1 (corresponding to port 17 in the TN-5818AUser's Manual; ports 17-18 support relay bypass function)21.Gigabit Ethernet port E2 (corresponding to port 18 in the TN-5818AUser’s Manual; ports 17-18 support relay bypass function)22.Ports 9-10, 13-14 with relay bypass functionMounting Dimensions (unit = mm)TN-5816A SeriesTN-5818A SeriesPanel/Wall MountingSTEP 1:Mounting the TN-5816A/5818A to a wall requires 4 screws. Use the ToughNet switch as a guide to mark the correct positions of the 4 screws. STEP 2:Use the 4 screws in the panel mounting kit. If youwould like to use your own screws, make sure thescrew head is between 6.0 mm and 7.0 mm indiameter and the shaft is less than 4.0 mm indiameter, as shown at the right.Do not screw the screws in all the way—leave a space of about 2 mm to allow room for sliding the ToughNet switch between the wall and the screws.NOTE Before tightening the screws into the wall, make sure the screw head and shaft size are suitable by inserting the screw through one of the keyhole-shaped apertures of the ToughNet switch.STEP 3:Once the screws are fixed in the wall, hang the ToughNet switch on the 4 screws through the large opening of the keyhole-shaped apertures, and then slide the switch downwards. Tighten the four screws for added stability.NOTE To provide greater protection from vibrations and shocks, use screws with shaft diameter between 6.0 mm and 7.0 mm, and fix the ToughNet switch onto the wall directly through the large opening of the keyhole-shaped apertures.DIN-Rail Mounting (optional)Use the optional DIN-rail mounting kit (DK-DC50131, must bepurchased separately) to mount the TN-5816A/5818A on a 35 mm DIN-rail.STEP 1: Use 12 screws (6 screws per plate) to attach the two DIN-rail attachment plates to the rear panelof the switch.STEP 2: If the spring-loaded bracket is locked in place, push the recessed button to release it. Once released, you should feel some resistance from the spring as you slide the bracket up and down a few millimeters in each direction.STEP 3: Position the ToughNet switch on the DIN-rail, tilted so the clamps hook over the top edge of the rail.STEP 4: Swing the switch down fully onto the DIN-rail, until both clamps completely latch.To remove the Moxa ToughNet Switch from Array the DIN-rail, use a screwdriver to pull out thetwo spring-loaded brackets from the bottomuntil they are fixed in a “locked” position.Then, reverse Steps 3 and 4 above.Wiring RequirementsPlease Read and Follow These Guidelines:•Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point.NOTE: Do not run signal or communications wiring and power wiring through the same wire conduit. To avoid interference, wires withdifferent signal characteristics should be routed separately.•You can use the type of signal transmitted through a wire to determine which wires should be kept separate. The rule of thumb is that wiring that shares similar electrical characteristics can bebundled together.•Keep input wiring and output wiring separated.•It is strongly advised that you label wiring for all devices in the system when necessary.Grounding the ToughNet SwitchGrounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the grounding screw to the grounding surface prior to connecting devices.Connecting the Power SuppliesThe ToughNet TN-5816A/5818A series switches support two sets of power supplies—power input 1 and power input 2. The M23 6-pin male connector on the TN-5816A/5818A’s front panel is used for the dual power inputs.Pinouts for the power input port on the TN-5816A/5818ASTEP 1: Plug the power cord connector into the TN-5816A/5818A’s power input port.STEP 2: Screw in the nut on the power cord connector to the power input connector (on the switch) to ensure a tight connection.Connecting the Relay OutputsEach TN-5816A/5818A switch has two sets of relay outputs—relay output 1 and relay output 2.The M12 A-coded 5-pin male connector on the TN-5816A/5818A front panel is used for the two relay outputs. Use a power cord with an M12 A-coded 5-pin female connector to connect the relay contacts. You can purchase an M12 power cable from Moxa; the model number is CBL-M12 (FF5P)/OPEN-100 IP67.Pinouts for the TN-5816A/5818A’s relay output portN.C.: Not connectedFAULT:The two sets of relay contacts of the M12 A-coded 5-pin male connector are used to detect user-configured events. The two wires attached to the fault contacts form an open circuit when a user-configured event is triggered. If a user-configured event does not occur, the fault circuit remains closed.Connecting the Data Lines10/100BaseT(X) Ethernet Port ConnectionAll TN-5816A/5818A models have 16 10/100BaseT(X) Ethernet ports (4-pin shielded M12 connector with D coding). The 10/100TX ports located on the TN-5816A/5818A front panel are used to connect to Ethernet-enabled devices. Most users configure these ports for Auto MDI/MDI-X mode, in which case the port’s pinouts are adjusted automatically depending on the type of Ethernet cable used (straight-through or cross-over), and the type of device (NIC-type or HUB/Switch-type) connected to the port.In what follows, we give pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports. We also give cable wiring diagrams for straight-through and cross-over Ethernet cables.10/100BaseT(X) Port PinoutsHousing: shield10/100/1000BaseT(X) M12 (8-pin) Port PinoutsM12 (4-pin, M) to M12 (4-pin, M) Cross-Over Cable WiringM12 (4-pin, M) to M12 (4-pin, M) Straight-Through Cable WiringM12 (4-pin, M) to RJ45 (8-pin) Cross-Over Cable WiringM12 (4-pin, M) to RJ45 (8-pin) Straight-Through Cable WiringBypass Relay FunctionThe TN-5816A/5818A is equipped with a bypass relay function. When the switch is operating normally, these bypass ports work in the same way as the other ports. That is, frame ingressions are processed and thenforwarded. If the switch stops working due to a power failure, the bypass relay function will be triggered to ensure non-stop data communication. The figure below illustrates the bypass relay function. For example, if Switch B loses power, then the two Gigabit ports will be bypassed through the relay circuit and the transmission line from Switch A to B and the transmission line from Switch B to C will interconnect automatically, ensuring that power continues to be supplied.The bypass relay function helps the network recover from single-node failures in a linear topology.Since the maximum segment length of category 5 twisted-pair cable is 100 meters, cable length must be considered when designing a network that utilizes this function. For example, the total length of the cables from Switch A to B and from B to C must be no more than 100 meters. This way, if the two adjacent nodes (switch B and C for example) encounter a power failure, there will be no stoppage, provided that the total length of the cables A-to-B, B-to-C, and C-to-D are no more than 100 meters.The bypass relay function works best for networks with linear topologies. ToughNet™ switches with bypass relay function are not recommended to be used in networks that employ ring topologies because network loops may occur when redundancy protocols such as RSTP or TurboRing™ are applied.Bypassing Switch A Switch B Switch C Switch DLED IndicatorsSeveral LED indicators are located on the ToughNet switch’s front panel. The function of each LED is described in the table below.Specifications。

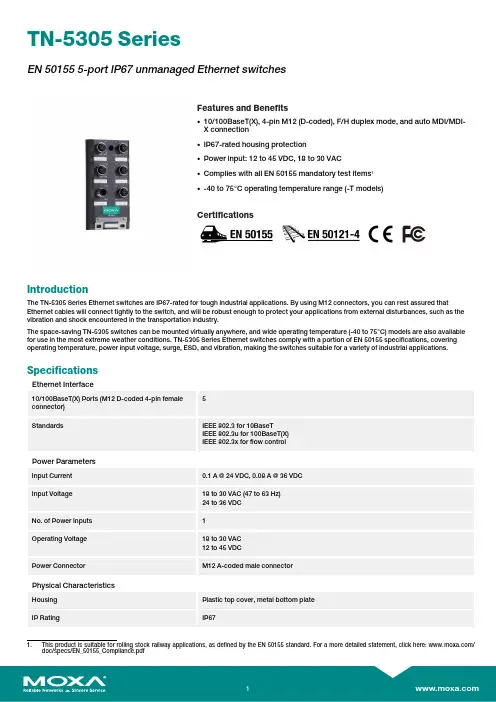

TN-5305SeriesEN501555-port IP67unmanaged Ethernet switchesFeatures and Benefits•10/100BaseT(X),4-pin M12(D-coded),F/H duplex mode,and auto MDI/MDI-X connection•IP67-rated housing protection•Power input:12to45VDC,18to30VAC•Complies with all EN50155mandatory test items1•-40to75°C operating temperature range(-T models)CertificationsIntroductionThe TN-5305Series Ethernet switches are IP67-rated for tough industrial applications.By using M12connectors,you can rest assured that Ethernet cables will connect tightly to the switch,and will be robust enough to protect your applications from external disturbances,such as the vibration and shock encountered in the transportation industry.The space-saving TN-5305switches can be mounted virtually anywhere,and wide operating temperature(-40to75°C)models are also available for use in the most extreme weather conditions.TN-5305Series Ethernet switches comply with a portion of EN50155specifications,covering operating temperature,power input voltage,surge,ESD,and vibration,making the switches suitable for a variety of industrial applications.SpecificationsEthernet Interface510/100BaseT(X)Ports(M12D-coded4-pin femaleconnector)Standards IEEE802.3for10BaseTIEEE802.3u for100BaseT(X)IEEE802.3x for flow controlPower ParametersInput Current0.1A@24VDC,0.08A@36VDCInput Voltage18to30VAC(47to63Hz)24to36VDCNo.of Power Inputs1Operating Voltage18to30VAC12to45VDCPower Connector M12A-coded male connectorPhysical CharacteristicsHousing Plastic top cover,metal bottom plateIP Rating IP671.This product is suitable for rolling stock railway applications,as defined by the EN50155standard.For a more detailed statement,click here:/doc/specs/EN_50155_Compliance.pdfDimensions60x125x29.6mm(2.36x4.92x1.09in) Weight Packaged:270g(0.56lb)Installation DIN-rail mounting(with optional kit)Wall mountingEnvironmental LimitsOperating Temperature TN-5305:-25to60°C(-13to140°F)TN-5305-T:-40to75°C(-40to167°F)Storage Temperature(package included)-40to85°C(-40to185°F)Ambient Relative Humidity5to95%(non-condensing)Altitude2000mStandards and CertificationsFreefall IEC60068-2-32EMC EN55032/35EMI CISPR32,FCC Part15B Class AEMS IEC61000-4-2ESD:Contact:6kV;Air:8kVIEC61000-4-3RS:80MHz to1GHz:20V/mIEC61000-4-4EFT:Power:2kV;Signal:2kVIEC61000-4-5Surge:Power:2kV;Signal:2kVIEC61000-4-6CS:10VIEC61000-4-8PFMFEnvironmental Testing IEC60068-2-1,EN50155IEC60068-2-14,EN50155IEC60068-2-2,EN50155IEC60068-2-30,EN50155International Approval RCMRailway EN50121-4EN50155Railway Fire Protection EN45545-2Safety EN60950-1UL508Salt Spray Test IEC60068-2-11,EN50155Shock IEC60068-2-27,IEC61373,EN50155 Vibration IEC60068-2-64,IEC61373,EN50155 DeclarationGreen Product RoHS,CRoHS,WEEEMTBFTime3,451,678hrsStandards Telcordia SR332WarrantyWarranty Period5yearsDetails See /warrantyPackage ContentsDevice1x TN-5305Series switch Installation Kit1x panel-mounting kit Documentation1x quick installation guide1x warranty card DimensionsOrdering InformationModel Name PoE,10/100BaseT(X)Ports,M12D-CodedFemale Connector10/100BaseT(X)Ports,M12D-Coded FemaleConnectorPower Input Input Voltage Operating Temp.TN-5305–5Single input 24/36VDC,18to30VAC-25to60°CTN-5305-T–5Single input 24/36VDC,18to30VAC-40to75°CAccessories(sold separately)CablesCBL-M12(FF5P)/OPEN-100IP67A-coded M12-to-5-pin power cable,IP67-rated5-pin female M12connector,1m CBL-M12D(MM4P)/RJ45-100IP67M12-to-RJ45cable,IP67-rated,1mCBL-M12DMM4PM12DMM4P-BK-100-IP67M12-to-M12Cat-5E STP Ethernet cable,4-pin D-coded M12connector,IP67,1m ConnectorsM12D-4PMM-IP67M12D-coded connector,QUICKON type,4-pin male,IP67M12D-4P-IP68D-coded screw-in sensor connector,male,IP68M12A-5P-IP68A-coded screw-in sensor connector,female,IP68,4.05cmM12Connector CapsA-CAP-M12F-M Metal cap for M12female connectorA-CAP-M12M-M Metal cap for M12male connectorDIN-Rail Mounting KitsDK-M12-305DIN-rail mounting kit for EDS-305-M12©Moxa Inc.All rights reserved.Updated May17,2023.This document and any portion thereof may not be reproduced or used in any manner whatsoever without the express written permission of Moxa Inc.Product specifications subject to change without notice.Visit our website for the most up-to-date product information.。
