METRIX振动变送器

MX8031延长电缆是标准的双屏蔽电缆和VibeLock™5 接头。

MX2031电缆是标准的同轴电缆和圆形，滚花接头。

MX8031 和MX2031 延长电缆都兼容MX8030和MX2030 5mm/8mm 探头和BN4 3300 和 3300XL 5mm/8mm 探头。

提供各种长度选择以及可选的铠装防护电缆。

MX8031 & MX2031 延伸电缆Datasheet0598C USMX8030 和 MX2030探头系列由5mm and 8mm 顶端直径构成。

MX8030 带有标准的双屏蔽电缆和VibeLock™5 接头。

MX2030 带有标准的同轴电缆和圆形，滚花接头。

两种探头都提供满量程80 mil (2mm) 线性范围，并且设计去完全满足670 规格当与一个匹配的 MX8031 或 MX2031 延长电缆和MX2033 前置器或MX2034 变送器。

MX8030 和 MX2030 探头可与Bently Nevada (BN)4, 3300 和 3300XL 5mm/8mm 探头完全互换。

MX8030 & MX2030 探头系列注释: 上述部件可以提供螺丝端子或者压接端子。

选择前置器或者变送器，取决于信号输出类型：MX2033 3-线制前置器监测系统，而MX2034 4-20mA 变送器用于控制系统。

这些型号完全兼容Metrix ，BN 和其他厂家的各种各样的探头和延伸电缆。

MX2033 3-线制探头前置器动态电压输出(mV/μm or m V/mil)MX2033信号输出兼容API670制定格式的工业标准持续振动监测系统它使用-24Vdc 供电并且提供mV/um 信号输出。

典型的7.87mv/um (200 mv/mil).MX2034 4-20 mA 变送器 静态电流输出(mA/µm or mA/mil)MX2034 s 信号输出提供振动，轴向位移或转速信号， 可以直接连接到 PLCs, DCSs, SCADA 系统， 或其他可接收标准4-20mA 信号的仪表，不需要使用独立的监测系统。

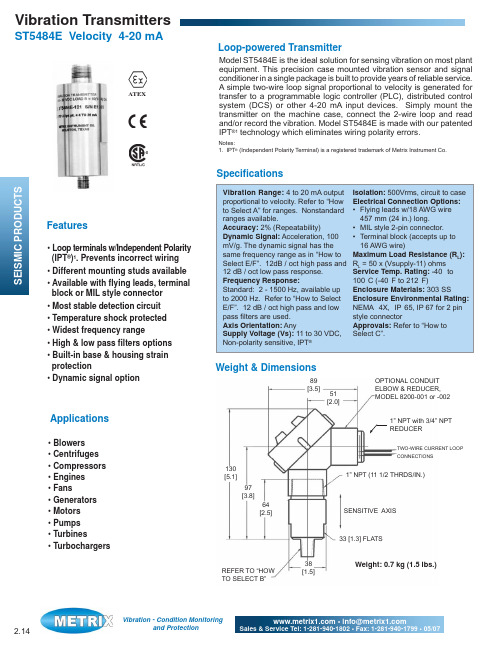

Vibration - Condition Monitoringand Protection2.14Vibration TransmittersST5484E Velocity 4-20 mA• Loop terminals w/Independent Polarity (IPT ®)1. Prevents incorrect wiring • Different mounting studs available • Available with fl ying leads, terminal block or MIL style connector • Most stable detection circuit • Temperature shock protected • Widest frequency range • High & low pass fi lters options • Built-in base & housing strain protection• Dynamic signal optionNotes:1. IPT ®(Independent Polarity Terminal) is a registered trademark of Metrix Instrument Co.Applications• Blowers • Centrifuges • Compressors • Engines • Fans• Generators • Motors • Pumps • Turbines• TurbochargersFeaturesModel ST5484E is the ideal solution for sensing vibration on most plant equipment. This precision case mounted vibration sensor and signal conditioner in a single package is built to provide years of reliable service. A simple two-wire loop signal proportional to velocity is generated for transfer to a programmable logic controller (PLC), distributed control system (DCS) or other 4-20 mA input devices. Simply mount the transmitter on the machine case, connect the 2-wire loop and read and/or record the vibration. Model ST5484E is made with our patented IPT ®1 technology which eliminates wiring polarity errors.Speci fi cations130[5.1]97[3.8]64[2.5]89[3.5]51[2.0]OPTIONAL CONDUIT ELBOW & REDUCER, MODEL 8200-001 or -0021” NPT (11 1/2 THRDS/IN.)33 [1.3] FLATS38[1.5]REFER TO “HOW TO SELECT B”SENSITIVE AXISTWO-WIRE CURRENT LOOP CONNECTIONS1” NPT with 3/4” NPT REDUCERWeight & DimensionsWeight: 0.7 kg (1.5 lbs.)ATEXLoop-powered TransmitterVibration - Condition Monitoringand Protection2.15Vibration TransmittersST5484E Velocity 4-20 mAST5484E-XXX-X21-XX With 4-24” fl ying leads.ST5484E-XXX-X20-XX With 2-24” fl ying leads. How To SelectST5484E - - -A CB DEFC ConnectionD High Pass FilterELow Pass FilterFAdditional Accessories - Page 2.32ST5484E-XXX-X33-XX Dynamic signal terminals provide buffered 100 mV/g connection for analysis.ST5484E-XXX -X32-XX With two slot terminal block.ST5484E-XXX-X14-XX With 2-pin MIL style connector. Optional Stud Adapters。

AMETEK变送器显示面板80472SE AMETEK镜头CH13-0007-tAMETEK电路板13-0307AMETEK铂电阻13-0236（询：15 8 05 06 12 13-李工）AMETEK氙灯880-NSL分析仪配套200880001AMETEK检测电路板880020901AMETEK比值分析仪200886002AMETEK过滤器300-6217AMETEK燃气分析仪CMFA-P2000AMETEK超声波液位计US-21AMETEK干燥器305400901SAMETEK氧化锆过滤器74422SEAMETEK氧化锆头71785SEAMETEK过滤器71862SEAMETEK绝缘管Tube71782KEAMETEK变送器显示面板80472SE AMETEK光源电源880107902SAMETEK光源触发器880118901AMETEK冷镜式水露点分析仪13-1200-L-N-2 AMETEK阴极灯(铜灯)300-8707AMETEK镉灯300-207*⑴AMETEK存储器880060901S880-NSL AMETEK多功能校准仪GOFRAASC300 AMETEK过滤器74422seAMETEK电源模块500124901BILLY三片式救生衣wvo-50奥莱尔 PWO B35-140SAILOR品牌应急对讲机电池\B3501 现货德国REKA德格型号:TR 50.40element.滤芯932694Q现货element.滤芯GO4288，厂家：HYDRONLewis刘易斯FAH-3-Y-2-MBAUTRONICA 按钮BF300MCEAG电池模块22710904000 Ceag2710-3TRW 转向泵PS251615L11300TRW 转向泵PS251615R10300英特泵 W3523意大利诺奇NOCCHI水泵 MCX80/48-T现货美国Hedland流量计H795A-020-RFDIXON品牌，型号：AKSP25派克的取力器顶部：880XDAKP-M4XS角位变送器KINAX 3W2 708-144EVELJAN 特价VT7B-B04-2R03-A1-MO-NOP现货美国利森的马达型号YS190LB4，202KWDYNEX电磁阀型号：V2029-2986Autronica 探测器 BHH-500/EX10件Autronica 探测器HC-2002个ARIEL配件促销价挪威Autionica火灾报警按钮 BF300M德国KRACHT齿轮泵|KF50RF2PELCO 摄像头C20-DN-6XTOPWORX阀位回讯器\DXS－ES1GN3B262T\TOPWORX TOPWORX限位开关73-1352N-B2-4802DYNEX电磁阀型号V2029-2986 SN:118397现货Canrig 顶驱钳牙R02-1000-010VELJAN型号VT7B-B04-2R03-A1-MO-NOPDYNALCO转速表：SPD-100PVG-065-F1UV-RGFS-P-NNN/L036NN/1348SEALWELD阀门清洗液S-VCP-SGC派克F1-061-R美国GM 火焰探测探头型号：FL4000H美国GM可燃气探测探头型号：IR2100意大利菲麦特Fimet减速机VF49P1 P80B1ETA-USA电源SVA05-SC12 DC12V 5V(5A)乙二醇注入，克尔PUMP＆SUPPLY CO，KM-111-0858-100 TEMA 2500billy pugh比利·普格篮 X-904-4 1billy pugh X-971-4 1比利·普格篮意大利SEIMEC锯片电机HPEV80MA2-B34 F0-DX阿什克罗夫特 50EI60R060 0/100C阿什克罗夫特 50EI60R180 0/100C阿什克罗夫特 30EI60E120 0/100C阿什克罗夫特50EI60L040 0/100C多林格滤芯3507603替代 KR1500-029PControlli 品牌电动执行器MVF515 24V 50/60Hz 24VA 康明斯喷油器CU490347200熊猫发电机16678-64012 Alternator 12vDC熊猫启动马达16235-63012 Starter motor熊猫发电机PVMV-N P18NE D03-014-049ALLISON艾利逊EMSCO马达7602-147030KOMET铝合金射枪AP101-44美国Hedland流量计H795A-020-RF雷达液位计型号：VEGAPULS66；PS66.CXEFE2HKMAX；S/N:20242682 罗斯蒙特1056-01-20-38-AN美国巨霸PUMA气动除锈器AT-2500伺服电机1FT6084-8AH71-1AH1阿特拉斯过滤器1617704201改号2901200408美国巨霸彪马的风动除锈器锤芯PUMA/AT-2507英格索兰隔膜泵66605J-344STAFFA液压马达HMB200-S4/S04/70/PL22VARCO钻机顶驱装置配件,鹅颈管,垫片,钳头螺栓NOV顶驱配件，油田设备配件HYDRIL防喷器配件海德里防喷器配件UFM流量开关MN-FSE100GM-16-32V1.0-A61WR-HT-Z94胜凡SUNFAB柱塞泵SC025R胜凡SUNFAB柱塞泵SC034R胜凡SUNFAB柱塞泵SC047R胜凡SUNFAB柱塞泵SC056R胜凡SUNFAB柱塞泵SC064R胜凡SUNFAB柱塞泵SC084R胜凡SUNFAB柱塞泵SC108R胜凡SUNFAB水泥泵SC025R胜凡SUNFAB PUMPSC047R胜凡柱塞泵SC025R，胜凡柱塞泵SC034R，胜凡柱塞泵SC047R，胜凡柱塞泵SC056R，胜凡柱塞泵SC064R，胜凡柱塞泵SC084R，胜凡柱塞泵SC108R派克马达F12-030-MF-IH-K-000parker马达F12-030-MF-IH-K-000MOOG伺服阀D634-319C丹尼逊油泵T7ES-072-1R02-A1M0VARCO华高顶驱冲管隔环30123286VARCO华高顶驱冲管隔环123285SPECK高压泵P11/13-100英格索兰气动马达ST499C03L32德瑞克电机SGX55-15-380/400-5-001DERRICK电机SGX55-15-380/400-5-001力士乐齿轮泵PGH4-2X/040RE11VE4UFM流量开关MN-FSE100GM-16-32V1.0-A61WR-HT-Z94ROCKWELLAB模块1757-SRM B贺德克过滤器RF3-4-EPT2-NM-N-1-1-0/KS100-4HYDAC过滤器RF3-4-EPT2-NM-N-1-1-0/KS100-4Anritsu限幅器1K50A英格索兰气动马达M007RVR021AR4ORGA雾笛导航控制盘控制板CODER-MK2（194A雾笛）TEMA天马接头TIF3821TEMA天马接头TIF3811TEMA天马快速接头7510TEMA天马快速接头7520川仪插入式电磁流量计传感器MFP4011P111C205ER1401VARCO PneumaticSafety Spinning Wrench SSW-40VARCO气动安全旋转扳手SSW-40卧式离心泵KQWH200/315-55/4ITEM配件SWITCHTEMPERATURE 温度开关 7818505 用于盘刹：EPL-1531MOOG伺服阀D634-319CATOS阿托斯DLOH-3A-U-21/PEWABCO干燥器总成4324320230Serva离心泵RA56GRACO单点注油泵239886美国GRACO单点注油泵a2442239886诺冠电磁阀V61B513A-A213JNORGREN电磁阀V61B513A-A2000D\WILLIAMS\CORROSION PUMP/ CP500V 225BTC\1/2"MNPT(INLET) 1/4"NPT(OUT) ASCO压力开关 MANOCOMB-IP65/2KA 0-16BAR 型号为M0031A-027-AAO压力开关 MANOCOMB-IP65 2KA 0-100BAR 型号为M0031A-031-AAOSOLENOID VALVE,MODEL:EF8320G202,TYPE:3-WAY 2-POSITION,POWERSM60(联轴器PM130 RUBBER BLOCK COUPLING with +3mm LEF配套用)/成品MEDC报警按钮SM87PBLAUL3T3NNRSUPPLY:DC24V,WATTAGE:11.6W,MEDUIM:GAS/WATER/OIL,MEDUIM PRESSURE:115psi,CONNECTIONSIZE:1/4"NPTF,ELEC.CONNECTION:1/2" NPTF,MATERIAL:SS316,EXPLOSIONPROOFCLASS:CLASS Ⅱ,ASCO 4 PCSmmc Chemical Probe SNSA2360-4-4SSS英特高压柱塞泵SSU1550 SSU2050OTECO Pipe wiper5 1/2” 19” x 5 1/2” double wiper.P/N 252192155 5-1/2" X 19" O.D. OTECO PIPE WIPER, SPLIT DUAL, RAP-A-ROUND BUCHER齿轮泵QX62-080/51080R257-3metso 阀门定位器 NE724/S1MEDC PX99900091 PX99900092stasto 电磁阀 NM52W1S-PR-1L OR+SCREW,2.5-10bar，24V，配线圈williams CP500V225BTCHerzog-Hydraulik GmbH蓄能器，型号D0.07-500 编号：007-1315-054-811 Guiberson Swab Cup "TUF" 2-7/8"振动传感器，型号：SA6200A-211，技术参数：100MV/G，厂家：METRIXKEM ZHM-02/1 TD-21.004RN-K5-M4-C1A-TTX371 20-345KPaOLIVER2WAY BALL VALVE，6000 PSI，1/4"NPTF，MODEL：B6FX38S－FS/NA，DRW. NO：CJ06－4－0168－DWG－03－83/143/151/191A/191B，ITEM NO：R，OLIVER，TAG NO.：83WHPA－WCP－1001－MS/WCM，143WHPA－WCP－1001－MS/WCM，151WHPA－WCP－1001－MS/WCM，191WHPA－WCP－1001－MS/WCM，191WHPB－WCP－1001－MS/WCM，井口控制盘PTL抛绳器R-230 PTL抛绳器M-150EAO EHK-10-1884665W3Dtrombetta 684-1251-012-02101nn-k45-n4-c1aPETRICO PTE LTDLANDA pump SEA4-30024B 974-2415-010-09jordan valve S/N:1079624C107AL-K40-P1-FIAFLEXBALL软轴DZ160/G=1500/HUB200FLEXBALL软轴DZ160/G=2000/HUB200FLEXBALL软轴DZ160/G=3750/HUB20054NN-K118-M4-C1ATROMBETTA起动器974-2415-011-09 24V/CONTEGCON.CO.LTDAUTOMATIC BATTERY CHARGER Model Number：SMP OUTPUT 24V 10A INPUT:220VAC50Hz,VERSA 取力器气控液阀VSP-3301-31IBC轴承CB7022C.T.P2H.UL.moore的定位器74-G model p/n:12372-74G马祖奇 ALM2A-R-13-FG-E1SOLAR工业透平清洗剂2号\701688C2\液体SIMTRONICS 499-811938BUCHER齿轮泵QX62-080/51080R257-3TL105 UV/IR Test Lamp, with 220V CHARGER，P/N：TL105-1-1 – FL3110，厂家：General MonitorsHamilton(汉密尔顿)德国GEFA捷阀Processtechnik GmbH单向阀RF8686TK/DN50外部变阻器 Harris V390ZA05 V390ZA05P蓄电池，型号：PS-12400NBSIXNET ET-GT-9ES-2SCAVTRON-HS35MYX8WWU0AA00单向阀RF8686TK/DN65光学溶解氧电极隔离遮断电磁阀4WE6Y6X/EG110NZ5L/V4WE6Y6X/EG110N9K4/VAVTRON编码器 HS35MY8WWUEA5ZIFM 油压传感器PN7001242450-02/P1 VISIFERM D0120 ECS宝德Burkert 00179227GAMAK型号：GM 160 M4 电压：600V 电流：14.3A 功率：11KW 转速：1455 频率：50HZ3R滤油机型号规格:Q=21L/min,OSCA-AL100-7R-SZ以色列塔迪兰Tadiran电池 TL-2200 TL-5955HYDRAULIC PUMP\HASKEL\MHP－71\ WELLHEAD CONTROL PANEL哈威K60N-9084RDN D-81613SCP-084R-N-DL4-L35-S0S-000罗茨同步马达 FDRA 020142NV雄克 JGZ 160-1 solo 330solo 101 solo 108 一个替代型号solo1003R旁路过滤器前级滤网品牌TRIPLE-R 型号：TR-21200AMETEK Power Instruments SC4326-NR-FCALcad 电池 \XHP 70（KH 7P）\1.2V\70AhNBVP 16W -G24\英格索兰 666171-244-CSOG密封 D C：40*70*5/7：114690Yjordan valve S/N:1079624CNBVP 16 D -G24 R2.4振动传感器，型号：SA6200A-211，技术参数：100MV/G，厂家：METRIX导航灯灯泡\C8/S11 12V/1.90A TIDELAND CC8/S11 12v 1.9A.TCV：40*70*5/5.5，114516R HNBR80哈威 R9.9-9.9-9.9-9.9ABR3000 230V 50HZ费斯托带锁气源处理组件，型号：FRCS-3/4-D-7-DI-MAXI-ARE CB.200.500DC4010-L 24VDCRidgid里奇HC-450p502423 p502422Brevini布雷维尼HTC315 1304-173865 Z3-JC-R 24VDCDELTA热金属检测器Z3-JC-SR 240VDC美国PALL，HFU660UY060J ，PALL大流量过滤器滤芯英格索兰角向式涡轮打磨机\VT22-120P95M\125mm\2.2kWNUFLO :9A-30099004MMC封闭式油水界面仪 D-2401-2 New chemical probeOTECO TONG PULL-BACK STRAP,280121,OTECO,PN:280121autronica探头BHH-500意大利MARZOCCHI齿轮泵 K1PS9.2Gautronica底座BJH-20BBUCHER齿轮泵QX62-080/51080R257-3密封脂\400Lb/181kg\JET—LUBE INCOTECO TONG PULL-BACK STRAP,280121,OTECO,PN:280121PELANGI INTERNATIONAL LTD.1.>COMPRESSED BREATHING AIR TEST TUBE FOR CARBON DIOXIDE 100-3000ppm,10 Tubes/Box,Tube No. 601SP,SENSIDYNE PRECISION GAS DETECTOR TUBES 1BOX2.>COMPRESSED BREATHING AIR TEST TUBE FOR WATER VAPOUR 20-160mg/M3,10 Tubes/Box,Tube No. 603SP,SENSIDYNE PRECISION GAS DETECTOR TUBES 1EA3.>COMPRESSED BREATHING AIR TEST TUBE FOR OIL MIST 0.3-5mg/m3,10 Tubes/Box,Tube No. 602SP,SENSIDYNE PRECISION GAS DETECTOR TUBES 1EA4.>COMPRESSED BREATHING AIR TEST TUBE FOR Oxygen 2-24% Vol.,10。

metrix振动传感器说明书一、产品介绍地震传感器提供以mV/g或mV/in/sec为单位的动态交流信号输出。

具有这种类型输出的设备通常用于连接到独立的振动监测系统，而不是像PLC或DCS这样的通用自动化和控制仪器。

Metrix提供具有多种工作温度、频率响应、比例因子、外壳材料、连接器类型、安装选项和危险区域认证的地震传感器。

符合API 670要求的通用加速度计。

设计用于各种机器类型，具有0.5至10 kHz(+/-3dB)的宽频率响应、50g范围和13 kHz的安装共振。

内置放大器提供符合行业标准的100mV/g低阻抗恒流输出，与振动监测系统、电子开关和4-20mA信号调节器兼容。

二、产品概述由一个温度稳定的压电核心和一个放大器组成，它们一起封装在一个与传感电路电隔离的316不锈钢外壳中。

Metrix SA6350高温加速度计适用于高达325C的温度。

它专为燃气轮机和其他需要加速度*信号的表面温度高的机械而设计。

传感器的设计使用铠装一体式电缆将电荷放大器/线路驱动器与压电传感元件分开。

这使得传感元件可以直接安装在机器上，但电荷放大器可以安装在3m或5m以外的低温环境中。

电荷放大器额定高达120C；它的安装位置通常会使其暴露在适度升高的温度下，但这些温度通常远低于传感元件位置（例如燃气轮机外壳）处遇到的表面温度。

三、产品特点提供5 Hz至10 kHz的频率响应，具有25 kHz的安装谐振，并提供与振动监测系统、电子开关和4-20mA信号调节器兼容的行业标准100 mV/g低阻抗输出。

传感元件可提供3孔或4孔平底安装模式，旨在与其他几种工业标准高温传感器相匹配。

Metrix 5485C高温速度传感器适用于高达375°C的温度。

它专为需要速度信号的具有高表面温度的燃气轮机和其他机械而设计。

Metrix 5485C是大多数GE重型工业燃气轮机的标准设备，包括Frame 3、Frame 5、Frame 6、Frame 7和Frame 9。

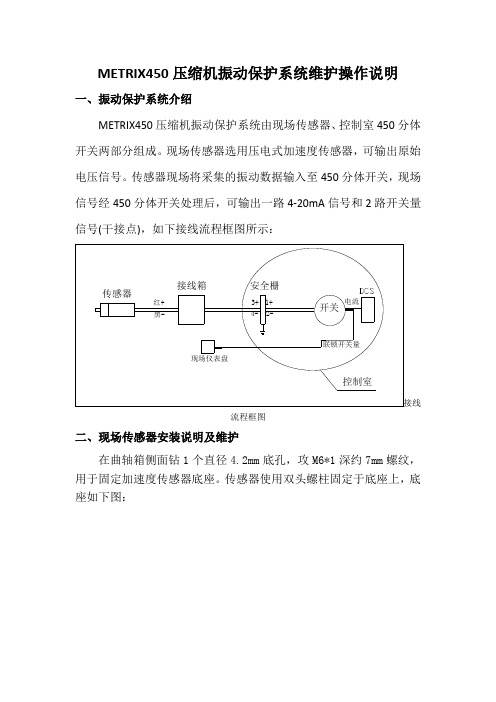

METRIX450压缩机振动保护系统维护操作说明一、振动保护系统介绍METRIX450压缩机振动保护系统由现场传感器、控制室450分体开关两部分组成。

现场传感器选用压电式加速度传感器，可输出原始电压信号。

传感器现场将采集的振动数据输入至450分体开关，现场信号经450分体开关处理后，可输出一路4-20mA信号和2路开关量信号(干接点)，如下接线流程框图所示：流程框图二、现场传感器安装说明及维护在曲轴箱侧面钻1个直径4.2mm底孔，攻M6*1深约7mm螺纹，用于固定加速度传感器底座。

传感器使用双头螺柱固定于底座上，底座如下图：加速度底座零件图加速度后盖零件图加速度与机组连接装配图如下图所示：加速度传感器固定装配图钻孔攻1个M6*1深约7mm的螺纹机组在检修时如需拆除传感器，先拆下传感器后盖，再把传感器拆下（传感器底座视情况可不拆下，但恢复安装传感器时需要保证底座固定牢靠，以免影响测量精度），传感器拆下后需要做好防振及防磕碰措施，以免检修时不注意而损坏传感器。

恢复安装时需要保证传感器与底座固定牢固，安装完传感器后，把加速度后盖恢复即可（加速度后盖固定牢靠程度与传感器测量关系不大，只要不太松动即可）。

恢复时注意各连接螺纹拧紧力度，由于底座及保护罩材质都为铝合金材质，因此不宜用力过大。

并且建议在安装传感器时在各螺纹连接处涂抹螺纹锁紧剂以增强可靠性。

如果机组检修传感器不拆除，需打开加速度后盖检查一下传感器及底座是否固定牢固，保证底座和传感器固定牢固后，恢复保护罩即可。

三、450分体开关说明及维护分体开关接线端子分布如下图所示：开关接线图1)1、2端子为DC24V供电接入端子，1号端子接24+，2号端子接24-；2)10、11端子接安全栅输出信号，10号接安全栅输出信号正，11号接安全栅输出信号负；3)11、12端子接入仪表显示或控制系统(如DCS等可接受4~20mA信号的系统)，11号接DCS负，12号接DCS正；4)3、4及13、14端子各提供一组开关量报警信号，可接入可以接受开关量信号的仪表系统。

HZ-892A一体化振动变送器HZ-892A一体化振动变送器1．简介HZ-892A一体化振动变送器：将磁电式振动传感器、精密测量电路集成在一起，构成高精度振动测量系统，该变送器可直接连接DCS、PLC或其它设备，是测量风机、电动机、水泵等工厂设备振动的理想选择。

2．技术参数2．1 频率响应：10 ～ 1000 Hz * 或者5 ～ 1000 Hz（特殊说明）2．2 自振频率：10Hz2．3 量程：振动加速度量程1～5g峰值；振动速度量程0～100mm/s有效值；（可选）常规机械选0-20mm/s，对应输出：4-20mA;振动位移量程0～1900μm峰峰值（可选）风机等设备常用0-200um，对应输出：4-20mA ；2．4 输出电流：4～20mA 2．5输出阻抗：≤500Ω2．6工作电压：DC12-24V±10%2. 7接线方式：二线制2．7最大加速度：10g2．8测量方向：水平或垂直或通用，2．9 使用环境：温度 -40℃～100℃ 相对湿度≤90%2．10 外形尺寸：φ34.1mm×72.4mm2．11 安装螺纹：M10×1.5×10mm（深度）2．12 重量：约324g3．安装3．1 安装位置：垂直或者水平安装于被测振动点上，将传感器底部M10×1.5×10螺钉固定在被测壳体上，然后将传感器拧在上面拧紧即可。

3．2 安装尺寸及规范：参看图一，若变送器安装位置受到高温蒸汽等冲刷时，为降低变送器环境温度、需加防护措施，一般情况下可不加防护。

3．3接线说明：棕色导线接DC24V电源正端，蓝色导线接DC24V电源负端，同时棕色和蓝色导线也是4～20mA输出引线。

连接导线要求有良好的绝缘性能，采用二芯屏蔽电缆。

图一、外形图图二、一体化机壳振动变送器接线图选型举例：（此为机械振动常用选型，安装方式水平，垂直根据机型自定）HZ-892A-S-20V-01-02-00-01-01一体化振动传感器：S为水平安装，量程为0-20mm/s,输出：4-20mA;供电：24V DC；两线制输出2米带航插。

ST5484E Seismic Velocity 4-20 mA TransmitterDatasheet2-Pin MIL Connector(Option D=4)The ST5484E is a self-contained seismic velocity transmitter that incorporates a piezoelectric accelerometer, signal integrator, RMS peak detector, and a 4-20 mA signal conditioner into a single package. It can be mounted directly on a machine case or bearing housing without intervening signal conditioning equipment. The amplitude of the integrated acceleration (velocity) signal is con -verted to a proportional 4-20 mA signal compatible with industrial process control instrumentation such as PLCs, DCSs, and SCADA systems that can provide trending and/or alarming capabilities for a simplified vibration monitoring strategy.When the flying lead or terminal block connector options are chosen, the transmitter does not need a separate environmental housing and can directly accept conduit. To reduce installed cost, it can be used with barriers for intrinsically safe installations, or wired directly to explosion-proof conduit fittings for explosion- proof installations.Need A Local Display?When continuous, local indication of vibra -tion levels is required at the transmitter, the Metrix ST5491E provides these capabilities.Its sensing and transmitter elements are similar to the ST5484E, but it includes a convenient 2½ digit LCD display in an integral conduit elbow and is rated for use in temperatures from -10o C to +70o C. Refer to Metrix datasheet 1004598 for ordering information and de -tailed specifications.A vibration transmitter may be appropriate in applications where a stand-alone monitoring system may not be warranted.The ST5484E handles general-purpose vibration measurements on a wide range of rotating and reciprocating machinery with ro -tative speeds between 120- and 6,000-rpm. Seismic measure -ments are suitable for machines with rolling-element bearings because shaft vibration in such machines is usually transmitted directly through the bearing to the bearing housing without sub -stantial damping or attenuation. Seismic transducers can also measure vibration that does not originate at the shaft, such as bearing-related wear and defects, footing/foundation problems, piping resonances that are coupled to the machine, etc.Why Measure Velocity?Acceleration and displacement levels are heavily influenced by the frequencies at which the vibration is occurring, while velocity levels are much less influenced. Thus, although acceleration,velocity, and displacement measurements are inter-related math -ematically, seismic velocity measurements tend to be more con -sistent over a wide range of frequencies than either displacement or acceleration. Consequently, broadband (sometimes called “overall” or “unfiltered”) velocity measurements are appropriate for monitoring many machines as a reliable indicator of damag -ing vibratory energy, with the notable exception of machines with fluid-film bearings, which are usually better addressed by shaft-observing proximity probes.Casing displacement is not a practical measurement to make directly and is typically just an integrated seismic velocity mea -surement. As such, the primary decision when selecting a seis -mic sensor will usually be whether to measure casing velocity or casing acceleration. As noted above, casing velocity will often be more appropriate because it tends to be a more reliable indicator of damaging vibratory energy over a broad frequency spectrum for low- to medium-speed machinery.Flying Leads(Option D=0, 1, 5, or 6) (2-wire shown; 4-wire also available)2-Pin Terminal Block(Option D=2)4-Pin Terminal Block(Option D=3)1180OVERVIEWAPPLICATIONSNote: Units sold with an explosion proof rating will in -clude a conduit elbow:8200-000 IEC for ATEX/IECEx/INMETRO/KOSHA/EAC8200-000 for CSAExplosion Proof Versionswith Option D≠4ST5484E Seismic Velocity 4-20 mA TransmitterDatasheetNOTE: For machines with fluid-film bearings, shaft- observing proximity probes will provide more effective vibration measurements than seismic transducers due to the rotor dynamics of the machine and the attenuation of vibratory energy through a fluid-film boundary. Accord -ingly, Metrix recommends and provides proximity probes and associated 4-20 mA transmitters or monitoring systems for such applications.For machines with rolling element bearings and running above 6,000 rpm, and/or where impulsive casing vibration occurs, acceleration may be a better measurement. In such situations, it is recommended that you consult witha Metrix sales professional who can review your application and assist with selection of the proper transducer type and associated transmitter or monitoring system.• RFI/EMI Immunity – Enhanced circuit design and installa -tion techniques aggressively filter out noise from common sources such as handheld radios•Excellent Moisture Resistance – The 2-pin MIL connec -tor version is hermetically sealed to provide an IP67-rated enclosure. Flying lead and terminal block versions are fully potted and rated to IP66 when installed with optional IEC conduit elbow• Hazardous Area Approvals – North American (CSA), Brazil -ian (INMETRO), and European (ATEX & IEC) approvals avail -able•Dynamic Signal Availability – 2-wire versions provide a 4-20 mA velocity- proportional signal for easy connection to PLCs, DCSs, and other plant control systems. Optional 4-wire ver -sions 1 also provide the raw acceleration signal (100 mV/g) for use with vibration data collectors and analyzers • Variety of Connection Options – Flying leads, terminal block, and MIL-type connectors available• Conduit-Ready 2 – Terminal block and flying lead options have conduit threads on top of sensor. No special housings are required for connection of conduit•Rugged, Industrial Design – Robust construction offers out -standing durability; built-in base and housing strain protec -tion helps ensure that over-torqueing sensor-to- machine and sensor-to-conduit connections won’t damage internals or body•High- and Low-Pass Filter Options – The ST5484E can be ordered with a wide variety of low- and high-pass filter options to precisely tailor the band over which vibration is measured•Polarity-Independent Wiring – Metrix patented IPT® tech -nology allows loop power to be connected without regard to voltage polarity, reducing field wiring errors and ensuring that the raw acceleration output 1 is not phase inverted • Multiple Mounting Options – Integral and removablemounting stud options available in both metric and English thread sizes; flat base mounting adapters are also available • Loop-Powered – Runs on nominal 24 V DC power supplied by the 4-20 mA current loop•Wide Supply Voltage Range – Accepts loop power voltages from 11 to 29.6 V DC (intrinsically safe) or 30.0 V DC (explosion proof & non-incendive)• RMS Amplitude Detection – Measures Root Mean Square (RMS) vibration amplitude. Options available for True RMS or scaled RMS (RMS x √2) for “derived peak”•Numerous Full Scale Ranges – The full scale ranges provid -ed in option AAA reflect frequently-ordered ranges; how -ever, many others (too numerous to list) are also available. Consult factory for applications requiring other full scale rangesNotes:1. Dynamic raw acceleration signal available with 4-wire versions only(ordering options D= 1 and D=3).2. Metrix recommends flexible (rather than solid) conduit when pos -sible. Solid conduit can introduce preload forces on the sensor andalter of the vibration response of the sensor.All specifications are at +25°C (+77°F) and +24 V DC supply voltage unless otherwise noted.FEATURESSPECIFICATIONSST5484E Seismic Velocity 4-20 mA TransmitterDatasheetST5484E Seismic Velocity 4-20 mA TransmitterDatasheetA A AB BCD -ST5484E- - -FE ORDERING INFORMATIONST5484E Seismic Velocity 4-20 mA TransmitterDatasheetNOTES:1. Smaller-diameter mounting studs are not able to withstand sus -tained ambient vibration levels above2.0 in/sec. Consult Table 2 for allowable combinations of A and B options.2. The ST5484E uses an RMS amplitude detection circuit. Full scaleranges in peak units use scaled RMS (i.e., RMS x √2). The “derived peak” measurements will equal true peak only under the special case of a pure sinusoid, not complex vibration signals.3. Hazardous Area Certifications are not compatible with all connec -tion types. Consult Table 3 for allowable combinations of C & D options.4. Some approvals require intrinsic safety barriers, others requireExplosion-Proof wiring practices. Refer to Table 4.5. Refer to the Accessories section of this document. Units sold withan explosion proof rating will include an 8200-000 IEC or 8200-000 explosion proof elbow that will be affixed at the factory.6. High- and Low-Pass filter corners for standard filters must beseparated by at least one octave (low-pass frequency must be at least twice the high-pass frequency). All combinations are allowed except E = 6 and F = 4, 5, or 6. Custom filters with closer separa -tion and/or different roll-offs may be available in some instances.Consult the factory if custom filters are required.Conduit elbows are used with flying leads and terminal block versions of the ST5484E transmitter. They are not compatible with MIL-connector versions of the transmitter. A variety of available configurations accommodate English and metric conduit thread sizes, hazardous area approvals, materials of construction, and IP ratings. Note that not all configurations are available with hazardous area approvals or IP ratings. Consult the ordering information below. For ST5484E’s that need an explosion proof (Ex d) rating, that are utiliz -ing flying leads, Option D=0, 1, 5, & 6, will have an attached 8200 conduit elbow and must be used with a certified junction box or other certified connection location. For ST5484E’s that need an explosion proof (Ex d) rating, utilizing integral terminal block, Option D=2 & 3, no junction box is necessary. Table 4 in the datasheet relates what hazardous area (Option C) is allowed per ST5484E Connection (Op -tion D). ST5484E sold with an explosion proof rating (Ex d) will include a 8200 explosion proof elbow and will be affixed at the factory.Copper-free aluminum elbows (all models except AAA=005)Elbow made from 6061-T6 aluminium which is considered a marine grade aluminium and powder coated in epoxy.Stainless steel elbows (models AAA=005)A A A -B 8200- NOTES:1. CSA approved through manufacturer (not Metrix) for the following areas:Class I, Div. 1 (Grps C & D) Class II, Div. 1 (Grps E, F & G) Class III2. B=IEC is only available for AAA=001, 003, and 008 at this time3. ATEX approved through manufacturer (not Metrix), (B=IEC)ITS09ATEX16417UEx II2G, Ex d IIC CML 16ATEX1325X Ex II2GD, Ex db IIB Gb, Ex tb IIIC Db IP65 minimum 4. IECEx approved through manufacturer (not Metrix)IECExITS09.0024UEx d IIC IECEx QPS 16.0012X Ex db IIB Gb, Ex tb IIIC IP665. Elbow 8200-AAA-IEC is required for ST5484E installations meetingATEX/IECEx/INMETRO/KOSHA/EAC Ex d (flameproof) hazardous area certificationsUL approved through manufacturer (not Metrix) for the following areas: Class I; Div. 1 (Grps. B, C, D)Class II; Div. 1 (Grps. E, F, G)NOTE: Dielectric grease must be applied on the rubber boot connector to prevent moisture ingression.NOTE: Dielectric grease must be applied on the rubber boot connectorST5484E Seismic Velocity 4-20 mA TransmitterDatasheet7084-001Flange Mount AdapterAdapts ½” NPT mounting stud on ST5484E to 3-hole flat-base pattern. Hole pattern is three equally spaced 0.26” diameter holes on 1.5” diameter circle. Adapter is 2” diameter x 0.75” thick. Material: 303 stainless steel 7084-002Flange Mount AdapterSame as 7084-001 except center hole adapts ¼” NPT stud on the 5484E.7084-005Flange Mount AdapterSame as 7084-001 except center hole adapts ⅜ x 24 UNF stud on the 5484E.8253-002½” NPT to ¼” NPT Reducer BushingAdapts ¼” NPT stud on ST5484E (B=0) to ½” NPT mounting hole.Material: 303 stainless steel93818-004Cable Grip Strain Relief FittingUsed primarily with 8978 cable assemblies where cable enters junction box. ¾” NPT male thread to cable grip. Fits cable diameters from 0.156” to 0.25”. Complete with sealing ring and locknut. Hot dip / mechanically galvanized fin -ish. Suitable for NEMA 4 junction boxes.93818-018Cable Grip Strain Relief FittingSimilar to 93818-004, but fits larger cable diameters from 0.4”to 0.5”, such as customer-supplied cables used with terminal block versions of ST5484E (D = 2 or 3).OUTLINE DIAGRAMSFigure 1: Outline dimensions of the ST5484E (all versions except MIL-Style Connector). Dimensions in mm [inches]. Optional* 8200-001 conduit elbow shown installed.* NOTE: 8200-000-IEC elbow is mandatory for ATEX/IECEx/INMETRO/KOSHA/EAC Ex d (flameproof) approved installations. The 8200-000 elbow is mandatory for CSA Ex d (flameproof) approved installations.Figure 2: Outline dimensions of theST5484E-XXX-XX4-XX (MIL-Style Connec -tor). Dimensions in mm [inches].ST5484E Seismic Velocity 4-20 mA TransmitterDatasheetWIRING CONNECTIONS+ AND – SYMBOLSARE NOT ON LABELFigure 3: Typical installation for a single ST5484E seismic vibration transmitter.Figure 4: Typical installation for multiple ST5484E seismic vibration transmitters.ADDITIONAL DOCUMENTATIONTrademarks used herein are the property of their respective owners.Data and specifications subject to change without notice.© 2014 Metrix Instrument Co., L.P .。

振动变送器一体化振动变送器_TMS-HZD-D如下图:一体化振动变送器_TMS-HZD-B如下图：振动变送器_TMS-HZD-F如下图：振动变送器一体化振动变送器（TMS-HZD）分为分体式跟一体化两种。

厦门汤姆斯自动化科技有限公司就有这两种振动变送器。

概述厦门汤姆斯自动化科技有限公司产品中TMS-HZD-D吸附式一体化振动变送器、TMS-HZD-F防水型一体化振动变送器、TMS-HZD-B一体化振动变送器这三种产品是将传统的振动传感器、精密测量电路集成在一起，实现了高精度振动测量系统，该产品可与PLC、DCS等系统直接连接使用。

振动传感器、振动变送器、一体化振动变送器主要安装在各种旋转机械装置的轴承盖上（如汽轮机、压缩机、电机、风机和泵等），可测量振动速度或者振动幅度。

它是由运动线圈切割磁力线产生输出信号的变送器，因此具有工作时只需要供给DC24V的电源，安装、维护容易等特点。

TMS-HZD此系列产品已广范用于热电厂、水泥厂、水泵厂、磨机设备、造纸厂、机械厂、风机厂、煤矿机械等。

产品优点TMS-HZD一体化振动变送器系列主要用来提前诊断旋转机械的故障或实验室完善产品提供改善依据，为企业预先做好维护的准备，减少事故隐患的发生，提高工作效率！主要技术指标（TMS-HZD一体化振动变送器）* 灵敏度：20mv/mm/s±5% 30mv/mm/s±5%、50mv/mm/s±5%* 频率响应：5～1000Hz* 自振频率：10Hz ±1Hz* 可测振幅：≤2000μm* 测量范围：1、0～10mm/s 0～20 mm/s 0～50 mm/s2、0～100um 0～200um 0～500um* 信号输出：标准电流4～20mA （如用户未申明，出厂以二线制为准）* 输出阻抗：≤600Ω* 电源：DC24V* 最大加速度：10g* 安装方式：垂直或水平安装于被测振动源上* 使用环境：温度-40℃～95℃、相对湿度≤90%。

振动变送器ST5484E 4-20 mA振动速度变送器ATEX二线制变送器ST5484E型变送器是多数工业设备振动检测的理想产品。

这种变送器将振动传感器和信号调节器集成在一个精密的壳体内，并提供常年可靠的服务。

变送器产生的与振动速度成比例的二线制回路信号传送至可编程控制器(PLC),集散控制系统(DCS)或其它4-20mA输入的装置。

可以简单地安装在机械壳体上，连接成二线回路读取或记录振动数据。

ST5484E系列产品采用我们的专利技术IPT®1，预防接线错误。

注:1.IPT®(无极性端子l) Metrix Instrument Co.的注册商标技术规格产品特性•环路供电，无极性无极性(IPT®)1.连接防止接线错误•可提供不同的安装螺栓•可提供架空引线，滑槽端子及MIL接头•最稳定的检测电路•温度冲击保护•宽频响•可选高/低通滤波器•嵌入式机座&壳体张力保护•可选动态信号应用•鼓风机•离心分离机•压缩机•发动机•风扇•发电机重量&尺寸89[3.5]51[2.0]130[5.1]97[3.8]可选弯管&减压型8200-001 or-0021” NPT接头3/4”NPT电气接口二线制接线1” NPT(11 1/2螺纹接口S/IN.)•电动机•泵•涡轮•涡轮增压机64[2.5]感应轴33 [1.3]平面参见“选型指南B”38[1.5]重量: 0.7 kg (1.5 lbs.)2.14振动监测&保护121= 1 ips (25 mm/s), pk 122= 0.5 ips (12.7 mm/s), pk 123= 2.0 ips (50 mm/s), pk 124= 5.0 ips (125, mm/s), pk 126= 0.8 ips (20.3 mm/s), pk 132= 3.0 ips (75 mm/s), pk 151= 1 ips (25 mm/s), rms 152= 0.5 ips (12.7 mm/s), rms 153= 2.0 ips (50 mm/s), rms 0=无滤波 (2 Hz),标准1= 5 Hz 2= 10 Hz 3= 20 Hz 4= 50 Hz 5= 100 Hz6= 200 Hz0=整体 ¼” NPT 1=整体 ½” NPT 2= 3/8- 24 UNF X ½”4= M8 X 1-125= M10 X 1.25-126= 1/4- 20 UNC0=无滤波(1500 Hz),标准1= 500 Hz 2= 1000 Hz 3= 2000 Hz1安全区域&CSA/NRTL/C (适用所有连接)2=CSA/NRTL/C for Class I, Div 1, Grps B-D & Class II,Div 1, Grps E-G (只适用于架空引线)3=ATEX, EEx ia IIC T4本安 (用于接线端子或2-钉MS 接头)4CSA,本安, Class I, Div 1,=Grps A, B, C & D振动变送器ST5484E 4-20 mA 振动速度变送器ST5484E-XXX-X14-XX 2-钉 MIL 接头.ST5484E-XXX -X32-XX 2钉接线端子.选型指南ST5484E-XXX-X33-XX 动态信号端子提供分析用100mV/g 信号ST5484E-XXX-X20-XX 2-24”架空引线.ST5484E-XXX-X21-XX 4-24”架空引线.ABCDEFST5484E ---A满量程范围D接头0= 4-20 mA:架空引线 (C = 1 or 2)1= 4-20 mA 动态信号:架空引线(C = 1 or 2)2= 4-20 mA: 2-钉接线端子 (C = 1, 3 or 4)3= 4-20 mA 动态信号l: 4-钉接线端子(C = 1, 3 or 4)4= 4-20 mA: 2-钉 MIL 接头 (C = 1, 3 or 4)注:对于真实的 RMS 速度标定，在代码上加30 .如:-121变为-151.E高通滤波器B安装螺栓F低通滤波器C 危险等级=Class I, Div 2, Grps A, B, C & D螺栓适配器螺栓套管8253-0021/4” NPT - 1/2” NPT 8841-0843/8- 24 UNF - 1/2- 20 UNF 8841-099M8- M10 x 1.25附件见 2.32振动监测 &保护2.15。
