实现数字时钟设计的Verilog代码

  • 格式：doc
  • 大小：21.50 KB
  • 文档页数：5

下面给出实现数字时钟设计的Verilog代码
module top(inc_hour,sub_hour,inc_min,sub_min,rst,clk,sel,q); input inc_hour,sub_hour,inc_min,sub_min;
input rst,clk;
output reg [2:0] sel;
output reg [6:0] q;
reg [9:0] scan;
reg [2:0] scan_clk;
reg div_clk;
reg [19:0] counter_clk;
reg [3:0] sec_counter1,sec_counter2;
reg [3:0] min_counter1,min_counter2;
reg [3:0] hour_counter1,hour_counter2;
always @ (negedge rst or posedge clk)
begin
if(~rst)
begin
counter_clk<=20'h00000;
div_clk<=1'b0;
end
else
begin
if(counter_clk==20'h7a11f)
begin
counter_clk<=20'h00000;
div_clk<=~div_clk;
end
else counter_clk<=counter_clk+1;
end
end
always @(negedge rst or posedge div_clk)
begin
if(~rst)
begin
sec_counter1<=4'h0;
sec_counter2<=4'h0;
min_counter1<=4'h0;
min_counter2<=4'h0;
hour_counter1<=4'h0;
hour_counter2<=4'h0;
end
else
if(inc_min==1'b0) begin
if(min_counter1==4'h9) begin min_counter1<=4'h0;
if(min_counter2==4'h5)
min_counter2<=4'h0;
else
min_counter2<=min_counter2+1; end
else
min_counter1<=min_counter1+1; end
else if(sub_min==4'b0) begin
if(min_counter1==4'h0) begin min_counter1<=4'h9;
if(min_counter2==4'h0)
min_counter2<=4'h5;
else
min_counter2<=min_counter2-1; end
else
min_counter1<=min_counter1-1; end
else if(inc_hour==4'b0) begin
if(hour_counter2==4'h2) begin
if(hour_counter1==4'h3) begin hour_counter2<=4'h0;
hour_counter1<=4'h0;
end
else
hour_counter1<=hour_counter1+1; end
else begin
if(hour_counter1==4'h9) begin hour_counter1<=4'h0;
hour_counter2<=hour_counter2+1; end
else
hour_counter1<=hour_counter1+1; end
end
else if(sub_hour==1'b0) begin
if(hour_counter1==1'b0) begin
if(hour_counter2==1'b0) begin
hour_counter1<=4'h3;
hour_counter2<=4'h2;
end
else begin
hour_counter2<=hour_counter2-1; hour_counter1<=4'h9;
end
end
else
hour_counter1<=hour_counter1-1; end
else begin
if(sec_counter1>=4'h9) begin
sec_counter1<=4'h0;
if(sec_counter2>=4'h5) begin
sec_counter2<=4'h0;
if(min_counter1>=4'h9) begin min_counter1<=4'h0;
if(min_counter2>=4'h5) begin min_counter2<=4'h0;
if(hour_counter2==4'h2) begin
if(hour_counter1==4'h3) begin hour_counter1<=4'h0;
hour_counter2<=4'h0;
end
else
hour_counter1<=hour_counter1+1; end
else begin
if(hour_counter1==4'h9) begin hour_counter1<=4'h0;
hour_counter2<=hour_counter2+1; end
else
hour_counter1<=hour_counter1+1; end
end
min_counter2<=min_counter2+1; end
min_counter1<=min_counter1+1; end
sec_counter2<=sec_counter2+1; end
sec_counter1<=sec_counter1+1;
end
end
always @(negedge rst or posedge clk) begin
if(~rst) scan_clk<=3'b000;
else
begin
if(scan_clk==3'b101) scan_clk<=3'b000; else scan_clk<=scan_clk+1;
end
end
always @(scan_clk)
begin
case (scan_clk)
3'b000 :
begin
q<=disp(sec_counter1);
sel<=3'b000;
end
3'b001 :
begin
q<=disp(sec_counter2);
sel<=3'b001;
end
3'b010 :
begin
q<=disp(min_counter1);
sel<=3'b010;
end
3'b011 :
begin
q<=disp(min_counter2);
sel<=3'b011;
end
3'b100 :
begin
q<=disp(hour_counter1);
sel<=3'b100;
end
3'b101 :
begin
q<=disp(hour_counter2);
sel<=3'b101;
end
default : ;
endcase
end
function[6:0] disp;
input[3:0] a;
case (a)
4'h0 : disp=7'b0111111; 4'h1 : disp=7'b0000110; 4'h2 : disp=7'b1011011; 4'h3 : disp=7'b1001111; 4'h4 : disp=7'b1100110; 4'h5 : disp=7'b1101101; 4'h6 : disp=7'b1111101; 4'h7 : disp=7'b0000111; 4'h8 : disp=7'b1111111;
4'h9 : disp=7'b1101111; default : disp=7'b1111111; endcase
endfunction endmodule。

合集下载

数字闹钟的FPGA实现(Verilog)

数字闹钟的FPGA实现(Verilog)

闹钟的FPGA实现一．设计目的及总述：本次实验选择用FPGA实现一个闹钟。

它的功能有：1.时钟2.可以用按键快慢调整时钟时间3.可以设定闹钟并在时间到达设定闹钟时间时响起卡农音乐一分钟4.整点报时，响一声来报时系统一共有五个按键，分别命名为switch_mode,switch_enter，switch_pick,switch_down，switch_up。

时钟，调时，设定闹钟通过LCD1602进行显示，整点报时声和闹钟声通过蜂鸣器发出。

其中：本次实验的闹钟用Verilog语言进行设计，由于实验在Xilinx开发板上LCD1602显示模块几经调试显示都有问题，而实验的截止日期又极其接近了故最后选择在我购买的Altera 开发板上进行实现。

由于Altera公司FPGA使用Quartus II软件进行编译下载，所以把原来在ISE软件上以schematic方式实现的顶层原理图对应自动生成的verilog代码更改后添加进Quartus工程中使用。

所需要的修改仅为将顶层原理图中的OR2例化语句改为or（输出，输入1，输入2），并把系统时钟设为50MHZ，其他各模块代码不需进行更改。

二．仿真过程在几经更改之下，更由于在两种系统下的调试，使得仿真变得难以进行，此次试验针对各模块（不包括分频模块：fre_divider）的仿真结果难以找到了而且ISE9.1i十分难用，经常报各种错，因此在这里只选择其中比较重要的控制模块（controller）和时钟模块（timer）,调时（快慢）模块（time_adjust）的仿真结果以说明本实验的仿真过程。

Controller:Timer:Time_adjust:三．系统总图即各模块Verilog代码和说明（参考对代码的详细注释）：1.各模块之间连线图和对应的Verilog代码：Clock.v:module clock(clk_50m, //在本次实验所用的Altera开发版上，系统时钟为50MHZ rst, //复位键switch_down, //向下调整，设定switch_enter, //确认完成调整，设定switch_mode, //选择系统出于何种模式：时钟，调时，设定闹钟switch_pick, //选择调整，设定的对象：时，分，秒// switch_up, //向上调整，设定beep, //蜂鸣器lcd_d, //lcd1602 d7-d0管脚lcd_e, //lcd1602 en管脚lcd_rs, //lcd1602 rs管脚lcd_rw); //lcd1602 rw管脚input clk_50m;input rst;input switch_down;input switch_enter;input switch_mode;input switch_pick;//input switch_up;output beep;output [7:0] lcd_d;output lcd_e;output lcd_rs;output lcd_rw;//以下声明的线型量用于连接系统各模块 wire [7:0] XLXN_4;wire [7:0] XLXN_5;wire [7:0] XLXN_6;wire [7:0] XLXN_7;wire [7:0] XLXN_8;wire [7:0] XLXN_9;wire [7:0] XLXN_10;wire [7:0] XLXN_11;wire [2:0] XLXN_14;wire XLXN_15;wire XLXN_16;wire XLXN_17;wire XLXN_19;wire [5:0] XLXN_20;wire [5:0] XLXN_21;wire [5:0] XLXN_22;wire XLXN_24;wire [5:0] XLXN_33;wire [5:0] XLXN_34;wire XLXN_36;wire [5:0] XLXN_37;wire [5:0] XLXN_39;wire [5:0] XLXN_40;wire XLXN_50;wire XLXN_51;reg clk_25m;wire switch_up;assign switch_up=1;//由于系统本身是设计在实验室的板子上（25MHZ）上，所以现在把50MHZ系统时钟//二分频得到25MHZ时钟，这样就不用更改各子模块always@(posedge clk_50m)beginif(!rst)clk_25m<=0;elseclk_25m<=~clk_25m;end//控制模块，控制系统出于三种状态之一：时钟，调时，设定闹钟。

用Verilog语言编写的多功能数字钟

用Verilog语言编写的多功能数字钟

四． 总结体会
这次的闹钟电路设计和多功能数字钟有一些相似的地方，不同在于整体构思和细
节上要求的差异。
构思根据要求采用的是状态机设计方法。从一个状态进入另一个状态最适合这个
设计了。细节上和数字钟也有很大的差异。中间的控制逻辑有时候需要反馈。前
后都是有联系的，并不是独立存在的。
本次设计基本上完成的所以的要求，但是由于时间紧急，一些细节并不是很完美，
分频器的作用是对 50Mhz 的系统时钟信号进行分频，得到频率为 1hz 的信号，
作为时钟的输入信号。
2
2.控制器和计数器 控制器的作用是，调整小时和分钟的值，并能实现清零功能。计数器的
作用是实现分钟和秒钟满 60 进 1，小时则由 23 跳到 00。当到达 59 分 55 秒的时 候，LED 灯会闪烁来进行报时。
end 2:
begin state<=2; s=1;
end 3:
begin s=0; if(k1==0) //时调整
7
begin
if(nz_h_l==3)
begin
nz_h_l=0;
if(nz_h_h==2)nz_h_h=0;
else nz_h_h=nz_h_h+1;
end
else nz_h_l=nz_h_l+1;
end
else if(k3==0) finish=1;
//设置完成
else if(k4==0) spker_en=1; //停止声响
end
8
4: begin s=0; if(k4==0) begin on_off<=!on_off;state=0;end end
endcase end end endmodule 3．显示器 显示器的作用是将时:分的值在数码管上依次显示出来。从分频器输出的 1Khz 的信号作为数码管的扫描信号。SEL 表示 6 个数码管选择位，它的取值表示八个 数码管，从左至右依次是 111~000。seg 表示七段数码管，它的取值决定特定位 数上显示的数字。

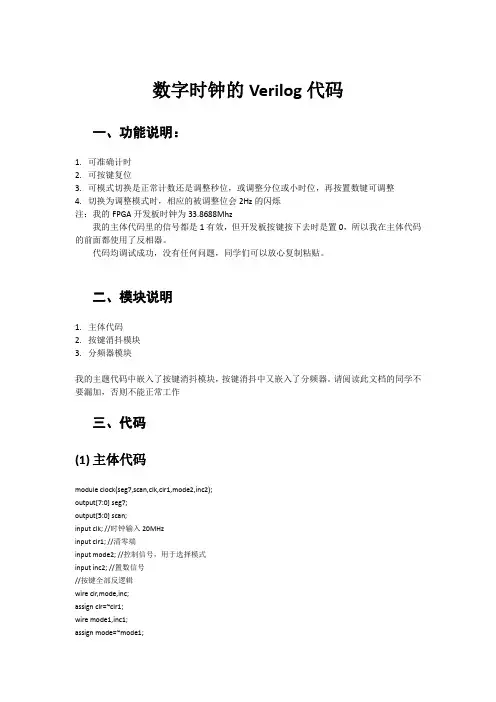

数字时钟的Verilog代码
