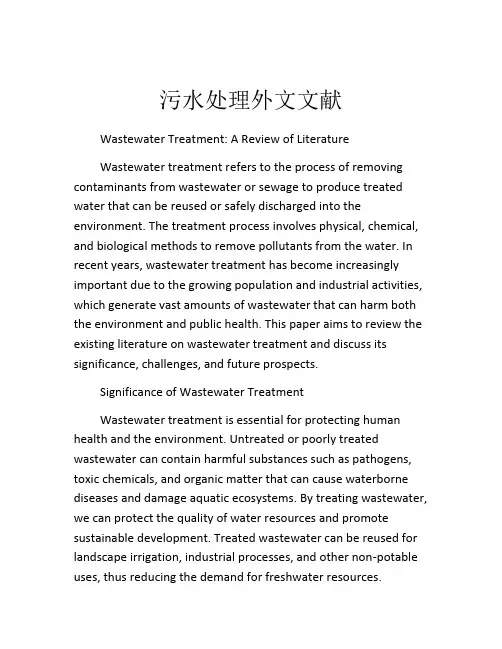

污水处理外文文献Wastewater Treatment: A Review of LiteratureWastewater treatment refers to the process of removing contaminants from wastewater or sewage to produce treated water that can be reused or safely discharged into the environment. The treatment process involves physical, chemical, and biological methods to remove pollutants from the water. In recent years, wastewater treatment has become increasingly important due to the growing population and industrial activities, which generate vast amounts of wastewater that can harm both the environment and public health. This paper aims to review the existing literature on wastewater treatment and discuss its significance, challenges, and future prospects.Significance of Wastewater TreatmentWastewater treatment is essential for protecting human health and the environment. Untreated or poorly treated wastewater can contain harmful substances such as pathogens, toxic chemicals, and organic matter that can cause waterborne diseases and damage aquatic ecosystems. By treating wastewater, we can protect the quality of water resources and promote sustainable development. Treated wastewater can be reused for landscape irrigation, industrial processes, and other non-potable uses, thus reducing the demand for freshwater resources.Additionally, the byproducts of wastewater treatment, such as sludge and biosolids, can be used as fertilizers or energy sources, contributing to a circular economy.Challenges of Wastewater TreatmentDespite its significance, wastewater treatment faces several challenges. Firstly, wastewater treatment plants are often energy-intensive and require significant amounts of resources and infrastructure to operate. This can be a financial burden for many communities, particularly in developing countries. Additionally, the rapidly changing nature of industrial and agricultural activities means that new and emerging contaminants are constantly being introduced into the wastewater stream, challenging traditional treatment methods. Furthermore, the treatment of wastewater is heavily regulated to ensure public health and environmental protection, which can create political, legal, and social barriers to implementation.Innovations in Wastewater TreatmentTo address these challenges, wastewater treatment researchers and engineers have developed numerous innovations that improve the efficiency, cost-effectiveness, and sustainability of treatment processes. For example, membrane bioreactors (MBRs) combine biological treatment with membrane filtration to produce high-quality effluent while minimizing the footprint of treatment facilities. Similarly, anaerobic digestion and biogas recovery can convert wastewater sludge into biogas, which can beused to generate electricity or heat. More recently, advancements in non-chemical disinfection methods, such as ultraviolet (UV) and ozone treatment, have shown promising results in reducing the spread of waterborne diseases.Future ProspectsThe future of wastewater treatment is likely to focus on the development of more efficient, cost-effective, and sustainable treatment methods that can adapt to the changing nature of wastewater contaminants. This will likely involve the integration of smart technologies, such as artificial intelligence and the internet of things (IoT), to improve the automation and optimization of treatment processes. Additionally, the reuse of treated wastewater for potable uses, such as drinking water replenishment, is likely to become more prevalent as water scarcity and climate change drive the need for alternative water sources. Finally, the circular economy concept is expected to play an increasingly important role in the treatment of wastewater, with the emphasis on creating value from the byproducts of treatment.ConclusionWastewater treatment is an essential element of modern society that supports public health, environmental sustainability, and economic development. It faces numerous challenges, but also offers significant opportunities for innovation and improvement. By staying abreast of emerging research andtechnologies, stakeholders in wastewater treatment can ensure that treated wastewater remains a safe and reliable resource for generations to come.。
中英文资料对照外文翻译Catalytic strategies for industrial water re-useAbstractThe use of catalytic processes in pollution abatement and resource recovery is widespread and of significant economic importance [R.J. Farrauto, C.H. Bartholomew, Fundamentals of Industrial Catalytic Processes, Blackie Academic and Professional,1997.]. For water recovery and re-use chemo-catalysis is only just starting to make an impact although bio-catalysis is well established [J.N. Horan, BiologicalWastewater Treatment Systems; Theory and Operation, Chichester, Wiley, 1990.]. This paper will discuss some of the principles behind developing chemo-catalytic processes for water re-use. Within this context oxidative catalytic chemistry has many opportunities to underpin the development of successful processes and many emerging technologies based on this chemistry can be considered .Keywords: COD removal; Catalytic oxidation; Industrial water treatment1.IntroductionIndustrial water re-use in Europe has not yet started on the large scale. However, with potential long term changes in European weather and the need for more water abstraction from boreholes and rivers, the availability of water at low prices will become increasingly rare. As water prices rise there will come a point when technologies that exist now (or are being developed) will make water recycle and re-use a viable commercial operation. As that future approaches, it is worth stating the most important fact about wastewater improvement–avoid it completely if at all possible! It is best to consider water not as a naturally available cheap solvent but rather, difficult to purify, easily contaminated material that if allowed into the environment will permeate all parts of the biosphere. A pollutant is just a material in the wrong place and therefore design your process to keep the material where it should be –contained and safe. Avoidance and then minimisation are the two first steps in looking at any pollutant removal problem. Of course avoidance may not be anoption on an existing plant where any changes may have large consequences for plant items if major flowsheet revision were required. Also avoidance may mean simply transferring the issue from the aqueous phase to the gas phase. There are advantages and disadvantages to both water and gas pollutant abatement. However, it must be remembered that gas phase organic pollutant removal (VOC combustion etc.,) is much more advanced than the equivalent water COD removal and therefore worth consideration [1]. Because these aspects cannot be over-emphasised，a third step would be to visit the first two steps again. Clean-up is expensive, recycle and re-use even if you have a cost effective process is still more capital equipment that will lower your return on assets and make the process less financially attractive. At present the best technology for water recycle is membrane based. This is the only technology that will produce a sufficiently clean permeate for chemical process use. However, the technology cannot be used in isolation and in many (all) cases will require filtration upstream and a technique for handling the downstream retentate containing the pollutants. Thus, hybrid technologies are required that together can handle the all aspects of the water improvement process[6,7,8].Hence the general rules for wastewater improvement are:1. Avoid if possible, consider all possible ways to minimise.2. Keep contaminated streams separate.3. Treat each stream at source for maximum concentration and minimum flow.4. Measure and identify contaminants over complete process cycle. Look for peaks, which will prove costly to manage and attempt to run the process as close to typical values as possible. This paper will consider the industries that are affected by wastewater issues and the technologies that are available to dispose of the retentate which will contain the pollutants from the wastewater effluent. The paper will describe some of the problems to be overcome and how the technologies solve these problems to varying degrees. It will also discuss how the cost driver should influence developers of future technologies.2. The industriesThe process industries that have a significant wastewater effluent are shown in Fig. 1. These process industries can be involved in wastewater treatment in many areas and some illustrations of this are outlined below.Fig. 1. Process industries with wastewater issues.2.1. RefineriesThe process of bringing oil to the refinery will often produce contaminated water. Oil pipelines from offshore rigs are cleaned with water; oil ships ballast with water and the result can be significant water improvement issues.2.2. ChemicalsThe synthesis of intermediate and speciality chemicals often involve the use of a water wash step to remove impurities or wash out residual flammable solvents before drying.2.3. PetrochemicalsEthylene plants need to remove acid gases (CO2, H2S) formed in the manufacture process. This situation can be exacerbated by the need to add sulphur compounds before the pyrolysis stage to improve the process selectivity. Caustic scrubbing is the usual method and this produces a significant water effluent disposal problem.2.4. Pharmaceuticals and agrochemicalsThese industries can have water wash steps in synthesis but in addition they are often formulated with water-based surfactants or wetting agents.2.5. Foods and beveragesClearly use water in processing and COD and BOD issues will be the end result.2.6. Pulp and paperThis industry uses very large quantities of water for processing –aqueous peroxide and enzymes for bleaching in addition to the standard Kraft type processing of the pulp. It is important to realise how much human society contributes to contaminated water and an investigation of the flow rates through municipal treatment plants soon shows the significance of non-process industry derived wastewater.3. The technologiesThe technologies for recalcitrant COD and toxic pollutants in aqueous effluent are shown in Fig. 2. These examples of technologies [2,6,8] available or in development can be categorised according to the general principle underlying the mechanism of action. If in addition the adsorption (absorption) processes are ignored for this catalysis discussion then the categories are:1. Biocatalysis2. Air/oxygen based catalytic (or non-catalytic).3. Chemical oxidation1. Without catalysis using chemical oxidants2. With catalysis using either the generation of _OH or active oxygen transfer. Biocatalysis is an excellent technology for Municipal wastewater treatment providing a very cost-effective route for the removal of organics from water. It is capable of much development via the use of different types of bacteria to increase the overall flexibility of the technology. One issue remains –what to do with all the activated sludge even after mass reduction by de-watering. The quantities involved mean that this is not an easy problem to solve and re-use as a fertilizer can only use so much. The sludge can be toxic via absorption of heavy metals, recalcitrant toxic COD. Inthis case incineration and safe disposal of the ash to acceptable landfill may be required. Air based oxidation [6,7] is very attractive because providing purer grades of oxygen are not required if the oxidant is free. Unfortunately, it is only slightly soluble in water, rather unreactive at low temperatures and, therefore, needs heat and pressure to deliver reasonable rates of reaction. These plants become capital intensive as pressures (from _10 to 100 bar) are used. Therefore, although the running costs maybe low the initial capital outlay on the plant has a very significant effect on the costs of the process. Catalysis improves the rates of reaction and hence lowers the temperature and pressure but is not able to avoid them and hence does not offer a complete solution. The catalysts used are generally Group VIII metals such as cobalt or copper. The leaching of these metals into the aqueous phase is a difficulty that inhibits the general use of heterogeneous catalysts [7]. Chemical oxidation with cheap oxidants has been well practised on integrated chemical plants. The usual example is waste sodium hypochlorite generated in chlor-alkali units that can be utilised to oxidise COD streams from other plants within the complex. Hydrogen peroxide, chlorine dioxide, potassium permanganate are all possible oxidants in this type of process. The choice is primarily determined by which is the cheapest at the point of use. A secondary consideration is how effective is the oxidant. Possibly the most researched catalytic area is the generation and use of _OH as a very active oxidant (advanced oxidation processes) [8]. There are a variety of ways of doing this but the most usual is with photons and a photocatalyst. The photocatalyst is normally TiO2 but other materials with a suitable band gap can be used [9,10]. The processes can be very active however the engineering difficulties of getting light, a catalyst and the effluent efficiently contacted is not easy. In fact the poor efficiency of light usage by the catalyst (either through contacting problems or inherent to the catalyst) make this process only suitable for light from solar sources. Photons derived from electrical power that comes from fossil fuels are not acceptable because the carbon dioxide emission this implies far outweighs and COD abatement. Hydroelectric power (and nuclear power) are possible sources but the basic inefficiency is not being avoided. Hydrogen peroxide and ozone have been used with photocatalysis but they can be used separately or together with catalysts to effect COD oxidation. For ozone there is the problem of the manufacturing route, corona discharge, which is a capital intensive process often limits its application and better route to ozone would be very useful. It is important to note at this point that the oxidants discussed do not have sufficient inherent reactivity to be use without promotion. Thus, catalysis is central to their effective use against both simple organics (often solvents) or complex recalcitrant COD. Hence, the use of Fenton’s catalyst (Fe) for hydrogen peroxide [11]. In terms of catalysis these oxidants together with hypochlorite form a set of materials that can acthas ‘active oxygen transfer (AOT) oxidants’ in the presence of a suitable catalyst. If the AOT oxidant is hypochlorite or hydrogen peroxide then three phase reactions are avoided which greatly simplifies the flowsheet. Cheap, catalytically promoted oxidants with environmentally acceptable products of oxidation that do not require complex chemical engineering and can be produced efficiently would appear to offer one of the best solutions to the general difficulties often observed.3.1. Redox catalysis and active oxygen transferThe mechanism of catalytically promoted oxidation with hydrogen peroxide or sodium hypochlorite cannot be encompassed within one concept, however there are general similarities between the two oxidants that allows one to write a series of reactions for both (Fig. 3) [5]. This type of mechanism could be used to describe a broad range of reactions for either oxidant from catalytic epoxidation to COD oxidation. The inherent usefulness of the reactions is that;1. The reactions take place in a two-phase system.2. High pressure and temperature are not required.3. The catalytic surface can act as an adsorbent of the COD to be oxidised effectively increasing the concentration and hence the rate of oxidation.The simple mechanism shows the selectivity issue with this type of processes. The oxidant can simply be decomposed by the catalyst to oxygen gas – this reaction must be avoided because dioxygen will play no role in COD removal. Its formation is an expensive waste of reagent with oxygen gas ($20/Te) compared to the oxidant ($400–600/Te). To be cost competitive with alternative processes redox catalysis needs excellent selectivity.3.2. Technology mappingThe technologies so far described can be mapped [12] for their applicability with effluent COD concentration (measured as TOC) and effluent flow rate (m3 h-1). The map is shown in Fig. 4. The map outlines the areas where technologies are most effective. The boundaries, although drawn, are in fact fuzzier and should be only used as a guide. Only well into each shape will a technology start to dominate. The underlying cost model behind the map is based on simple assertions – at high COD mass flows only air/oxygen will be able to keep costs down because of the relatively low variable cost of the oxidant. At high COD concentrations and high flows only biological treatment plants have proved themselves viable –of course if done at source recovery becomes an option. At low flows and low COD levels redox AOT catalysis is an important technology – the Synetix Accent 1 process being an example of this type of process (see Fig. 5 for a simplified flowsheet). The catalyst operates under very controlled conditions at pH > 9 and hence metal leaching can be avoided (<5 ppb). The activity and selectivity aspects of the catalyst displayed in Fig. 3 can befurther elaborated to look at the potential surface species. This simple view has been extended by a significant amount of research [3,4,5]. Now the mechanism of such a catalyst can be described in Fig. 6. The key step is to avoid recombination of NiO holes to give peroxy species and this can be contrasted with the hydrogen peroxide situation where the step may be characterized as oxygen vacancy filled. From both recombination will be facilitated by electronic and spatial factors. The range of application of the process is outlined below. From laboratory data some general types of chemical have been found suitable –sulphides, amines, alcohols, ketones, aldehydes, phenols, carboxylic acids, olefins and aromatic hydrocarbons. From industrial trials recalcitrant COD (nonbiodegradable) and sulphur compounds have been successfully demonstrated and a plant oxidising sulphur species has been installed and is operational.4. ConclusionsWastewater treatment processes are in the early stages of development. The key parameters at present are effectiveness and long term reliability. Many processes operating are in this stage, including the redox Accent TM is a trademark of the ICI Group of Companies. catalysis systems. However,once proven, redox catalysis offers many advantages for COD removal from wastewater:1. The low capital cost of installation.2. Simple operation that can be automated.3. Flexible nature of the process – can be easily modified to meet changing demands of legislation.Hence it will be expected to develop into an important technology in wastewater improvement.AcknowledgementsThe author is grateful to Jane Butcher and Keith Kelly of Synetix for discussions on this paper. References[1] R.J. Farrauto, C.H. Bartholomew, Fundamentals of Industrial Catalytic Processes, Blackie Academic and Professional, 1997. F.E. Hancock / Catalysis Today 53 (1999) 3–9 9[2] J.N. Horan, Biological Wastewater Treatment Systems; Theory and Operation, Chichester, Wiley, 1990.[3] F.E. Hancock et al., Catalysis Today 40 (1998) 289.[4] F. King, F.E. Hancock, Catal. Today 27 (1996) 203.[5] J. Hollingworth et al., J. Electron Spectrosc., in press.[6] F. Luck, Environmental Catalysis, in: G. Centi et al. (Eds.), EFCE Publishers, Series 112, p. 125.[7] D. Mantzavinos et al., in: V ogelpohl and Geissen (Eds.), in: Proceedings of the Conference on Water Science and Technology, Clausthal-Zellerfeld, Germany, May 1996, J. Int. Assoc. Water Quality, Pergamon, 1997.[8] R. Venkatadri, R.W. Peters, Hazardous Waste Hazardous Mater. 10 (1993) 107.[9] A.M. Braun, E. Oliveros, Water Sci. Tech. 35 (1997) 17.[10] D. Bahnemann et al., Aquatic and surface photochemistry, Am. Chem. Soc. Symp. Ser. (1994) 261.[11] J. Prousek, Chem. Lisy 89 (1995) 11.工业废水回用的接触反应策略摘要：无论从控制污染还是资源恢复的角度，接触反应都是被广泛应用并极具经济效益的。

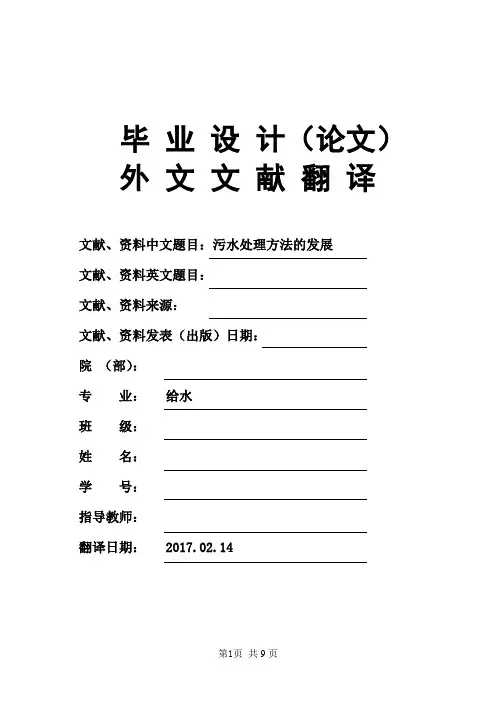

毕业设计（论文）外文文献翻译文献、资料中文题目：污水处理方法的发展文献、资料英文题目：文献、资料来源：文献、资料发表（出版）日期：院（部）：专业：给水班级：姓名：学号：指导教师：翻译日期： 2017.02.14毕业设计（论文）外文翻译外文题目Developments in wastewater treatment methods译文题目污水处理方法的发展外文出处Desalination 167 (2004) 55-63污水处理方法的发展摘要：废水是排入下水道的水性固体和液体污水,代表了生活中排放的废水。
废水包括溶解、悬浮有机固体,它们是“易腐烂的”或可生物降解的。
大家公认污水的两大类别没有完全区分开，即：生活污水和工业废水。
污水处理是将污水中的一部分固体物质去除，一部分固体物质从高复杂、易腐烂的有机固体降解为矿化的或者相对稳定的有机固体。
初级处理和二级处理去除了污水中大多数的BOD和悬浮固体。
然而，越来越多的案例证明了这种程度的处理结果不足以保护收纳水体，或者供给工业和居民循环回用水。
因此外加几个环节给废水处理厂提供多种处理方案，现在有许多新的废水处理路径，这些方案代表了他们自己许多年来治水传统经验的总结，更高端的污水处理方法成为全球个人团体工业国家致力于保持重要资源可行性和适应性的方法，高端污水处理技术涵盖了污水削减和污水循环两个终端，提供了缓解和阻止了可用水不必要的流失，生物膜处理技术很好的适应于废水的循环和再利用，生物膜能很好的分离废水中的成分，通过生物膜处理系统这个被广泛应用的技术能更好的分离水中的各种离子，生物膜技术非常流行的水处理技术，此技术最大的优点不需要增加化学试剂操作简单方便，对资源的利用率极低，这个论文涵盖了高端的废水处理方法和回收再利用方法。
关键词：污水；初级处理；二级处理；生物膜技术；循环；回用；先进的水处理技术1. 介绍水覆盖了全球71%的地方，占人体65%，每个人都需要干净的水去生活去工作，如果水被污染了那么它将损失它的价值，并且能变成对我们健康有威胁的物质，鱼类的生活环境完全取决于水，同时野生动物也需求与水。
附件1：外文资料翻译译文城市污水常温处理中的新型改良EGSB（膨胀颗粒污泥床）反应器的发展近年来，厌氧处理技术已经成为一项有吸引力的可持续发展的污水处理技术，因为它耗能少而且产气量少。
特别的，流式厌氧污泥床(UASB)和常规膨胀颗粒污泥床(EGSB)在城市污水处理中得到了广泛应运。
通常，EGSB比UASB 更能有效去除化学需氧量（COD），更能有效抵抗有机负荷率(OLR)、温度和pH 的变化。
然而，由于较高的上升流速和较多的甲烷气泡，使膨胀颗粒污泥床（EGSB）中的三相分离器中的水的流速很高，这就导致了大量生物质的流失,最终废水中的COD浓度就升高了。
所以，有时候不能满足城市污水处理厂或生物处理系统排放的标准，并导致生物处理系统崩溃。
因此,对与EGSB系统来说，城市污水处理中的关键问题是如何控制在高上升流速下的生物量流失。
在本文中,提出一种改进型的EGSB反应器模型，它结合了EGSB 和UASB 两者的优势。
在相同环境下通过比较，试验性地研究EGSB m和EGSB c两种反应器。
在东区污水处理厂中有一个初级出水沉降池。
在对膨胀颗粒污泥床（EGSB m）中水动力特征分析时，进行了停留时间分布(RTD)的实验和Polvmerase连锁反应实验，并且应用变性梯度凝胶电泳(PCR-DGGE)技术来探索颗粒污泥中微生物的多样性。
1.材料和方法1.1影响生物量和养料的来源常温厌氧颗粒污泥取自中国无锡市的一家污水处理厂，该厂主要利用全比例内循环生物反应器处理酸性废水。
黑色的颗粒污泥有规则的形状（φ=0.8 - 2毫米）和良好的沉降性能。
污泥中含有悬浮固体（TSS）73.6克/升和挥发性悬浮固体（VSS）59克/升。
在EGSB m和EGSB c两种反应器中，最初的接种污泥量占有效总量的65%。
污水样本取自上海东区城市污水处理厂的一个初级沉淀池中。
其中包括60%生活污水和40%的工业废水。
污水的主要指标如表1。
表1 污水的主要指标1.2反应器的描述工业生产中EGSBm和EGSBc反应器的原理图如图1。
两个反应器都是有机玻璃制成的,容量为300 升,采用连续流动模式。
在EGSBc中,配水系统在反应器的底部，进水和污水一起进入循环。
在EGSBm中,其混合液体通过循环泵和进水一起进入循环。
EGSBm配水系统包括一个5升的水箱和4根聚氯乙烯管（PVC ）。
水箱置于反应器的顶部,管子延伸到反应器的底部。
在东区污水处理厂这两种类型反应器都有，它们表现可以相媲美。
图1 EGSB c和EGSB m反应器的原理图在EGSBm反应器中，含颗粒污泥的混合液大约在反应器的中部通过循环泵进入循环，同位于反应器顶部的进水很好的混合。
由于混合液受重力的影响，沿分布管道进而进入底部的反应堆。
在底部的反应区域内,复合液进一步混合了局部液体，水中有机物在高浓度的颗粒污泥中被有效地分解。
废水向上循环，达到中间的流动循环管,很大一部分是被吸进管孔并通过水泵循环至反应器顶部的水箱中，同时一小部分继续向上流动达到进一步分解。
然后，向上流动的部分会进入三相分离器，在这里气体、水、颗粒状污泥会被分开。
在分离后,颗粒污泥经过处理还能循环利用到上层反应室中去。
1.3实验条件在这两个试验性反应器成功开动起来，反应达到了稳定的状态后,它们还得在常温下连续运行165 天。
基于稳态条件下，总的反应过程分为十个阶段。
每个阶段具体实验数据在表2中有详细说明。
表2 各反应阶段的实验数据R：循环比例1.4反应器的性能评价在每个反应阶段，通过去除COD，COD filt和SS的效率来评价EGSB c和EGSB m两者的总体性能。
COD filt表示经过定性滤纸后污水中的COD浓度。
COD 和COD filt的浓度可以经重铬酸钾溶液检测出来，而SS的浓度是通过过滤，干燥，然后称水样本检测出来。
1.5颗粒状污泥的分析在第4和第10个运行阶段结束后，从EGSB m反应器的四个不同反应区取颗粒污泥样本，并在图1中标明A、B、C、D。
A、B、C、D四个反应区距离反应区底部分别为2.0,1.5,1.0,0.5米。
从颗粒污泥中提取DNA后，16S核糖体RNA 基因的特定区域经过聚合酶链反应（PCR）被放大，进而用来克隆和排序。
然后，使用变形梯度凝胶电泳（EGGB）分离聚合酶链反应（PCR）的产物。
已经分化的菌株再经过培养，使菌株数量达到所需的测量水平。
在预选的反应时间中，使用激光粒度仪（LS230，美国贝克曼库尔特）测得四个不同区域的颗粒污泥的直径分布在0.04-2000微米的范围内。
1.6水动力特性有一种利用锂离子（Li+）的脉冲追踪仪，可以通过锂离子反应器中不同区域内停留的时间来分析水动力特性。
在每一次试验中，通过脉冲注射器向进水中注入10mL浓度为10mg/L锂离子溶液，运用电感耦合等离子ICP/脂肪醇聚氧乙烯醚硫酸盐AES外加铂金埃尔默奥普玛2100等离子发射光谱仪对污水中锂离子的浓度进行周期性检测。
2 结果和讨论2.1反应器的性能1）上升流速（V up）的影响。
对于EGSB c和EGSB m两种反应器，上升流速对污水中COD和COD filt浓度的影响在图2中有说明。
结果表明在EGSB m和EGSB c两种污水中，当上升流速从5.0米/时(阶段3)到10.3米/时（阶段5），COD filt 浓度分别从94.1和97.1毫克/升（阶段1）下降为59.4和71.4毫克/升（阶段5）.两种反应器污水中COD浓度和COD filt浓度变化趋势大致相同。
在较高的上升流速下，通过比较两者污水中COD的浓度，显而易见，EGSB m比EGSB c具有更好的性能和恢复效果。
当上升流速从2米/小时（阶段1）到10.3米/小时变化时，两种反应器中SS的浓度分别从18.5和22.2毫克/升上升为60.1和126.5毫克/升。
从中我们看出在相同流速下，EGSB m比EGSB c更容易造成生物量的流失。
因此，EGSB m具有较好的恢复能力是因为其高污泥浓度的保持能力。
图2 上升流速对EGSB c和EGSB m两种反应器中污水中COD和COD filt浓度的影响2)水力停留时间的影响。
水力停留时间对EGSB m和EGSB c两种反应器中污水中COD和COD filt浓度的影响可以在图3中看出来。
结果显示，在EGSB m反应器中，当水力停留时间从6降为2小时时，COD和COD filt浓度分别从119.7毫克/升和94.1毫克/升（阶段1）下降为104和82.6毫克/升（阶段7）。
当水力停留时间降为1小时后，EGSB m和EGSB c两者中COD和COD filt浓度都有上升趋势。
但是，EGSB m有更好的基质清除效果，主要是因为它具有改进了的水循环结构。
在EGSB m和EGSB c两种反应器中，挥发性脂肪酸的平均浓度分别从28和31克/升（阶段6，水力停留时间4小时）上升为42和65克/升（阶段7，水力停留时间2小时）。
这就意味着在低水力停留时间内，EGSB m比EGSB c更能有效利用挥发性脂肪酸来产生甲烷气体。
图3水力停留时间对EGSB m和EGSB c两种反应器中污水中COD和COD filt浓度的影响3）有机负载率的影响。
在两种反应器中，有机负载率对COD和COD filt浓度的影响如图4。
当有机负载率由7.2（阶段8）突然降为1.2千克COD/（立方米*天）（阶段9），EGSB m反应器能维持它的处理效率不变，而EGSB c则发生不同程度的变化。
当有机负荷率从1.2（阶段9）又调整到7.2千克COD/（立方米*天）时，在阶段10的初期两种反应器中COD和COD filt浓度都有明显提高。
随后，EGSB m恢复到最初有机去除效率需用10天时间，而EGSB c反应器在20天后任然没能达到最初的有机物去除率水平。
显而易见，EGSB m更能有效抵抗有机载荷的变化。
图4有机负载率对EGSB m和EGSB c两种反应器中污水中COD和COD filt浓度的影响总的来讲，当实验条件发生变化时，EGSB m反应器中COD，COD filt和SS 浓度比EGSB c中的浓度要低得多。
即使SS浓度会随上升流速的升高而升高，但EGSB m比EGSB c的生物量流失少。
而且在上升流速高达10.3米/小时时，EGSB m 反应器中污水COD含量几乎不变。
2.2颗粒污泥的分析这幅变形梯度凝胶电泳剖面图显示的是从EGSB m反应器中提取的75天和165天颗粒污泥样本中9-12DNA片段。
相比之下，我们可以从处理酸性污水的最初的接种污泥中提取第15号DNA片段。
这些DNA片段分布在16S核糖核酸RNA的V3区段内，每个基因片段代表一种微生物种类。
图5颗粒污泥样本的变形梯度凝胶电泳（DGGE）剖面图比较了不同污泥样品的变形梯度凝胶电泳（DGGE）剖面图，结果表明,带1、2、3、4、9、10的接种污泥也存在于第75 天和第165 天EGSB m污泥样品中,而其他的9个频段内的接种污泥很少见。
相反,在EGSB m颗粒污泥的样品中出现了一些新的频段。
频段的强度随不同的运行阶段和反应区域而变化。
然而,微生物物种的数量在整个反应阶段和反应区域内并没发生明显变化。
由于环境的变化,譬如循环比率,水力停留时间（HRT），有机负载率（OLR）和进水质量，微生物会选择性地形成稳定的微生物群落，通过竞争来有效地降解有机污染物。
在EGSB m反应器运行1,45,76和110天，分别检测A、B、C、D四个区域内颗粒污泥直径的变化。
记录数据如图6。
在第1天，接种污泥的直径均匀地分布在0.8-2毫米的范围内。
在第45和76天，大部分颗粒污泥的直径分布在0.6-2毫米范围内，而A和B区域也有一少部分颗粒污泥的直径分布在0.01-0.4毫米范围内。
在第110天，颗粒污泥的直径逐渐地变大。
从中我们看到颗粒污泥在EGSB m中最初是分散的,随着反应条件的变化逐步聚集为厌氧微生物菌落。
图6不同反应阶段颗粒污泥直径的变化2.3 水动力特性当进水向上流动通过颗粒污泥床时，它将和该区域内污水混合（或分散到污水中）。
因此，对于理想的塞式流动应分散考虑，如下面所表达的停留时间分布（RTD）模型：在公式中，D/UL表示无量纲的离散量，D表示扩散系数（平方米/小时），U表示上升流速V up（米/小时），L代表反应器的长度（米）。
对于理想的塞式流动反应器，D/UL的值是0。
相反，对于理想的连续搅拌釜式反应器（CSTR），D/UL的值趋近无穷大。
通过脉冲示踪剂（例如，Li+）的方法，示踪剂浓度会随着试验时间在不同的水力停留时间发生变化，如图7。
依据图7的结果，经过计算和总结得出了表3中的数据，记录了在三种不同的上升流速下无关量V d和D/UL的值。
