LTE信道 频率 对应表

LTE频点计算公式
下行频点计算公式：
F DL = F DL_low + 0.1(N DL– N Offs-DL)
其中F DL为该载频下行频点，F DL_low对应频段的最低下行频点，N DL为该载频下行频点号，N Offs-DL 对应频段的最低下行频点号。

对应关系表详见表5.7.3-1。

上行频点计算公式：
F UL = F UL_low + 0.1(N UL– N Offs-UL)
其中F UL为该载频上行频点，F UL_low对应频段的最低上行频点，N UL为该载频上行频点号，N Offs-UL 对应频段的最低上行频点号。

对应关系表详见表5.7.3-1。

上下行频点号范围：0 - 65535.
对应关系表详见表5.7.3-1如下：
电信目前可能分配FDD频段，给你的EARFCN是1750，则范围落在
按照公式：
FDL = FDL_low + 0.1(NDL – NOffs-DL)
FDL = 1805 + 0.1 * (1750 - 1200) = 1860 M 是下行的中心频点。

NDL = 10* (FDL –FDL_low ) + NOffs-DL
FDL:中心频率

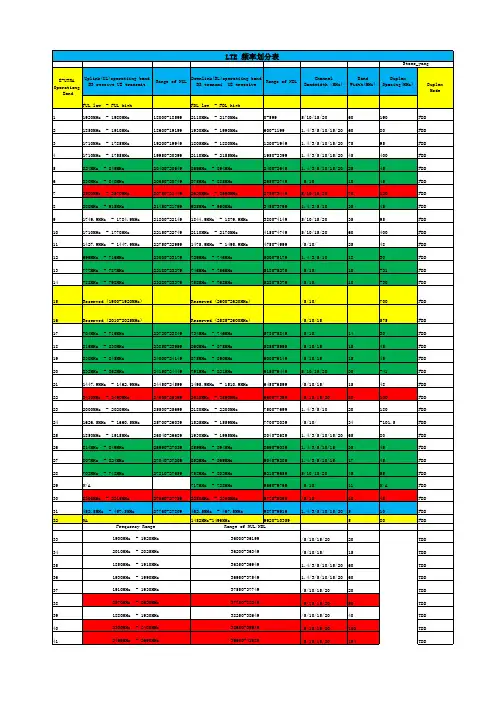

Table 5.7.3-1: E-UTRA channel numbers。

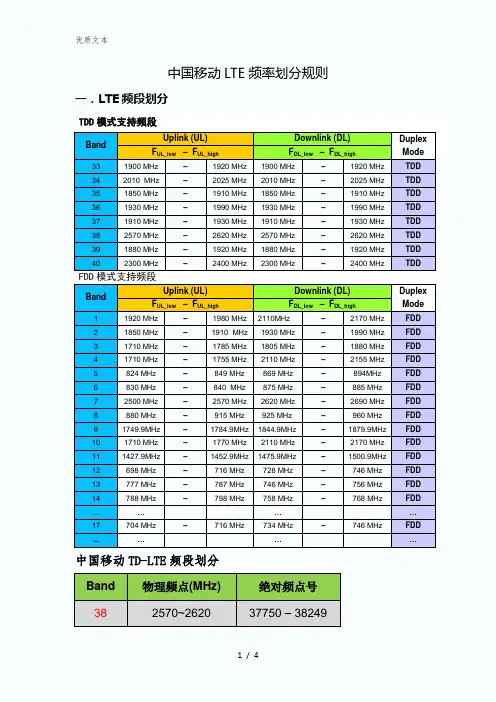

中国移动LTE频率划分规则一．LTE频段划分TDD模式支持频段BandUplink (UL) Downlink (DL) DuplexMode F UL_low– F UL_high F DL_low– F DL_high33 1900 MHz –1920 MHz 1900 MHz –1920 MHz TDD34 2010 MHz –2025 MHz 2010 MHz –2025 MHz TDD35 1850 MHz –1910 MHz 1850 MHz –1910 MHz TDD36 1930 MHz –1990 MHz 1930 MHz –1990 MHz TDD37 1910 MHz –1930 MHz 1910 MHz –1930 MHz TDD38 2570 MHz –2620 MHz 2570 MHz –2620 MHz TDD39 1880 MHz –1920 MHz 1880 MHz –1920 MHz TDD40 2300 MHz –2400 MHz 2300 MHz –2400 MHz TDD FDD模式支持频段BandUplink (UL) Downlink (DL) DuplexMode F UL_low– F UL_high F DL_low– F DL_high1 1920 MHz –1980 MHz 2110MHz –2170 MHz FDD2 1850 MHz –1910 MHz 1930 MHz –1990 MHz FDD3 1710 MHz –1785 MHz 1805 MHz –1880 MHz FDD4 1710 MHz –1755 MHz 2110 MHz –2155 MHz FDD5 824 MHz –849 MHz 869 MHz –894MHz FDD6 830 MHz –840 MHz 875 MHz –885 MHz FDD7 2500 MHz –2570 MHz 2620 MHz –2690 MHz FDD8 880 MHz –915 MHz 925 MHz –960 MHz FDD9 1749.9MHz –1784.9MHz 1844.9MHz –1879.9MHz FDD10 1710 MHz –1770 MHz 2110 MHz –2170 MHz FDD11 1427.9MHz –1452.9MHz 1475.9MHz –1500.9MHz FDD12 698 MHz –716 MHz 728 MHz –746 MHz FDD13 777 MHz –787 MHz 746 MHz –756 MHz FDD14 788 MHz –798 MHz 758 MHz –768 MHz FDD…………17 704 MHz –716 MHz 734 MHz –746 MHz FDD... ………中国移动TD-LTE频段划分Band 物理频点(MHz)绝对频点号382570~2620 37750 – 3824939 1880~1920 38250 – 3864940 2300 ~ 2400 38650~3965041 2496~2690 39650 ~ 41589F频段（1885-1915MHz）分为F1、F2两个频点。

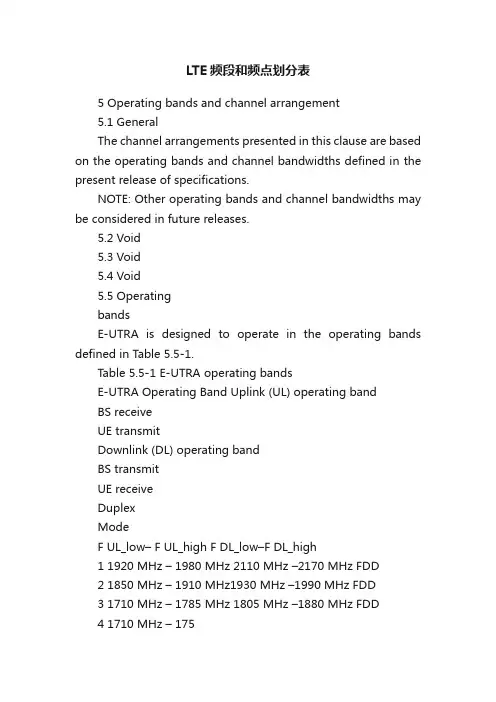

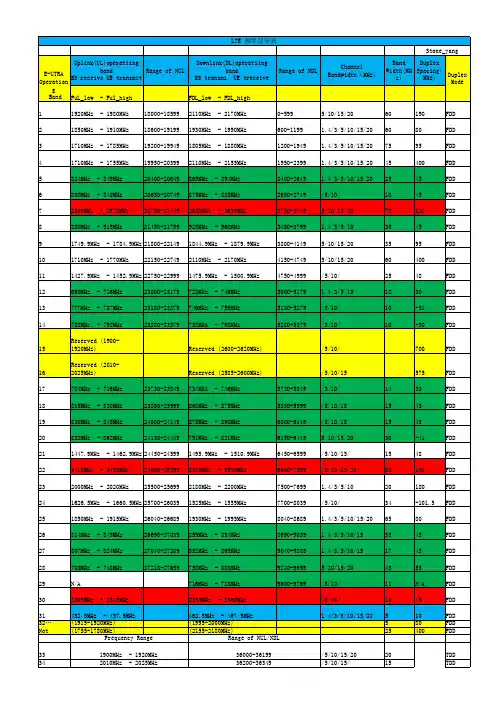

LTE频段和频点划分表5 Operating bands and channel arrangement5.1 GeneralThe channel arrangements presented in this clause are based on the operating bands and channel bandwidths defined in the present release of specifications.NOTE: Other operating bands and channel bandwidths may be considered in future releases.5.2 Void5.3 Void5.4 Void5.5 OperatingbandsE-UTRA is designed to operate in the operating bands defined in Table 5.5-1.Table 5.5-1 E-UTRA operating bandsE-UTRA Operating Band Uplink (UL) operating bandBS receiveUE transmitDownlink (DL) operating bandBS transmitUE receiveDuplexModeF UL_low– F UL_high F DL_low–F DL_high1 1920 MHz – 1980 MHz 2110 MHz –2170 MHz FDD2 1850 MHz – 1910 MHz1930 MHz –1990 MHz FDD3 1710 MHz – 1785 MHz 1805 MHz –1880 MHz FDD4 1710 MHz – 1755 MHz 2110 MHz –2155 MHz FDD5 824 MHz – 849 MHz 869 MHz –894MHz FDD61830 MHz – 840 MHz 875 MHz –885 MHz FDD7 2500 MHz – 2570 MHz 2620 MHz –2690 MHz FDD8 880MHz– 915 MHz 925 MHz –960 MHz FDD9 1749.9 MHz – 1784.9 MHz1844.9 MHz –1879.9 MHz FDD10 1710 MHz – 1770 MHz 2110 MHz –2170 MHz FDD11 1427.9 MHz – 1447.9 MHz 1475.9 MHz –1495.9 MHz FDD12 699 MHz – 716 MHz 729 MHz–746 MHz FDD13 777 MHz – 787 MHz 746 MHz–756 MHz FDD14 788 MHz – 798 MHz 758 MHz–768 MHz FDD15 Reserved Reserved FDD16 Reserved Reserved FDD17 704 MHz – 716 MHz 734 MHz–746 MHz FDD18 815 MHz – 830 MHz 860 MHz–875 MHz FDD19 830 MHz – 845 MHz 875 MHz–890 MHz FDD20 832 MHz – 862 MHz 791 MHz–821 MHz FDD21 1447.9 MHz – 1462.9 MHz1495.9 MHz–1510.9 MHz FDD...33 1900 MHz – 1920 MHz 1900 MHz–1920 MHz TDD34 2010 MHz – 2025 MHz 2010 MHz –2025 MHz TDD35 1850 MHz – 1910 MHz 1850 MHz –1910 MHz TDD36 1930 MHz – 1990 MHz 1930 MHz –1990 MHz TDD37 1910 MHz – 1930 MHz 1910 MHz –1930 MHz TDD38 2570 MHz – 2620 MHz 2570 MHz –2620 MHz TDD39 1880 MHz – 1920 MHz 1880 MHz –1920 MHz TDD40 2300 MHz – 2400 MHz 2300 MHz –2400 MHz TDD NOTE 1: Band 6 is not applicable5.7.2 ChannelrasterThe channel raster is 100 kHz for all bands, which means that the carrier centre frequency must be an integer multiple of 100 kHz.5.7.3 Carrier frequency and EARFCNThe carrier frequency in the uplink and downlink is designated by the E-UTRA Absolute Radio Frequency Channel Number (EARFCN) in the range 0 - 65535. The relation between EARFCN and the carrier frequency in MHz for the downlink is given by the following equation, where F DL_low and N Offs-DL are given in Table 5.7.3-1 and N DL is the downlink EARFCN.F DL = F DL_low + 0.1(N DL – N Offs-DL)The relation between EARFCN and the carrier frequency in MHz for the uplink is given by the following equation where F UL_low and N Offs-UL are given in Table 5.7.3-1 and N UL is the uplink EARFCN.F UL = F UL_low + 0.1(N UL – N Offs-UL)Table 5.7.3-1: E-UTRA channel numbersE-UTRA Operating BandDownlink Uplink F DL_low (MHz) N Offs-DL Range of N DL F UL_low (MHz)N Offs-UL Range of N UL1 2110 0 0 – 599 1920 18000 18000 – 185992 1930 600 600 1199 1850 18600 18600 – 191993 1805 1200 1200 – 1949 1710 19200 19200 – 199494 2110 1950 1950 – 2399 1710 19950 19950 – 203995 869 2400 2400 – 2649 824 20400 20400 – 206496 875 2650 2650 – 2749 830 20650 20650 – 207497 2620 2750 2750 – 3449 2500 20750 20750 – 214498 925 3450 3450 – 3799 880 21450 21450 – 217999 1844.9 3800 3800 – 4149 1749.9 21800 21800 – 2214910 2110 4150 4150 – 4749 1710 22150 22150 – 2274911 1475.9 4750 4750 – 4949 1427.9 22750 22750 – 2294912 729 5010 5010 - 5179 699 23010 23010 - 2317913 746 5180 5180 – 5279 777 23180 23180 – 2327914 758 5280 5280 – 5379 788 23280 23280 – 23379…17 734 5730 5730 – 5849 704 23730 23730 - 2384918 860 5850 5850 – 5999 815 23850 23850 – 2399919 875 6000 6000 – 6149 830 24000 24000 – 2414920 791 6150 6150 – 6449 832 24150 24150 – 2444921 1495.9 6450 6450 – 6599 1447.9 24450 24450 – 24599…33 1900 36000 36000 – 36199 1900 36000 36000 – 3619934 2010 36200 36200 – 36349 2010 36200 36200 – 3634935 1850 36350 36350 – 36949 1850 36350 36350 – 3694936 1930 36950 36950 – 37549 1930 36950 36950 – 3754937 1910 37550 37550 – 37749 1910 37550 37550 – 3774938 2570 37750 37750 – 38249 2570 37750 37750 – 3824939 1880 38250 38250-38649 1880 38250 38250-3864940 2300 38650 38650-39649 2300 38650 38650-39649 NOTE: The channel numbers that designate carrier frequencies so close to the operating band edges that the carrier extends beyond the operating band edge shall not be used. This implies that the first 7, 15, 25, 50,75 and 100 channel numbers at the lower operating band edge and the last 6, 14, 24, 49, 74 and 99channel numbers at the upper operating band edge shall not be used for channel bandwidths of 1.4, 3, 5,10, 15 and 20 MHz respectively.。

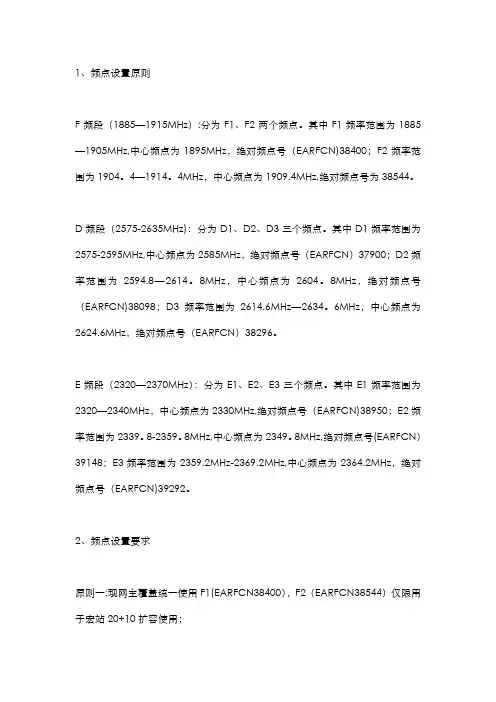

1、频点设置原则F频段（1885—1915MHz）:分为F1、F2两个频点。

其中F1频率范围为1885—1905MHz,中心频点为1895MHz，绝对频点号（EARFCN)38400；F2频率范围为1904。

4—1914。

4MHz，中心频点为1909.4MHz,绝对频点号为38544。

D频段（2575-2635MHz)：分为D1、D2、D3三个频点。

其中D1频率范围为2575-2595MHz,中心频点为2585MHz，绝对频点号（EARFCN）37900；D2频率范围为2594.8—2614。

8MHz，中心频点为2604。

8MHz，绝对频点号（EARFCN)38098；D3频率范围为2614.6MHz—2634。

6MHz，中心频点为2624.6MHz，绝对频点号（EARFCN）38296。

E频段（2320—2370MHz）：分为E1、E2、E3三个频点。

其中E1频率范围为2320—2340MHz，中心频点为2330MHz,绝对频点号（EARFCN)38950；E2频率范围为2339。

8-2359。

8MHz,中心频点为2349。

8MHz,绝对频点号(EARFCN）39148；E3频率范围为2359.2MHz-2369.2MHz,中心频点为2364.2MHz，绝对频点号（EARFCN)39292。

2、频点设置要求原则一:现网主覆盖统一使用F1(EARFCN38400），F2（EARFCN38544）仅限用于宏站20+10扩容使用；原则二：D频段主要用于宏站扩容和小基站使用，其中D1 （EARFCN37900）用于宏站F+D扩容或D新建使用,D2用于小基站使用,D3备用，如有干扰请各地市加强排查力度,不得以改频手段进行简单规避；原则三：E频段用于室分使用，要求各室分小区统一设置为E1（EARFCN38950）,如有干扰请各地市加强排查力度，不得以改频手段进行简单规避，如有扩容需求优先使用室分小区分裂方式解决,在无法通过小区分裂解决的可使用E2（EARFCN39148），E3备用；。

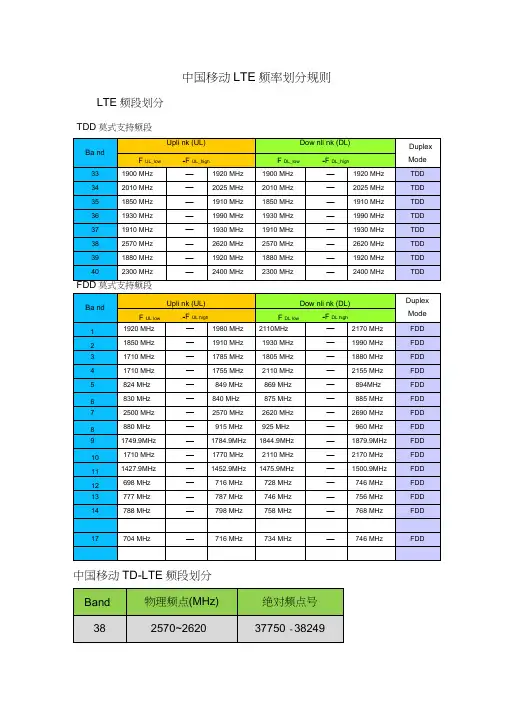

中国移动LTE频率划分规则LTE频段划分TDD莫式支持频段中国移动TD-LTE频段划分F 频段(1885-1915MHz)分为F1、F2两个频点。

其中F1频率范围为1885-1905MHZ,中心频点为1895MH绝对频点号(EARFC) 38400; F2频率范围为1904.4-1914.4MHz，中心频点为1909.4MHz,绝对频点号为38544。

D频段(2575-2635MHz)分为D1、D2、D3三个频点。

其中D1频率范围为2575-2595MHz 中心频点为2585MHz绝对频点号(EARFCJN 37900；D2频率范围为2594.8-2614.8MHz，中心频点为2604.8MHz,绝对频点号(EARFCN 38098；D3频率范围为2614.6MHz-2634.6MHz，中心频点为2624.6MHz,绝对频点号(EARFC)38298。

E频段(2320-2370MHz)分为E1、E2、E3三个频点。

其中E1频率范围为2320-2340MHz 中心频点为2330MHz绝对频点号(EARFCJN 38950；E2频率范围为2339.8-2359.8MHz，中心频点为2349.8MHz,绝对频点号(EARFCN 39148；E3 频率范围为2359.2MHz-2369.2MHz，中心频点为2364.2MHz,绝对频点号(EARFCN 39292。

D F频段一般用于CMCC LTE勺室外覆盖；E频段一般用于CMCC LTE的室内覆盖.二.LTE频点与频率的映射关系下行物理频点(FDL)与EARFC濒点号(NDL)的换算关系：NDL=10*(FDL - FDL_low) + NOffs-DL。

其中Band38的F D」W为2570MHzIN^-DL为37750; Band39的F DL_IOW 为1880MHz N fs-DL 为38250; Band40 的F DL_IOW为2300MHz N fs-DL 为38650;Eg.计算 F 频段1895MHZ的频点号为：10* (1895-1880 )+38250=38400 计算D频段2585MHZ的频点号为：10*( 2585-2570) +37750=37900 计算 E 频段2330MHZ的频点号为：10*( 2330-2300) +38650=38950 B38和B41物理频率范围出现重叠，但两频段重叠部分(2570〜2620MHz相同频点的EARFC不同Eg.针对D频段以2585MHz为中心频点的小区按照Band38计算的绝对频点号是37900按照Band41计算的绝对频点号是40540国内行货终端都会上报支持band38,对于某些漫游终端，仅支持band41，在band38下无法接入。

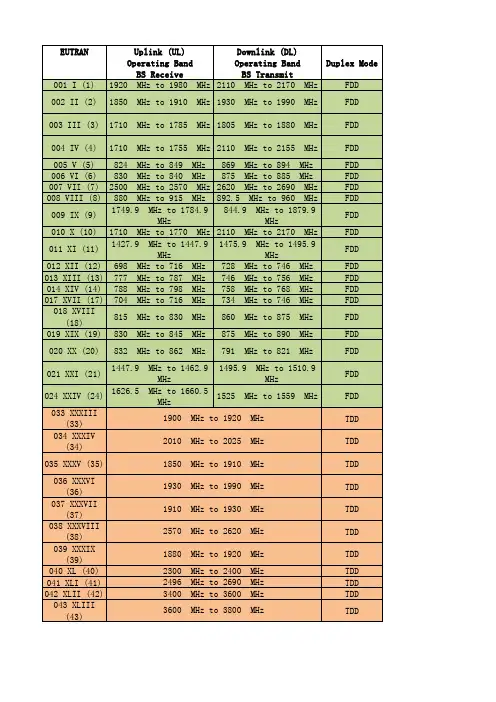

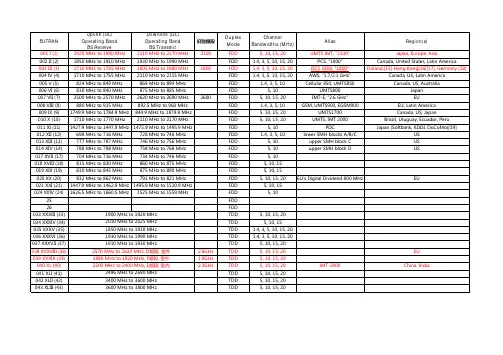

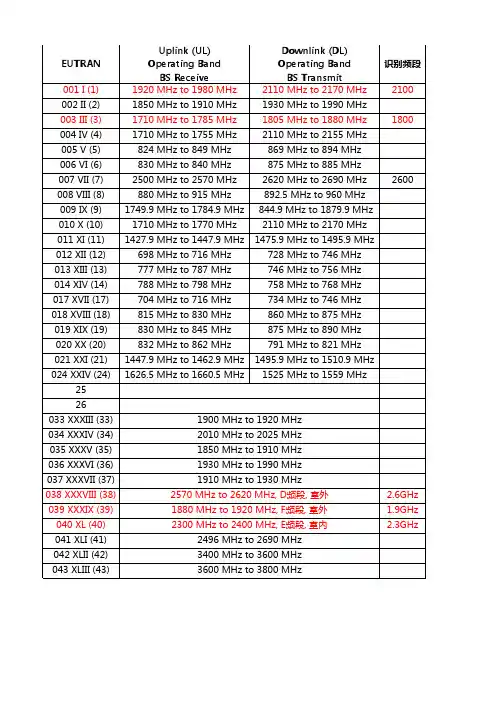

EUTRAN Uplink (UL)Operating Band BS ReceiveDownlink (DL)Operating Band BS Transmit识别频段Duplex Mode ChannelBandwidths (MHz)AliasRegion(s)001 I (1)1920 MHz to 1980 MHz 2110 MHz to 2170 MHz 2100FDD 5, 10, 15, 20UMTS IMT, "2100"Japan, Europe, Asia002 II (2)1850 MHz to 1910 MHz 1930 MHz to 1990 MHz FDD 1.4, 3, 5, 10, 15, 20PCS, "1900"Canada, United States, Latin America 003 III (3)1710 MHz to 1785 MHz 1805 MHz to 1880 MHz 1800FDD 1.4, 3, 5, 10, 15, 20DCS 1800, "1800"Finland,[15] Hong Kong[16][17], Germany [18]004 IV (4)1710 MHz to 1755 MHz 2110 MHz to 2155 MHz FDD 1.4, 3, 5, 10, 15, 20AWS, "1.7/2.1 GHz"Canada, US, Latin America 005 V (5)824 MHz to 849 MHz 869 MHz to 894 MHz FDD 1.4, 3, 5, 10Cellular 850, UMTS850Canada, US, Australia006 VI (6)830 MHz to 840 MHz 875 MHz to 885 MHz FDD5, 10UMTS800Japan 007 VII (7)2500 MHz to 2570 MHz 2620 MHz to 2690 MHz 2600FDD 5, 10, 15, 20IMT-E, "2.6 GHz"EU008 VIII (8)880 MHz to 915 MHz 892.5 MHz to 960 MHz FDD 1.4, 3, 5, 10GSM, UMTS900, EGSM900EU, Latin America 009 IX (9)1749.9 MHz to 1784.9 MHz 844.9 MHz to 1879.9 MHz FDD 5, 10, 15, 20UMTS1700Canada, US, Japan 010 X (10)1710 MHz to 1770 MHz 2110 MHz to 2170 MHz FDD 5, 10, 15, 20UMTS, IMT 2000Brazil, Uruguay, Ecuador, Peru 011 XI (11)1427.9 MHz to 1447.9 MHz 1475.9 MHz to 1495.9 MHzFDD 5, 10PDCJapan (Softbank, KDDI, DoCoMo)[19]012 XII (12)698 MHz to 716 MHz 728 MHz to 746 MHz FDD 1.4, 3, 5, 10lower SMH blocks A/B/C US 013 XIII (13)777 MHz to 787 MHz 746 MHz to 756 MHz FDD 5, 10upper SMH block C US 014 XIV (14)788 MHz to 798 MHz 758 MHz to 768 MHz FDD 5, 10upper SMH block DUS017 XVII (17)704 MHz to 716 MHz 734 MHz to 746 MHz FDD 5, 10018 XVIII (18)815 MHz to 830 MHz 860 MHz to 875 MHz FDD 5, 10, 15019 XIX (19)830 MHz to 845 MHz 875 MHz to 890 MHz FDD 5, 10, 15020 XX (20)832 MHz to 862 MHz 791 MHz to 821 MHz FDD 5, 10, 15, 20EU's Digital Dividend 800 MHz EU021 XXI (21)1447.9 MHz to 1462.9 MHz 1495.9 MHz to 1510.9 MHzFDD 5, 10, 15024 XXIV (24)1626.5 MHz to 1660.5 MHz1525 MHz to 1559 MHzFDD 5, 1025FDD 26FDD033 XXXIII (33)TDD 5, 10, 15, 20034 XXXIV (34)TDD 5, 10, 15035 XXXV (35)TDD 1.4, 3, 5, 10, 15, 20036 XXXVI (36)TDD 1.4, 3, 5, 10, 15, 20037 XXXVII (37)TDD 5, 10, 15, 20038 XXXVIII (38) 2.6GHz TDD 5, 10, 15, 20EU039 XXXIX (39) 1.9GHz TDD 5, 10, 15, 20040 XL (40) 2.3GHzTDD 5, 10, 15, 20IMT-2000China, India041 XLI (41)TDD 5, 10, 15, 20042 XLII (42)TDD 5, 10, 15, 20043 XLIII (43)TDD5, 10, 15, 203600 MHz to 3800 MHz1910 MHz to 1930 MHz 2570 MHz to 2620 MHz, D 频段, 室外1880 MHz to 1920 MHz, F 频段, 室外2300 MHz to 2400 MHz, E 频段, 室内2496 MHz to 2690 MHz 3400 MHz to 3600 MHz 1900 MHz to 1920 MHz 2010 MHz to 2025 MHz 1850 MHz to 1910 MHz 1930 MHz to 1990 MHz。
