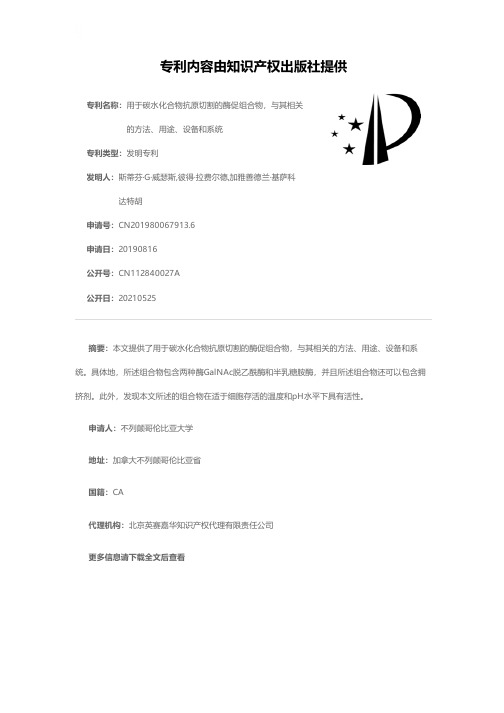

专利名称：用于碳水化合物抗原切割的酶促组合物，与其相关的方法、用途、设备和系统
专利类型：发明专利
发明人：斯蒂芬·G·威瑟斯,彼得·拉费尔德,加雅善德兰·基萨科达特胡
申请号：CN201980067913.6
申请日：20190816
公开号：CN112840027A
公开日：
20210525
专利内容由知识产权出版社提供
摘要：本文提供了用于碳水化合物抗原切割的酶促组合物，与其相关的方法、用途、设备和系统。

具体地，所述组合物包含两种酶GalNAc脱乙酰酶和半乳糖胺酶，并且所述组合物还可以包含拥挤剂。

此外，发现本文所述的组合物在适于细胞存活的温度和pH水平下具有活性。

申请人：不列颠哥伦比亚大学
地址：加拿大不列颠哥伦比亚省
国籍：CA
代理机构：北京英赛嘉华知识产权代理有限责任公司
更多信息请下载全文后查看。

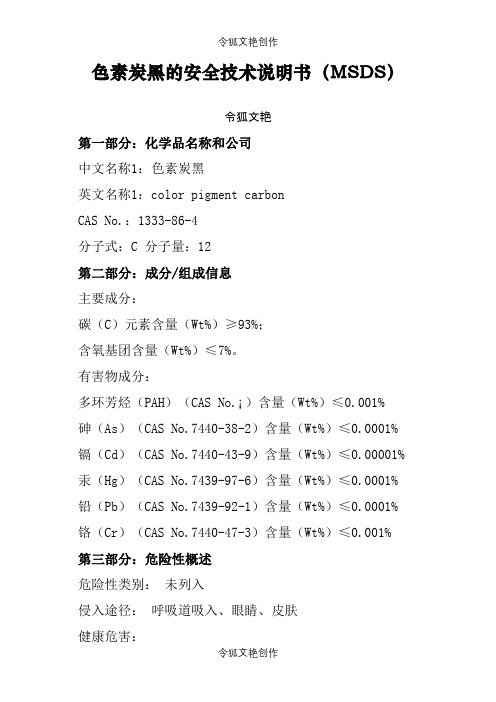

色素炭黑的安全技术说明书（MSDS）令狐文艳第一部分：化学品名称和公司中文名称1：色素炭黑英文名称1：color pigment carbonCAS No.：1333-86-4分子式：C 分子量：12第二部分：成分/组成信息主要成分：碳（C）元素含量（Wt%）≥93%；含氧基团含量（Wt%）≤7%。

有害物成分：多环芳烃（PAH）（CAS No.¡）含量（Wt%）≤0.001%砷（As）（CAS No.7440-38-2）含量（Wt%）≤0.0001%镉（Cd）（CAS No.7440-43-9）含量（Wt%）≤0.00001%汞（Hg）（CAS No.7439-97-6）含量（Wt%）≤0.0001%铅（Pb）（CAS No.7439-92-1）含量（Wt%）≤0.0001%铬（Cr）（CAS No.7440-47-3）含量（Wt%）≤0.001%第三部分：危险性概述危险性类别：未列入侵入途径：呼吸道吸入、眼睛、皮肤健康危害：长期大量地由呼吸道吸入炭黑粉尘，可能最终造成对肺部的损伤。

目前，没有明确的医学报道证明炭黑会引起癌变的结果。

但可以列入如人类的可能致癌的物质。

对眼睛的损伤主要症状是异物刺激感、流泪。

对皮肤主要是皮肤的弄脏和刺激环境危害：炭黑的外泄暴露，除了会弄脏周围环境外没有发现会对环境造成严重的影响或损害。

燃爆危险：在本品工作场所若形成纯炭黑的粉尘环境，可能造成粉尘爆炸。

本品不是易燃物，一般不会被点燃，若较长时间地处于30０℃以上则可能会无明火地缓慢燃烧，同时释出一氧化碳、二氧化碳或极少量的含氮、硫氧化物。

第四部分：急救措施安全介绍：吸入：1. 立即将被污染的患者转移到有大量新鲜空气的场所。

眼睛接触：1. 立即撑开患者被污染眼睛的眼皮用缓和流动的温水冲洗至少5 分钟以上。

2. 用医用¡金霉素¡眼药膏涂抹患者眼睛。

皮肤接触：1. 及时用大量水及温和性肥皂缓和但彻底的清洗。

Pigment carbon black（色素炭黑）色素炭黑色素炭黑颜色黑色在油墨、油漆、涂料等制品中作着色颜料用的炭黑。

按着色强度（或黑度和粒子大小一般分为高色素炭黑、中色素炭黑、普通色素炭黑和低色素炭黑四种主要由接触法和油炉法生产）。

1）炭黑的几个典型参数黑度（反射率）--炭黑黑度通常以”反射率测定仪”测定的数据来表示，在大部分情况下也反映了该炭黑的原始粒径，是衡量该炭黑市场价格的重要参数之一。

反射率越低，炭黑黑度越高，粒径也越小。

反之亦然。

挥发份--炭黑表面携带含氧基团的数量，反映了炭黑的表面物理性能、电化学性能和应用性能，也是衡量该炭黑市场价格的重要参数之一。

结构--炭黑结构是炭黑微粒子聚集体形成的链枝程度的表征值，它表示了炭黑内部的空隙程度。

通常以吸油值（DBP吸收值）表示。

高、低结构炭黑与应用性能之间地关系示意图2）炭黑分散的重要的意义颜料在应用过程中都必须分散到符合光学性能的微粒子状态，炭黑是所有颜料中最难分散的一种颜料之一，因此炭黑分散的好坏会直接影响到炭黑的黑度、色相和遮盖能力，直接影响到用户最终的使用效果。

炭黑的分散过程主要受到三个因素的影响一）炭黑的本质特性：炭黑的原始粒径、结构和表面各种基团都会对分散产生很大的影响通常情况下炭黑的原始粒径小、结构低、挥发份低分散困难，反之则相对容易些。

b）使用者的配方：炭黑使用者的配方，基料、溶剂和树脂的性能都会非常显著地影响炭黑的最终分散情况，尤其是炭黑用树脂的选择。

C）分散设备：不同的分散设备在相同条件下的分散效果是完全不同的。

正确选用分散设备是使用者必须重视的。

3）选择炭黑的基本思路使用者在选择炭黑前首先要考虑的是：你想用炭黑来达到什么要求？着色、调色、抗紫外线还是起导电作用。

最重要的是一定要和炭黑的专业技术工程师进行沟通，共同对物料体系进行技术评价，选择比较合适的炭黑品种。

通常情况是：着色用--选择黑度高、粒径小的炭黑，但一定要保证炭黑经过合理的、完全的分散，否则反而会背道而驰，达不到原来要求。
