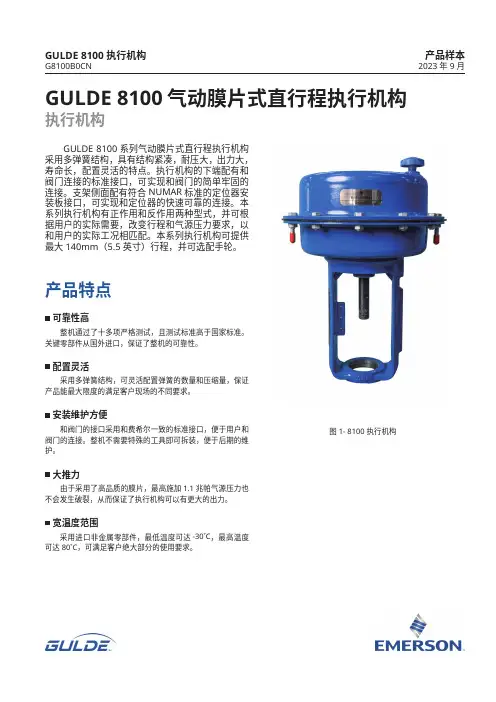

GULDE 8100气动膜片式直行程执行机构执行机构产品样本2023年9月GULDE 8100系列气动膜片式直行程执行机构采用多弹簧结构，具有结构紧凑，耐压大，出力大，寿命长，配置灵活的特点。
执行机构的下端配有和阀门连接的标准接口，可实现和阀门的简单牢固的连接。
支架侧面配有符合NUMAR 标准的定位器安装板接口，可实现和定位器的快速可靠的连接。
本系列执行机构有正作用和反作用两种型式，并可根据用户的实际需要，改变行程和气源压力要求，以和用户的实际工况相匹配。
本系列执行机构可提供最大140mm （5.5英寸）行程，并可选配手轮。
整机通过了十多项严格测试，且测试标准高于国家标准。
关键零部件从国外进口，保证了整机的可靠性。
采用多弹簧结构，可灵活配置弹簧的数量和压缩量，保证产品能最大限度的满足客户现场的不同要求。
和阀门的接口采用和费希尔一致的标准接口，便于用户和阀门的连接。
整机不需要特殊的工具即可拆装，便于后期的维护。
由于采用了高品质的膜片，最高施加1.1兆帕气源压力也不会发生破裂，从而保证了执行机构可以有更大的出力。
采用进口非金属零部件，最低温度可达-30˚C ，最高温度可达80˚C ，可满足客户绝大部分的使用要求。
产品特点可靠性高配置灵活安装维护方便大推力宽温度范围图1- 8100执行机构GULDE 8100执行机构G8100B0CNGULDE 8100执行机构2023年9月8100 基本信息表1： 8100基本信息表2：8100执行结构规格8100产品规格3 2023年9月GULDE 8100执行机构GULDE 8100执行机构2023年9月5 GULDE 8100执行机构2023年9月GULDE 8100执行机构图2- GULDE 8100 反作用结构图3- GULDE 8100 顶装手轮结构图4-GULDE 8100 侧装手轮结构行程限位上膜盖膜片膜片螺栓螺母执行机构推杆支架排气组件弹簧膜片托盘下膜盖排气口阀杆连接器手轮推杆上膜盖片螺栓/螺母膜片托盘下膜盖弹簧组支架手轮固定组件手轮排气组件膜片推杆连接件进气口执行机构推杆阀杆连接器上膜盖膜盖螺栓/螺母手轮执行机构推杆8100典型结构2023年9月7 GULDE 8100执行机构8100安装尺寸图5-结构尺寸图表5：8100安装尺寸2023年9月图6.2 -结构尺寸图5 & 5H YOKE BOSS 底部孔尺寸GULDE 8100执行机构2023年9月图6.1 -结构尺寸图图7-反作用执行机构带手轮图8-正作用执行结构带手轮表6：8100支架尺寸GULDE 8100执行机构9 2023年9月表7：8100手轮外形尺寸产品样本2023年9月GULDE 8100执行机构G8100B0CN艾默生自动化解决方案详情请联系艾默生自动化解决方案阀门分部：北京市朝阳区酒仙桥路 10 号恒通商务园 B10 座四层邮编：100020电话：***********传真：***********GULDE 、Fisher 、FIELDVUE 、ValveLink 、DeltaV 和Baumann 是艾默生电气公司的分公司艾默生自动化解决方案属下其中一家公司拥有的标记。
AS218RX-A AS218TX-AAS218PX-A5014086002EN Instruction Sheet TR Bilgi DökümaniTW 安裝說明 CN安装说明ENThis is an OPEN TYPE module and therefore should be installed in an enclosure free of airborne dust, humidity, electric shock andvibration. The enclosure should prevent non-maintenance staff from operating the device (e.g. key or specific tools are required for operating the enclosure) in case danger and damage on the device may occur.FRCeci est un module ouvert et il doit donc être installé dans un coffret à l’abri des poussières, des vibrations et ne pas être exposé auxchocs électriques. Le boitier ou l’armoire doit éviter toute action d’un personnel autre que celui affecté à la maintenance de l’appareil (par exemple, clefs, outils spécifiques pour l’ouverture du coffret), ceci afin d’éviter tout accident corporel ou endommagement du produit).TRBu ürün AÇIK TİP bir modül olup toz, rutubet, elektrik şoku ve titreşimden uzak kapalı yerlerde muhafaza edilmelidir. Yanlış kullanımsonucu ürünün zarar görmesini önlemek için yetkili olmayan kişiler tarafından ürüne müdahale edilmesini önleyecek koruyucu önlemler alınmalıdır. (Ürünün bulunduğu panoya kilit konulması gibi).TW本機為開放型（OPEN TYPE ）機種，因此使用者使用本機時，必須將之安裝於具防塵、防潮及免於電擊∕衝擊意外之外殼配線箱內。
1Specifications are subject to change without notice.“This product is designed for general industrial use.”7th editionElectro-Pneumatic Valve PositionersModels HEP18/19, HEP28/29OVERVIEWMounted on control valves, HEP Electro-Pneumatic Valve Positioners model HEP18/19/28/29 control valve positions swiftly and accurately by supplying or discharging air from pneumatic actuators in response to input signals from con-trollers.FEATURES•Each model uses a pilot valve that features low air con-sumption and a high capacity. Each single-action model has a stabilizer with three patterns of holes in a pilot base.By rotation switching, it ensures highly sensitive and extremely stable operation with small- to large-capacity actuators.•The magnet is a high-precision moving coil. With aterminal box, it forms an explosion-proof structure. To check the inside, the covers of these models can be re-moved during operation.•The rare-earth metal magnet has excellent magnetic char-acteristics. The moving coil is round and energized by a flat spring. It requires no leads.•Since each model is compact and lightweight, it can beused with even a small actuator. No piping is required because the model KZ03 pressure regulator with filter can be directly attached to the positioner.China RoHSThis device is used in the Oil & Gas, Petrochemical, Chemi-cal, Pulp & Paper, Food & Beverage, Machinery, Steel/Metal & Mining, and Automobile industries and therefore does not fall under the China RoHS Legislation.If this device is used in semiconductor manufacturing equipment, labeling on the device and documents for the China RoHS may be required. If such documents are re-quired, consult an Azbil Corp. representative.SPECIFICATIONSModelsModel HEP18: CCC Explosionproof approval (single action) Model HEP19: CCC Intrinsically safe approval (single action) Model HEP28: CCC Explosionproof approval (double action) Model HEP29: CCCIntrinsically safe approval (double action)Input signals4 to 20 mA DC,Half range (4 to 12 mA DC and 12 to 20 mA DC)Input resistance250 ± 10 Ω (4 to 20 mA DC input)Output characteristicsLinear, equal-percentage, and quick-openingAir supply pressureModel HEP18/19: 140 to 490 kPa {1.4 to 5.0 kgf/cm 2} Model HEP28/29: 200 to 690 kPa {2.0 to 7.0 kgf/cm 2}Air consumptionModel HEP18/194 L/min [N] (steady-state under air supply pressure 140 kPa {1.4 kgf/cm 2})5 L/min [N] (steady-state under air supply pressure 270 kPa {2.8 kgf/cm 2})6 L/min [N] (steady-state under air supply pressure 390 kPa {4.0 kgf/cm 2})Model HEP28/2915 L/min [N] (steady-state under air supply pressure 490 kPa {5.0 kgf/cm 2})Azbil CorporationNo. SS2-HEP180-01002Air connection1/4 NPT internal thread (standard), Rc1/4Electrical connectionG1/2, 1/2 NPT (standard)Ambient temperature rangeModel HEP18/19: -30 to +80 °C Model HEP28/29: -40 to +80 °CAmbient humidity range10 to 90% RHPerformanceAccuracy± 0.5% F.S.Dead bandWithin 0.1% F.S. (model HEP18/19) Within 0.2% F.S. (model HEP28/29)Travel adjustment range10 to 200 mmOperation speed (max.)Model HEP18/19: 4 mm/s (for HA2D and R actuator)Maximum voltage and currentVmax = 30V , Imax = 100 mA (model HEP19/29)Type of protectionCCC Explosionproof approval (model HEP18/28)Explosionproof for Class I, Division 1, Group B, C, D Dust-ignitionproof for Class II, Division 1, Group E, F, G Suitable for combusible fibers; Class III, Division 1 Water-tight, corrosion-tight; NEMA type 3, 4XCCC Intrinsically safe approval (model HEP19/29)Intrinsic Safety for Class I, II, III Division 1 Group A, B, C, D, E, F, GNonincentive for Class I, Division 2, Group A, B, C, D Water-tight, corrosion-tight NEMA 3,4XAdditional mechanism (factory-mounted upon request)Model KZ03 pressure regulator with filterOuter dimensionsRefer to Figure 2 and Table 4.WeightModel HEP18/193.5 kg (4.2 kg with pressure regulator with filter)Model HEP28/294.0 kg (4.7 kg with pressure regulator with filter)HousingAluminum alloyFinish•Standard finish (acrylic-baked)•Corrosion-proof finish (epoxy-baked, Y138B)•Corrosion-proof silver finish (acrylic-baked, Y138D)Note)Silver finish is not suitable in alkaline atmospheres.Standard finish colorsCase: Dark beige (Munsell 10YR 4.7/0.5)Cover: Light beige (Munsell 4Y 7.2/1.3)3No. SS2-HEP180-0100Azbil Corporation 100T r a v e l (%)Input signal (%)100Quick-openingLinearEqual percentage100T r a v e l (%)Input signal (%)100Quick-opening LinearEqual percentagea.Reverse-action actuatorb.Direct-action actuatorFigure 1. Input/Output characteristicsSelection of input/output characteristicsSince control valve flow rate characteristics are set by the selection of valve plug characteristics, select linear as the input/output characteristics of the positioner. However, if the valve plug’s flow rate characteristics, which are determined by the valve type and structure, are not what is required, select equal-percentage or quick-opening. Overall flow rate characteristics of control valve can then be adjusted with the positioner.4Azbil CorporationNo. SS2-HEP180-0100MODEL SELECTIONBasic modelSelectionOption IOption IIHEP1-(1)(2)(3)(4)(5)(6)(7)(8)(9)(10)-(11)(12)-(13)Basic modelSelectionCode HEP18 (CCC Explosionproof)(1)Input signal4 to 20 mA (Accuracy ± 0.5% F.S.)1HEP19 (CCC Intrinsically safe)4 to 12 mA (Accuracy ± 2% F.S.)34 to 12 ± 1 mA (Accuracy ± 2% F.S.)412 to 20 mA (Accuracy ± 2% F.S.)5Note)*1 Not for Japanese local market due to SI unit *2 When replacement, the finish of the existing HEP is corrosion resistant (Y138A), select this code of “S”.*3 When replacement, the finish of the existing HEP is silver paint (Y138C), select this code of “D”.*4 Specification of pressure regulator are selected by supply air pressure, painting and pressure gauge. The pressure regulator with filter must be separated with HEP (on selec-tion 12, choose code “2”) when any of following conditions are matched.• In case, the mounting positionof actuator is not vertical.• In case, other equipments areput between pressure regulator and HEP .• In case, there are conjunctionbetween pressure regulator and HEP .• In case, code “D” on selection13, on Option II is chosen.12 ± 1 to 20 mA (Accuracy ± 2% F.S.)6(2)Air supply pressure 130 ≤ Ps ≤ 150 kPa (Suitable press. gauge scale 200 kPa)1150 < Ps ≤ 300 kPa (Suitable press. gauge scale 400 kPa)2300 < Ps ≤ 400 kPa (Suitable press. gauge scale 600 kPa)3400 < Ps ≤ 450 kPa (Suitable press. gauge scale 600 kPa)4450 < Ps ≤ 500 kPa (Suitable press. gauge scale 1000 kPa)5(3)Unit of pressure gauge kPaA kgf/cm 2 *1B MPaC barD psi *1E (4)Input/output character Linear (Standard)L Equal % (EQ%)E Quick opening (QO)Q (5)Actuator action Direct actionD Reverse actionR (6)Actuator type ---Refer to Table 2(7)Air connectionRc1/4 (Standard)R 1/4NPTN 1/4NPT (with Rc1/4 - 1/4NPT adaptor)A (8)Electricalconnection G1/2 internal G 1/2NPT internalN 1/2NPT internal with G1/2 - 1/2NPT adaptor A (9)FinishStandard finish *2S Corrosion-proof finish (Baked epoxy paint Y138B)B Silver corrosion-resistant finish (Baked acrylic paint Y138D) *3D (10)Positioner action Direct action (Standard)D Reverse actionR Option I(11)Material ofBracket / boltNot attachedX SS400 Zinc plating / SUS304C SUS304 / SUS304D (12)Pressure regulator with filter Regulator type KZ03 (assemble to HEP) *41Regulator type KZ03 (not assemble to HEP) *42No optionXOption II(13)No selectionX Note) *5: The following table shows the standard travel ofsingle type HEP positioner. In case of out of range, please consult with us.Universal elbow, Explosion-proof (G1/2, SUS304)A Press-tight cable packing adaptor (G1/2)Not applicable to 1/2NPT connection in selection (8)B Short travel *5C Auto or manual selector, 3PCBD Stainless filter (SH4040) for pressure regulator with filter F Tropicalization (SP0039)NNo. SS2-HEP180-0100 Azbil Corporation5Azbil Corporation No. SS2-HEP180-0100Basic model Selection Option I Option IIHEP2-(1)(2)(3)(4)(5)(6)(7)(8)(9)(10)-(11)(12)-(13)Basic model Selection Code HEP28 (CCC Explosionproof)(1)Input signal 4 to 20 mA (Accuracy ± 0.5% F.S.)1 HEP29 (CCC Intrinsically safe) 4 to 12 mA (Accuracy ± 2% F.S.)34 to 12 ± 1 mA (Accuracy ± 2% F.S.)4Note)*1 Not for Japanese local market due to SI unit*2 When replacement, the finish of the existing HEP is corrosion resistant (Y138A), select this code of “S”.*3 When replacement, the finish of the existing HEP is silver paint (Y138C), select this code of “D”.*4 Specification of pressure regulator are selected by supply air pressure, painting and pressure gauge. The pressure regulator with filter must be separated with HEP (on selec-tion 12, choose code “2”) when any of following conditions are matched.• In case, the mounting positionof actuator is not vertical.• In case, other equipments areput between pressure regulatorand HEP.• In case, there are conjunctionbetween pressure regulator andHEP.• In case, code “D” on selection13, on Option II is chosen.12 to 20 mA (Accuracy ± 2% F.S.)512 ± 1 to 20 mA (Accuracy ± 2% F.S.)6 (2)Air supply pressure130 < Ps ≤ 150 kPa (Suitable press. gauge scale 200 kPa)1150 < Ps ≤ 300 kPa (Suitable press. gauge scale 400 kPa)2300 < Ps ≤ 400 kPa (Suitable press. gauge scale 600 kPa)3400 < Ps ≤ 450 kPa (Suitable press. gauge scale 600 kPa)4450 < Ps ≤ 500 kPa (Suitable press. gauge scale 1000 kPa)5 (3)Unit of pressuregaugekPa Akgf/cm2 *1BMPa Cbar Dpsi *1E (4)Input/outputcharacterLinear (Standard)LEqual % (EQ%)EQuick opening (QO)Q (5)Actuator action Direct action DReverse action R (6)Actuator type---Refer toTable 3 (7)Air connection Rc1/4 (Standard)R1/4NPT N1/4NPT (with Rc1/4 - 1/4NPT adaptor)A (8)ElectricalconnectionG1/2G1/2NPT N1/2NPT (with G1/2 - 1/2NPT adaptor)A (9)Finish Standard finish *2SCorrosion-proof finish (Baked epoxy paint Y138B)BSilver corrosion-resistant finish (Baked acrylic paintY138D) *3DTable 3. Bracket for double (10)Positioner action Direct action (Standard)DOption I(11)Material ofBracket / bolt Not attached X SS400 Zinc plating / SUS304C SUS304 / SUS304D(12)Pressure regulatorwith filter Regulator type KZ03 (assemble to HEP) *41 Regulator type KZ03 (not assemble to HEP) *42 No option XOption II(13)No selection XUniversal elbow, Explosion-proof (G1/2, SUS304)APress-tight cable packing adaptor (G1/2)Not applicable to 1/2NPT connection in selection (8)BStainless filter (SH4040) for pressure regulator with filter F Tropicalization (SP0039)N6No. SS2-HEP180-0100 Azbil CorporationDIMENSIONS[Unit: mm] a.External dimensions (model HEP18/19)b.External dimensions (model HEP28/29)Figure 2. External dimensions7(13)Please read “Terms and Conditions” from the following URL before ordering and use./products/factory/order.html1-12-2 Kawana, Fujisawa Kanagawa 251-8522 Japan/Specifications are subject to change without notice.No part of this publication may be reproduced or duplicatedwithout the prior written permission of Azbil Corporation.8Azbil CorporationNo. SS2-HEP180-01007th edition: Mar. 2018。
艾默生新一代灵冻™系列涡旋冷凝机组产品手册™系列涡旋冷凝机组节能高效通过采用谷轮涡旋™压缩机技术、变速风扇马达、大容量冷凝盘23变速风扇马达和高效风扇叶片为最大换热量优化的冷凝盘管ZX, ZXB, ZXL 系列专用的电子控制算法在诊断、通讯和保护功能上呈现优势。
提供风速控制、基于本地全年环境温度优化能耗。
ZXD, ZXLD 系列数码容量调节精确控制温度设计特点:• 压缩机运行状态的实时监测• 压缩机反转保护 • 压缩机过电流保护• 压缩机内置电机保护 • 排气过热保护 • 过电压保护 • 欠电压保护• 高压停机• 低压停机 (针对中温机组及数码机组)• 制冷剂回液报警• 压缩机最少停机时间• 温度传感器错误报警• 智能店解决方案: 通讯和监测• 紧急运行模式 (仅20HP)谷轮涡旋压缩机技术 -高效、超静音、高可靠性图1. ZX 平台冷凝机组特点命名规则4ZX 平台冷凝机组特点5配置说明配置代码:4XX - 带铰链门5XX - 不带铰链门6机组外形以下图片给出2-9HP ZX平台冷凝机组的外形介绍。
图2. ZX平台冷凝机组的CoreSense™控制器和其他部件图3. ZX平台冷凝机组的主要部件CoreSense™控制器断路器压缩机接触器电缆槽用户接线端子变压器图4. CoreSense™和智能店模块外形CoreSense TM控制器涡旋压缩机可调低压控制器(ZXD除外)气液分离器油分离器(中温机组可选)储液器视液镜/潮气指示器液管干燥过滤器吸气和液管截止阀储液器出口截止阀压缩机油视镜排气单向阀油分上视镜油分下视镜单向阀板式换热器潮气指示器电子膨胀阀电磁阀维修截止阀7以下图片给出12-16HP ZX 平台冷凝机组的外形介绍和内部结构。
图5. 机组外形图6. 机组的主要部件系统控制器观察口潮气指示器观察口油分上观察口油分下观察口正常油位应该低于上观察口,但高于下观察口。
如果油位低于下观察口,请立即补油。

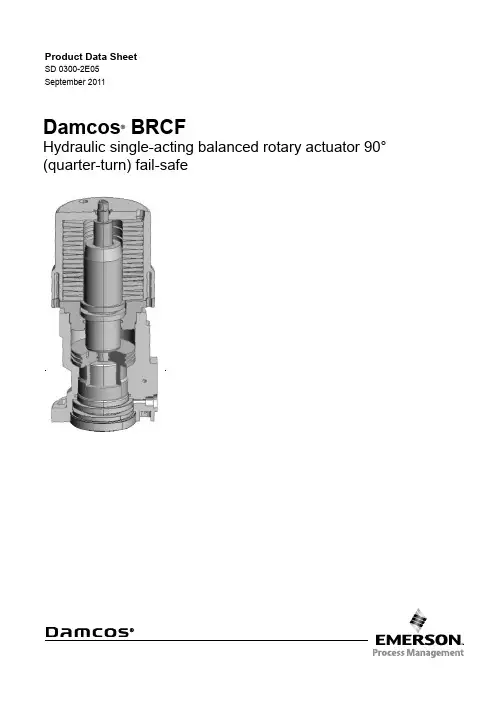

Product Data SheetSD 0300-2E05September 2011Damcos® BRCFHydraulic single-acting balanced rotary actuator 90°(quarter-turn) fail-safeSD 0300-2E04 Nov. 2001Product Data SheetSD 0300-2E05September 2011 Damcos® BRCFThe BRCF actuator for fail-safe operation of quarter-turn valves- Unique and simple design with cross-over valve. - Spring action by means of dished springs.- Easy adaption to all well-known quarter-turn valves.- Reliable and rugged, with more than 30 years service records on basic design.- Compact with high-torque output.- Also for operation in rough environment.- Unlimited mounting positions and with built-inadjustments for end stops of rotary movement.- Balanced rotary principle eliminates side forcesand bending of valve shaft.Actuator mounted with control block andEl-indicator.BRCF - Hydraulic single-acting balanced rotary actuator 90° fail-safeOn request spec. features as:-Flushing valve built into the connectionblockmaking it possible to flush thesystem without disconnection of pipes.-Safety equipment as mechanical lockingdevice of actuator in closed position.2Product Data SheetSD 0300-2E05September 2011Damcos ®BRCF3Control equipmentThe BRCF actuators are designed for pipe connec-tion to the G 1/4 actuator port.For further information please see separate datasheets for the whole range of blocks and otheractuator mounted control components. (Interface for Cetop 3 valves).ClassificationMeets requirements from the major classification and approval authorities like:Det norske VeritasLloyd’s Register of Shipping American Bureau of Shipping- RINA- Russian Register of Shipping - Bureau Veritas- Germanischer Lloyd -U.S. Coast GuardManufactureThe BRCF actuators are manufactured in accor-dance with the guidelines for quality system stated in the ISO standard.After assembly each actuator is flushedaccording to ISO 4406 21/19/16 standard and plugged.Flushing according to ISO 4406 18/16/13 standard can be performed on request.Standard optionals- El on/off or continuous indication IP 68- Connection block with f. ex. filter- Single pilot operated non-return valve - Release valve - Throttle valve- Quick connection for emergency operation with portable hand pump- Built-on emergency operation hand pump -Epoxy coatingOn request spec. features as:- Flushing valve built into the connection block mak ing it possible to flush the system without discon- nection of pipes.- Safety equipment as mechanical locking device ofactuator in closed position.Product Data SheetSD 0300-2E05September 2011Damcos ®BRCFThe Emerson logo is a trademark and service mark of Emerson Electric Co. Damcos and the Damcos logotype are registered trademarks of Damcos A/S. All rights reserved. The contents of this publication are presented for information purposes only, and while effort has been made to ensure their accuracy, they are not to be construed as warranties or guarantees, expressed or implied, regarding the products or services described herein or their use or applicability. All sales are governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs and specifications of our products at any time without notice. Damcos A/S accepts no responsibility for any errors that may appear in this publication.This product is developed and managed by:Emerson Process Management Damcos A/S Aaderupvej 41DK-4700 Naestved T +45 5578 7200F +45 5578 7272For global contacts:/mtm© 2008 Damcos A/STemperature range:-20°C to +80°C, seals NBR (other temp. ranges on request) Housing:GGG 40Piston:GGG 40Output shaft:SS 2142Dished springs:50 CrV4 Indicator shaft:AISI 316Intermediate flange:St 52-3Adapter:SS 2142Coating:Primer: Min. 40 micron, type Hempel EE 13140Top coat: min. 25 micron alkyd, red no. 51320Operating restrictionsPlease observe specific rules and de-mands from the classification societiesand authorities concerning operating pressure and temperature range.(Example - ABS: Max. operating pressure = 20% of burst pressure.)For extreme cycle speeds, loads and lifetime expec-tations please consult manufacturer.Technical specification。
Gripping rotary module GMQ/RMGMQ 12/RM 12 - GMQ 32/RM 25Table of contents: GMQ/RM4GMQ 20/P /RM 16Gripping rotarymodule Possible specifi cationsGMQ gripper actuator GMQ20piston diameter gripper actuator122032Pgripper../K ../P ../P-01RMrotation moduleRM RMZ RMZ../1RMZ../216size rotation module 121625Nomenclature-SetupGMQ/RMGreifantriebAdaptereinheit RotationsmodulGreifzangen../K../P../P-01GMQ 20RM 16../PGMQ 20/P /RM 16The advantage of Afag gripper modules being divided intogripper actuators and grippers comes into full effect with the gripping and rotation modules.The desired gripper actuator is attached via an adapter unit be-hind the rotation module. Therefore, no pneumatic and electri-cal connections rotate during a rotational movement.The grippers are fi tted at the front to the desired rotation mo-dule from Afag‘s wide range of products. This facilitates rotati-onal movement of the grippers.Greifantrieb Greifzangen Adaptereinheit Rotationsmodul gripper actuator grippers adapter unit rotation moduleGripping rotary module GMQ/RMGMQ 12/RM 12Modular combinations No moving tubes or cablesGrippers can be rotated in any position4Dimensions and dimension drawingsGMQ 12/RM 12../P-01../P../KRange summaryGMQ 12/RM 12Operating temperature 0 - 50 °C Storage temperature 0 - 50 °C Humidity< 90 %Grippers..K ..P ..P-01GMQ 12/.. / RM 12-SD Net weight 500021320.838 kg 500021290.908 kg 500021380.934 kg GMQ 12/.. / RM 12Net weight500021310.823 kg 500021280.89 kg 500021370.917 kg GMQ 12/.. / RMZ 12Net weight500021330.71 kg500021300.938 kg500021390.964 kgThe technical data refer to a nominalpressure of 6 bar under Afag standard test conditions.The module can be operated with lubricated or dry air.Cleanroom class ISO 14644-1, class ISO 7Inlcuded in the delivery (Catalogue HT accessories)2x Centering bushing Ø9x4 8x Mounting screw M5x20 2 Mounting screw M6x25 4x Ribbed washer M6 2x Ribbed washer M5 1x Angle plate VW 3024Gripping rotary module GMQ/RMGMQ 20/RM 16Modular combinations No moving tubes or cablesGrippers can be rotated in any position4Dimensions and dimension drawingsGMQ 20/RM 16 ../K../P../P-01Range summaryGMQ 20/RM 16Operating temperature 0 - 50 °C Storage temperature 0 - 50 °C Humidity< 90 %Grippers..K ..P ..P-01GMQ 20/.. / RMZ 16Net weight500947871.828 kg 500947781.909 kg 504103211.862 kg GMQ 20/.. / RMZ 16/2Net weight500947901.988 kg 500947792.069 kg 504103222.022 kg GMQ 20/.. / RM 16-SD Net weight 500947851.638 kg 500947761.719 kg 504103201.672 kg GMQ 20/.. / RM 16Net weight500947841.489 kg500947751.576 kg504103191.489 kgThe technical data refer to a nominalpressure of 6 bar under Afag standard test conditions.The module can be operated with lubricated or dry air.Cleanroom class ISO 14644-1, class ISO 7Inlcuded in the delivery (Catalogue HT accessories)2x Centering bushing Ø9x4 2x Mounting screw M4x18 8x Mounting screw M5x20 4x Mounting screw M6x18 2 Mounting screw M6x25 4x Ribbed washer M4 2x Ribbed washer M5 4x Ribbed washer M6 1x Angle plate VW 3024Gripping rotary module GMQ/RMGMQ 20/RM 25Modular combinations No moving tubes or cablesGrippers can be rotated in any position4Dimensions and dimension drawingsGMQ 20/RM 25 ../K../P../P-01Range summaryGMQ 20/RM 25Operating temperature 0 - 50 °C Storage temperature 0 - 50 °C Humidity< 90 %Grippers..K ..P ..P-01GMQ 20/.. / RMZ 25/1Net weight 500948023.469 kg 500947963.55 kg 504103243.503 kg GMQ 20/.. / RM 25Net weight500948012.779 kg 500947952.866 kg 504103232.779 kg GMQ 20/.. / RMZ 25/2Net weight500948033.539 kg500947973.62 kg504103253.573 kgThe technical data refer to a nominalpressure of 6 bar under Afag standard test conditions.The module can be operated with lubricated or dry air.Cleanroom class ISO 14644-1, class ISO 7Inlcuded in the delivery (Catalogue HT accessories)2x Centering bushing Ø9x4 8x Mounting screw M5x20 2 Mounting screw M6x25 1x Angle plate VW 302 2x Ribbed washer M5 4x Ribbed washer M64Gripping rotary module GMQ/RMGMQ 32/RM 16Modular combinations No moving tubes or cablesGrippers can be rotated in any position4Dimensions and dimension drawingsGMQ 32/RM 16Range summaryGMQ 32/RM 16Operating temperature 0 - 50 °C Storage temperature 0 - 50 °C Humidity< 90 %Grippers..K ..P GMQ 32/.. / RMZ 16/2Net weight500948392.711 kg 500948282.886 kg GMQ 32/.. / RMZ 16Net weight500948382.551 kg 500948272.726 kg GMQ 32/.. / RM 16-SD Net weight 500948352.361 kg 500948262.536 kg GMQ 32/.. / RM 16Net weight500948342.207 kg500948252.357 kgThe technical data refer to a nominalpressure of 6 bar under Afag standard test conditions.The module can be operated with lubricated or dry air.Cleanroom class ISO 14644-1, class ISO 7Inlcuded in the delivery (Catalogue HT accessories)2x Centering bushing Ø9x4 8x Mounting screw M5x20 2 Mounting screw M6x25 2x Ribbed washer M5 4x Ribbed washer M6 1x Angle plate VW 3024Gripping rotary module GMQ/RMGMQ 32/RM 25Modular combinations No moving tubes or cablesGrippers can be rotated in any position4Dimensions and dimension drawingsGMQ 32/RM 25../K../P Handling technology HT Components gripping/turning 199Handling technology HT Components gripping/turningRange summaryGMQ 32/RM 25Operating temperature 0 - 50 °C Storage temperature 0 - 50 °C Humidity< 90 %Grippers..K ..P GMQ 32/.. / RM 25Net weight500948533.449 kg 500948453.599 kg GMQ 32/.. / RMZ 25/2Net weight500948554.265 kg 500948474.44 kg GMQ 32/.. / RMZ 25/1Net weight500948544.195 kg500948464.37 kgThe technical data refer to a nominalpressure of 6 bar under Afag standard test conditions.The module can be operated with lubricated or dry air.Cleanroom class ISO 14644-1, class ISO 7Inlcuded in the delivery (Catalogue HT accessories)2x Centering bushing Ø9x4 8x Mounting screw M5x20 2 Mounting screw M6x25 2x Ribbed washer M5 4x Ribbed washer M6 1x Angle plate VW 3024。

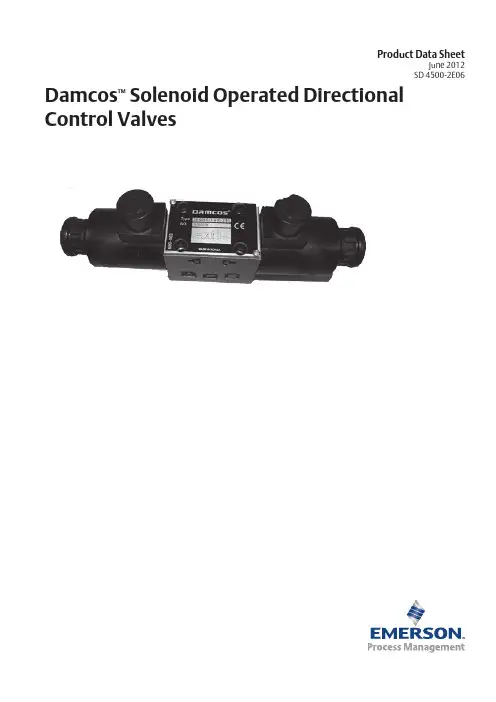

Product Data SheetJune 2012SD 4500-2E06 Damcos™ Solenoid Operated Directional Control ValvesDamcos ™ Solenoid ValveJune 2012General Description and Application AdvantagesBasically, these solenoid operated directional control valves are for directing and stopping flow at any point in a hydraulic system.Efficient control of greater hydraulic powers without increasing solenoid power consumption.Installed cost and space savings from higher power/ weight-and-size ratio.Reduced internal leakage reduces power losses, increases system efficiency: the result of improved manufacture of spools and bores.Installation flexibility resulting from choice of numerous combinations of solenoid connectors and locations. Multi-fluid capability without need to change seals.Higher sustained machine productivity and higher up-time because of proven fatigue life and endurance, tested over 20 million cycles.Construction of a typical single solenoid model.All valves are delivered with manual push-button for local override.VersionsType C6S:4-way, 3-position directional valve, with two solenoids;positioning of spool at rest is obtained with centring springs.Type A3X/H3X4-way, 2-position directional valve, with one solenoid; spool position at rest is obtained with a return spring.Type E3X:4-way, 2 -position directional valve, with two solenoids; with mechanical detent of the extreme spool positions when solenoids are de-energized.Damcos ™ Solenoid ValveJune 20123 Performance ratings(Working with mineral oil of viscosity of 36 cSt at 50°C)Operating LimitsThe curves define the flow rate operating fields according to the solenoid valve pressure with DC and AC solenoids. The values have been obtained with 36 cSt, temperature 50° C, filtration 25µm and with solenoids at rated temperature and supplied with voltage equal to 90% of the nominal voltage.Damcos ™ Solenoid ValveJune 2012Performance CurveDamcos ™ Solenoid ValveJune 20125 DC SolenoidDimensionsAC SolenoidSpace required for coil removalSpace required for coil removalDamcos ™ Solenoid ValveJune 2012Mounting InterfaceISO 4401 size 03ANSI/B93.7M size D03CETOP RP65H size 3DIN 24340 NG6 IEC 144 - IP65Electrical SpecificationsSupply voltage fluctuation: +5% - 10% Vnom Max. switch on frequency: 10.000 ins/hr Duty cycle: 100%Electromagnetic compatibility (EMC):- Emissions: EN 50081-1- Immunities: EN 50082-2Low voltage (in compliance with): 73/23/CEE 96/68/CEE Class of protection acc. to IEC 144:- Atmospheric agents: IP 65- Coil insulation: Class H - Impregnation:Class FOptionalLock for manual override. It is used when mechanical blocking is required in case of service or electrical failure.Damcos ™ Solenoid ValveJune 20127 OrderingAccessoriesProduct Data SheetJune 2012Product NameSD 4500-2E06©2012 Emerson Process Management. All rights reserved.The Emerson logo is a trademark and service mark of Emerson Electric Co. Damcos and the Damcos logotype are registered trademarks of Damcos A/S. Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc. TankRadar, LevelDatic and MAS 2600 are trademarks of Rosemount Tank Radar AB. Damcos A/S and Rosemount Tank Radar AB are members of the Emerson Process Management family of companies. All other marks are the property of their respective owners.The contents of this publication are presented for information purposes only, and while effort has been made to ensure their accuracy, they are not to be construed as warranties orguarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are governed by our terms and conditions, which are available on request. We reserve the right to modify or improve the designs or specifications of our products at any time without notice.Emerson Process Management Damcos A/S Aaderupvej 41 DK-4700 Naestved T +45 5578 7200 F +45 5578 7272/mtm。
