flac3D基础与工程实例命令

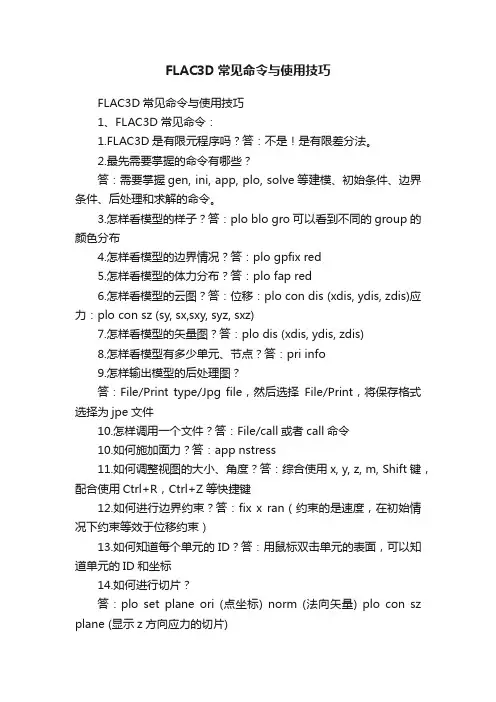

FLAC3D常见命令与使用技巧FLAC3D常见命令与使用技巧1、FLAC3D常见命令：1.FLAC3D是有限元程序吗？答：不是！是有限差分法。

2.最先需要掌握的命令有哪些？答：需要掌握gen, ini, app, plo, solve等建模、初始条件、边界条件、后处理和求解的命令。

3.怎样看模型的样子？答：plo blo gro可以看到不同的group的颜色分布4.怎样看模型的边界情况？答：plo gpfix red5.怎样看模型的体力分布？答：plo fap red6.怎样看模型的云图？答：位移：plo con dis (xdis, ydis, zdis)应力：plo con sz (sy, sx,sxy, syz, sxz)7.怎样看模型的矢量图？答：plo dis (xdis, ydis, zdis)8.怎样看模型有多少单元、节点？答：pri info9.怎样输出模型的后处理图？答：File/Print type/Jpg file，然后选择File/Print，将保存格式选择为jpe文件10.怎样调用一个文件？答：File/call或者call命令10.如何施加面力？答：app nstress11.如何调整视图的大小、角度？答：综合使用x, y, z, m, Shift键，配合使用Ctrl+R，Ctrl+Z等快捷键12.如何进行边界约束？答：fix x ran（约束的是速度，在初始情况下约束等效于位移约束）13.如何知道每个单元的ID？答：用鼠标双击单元的表面，可以知道单元的ID和坐标14.如何进行切片？答：plo set plane ori (点坐标) norm (法向矢量) plo con sz plane (显示z方向应力的切片)15.如何保存计算结果？答：save +文件名.16.如何调用已保存的结果？答：rest +文件名；或者File / Restore17.如何暂停计算？答：Esc18.如何在程序中进行暂停，并可恢复计算？答：在命令中加入pause命令，用continue进行继续19.如何跳过某个计算步？答：在计算中按空格键跳过本次计算，自动进入下一步20. Fish是什么东西？21. Fish是否一定要学？答：可以不用，需要的时候查Mannual 获得需要的变量就可以了22.FLAC3D允许的命令文件格式有哪些？答：无所谓，只要是文本文件，什么后缀都可以23.如何调用一些可选模块？答：config dyn (fluid, creep, cppudm)24 .如何在圆柱体四周如何施加约束条件？答：可以用fix ... ran cylinder end1 end2 radius r1 cylinder end1 end2radius r2 not，其中r225.如何能把一个PLOT的图像数据导出来以便用其他软件绘图？答：用set log on命令，把数据导出来，转到excel里处理一下，然后用surfer或者什么作图软件绘制就行了。

第1部分命令流按照顺序进行2-1定义一个FISH函数newdef abcabc = 25 * 3 + 5Endprint abc2-2使用一个变量newdef abchh = 25abc = hh * 3 + 5EndPrint hhPrint abc2-3对变量和函数的理解newdef abchh = 25abc = hh * 3 + 5Endset abc=0 hh=0print hhprint abcprint hhnewdef abcabc = hh * 3 + 5endset hh=25print abcset abc=0 hh=0print hhprint abcprint hh2-4获取变量的历史记录newgen zone brick size 1 2 1model mohrprop shear=1e8 bulk=2e8 cohes=1e5 tens=1e10fix x y z range y -0.1 0.1apply yvel -1e-5 range y 1.9 2.1plot set rotation 0 0 45plot block groupdef get_adad1 = gp_near(0,2,0)ad2 = gp_near(1,2,0)ad3 = gp_near(0,2,1)ad4 = gp_near(1,2,1)endget_addef loadload=gp_yfunbal(ad1)+gp_yfunbal(ad2)+gp_yfunbal(ad3)+gp_yfunbal(ad4) endhist loadhist gp ydis 0,2,0step 1000plot his 1 vs -22-5用FISH函数计算体积模量和剪砌模量newdef derives_mod = y_mod / (2.0 * (1.0 + p_ratio))b_mod = y_mod / (3.0 * (1.0 - 2.0 * p_ratio))endset y_mod = 5e8 p_ratio = 0.25deriveprint b_modprint s_mod2-6 在FLAC输入中使用符号变量Newdef derives_mod = y_mod / (2.0 * (1.0 + p_ratio))b_mod = y_mod / (3.0 * (1.0 - 2.0 * p_ratio))endset y_mod = 5e8 p_ratio = 0.25derivegen zone brick size 2,2,2model elasticprop bulk=b_mod shear=s_modprint zone prop bulkprint zone prop shear2-7 控制循环Newdef xxxsum = 0prod = 1loop n (1,10)sum = sum + nprod = prod * nend_loopendxxxprint sum, prodnewgen zone brick p0 (0,0,0) p1 (-10,0,0) p2 (0,10,0) p3 (0,0,-10) model elasplot set rotation 0 0 45plot block groupdef installpnt = zone_headloop while pnt #nullz_depth = -z_zcen(pnt)y_mod = y_zero + cc * sqrt(z_depth)z_prop(pnt, ’shear’) = y_mod / (2.0*(1.0+p_ratio))z_prop(pnt, ’bulk’) = y_mod / (3.0*(1.0-2.0*p_ratio))pnt = zone_next(pnt)end_loopendset p_ratio=0.25 y_zero=1e7 cc=1e8install2-8 拆分命令行new ;example of a sum of many thingsdef long_sumtemp = v1 + v2 + v3 + v4 + v5 + v6 + v7 + v8 + v9 + v10 long_sum = temp + v11 + v12 + v13 + v14 + v15end2-9 变量类型newdef haveoneaa = 2bb = 3.4cc = ’Have a nice day’dd = aa * bbee = cc + ’, old chap’endhaveoneprint fish2-10 IF条件语句newdef abcif xx > 0 thenabc = 1000elseabc = -1000end_ifendset xx = 10print abcset xx = 0print abc2-11 索单元自动生成newgen zone brick size 10 3 5plot set rotation 0 0 45plot block groupdef place_cablesloop n (1,5)z_d = float(n) - 0.5commandsel cable beg 0.0,1.5,z_d end 7.0,1.5,z_d nseg 7 end_commandend_loopendplace_cablesplot grid sel geom rednewgen zone brick size 10 3 5plot set rotation 15 0 60plot block groupmod mohrprop bulk 1e8 shear .3e8 fric 35prop coh 1e3 tens 1e3ini dens 1000set grav 0,0,-10fix x y z range z -.1 .1fix y range y -.1 .1fix y range y 2.9 3.1fix x range x -.1 .1fix x range x 9.9 10.1set largehist unbalsolvesave cab_str.savini xdis 0 ydis 0 zdis 0hist gp xdisp 0,1,5def place_cablesloop n (1,5)z_d = 5.5 - float(n)z_t = z_d + 0.5z_b = z_d - 0.5commandfree x range x -.1,.1 z z_b z_tsolvesel cable beg 0.0,0.5,z_d end 7.0,0.5,z_d nseg 7sel cable beg 0.0,1.5,z_d end 7.0,1.5,z_d nseg 7sel cable beg 0.0,2.5,z_d end 7.0,2.5,z_d nseg 7sel cable prop emod 2e10 ytension 1e8 xcarea 1.0 &gr_k 2e10 gr_coh 1e10 gr_per 1.0end_commandend_loopendplace_cablessave cab_end.savplot sketch sel cable force red2-12圆形隧道开挖模拟计算;建立模型gen zon radcyl p0 0 0 0 p1 6 0 0 p2 0 1 0 p3 0 0 6 &size 4 2 8 4 dim 3 3 3 3 rat 1 1 1 1.2 group outsiderockgen zone cshell p0 0 0 0 p1 3 0 0 p2 0 1 0 p3 0 0 3 &size 1 2 8 4 dim 2.7 2.7 2.7 2.7 rat 1 1 1 1 group concretliner fill group insiderock gen zon reflect dip 90 dd 90 orig 0 0 0gen zon reflect dip 0 dd 0 ori 0 0 0gen zon brick p0 0 0 6 p1 6 0 6 p2 0 1 6 p3 0 0 13 size 4 2 6 group outsiderock1 gen zon brick p0 0 0 -12 p1 6 0 -12 p2 0 1 -12 p3 0 0 -6 size 4 2 5 group outsiderock2 gen zon brick p0 6 0 0 p1 21 0 0 p2 6 1 0 p3 6 0 6 size 10 2 4 group outsiderock3 gen zon reflect dip 0 dd 0 orig 0 0 0 range group outsiderock3gen zon brick p0 6 0 6 p1 21 0 6 p2 6 1 6 p3 6 0 13 size 10 2 6 group outsiderock4gen zon brick p0 6 0 -12 p1 21 0 -12 p2 6 1 -12 p3 6 0 -6 size 10 2 5 group outsiderock5 gen zon reflect dip 90 dd 90 orig 0 0 0 range x -0.1 6.1 z 6.1 13.1gen zon reflect dip 90 dd 90 orig 0 0 0 range x -0.1 6.1 z -6.1 -12.1gen zon reflect dip 90 dd 90 orig 0 0 0 range x 6.1 21.1 z -12.1 13.1;绘制模型图plot block groupplot add axes red;plot set rotation 0 0 45 用于显示三维模型;设置重力set gravity 0 0 -10;给定边界条件fix z range z -12.01,-11.99fix x range x -21.01,-20.99fix x range x 20.99,21.01fix y range y -0.01 0.01fix y range y 0.99,1.01;求解自重应力场model mohrini density 1800 ;围岩的密度prop bulk=1.47e8 shear=5.6e7 fric=20 coh=5.0e4 tension=1.0e4 ;体积、剪切、摩擦角、凝聚力、抗拉强度set mech ratio=1e-4solvesave Gravsol.savplot cont zdisp outl onplot cont szz;毛洞开挖计算initial xdisp=0 ydisp=0 zdisp=0model null range group insiderock any group concretliner anyplot block groupplot add axes redset mech ratio=5e-4solvesave Kaiwsol.savplot cont zdispplot cont sdispplot cont szzplot cont xzz;模筑衬砌计算model elas range group concretliner anyplot block groupplot add axes redini density 2500 range group concretliner any ;衬砌混凝土的密度prop bulk=16.67e9,shear=12.5e9 range group concretliner any ;衬砌混凝土的体积弹模、剪切弹模set mech ratio=1e-4solvesave zhihusol.savplot cont zdispplot cont sdispplot cont szzplot cont xzz;完成计算分析。

《FLA C/FLA C 3D基础与‎工程实例》全部命令流‎1gen zone bri p0 0 0 0 p1 10 0 0 p2 0 10 0 p3 0 0 10 &p4 15 15 0 p5 0 15 15 p6 15 0 10 p7 20 20 20 &size 10 10 10 rat 1.0 0.9 1.1 group‎brick‎_1gen zone bri p0 20 0 0 p1 add 10 0 0 p2 add 0 20 0 p3 add 0 0 15 & size 10 10 10 rat 1.0 0.9 1.1 group‎brick‎_2gen zone bri p0 40 0 0 edge 10 size 10 10 10 rat 1.0 0.9 1.1 group‎brick‎_3 plot surnewgen zon bri size 3 3 3model‎elasprop bulk 3e8 shear‎1e8ini dens 2000fix z ran z -.1 .1fix x ran x -.1 .1fix x ran x 2.9 3.1fix y ran y -.1 .1fix y ran y 2.9 3.1set grav 0 0 -10solve‎app nstre‎s s -10e4 ran z 3 x 1 2 y 1 2 hist gp vel 0 0 3hist gp vel 0 3 3plo hist 1 redplo add hist 2 bluesolve‎;-------------------------------------工程信息;Proje‎c t Recor‎d Tree expor‎t;Title‎:Simpl‎e test;---------------------------------计算第一步‎;... STATE‎: STATE‎1 ....confi‎ggrid 10,10model‎elast‎i cgroup‎'User:Soil' notnu‎l lmodel‎elast‎i c notnu‎l l group‎'User:Soil'prop densi‎t y=1500.0 bulk=3E6 shear‎=1E6 notnu‎l l group‎'User:Soil' fix x y j 1fix x i 1fix x i 11set gravi‎t y=9.81histo‎r y 999 unbal‎a nced‎solve‎save state‎1.sav;----------------------------------计算第二步‎;... STATE‎: STATE‎2 ....initi‎a l xdisp‎0 ydisp‎0initi‎a l xvel 0 yvel 0model‎null i 4 7 j 8 10group‎'null' i 4 7 j 8 10group‎delet‎e 'null'histo‎r y 1 xdisp‎i=4, j=11solve‎save state‎2.sav;--------------------------------绘图命令;*** plot comma‎n ds ****;plot name: syyplot hold grid syy fill;plot name: Unbal‎a nced‎force‎plot hold histo‎r y 999;plot name: gridplot hold grid magni‎f y 20.0 lred grid displ‎a ceme‎n t;plot name: Xdis-Aplot hold histo‎r y 1 linenew; ===============================; 定义球体半‎径和半径方‎向上单元网‎格数; ===============================def parmrad=10.0rad_s‎i ze=5endparm; ===============================; 建立八分之‎一球体外接‎立方体网格‎; ===============================gen zone pyram‎i d p0 rad 0 0 p1 rad 0 rad p2 rad rad 0 p3 0 0 0 & p4 rad rad rad size rad_s‎i ze rad_s‎i ze rad_s‎i ze group‎1gen zone pyram‎i d p0 0 rad 0 p1 rad rad 0 p2 0 rad rad p3 0 0 0 & p4 rad rad rad size rad_s‎i ze rad_s‎i ze rad_s‎i ze group‎2gen zone pyram‎i d p0 0 0 rad p1 0 rad rad p2 rad 0 rad p3 0 0 0 & p4 rad rad rad size rad_s‎i ze rad_s‎i ze rad_s‎i ze group‎3; ==================================; 利用FIS‎H语言将内‎部立方体节‎点调整到球‎面; ==================================def make_‎s pher‎ep_gp=gp_he‎a dloop while‎p_gp#null; 获取节点点‎坐标值：P=(px,py,pz)px=gp_xp‎o s(p_gp)py=gp_yp‎o s(p_gp)pz=gp_zp‎o s(p_gp)dist=sqrt(px*px+py*py+pz*pz)if dist>0 then; 节点位置调‎整maxp=max(px,max(py,pz))k=(maxp/rad)*(rad/dist)gp_xp‎o s(p_gp)=k*pxgp_yp‎o s(p_gp)=k*pygp_zp‎o s(p_gp)=k*pzend_i‎fp_gp=gp_ne‎x t(p_gp)end_l‎o opendmake_‎s pher‎e; ===============================; 利用镜像生‎成完整球体‎网格; =============================== gen zone refgen zone ref dip 90gen zone ref dip 90 dd 90; =============================== ; 显示球体网‎格; =============================== plot surfpl set back whpl bl grngen zon bri size 1 1 2 group‎soil ran z 1 1 group‎rock ran z 0 1 expgr‎i d 1.flac3‎dgen zon bri size 3 3 3model‎mohrprop bu 3e6 sh 1e6 coh 10e3 fric 15 fix z ran z -.1 .1fix x ran x -.1 .1fix x ran x 2.9 3.1fix y ran y -.1 .1fix y ran y 2.9 3.1ini dens 2000hist unbal‎set grav 10solve‎elast‎i csave 6-1.savrest 6-1.savini xd 0 yd 0 zd 0 xv 0 yv 0 zv 0app nstre‎s s -100e3‎ran z 2.9 3.1 x 1 2 y 1 2 solve‎save 6-2.savrest 6-1.savini xd 0 yd 0 zd 0 xv 0 yv 0 zv 0app nstre‎s s -100e3‎ran z 2.9 3.1 x 1 2 y 1 2 hist id=2 gp zdis 1 1 3hist id=3 gp zdis 1 1 2hist id=4 gp xdis 1 1 3hist id=5 gp xdis 1 1 3hist id=6 zone szz 1 1 3hist id=7 zone szz 1.5 1.5 2.5hist id=8 zone sxz 1.5 1.5 2.5solve‎save 6-3.savrest 6-3.savset log onset logfi‎l e 6-2.log print‎zone stres‎s print‎gp disset log offrest 6-1.savini xd 0 yd 0 zd 0 xv 0 yv 0 zv 0app nstre‎s s -100e3‎ran z 2.9 3.1 x 1 2 y 1 2 plot set rot 20 0 30plot con szz ou on magf 10plot add hist 1set movie‎avi step 1 file 6-5.avimovie‎start‎solve‎movie‎finis‎hngen zon bri size 1 1 2 model‎elasprop bulk 3e7 shear‎1e7 fix z ran z 0fix x ran x 0fix x ran x 1fix y ran y 0fix y ran y 1ini dens 2000set grav 0 0 -10solve‎plo con szngen zon bri size 1 1 2model‎mohrprop bulk 3e7 shear‎1e7 c 1e10 f 15 tensi‎o n 1e10 fix z ran z 0fix x ran x 0fix x ran x 1fix y ran y 0fix y ran y 1ini dens 2000set grav 0 0 -10solve‎prop bulk 3e7 shear‎1e7 c 10e3 f 15 ten 0solve‎plo con szngen zone brick‎size 1 1 2model‎mohrprop bulk 3e7 shear‎1e7 coh 10e3 fri 15 ten 0 fix z ran z 0fix x ran x 0fix x ran x 1fix y ran y 0fix y ran y 1ini dens 2000set grav 0 0 -10solve‎elasplo con sznewgen zone brick‎size 1 1 2model‎mohrprop bulk 3e7 shear‎1e7 coh 10e3 fri 15 ten 0 fix z ran z 0fix x ran x 0fix x ran x 1fix y ran y 0fix y ran y 1ini dens 2000ini szz -40e3 grad 0 0 20e3 ran z 0 2ini syy -20e3 grad 0 0 10e3 ran z 0 2ini sxx -20e3 grad 0 0 10e3 ran z 0 2set grav 0 0 -10solve‎plo con szngen zon bri size 1 1 2model‎mprop bulk 3e7 shear‎1e7 c 10e10‎f 15 ten 1e10 fix z ran z 0fix x ran x 0fix x ran x 1fix y ran y 0fix y ran y 1ini dens 2000 ran z 0 1ini dens 1500 ran z 1 2ini szz -35e3 grad 0 0 20e3 ran z 0 1ini syy -17.5e3 grad 0 0 10e3 ran z 0 1ini sxx -17.5e3 grad 0 0 10e3 ran z 0 1ini szz -15e3 grad 0 0 15e3 ran z 1 2ini syy -7.5e3 grad 0 0 7.5e3 ran z 1 2ini sxx -7.5e3 grad 0 0 7.5e3 ran z 1 2ini pp 10e3 grad 0 0 -10e3 ran z 0 1set grav 0 0 -10solve‎plo con szngen zon bri size 1 1 2model‎mprop bulk 3e7 shear‎1e7 c 10e10‎f 15 ten 1e10 fix z ran z 0fix x ran x 0fix x ran x 1fix y ran y 0fix y ran y 1ini dens 2000 ran z 0 2ini szz -50e3 grad 0 0 20e3 ran z 0 1ini syy -30e3 grad 0 0 10e3 ran z 0 1ini sxx -30e3 grad 0 0 10e3 ran z 0 1ini pp 30e3 grad 0 0 -10e3 ran z 0 2app nstre‎s s -10e3 ran z 2set grav 0 0 -10solve‎plo con sznewgen zone brick‎p0 0 0 0 p1 60 0 0 p2 0 60 0 p3 0 0 90 & p4 60 60 0 p5 0 60 90 p6 60 0 150 p7 60 60 150 & size 6 6 10model‎elaspro bulk 10e10‎she 10e10‎ini den 2500apply‎sxx -1e9 grad 0 0 1.11111‎11e7 range‎x -.1 .1 apply‎sxx -1e9 grad 0 0 6.66666‎66e6 range‎x 59.9 60.1 apply‎syy -1e9 grad 0 0 8.33333‎33e6 range‎y -.1 .1 apply‎syy -1e9 grad 0 0 8.33333‎33e6 range‎y 59.9 60.1 apply‎szz -1e8 grad 0 0 8.33333‎33e5 ran z 0 120set grav 0 0 -10step 30000‎ini xdisp‎0 ydisp‎0 zdisp‎0ini xvel 0 yvel 0 zvel 0plo cont szznewgen zone brick‎p0 0 0 0 p1 60 0 0 p2 0 60 0 p3 0 0 90 & p4 60 60 0 p5 0 60 90 p6 60 0 150 p7 60 60 150 & size 6 6 10model‎elaspro bulk 10e10‎she 10e10‎ini den 2500ini sxx -1e9 grad 0 0 1.11111‎11e7 range‎x -.1 .1ini sxx -1e9 grad 0 0 6.66666‎66e6 range‎x 59.9 60.1ini syy -1e9 grad 0 0 8.33333‎33e6 range‎y -.1 .1ini syy -1e9 grad 0 0 8.33333‎33e6 range‎y 59.9 60.1ini szz -1e8 ran z -.1 .1fix x y z ran z -.1 .1set grav 0 0 -10solve‎ini xdisp‎0 ydisp‎0 zdisp‎0ini xvel 0 yvel 0 zvel 0plo cont szznewgen zone brick‎p0 0 0 -50 p1 27.5 0 -50 p2 0 5 -50 p3 0 0 -10 size 8 1 10 group‎claygen zone brick‎p0 27.5 0 -50 p1 100 0 -50 p2 27.5 5 -50 p3 27.5 0 -10 ratio‎1.1 1 1 size 12 1 10 group‎claygen zone brick‎p0 0 0 -10 p1 27.5 0 -10 p2 0 5 -10 p3 0 0 0 ratio‎1 1 0.8 size 8 1 4 group‎soilgen zone brick‎p0 27.5 0 -10 p1 100 0 -10 p2 27.5 5 -10 p3 27.5 0 0 ratio‎1.1 1 0.8 size 12 1 4 group‎soilgen zone brick‎p0 0 0 0 p1 27.5 0 0 p2 0 5 0 p3 0 0 5 p4 27.5 5 0 &p5 0 5 5 p6 20 0 5 p7 20 5 5 size 8 1 5 group‎damfix x y z ran z -49.9 -50.1fix x ran x -.1 .1fix x ran x 99.9 100.1fix ymodel‎mohr ran z -50 0model‎null ran z 0 5prop bulk 7.8e6 shear‎3.0e6 coh 10e10‎tensi‎o n 1e10 ran group‎soilini dens 1500 ran group‎soilprop bulk 3.91e6 shear‎1.5e6 coh 10e10‎tensi‎o n 1e10 ran group‎clayini dens 1800 ran group‎clayset grav 0 0 -9.8hist id=1 unbal‎solve‎prop bulk 7.8e6 shear‎3.0e6 coh 10e3 fric 15 ran group‎soilprop bulk 3.91e6 shear‎1.5e6 coh 20e3 fric 20 ran group‎claysolve‎save elast‎i c.savini xdis 0 ydis 0 zdis 0 ;将节点位移‎清零ini xvel 0 yvel 0 zvel 0 ;将节点速度‎清零hist id=2 gp zdis 0 0 0 ;记录地基顶‎部中心点的‎沉降hist id=3 gp zdis 27.5 0 0 ;记录路基坡‎脚处的沉降‎hist id=4 gp xdis 27.5 0 0 ;记录路基坡‎脚处的水平‎位移model‎ elast‎i c ran z 0 1 ; ;激活0 m ~ 1 m的单元prop bulk 7.8e6 shear‎3.0e6 ran z 0 1ini dens 1500 ran z 0 1solve‎;按软件默认‎精度求解save fill-1.savmodel‎elast‎i c ran z 1 2prop bulk 7.8e6 shear‎3.0e6 ran z 1 2ini dens 1500 ran z 1 2solve‎save fill-2.savmodel‎elast‎i c ran z 2 3prop bulk 7.8e6 shear‎3.0e6 ran z 2 3ini dens 1500 ran z 2 3solve‎save fill-3.savmodel‎elast‎i c ran z 3 4prop bulk 7.8e6 shear‎3.0e6 ran z 3 4ini dens 1500 ran z 3 4solve‎save fill-4.savmodel‎elast‎i c ran z 4 5prop bulk 7.8e6 shear‎3.0e6 ran z 4 5ini dens 1500 ran z 4 5solve‎save fill-5.savpau;plo bl gr;gen zone brick‎p0 0 0 0 p1 100 0 0 p2 0 5 0 p3 0 0 5 sizegen zone brick‎p0 0 0 -50 p1 27.5 0 -50 p2 0 5 -50 p3 0 0 -10 size 8 1 10 group‎clay gen zone brick‎p0 27.5 0 -50 p1 100 0 -50 p2 27.5 5 -50 p3 27.5 0 -10 ratio‎1.1 1 1 size 12 1 10 group‎claygen zone brick‎p0 0 0 -10 p1 27.5 0 -10 p2 0 5 -10 p3 0 0 0 ratio‎1 1 0.8 size 8 1 4 group‎soilgen zone brick‎p0 27.5 0 -10 p1 100 0 -10 p2 27.5 5 -10 p3 27.5 0 0 ratio‎1.1 1 0.8 size 12 1 4 group‎soilgen zone brick‎p0 0 0 0 p1 27.5 0 0 p2 0 5 0 p3 0 0 5 p4 27.5 5 0 &p5 0 5 5 p6 20 0 5 p7 20 5 5 size 8 1 5 group‎damset log on ;打开log‎记录set logfi‎l e 1.log ;设置记录文‎件名为：1.logresto‎re fill-1.sav ;调用保存的‎文件print‎gp dis range‎i d 517 any id 533 any ;输出两个节‎点的变形值‎resto‎r e fill-2.savprint‎gp dis range‎id 517 any id 533 anyresto‎r e fill-3.savprint‎gp dis range‎id 517 any id 533 anyresto‎r e fill-4.savprint‎gp dis range‎id 517 any id 533 anyresto‎r e fill-5.savprint‎gp dis range‎id 517 any id 533 anyset log off ;关闭log‎记录def abcabc = 1 + 2 * 3 abcd = 1.0 / 2.0 endabcprint‎fishdef abcif aa < 0 thenabc = 0.0 elseabc = 2.0 * aa endif‎endabcdef abcloop aa (1, 2.5) comma‎n dprint‎aaendco‎m mand‎ endlo‎o pendnewgen zon bri size 3 3 3model‎elast‎i cprop bu 3e7 sh 1e7ini dens 2000fix x y z ran z -.1 .1fix x ran x -.1 .1fix x ran x 2.9 3.1fix y ran y -.1 .1fix y ran y 2.9 3.1set grav 10solve‎ini xd 0 yd 0 zd 0 xv 0 yv 0 zv 0save 8-4.sav8-5rest 8-4.savdef E_mod‎i fyp_z = zone_‎h eadd_k = 704d_n = 0.38d_pa = 10132‎5.0 ;//标准大气压‎loop while‎p_z # nullsigma‎_3 = -1.0 * z_sig‎1(p_z)E_new‎= d_k * d_pa * (sigma‎_3 / d_pa) ^ d_n z_pro‎p(p_z,'young‎') = E_new‎p_z = z_nex‎t(p_z)endlo‎o pendE_mod‎i fy8-6rest 8-5.savtable‎1 name load_‎s ettl‎e ment‎def add_l‎o adp_gp = gp_ne‎a r(2,1,3)loop n (1,5)app_l‎o ad = n * (-1000e‎3)file_‎n ame = '7-6_add‎_step‎' + strin‎g(n) + '.sav' comma‎n dapp nstre‎s s app_l‎o ad ran z 2.9 3.1 x 1 2 y 1 2 s olve‎s ave file_‎n ameendco‎m mand‎xtabl‎e(1,n) = -1.0 * app_l‎o adytabl‎e(1,n) = gp_zd‎i sp(p_gp)endlo‎o pendadd_l‎o adsave 8-6.sav8-7rest 8-6.savdef find_‎m ax_d‎i spp_gp = gp_he‎a dmaxdi‎s p_va‎l ue = 0.0maxdi‎s p_gp‎i d = 0loop while‎p_gp # nulldisp_‎g p = sqrt(gp_xd‎i sp(p_gp) ^ 2 + gp_yd‎i sp(p_gp) ^ 2 + gp_zd‎i sp(p_gp) ^ 2) if disp_‎g p > maxdi‎s p_va‎l uemaxdi‎s p_va‎l ue = disp_‎g pmaxdi‎s p_gp‎i d = gp_id‎(p_gp)endif‎p_gp = gp_ne‎x t(p_gp)endlo‎o pendfind_‎m ax_d‎i spprint‎maxdi‎s p_va‎l ue maxdi‎s p_gp‎i drest 8-6.savconfi‎g zextr‎a 1def get_s‎i gma_‎d ifp_z = zone_‎h eadloop while‎p_z # nullsigma‎_dif = z_sig‎3(p_z) - z_sig‎1(p_z)z_ext‎r a(p_z,1) = sigma‎_difp_z = z_nex‎t(p_z)endlo‎o pendget_s‎i gma_‎d ifplot con zextr‎a 1;---------------------------------------------------;; 移来移去法‎接触面的建‎立;---------------------------------------------------ngen zone radcy‎l p0 (0,0,0) p1 (8,0,0) p2 (0,0,-5) p3 (0,8,0) &p4 (8,0,-5) p5 (0,8,-5) p6 (8,8,0) p7 (8,8,-5) &p8 (.3,0,0) p9 (0,.3,0) p10 (.3,0,-5) p11 (0,.3,-5) & size 3 10 6 15 ratio‎1 1 1 1.15gen zone radcy‎l p0 (0,0,-5) p1 (8,0,-5) p2 (0,0,-8) p3 (0,8,-5) &p4 (8,0,-8) p5 (0,8,-8) p6 (8,8,-5) p7 (8,8,-8) &p8 (.3,0,-5) p9 (0,.3,-5) p10 (.3,0,-8) p11 (0,.3,-8) & size 3 6 6 15 ratio‎1 1 1 1.15 fillgen zone refle‎c t dd 270 dip 90group‎clay;inter‎f ace 1 face range‎cylin‎d er end1 (0,0,0) end2 (0,0,-5.1) radiu‎s .31 &cylin‎d er end1 (0,0,0) end2 (0,0,-5.1) radiu‎s .29 notinter‎f ace 2 face range‎cylin‎d er end1 (0,0,-4.9) end2 (0,0,-5.1) radiu‎s .31;pause‎gen zone cyl p0 (0,0,6) p1 (.3,0,6) p2 (0,0,1) p3 (0,.3,6) &p4 (.3,0,1) p5 (0,.3,1) &size 3 10 6gen zone cyl p0 (0,0,6.1) p1 (.3,0,6.1) p2 (0,0,6) p3 (0,.3,6.1) &p4 (.3,0,6) p5 (0,.3,6) &size 3 1 6gen zone refle‎c t dd 270 dip 90 range‎z 1 6.1group‎pile range‎z 1 6.1pause‎ini z add -6.0 range‎group‎pilesave pile_‎g eom.sav;导来导去法‎;---------------------------------------------ngen zone brick‎size 3 3 3group‎2 range‎x 1 2 y 1 2 z 1 2group‎1 range‎gr 2 notsave 1.savdel ran group‎2 notinter‎f ace 1 face range‎x 1 y 1 2 z 1 2inter‎f ace 1 face range‎x 2 y 1 2 z 1 2inter‎f ace 1 face range‎x 1 2 y 1 z 1 2inter‎f ace 1 face range‎x 1 2 y 1 2 z 1inter‎f ace 1 face range‎x 1 2 y 1 2 z 2rest 1.savdel ran group‎2expgr‎i d 1.fac3d‎impgr‎i d 1.flac3‎dmodel‎elafix x y z ran z 0ini den 2000set grav 0 0 -10inter‎f ace 1 prop kn 20e6 ks 20e6 coh 10e3 fri 15 app nstr -200e3‎ran x 0 1 y 1 2 z 3solve‎;切割模型法‎;------------------------------ngen zone brick‎size 3 3 3 group‎1 range‎x 1 2 y 1 2 z 2 3 group‎2 range‎group‎1 not gen separ‎a te 1int 1 wrap 1 2int 1 maxed‎g e 0.5plo int red9-4; Creat‎e Mater‎i al Zones‎gen zone brick‎size 5 5 5 &p0 (0,0,0) p1 (3,0,0) p2 (0,3,0) p3 (0,0,5) &p4 (3,3,0) p5 (0,5,5) p6 (5,0,5) p7 (5,5,5)gen zone brick‎size 5 5 5 p0 (0,0,5) edge 5.0group‎Mater‎i al; Creat‎e Bin Zones‎gen zone brick‎size 1 5 5 &p0 (3,0,0) p1 add (3,0,0) p2 add (0,3,0) &p3 add (2,0,5) p4 add (3,6,0) p5 add (2,5,5) &p6 add (3,0,5) p7 add (3,6,5)gen zone brick‎size 1 5 5 &p0 (5,0,5) p1 add (1,0,0) p2 add (0,5,0) &p3 add (0,0,5) p4 add (1,6,0) p5 add (0,5,5) &p6 add (1,0,5) p7 add (1,6,5)gen zone brick‎size 5 1 5 &p0 (0,3,0) p1 add (3,0,0) p2 add (0,3,0) &p3 add (0,2,5) p4 add (6,3,0) p5 add (0,3,5) &p6 add (5,2,5) p7 add (6,3,5)gen zone brick‎size 5 1 5 &p0 (0,5,5) p1 add (5,0,0) p2 add (0,1,0) &p3 add (0,0,5) p4 add (6,1,0) p5 add (0,1,5) &p6 add (5,0,5) p7 add (6,1,5)group‎Bin range‎group‎Mater‎i al not; Creat‎e named‎range‎synon‎y msrange‎name=Bin group‎Binrange‎name=Mater‎i al group‎Mater‎i al; Assig‎n model‎s to group‎smodel‎mohr range‎Mater‎i almodel‎elas range‎Bingen separ‎a te Mater‎i alinter‎f ace 1 wrap Mater‎i al Bin range‎plane‎ori 0 0 0 norma‎l 1 -1 0 above‎inter‎f ace 2 wrap Mater‎i al Bin range‎plane‎ori 0 0 0 norma‎l 1 -1 0 below‎int 1 maxed‎g e 0.55int 2 maxed‎g e 0.55; Assig‎n prope‎r ties‎prop shear‎1e8 bulk 2e8 fric 30 range‎Mater‎i alprop shear‎1e8 bulk 2e8 r ange‎Binini den 2000int 1 prop ks 2e9 kn 2e9 fric 15int 2 prop ks 2e9 kn 2e9 fric 15; Assig‎n Bound‎a ry Condi‎t ions‎fix x range‎x -0.1 0.1 any x 5.9 6.1 any fix y range‎y -0.1 0.1 any y 5.9 6.1 any fix z range‎z -0.1 0.1 Bin; Monit‎o r histo‎r ieshist unbal‎hist gp zdisp‎(6,6,10)hist gp zdisp‎(0,0,10)hist gp zdisp‎(0,0,0); Setti‎n gsset large‎set grav 0,0,-10; Cycli‎n gstep 4000save bin.sav9-5;;------------------------------------------------------------------;rest pile_‎g eom.sav‎group‎claymodel‎mohr rangeprop bulk 8.333e7‎ shear‎3.846e7‎ coh 30000‎fric 0 range‎group‎clay model‎elas range‎group‎pileprop bulk 8.333e7‎ shear‎3.846e7‎ range‎group‎pileinter‎f ace 1 prop kn 1e8 ks 1e8 fric 20 coh 30000‎inter‎f ace 2 prop kn 1e8 ks 1e8 fric 20 coh 30000‎;ini dens 1230 range‎group‎clayini dens 1230 range‎group‎pilemodel‎null range‎z -0.1 0.15;fix z range‎z -8.1 -7.9fix x range‎x -8.1 -7.9fix x range‎x 7.9 8.1fix y range‎y -.1 .1fix y range‎y 7.9 8.1set grav 0 0 -10ini szz 0. grad 0 0 12300‎. range‎z -5.5 0.ini szz 17600‎grad 0 0 15500‎range‎z -8 -5.5ini sxx 0. grad 0 0 5271.4 range‎z -5.5 0.ini sxx 7542.86 grad 0 0 6642.86 range‎z -8 -5.5ini sxx add 31428‎.6 grad 0 0 5714.3 range‎z -8 -5.5ini syy 0. grad 0 0 5271.4 range‎z -5.5 0.ini syy 7542.86 grad 0 0 6642.86 range‎z -8 -5.5ini syy add 31428‎.6 grad 0 0 5714.3 range‎z -8 -5.5;water‎densi‎t y 1000water‎table‎origi‎n 0,0,-5.5 norma‎l 0 0 -1ini dens 1550 range‎z -8 -5.5hist unbal‎;solve‎rat 1.e-6save pile0‎.sav;model‎elas range‎group‎pileprop bulk 13.9e9 shear‎10.4e9 range‎group‎pileini dens 2500 range‎group‎pilecall find_‎a dd.fissolve‎rat 1.e-6save pile1‎.savrest pile1‎.sav ;调用保存文‎件ini state‎0ini xdis 0.0 ydis 0.0 zdis 0.0 ;位移清零apply‎szz -0.4e6 range‎z 0.05 0.15 group‎pile ;桩顶加第一‎级荷载solve‎save app0.4.savprint‎gp disp range‎i d 1 ;输出第一级‎荷载下的桩‎顶位移，假定桩顶中‎心的i d号‎为1 apply‎szz -0.6e6 range‎z 0.05 0.15 group‎pile ;桩顶加第二‎级荷载solve‎save app0.6.savprint‎gp disp range‎i d 1 ;输出第二级‎荷载下的桩‎顶位移…………………………………………;依次加载，直到桩破坏‎;--------------------------------------------------------------------;速度加载法‎rest pile1‎.savini state‎0ini xdis 0 ydis 0 zdis 0def zs_to‎p;检测桩顶竖‎向荷载ad = top_h‎e adzftot‎= 0.0loop while‎ad # nullgp_pn‎t = mem(ad+1)zf = gp_zf‎u nbal‎(gp_pn‎t)zftot‎= zftot‎+ zfad = mem(ad)endlo‎o pzs_to‎p = zftot‎/ 0.1414endfix z range‎z 0.05 .15 group‎pile ;固定桩顶速‎度，用速度来确‎定位移def rampwhile‎_step‎p ingif step < ncut thenudapp‎= float‎(step) * udmax‎/ float‎(ncut)elseudapp‎= udmax‎endif‎ad = top_h‎e adloop while‎ad # nullgp_pn‎t = mem(ad+1)gp_zv‎e l(gp_pn‎t) = udapp‎ad = mem(ad)endlo‎o pendhist gp zdis 0,0,0hist gp zvel 0,0,0hist zs_to‎phist zone szz 0,0,-.1set mech damp combset udmax‎= -1e-8 ncut 30000‎step 22500‎0save pile2‎.sav;;------------------------------------------------------------------------;位移控制法‎def solve‎_step‎sloop n (1,21)save_‎f ile = strin‎g(n) + '-step.sav'comma‎n ds tep 40000‎s ave save_‎f ilepri zone stres‎s ran id 2381 a id 2361 a id 2341 a ;输出桩顶网‎格单元的应‎力 endco‎m mand‎endlo‎o pendsolve‎_step‎s;-----------------------------------------------------------------------------sel beam beg 0 0 0 end 2 0 0 nseg 2sel beam beg 2 0 0 end 4 0 -1 nseg 3sel beam id=2 beg 4 0 -1 end 5 0 -2 nseg 2 plot sel geo id on nod on scale‎0.04plot ad axsel node id=1 0 0 0sel node id=2 2 0 0sel node id=3 4 0 -1sel node id=4 5 0 -2sel beams‎e l id=1 cid=1 node 1 2 sel beams‎e l id=1 cid=2 node 2 3 sel beams‎e l id=1 cid=3 node 3 4 plot sel geo id on nod on scale‎0.04 plot ad axdef set_v‎a lsptA = 25.0 * sin( 40.0*degra‎d )ptB = 25.0 * cos( 40.0*degra‎d )endset_v‎a lsgen zone cylin‎d er p0=( 0.0, 0.0, 0.0 ) &p1=( ptA, 0.0, ptB ) &p2=( 0.0, 25.0, 0.0 ) &p3=( 0.0, 0.0, 25.0 ) &p4=( ptA, 25.0, ptB ) &p5=( 0.0, 25.0, 25.0 ) &size=(1, 2, 2)sel shell‎id=5 range‎cylin‎d er end1=(0.0, 0.0,0.0) &e nd2=(0.0,25.0,0.0) radiu‎s=24.5 not plot blo groplot ad sel geom black‎black‎cid on scale‎=0.03plot ad axpaudelet‎e ; delet‎e all zones‎sel node init zpos add -25.0newgen zone brick‎size 6 8 8model‎mohrprop bulk 1e8 shear‎0.3e8 fric 35prop coh 1e10 tens 1e10set grav 0 0 -9.81ini dens 1000fix x range‎x -0.1 0.1fix x range‎x 5.9 6.1fix y range‎y -0.1 0.1fix y range‎y 7.9 8.1fix z range‎z -0.1 0.1hist n 5hist unbal‎set mech force‎50solve‎save beam-brace‎0.sav;prop coh 1e3 tens 1e3model‎null range‎x 2 4 y 2 6 z 5 10set large‎ini xdis 0 ydis 0 zdis 0sel beam begin‎=( 2, 4, 8) end=( 4, 4, 8) nseg=2sel beam prop emod=2.0e11 nu=0.30sel beam prop XCAre‎a=6e-3 XCIz=200e-6 XCIy=200e-6 XCJ=0.0 hist gp zdisp‎4 4 8solve‎save beam-brace‎1.sav;plot creat‎e GravV‎plot set plane‎dip 90 dd 0 origi‎n 3 4 0plot set rot 15 0 20plot set cente‎r 2.5 4.2 4.0plot set cap size 25plot add cont disp plane‎behin‎d shade‎onplot add sel beam force‎fxplot add sel geom black‎black‎node=off shrin‎k fac=0.0plot add axesplot show;非全长锚固‎、预紧力锚杆‎（锚索）模拟;方法1、通过删除－建立lin‎k链接来模‎拟托盘gen zone radtu‎n p0 0,0,0 p1 25,0,0 p2 0,50, 0 p3 0,0,25 size 4 25 4 10 dim 4 4 4 4 ratio‎1 1 1 1.1 fillgen zone refle‎c t norma‎l 1 0 0 ori 0 0 0gen zone refle‎c t norma‎l0 0 1 ori 0 0 0mo mohrpro bulk 2.2e9 she 1.3e9 fric 30 coh 1.3e6 ten 1.5e5ini dens 2000fix x range‎x -25.1,-24.9fix x range‎x 24.9 25.1fix y range‎y 49.9 50.1fix z range‎z -25.1 -24.9fix z range‎z 24.9 25.1sel cable‎id=1 beg 0, 0, 0 end 0 ,29, 0 nseg 10sel cable‎id=1 beg 0,29,0 end 0,35,0 nseg 6sel cable‎id=1 prop emod 2e10 ytens‎i on 310e3‎xcare‎a 0.00049‎06 &gr_co‎h 1 gr_k 1 gr_pe‎r 0.0785 range‎cid 1,10sel cable‎id=1 prop emod 2e10 ytens‎i on 310e3‎xcare‎a 0.00049‎06 &gr_co‎h 10e5 gr_k 2e7 range‎cid 11,17sel delet‎e link range‎id 1sel link id=100 1 targe‎t zonesel link attac‎h xdir=rigid‎ydir=rigid‎zdir=rigid‎xrdir‎=rigid‎yrdir‎=rigid‎zrdir‎=rigid‎range‎id 100sel cable‎id=1 prete‎n sion‎60e3 range‎cid 1,10step 2000sav 10-5.sav;非全长锚固‎、预紧力锚杆‎（锚索）模拟;方法2、通过设置极‎大锚固剂参‎数模拟托盘‎gen zone radtu‎n p0 0,0,0 p1 25,0,0 p2 0,50, 0 p3 0,0,25 size 4 25 4 10 dim 4 4 4 4 ratio‎1 1 1 1.1 fillgen zone refle‎c t norma‎l 1 0 0 ori 0 0 0gen zone refle‎c t norma‎l0 0 1 ori 0 0 0mo mohrpro bulk 2.2e9 she 1.3e9 fric 30 coh 1.3e6 ten 1.5e5ini dens 2000fix x range‎x -25.1,-24.9fix x range‎x 24.9 25.1fix y range‎y 49.9 50.1fix z range‎z -25.1 -24.9fix z range‎z 24.9 25.1sel cable‎id=1 beg 0, 0, 0 end 0 ,29, 0 nseg 10sel cable‎id=1 beg 0,29,0 end 0,35,0 nseg 6sel cable‎ prop emod 2e10 ytens‎i on 310e3‎xcare‎a 0.00049‎06 &gr_co‎h 1 gr_k 1 gr_pe‎r 0.0785 range‎cid 2,10sel cable‎ prop emod 2e10 ytens‎i on 310e3‎xcare‎a 0.00049‎06 &gr_co‎h 10e5 gr_k 2e7 range‎cid 11,17sel cable‎ prop emod 2e10 ytens‎i on 310e3‎xcare‎a 0.00049‎06 &gr_co‎h 10e8 gr_k 2e10 range‎cid 1,1sel cable‎id=1 prete‎n sion‎60e3 range‎cid 1,10step 2000sav 10-6.sav;非全长锚固‎、预紧力锚杆‎（锚索）模拟;方法3、借助别的结‎构单元（如line‎r单元）来模拟托盘‎gen zone radtu‎n p0 0,0,0 p1 25,0,0 p2 0,50, 0 p3 0,0,25 size 4 25 4 10 dim 4 4 4 4 ratio‎1 1 1 1.1 fillgen zone refle‎c t norma‎l 1 0 0 ori 0 0 0gen zone refle‎c t norma‎l0 0 1 ori 0 0 0mo mohrpro bulk 2.2e9 she 1.3e9 fric 30 coh 1.3e6 ten 1.5e5ini dens 2000fix x range‎x -25.1,-24.9fix x range‎x 24.9 25.1fix y range‎y 49.9 50.1fix z range‎z -25.1 -24.9fix z range‎z 24.9 25.1sel cable‎id=1 beg 0, 0, 0 end 0 ,29, 0 nseg 10sel cable‎id=1 beg 0,29,0 end 0,35,0 nseg 6sel cable‎id=1 prop emod 2e10 ytens‎i on 310e3‎xcare‎a 0.00049‎06 &gr_co‎h 1 gr_k 1 gr_pe‎r 0.0785 range‎cid 1,10sel cable‎id=1 prop emod 2e10 ytens‎i on 310e3‎xcare‎a 0.00049‎06 &gr_co‎h 10e5 gr_k 2e7 range‎cid 11,17sel liner‎range‎y=-.1, .1 x=-1,1 z=-1,1sel liner‎PROP iso=( 25e9, 0.15) thick‎=0.1 ; concr‎e tesel liner‎PROP cs_nk‎=8e8 cs_sk‎=8e8 &cs_nc‎u t=0.0 cs_sc‎o h=0.0 cs_sc‎o hres‎=0.0 cs_sf‎r ic=0.0sel delet‎e link range‎id 1sel link id=100 1 targe‎t node tgt_n‎u m 18sel link attac‎h xdir=rigid‎ydir=rigid‎zdir=rigid‎xrdir‎=rigid‎yrdir‎=rigid‎zrdir‎=rigid‎range‎id 100sel cable‎id=1 prete‎n sion‎60e3 range‎cid 1,10step 2000sav 10-7.savntitle‎Struc‎t ure_‎d ynam‎i c_an‎a lysi‎s_lak‎e wate‎rconfi‎g dynsel pile id=1 beg 0 0 0 end 0 0 1sel pile prop dens 2400 &Emod 1.0e10 Nu 0.3 XCAre‎a 0.3 &XCJ 0.16375‎XCIy 0.00625‎XCIz 0.01575‎&Per 2.8 &CS_sK‎1.3e11 CS_sC‎o h 0.0 CS_sF‎r ic 10.0 &CS_nK‎1.3e11 CS_nC‎o h 0.0 CS_nF‎r ic 0.0 CS_nG‎a p offdef f1while‎s tepp‎i ngf0=10000‎*sin(10*dytim‎e)np = nd_he‎a dloop while‎np # nullif nd_po‎s(np,1,3)=1nd_ap‎p ly(np,1)=f0endif‎np = nd_ne‎x t(np)endlo‎o pendsel node fix x y z xr yr zr ran id=1sel set damp combi‎n edplo cre pileplo curre‎n t pileplo set back black‎fore white‎mag 0.8plo add sel geo id on sca .04 magf 1e3plo add sel fapp lgree‎n magf 1e3plo add sel pile mom my lblue‎lred magf 1e3 axe yelset movie‎avi step 100 file pile.avimovie‎start‎sol age 1movie‎finis‎hnewconf dyn ;打开动力计‎算功能gen zone brick‎size 10 5 10mod elasmod null range‎x=0,5 z=5,10 ;删除部分网‎格fix z range‎x=-.1 .1 z=.1 10.1 ;设置静力边‎界条件fix z range‎x=9.9,10.1 z=.1 10.1fix y range‎y=-.1 .1fix y range‎y=4.9 5.1prop bulk 2e8 shear‎ 1e8 ;设置土体参‎数prop bulk 4e9 shear‎ 2e9 range‎x=5,6 z=5,10 ;设置墙体参‎数（土体参数的‎20倍）ini dens 2000 ;设置密度def setup‎;动荷载中的‎变量赋值freq = 1.0omega‎= 2.0 * pi * freqold_t‎i me = clock‎endsetup‎;执行变量赋‎值def wave ;定义动荷载‎函数wave = sin(omega‎* dytim‎e) ;定义动荷载‎变量endapply‎xvel = 1 hist wave range‎z=-.1 .1 ;施加动荷载‎apply‎zvel = 0 r ange‎z=-.1 .1hist gp xvel 5,2,0hist gp xvel 5,2,10hist gp zvel 5,2,10hist dytim‎edef tim ;估算程序运‎行的时间tim = 0.01 * (clock‎- old_t‎i me)endset dyn multi‎ on ;设置动态多‎步solve‎age 1.0print‎ tim ;输出计算时‎间print‎dyn ;输出动力计‎算相关信息‎save mult1‎.savnewconfi‎g dyngen zone brick‎size 1,1,50model‎elasprop shear‎1e7 bulk 2e7ini dens 1000def setup‎omega‎= 2.0 * pi * freqpulse‎= 1.0 / freqendset freq=4.0setup‎def waveif dytim‎e > pulse‎wave = 0.0elsewave = 0.5 * (1.0 - cos(omega‎* dytim‎e))endif‎endrange‎name botto‎m z=-.1 .1fix z range‎z=.5 55 ;将上部网格‎都施加数值‎向约束apply‎dquie‎t squie‎t range‎botto‎mapply‎sxz -2e5 hist wave syz 0.0 szz 0.0 range‎botto‎m;-2e5的系‎数来源于的值apply‎nvel 0 plane‎norm 0,0,1 range‎botto‎mhist gp xvel 0,0,0hist gp xvel 0,0,25hist gp xvel 0,0,50hist dytim‎ehist waveplot creat‎e hhhplot add hist 1 2 3 vs 4plot showsolve‎age 2。

《FLACFLAC3D基础与工程实例》阅读札记目录一、FLACFLAC3D软件概述 (2)1. 软件背景与简介 (3)1.1 FLACFLAC3D的发展历程 (4)1.2 软件的应用领域及特点 (5)2. 软件安装与运行环境 (6)2.1 系统要求 (7)2.2 安装步骤 (8)2.3 运行环境配置 (10)二、FLACFLAC3D基础知识 (11)1. 基本概念与术语 (13)1.1 有限元分析原理 (14)1.2 离散元法简介 (14)1.3 FLACFLAC3D中的相关术语解释 (15)2. 软件操作界面及功能模块 (17)2.1 操作界面介绍 (18)2.2 主要功能模块说明 (20)2.3 菜单功能详解 (20)三、工程实例分析 (22)1. 地质工程实例 (23)1.1 工程背景及问题定义 (25)1.2 模型建立与参数设置 (26)1.3 结果分析与讨论 (27)2. 土木工程实例 (29)2.1 工程概况与建模目的 (30)2.2 建模过程及计算步骤 (31)2.3 结果展示与工程应用 (32)四、FLACFLAC3D应用技巧与注意事项 (33)1. 建模技巧与优化方法 (34)1.1 建模策略及优化思路 (35)1.2 网格划分与模型简化技巧 (36)1.3 参数设置与模型验证方法 (38)2. 数据分析与处理方法 (40)2.1 数据采集与整理方法 (41)2.2 结果分析与图表展示技巧 (42)一、FLACFLAC3D软件概述3D是一种广泛使用的岩土力学与有限元分析软件。

它是一套专门用来分析连续介质中的物理力学现象的强大工具，主要应用于土木、矿山、隧道等领域，能针对各种复杂的工程问题进行数值建模和模拟分析。

3D以其高效、灵活的数值分析能力，为工程师提供了强大的技术支持。

其主要特点包括：多功能：3D能够模拟多种物理过程，包括应力分析、稳定性分析、流体流动分析等，适用于多种工程场景。

第1部分命令流按照顺序进行2-1定义一个FISH函数newdef abcabc = 25 * 3 + 5Endprint abc2-2使用一个变量newdef abchh = 25abc = hh * 3 + 5EndPrint hhPrint abc2-3对变量和函数的理解newdef abchh = 25abc = hh * 3 + 5Endset abc=0 hh=0print hhprint abcprint hhnewdef abcabc = hh * 3 + 5endset hh=25print abcset abc=0 hh=0print hhprint abcprint hh2-4获取变量的历史记录newgen zone brick size 1 2 1model mohrprop shear=1e8 bulk=2e8 cohes=1e5 tens=1e10fix x y z range y -0.1 0.1apply yvel -1e-5 range y 1.9 2.1plot set rotation 0 0 45plot block groupdef get_adad1 = gp_near(0,2,0)ad2 = gp_near(1,2,0)ad3 = gp_near(0,2,1)ad4 = gp_near(1,2,1)endget_addef loadload=gp_yfunbal(ad1)+gp_yfunbal(ad2)+gp_yfunbal(ad3)+gp_yfunbal(ad4) endhist loadhist gp ydis 0,2,0step 1000plot his 1 vs -22-5用FISH函数计算体积模量和剪砌模量newdef derives_mod = y_mod / (2.0 * (1.0 + p_ratio))b_mod = y_mod / (3.0 * (1.0 - 2.0 * p_ratio))endset y_mod = 5e8 p_ratio = 0.25deriveprint b_modprint s_mod2-6 在FLAC输入中使用符号变量Newdef derives_mod = y_mod / (2.0 * (1.0 + p_ratio))b_mod = y_mod / (3.0 * (1.0 - 2.0 * p_ratio))endset y_mod = 5e8 p_ratio = 0.25derivegen zone brick size 2,2,2model elasticprop bulk=b_mod shear=s_modprint zone prop bulkprint zone prop shear2-7 控制循环Newdef xxxsum = 0prod = 1loop n (1,10)sum = sum + nprod = prod * nend_loopendxxxprint sum, prodnewgen zone brick p0 (0,0,0) p1 (-10,0,0) p2 (0,10,0) p3 (0,0,-10) model elasplot set rotation 0 0 45plot block groupdef installpnt = zone_headloop while pnt #nullz_depth = -z_zcen(pnt)y_mod = y_zero + cc * sqrt(z_depth)z_prop(pnt, ’shear’) = y_mod / (2.0*(1.0+p_ratio))z_prop(pnt, ’bulk’) = y_mod / (3.0*(1.0-2.0*p_ratio))pnt = zone_next(pnt)end_loopendset p_ratio=0.25 y_zero=1e7 cc=1e8install2-8 拆分命令行new ;example of a sum of many thingsdef long_sumtemp = v1 + v2 + v3 + v4 + v5 + v6 + v7 + v8 + v9 + v10 long_sum = temp + v11 + v12 + v13 + v14 + v15end2-9 变量类型newdef haveoneaa = 2bb = 3.4cc = ’Have a nice day’dd = aa * bbee = cc + ’, old chap’endhaveoneprint fish2-10 IF条件语句newdef abcif xx > 0 thenabc = 1000elseabc = -1000end_ifendset xx = 10print abcset xx = 0print abc2-11 索单元自动生成newgen zone brick size 10 3 5plot set rotation 0 0 45plot block groupdef place_cablesloop n (1,5)z_d = float(n) - 0.5commandsel cable beg 0.0,1.5,z_d end 7.0,1.5,z_d nseg 7 end_commandend_loopendplace_cablesplot grid sel geom rednewgen zone brick size 10 3 5plot set rotation 15 0 60plot block groupmod mohrprop bulk 1e8 shear .3e8 fric 35prop coh 1e3 tens 1e3ini dens 1000set grav 0,0,-10fix x y z range z -.1 .1fix y range y -.1 .1fix y range y 2.9 3.1fix x range x -.1 .1fix x range x 9.9 10.1set largehist unbalsolvesave cab_str.savini xdis 0 ydis 0 zdis 0hist gp xdisp 0,1,5def place_cablesloop n (1,5)z_d = 5.5 - float(n)z_t = z_d + 0.5z_b = z_d - 0.5commandfree x range x -.1,.1 z z_b z_tsolvesel cable beg 0.0,0.5,z_d end 7.0,0.5,z_d nseg 7sel cable beg 0.0,1.5,z_d end 7.0,1.5,z_d nseg 7sel cable beg 0.0,2.5,z_d end 7.0,2.5,z_d nseg 7sel cable prop emod 2e10 ytension 1e8 xcarea 1.0 &gr_k 2e10 gr_coh 1e10 gr_per 1.0end_commandend_loopendplace_cablessave cab_end.savplot sketch sel cable force red2-12圆形隧道开挖模拟计算;建立模型gen zon radcyl p0 0 0 0 p1 6 0 0 p2 0 1 0 p3 0 0 6 &size 4 2 8 4 dim 3 3 3 3 rat 1 1 1 1.2 group outsiderockgen zone cshell p0 0 0 0 p1 3 0 0 p2 0 1 0 p3 0 0 3 &size 1 2 8 4 dim 2.7 2.7 2.7 2.7 rat 1 1 1 1 group concretliner fill group insiderock gen zon reflect dip 90 dd 90 orig 0 0 0gen zon reflect dip 0 dd 0 ori 0 0 0gen zon brick p0 0 0 6 p1 6 0 6 p2 0 1 6 p3 0 0 13 size 4 2 6 group outsiderock1 gen zon brick p0 0 0 -12 p1 6 0 -12 p2 0 1 -12 p3 0 0 -6 size 4 2 5 group outsiderock2 gen zon brick p0 6 0 0 p1 21 0 0 p2 6 1 0 p3 6 0 6 size 10 2 4 group outsiderock3 gen zon reflect dip 0 dd 0 orig 0 0 0 range group outsiderock3gen zon brick p0 6 0 6 p1 21 0 6 p2 6 1 6 p3 6 0 13 size 10 2 6 group outsiderock4gen zon brick p0 6 0 -12 p1 21 0 -12 p2 6 1 -12 p3 6 0 -6 size 10 2 5 group outsiderock5 gen zon reflect dip 90 dd 90 orig 0 0 0 range x -0.1 6.1 z 6.1 13.1gen zon reflect dip 90 dd 90 orig 0 0 0 range x -0.1 6.1 z -6.1 -12.1gen zon reflect dip 90 dd 90 orig 0 0 0 range x 6.1 21.1 z -12.1 13.1;绘制模型图plot block groupplot add axes red;plot set rotation 0 0 45 用于显示三维模型;设置重力set gravity 0 0 -10;给定边界条件fix z range z -12.01,-11.99fix x range x -21.01,-20.99fix x range x 20.99,21.01fix y range y -0.01 0.01fix y range y 0.99,1.01;求解自重应力场model mohrini density 1800 ;围岩的密度prop bulk=1.47e8 shear=5.6e7 fric=20 coh=5.0e4 tension=1.0e4 ;体积、剪切、摩擦角、凝聚力、抗拉强度set mech ratio=1e-4solvesave Gravsol.savplot cont zdisp outl onplot cont szz;毛洞开挖计算initial xdisp=0 ydisp=0 zdisp=0model null range group insiderock any group concretliner anyplot block groupplot add axes redset mech ratio=5e-4solvesave Kaiwsol.savplot cont zdispplot cont sdispplot cont szzplot cont xzz;模筑衬砌计算model elas range group concretliner anyplot block groupplot add axes redini density 2500 range group concretliner any ;衬砌混凝土的密度prop bulk=16.67e9,shear=12.5e9 range group concretliner any ;衬砌混凝土的体积弹模、剪切弹模set mech ratio=1e-4solvesave zhihusol.savplot cont zdispplot cont sdispplot cont szzplot cont xzz;完成计算分析。

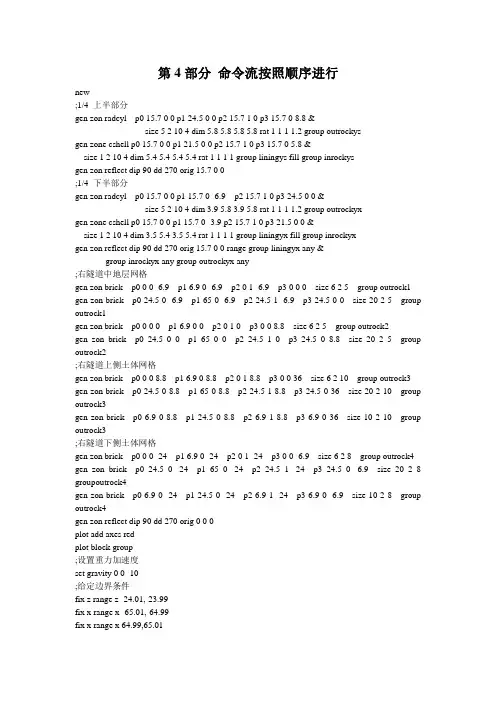

第4部分命令流按照顺序进行new;1/4 上半部分gen zon radcyl p0 15.7 0 0 p1 24.5 0 0 p2 15.7 1 0 p3 15.7 0 8.8 &size 5 2 10 4 dim 5.8 5.8 5.8 5.8 rat 1 1 1 1.2 group outrockysgen zone cshell p0 15.7 0 0 p1 21.5 0 0 p2 15.7 1 0 p3 15.7 0 5.8 &size 1 2 10 4 dim 5.4 5.4 5.4 5.4 rat 1 1 1 1 group liningys fill group inrockysgen zon reflect dip 90 dd 270 orig 15.7 0 0;1/4 下半部分gen zon radcyl p0 15.7 0 0 p1 15.7 0 -6.9 p2 15.7 1 0 p3 24.5 0 0 &size 5 2 10 4 dim 3.9 5.8 3.9 5.8 rat 1 1 1 1.2 group outrockyxgen zone cshell p0 15.7 0 0 p1 15.7 0 -3.9 p2 15.7 1 0 p3 21.5 0 0 &size 1 2 10 4 dim 3.5 5.4 3.5 5.4 rat 1 1 1 1 group liningyx fill group inrockyxgen zon reflect dip 90 dd 270 orig 15.7 0 0 range group liningyx any &group inrockyx any group outrockyx any;右隧道中地层网格gen zon brick p0 0 0 -6.9 p1 6.9 0 -6.9 p2 0 1 -6.9 p3 0 0 0 size 6 2 5 group outrock1 gen zon brick p0 24.5 0 -6.9 p1 65 0 -6.9 p2 24.5 1 -6.9 p3 24.5 0 0 size 20 2 5 group outrock1gen zon brick p0 0 0 0 p1 6.9 0 0 p2 0 1 0 p3 0 0 8.8 size 6 2 5 group outrock2gen zon brick p0 24.5 0 0 p1 65 0 0 p2 24.5 1 0 p3 24.5 0 8.8 size 20 2 5 group outrock2;右隧道上侧土体网格gen zon brick p0 0 0 8.8 p1 6.9 0 8.8 p2 0 1 8.8 p3 0 0 36 size 6 2 10 group outrock3 gen zon brick p0 24.5 0 8.8 p1 65 0 8.8 p2 24.5 1 8.8 p3 24.5 0 36 size 20 2 10 group outrock3gen zon brick p0 6.9 0 8.8 p1 24.5 0 8.8 p2 6.9 1 8.8 p3 6.9 0 36 size 10 2 10 group outrock3;右隧道下侧土体网格gen zon brick p0 0 0 -24 p1 6.9 0 -24 p2 0 1 -24 p3 0 0 -6.9 size 6 2 8 group outrock4 gen zon brick p0 24.5 0 -24 p1 65 0 -24 p2 24.5 1 -24 p3 24.5 0 -6.9 size 20 2 8 groupoutrock4gen zon brick p0 6.9 0 -24 p1 24.5 0 -24 p2 6.9 1 -24 p3 6.9 0 -6.9 size 10 2 8 group outrock4gen zon reflect dip 90 dd 270 orig 0 0 0plot add axes redplot block group;设置重力加速度set gravity 0 0 -10;给定边界条件fix z range z -24.01,-23.99fix x range x -65.01,-64.99fix x range x 64.99,65.01fix y range y -0.01 0.01fix y range y 0.99,1.01;0-求解自重应力场model mohrini density 2200;围岩的密度prop bulk=1.923e9, shear=4.167e9 fric=35, coh=0.5e6 tension=5e5;体积、剪切、摩擦角、凝聚力、抗拉强度step 6000save Gsol.savplot cont zdispplot cont szz;1-左隧道上半断面开挖rest Gsol.savini xdis 0.0 ydis 0.0 zdis 0.0ini density 2400 range group outrockzs anyprop bulk=6.0e9, shear=10.0e9 fric=45, coh=1.2e6 tension=2e6 &range group outrockzs anymodel null range group inrockzs any group liningzs anystep 2000save stepp1.sav;2-初期支护rest stepp1.savsel shell id=1 range x -21.51 -9.89 cyl end1 -15.7 0 0 end2 -15.7 1 0 rad 5.8 sel shell id=1 prop iso=(21.0e9,0.2) thick=0.20step 2000save stepp2.sav;3-左隧道下半断面开挖rest stepp2.savmodel null range group inrockzx any group liningzx anystep 2000save stepp3.savplot add axes redplot block groupplot cont zdispplot cont szz;4-左隧道二次衬砌rest stepp3.savmodel elas range group liningzsmodel elas range group liningzxini density 2600 range group liningzsini density 2600 range group liningzxprop bulk=12.5e9, shear=16.667e9 range group liningzsprop bulk=12.5e9, shear=16.667e9 range group liningzxstep 2000save stepp4.savplot add axes redplot block groupplot cont zdispplot cont szz;5-右隧道上半断面开挖rest stepp4.savini density 2400 range group outrockys anyprop bulk=6.0e9, shear=10.0e9 fric=45, coh=1.2e6 tension=2e6 & range group outrockys anymodel null range group inrockys any group liningys anystep 2000save stepp5.savplot cont zdisp;6-初期支护rest stepp5.savsel shell id=1 range x 9.89 21.51 cyl end1 15.7 0 0 end2 15.7 1 0 rad 5.8 sel shell id=1 prop iso=(21.0e9,0.2) thick=0.20step 2000plot cont zdispsave stepp6.savplot add axes redplot block groupplot cont zdispplot cont szz;7-左隧道下半断面开挖rest stepp6.savmodel null range group inrockyx any group liningyx anystep 2000save stepp7.savplot cont zdisp;8-左隧道二次衬砌rest stepp7.savmodel elas range group liningysmodel elas range group liningyxini density 2600 range group liningysini density 2600 range group liningyxprop bulk=12.5e9, shear=16.667e9 range group liningysprop bulk=12.5e9, shear=16.667e9 range group liningyxstep 2000save stepp8.savplot add axes redplot block groupplot cont zdisp plot cont szznew。

1. apply（缩写：app）可用来定义边界条件及初始条件：1）添加应力格式1：apply szz -0.3395e6 range z -0.1 0.1格式1：apply szz -0.3395e6 range group pile格式3：apply szz -0.3395e6 range z -0.1 0.1 group pile格式4：apply nstress 数值range z 2.9 3.1（或3）x 1 2 y 1 22）以一定速度施加位移边界格式1：apply yvel -1e5 range y -1.9 2.1 施; 加y 方向速度-1e5/step3）添加边界条件格式：apply szz ＜数值＞ grad ＜梯度＞ range ＜范围＞示例1：apply szz -1e9 grad 0 0 8.3e5 range z 0 120 示例2：apply szz -0.6e6 range z 0.05 0.15 group pile 注：＜数值＞是梯度方向坐标0 点的数值，可通过定义坐标范围的上下值与梯度计算得到。

2. range（缩写：ran）通过range功能，可以使命令作用在一定指定范围的目标上；如果一个命令没有使用range 来确定范围，则命令对整个模型有效。

1）利用坐标指定一定的范围格式1：range z 0 1格式2：range z 2.9 3.1 x 1 2 y 1 22）利用分组来指定范围格式：range group 13）以上两种的复合格式：range z -0.1 0.1 group pile4）利用id 号来指定一定的范围格式：range id 0 10该命令后跟起始id 和结束id，这里的id 可以是实体单元、网格、结构单元、接触面和节点的编号。

例：model elastic range id 1 10 ;指定id 为1到10的单元为各向同性弹性本构。

5）命名一个范围（需要先命名这个范围）格式：range name <自己起一个名字> <范围> 示例：range name intersected_zones x 5 8 y 3 7 引用这个范围的格式：内容+range nrange <自己起的那个名字> 示例：range nrangeintersected_zone6）命名一个柱形范围格式：同4）示例1：range name bhole cylinder end10 0 0 end2 -9.14 0 0 rad 0.46示例2：range name interface1 cylinder end1 0 0 0 end2 0 0 -0.9 radius 0.36 &cylinder end1 0 0 0 end2 0 0 -0.9 radius 0.34 not 7）any 和notAny 跟在range 命令后表示“和”的意思，即使若干个定义的范围同时起效；not 跟在range后表示“除了”的意思，即除此之外的范围示例1：group wall range group 1 any group 2 any ;把组 1 和组 2 定义为新组，组名为wall示例2：group wall range group 1 not ;把除了组 1 之外的所有部分定义为新组，组名为wall.示例3：range name interface1 cylinder end1 0 0 0 end2 0 0 -0.9 radius 0.36 &cylinder end1 0 0 0 end2 0 0 -0.9 radius 0.34 not3. set 用来设置重力、收敛标准、给某些变量赋值1）设置重力格式：set gravity 0 0 -102）设置收敛标准格式1：set mech ratio <value> :用R 无量纲值确定收敛标准（默认10e-5）格式2：set mech force ＜value＞ ;绝对收敛标准，体系最大不平衡力小于某一临界值，此局限性较大。

FLAC及FLAC3D基础与工程实例511.2.1FLAC/FLAC3D的使用特征；FLAC/FLAC3D的使用特征主要表现为：；?命令驱动模式；FLAC/FLAC3D有两种输入模式：①人机交互；FLAC/FLAC3D专为岩土工程力学分析开发，；FLAC/FLAC3D可以模拟多种结构形式，如岩；借助其强大的绘图功能，用户能绘制各种图形和表格；?开放性；FLAC/FLAC3D几乎是一个全开放的系统，1.2.1 FLAC/FLAC3D的使用特征FLAC/FLAC3D的使用特征主要表现为：? 命令驱动模式FLAC/FLAC3D有两种输入模式：① 人机交互模式，即从键盘输入各种命令控制软件的运行；② 命令驱动模式，即写成命令流文件，由文件来控制软件的运行。

其中，命令驱动模式为FLAC/FLAC3D的主要输入模式，尽管这种驱动方式对于简单问题的分析过于繁杂，对软件初学者而言相对较困难，但对于那些从事大型复杂工程问题分析而言，因涉及多次参数修改、命令调试，这种方式无疑是最有效、最经济的（当然，由于二维建模相对简单，照顾不少用户的使用习惯，在FLAC中也可以采用界面操作模式即GIIC模式进行分析计算）。

? 专一性FLAC/FLAC3D专为岩土工程力学分析开发，内置丰富的弹、塑性材料本构模型（其中FLAC内置11个，FLAC3D内置12个），有静力、动力、蠕变、渗流、温度5种计算模式，各种模式间可以相互耦合，以模拟各种复杂的工程力学行为。

FLAC/FLAC3D可以模拟多种结构形式，如岩体、土体或其它材料实体：梁、锚元、桩、壳以及人工结构，如支护、衬砌、锚索、岩栓、土工织物、摩擦桩、板桩等。

通过设置界面单元，可以模拟节理、断层或虚拟的物理边界等。

借助其强大的绘图功能，用户能绘制各种图形和表格。

用户可以通过绘制计算时步函数关系曲线来分析、判断体系何时达到平衡与破坏状态，并在瞬态计算或动态计算中进行量化监控，从而通过图形直观地进行各种分析。

FLAC3D常见命令与使用技巧1.基本命令：- !new: 创建一个新的FLAC3D模型- !zone generate: 通过定义边界和离散网格参数生成岩石模型- zone struct properties: 设置岩石模型的物理性质，如弹性模量、泊松比等- zone gridpoint initialize: 初始化模型中的网格节点- zone cmodel assign: 在指定区域内分配一种材料模型- zone face apply stress: 在模型表面施加一定的应力条件- zone solve: 求解模型，得到模型的应力应变分布2.材料模型：- zone cmodel initialize: 初始化材料模型的参数- zone cmodel property assign: 为材料模型分配属性- zone cmodel model assign: 为材料模型指定模型类型3.自定义模型：- zone cmodel new: 创建一个自定义材料模型- zone cmodel property new: 创建一个自定义的材料模型属性- zone cmodel property set: 设置材料模型属性的值- zone cmodel initialize: 初始化材料模型的参数4.辅助命令：- zone gridpoint fix: 固定指定区域的网格节点- zone gridpoint value prescribe: 为指定区域的网格节点预设值- zone gridpoint stress initialize: 初始化模型中的网格节点应力- zone gridpoint velocity assign: 为指定区域的网格节点分配速度- zone gridpoint delete: 删除指定区域的网格节点5.使用技巧：-使用脚本：可通过编写脚本，将一系列命令自动执行，提高工作效率-模型可视化：FLAC3D提供了强大的可视化功能，可以实时观察模型行为-使用参数化模型：可以通过设定参数的方式进行模型设置，便于修改和调整-多个窗口：可以同时打开多个FLAC3D窗口，方便对不同模型进行比较和分析-参考案例：可以参考软件自带的案例，了解不同类型的建模和分析方法这些是FLAC3D的一些常见命令和使用技巧，希望对用户在使用该软件时有所帮助。

1. 基础实例分析命令：Gen zone ……；model ……；prop ……（材料参数）；set grav 0,0,-9.81（重力加速度） plot add block group red yellow 把在group 中的部分染成红色和黄色plot add axes black 坐标轴线为黑色；print zone stress% K 单元应力结果输出 ini dens 2000 ran z a b （设置初始密度，有时不同层密度不同）；ini ……（设置初始条件）；fix ……（固定界面）hist unbal 监测不平衡力，并保留历史记录；save t1.sav 保存到文件t1；hist gp zdisp 4,4,8监测网格坐标点（4，4，8）在z 方向的位移，并保留历史纪录 plot set rot 20 0 30视图的旋转角度为（20，0，30）PLOT block group 查看计算模型 Ctrl+G 变成灰色图像Ctrl+Z 模型某个部分进行放大 Home 、End 拉近远离图像X ，Y ，Z 旋转 Shift+ X ，Y ，Z 反向旋转set plot jpg ；set plot quality 100 ；plot hard file 1.jpg 图像输出（格式、像素、名称） plot set magf 1.0视图的放大倍数为1.0；plo con szz z 方向应力云图2. ini z add -1 range group one 群one 的所有单元，在z 方向上向下移动1m ；然后合并命令 gen merge 1e-5 range z 0此命令是接触面单元合并成一个整体，1e-5是容差3. (基坑开挖步骤)：Step 1: create initial model state （建立初始模型）Step 2: excavatetrench （开挖隧道）4. group Top range group Base not 定义（群组Base 以外的为）群组Top5. plot blo gro 使得各个群组不同颜色显示6. （两个部分间设置界面；切割法）：gen separate Top 使两部分的接触网格分离为两部分；interface 1 wrap Base Top 在（Base 和Top ）这两部分之间添加接触单元；plot create view_int 显示，并创建标题view_int ；plot add surface 显示表面；plot add interface red 界面颜色红色7. （简单的定义函数及运行函数）new ；def setup 定义函数setup ；numy = 8定义常量numy 为8；depth = 10.0 定义depth 为10；end 结束对函数的定义；setup 运行函数setup8. （隧道生成）上部圆形放射性圆柱及下部块体单元体的建立，然后镜像。

1. apply（缩写：app）可用来定义边界条件及初始条件：1）添加应力格式1：apply szz -0.3395e6 range z -0.1 0.1格式1：apply szz -0.3395e6 range group pile格式3：apply szz -0.3395e6 range z -0.1 0.1 group pile格式4：apply nstress 数值range z 2.9 3.1（或3）x 1 2 y 1 22）以一定速度施加位移边界格式1：apply yvel -1e5 range y -1.9 2.1 ;施加y方向速度-1e5/step3）添加边界条件格式：apply szz <数值> grad <梯度> range <范围>示例1：apply szz -1e9 grad 0 0 8.3e5 range z 0 120示例2：apply szz -0.6e6 range z 0.05 0.15 group pile注：<数值>是梯度方向坐标0点的数值，可通过定义坐标范围的上下值与梯度计算得到。

2. range(缩写：ran)通过range功能，可以使命令作用在一定指定范围的目标上；如果一个命令没有使用range来确定范围，则命令对整个模型有效。

1)利用坐标指定一定的范围格式1：range z 0 1格式2：range z 2.9 3.1 x 1 2 y 1 22)利用分组来指定范围格式：range group 13)以上两种的复合格式：range z -0.1 0.1 group pile4）利用id号来指定一定的范围格式：range id 0 10该命令后跟起始id和结束id，这里的id可以是实体单元、网格、结构单元、接触面和节点的编号。

例：model elastic range id 1 10 ;指定id为1到10的单元为各向同性弹性本构。

第5部分命令流按照顺序进行newgen zon radcyl p0 9 0 0 p1 18 0 0 p2 9 36 0 p3 9 0 9 &size 4 24 8 4 dim 3 3 3 3 rat 1 1 1 1.2 group outrgen zone cshell p0 9 0 0 p1 12 0 0 p2 9 36 0 p3 9 0 3 &size 1 24 8 4 dim 2.7 2.7 2.7 2.7 rat 1 1 1 1 group liny fill group inrgen zon reflect dip 90 dd 90 orig 9 0 0gen zon reflect dip 0 dd 0 ori 9 0 0;1/2隧道地层部分gen zon brick p0 18 0 -9 p1 36 0 -9 p2 18 36 -9 p3 18 0 9 size 10 12 8 group outr1gen zon brick p0 18 0 9 p1 36 0 9 p2 18 36 9 p3 18 0 13 size 10 12 2 group outr2gen zon brick p0 0 0 9 p1 18 0 9 p2 0 36 9 p3 0 0 13 size 8 12 2 group outr2 gen zon brick p0 18 0 -23 p1 36 0 -23 p2 18 36 -23 p3 18 0 -9 size 10 12 8 group outr3gen zon brick p0 0 0 -23 p1 18 0 -23 p2 0 36 -23 p3 0 0 -9 size 8 12 8 group outr3gen zon reflect dip 90 dd 270 orig 0 0 0group linz range group liny x -12.1 -5.99;绘制模型图plot add axes redplot set rotation 20 0 45plot block group;0-自重应力场求解set gravity 0 0 -10;给定边界条件fix z range z -23.01,-22.99fix x range x -36.01,-35.99fix x range x 35.99,36.01fix y range y -0.01 0.01fix y range y 35.99,36.01model mohr;围岩的密度ini density 1800;体积、剪切、摩擦角、凝聚力、抗拉强度prop bulk=1.47e8 shear=5.6e7 fric=20 coh=5.0e4 tension=1.0e4step 3000save Gsol.sav;第1步rest Gsol.savinitial xdisp=0 ydisp=0 zdisp=0model null range group inrz y 0 6model elas range group linz y 0 6ini density 2500 range group linz y 0 6prop bulk=16.67e9,shear=12.5e9 range group linz y 0 6 step 3000save step1.sav;第2步rest step1.savmodel null range group inrz y 6 12model elas range group linz y 6 12ini density 2500 range group linz y 6 12prop bulk=16.67e9,shear=12.5e9 range group linz y 6 12 step 3000save step2.sav;第3步rest step2.savmodel null range group inrz y 12 18model elas range group linz y 12 18ini density 2500 range group linz y 12 18prop bulk=16.67e9,shear=12.5e9 range group linz y 12 18 step 3000save step3.sav;第4步rest step3.savmodel null range group inrz y 18 24model elas range group linz y 18 24ini density 2500 range group linz y 18 24prop bulk=16.67e9,shear=12.5e9 range group linz y 18 24 step 3000save step4.sav;第5步rest step4.savmodel null range group inrz y 24 30model elas range group linz y 24 30ini density 2500 range group linz y 24 30prop bulk=16.67e9,shear=12.5e9 range group linz y 24 30 step 3000save step5.sav;第6步rest step5.savmodel null range group inrz y 30 36model elas range group linz y 30 36ini density 2500 range group linz y 30 36prop bulk=16.67e9,shear=12.5e9 range group linz y 30 36 step 3000save step6.sav;第1步rest step6.savmodel null range group inry y 0 6model elas range group liny y 0 6ini density 2500 range group liny y 0 6prop bulk=16.67e9,shear=12.5e9 range group liny y 0 6 step 3000save step7.sav;第2步rest step7.savmodel null range group inry y 6 12model elas range group liny y 6 12ini density 2500 range group liny y 6 12prop bulk=16.67e9,shear=12.5e9 range group liny y 6 12 step 3000save step8.sav;第3步rest step8.savmodel null range group inry y 12 18model elas range group liny y 12 18ini density 2500 range group liny y 12 18prop bulk=16.67e9,shear=12.5e9 range group liny y 12 18 step 3000save step9.sav;第4步rest step9.savmodel null range group inry y 18 24model elas range group liny y 18 24ini density 2500 range group liny y 18 24prop bulk=16.67e9,shear=12.5e9 range group liny y 18 24 step 3000save step10.sav;第5步rest step10.savmodel null range group inry y 24 30model elas range group liny y 24 30ini density 2500 range group liny y 24 30prop bulk=16.67e9,shear=12.5e9 range group liny y 24 30 step 3000save step11.sav;第6步rest step11.savmodel null range group inry y 30 36model elas range group liny y 30 36ini density 2500 range group liny y 30 36prop bulk=16.67e9,shear=12.5e9 range group liny y 30 36 step 3000save step12.savnew。

Flac3D基础知识1.Generate 命令产生网格，简写为GE。

2. zone 参数代表了三维网格体（单元体），简写为zo。

3. （1）size 参数指示单元体各边小单元体的个数；（2）dimension 参数指示单元体内部巷道各边边长，如果没给出就默认为两点间距的20%；（3）edge 参数指示网格体各边的尺寸Ge zone brick p0(a,b,c) edge x y z 边长为x y z 顶点为p0；（边长也可以用确定点坐标来利用点与点的间距来确定p0 p1 p2……）。

4.各种网格体名称及关键字：矩形网格（Brick），退化矩形网格（dbrick），楔形网格（wedge），金字塔网格（pyramid），四面体形网格（tetrahedron），圆柱体网格（cylinder），矩形体外环绕放射状网格（radbrick），平行六面体外环绕放射状网格（radtunnel），圆柱体外环绕放射状网格（radcylinder），柱形壳体网格（Cshell），交叉圆柱体网格（cylint），交叉平行六面体网格（tunint）。

5.绘制网格体语句：①Generate zone brick size a，b，c （其中的brick可以被其他的网格体替换）。

②Generate zone brick p0=（，，）&P1=（，，）&P2=（，，）& （边长由点点间距确定）P3=（，，）& →（&符号为继续行的符号）Size a b c →（各边小单元体个数）③如果在p1 p2 p3 前面加add 则各点坐标是相对于p0点的坐标。

④如果只给出p0 则由edge a & 给出边长。

（见第 3 条）；利用ratio a，b，c 给出小单元体长度比例依次变化。

⑤内部有空单元体或者巷道的网格体，如果内部巷道需要填充为单元体，使用fill group groupname 语句。
