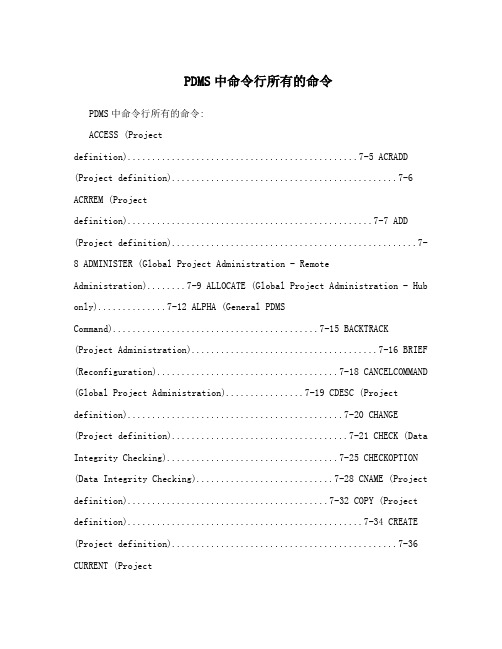

PDMS中命令行所有的命令PDMS中命令行所有的命令:ACCESS (Project definition)...............................................7-5 ACRADD (Project definition)..............................................7-6 ACRREM (Project definition)..................................................7-7 ADD (Project definition)..................................................7-8 ADMINISTER (Global Project Administration - Remote Administration)........7-9 ALLOCATE (Global Project Administration - Hub only)..............7-12 ALPHA (General PDMS Command)..........................................7-15 BACKTRACK (Project Administration)......................................7-16 BRIEF (Reconfiguration).....................................7-18 CANCELCOMMAND (Global Project Administration)................7-19 CDESC (Project definition)............................................7-20 CHANGE (Project definition)....................................7-21 CHECK (Data Integrity Checking)...................................7-25 CHECKOPTION (Data Integrity Checking)............................7-28 CNAME (Project definition).........................................7-32 COPY (Project definition)................................................7-34 CREATE (Project definition)..............................................7-36 CURRENT (Projectdefinition).............................................7-43 DADD (Project definition).................................................7-44 DEALLOCATE (Global Project Administration - Hub only)..............7-45 DEFER (Project definition)........................................7-47 DELETE (Project definition)..............................................7-48 DREMOVE (Project definition).............................................7-51 DUMP (Reconfiguration)..................................................7-52 DUPLICATENAMES (Global Project Administration)................7-53 EDIT (Module definition)................................................7-55 ERRORFILE (Data Integrity Checking)............................7-57 ERRORS (Reconfiguration)........................................7-58 EXCHANGE (Project definition)................................7-59 EXCLUDE (Project definition).......................................7-60 EXPUNGE (Project administration)...........................7-61 EXTERNAL (Data Integrity Checking).............................7-63 EXTRACT (Project administration).............................7-65 FINISH (General PDMS Command)......................................7-68 FONTDIRECTORY (Font definition)..................................7-69 FONTFAMILY (Font definition).......................................7-70 FROM (Reconfiguration)..................................................7-72 FULL(Reconfiguration).................................................7-73 GENERATE (Global Project Administration - Hub only)....................7-74 GETWORK (General PDMS Command).................................7-76 HUBLOCATION (Global Project Administration - Hub only)............7-77 INCLUDE (Project definition)..........................................7-79 INITIALISE (Global Project Administration)..........................7-80 ISOLATION (Global Project Administration)...............................7-81 LIST (Querying)......................................................7-82 LOAD (Reconfiguration)...................................................7-85 LOCK (Project administration)......................................7-86 MAKE GLOBAL (Global Project Administration)...................7-87 MAXERRORS (Data Integrity Checking)...................................7-88 MAXUSERS (Project Administration)..........................7-89 MAXWARNINGS (Data Integrity Checking).............................7-90 MERGE CHANGES (Project Administration)..................................7-91 MESSAGE (Project administration).......................................7-94 MODE (Data Integrity Checking).....................................7-95 MODULE (Module Definition)..............................................7-96 MOVE (Project administration)...........................................7-98 NEW (Project definition and Global Project Administration).............7-99NEW STAMP (Project administration)...............................7-101 PING (Global Project Administration).................................7-103 PREVOWNER (Global Project Administration - Hub only)....................7-104 PROJECT (Project definition)........................................7-106 PURGE (Project Administration and Global Project Administration).......7-108 QUERY (Querying)............................................7-109 RCFCOPY (Reconfiguration)........................................7-114 RCFUPDATE (Reconfiguration)....................................7-116 RCFUPGRADE (Reconfiguration)..........................7-117RECONFIGURE (Reconfiguration).............................7-118 RECOVER (Global Project Administration).......................7-120 REINIT (Reconfiguration)................................................7-123 REMOTE (Global Project Administration)...............................7-124 REMOTEMESSAGE (Global Project Administration)........................7-130REMOVE (Project definition).................................7-131 RENEW (Global Project Administration).............................7-132 REORDER (Global Project Administration)..........................7-134 REPAIR (Global Project Administration)........................7-135 REPLICATE (Project definition)................................7-136 RESETXREFS (Reconfiguration)...................................7-139 REVERT (Project administration)..............................7-140SAVEWORK (General PDMS Command)............................7-141 SET (Project definition and Global Project Administraion).............7-142 STATISTICS (Data Integrity Checking).................................7-143 STATUSSESSION (Querying).............................................7-144 STOP (Data Integrity Checking)........................................7-145 SYNCHRONISE (Global Project Administration).....................7-146 SYSTAT (Querying)......................................................7-148 SYSTEMLOCATION (Global Project Administration - Hub Only)...............7-151 TADD (Project definition)...........................................7-153 TERM (General PDMS Command)...............................7-154 TO (Reconfiguration)..................................................7-155 TRANSFER (Global Project Administration).........................7-157 TREMOVE (Project definition)..................................7-159 UNLOCK (Project administration).....................................7-160 UPDATE (Global Project Administration).....................7-161 UPGRADE (Reconfiguration)................................7-163 VB (Reconfiguration)...................................................7-164 XREF (Reconfiguration)............................................7-165 命令的详细介绍参考说明手册中的pdms115sp1/mam17/doc1.pdf。

一. PDMS的简介1.PDMS的含义P lant D esign M anagement S ystem(工厂设计管理体系)PDMS是在计算机上创建全比例三维模型软件，几何+属性、图纸+报告，并非“以图形为中心（Graphic Centric）”而是“以数据为中心（DataCentric）”。

2.PDMS的特征单一的数据源、数据库易维护管理、易客户化、成熟的应用功能工具等特征。

3.PDMS数据库的类型<1>系统数据库 System Database用户（User）权限、组（Team），数据库访问模式Database)、数据库组MDBs)；<2>元件数据库 Catalogue Database(s)几何形状、连接方式、描述及材料、等级规范；<3>设计数据库 Design Database(s)设备、管道、土建及结构、暖通、电缆桥架、支吊架；<4>管段数据库 Spooler Database(s)/ IsodraftDatabases(s)管件、管段、焊点、连接点；<5>特性数据库 Property Database(s)材料属性、应力分析数据；<6>用户定义属性数据库 Lexicon Database(s)/Dictionary Databases(s)UDA(User Defined Attribute) -用户定义的属性（标准属性之外）；<7>二维图数据库 PADD Database(s)P roduction of A nnotated andD imensioned D rawings图形、注释、尺寸。

4.PDMS的功能及模块划分<1>项目管理模块ADMIN (项目管理)DICE (数据完整性检查)RECONFIGURER (数据库重整)LEXICON (定义用户定义属性)<2>应用模块MONITOR (用户权限控制)<3>元件库和等级库模块SPECON (等级表)PARAGON (元件库)PROPCON (特性库)<4>设计模块设备、管道、土建结构、暖通、电缆桥架、支吊架、设计模板<5>设计分析模块CLASHER (碰撞检查)DATAL (数据库列表)REPORTER (数据报表)<6>出图模块DRAFT (图纸生成)ISODRAFT (单管图生成)<7>管段下材料模块SPOOLER (管段资料输入)二. PDMS的简单安装与设置1.安装应用程序Pdms11.5sp1操作系统Window NT/2000/XP 磁盘格式是NTFS2.拷贝中文字库拷贝f1105811901.gfb到Pdms11.5sp1主目录3.安装Pdms11.5Toolkit8.5到Pdms11.5sp1主目录（Toolkits工具集随需要升版安装）安装Toolkit后，PDMS的第一次运行用个人用户名和密码进入Monitor打开命令行Display>Command Line键入Pml rehash all进入Design，Monitor>Modules>Design>Macro files…4.安装Catview11.3到C:＼AVEVA＼Catview11.3主目录（Catview属于外挂程序，拷贝即可使用）在Catview目录中包含三个文件Evars.bat 环境变量设置文件NAMING.DOC PDMS 元件命名规则PDMS Catview User Guide.pdf 用户指南Catview的设置编辑Catview目录中的Evars.bat，将Catview指到正确的路径上Rem Set path to the main Catview directoryset catview=C:＼AVEVA＼catview11.3编辑Pdms11.5主目录中的Evars.bat文件，在文件的最后调用Catview目录中的Evars.batCall C:＼AVEVA＼catview11.3＼evars.bat重新进入Paragon，刷新程序索引文件Tools>Pml Debug>Pml rehash All或打开命令行Display>Command Line键入Pml rehash all5.License.bat文件的替换和启动方式此文件是软件厂家控制正版软件的一种手段，机号和文件是一一对应，由软件厂家提供并且不定期替换，但安装和启动均由用户完成。

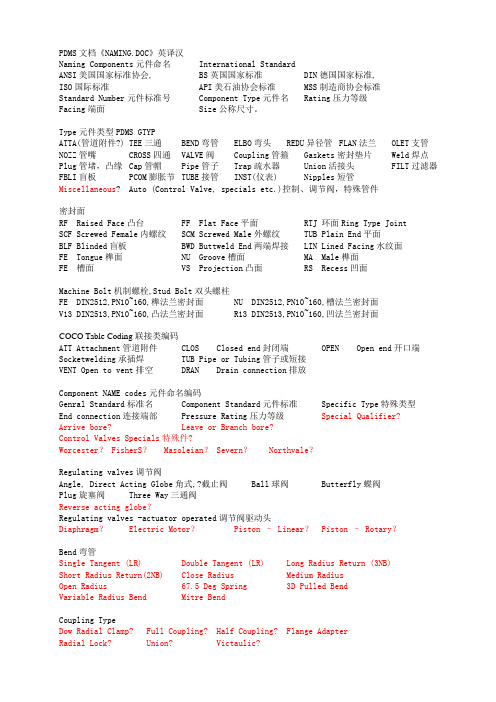

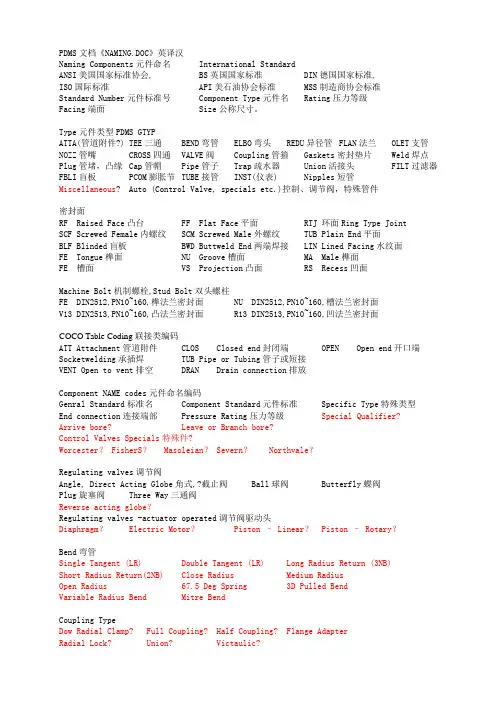

PDMS文档《NAMING.DOC》英译汉Naming Components元件命名International StandardANSI美国国家标准协会, BS英国国家标准DIN德国国家标准,ISO国际标准API美石油协会标准MSS制造商协会标准Standard Number元件标准号Component Type元件名Rating压力等级Facing端面Size公称尺寸。

Type元件类型PDMS GTYPATTA(管道附件?) TEE三通BEND弯管ELBO弯头REDU异径管FLAN法兰OLET支管NOZZ管嘴CROSS四通VALVE阀Coupling管箍Gaskets密封垫片Weld焊点Plug管堵，凸缘Cap管帽Pipe管子Trap疏水器Union活接头FILT过滤器FBLI盲板PCOM膨胀节TUBE接管INST(仪表) Nipples短管Miscellaneous? Auto (Control Valve, specials etc.)控制、调节阀，特殊管件密封面RF Raised Face凸台FF Flat Face平面RTJ 环面Ring Type JointSCF Screwed Female内螺纹SCM Screwed Male外螺纹TUB Plain End平面BLF Blinded盲板BWD Buttweld End两端焊接LIN Lined Facing水纹面FE Tongue榫面NU Groove槽面MA Male榫面FE 槽面VS Projection凸面RS Recess凹面Machine Bolt机制螺栓,Stud Bolt双头螺柱FE DIN2512,PN10~160,榫法兰密封面NU DIN2512,PN10~160,槽法兰密封面V13 DIN2513,PN10~160,凸法兰密封面R13 DIN2513,PN10~160,凹法兰密封面COCO Table Coding联接类编码ATT Attachment管道附件CLOS Closed end封闭端OPEN Open end开口端Socketwelding承插焊TUB Pipe or Tubing管子或短接VENT Open to vent排空DRAN Drain connection排放Component NAME codes元件命名编码Genral Standard标准名Component Standard元件标准Specific Type特殊类型End connection连接端部Pressure Rating压力等级Special Qualifier?Arrive bore? Leave or Branch bore?Control Valves Specials特殊件?Worcester？ FisherS？Masoleian？ Severn？Northvale？Regulating valves调节阀Angle, Direct Acting Globe角式,?截止阀Ball球阀Butterfly蝶阀Plug旋塞阀Three Way三通阀Reverse acting globe？Regulating valves -actuator operated调节阀驱动头Diaphragm？Electric Motor？Piston – Linear？Piston – Rotary？Bend弯管Single Tangent (LR) Double Tangent (LR) Long Radius Return (3NB)Short Radius Return(2NB) Close Radius Medium RadiusOpen Radius 67.5 Deg Spring 3D Pulled BendVariable Radius Bend Mitre BendCoupling TypeDow Radial Clamp? Full Coupling? Half Coupling? Flange AdapterRadial Lock? Union? Victaulic?ANSI B16.9锻轧制对焊管件ANSI B16.11锻制承插、螺纹管件ANSI B16.3玛钢螺纹管件ANSI B16.4灰铸铁螺纹管件ANSI B16.18铜合金焊接连接压力管件ANSI B16.22铜合金焊接连接压力管件ANSI B16.28对焊短半径弯头ANSI B16.5管法兰和法兰管件ANSI B16.24青铜法兰和法兰连接管件MSS-SP83承插焊和螺纹连接3000lb活接头ANSI B16.36带孔管法兰(类似JB/T4703的衬环法兰)API 600管线闸阀API 605大口径碳钢法兰MSS SP-44钢制管线法兰MSS SP-51磅级150耐蚀铸造法兰和管件DIN 2605钢制对焊管件(elbows,bends) DIN 2617 管帽DIN 2512-PN10~160榫槽法兰密封面DIN 2527-PN6~100凸台法兰密封面DIN 2628-PN250对焊法兰DIN 2629-PN320对焊法兰DIN 2630-PN2.5对焊法兰DIN 2631-PN6 对焊法兰DIN 2632-PN10 对焊法兰DIN 2633-PN16 对焊法兰DIN 2634-PN25 对焊法兰DIN 2635-PN40 对焊法兰DIN 2636-PN64 对焊法兰DIN 2637-PN100 对焊法兰DIN 2638-PN160 对焊法兰DIN 2641-PN6对焊松套法兰DIN 2615-对焊钢制管件-T DIN 2616-对焊钢制管件-REDUFlange TypeBlind法兰盖Lap送套法兰Orifice孔板法兰Reducing变径法兰Socket Weld承插焊法兰Threaded螺纹法兰Weld Neck对焊法兰Hub Slip on Hub滑套法兰Plate Slip on板式滑套法兰Spacer(仪表法兰)? Screwed Boss高压螺纹法兰？Gaskets密封垫片ANSI B16.20管法兰垫片(环面、缠绕、金属包垫片) ANSI B16.21管法兰用非金属平垫片DIN 2690 (for DIN2501)PN1~40平垫DIN 2691 (for DIN2512) )PN10~160平垫DIN 2692 (for DIN2513) )PN10~100平垫DIN 2697 )PN64~400齿形平垫DIN 2698 Corrugated steel sheet gaskets,incorporating asbestor ropesGasket TypeFull Face全平面Inside Bolt CircleLarge Tongue & Groove大榫槽Small Tongue & Groove小榫槽Large Male / Female大凹凸Small Male / Female小凹凸Ring Type Joint金属环垫RTJRaised Face with Centring Ring？对中环？Graylock Sealing Ring & Clamp？定位环？Closures管道端部封闭件Closures Specific typeLong Cap长管帽Short Cap短管帽Flat Closure平盖Square Head Plug四方头管塞Hexagonal Head Plug六角头管塞Round Head Plug圆头管塞？Slotted Head Plug槽头管塞Plain Bull Plug? Tapped Bull Plug?Graylock Blind Hub? Countersunk Plug?Miscellaneous Items (sheet 1 of 2)? Gestra?Norgren? Rhodes? Plenty Simplex? Veebee? Teddington?Spirax Sarco? Amstrong? Yarway?Flame Arrester阻火器? Bursting Disc Assembly防爆组件Single Bellows Unit单波？Air Dryer空气干燥器Double Bellows双波Flow Indicator流量指示Filter过滤器Sight Glass视镜Ball Float Trap浮球疏水器Pot Type Strainer罐式粗滤器Orifice Plate孔板Spectacle Blind带双圈盲板Basket Type Strainer篮式粗滤器Y Type StrainerY型粗滤器T Type StrainerT型粗滤器Line blind？Spacer for tongue and groove flangesNipple: TypeBarrel Nipple桶形短管？Hexagonal六角形短管Close Taper承插短管？Pipe Nipple短管Eccentric Swage偏心异径短管Concentric Swage同心.. Tank NippleNipple End Connection短管端部Plain x Bevel平端x坡口Plain x Plain平端x平端Plain x Threaded NPT平端x NPT螺纹端Threaded Both Ends NPT两端NPT螺纹Radial Lock Both Ends Soldered, BrazedRadial Lock x Flanged Bevel x Victaulic GrooveThreaded x Victaulic GroovePipe Standard钢管标准ASTM A120无缝热浸镀锌黑色钢管ASTM A53碳素钢管ANSI B36.10有缝和无缝碳钢尺寸系列ASTM A-106锅炉钢管API 5L管线钢管ANSI B36.3不锈钢尺寸系列ANSI B36.19壁厚等级ASTM B42/B43铜管DIN 2448/2458钢管外径壁厚重量系列DIN 2462无缝不锈钢管Tubes DIN 2463有缝不锈钢管DIN 2916带弯管钢管Reducer Type异径管类型Concentric同心异径管Eccentric偏心异径管Hexagonal Bush六角形衬套？Hexagonal Nipple六角形短管Reducing Insert焊接异径管？Stub-End 搭接接管端部Stub-End Type As Per Standard按标准Graylock Weld Hub?TEEs 支管Elbolet弯管支管台TEE By Full Coupling管接头支管Street TEE？Sweep TEE嵌入式支管TEE By Half Coupling半管接头支管Nipolet短管支管台Latrolet斜接支管台Double Sweep TEE双嵌入式支管Weldolet对焊支管台Sockolet承插焊支管台Thredolet螺纹接头支管台Sweepolet嵌入式支管台Side Outlet TEE带侧向出口三通Side Outlet Elbow带侧向出口弯头Set On Branch (90Deg) Reinforced Set On Branch支管补强板Set On Branch With Saddle鞍式补强板Set On Branch, Var AngleInstrument TEE仪表支管Valves，ANSI B16.10/ DIN 3202阀门结构长度阀门供应商？Gestra，Hattersley Heaton，Anderson，Greenwood，Farris，Grayl ock……Valve TypesAngle Globe角阀Ball球阀Ball Type Check球形止回阀Piston Check活塞式止回阀Swing Check旋转式止回阀Flap Check翻板止回阀Angle Stop Check角式切断Straight Stop Check直通Wafer Check对夹式止回阀Tilting Disc翻转止回阀Diaphragm隔膜阀Full Bore Diaphragm全通径隔膜阀Butterfly蝶阀Gate闸阀Globe截止阀Needle针阀Plug塞形阀Relief安全泄放阀 Short Ball短球阀Y Type Globe Y型截止阀Three Way三通阀Tank Dump Valve? Poppet?Valve Actuators阀门驱动方式Manual 90 Deg Turn手抡Pneumatic Piston柱塞气动Electric Motor Actuator电机驱动Gear Driven Handwheel齿轮驱动手轮Hydraulic液压Pressure Seal压力密封Rising Stem Handwheel明杆Non Rising Stem Handwheel暗杆Piston Fail Open? Piston Fail Closed? Diaphragm Fail Open? Diaphragm Fail Close Soenoid?Orifice plate hole sizes孔板孔径Welds焊点Fillet (SW)角焊SQ Flange Fillet间断焊Pipe Support Atta管道支撑件？Nozzle Standard接管标准Nozzle Type管觜类型Boss插入式Integral整体式Flanged法兰式Half Coupling半管接头Threaded螺纹Welded焊接Graylock？Flange Facings法兰密封面Flat Face全平面Raised Face凸台面Large Tongue大榫面Large Groove大槽面Small Tongue小榫面Small Groove小槽面Large Male Smooth光滑大凸面Large Male Serrated齿形大凸面Large Female大凹面Small Female小凹面Small Male小凸面Projection V13 (DIN)凸面Recess R13 (DIN)凹面Ring Type Joint环接面Plain平Buttweld (Bevel)对焊Socket Weld承插焊Threaded Male & Female螺纹凹凸Threaded NPT Female NPT螺纹凹Threaded NPT Male NPT螺纹凸Threaded BSP Female BSP螺纹凹Threaded BSP Male BSP螺纹凸Soldered, Brazed? Radial Lock? Victaulic? Compression?End connections for non flanged connections Table E2非法兰连接端部End connections for flange faces Table E3 connections Table E2法兰连接端部。

（产品数据管理）PDMS培训手册V ANTAGEIPE (Integrated Project Execution)项目一体化解决PDMS (Plant Design Management System) 工厂设计管理系统中文培训手册目录1.VANTAGE PE P&ID2.VANTAGE PDMS基础3.VANTAGE PDMS设备设计4.VANTAGE PDMS管道设计5.VANTAGE PDMS土建设计6.VANTAGE PDMS结构设计7.VANTAGE PDMS支吊架设计8.VANTAGE PDMS数据一致性检查9.VANTAGE PDMS碰撞检查10.VANTAGE PDMS出图11.VANTAGE PDMS出图管理12.VANTAGE PDMS项目管理13.VANTAGE PDMS AutoDraft 图纸转换14.VANTAGE PDMS Review 生成avi文件VPEVANTAGE Plant Design Management System 工厂设计管理系统P&ID工艺流程图培训手册目录一、VANTAGE PE P＆ID简介 (2)二、软件安装、项目生成、AutoCAD配置 (2)三、操作绘制P&ID (9)四、VANTAGE PE PID项目设置 (13)五、菜单、工具条、符号定制 (30)六、Elite（报表生成） (32)七、原有P&ID升级 (32)一、VANTAGE PE P＆ID简介VANTAGE PE P＆ID是一套基于嵌入到AutoCAD、Microstation或Visio软件中以提高智能绘制P＆ID图能力的软件，其主要功能如下：1.绘制工艺装置P＆ID图。

2.与VANTAGE数据库交换数据。

3.数据的一致性校验。

二、软件安装、项目生成、AutoCAD配置VANTAGE PE P＆ID的安装有以下几种方式：a.执行文件和项目配置文件都在服务器端。

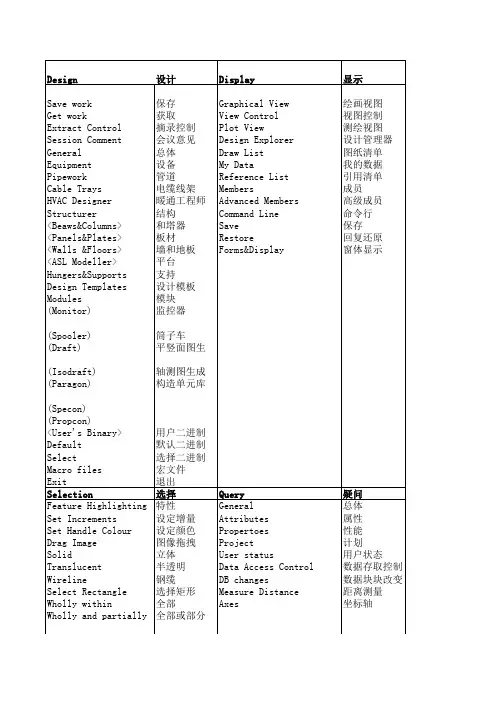

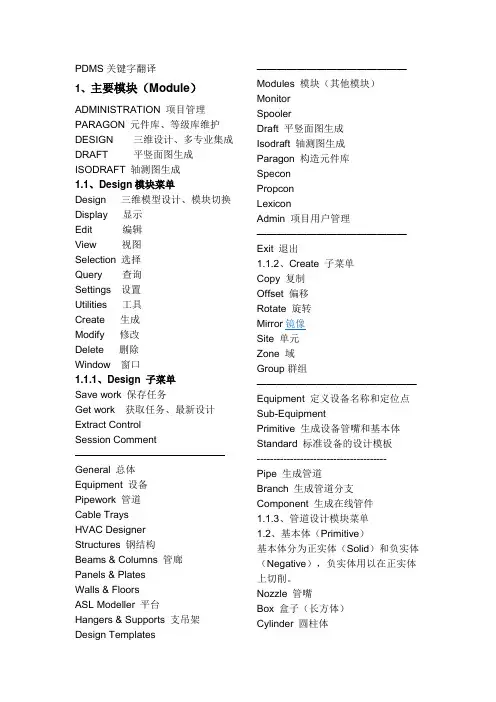

PDMS关键字翻译1、主要模块（Module）ADMINISTRATION 项目管理PARAGON 元件库、等级库维护DESIGN 三维设计、多专业集成DRAFT 平竖面图生成ISODRAFT 轴测图生成1.1、Design模块菜单Design 三维模型设计、模块切换Display 显示Edit 编辑View 视图Selection 选择Query 查询Settings 设置Utilities 工具Create 生成Modify 修改Delete 删除Window 窗口1.1.1、Design 子菜单Save work 保存任务Get work 获取任务、最新设计Extract ControlSession Comment ———————————————General 总体Equipment 设备Pipework 管道Cable TraysHVAC DesignerStructures 钢结构Beams & Columns 管廊Panels & PlatesWalls & FloorsASL Modeller 平台Hangers & Supports 支吊架Design Templates ———————————————Modules 模块（其他模块）MonitorSpoolerDraft 平竖面图生成Isodraft 轴测图生成Paragon 构造元件库SpeconPropconLexiconAdmin 项目用户管理———————————————Exit 退出1.1.2、Create 子菜单Copy 复制Offset 偏移Rotate 旋转Mirror镜像Site 单元Zone 域Group群组————————————————Equipment 定义设备名称和定位点Sub-EquipmentPrimitive 生成设备管嘴和基本体Standard 标准设备的设计模板---------------------------------------Pipe 生成管道Branch 生成管道分支Component 生成在线管件1.1.3、管道设计模块菜单1.2、基本体（Primitive）基本体分为正实体（Solid）和负实体（Negative），负实体用以在正实体上切削。

pdms常用命令经验反馈——一些常用的PDMS命令Q abore ------查询元件的公称直径Q aod ------查询元件的外径Q P1 bore ------查询元件P1点的直径，包括设备上的Nozzle Q P3 bore ------查询元件P3点的直径，包括设备上的Nozzle Mark ce ------为当前元素做标记，可以是Pipe，Branch，members， Equipment 等，标记的内容是它本身的名称。

Mark with 'RPE1567' ce ------对当前元素标记’RPE1567’, 引号里面可以是任意内容Q Att ------查询当前元素的参数Q :ims-qcl ------查询Pipe或Branch的等级，当前元素要放在Pipe或Branch层上, Q name ------查询名称，如果知道这个名称，直接敲入命令行就可以找到改元素。

Q lastmodif ------查询最后修改时间Q usermod ------查询最后修改的用户Q usermod :ims-qcl ------查询最后修改:ims-qcl这个参数的用户Q var !!ce.ppos[0].wrt(world) ------查询阀门的设计重心Q var !!ce.ppos[999].wrt(world) ------查询阀门的设计者自己定义的重心Q var !!ce.gcof.wrt(world) ------查询阀门的重心（不考虑负体积如挖孔等）Q var !!ce.ncof.wrt(world) ------查询阀门真正的重心（这是PDMS自带的功能）q var !!ce.poss.wrt(world)Q var !!ce.hstub.attribute(':ep') ------查询branch头部的壁厚，当前元素放在branch上Q var !!ce.lstub.attribute(':ep') ------查询选定元件下面管子的壁厚Q var !!ce.spref.attribute(':ep') 或 Q :ep of spref ------查询所选元件的壁厚上边的:ep可以换成其他的参数，如:de(外径)Q cllength ------查询branch的长度Q var !!ce.spref.attribute(':matiere')[1].name ------查询管道的材料Q spref ------查询元素的制造规格，比如，对于支吊架来说，得出的结果就可能是 spref /MDP/PR09-100Q :mtoarea ------查询安装分区信息Q p1 pos wrt world ------查询元件P1点坐标，例如预埋板Q pos wrt world ------查询元件在世界中的坐标Q poss wrt world ------查询Beam的头部的中心点坐标Q pose wrt world ------查询Beam的尾部的中心点坐标Q :mdsancref ------查询ATTA、STRU以及Anchor plate之间的链接关系Q :prop desc ------查询Beam截面信息Q Dtxr ------查询元件的catalogue详细参数Q Prop code ------查询支吊架的详细类型Q angle/radius ------查询弯头和三通的角度和半径Enhance ce col red ------对当前元素着色，也可以是green，pink , cyan等其他颜色Enhance ce transl >5 ------改透明度Add all within vol ce ------添加当前元素空间内的所有元素Add all STRU within vol ce 300 Col 4 ------添加当前元素周围300空间内的所有STRU并以yellow显示，其中的STRU、300和col 4是可变的参数Add ce auto ce ------添加当前元素并居中显示Add href cref ------添加branch头部和尾部相连的管道Add cref ------添加三通相连的管道Add all bran with :ims-ssno eq 'HRA_RPE_03' ------添加具有相同属性的管道,其中的:ims-ssno和HRA_RPE_03是可变参数Add all bran with matchw(:ims-ssno,'HRA_RPE_03') ------添加具有相同属性的管道add all bran with matchwild(:ims-ssno,'HRA_PTR_53') and Hbore gt 50 ------Aid text num 2 (name of owner) at at hpos of owner ------辅助标记，其中的num 2、name of owner和hpos of owner是可变参数，比如改成num 3、TSN、ce/p0等都可以。

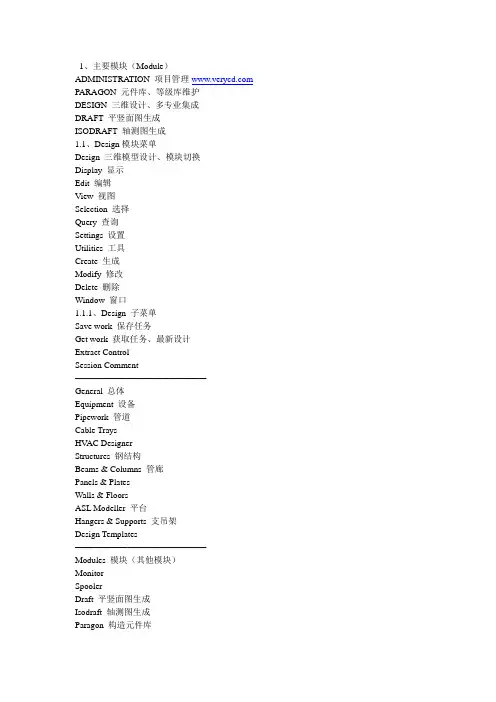

1、主要模块（Module）ADMINISTRATION 项目管理 PARAGON 元件库、等级库维护DESIGN 三维设计、多专业集成DRAFT 平竖面图生成ISODRAFT 轴测图生成1.1、Design模块菜单Design 三维模型设计、模块切换Display 显示Edit 编辑View 视图Selection 选择Query 查询Settings 设置Utilities 工具Create 生成Modify 修改Delete 删除Window 窗口1.1.1、Design 子菜单Save work 保存任务Get work 获取任务、最新设计Extract ControlSession Comment ———————————————General 总体Equipment 设备Pipework 管道Cable TraysHV AC DesignerStructures 钢结构Beams & Columns 管廊Panels & PlatesWalls & FloorsASL Modeller 平台Hangers & Supports 支吊架Design Templates ———————————————Modules 模块（其他模块）MonitorSpoolerDraft 平竖面图生成Isodraft 轴测图生成Paragon 构造元件库SpeconPropconLexiconAdmin 项目用户管理———————————————Exit 退出1.1.2、Create 子菜单Copy 复制Offset 偏移Rotate 旋转Mirror 镜像Site 单元Zone 域Group————————————————Equipment 定义设备名称和定位点Sub-EquipmentPrimitive 生成设备管嘴和基本体Standard 标准设备的设计模板---------------------------------------Pipe 生成管道Branch 生成管道分支Component 生成在线管件1.1.3、管道设计模块菜单1.2、基本体（Primitive）基本体分为正实体（Solid）和负实体（Negative），负实体用以在正实体上切削。

PDMS基础VANTAGE Plant Design System工厂三维安排设计治理体系PDMS差不多培训手册PDMS差不多数据中间自力的数据库构造,不依附第三方数据库。

重要长处１．三维实体建模。

２．专业多用户的工厂设计体系。

３．一个设计模型(数据库)能够输出多种设计图纸，申报。

４．等级驱动。

５．交互设计过程中,及时三维碰撞检查。

６．精确标注。

模型修改后，标注主动更新。

７．能强大年夜的可编程宏说话-PML。

重要模块(Module)１．DESIGN-三维模型设计DESIGN中又包含以下几部分：1) Equipment2) Pipework3) Structure4) Cable trays5) HVAC6) Hanger&Support２．DRAFT-平竖面图生成３．ADMINISTRATION-项目用户治理４．ISODRAFT-轴测图生成５．PARAGON-构造元件库PDMS数据库层次(Database hierarchy)隐藏在PDMS强大年夜功能后面的是简单和具有逻辑性的数据库构造，实际上PDMS 数据库是专门为工厂设计定制的，它基于严格的层次和树状构造搭建。

ZON EEQ U I IPIPE PIPE/100-B -2C YLID ISHN O ZZN B R A NB R A N/100-B -2-B 1/C 1101-N 1SU B E/STRUCTUREWORLD —建立数据库时，主动生成一个WORLD 。

在导航器中只能看到一个WORLD 。

SITE —可因此全部工厂，也可因此一个单位，一个项目。

在一个PDMS 项目中能够有多个SITE 。

ZONE —它不是一个物理分区，而是同类元件的集合，能够算作一个逻辑组。

例如PIPE ZONE ，EQUIPMENT ZONE ，STRUCTURES ZONE 。

EQUIPMENT ，STRUCTURES ，PIPES —指定了类型和名字，这一级下面才是你在图形屏幕中能实际看到的实体。
