1N5391/S - 1N5399/S1.5A RECTIFIERFeatures•Fast Switching for High Efficiency•High Current Capability and Low Forward Voltage Drop•Low Reverse Leakage Current•Surge Overload Rating to 50A Peak•Lead Free Finish, RoHS Compliant (Note 3)Mechanical Data•Case: DO-41, DO-15•Case Material: Molded Plastic. UL Flammability ClassificationRating 94V-0•Moisture Sensitivity: Level 1 per J-STD-020C• Terminals:Finish⎯ Tin. Solderable per MIL-STD-202, Method208•Polarity: Cathode Band•Ordering Information: See Last Page•Marking: Type Number•Weight: DO-41 0.30 grams (approximate)DO-15 0.40 grams (approximate)DimDO-41 Plastic DO-15Min Max Min MaxA 25.40⎯25.40 ⎯B 4.06 5.21 5.50 7.62C 0.71 0.864 0.686 0.889D 2.00 2.72 2.60 3.60All Dimensions in mmMaximum Ratings and Electrical Characteristics@T A = 25°C unless otherwise specifiedSingle phase, half wave, 60Hz, resistive or inductive load.For capacitive load, derate current by 20%.Characteristic Symbol1N5391/S1N5392/S1N5393/S1N5395/S1N5397/S1N5398/S1N5399/SUnit Peak Repetitive Reverse VoltageWorking Peak Reverse VoltageDC Blocking VoltageV RRMV RWMV R50 100 200 400 600 800 1000 VRMS Reverse Voltage V R(RMS)35 70 140 280 420 560 700 V Average Rectified Output Current(Note 1) @ T A = 70°CI O 1.5 A Non-Repetitive Peak Forward Surge Current 8.3mssingle half sine-wave superimposed on rated load I FSM50 A Forward Voltage Drop @ I F = 1.5A V FM 1.1 V Peak Reverse Leakage Current @ T A = 25°Cat Rated DC Blocking Voltage @ T A = 100°CI RM5.050μA Typical Total Capacitance (Note 2) C T20 pF Typical Thermal Resistance Junction to Lead RθJL25 °C/W Typical Thermal Resistance Junction to Ambient (Note 1) RθJA55 °C/W Operating and Storage Temperature Range T j, T STG-65 to +150 °C Notes: 1. Leads maintained at ambient temperature at a distance of 9.5mm from the case.2. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.3. RoHS revision 13.2.2003. Glass and high temperature solder exemptions applied, see EU Directive Annex Notes 5 and 7.“S” Suffix Designates DO-41 PackageNo Suffix Designates DO-15 Package255075100125150175T AMBIENT TEMPERATURE (ºC)Fig. 1, Forward Current Derating CurveA I , A V E R A G E F O R W A R D R E C T I F I E D C U R R E N T (A )(A V )00.51.01.50.010.11.0100.60.81.01.21.41.6I , I N S T A N T A N E O U S F O R W A R D C U R R E N T (A )F V , INSTANTANEOUS FORWARD VOLTAGE (V)Fig. 2 Typical Forward CharacteristicsF1.01010001020304050NUMBER OF CYCLES AT 60HzFig. 3 Maximum Non-Repetitive Peak Forward Surge CurrentI , P E A K F O R W A R D S U R G E C U R R E N T(A )F S M 1.0101001.010100C , T O T A L C A P A C I T A N C E (p F )T V , REVERSE VOLTAGE (V)Fig. 4 Typical T otal CapacitanceROrdering Information (Note 4)Device Packaging Shipping1N5391-B DO-15 1K/Bulk1N5391-T DO-15 4K/Tape & Reel, 13-inchPack 1N5391S-A DO-41 5K/Ammo1N5391S-B DO-41 1K/Bulk1N5391S-T DO-41 5K/Tape & Reel, 13-inch1N5392-B DO-15 1K/Bulk1N5392-T DO-15 4K/Tape & Reel, 13-inchPack 1N5392S-A DO-41 5K/Ammo1N5392S-B DO-41 1K/Bulk1N5392S-T DO-41 5K/Tape & Reel, 13-inch1N5393-B DO-15 1K/Bulk1N5393-T DO-15 4K/Tape & Reel, 13-inchPack 1N5393S-A DO-41 5K/Ammo1N5393S-B DO-41 1K/Bulk1N5393S-T DO-41 5K/Tape & Reel, 13-inch1N5395-B DO-15 1K/Bulk1N5395-T DO-15 4K/Tape & Reel, 13-inchPack 1N5395S-A DO-41 5K/Ammo1N5395S-B DO-41 1K/Bulk1N5395S-T DO-41 5K/Tape & Reel, 13-inch1N5397-B DO-15 1K/Bulk1N5397-T DO-15 4K/Tape & Reel, 13-inchPack 1N5397S-A DO-41 5K/Ammo1N5397S-B DO-41 1K/Bulk1N5397S-T DO-41 5K/Tape & Reel, 13-inch1N5398-B DO-15 1K/Bulk1N5398-T DO-15 4K/Tape & Reel, 13-inchPack 1N5398S-A DO-41 5K/Ammo1N5398S-B DO-41 1K/Bulk1N5398S-T DO-41 5K/Tape & Reel, 13-inch1N5399-B DO-15 1K/Bulk1N5399-T DO-15 4K/Tape & Reel, 13-inchPack 1N5399S-A DO-41 5K/Ammo1N5399S-B DO-41 1K/Bulk1N5399S-T DO-41 5K/Tape & Reel, 13-inchNotes: 4. For packaging details, visit our website at /datasheets/ap02008.pdf.IMPORTANT NOTICEDiodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changeswithout further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any productdescribed herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shallassume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,harmless against all damages.LIFE SUPPORTDiodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed writtenapproval of the President of Diodes Incorporated.分销商库存信息:DIODES1N5391-T1N5391S-T1N5392-T 1N5392S-T1N5393-T1N5393S-T 1N5395-T1N5395S-T1N5397-T 1N5397S-T1N5398-T1N5398S-T 1N5399-T1N5399S-T。

合集下载

三极管型号参数

三极管型号参数

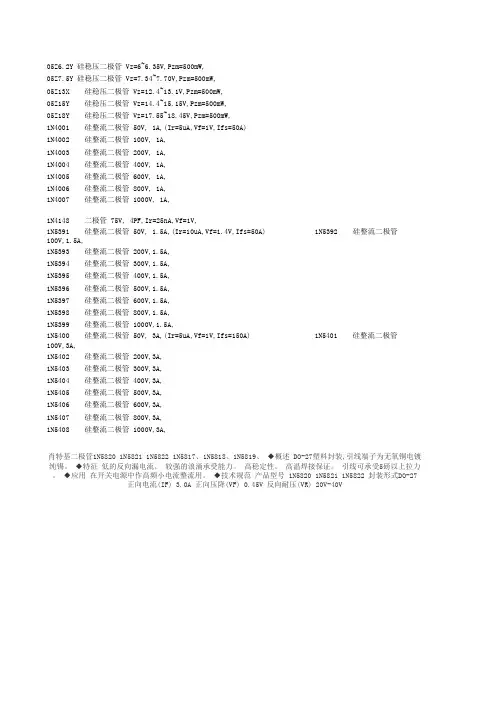

05Z6.2Y 硅稳压二极管 Vz=6~6.35V,Pzm=500mW,05Z7.5Y 硅稳压二极管 Vz=7.34~7.70V,Pzm=500mW,05Z13X 硅稳压二极管 Vz=12.4~13.1V,Pzm=500mW,05Z15Y 硅稳压二极管 Vz=14.4~15.15V,Pzm=500mW,05Z18Y 硅稳压二极管 Vz=17.55~18.45V,Pzm=500mW,1N4001 硅整流二极管 50V, 1A,(Ir=5uA,Vf=1V,Ifs=50A)1N4002 硅整流二极管 100V, 1A,1N4003 硅整流二极管 200V, 1A,1N4004 硅整流二极管 400V, 1A,1N4005 硅整流二极管 600V, 1A,1N4006 硅整流二极管 800V, 1A,1N4007 硅整流二极管 1000V, 1A,1N4148 二极管 75V, 4PF,Ir=25nA,Vf=1V,1N5391 硅整流二极管 50V, 1.5A,(Ir=10uA,Vf=1.4V,Ifs=50A) 1N5392 硅整流二极管 100V,1.5A, 1N5393 硅整流二极管 200V,1.5A,1N5394 硅整流二极管 300V,1.5A,1N5395 硅整流二极管 400V,1.5A,1N5396 硅整流二极管 500V,1.5A,1N5397 硅整流二极管 600V,1.5A,1N5398 硅整流二极管 800V,1.5A,1N5399 硅整流二极管 1000V,1.5A,1N5400 硅整流二极管 50V, 3A,(Ir=5uA,Vf=1V,Ifs=150A) 1N5401 硅整流二极管 100V,3A, 1N5402 硅整流二极管 200V,3A,1N5403 硅整流二极管 300V,3A,1N5404 硅整流二极管 400V,3A,1N5405 硅整流二极管 500V,3A,1N5406 硅整流二极管 600V,3A,1N5407 硅整流二极管 800V,3A,1N5408 硅整流二极管 1000V,3A,肖特基二极管1N5820 1N5821 1N5822 1N5817、1N5818、1N5819、 ◆概述 DO-27塑料封装,引线端子为无氧铜电镀纯锡。

QT2晶体管特性图示仪检测晶体管标准(新)

QT2晶体管特性图示仪检测晶体管标准(新)


普通整流二极管 RL201～RL207 50uA 50V 500V 20K 调至满格 NPN 零电流 型号 RL201 RL202 RL203 RL204 RL205 RL206 RL207 200V 5000V 20K 从0开始调 NPN 零电流 标准 50V 100V 200V 400V 600V 800V 1000V
准
最大电流
30A
16A
20A
40A
4A
第4页 制定： 审核： 批准：
QT2晶体管特性图示仪检测晶体管设定标准（三极管类）
元件型号 测试档位选择 最 高 反 向 电 压 标准 Y轴 X轴 输出电压 功耗限制电阻 峰值电压 测试设置 输入 标准 Y轴 X轴 输出电压 功耗限制电阻 峰值电压 测试设置 输入 幅度/级 族/级 作用 串联电阻 常态/倒置 C945 50V 100uA 10V 100V 20K 调至满格 NPN 零电流 150mA 50mA 1V 10V/50A 0 调至5V NPN 正常 1mA 10级 正常 0 常态 S8550 （新东南） 25V 2mA 10V 100V 20K 调至满格 NPN 零电流 800mA 200mA 1V 10V/50A 0 调至5V NPN 正常 500uA 10级 正常 0 常态 S8050 25V 2mA 10V 100V 20K 调至满格 NPN 零电流 800mA 200mA 1V 10V/50A 0 调至5V NPN 正常 500uA 10级 正常 0 常态 9014 45V 1mA 10V 100V 20K 调至满格 NPN 零电流 100mA 50mA 1V 10V/50A 0 调至5V NPN 正常 500uA 10级 正常 0 常态 2SD669 120V 10mA 50V 500V 20K 调至满格 NPN 零电流 1.5A 500mA 1V 10V/50A 0 调至5V NPN 正常 500uA 10级 正常 0 常态 2SB649 120V 10mA 50V 500V 20K 调至满格 PNP 零电流 1.5A 500mA 1V 10V/50A 0 调至5V PNP 正常 500uA 10级 正常 0 倒置 S8550 （已发达） 25V 1mA 10V 100V 20K 调至满格 PNP 零电流 500mA 100mA 1V 10V/50A 0 调至5V PNP 正常 500uA 10级 正常 0 倒置 2SC2222 50V 100uA 10V 100V 20K 调至满格 NPN 零电流 150mA 50mA 1V 10V/50A 0 调至5V NPN 正常 1mA 10级 正常 0 常态 A928 30V 10mA 10V 100V 20K 调至满格 PNP 零电流 2A 500mA 1V 10V/50A 0 调至5V PNP 正常 200uA 10级 正常 0 倒置
1N5392二极管

1N5392二极管


1000 700 1000
V V V A A V mA mA pF C/W C
1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. Thermal Resistance from Junction to Ambient .375" (9.5mm) lead length.
50
.01
.6
.7
.8
.9
1.0
1.1
1.2
Байду номын сангаас
1.3
FORWARD VOLT AGE,(V)
40
30
Tj=25 C 8.3ms Single Half Sine Wave JEDEC method
20
10
FIG.3 - TYPICAL REVERSE CHARACTERISTICS 100
0 1 5 10 50 100
NOTES:
1N5391
1N5392 1N5393 1N5395
1N5397 1N5398 1N5399 UNITS
50 35 50
100 70 100
200 140 200
400 280 400 1.5 50 1.0 5.0 50 20 50 -65 +175
600 420 600
800 560 800
.300(7.6) .230(5.8)
.034(.9) .028(.7) DIA.
1.0(25.4) MIN.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
二极管1N5399参数资料PDF

二极管1N5399参数资料PDF

⼆极管1N5399参数资料PDFFEATURESLow coat construction Low forward voltage drop Low reverse leakageHigh forward surge current capabilityHigh temperature soldering guaranteed:260℃/10 secods/.375”(9.5mm)lead length at 5 lbs(2.3kg) tensionMECHANICAL DATACase: Transfer molded plasticEpoxy: UL94V-O rate flame retardant Polarity: Color band denotes cathode endLead: Plated axial lead, solderable per MIL-STD-202E method 208C Mounting position: AnyWeight: 0.012 ounce, 0.33 gramsMAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICSRatings at 25O C ambient temperature unless otherwise specified Single Phase, half wave, 60Hz, resistive or inductive load ?For capacitive load derate current by 20%SYMBOLS1N 5391 1N 5392 1N5393 1N 5394 1N 5395 1N 5396 1N 5397 1N 5398 1N5399UNITMaximum Repetitive Peak Reverse Voltage V RRM 50 100 200 300 400 500 600 800 1000 Volts Maximum RMS Voltage V RMS 35 70 140 210 280 350 420 560 700 Volts Maximum DC Blocking VoltageV DC 50 100 200 300 400 500 600 800 100 VoltsMaximum Average Forward Rectified Current 0.375”(9.5mm) lead length at T A = 70℃ I (AV) 1.5 Amps Peak Forward Surge Current8.3mS single half sine wave superimposed on rated load (JEDEC method)I FSM 30 Amps Maximum Instantaneous Forward Voltage @ 1.0A V F 1.1 Volts T A = 25℃ 5.0 Maximum DC Reverse Current at Rated DC Blocking Voltage per elementT A = 100℃I R 50 µA Maximum Full Load Reverse Current, full cycle average 0.375”(9.5mm)lead length at T L =75℃ I R(AV) 30 µA Typical Junction Capacitance (Note 1) C J 13 pFTypical Thermal Resistance (Note 2) R θJA 50℃/W Operating Junction Temperature Range T J -55 to +150 ℃Storage Temperature RangeT STG-55 to +150℃Notes:1. Measured at 1.0MHz and Applied Reverse Voltage of 4.0V DC.2. Thermal Resistance from junction to ambient at 0.375”(9.5mm) lead length, P.C.board mounted with 0.2”×0.2”(5.0×5.0mm) copper pads .DIA..034(0.9).028(0.7).140(3.6).104(2.6)1.0(25.4)MIN..300(7.6).230(5.8)1.0(25.4)MIN.DIA.DO-15Dimensions in inches and (millimeters)CURRENT 1.5 AmperesI N S T A N T A N E O U S R E V E R S E C U R R E N T ,I N S T A N T A N E O U S F O R W A R D C U R R E N T , C A P A C I T A N C E ,(p F )TJ=25°C F=1MHzREVERSE VOLTAGE,(VOLTS)100.14.01.010.0FIG.5-TYPICAL JUNCTION CAPACITANCEINSTANTANEOUS FORWARD VOLTAGE,(V)10100(A )0.11Pulse Width=300us 1% Duty CycleT =25°C100PERCENT OF RATED PEAKREVERSE VOLTAGE,(%)(m A )0.010.11.0T =25°C AMBIENT TEMPERATURE, (°C)FORWARD CHARACTERISTICS FIG.3-TYPICAL INSTANTANEOUS(A )A V E R A G E F O R W A R D C U R R E N T ,25Resistive orHalf Wave 60Hz Inductive LoadSingle Phase 0050125FIG.1-TYPICAL FORWARD CURRENTDERATING CURVEFIG.4-TYPICAL REVERSE FORWARD SURGE CURRENT(JEDEC Method) =T 8.3ms Single Half Sine-Wave NUMBER OF CYCLES AT 60 Hz 10P E A K F O R W A R D S U R G EC U R R E N T , (A )CHARACTERISTICST =100°C jmaxT FIG.2-MAXIMUM NON-REPETITIVE PEAK0.30.60.91.21.51.8102030405060RATING AND CHRACTERISTIC CURVES 1N539 Thur 1N5399。
