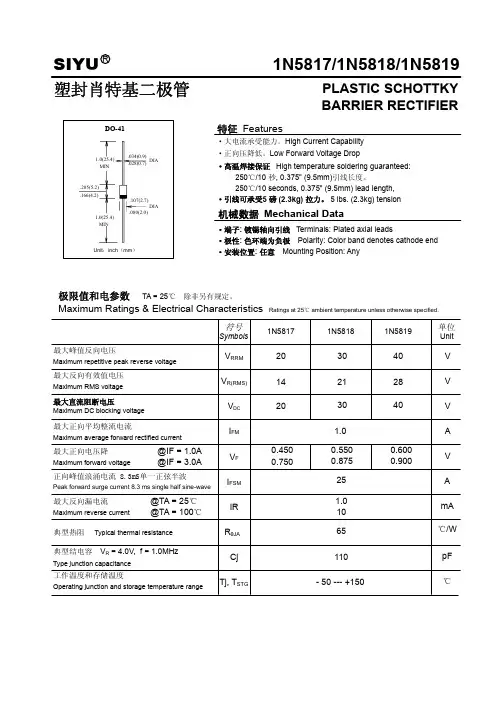

Schottky Rectifier, 1.0 AFEATURES•Low profile, axial leaded outline •High frequency operation•Very low forward voltage drop•High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance•Guard ring for enhanced ruggedness and long term reliability•Compliant to RoHS Directive 2002/95/EC •Designed and qualified for commercial level•Halogen-free according to IEC 61249-2-21 definition (-M3 only)DESCRIPTIONThe VS-1N5819... axial leaded Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage. T ypical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.PRODUCT SUMMARYPackage DO-204AL (DO-41)I F(AV) 1 A V R 40 VV F at I F 0.55 V I RM max.12 mA at 125 °CT J max.150 °C Diode variationSingle die E ASSee Electrical tableMAJOR RATINGS AND CHARACTERISTICSSYMBOL CHARACTERISTICSVALUES UNITS I F(AV)Rectangular waveform1.0A V RRM 40V I FSM t p = 5 μs sine 225A V F 1 Apk, T J = 25 °C 0.55V T JRange- 40 to 150°CVOLTAGE RATINGSPARAMETERSYMBOLVS-1N5819VSS-1N5819-M3UNITS Maximum DC reverse voltageV R 4040VMaximum working peak reverse voltageV RWMABSOLUTE MAXIMUM RATINGSPARAMETERSYMBOL TEST CONDITIONSVALUES UNITSMaximum average forward current See fig. 4I F(AV)50 % duty cycle at T L = 90 °C, rectangular waveform 1.0A Maximum peak one cycle non-repetitive surge current See fig. 6I FSM5 µs sine or 3 µs rect. pulseFollowing any rated load condition and with rated V RRM applied22510 ms sine or 6 ms rect. pulse35Note(1)Pulse width < 300 μs, duty cycle < 2 %Note(1)Mounted 1" square PCB, thermal probe connected to lead 2 mm from packageELECTRICAL SPECIFICATIONSPARAMETER SYMBOLTEST CONDITIONSVALUES UNITSMaximum forward voltage dropSee fig. 1V FM (1)1 A T J = 25 °C0.6V 2 A0.733 A 0.91 A T J = 125 °C0.552 A 0.633 A 0.79Maximum reverse leakage current See fig. 2I RM (1)T J = 25 °CV R = Rated V R 1.0mA T J = 100 °C 6.0T J = 125 °C12Maximum junction capacitance C T V R = 5 V DC (test signal range 100 kHz to 1 MHz) 25 °C 60pF Typical series inductance L S Measured lead to lead 5 mm from package body 8.0nH Maximum voltage rate of change dV/dtRated V R10 000V/µs THERMAL - MECHANICAL SPECIFICATIONSPARAMETERSYMBOL TEST CONDITIONSVALUES UNITS Maximum junction and storage temperature rangeT J , T Stg - 40 to 150°C Maximum thermal resistance, junction to lead R thJL (1)DC operation See fig. 480°C/W Approximate weight 0.33g 0.012oz.Marking deviceCase style DO-204AL (DO-41)1N5819Reverse VoltageAverage Forward CurrentFig. 6 - Typical Non-Repetitive Surge CurrentNote(1)Formula used: T C = T J - (Pd + Pd REV) x R thJC;Pd = Forward power loss = I F(AV) x V FM at (I F(AV)/D) (see fig. 6); Pd REV = Inverse power loss = V R1 x I R (1 - D); I R at V R1 = 80 % rated V RORDERING INFORMATION TABLEORDERING INFORMATION (Example)PREFERRED P/N QUANTITY PER T/R MINIMUM ORDER QUANTITY PACKAGING DESCRIPTION VS-1N581910001000BulkVS-1N5819TR50005000Tape and reelVS-1N5819-M310001000BulkVS-1N5819TR-M350005000Tape and reelLINKS TO RELATED DOCUMENTSDimensions /doc?95241Part marking information /doc?95304Packaging information /doc?95338Outline Dimensions Vishay SemiconductorsAxial DO-204AL (DO-41)DIMENSIONS in millimeters (inches)Legal Disclaimer Notice VishayDisclaimerALL PRODU CT, PRODU CT SPECIFICATIONS AND DATA ARE SU BJECT TO CHANGE WITHOU T NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product.Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein.Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.Material Category PolicyVishay Intertechnology, Inc. hereb y certifies that all its products that are identified as RoHS-Compliant fulfill the definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (EEE) - recast, unless otherwise specified as non-compliant.Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.分销商库存信息:VISHAY1N5819TR1N58191N5819-E3/73。
