XL4201E1技术资料
XL4201E1技术资料
描述

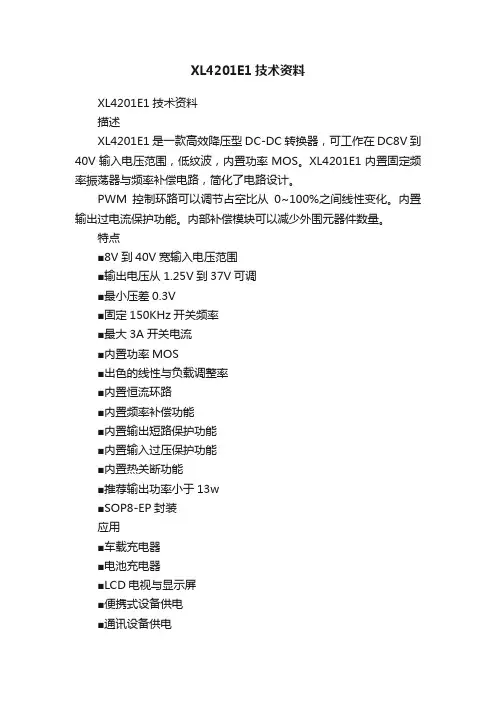

XL4201E1是一款高效降压型DC-DC转换器，可工作在DC8V到40V输入电压范围，低纹波，内置功率MOS。

XL4201E1内置固定频率振荡器与频率补偿电路，简化了电路设计。

PWM控制环路可以调节占空比从0~100%之间线性变化。

内置输出过电流保护功能。

内部补偿模块可以减少外围元器件数量。

特点
■8V到40V宽输入电压范围
■输出电压从1.25V到37V可调
■最小压差0.3V
■固定150KHz开关频率
■最大3A开关电流
■内置功率MOS
■出色的线性与负载调整率
■内置恒流环路
■内置频率补偿功能
■内置输出短路保护功能
■内置输入过压保护功能
■内置热关断功能
■推荐输出功率小于13w
■SOP8-EP封装
应用
■车载充电器
■电池充电器
■LCD电视与显示屏
■便携式设备供电
■通讯设备供电
■降压恒流驱动■显示器LED背光■通用LED照明。

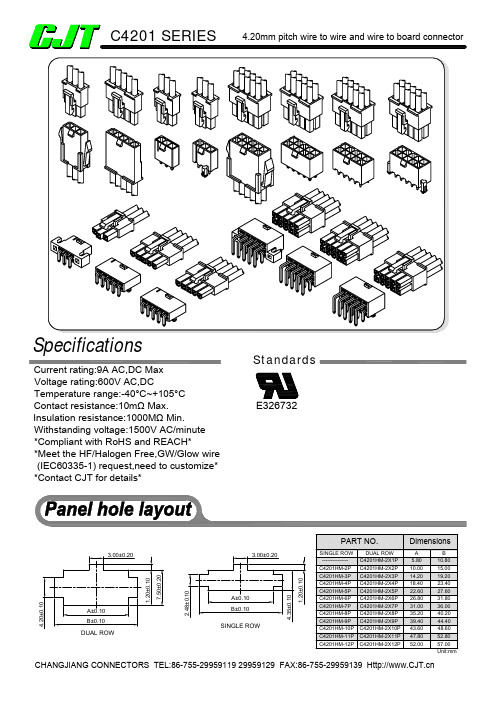

SpecificationsVoltage rating:600V AC,DCTemperature range:-40°C~+105°C Contact resistance:10m ΩMax.Insulation resistance:1000M Ω Min.Withstanding voltage:1500V AC/minute *Compliant with RoHS and REACH**Meet the HF/Halogen Free,GW/Glow wire (IEC60335-1) request,need to customize**Contact CJT for details*E326732StandardsDUAL ROW121231234123451234562P3P4P5P6P2P3P4P5P6PC4201HMC4201HMAC4201HF12P 11P10P9P8P7P12P11P10P9P8P7P2P3P4P5P6PC4201WV C4201WVA-F 12P 11P10P9P8P7P2P3P4P5P6P12P11P10P9P8P7PC4201WR C4201WR-E2x2P 2x3P 2x4P 2x5P 2x6P 2x12P 2x11P 2x10P 2x9P 2x8P2x7P2x2P 2x3P 2x4P 2x5P 2x6P 2x12P 2x11P 2x10P 2x9P 2x8P2x7P2x12P2x11P2x10P2x9P2x7P2x8P2x2P 2x3P 2x4P 2x5P 2x6PReference Informations:*Used in CJT C4201HF series HousingOrdering information Unit:mmReference Informations:*Used in CJT C4201HM or C4201HMA series HousingOrdering information & Specifications:Unit:mmSEC:B-BSEC:A-ASEC:B-BReference Informations:*Used in CJT C4201HF series HousingOrdering information Unit:mmReference Informations:*Used in CJT C4201HM or C4201HMA series HousingOrdering information & Specifications:Unit:mmSEC:A-ASEC:B-BReference Informations:*Used in CJT C4201HF series HousingOrdering information Unit:mmReference Informations:*Used in CJT C4201HM or C4201HMA series HousingOrdering information & Specifications:Unit:mmSEC:B-BReference Informations:Reference Informations:*Material:Nylon 66,UL94V-2 or UL94V-0*Suitable CJT C4201F series Terminal*Mates with CJT C4201HM,C4201HMA series dual row Housing or C4201 series dual row Wafer *Color:NaturalOrdering Information & Dimensions:Ordering Information:Ordering Information:C4201HF-2xXP - ** 1 21.Part No.2.Material:(blank):UL94V-2 /Natural V0:UL94V-0/WhiteReference Informations:*Material:Nylon 66,UL94V-2 or UL94V-0*Suitable CJT C4201M series Terminal*Mates with CJT C4201HF series dual row HousingReference Informations:*Material:Nylon 66,UL94V-2 or UL94V-0*Suitable CJT C4201M series Terminal*Mates with CJT C4201HM series dual row Housing *Color:NaturalOrdering Information & Dimensions:Ordering Information & Dimensions:Ordering Information:C4201HM-2xXP - ** 1 21.Part No.2.Material:Ordering Information:C4201HMA-2xXP - ** 1 21.Part No.2.Material:(blank):UL94V-2 /NaturalReference Informations:*Material:Pin:Brass/Tin over NickelInsulator:Nylon 66,UL94V-2 or UL94V-0Ordering Information:C4201WV-XP - ** 1 2Reference Informations:*Material:Pin:Brass/Tin over NickelOrdering Information:C4201WR-XP - ** 1 2Reference Informations:*Material:Pin:Brass/Tin over NickelOrdering Information:C4201WV-2xXP - **Reference Informations:*Material:Pin:Brass/Tin over NickelInsulator:Nylon 66,UL94V-2 or UL94V-0*Mates with CJT C4201HF series dual row HousingOrdering Information & Dimensions:Reference Informations:*Material:Pin:Brass/Tin over NickelInsulator:Nylon 66,UL94V-2 or UL94V-0*Mates with CJT C4201HF series dual row Housing *Color:NaturalOrdering Information & Dimensions:Ordering Information:C4201WVA-2xXP - ** 1 21.Part No.2.Material:(blank):UL94V-2/Natural Ordering Information:C4201WVA-F-2xXP - ** 1 21.Part No.2.Material:(blank):UL94V-2/NaturalReference Informations:*Material:Pin:Brass/Tin over NickelInsulator:Nylon 66,UL94V-2 or UL94V-0*Mates with CJT C4201HF series dual row HousingOrdering Information & Dimensions:Reference Informations:*Material:Pin:Brass/Tin over NickelInsulator:Nylon 66,UL94V-2 or UL94V-0*Mates with CJT C4201HF series dual row Housing Ordering Information & Dimensions:Ordering Information:C4201WR-2xXP - ** 1 21.Part No.2.Material:Ordering Information:C4201WR-E-2xXP - ** 1 21.Part No.2.Material:Reference Informations:*Material:Pin:Brass/Tin over NickelInsulator:Nylon 66,UL94V-2 or UL94V-0*Mates with CJT C4201HF-2x3P-B special type*Color:BlackOrdering Information:C4201WR-F-2x3P-A - ** 1 21.Part No.2.Material:Reference Informations:Reference Informations:*Material:Nylon 66,UL94V-2 or UL94V-0*Suitable CJT C4201M series Terminal*Mates with CJT C4201HMB series dual row Housing or C4201WVA-F1,C4201WR-F1 series dual row Wafer Ordering Information & Dimensions:Ordering Information:C4201HMB-2xXP - ** 1 21.Part No.2.Material:(blank):UL94V-2/Natural V0:UL94V-0/WhiteOrdering Information:C4201WVA-F1-2xXP - **Reference Informations:*Material:Pin:Brass/Tin over NickelInsulator:Nylon 66,UL94V-2 or UL94V-0*Mates with CJT C4201HF,C4201HV series dual row HousingOrdering Information & Dimensions:Ordering Information:C4201WR-F1-2xXP - ** 1 21.Part No.2.Material:(blank):UL94V-2/Natural。

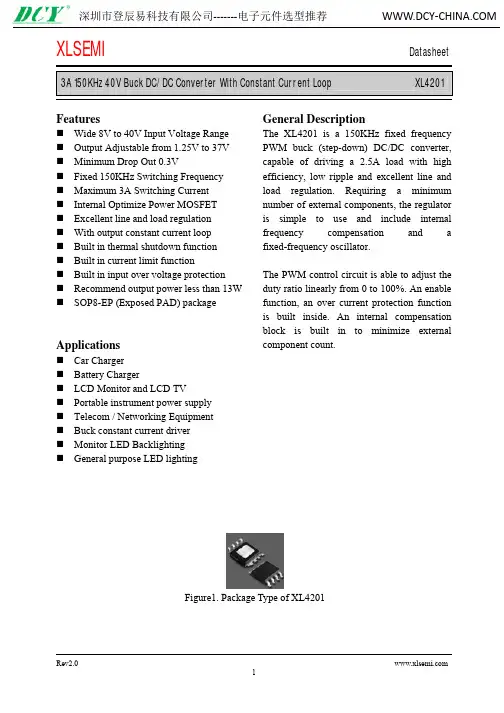

3A 150KHz 40V Buck DC/DC Converter With Constant Current Loop XL4201FeaturesWide 8V to 40V Input Voltage Range Output Adjustable from 1.25V to 37V Minimum Drop Out 0.3VFixed 150KHz Switching Frequency Maximum 3A Switching Current Internal Optimize Power MOSFET Excellent line and load regulation With output constant current loop Built in thermal shutdown function Built in current limit functionBuilt in input over voltage protection Recommend output power less than 13W SOP8-EP (Exposed PAD) packageApplicationsCar Charger Battery ChargerLCD Monitor and LCD TVPortable instrument power supply Telecom / Networking Equipment Buck constant current driver Monitor LED BacklightingGeneral purpose LED lightingGeneral DescriptionThe XL4201 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2.5A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.Figure1. Package Type of XL42013A 150KHz 40V Buck DC/DC Converter With Constant Current Loop XL42013A 150KHz 40V Buck DC/DC Converter With Constant Current Loop XL4201 Figure4. XL4201 Typical Application Circuit (Li Battery Charger)3A 150KHz 40V Buck DC/DC Converter With Constant Current Loop XL42013A 150KHz 40V Buck DC/DC Converter With Constant Current Loop XL42013A 150KHz 40V Buck DC/DC Converter With Constant Current Loop XL4201Figure6. XL4201 System Parameters Test Circuit (VIN=8V~40V, VOUT=5V/0.1A~2.5A)EFFICIENCY VS OUTPUT CURRENT3A 150KHz 40V Buck DC/DC Converter With Constant Current Loop XL42013A 150KHz 40V Buck DC/DC Converter With Constant Current Loop XL42013A 150KHz 40V Buck DC/DC Converter With Constant Current Loop XL42013A 150KHz 40V Buck DC/DC Converter With Constant Current Loop XL42013A 150KHz 40V Buck DC/DC Converter With Constant Current Loop XL42013A 150KHz 40V Buck DC/DC Converter With Constant Current Loop XL4201 Figure22. XL4201 System Parameters Test Circuit3A 150KHz 40V Buck DC/DC Converter With Constant Current Loop XL4201 Package Information (SOP8-EP)3A 150KHz 40V Buck DC/DC Converter With Constant Current Loop XL4201 Important NoticeXLSEMI reserve the right to make modifications, enhancements, improvements, corrections or other changes without notice at any time. XLSEMI does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. XLSEMI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and applications using XLSEMI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide adequate design and operating safeguards. XLSEMI warrants performance of its products to the specifications applicable at the time of sale, in accordance with the warranty in XLSEMI’s terms and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent XLSEMI deems necessary to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily performed.For the latest product information, go to .。

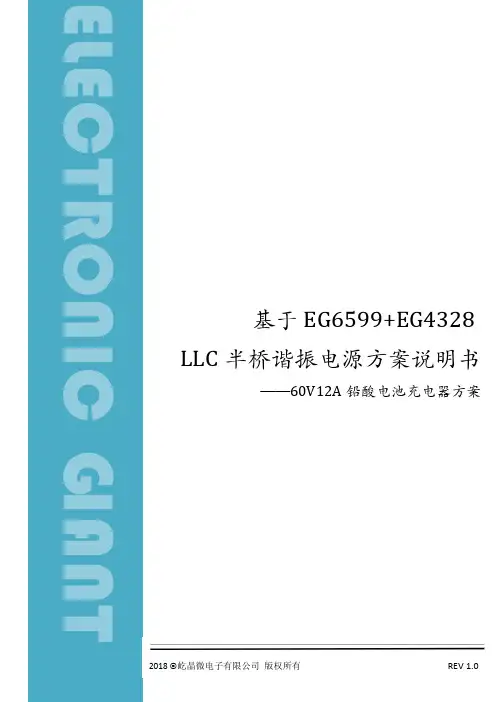

版本变更记录目录1 方案特性 (1)2 应用领域 (1)3 效率测试 (2)3.1 输入DC (2)3.1.1 效率曲线 (2)3.1.2 最高效率点现场图 (2)3.2 输入AC220V (3)3.2.1 效率曲线 (3)3.2.2 最高效率点现场图 (3)4 方案图片 (4)4.1 PCBA图 (4)5 LLC半桥谐振拓扑原理说明 (4)6 方案原理图及工作原理描述 (5)6.1 LLC频率设置 (6)6.2 恒压输出设置 (6)6.3 浮充电压设置 (6)6.4 输出电流设置 (6)6.5 转灯和风扇开启电流设置 (6)7 方案PCB (7)7.1 元器件位图以及走线图 (7)7.1.1 底板 (7)7.1.2 辅助电源 (7)8 方案板元器件列表 (8)8.1 BOM表 (8)8.2 关键元器件选型 (10)8.2.1 开关MOS管 (10)8.2.2 变压器 (10)60V12A铅酸电池充电器方案说明书1 方案特性⏹前级采用高压谐振变换器控制芯片EG6599⏹后级采用可编程电源管理芯片EG4328⏹输入电压范围：AC 220±10%⏹恒流输出：12.0A±1A （可定制）⏹恒压输出：DC73.5V±0.2V （可定制）⏹浮充电压：DC68.8V±0.2V（可定制）⏹转灯电流：2A±0.1A （可定制）⏹智能化充电管理，多重定时控制，可以防止电池过充⏹充电智能温度控制，高温充电功率智能下降，更好的保护充电器⏹可定制为锂电池充电器⏹输出短路保护反接保护⏹LED充电指示灯、12V风扇接口⏹PCBA尺寸：L163.5mm × W105.5mm× H55mm2 应用领域⏹电动三轮车充电器⏹电动四轮车充电器3 效率测试3.1 输入DC3.1.1 效率曲线备注：输入DC电压接输入电解电容两端。

3.1.2 最高效率点现场图输入功率输出功率效率图3-1 负载8A效率现场图注：效率=输出功率/输入功率。

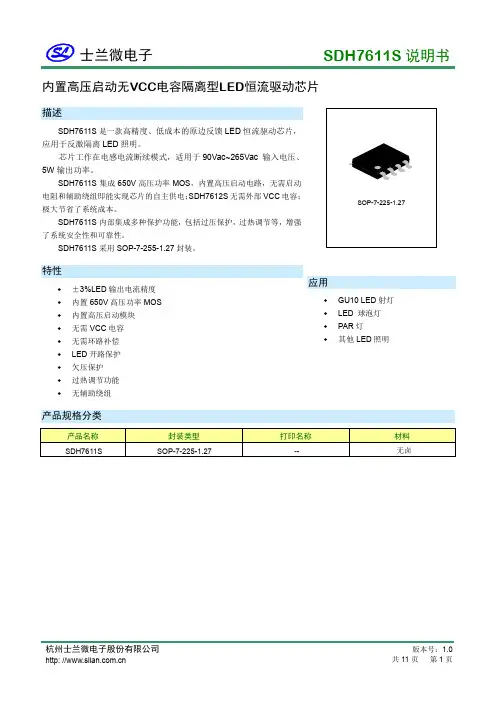

内置高压启动无VCC电容隔离型LED恒流驱动芯片描述SDH7611S是一款高精度、低成本的原边反馈LED恒流驱动芯片，应用于反激隔离LED照明。

芯片工作在电感电流断续模式，适用于90Vac~265Vac 输入电压、5W输出功率。

SDH7611S集成650V高压功率MOS，内置高压启动电路，无需启动电阻和辅助绕组即能实现芯片的自主供电；SDH7612S无需外部VCC电容；极大节省了系统成本。

SDH7611S内部集成多种保护功能，包括过压保护，过热调节等，增强了系统安全性和可靠性。

SDH7611S采用SOP-7-255-1.27封装。

特性♦±3%LED输出电流精度♦内置650V高压功率MOS♦内置高压启动模块♦无需VCC电容♦无需环路补偿♦LED开路保护♦欠压保护♦过热调节功能♦无辅助绕组应用♦GU10 LED射灯♦LED 球泡灯♦PAR灯♦其他LED照明产品规格分类内部框图极限参数(除非特殊说明，T=25︒C)amb电气参数 (内置MOSFET 部分, 除非特别说明, T amb =25︒C)电气参数(除非特殊说明，V CC =10V ，T amb =25︒C)管脚排列图HVNC CSNC管脚描述功能描述SDH7611S芯片各功能具体描述如下。

1.启动控制SDH7611S集成了高压启动供电电路，无需启动电阻和辅助绕组供电。

芯片通过HV端直接从高压端口取电，给内部电源VCC供电，极大的简化了外围电路，同时也减小了系统启动时间。

系统上电后，芯片通过HV端、经过高压启动电路给VCC电容充电，当VDD电压达到芯片开启阈值时，芯片开始工作；VCC内部有钳位电路；功率管每次导通时，瞬间会有比较大的导通损耗，VCC会瞬间掉电，高压供电模块会立即给VCC供电，重新把VCC冲到钳位电压。

2.恒流控制LED输出电流计算公式为：其中Np是变压器源边匝数；Ns是副边匝数。

Vcs为内部基准电压，0.6V。

Rcs为电流采样电阻。

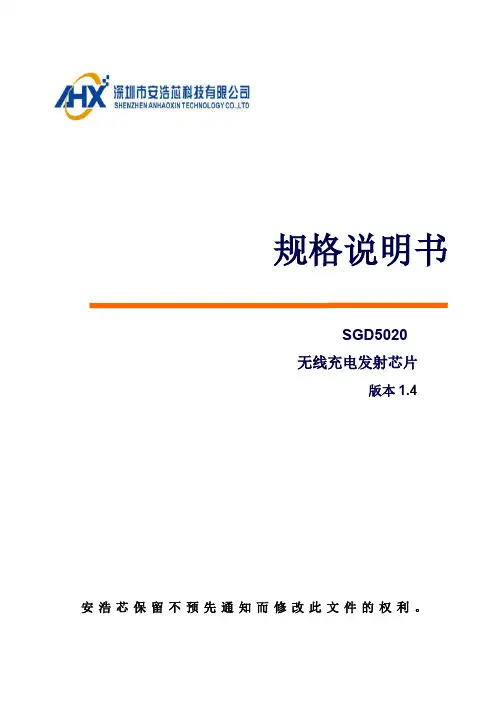

规格说明书SGD5020无线充电发射芯片版本1.4安浩芯保留不预先通知而修改此文件的权利。

目录1.概述 (3)2.特性 (3)3.应用 (3)4.引脚说明 (4)5.功能模块框图 (5)6.封装尺寸图 (5)7.应用电路图 (6)8.电气参数 (7)9.修改记录 (7)1. 概述目前此款无线充电发射芯片，集成功率驱动，频率控制，外围器件非常精简，采用COMS宽电压制程工艺，具有精度高稳定性好特点。

在无线感应充电、供电管理系统应用中可靠性能高和灵活。

内部集成高电压低内阻的功率NMOS FET，产品上应用更加有优势和效率更高。

2. 特性◆内置的PWM发生器和功率级技术◆宽工作电压：3V至15V◆集成60V 85 mΩ NMOS FET，确保高效率与低功耗◆单片式无线功率发送器◆外围器件非常简单，只需几个普通外围器件◆PWM频率精度高稳定性好3. 应用◆电隔离设备◆防水产品◆美容美肤产品◆电动剃须刀◆成人用品◆鱼缸◆手持式仪器◆数码产品4. 引脚说明内置功率管的漏端，外部连接并联LC 线圈5. 功能模块框图GNDSWVDD6. 封装尺寸图SOP87. 应用电路图1、C3电容采用耐压100V以上的NPO电容或者涤纶电容，薄膜电容。

2、L1是发射线圈，尽量采用多股线绕制以便减小谐振内阻，根据接收端线圈尺寸去绕制对应尺寸和形状3、C1电容尽量靠近芯片，到芯片VIN和AGND的走线尽量短和粗4、C3电容两个焊盘和L1线圈两焊盘尽量靠近，走线尽量短和粗5、C3电容焊盘跟L1线圈相连那端，尽量靠近L1焊盘，走线尽量短和粗，C3另外一个焊盘尽量靠近电源进入接地那个焊盘，走线也尽量短和粗6、R1,R2,C4，这三个器件尽量靠近芯片7、R2和C4是调整SW端口的频率用，公式是：F=1/(2.7*R2*C4)，电阻使用1%精度的，电容使用高精度的NPO电容。

使用较大容值的电容，会降低寄生电容的影响，减小频率离散度，建议电容取值500P~1000P较好,频率可控范围 +/- 5% 。
